service indicator HONDA CR-V HYBRID 2020 Owner's Manual (in English)

Quick Reference Guide
37
Handling the Unexpected (P623)
Flat Tire (P625)
●Park in a safe location and repair the flat
tire using the tire repair kit in the cargo
area.
Indicators Come On
(P648)
●Identify the indicator and consult the
owner's manual.
Power System Won't
Start
(P640)
●If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse (P655)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P645)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power system cool down.
Emergency Towing (P659)
●Call a professional towing service if you
need to tow your vehicle.
20 CR-V HYBRID HMIN-31TPG6000.book 37 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

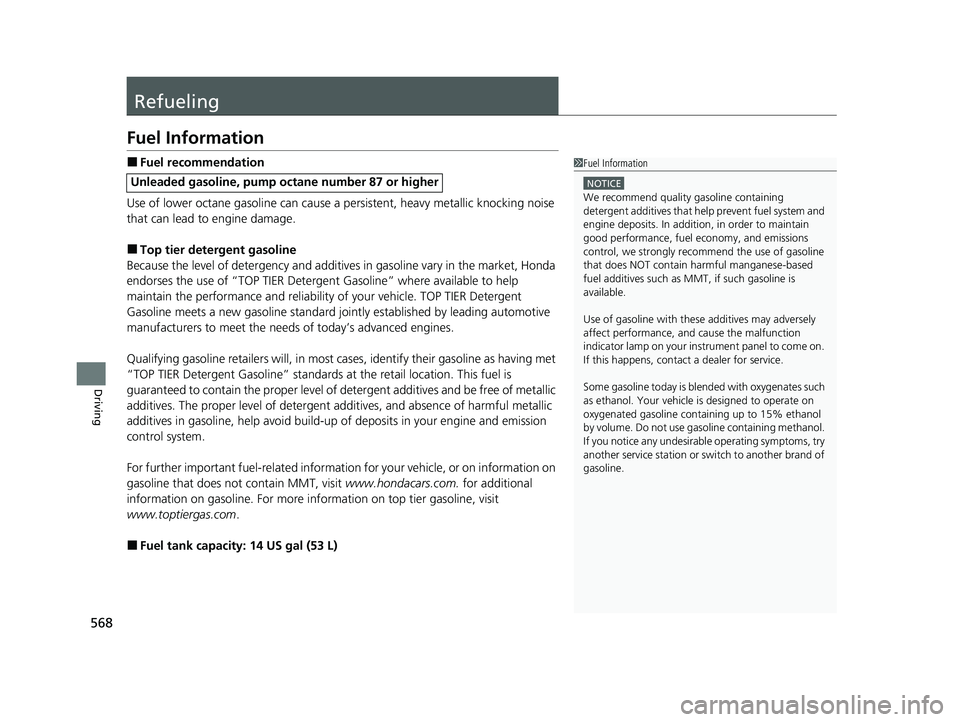

568
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additives in gasoline vary in the market, Honda
endorses the use of “TOP TIER Deterg ent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard join tly established by leading automotive
manufacturers to meet the need s of today’s advanced engines.
Qualifying gasoline retailers will, in most ca ses, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-rel ated information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. for additional
information on gasoline. For more info rmation on top tier gasoline, visit
www.toptiergas.com .
■Fuel tank capacity: 14 US gal (53 L)
Unleaded gasoline, pump oc tane number 87 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
20 CR-V HYBRID HMIN-31TPG6000.book 568 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

573
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 574
Safety When Performing Maintenance ..575Parts and Fluids Used in Maintenance Service ........................................... 576
Maintenance Minder
TM..................... 577
Maintenance Under the Hood Maintenance Items Under the Hood .. 582
Opening the Hood ........................... 583
Recommended Engine Oil ................ 584
Oil Check ......................................... 585
Adding Engine Oil ............................ 586
Changing the Engine Oil and Oil Filter ...587
Cooling System ................................ 589
Transmission Fluid ............................ 591
Brake Fluid ....................................... 592
Refilling Window Washer Fluid......... 593
Replacing Light Bulbs ....................... 594
Checking and Maintaining Wiper Blades.. 597Checking and Maintaining Tires
Checking Tires ................................. 602
Tire and Loading Information Label ...... 603Tire Labeling .................................... 603DOT Tire Quality Grading (U.S. Vehicles).. 605Wear Indicators................................ 607
Tire Service Life ................................ 607 Tire and Wheel Replacement ........... 608
Tire Rotation .................................... 609
Winter Tires ..................................... 610
12-volt Battery .................................. 611
Remote Transmitter Care Replacing the Button Battery ........... 613
Climate Control System Maintenance .. 614Cleaning
Interior Care .................................... 615
Exterior Care.................................... 617
Accessories and Modifications .......... 620
20 CR-V HYBRID HMIN-31TPG6000.book 573 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

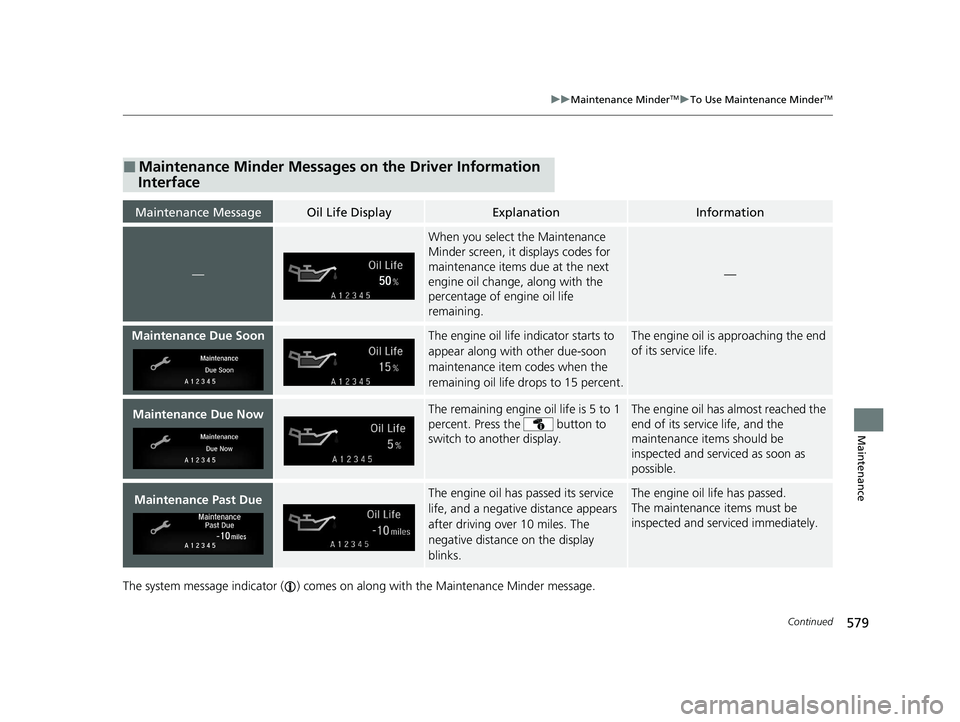

579
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
The system message indicator ( ) comes on along with the Maintenance Minder message.
■Maintenance Minder Messages on the Driver Information
Interface
Maintenance MessageOil Life DisplayExplanationInformation
—
When you select the Maintenance
Minder screen, it displays codes for
maintenance items due at the next
engine oil change, along with the
percentage of engine oil life
remaining.
—
Maintenance Due SoonThe engine oil life indicator starts to
appear along with other due-soon
maintenance item codes when the
remaining oil life drops to 15 percent.The engine oil is approaching the end
of its service life.
Maintenance Due NowThe remaining engine oil life is 5 to 1
percent. Press the button to
switch to another display.The engine oil has almost reached the
end of its service life, and the
maintenance items should be
inspected and serviced as soon as
possible.
Maintenance Past DueThe engine oil has passed its service
life, and a negative distance appears
after driving over 10 miles. The
negative distance on the display
blinks.The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
20 CR-V HYBRID HMIN-31TPG6000.book 579 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

580
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date fo r tire repair kit bottle●Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 47,500 miles (75,000 km) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid
7●Replace brake fluid*5
20 CR-V HYBRID HMIN-31TPG6000.book 580 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

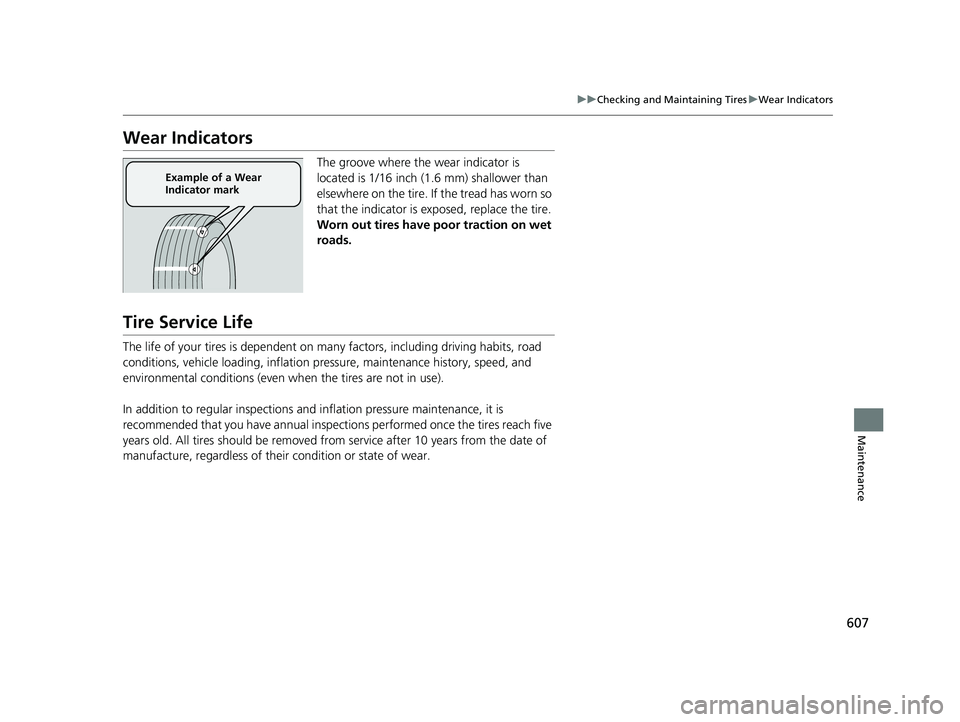

607
uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is ex posed, replace the tire.
Worn out tires have po or traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even wh en the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires should be removed fro m service after 10 years from the date of
manufacture, regardless of their condition or state of wear.
Example of a Wear
Indicator mark
20 CR-V HYBRID HMIN-31TPG6000.book 607 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuJump Starting u
644
Handling the Unexpected
5.Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.
6. If your vehicle is connected to another
vehicle, start the assi sting vehicle's engine
and increase its rpm slightly.
7. Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle's engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's 12-volt battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
1Jump Starting Procedure
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Roa d Departure Mitigation,
Vehicle Stability Assist
TM (VSA ®) system, Vehicle
Stability AssistTM (VSA ®) OFF, Collision Mitigation
Braking SystemTM (CMBSTM), low tire pressure/TPMS,
and Parking Brake and Br ake System (Amber) may
come on along with a message in the Driver
Information Interface when you set the power mode
to ON after reconnecting the 12-volt battery.
Drive a short distance at more than 12 mph (20 km/
h). Each indicator should go off. If any do not, have
your vehicle checked by a dealer.
20 CR-V HYBRID HMIN-31TPG6000.book 644 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

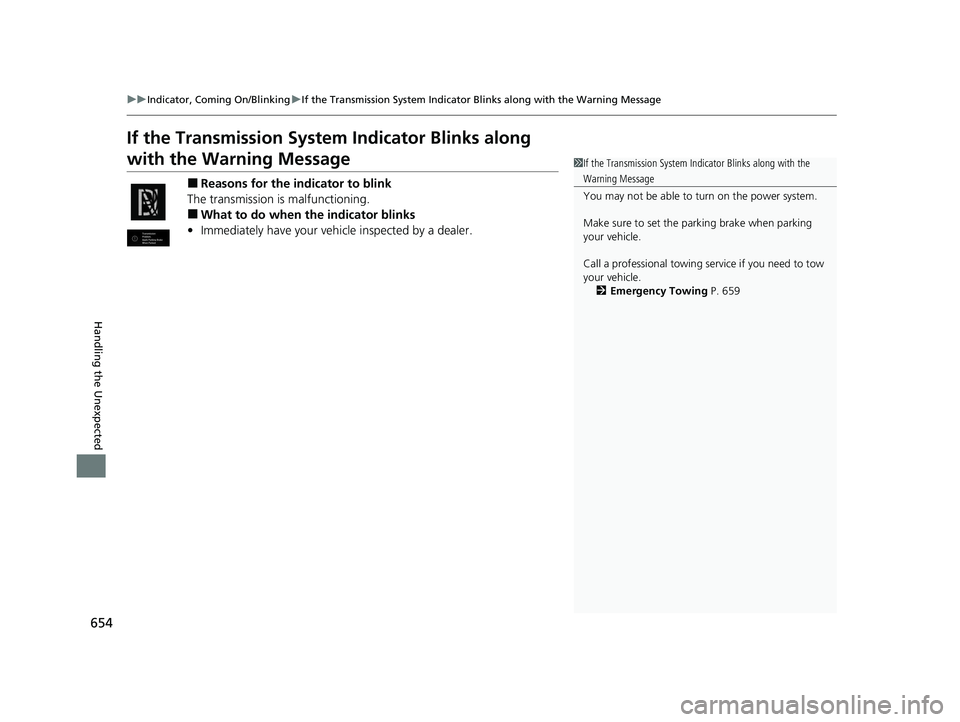

654
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 659
20 CR-V HYBRID HMIN-31TPG6000.book 654 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

678
Index
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 502
Coat Hook ................................................. 221
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 502
Compass .................................................... 453
Continuously Variable Transmission Creeping ................................................. 472
Kickdown ................................................ 472
Controls ..................................................... 147
Coolant (Engine) ....................................... 589
Adding to the Radiator ............................ 590
Adding to the Reserve Tank ..................... 589
Overheating............................................. 645
Creeping (Continuously Variable Transmission) ........................................... 472
Cross Traffic Monitor ................................ 562
Cup Holders ............................................... 219
Customer Service Information ................. 674
Customized Features ................ 138, 359, 366
D
Daytime Running Lights ........................... 191
Dead Battery ............................................. 643
Deceleration Paddle Selector ................... 480
Indicator .................................................... 93
Defaulting All the Settings ...................... 391
Deflation Warning System Indicator .................................................... 97 Defrosting the Windshield and
Windows ................................................. 235
Detachable Anchor .................................... 53
Devices that Emit Radio Waves ............... 667
Dimming
Headlights ............................................... 187
Rearview Mirror....................................... 203
Dipstick (Engine Oil) ................................. 585
Directional Signals (Turn Signal) ............. 186
Display Setup .................................... 253, 291
Display/Information Button ..................... 126
Door Mirrors ............................................. 204
Doors ......................................................... 150
Auto Door Locking .................................. 163
Auto Door Unlocking .............................. 163
Keys ........................................................ 150
Locking/Unlocking the Doors from the
Inside .................................................... 160
Locking/Unlocking the Doors from the
Outside ................................................. 153
Lockout Prevention System ...................... 159
DOT Tire Quality Grading ........................ 605
Driver Information Interface ................... 126
Driver’s Seat Lumbar Support .................. 205
Driving ...................................................... 455
Braking ................................................... 547
Off-Highway Driving Guidelines............... 463
Shifting ................................................... 473
Transmission ........................................... 472
Driving Position Memory System ............ 200
Dust and Pollen Filter ............................... 614
E
Eco Assist® System ...................................... 18
Eco Drive Display ................................ 19, 130
ECON Mode .............................................. 483
Elapsed Time ............................................ 128
Electric Power Steering (EPS) System Indicator ........................................... 96, 652
Electronic Stability Control (ESC) ............ 485
Emergency ................................................ 659
Emissions Testing (Readiness Codes) ...... 669
Engine
Coolant .................................................. 589
Jump Starting ......................................... 643
Number .................................................. 666
Oil .......................................................... 584
Switch Buzzer ......................................... 184
Engine Coolant ........................................ 589
Adding to the Radiator ........................... 590
Adding to the Reserve Tank .................... 589
Overheating ............................................ 645
Engine Oil ................................................. 584
Adding ................................................... 586
Checking ................................................ 585
Displaying Oil Life ................................... 578
Low Oil Pressure Indicator ................. 91, 648
Recommended Engine Oil ....................... 584
EPS (Electric Power Steering) System ............................................... 96, 652
EV Button ................................................... 14
EV Indicator ................................................ 92
EV Mode Indicator ..................................... 92
20 CR-V HYBRID HMIN-31TPG6000.book 678 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

681
Index
Light Switches......................................... 187
Lights On Indicator.................................... 99
Turn Signals ............................................ 186
Load Limits ............................................... 459
Locking/Unlocking ................................... 150
Auto Door Locking/Unlocking ................. 163
Childproof Door Locks ............................ 162
From Inside ............................................. 160
From Outside .......................................... 153
Keys........................................................ 150
Using a Key............................................. 158
Lockout Prevention System ..................... 159
Low Battery Charge ................................. 648
Low Fuel Indicator ..................................... 94
Low Oil Pressure Indicator ................. 91, 648
Low Smart Entry Remote Signal Strength .................................................. 152
Low Tire Pressure/TPMS Indicator ............. 97
Lower Anchors ........................................... 75
Luggage (Maximum Load Limit) ............. 459
Lumbar Support ....................................... 206
Lumbar Support Adjustment Switch ...... 206
M
Maintenance............................................ 573
12-volt Battery ........................................ 611
Brake Fluid .............................................. 592
Cleaning ................................................. 615
Coolant .................................................. 589
Maintenance Minder
TM............................ 577 Oil ........................................................... 585
Precautions .............................................. 574
Radiator .................................................. 590
Remote Transmitter ................................. 613
Replacing Light Bulbs ............................... 594
Safety ...................................................... 575
Service Items ........................................... 580
Tires ........................................................ 602
Transmission Fluid ................................... 591
Under the Hood ...................................... 582
Maintenance Minder ........................ 129, 577
Malfunction Indicator Lamp .............. 92, 649
Map Lights ................................................ 216
Maximum Load Limit ............................... 459
Meters, Gauges ......................................... 124
Mirrors ....................................................... 203
Adjusting ................................................. 203
Door ........................................................ 204
Exterior .................................................... 204
Interior Rearview ..................................... 203
Modifications (and Accessories) .............. 620
Moonroof .................................................. 182
MP3 ................................................... 261, 317
Multi-View Rear Camera .......................... 566
N
Navigation................................................ 137
Numbers (Identification) .......................... 666
O
Odometer................................................. 127
Off-Highway Driving Guidelines ............. 463
Oil (Engine) ............................................... 584
Adding .................................................... 586
Checking................................................. 585
Displaying Oil Life .................................... 578
Low Oil Pressure Indicator ................. 91, 648
Recommended Engine Oil ....................... 584
Viscosity .................................................. 584
Open Source Licenses ............................... 358
Opening/Closing Hood....................................................... 583
Moonroof ............................................... 182
Power Windows ...................................... 178
Tailgate ................................................... 164
Outside Temperature Display .................. 136
Overheating .............................................. 645
P
Pandora®......................................... 259, 315
Panic Mode ............................................... 177
Parking ...................................................... 555
Parking Brake ........................................... 547
Parking Brake and Brake System Indicator (Amber) ............................................. 90, 651
Parking Brake and Brake System Indicator (Red) .......................................... 89, 650, 651
Parking Sensor System ............................. 557
Passenger Front Airb ag Off Indicator....... 68
20 CR-V HYBRID HMIN-31TPG6000.book 681 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
