set clock HONDA CR-V HYBRID 2020 Owner's Manual (in English)

22
Quick Reference Guide
Controls (P147)
Clock (P148)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the selector knob.
•Rotate to select.
•Press to enter.
Models with color audio system
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
aSelect the (Home) icon, then select
Settings.
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
Models with navigation system
Models with Display Audio
34
POWER Button (P183)
Press the button to change the vehicle’s
power mode.
20 CR-V HYBRID HMIN-31TPG6000.book 22 ページ ２０１９年１１月２８日　木曜日　午後１ 時５０分

30
Quick Reference Guide
Audio System (P240)
(P247)Models with color audio system
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
Selector Knob (Phone) Button
20 CR-V HYBRID HMIN-31TPG6000.book 30 ページ ２０１９年１１月２８日　木曜日　午後１
時５０分

148
Controls
Clock
Adjusting the Clock
The clock is automatically updated through the audio system.
You can adjust the time manually in the audio/information screen, with the power
mode is in ON.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
■Adjusting the Time
1Adjusting the Clock
The clock in the driver information interface is
automatically adjusted along with the audio system’s
clock display.Models with Display Audio
All models
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 359Selector Knob
MENU/CLOCK Button
Models with color audio system
20 CR-V HYBRID HMIN-31TPG6000.book 148 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

149
uuClock uAdjusting the Clock
Controls

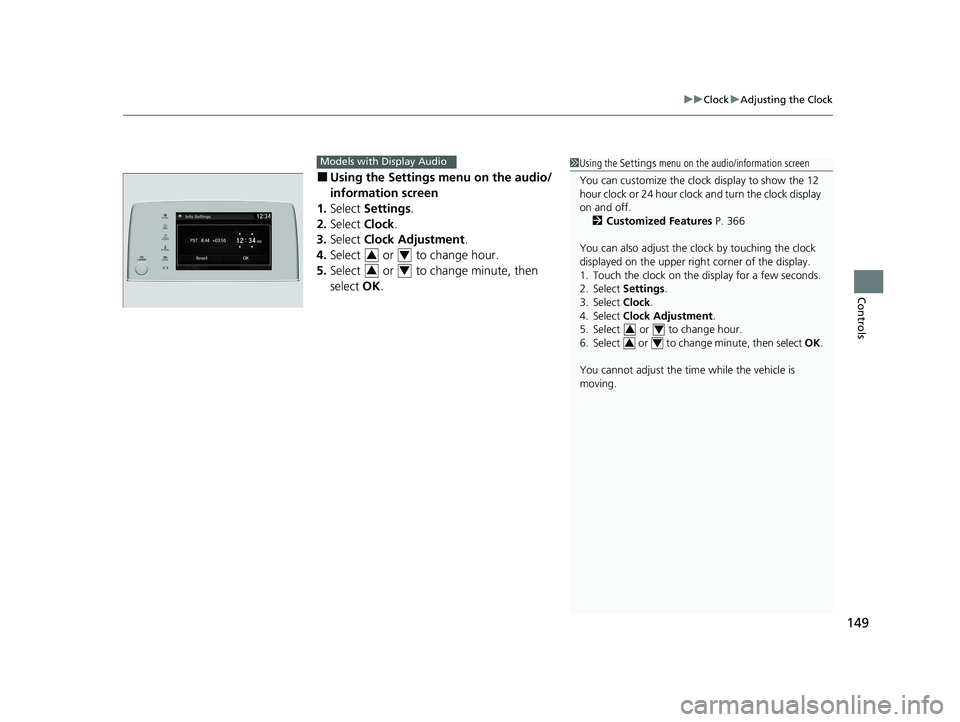

■Using the Settings menu on the audio/
information screen
1. Select Settings .
2. Select Clock.
3. Select Clock Adjustment .
4. Select or to change hour.
5. Select or to change minute, then
select OK.
Models with Display Audio1Using the Settings menu on the audio/information screen
You can customize the clock display to show the 12
hour clock or 24 hour clock a nd turn the clock display
on and off. 2 Customized Features P. 366
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display.
1. Touch the clock on the display for a few seconds.
2. Select Settings .
3. Select Clock .
4. Select Clock Adjustment .
5. Select or to change hour.
6. Select or to change minute, then select OK.
You cannot adjust the time while the vehicle is
moving.
34
34
34
34
20 CR-V HYBRID HMIN-31TPG6000.book 149 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

247
Features

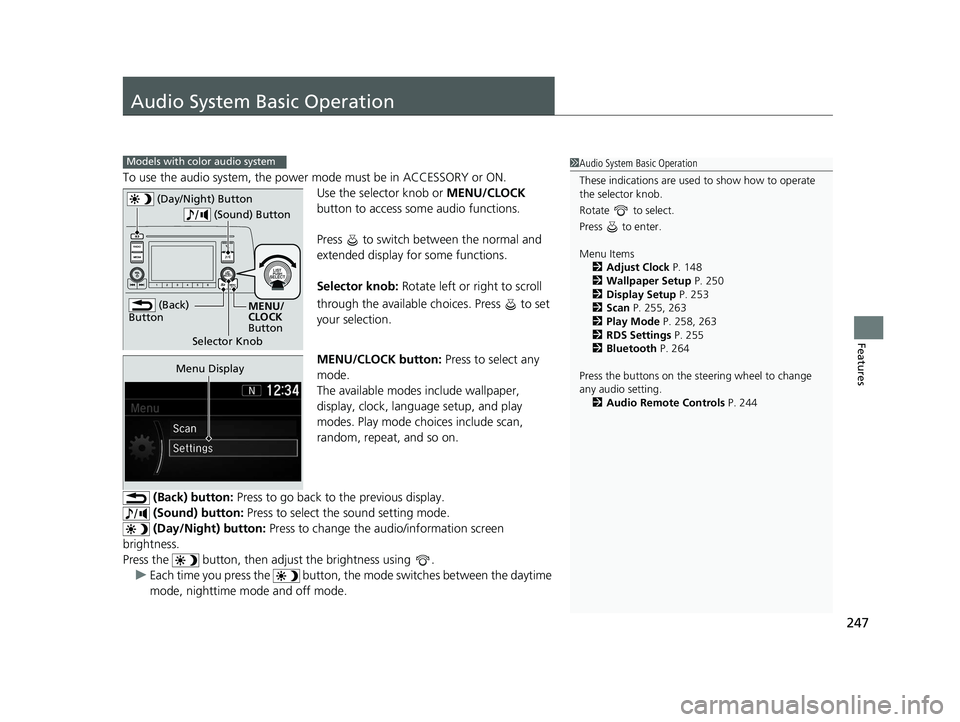

Audio System Basic Operation
To use the audio system, the power mode must be in ACCESSORY or ON.Use the selector knob or MENU/CLOCK
button to access some audio functions.
Press to switch between the normal and
extended display fo r some functions.
Selector knob: Rotate left or right to scroll
through the available ch oices. Press to set
your selection.
MENU/CLOCK button: Press to select any
mode.
The available modes include wallpaper,
display, clock, language setup, and play
modes. Play mode choices include scan,
random, repeat, and so on.
(Back) button: Press to go back to the previous display.
(Sound) button: Press to select the sound setting mode.
(Day/Night) button: Press to change the audio/information screen
brightness.
Press the button, then adjust the brightness using . u Each time you press the button, the mode switches between the daytime
mode, nighttime mode and off mode.
Models with color audio system1 Audio System Basic Operation
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Menu Items 2 Adjust Clock P. 148
2 Wallpaper Setup P. 250
2 Display Setup P. 253
2 Scan P. 255, 263
2 Play Mode P. 258, 263
2 RDS Settings P. 255
2 Bluetooth P. 264
Press the buttons on the steering wheel to change
any audio setting. 2 Audio Remote Controls P. 244
(Back)
Button
Selector Knob MENU/
CLOCK

Button
(Day/Night) Button
(Sound) Button
Menu Display
20 CR-V HYBRID HMIN-31TPG6000.book 247 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

248
uuAudio System Basic Operation uAudio/Information Screen
Features

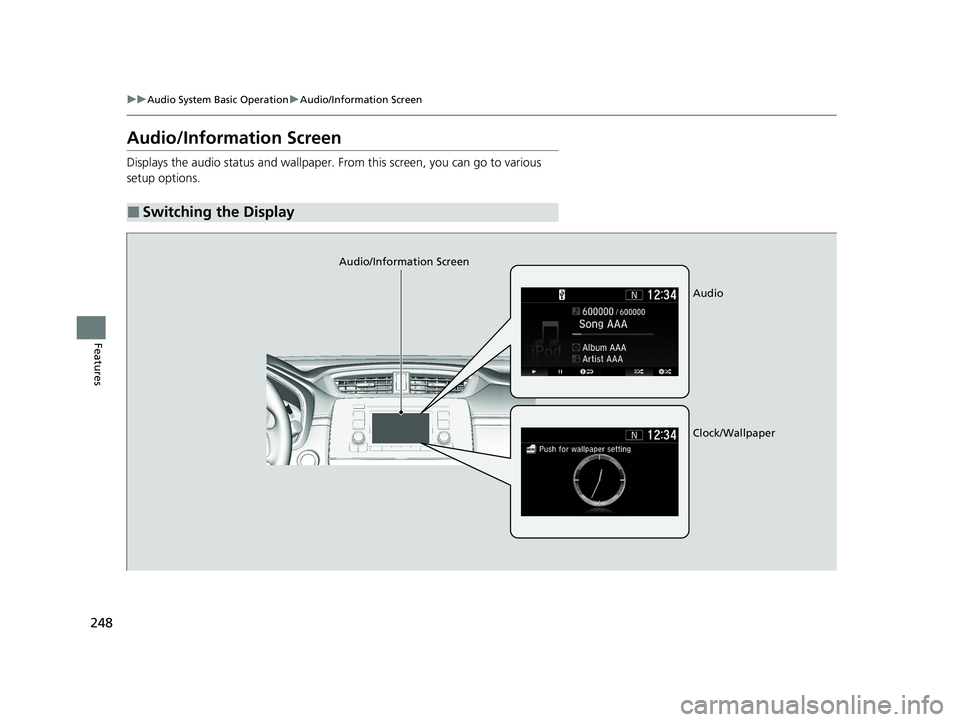

Audio/Information Screen
Displays the audio status and wallpaper. From this screen, you can go to various
setup options.
■Switching the Display
Audio/Information Screen
Audio
Clock/Wallpaper
20 CR-V HYBRID HMIN-31TPG6000.book 248 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

249
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

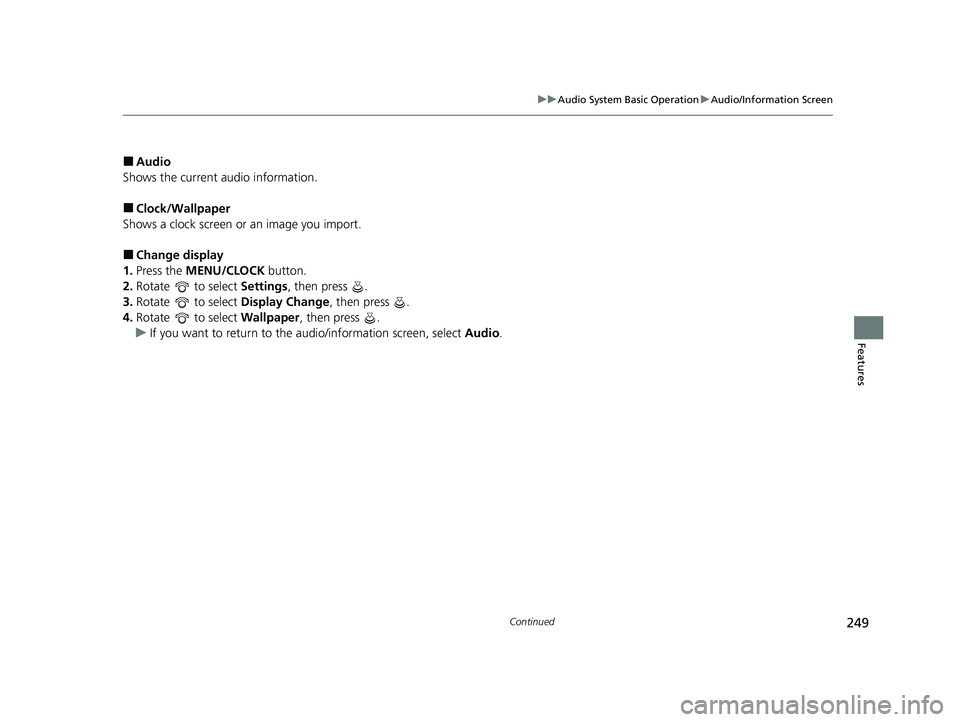

■Audio
Shows the current audio information.
■Clock/Wallpaper
Shows a clock screen or an image you import.
■Change display
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Display Change, then press .
4. Rotate to select Wallpaper, then press .
u If you want to return to the audio/information screen, select Audio.
20 CR-V HYBRID HMIN-31TPG6000.book 249 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

uuAudio System Basic Operation uAudio/Information Screen
250
Features

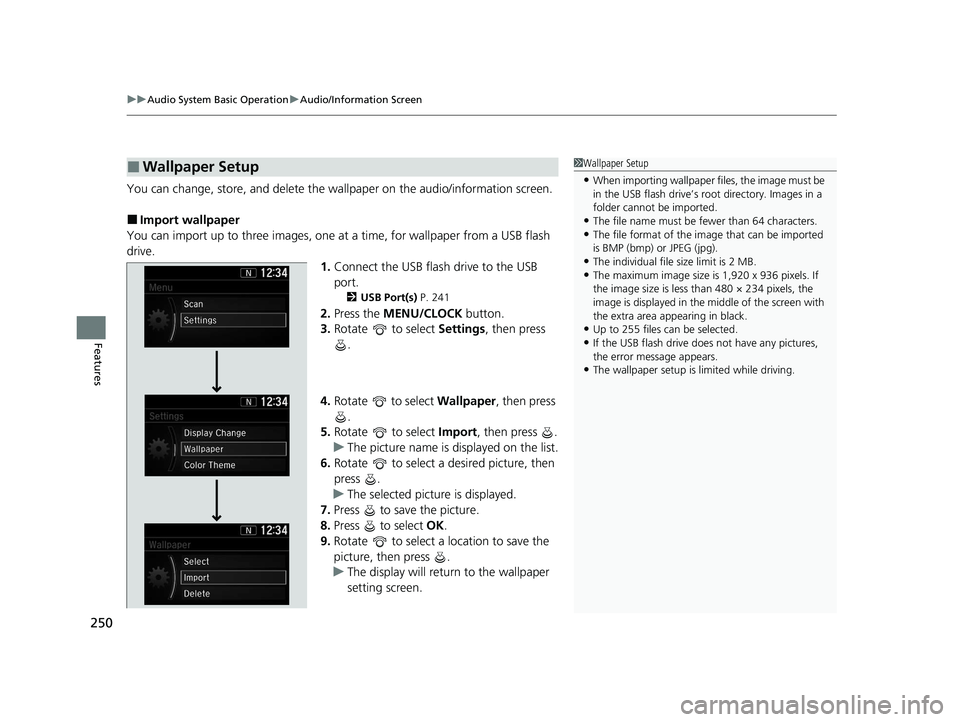

You can change, store, and delete the wa llpaper on the audio/information screen.
■Import wallpaper
You can import up to three images, one at a time, for wallpaper from a USB flash
drive. 1.Connect the USB flash drive to the USB
port.
2 USB Port(s) P. 241
2.Press the MENU/CLOCK button.
3. Rotate to select Settings, then press
.
4. Rotate to select Wallpaper , then press
.
5. Rotate to select Import, then press .
u The picture name is displayed on the list.
6. Rotate to select a desired picture, then
press .
u The selected picture is displayed.
7. Press to save the picture.
8. Press to select OK.
9. Rotate to select a location to save the
picture, then press .
u The display will return to the wallpaper
setting screen.
■Wallpaper Setup1Wallpaper Setup
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.
•The file name must be fewer than 64 characters.•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 2 MB.•The maximum image size is 1,920 x 936 pixels. If
the image size is less than 480 × 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•Up to 255 files can be selected.
•If the USB flash drive doe s not have any pictures,
the error message appears.
•The wallpaper setup is limited while driving.
20 CR-V HYBRID HMIN-31TPG6000.book 250 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

251
uuAudio System Basic Operation uAudio/Information Screen
Features

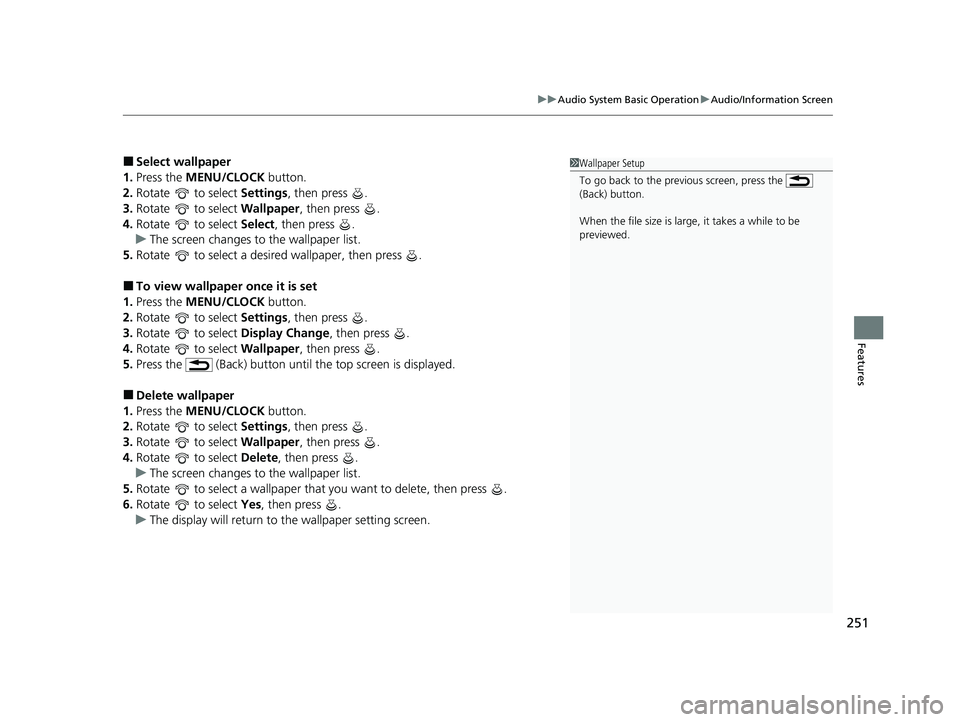

■Select wallpaper
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Wallpaper, then press .
4. Rotate to select Select, then press .
u The screen changes to the wallpaper list.
5. Rotate to select a desired wallpaper, then press .
■To view wallpaper once it is set
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Display Change, then press .
4. Rotate to select Wallpaper, then press .
5. Press the (Back) button until the top screen is displayed.
■Delete wallpaper
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Wallpaper, then press .
4. Rotate to select Delete, then press .
u The screen changes to the wallpaper list.
5. Rotate to select a wallpaper that you want to delete, then press .
6. Rotate to select Yes, then press .
u The display will return to the wallpaper setting screen.
1Wallpaper Setup
To go back to the previous screen, press the
(Back) button.
When the file size is large, it takes a while to be
previewed.
20 CR-V HYBRID HMIN-31TPG6000.book 251 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

253
uuAudio System Basic Operation uDisplay Setup
Features

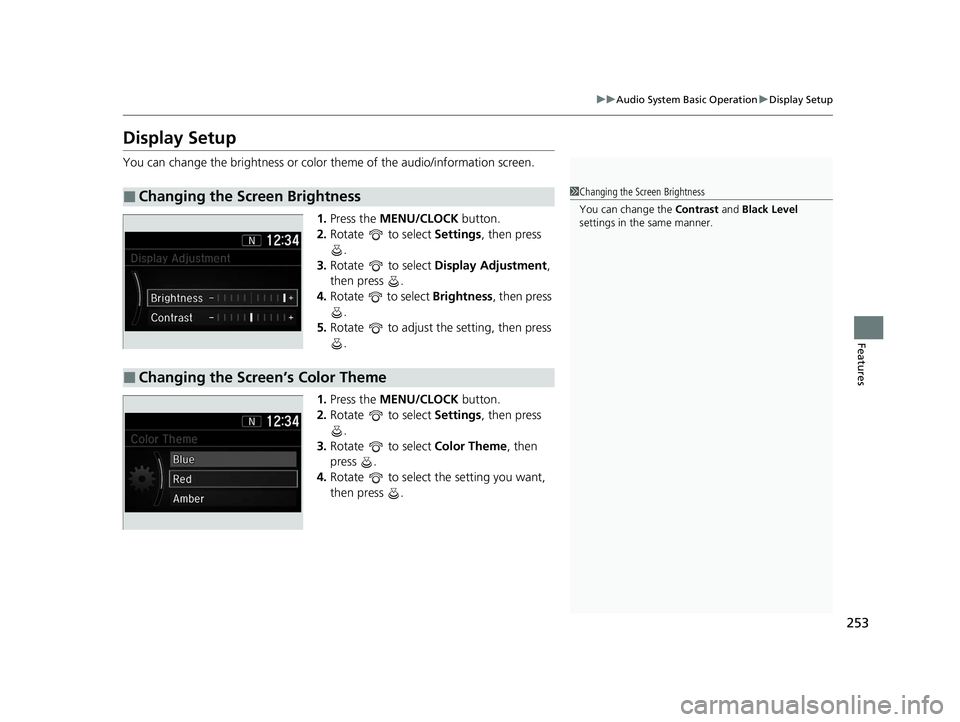

Display Setup
You can change the brightness or color theme of the audio/information screen.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press
.
3. Rotate to select Display Adjustment ,
then press .
4. Rotate to select Brightness, then press
.
5. Rotate to adjust th e setting, then press
.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press
.
3. Rotate to select Color Theme, then
press .
4. Rotate to select the setting you want,
then press .
■Changing the Screen Brightness1Changing the Screen Brightness
You can change the Contrast and Black Level
settings in the same manner.
■Changing the Screen’s Color Theme
20 CR-V HYBRID HMIN-31TPG6000.book 253 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
