spark plugs HONDA CR-V HYBRID 2020 Owner's Manual (in English)

580
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date fo r tire repair kit bottle●Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed every 47,500 miles (75,000 km) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid
7●Replace brake fluid*5
20 CR-V HYBRID HMIN-31TPG6000.book 580 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

664
Information
Specifications
■Vehicle Specifications
ModelCR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 14.6 – 16.4 oz (415 – 465 g)
Lubricant TypeND-OIL 11 (POE)
Quantity 7.32 – 8.24 cu-in (120 – 135 cm3)
Displacement121.6 cu-in (1,993 cm3)Spark PlugsNGKDILZKAR7D11S
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14 US gal (53 L)
Tank Capacity2.6 US qt (2.5 L)
■ Light Bulbs
Headlights (Low Beam)LEDHeadlights (High Beam)LEDFog Lights*LED
Front Turn Signal Lights LED
Front Side Marker LightsLED
Parking/Daytime Running Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake/Taillights LED
Rear Side Marker LightsLED
Rear Turn Signal Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WCargo Area Lights5 WVanity Mirror Lights*1.4 WFront Door Inner
Handle Lights*LED
Foot Lights*LED
* Not available on all models
20 CR-V HYBRID HMIN-31TPG6000.book 664 ページ ２０１９年１１月２８日　木曜日　午後１時５０分

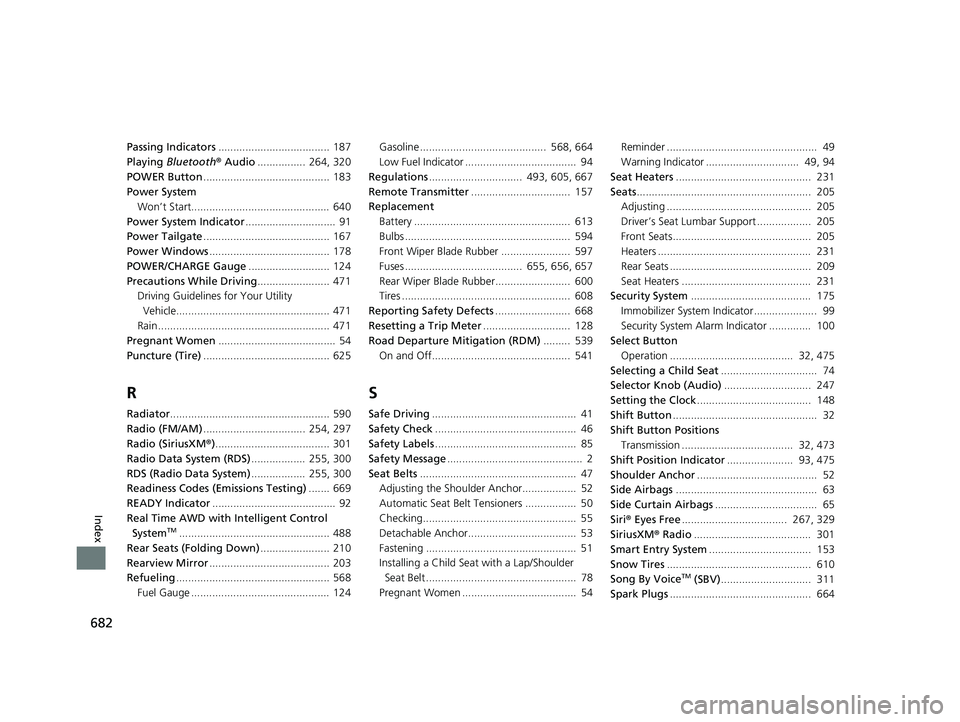

682
Index
Passing Indicators..................................... 187
Playing Bluetooth ® Audio ................ 264, 320
POWER Button .......................................... 183
Power System Won’t Start.............................................. 640
Power System Indicator .............................. 91
Power Tailgate .......................................... 167
Power Windows ........................................ 178
POWER/CHARGE Gauge ........................... 124
Precautions While Driving ........................ 471
Driving Guidelines for Your Utility
Vehicle................................................... 471
Rain ......................................................... 471
Pregnant Women ....................................... 54
Puncture (Tire) .......................................... 625
R
Radiator..................................................... 590
Radio (FM/AM) .................................. 254, 297
Radio (SiriusXM ®)...................................... 301
Radio Data System (RDS) .................. 255, 300
RDS (Radio Data System) .................. 255, 300
Readiness Codes (Emissions Testing) ....... 669
READY Indicator ......................................... 92
Real Time AWD with Intelligent Control System
TM.................................................. 488
Rear Seats (Folding Down) ....................... 210
Rearview Mirror ........................................ 203
Refueling ................................................... 568
Fuel Gauge .............................................. 124 Gasoline .......................................... 568, 664
Low Fuel Indicator ..................................... 94
Regulations ............................... 493, 605, 667
Remote Transmitter ................................. 157
Replacement
Battery .................................................... 613
Bulbs ....................................................... 594
Front Wiper Blade Rubber ....................... 597
Fuses ....................................... 655, 656, 657
Rear Wiper Blade Rubber......................... 600
Tires ........................................................ 608
Reporting Safety Defects ......................... 668
Resetting a Trip Meter ............................. 128
Road Departure Mitigation (RDM) ......... 539
On and Off.............................................. 541
S
Safe Driving ................................................ 41
Safety Check ............................................... 46
Safety Labels ............................................... 85
Safety Message ............................................. 2
Seat Belts .................................................... 47
Adjusting the Shoulder Anchor.................. 52
Automatic Seat Belt Tensioners ................. 50
Checking................................................... 55
Detachable Anchor.................................... 53
Fastening .................................................. 51
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 78
Pregnant Women ...................................... 54 Reminder .................................................. 49
Warning Indicator ............................... 49, 94
Seat Heaters ............................................. 231
Seats .......................................................... 205
Adjusting ................................................ 205
Driver’s Seat Lumbar Support .................. 205
Front Seats.............................................. 205
Heaters ................................................... 231
Rear Seats ............................................... 209
Seat Heaters ........................................... 231
Security System ........................................ 175
Immobilizer System Indicator ..................... 99
Security System Alarm Indicator .............. 100
Select Button
Operation ......................................... 32, 475
Selecting a Child Seat ................................ 74
Selector Knob (Audio) ............................. 247
Setting the Clock ...................................... 148
Shift Button ................................................ 32
Shift Button Positions Transmission ..................................... 32, 473
Shift Position Indicator ...................... 93, 475
Shoulder Anchor ........................................ 52
Side Airbags ............................................... 63
Side Curtain Airbags .................................. 65
Siri ® Eyes Free ................................... 267, 329
SiriusXM ® Radio ....................................... 301
Smart Entry System .................................. 153
Snow Tires ................................................ 610
Song By Voice
TM (SBV) .............................. 311
Spark Plugs ............................................... 664
20 CR-V HYBRID HMIN-31TPG6000.book 682 ページ ２０１９年１１月２８日　木曜日　午後１時５０分
