HONDA CR-Z 2011 1.G Navigation Manual

Navigation System1

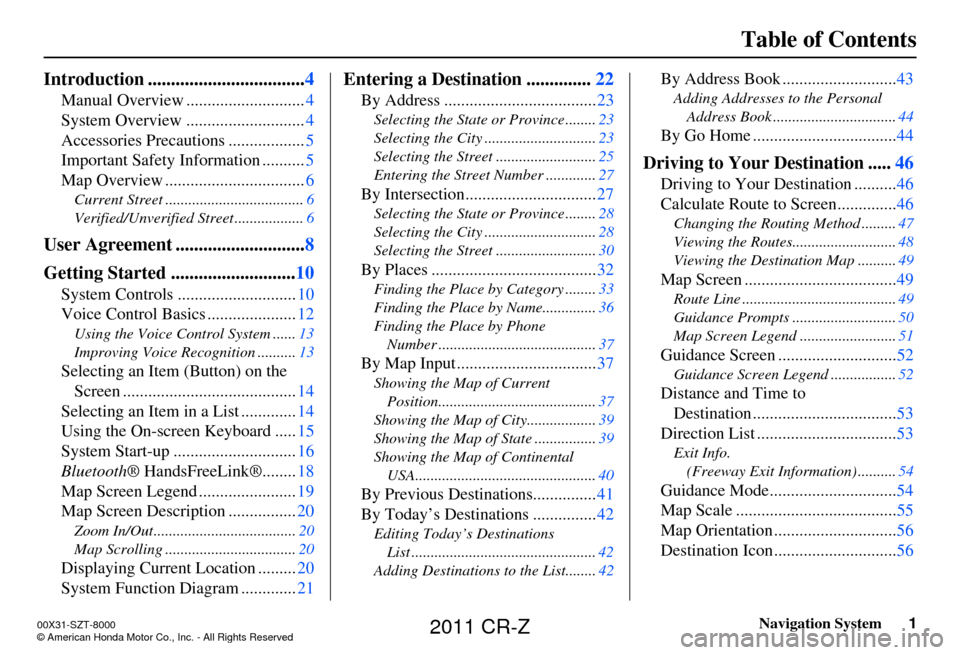

Table of Contents
Introduction .................................. 4
Manual Overview ............................ 4
System Overview ............................ 4
Accessories Precautions .................. 5
Important Safety Information .......... 5
Map Overview ................................. 6
Current Street .................................... 6
Verified/Unverified Street .................. 6
User Agreement ............................8
Getting Started ........................... 10

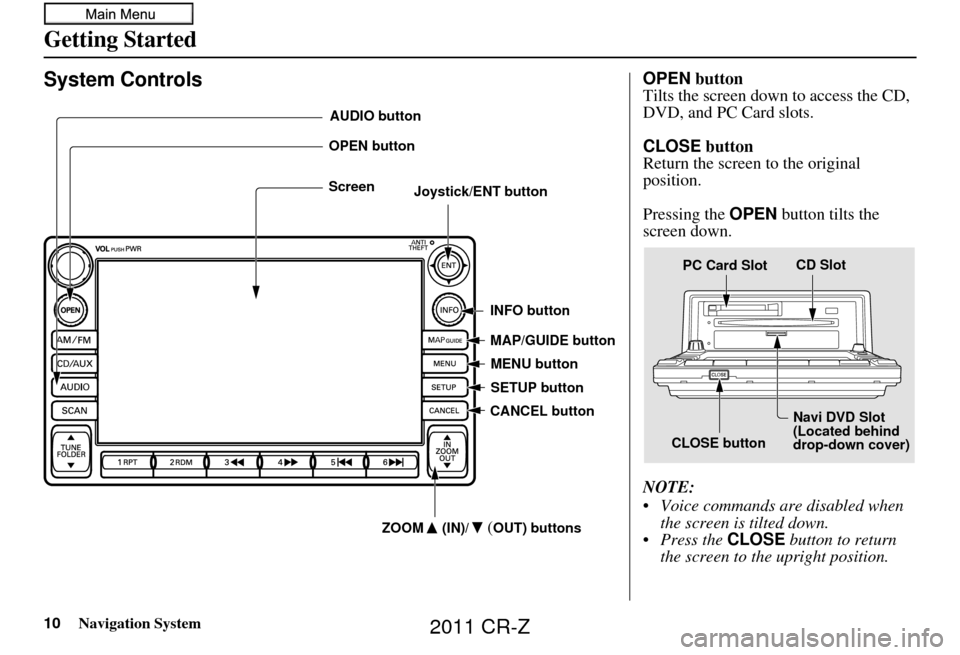

System Controls ............................ 10
Voice Control Basics ..................... 12
Using the Voice Control System ...... 13
Improving Voice Rec ognition ..........13
Selecting an Item (Button) on the
Screen ......................................... 14
Selecting an Item in a List ............. 14
Using the On-screen Keyboard ..... 15
System Start-up ............................. 16
Bluetooth ® HandsFreeLink®........ 18
Map Screen Legend ....................... 19
Map Screen Description ................ 20
Zoom In/Out..................................... 20
Map Scrolling .................................. 20
Displaying Current Location .........20
System Function Diagram ............. 21
Entering a Destination ..............22
By Address .................................... 23
Selecting the State or Province ........ 23
Selecting the City ............................. 23
Selecting the Street .......................... 25
Entering the Street Number ............. 27
By Intersection...............................27
Selecting the State or Province ........ 28
Selecting the City ............................. 28
Selecting the Street .......................... 30
By Places .......................................32
Finding the Place by Category ........ 33
Finding the Place by Name.............. 36
Finding the Place by Phone Number ......................................... 37
By Map Input ................................. 37
Showing the Map of Current
Position......................................... 37
Showing the Map of City ..................39
Showing the Map of Stat e ................39
Showing the Map of Continental USA............................................... 40
By Previous Destinations............... 41
By Today’s Destinations ............... 42
Editing Today’s Destinations
List ................................................ 42
Adding Destinations to the List........ 42
By Address Book ...........................43
Adding Addresses to the Personal
Address Book ................................ 44
By Go Home .................................. 44
Driving to Your Destination .....46
Driving to Your Destination .......... 46
Calculate Route to Screen.............. 46
Changing the Routing Method ......... 47
Viewing the Routes........................... 48
Viewing the Destination Map .......... 49
Map Screen ....................................49
Route Line ........................................ 49
Guidance Prompts ...... ..................... 50
Map Screen Legend ......................... 51
Guidance Screen ............................52
Guidance Screen Legend.................52
Distance and Time to
Destination .................................. 53
Direction List ................................. 53
Exit Info.
(Freeway Exit Information) .......... 54
Guidance Mode.............................. 54
Map Scale ...................................... 55
Map Orientation ............................. 56
Destination Icon ............................. 56
00X31-SZT-8000
\251 American Honda Motor Co., Inc. - All Rights Reserved
2011 CR-Z

2Navigation System

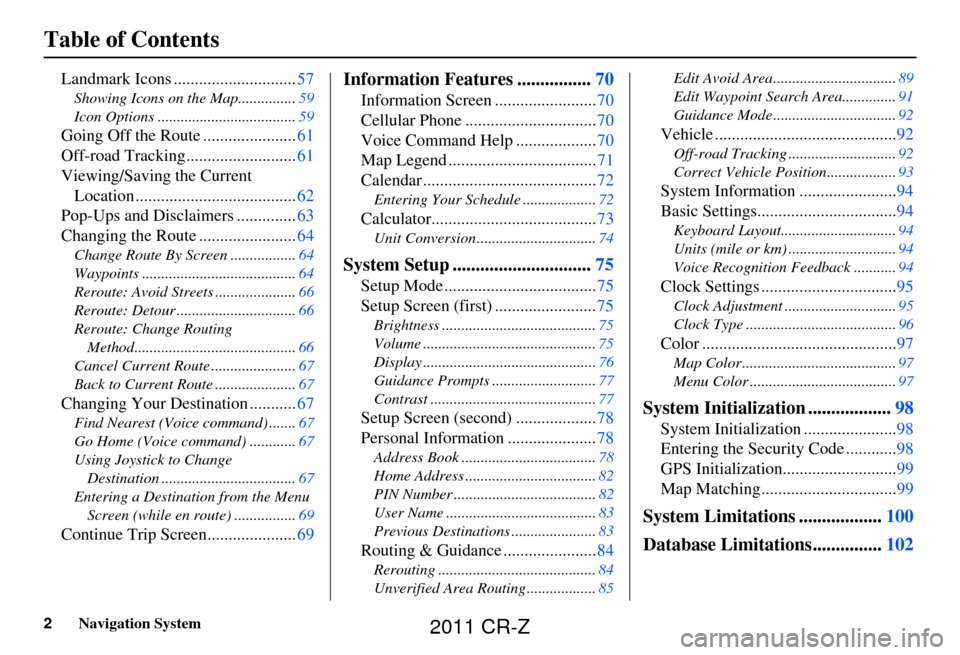

Table of Contents
Landmark Icons .............................57
Showing Icons on the Map............... 59
Icon Options .................................... 59
Going Off the Route ......................61
Off-road Tracking.......................... 61
Viewing/Saving the Current Location ...................................... 62
Pop-Ups and Disclaimers .............. 63
Changing the Route ....................... 64
Change Route By Screen ................. 64
Waypoints ........................................ 64
Reroute: Avoid Streets ..................... 66
Reroute: Detour ............................... 66
Reroute: Change Routing Method.......................................... 66
Cancel Current Route ...................... 67
Back to Current Route ..................... 67
Changing Your Destination ...........67
Find Nearest (Voice command) .......67
Go Home (Voice command) ............ 67
Using Joystick to Change Destination ................................... 67
Entering a Destination from the Menu Screen (while en route) ................ 69
Continue Trip Screen..................... 69
Information Features ................70
Information Screen ........................ 70
Cellular Phone ............................... 70
Voice Command Help ................... 70
Map Legend ................................... 71
Calendar ......................................... 72
Entering Your Schedule ................... 72
Calculator.......................................73
Unit Conversion ............................... 74
System Setup ..............................75
Setup Mode .................................... 75
Setup Screen (first) ........................ 75
Brightness ........................................ 75
Volume ............................................. 75
Display ............................................. 76
Guidance Prompts ....... .................... 77
Contrast ........................................... 77
Setup Screen (second) ...................78
Personal Information ..................... 78
Address Book ................................... 78
Home Address .................................. 82
PIN Number ..................................... 82
User Name ....................................... 83
Previous Destinations ...................... 83
Routing & Guidance ......................84
Rerouting ......................................... 84
Unverified Area Routing .................. 85Edit Avoid Area................................
89
Edit Waypoint Search Area.............. 91
Guidance Mode .... ............................92
Vehicle ........................................... 92
Off-road Tracking............................92
Correct Vehicle Position.................. 93
System Information .......................94
Basic Settings................................. 94
Keyboard Layout..............................94
Units (mile or km) ............................ 94
Voice Recognition Fe edback ...........94
Clock Settings ................................ 95
Clock Adjustment ............................. 95
Clock Type ....................................... 96
Color ..............................................97
Map Color ........................................ 97
Menu Color ...................................... 97
System Initialization ..................98
System Initialization ......................98
Entering the Security Code ............ 98
GPS Initialization ...........................99
Map Matching................................ 99
System Limitations ..................100
Database Limitations............... 102
2011 CR-Z

Navigation System3

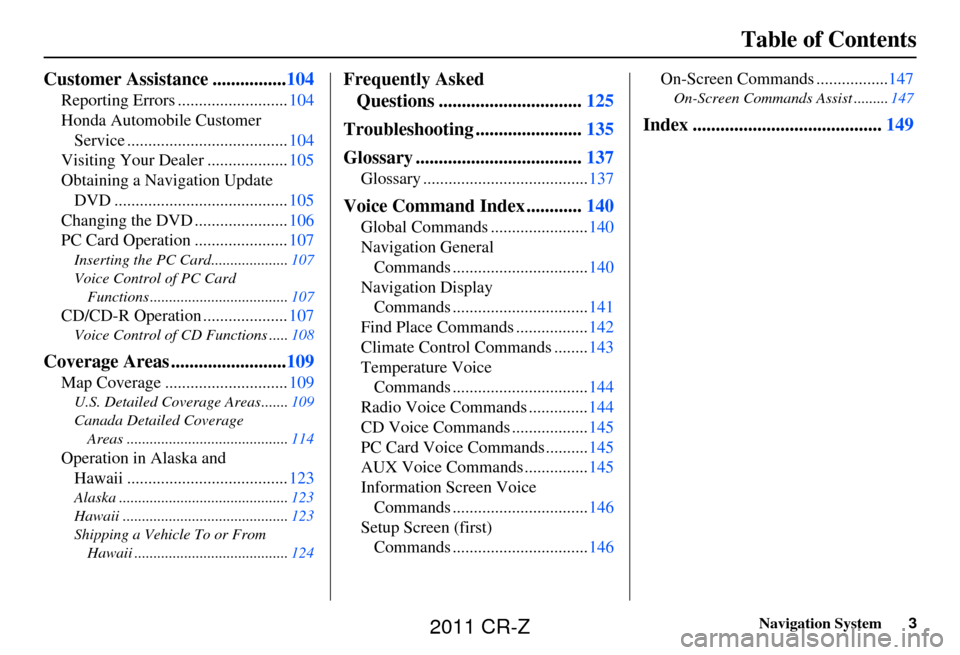

Table of Contents
Customer Assistance ................ 104
Reporting Errors .......................... 104
Honda Automobile Customer Service ...................................... 104
Visiting Your Dealer ................... 105
Obtaining a Navigation Update DVD ......................................... 105
Changing the DVD ...................... 106
PC Card Operation ...................... 107
Inserting the PC Card.................... 107
Voice Control of PC Card Functions .................................... 107
CD/CD-R Operation .................... 107
Voice Control of CD Functions ..... 108
Coverage Areas .........................109
Map Coverage ............................. 109
U.S. Detailed Coverage Areas....... 109
Canada Detailed Coverage Areas .......................................... 114
Operation in Alaska and
Hawaii ...................................... 123
Alaska ............................................ 123
Hawaii ........................................... 123
Shipping a Vehicle To or From Hawaii ........................................ 124
Frequently Asked
Questions ............................... 125
Troubleshooting ....................... 135
Glossary .................................... 137
Glossary ....................................... 137
Voice Command Index ............140
Global Commands ....................... 140
Navigation General Commands ................................ 140
Navigation Display Commands ................................ 141
Find Place Commands ................. 142
Climate Control Commands ........ 143
Temperature Voice Commands ................................ 144
Radio Voice Commands .............. 144
CD Voice Commands .................. 145
PC Card Voice Commands .......... 145
AUX Voice Commands ............... 145
Information Screen Voice Commands ................................ 146
Setup Screen (first) Commands ................................ 146On-Screen Commands .................
147
On-Screen Commands Assist .........147
Index ......................................... 149
2011 CR-Z

4Navigation System
Introduction
Manual Overview

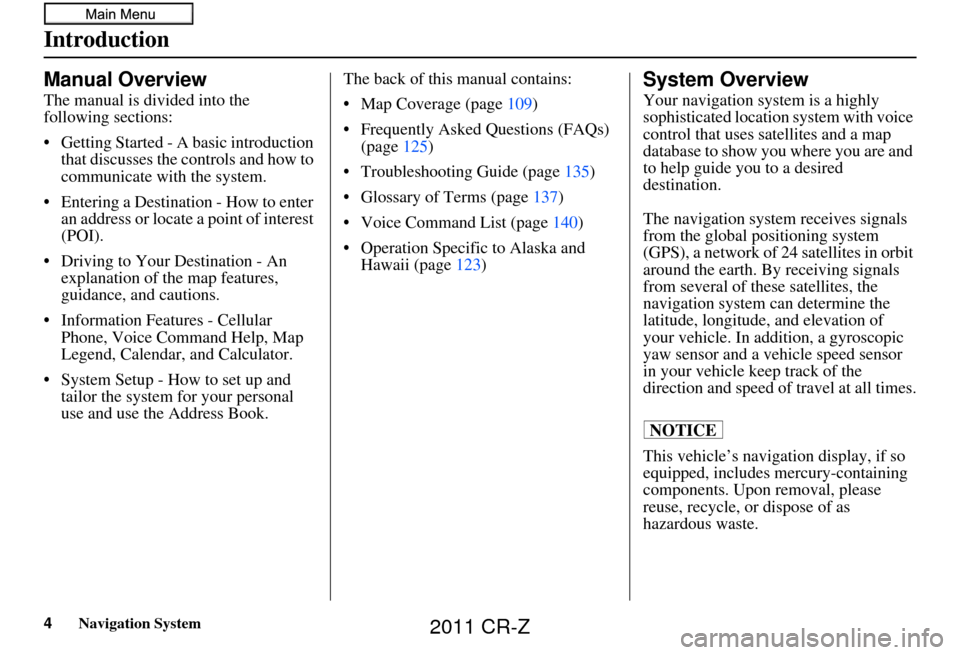

The manual is divided into the
following sections:
• Getting Started - A basic introduction that discusses the controls and how to
communicate with the system.
• Entering a Destination - How to enter an address or locate a point of interest
(POI).
• Driving to Your Destination - An explanation of the map features,
guidance, and cautions.
• Information Features - Cellular Phone, Voice Command Help, Map
Legend, Calendar, and Calculator.
• System Setup - How to set up and tailor the system for your personal
use and use the Address Book. The back of this manual contains:
• Map Coverage (page
109)
• Frequently Asked Questions (FAQs) (page 125)
• Troubleshooting Guide (page 135)
• Glossary of Terms (page 137)
• Voice Command List (page 140)
• Operation Specific to Alaska and Hawaii (page 123)
System Overview
Your navigation system is a highly
sophisticated location system with voice
control that uses satellites and a map
database to show you where you are and
to help guide you to a desired
destination.
The navigation system receives signals
from the global positioning system
(GPS), a network of 24 satellites in orbit
around the earth. By receiving signals
from several of these satellites, the
navigation system can determine the
latitude, longitude, and elevation of
your vehicle. In a ddition, a gyroscopic
yaw sensor and a vehicle speed sensor
in your vehicle k eep track of the
direction and speed of travel at all times.
This vehicle’s navigation display, if so
equipped, includes mercury-containing
components. Upon removal, please
reuse, recycle, or dispose of as
hazardous waste.
NOTICE
2011 CR-Z

Navigation System5
Introduction

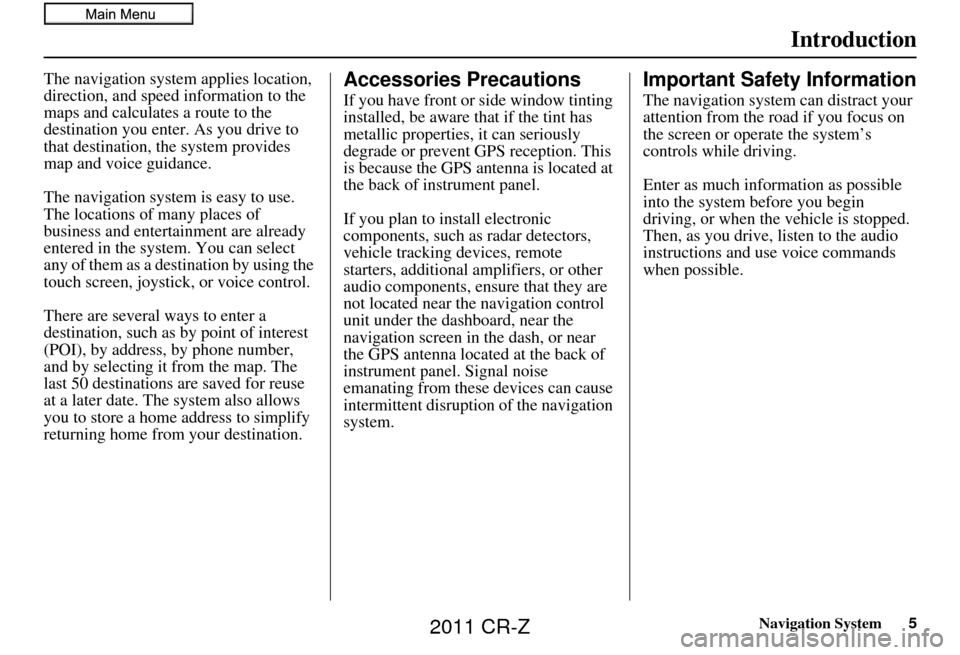

The navigation system applies location,
direction, and speed information to the
maps and calculates a route to the
destination you enter. As you drive to
that destination, the system provides
map and voice guidance.
The navigation system is easy to use.
The locations of many places of
business and entertainment are already
entered in the system. You can select
any of them as a destination by using the
touch screen, joystick, or voice control.
There are several ways to enter a
destination, such as by point of interest
(POI), by address, by phone number,
and by selecting it from the map. The
last 50 destinations are saved for reuse
at a later date. The system also allows
you to store a home address to simplify
returning home from your destination.Accessories Precautions
If you have front or side window tinting
installed, be aware that if the tint has
metallic properties, it can seriously
degrade or prevent GPS reception. This
is because the GPS antenna is located at
the back of instrument panel.
If you plan to install electronic
components, such as radar detectors,
vehicle tracking devices, remote
starters, additional amplifiers, or other
audio components, ensure that they are
not located near the navigation control
unit under the dashboard, near the
navigation screen in the dash, or near
the GPS antenna located at the back of
instrument panel. Signal noise
emanating from these devices can cause
intermittent disruptio n of the navigation
system.
Important Safety Information
The navigation system can distract your
attention from the road if you focus on
the screen or operate the system’s
controls while driving.
Enter as much information as possible
into the system before you begin
driving, or when the vehicle is stopped.
Then, as you drive, listen to the audio
instructions and use voice commands
when possible.
2011 CR-Z

6Navigation System
While driving, do not look at the screen
or operate the system controls for more
than a second or so at a time, and only
after deciding you can do so safely. Pull
to the side of the road if you need more
time to look at the screen or operate the
controls. The navigation system is designed to
provide route information to help you
reach your destination. However, this
route guidance may sometimes conflict
with current road conditions such as
street closures, road construction,
detours, and out-of-date map data.
Additionally, the system itself has
certain limitations (see page
100).
Therefore, you must verify the audio
and visual route information provided
by the system by caref ully observing the
roadway, signs and signals, etc. If you
are unsure, proceed with caution.
Always use your own good judgment,
and obey traffic laws while driving.

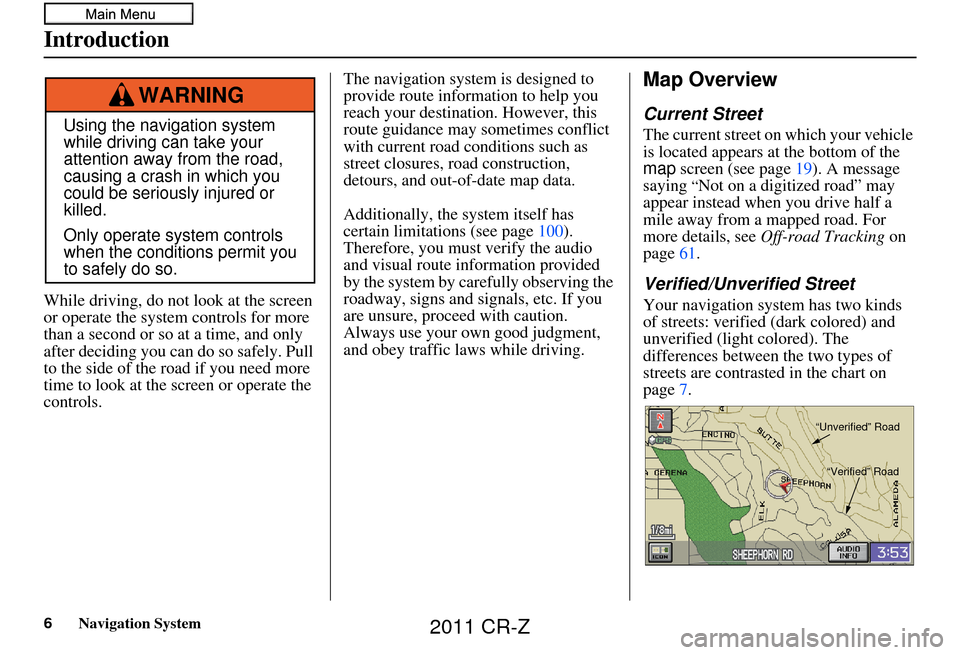

Map Overview
Current Street
The current street on which your vehicle
is located appears at the bottom of the
map screen (see page 19). A message
saying
“Not on a digitized road” may
appear instead when you drive half a
mile away from a mapped road. For
more details, see Off-road Tracking on
page 61.
Verified/Unverified Street
Your navigation system has two kinds
of streets: verified (dark colored) and
unverified (light colored). The
differences between the two types of
streets are contrasted in the chart on
page 7.
Using the navigation system
while driving can take your
attention away from the road,
causing a crash in which you
could be seriously injured or
killed.
Only operate system controls
when the conditions permit you
to safely do so.
WARNING
“Unverified” Road
“Verified” Road
Introduction
2011 CR-Z

Navigation System7
Introduction

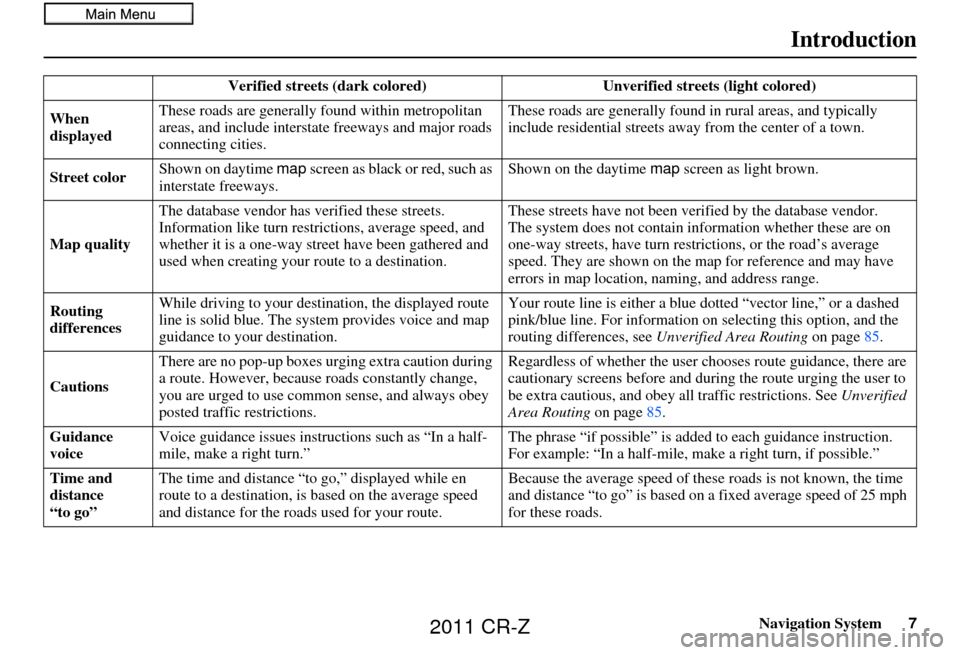

Verified streets (dark colored) Unverified streets (light colored)
When
displayed These roads are generally found within metropolitan
areas, and include interstate freeways and major roads
connecting cities. These roads are generally found in
rural areas, and typically
include residential streets away from the center of a town.
Street color Shown on daytime
map screen as black or red, such as
interstate freeways. Shown on the daytime
map screen as light brown.
Map quality The database vendor has
verified these streets.
Information like tu rn restrictions, average speed, and
whether it is a one-way street have been gathered and
used when creating your route to a destination. These streets have not been ve
rified by the database vendor.
The system does not contain in formation whether these are on
one-way streets, have turn rest rictions, or the road’s average
speed. They are shown on the ma p for reference and may have
errors in map location, naming, and address range.
Routing
differences While driving to your destin
ation, the displayed route
line is solid blue. The sy stem provides voice and map
guidance to your destination. Your route line is either a blue
dotted “vector line,” or a dashed
pink/blue line. For information on selecting this option, and the
routing differences, see Unverified Area Routing on page85.
Cautions There are no pop-up boxes urging extra caution during
a route. However, because roads constantly change,
you are urged to use common
sense, and always obey
posted traffic restrictions. Regardless of whether the user c
hooses route guidance, there are
cautionary screens before and dur ing the route urging the user to
be extra cautious, and obey a ll traffic restrictions. See Unverified
Area Routing on page85.
Guidance
voice Voice guidance issues instruct
ions such as “In a half-
mile, make a right turn.” The phrase “if possible” is added
to each guidance instruction.
For example: “In a half-mile, ma ke a right turn, if possible.”
Time and
distance
“to go” The time and distance “t
o go,” displayed while en
route to a destination, is based on the average speed
and distance for the roads used for your route. Because the average speed of thes
e roads is not known, the time
and distance “to go” is based on a fixed average speed of 25 mph
for these roads.
2011 CR-Z

8Navigation System

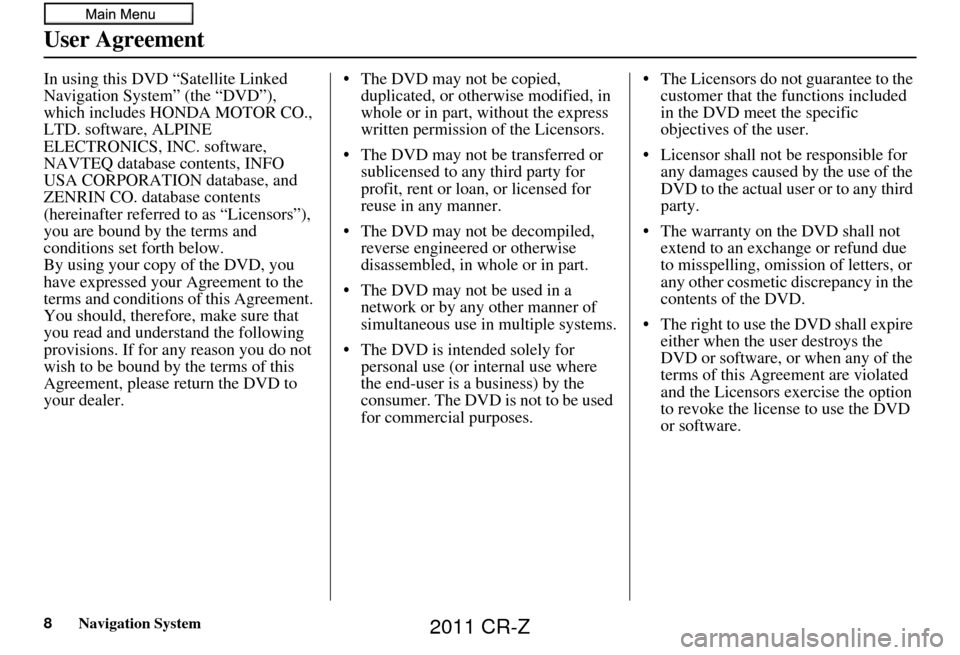

User Agreement
In using this DVD “Satellite Linked
Navigation System” (the “DVD”),
which includes HONDA MOTOR CO.,
LTD. software, ALPINE
ELECTRONICS, INC. software,
NAVTEQ database contents, INFO
USA CORPORATION database, and
ZENRIN CO. database contents
(hereinafter referred to as “Licensors”),
you are bound by the terms and
conditions set forth below.
By using your copy of the DVD, you
have expressed your Agreement to the
terms and conditions of this Agreement.
You should, therefore, make sure that
you read and understand the following
provisions. If for any reason you do not
wish to be bound by the terms of this
Agreement, please return the DVD to
your dealer. • The DVD may not be copied,
duplicated, or otherwise modified, in
whole or in part, without the express
written permission of the Licensors.
• The DVD may not be transferred or sublicensed to any third party for
profit, rent or loan, or licensed for
reuse in any manner.
• The DVD may not be decompiled, reverse engineered or otherwise
disassembled, in whole or in part.
• The DVD may not be used in a network or by any other manner of
simultaneous use in multiple systems.
• The DVD is intended solely for personal use (or internal use where
the end-user is a business) by the
consumer. The DVD is not to be used
for commercial purposes. • The Licensors do not guarantee to the
customer that the functions included
in the DVD meet the specific
objectives of the user.
• Licensor shall not be responsible for any damages caused by the use of the
DVD to the actual user or to any third
party.
• The warranty on the DVD shall not extend to an exchange or refund due
to misspelling, omission of letters, or
any other cosmetic discrepancy in the
contents of the DVD.
• The right to use the DVD shall expire either when the user destroys the
DVD or software, or when any of the
terms of this Agreement are violated
and the Licensors exercise the option
to revoke the license to use the DVD
or software.
2011 CR-Z

Navigation System9
User Agreement
• The terms and conditions hereof
apply to all subsequent users and
owners as well as to the original
purchaser.
• The logos of oil companies, hotels, convenience stores, and other
businesses are displayed for your
information and convenience, and in
no way imply any sponsorship,
approval or endorsement of these
companies, or their products. The
logos are trademarks of their
respective owners. The user shall indemnify and save
harmless the Licensors, and their
officers, employees and agents, from
and against any claim, demand or
action, irrespective of the nature of the
cause of the claim, demand or action,
alleging loss, costs, expense, damages
or injuries (including injuries resulting
in death) arising out of the use or
possession of the DVD or software.
Use, duplication, or disclosure of this
DVD by or on behalf of the United
States government is subject to
“Restricted Rights” as set forth at FAR
52.227-14, -19 or DFARS 252.227-
7013, as applicable. Manufacturers are
the Licensors, including HONDA
MOTOR CO., LTD., 2-1-1 Minami
Aoyama Minato-Ku Tokyo 107-8556
JAPAN., Alpine Electronics, Inc., 20-1
Yoshima Kogyodanchi, Iwaki,
Fukushima 970-1192 JAPAN.,
NAVTEQ Corporation, 222
Merchandise Mart, Suite 900, Chicago,
IL, 60654, INFO USA
CORPORATION, 5711 South 86th
Circle, Omaha, NE 68127., and
ZENRIN CO., LTD., 1-1-1 Muromachi,
Kokurakita-ku, Kitakyushu, Fukuoka
803-8630, JAPAN.
2011 CR-Z

10Navigation System
Getting Started
System Controls
Joystick/ENT buttonMAP/GUIDE button
CANCEL button
Screen
MENU button
INFO button
AUDIO button
OPEN button
ZOOM (IN)/
(OUT) buttons
SETUP button
OPEN button
Tilts the screen down to access the CD,
DVD, and PC Card slots.
CLOSE button
Return the screen to the original
position.
Pressing the OPEN button tilts the
screen down.
NOTE:
Voice commands are disabled when the screen is tilted down.
Press the CLOSE button to return
the screen to the upright position.
CLOSE button Navi DVD Slot
(Located behind
drop-down cover)
PC Card Slot
CD Slot
2011 CR-Z
