audio HONDA CR-Z 2011 1.G Technology Reference Guide

Malfunction IndicatorsIf an indicator remains on\b there may be a problem; see a dealer
On\bOff Indicators
Condition IndicatorsAction is needed by driver
SIDE AIRBAGOFF
CRUISE CONTROL on
SPORT modeon
VSA Activation OFFFog lightson(if equipped)
Exterior lights on
Turn signals/hazards on
Auto Idle Stopon(blinking)
NORMAL mode on
ECON modeon
High beamson
Charging system
Low brake fluid
Low oil pressure
ABS(antilock brake system)
Low tire pressure on:
Add air
Message indicator:
See MID
High temperature indicator:
Pull over and cool down
engine
IMA System
Malfunction lamp(check engine light)
VSA(vehicle stability assist)SRS(supplemental restraint system)
EPS(electronic power steering)
Low temperature
TPMS (blinks and stays on)(tire pressure monitoring system)
Transmission (blinks)
Parking brake on:
Release
Door/Hatch open:
Close door(s) / hatch
Seat belt reminder:
Fasten seat belt(s)
Low fuel:
Refill

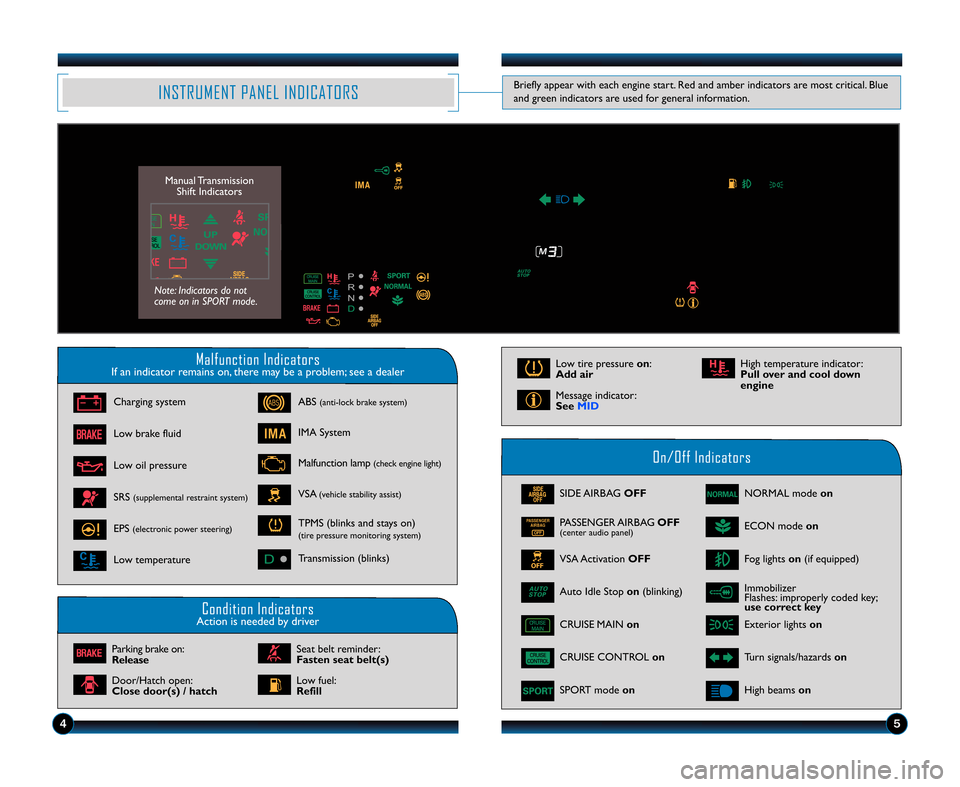

INSTRUMENT PANEL INDICATORS
Immobilizer
Flashes: improperly coded key;
use correct key
Briefly appear with each engine start. Red and amber indicators are most critical. Blue
and green indicators are used for general information.
45
CRUISE MAIN on
PASSENGER
AIRBAG
OFFPASSENGER AIRBAG OFF(center audio panel)
Manual Transmission
Shift Indicators
Note: Indicators do not
come on in SPORT mode.
11 CRZ TRG\fATG_NEW STYLE 4/15/2010 9\f59 AM Page 4

1415
I P O D®O R U S B F L A S H M E M O R Y
Play audio files from your compatible iPod or USB flash memory device through your
vehicle’s audio system.
Connecting Devices and Playing Audio Files
1.Pull out the USB adapter cable from
the center pocket.3. Press CD/AUX or AUX to begin
playing.
2. Connect the USB connector to your
iPod dock connector or flash drive.
iPod is a registered trademark of Apple Computer, Inc .,
registered in the U.S. and other countries. iPod not included.
How It Works
T I R E P R E S S U R E M O N I T O R I N G S Y S T E M ( T P M S )
Monitors the vehicle’s tire pressures.
Each tire valve stem
contains a TPMS sensor.
When the tire pressure drops
significantly below
recommended levels\b the low
tire pressure indicator comes
on and “CHECK TIRE
PRESSURE” appears on the MID.
What to Do
1. Visually inspect the tires for
damage.
2. Use a tire air pressure gauge to
check which tire(s) have low
pressure.
3. Inflate the tire(s)\b if necessary\b
to the recommended pressures
listed on the label on the
driver’s doorjamb.
IMA CHARGE\bASSIST GAUGE
Shows the status of the Integrated Motor Assist (IMA).
IMA Gauge
The gauge shows you when the IMA motor
is assisting the engine or charging the battery.
Note: The IMA assist may not operate if it is
extremely hot or cold outside, or if the battery is
low on charge.
11 CRZ TRG\fATG_NEW STYLE 4/15/2010 10\f01 AM Page 9

V O I C E R E C O G N I T I O N ( i f e q u i p p e d )To keep your eyes on the road and hands on the wheel\b use voice commands for
handsfree calling\b navigation\b audio\b and climate control. For a full list of all system
commands\b say“Information” and “Voice Command Help. ”
Key Fu nctio ns by Voic e Com man d
C LIM ATEp. 21
N A V I G A T I O Np.22
B L U E T O O T H®H A N D S F R E E L I N K®p.24
A U D I Op.21
Control four different systems with the steering wheel buttons and the ceiling
microphone.
Voice Command Tips
Press and release the HFL or Navi Talk button\b wait for a beep\b then give a
command.
For a list of available HFL commands\b
press and releasethe HFL Talk button
and say“Handsfree help.”
For a list of available navigation commands\b press and releasethe Navi Talk
button and say“Help.”
Speak in a clear\b natural voice.
Reduce all background noise.
Adjust the dashboard and side vents away from the microphone in the ceiling.
Close the windows.
HFL Talk button: Give HFL commands or
answer incoming calls.
Navi Talk button: Give navigation\b audio\b
and climate control commands.
HFL \fack button: End a call\b go back to
the previous command\b or cancel an
operation
Navi \fack button: Cancel a command or
return to the previous screen.
1617
11 CRZ TRG\fATG_NEW STYLE 4/15/2010 10\f01 AM Page 10

Press and release the Navi Talk button before you give a command.Press and release the Navi Talk button before you give a command.
Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these to
familiarize yourself with the voice command system.
Press and release the Navi Talk button before you give a command.
Locate Points of Interest
Say a command like “Display
restaurant” to see restaurant
icons appear on the map.
Say a command like “Display gas
stations” to see gas station icons
appear on the map.
Get Navigation Route
Information
After a destination is entered\b
say “How far to destination?” to
hear the remaining distance.
Say “Display entire route” to see
the routing method the system
mapped for your destination.
Press and release the Navi Talk button before you give a command.
Make Audio Selections
Say a command like “Radio 97.1
FM” to select that station.
Saya command like “CD play
track 1” to hear that song on a
currently inserted CD.
Adjust the Vehicle’s
Climate Setting
Say a command like “Air
conditioner on” to start the
air conditioning system.
Say a command like “Fan speed
\f” to adjust the fan speed.
1819
11 CRZ TRG\fATG_NEW STYLE 4/15/2010 10\f01 AM Page 11

Commonly Used Voice Commands (continued)
Here are some examples of commonly used voice commands. Try some of these
to familiarize yourself with the voice command system.
Press and release the Navi Talk button before you give a command.
G e n e r a l C o m m a n d s(Accepted on most screens to change displays)
• Display map
• Display menu
• Information
• Display audio screen
• What time is it?
F i n d P l a c e C o m m a n d s(Accepted on Map screen)
• Find nearest:
ATM Honda dealer
gas station airport
Mexican hospital restaurant bank
post office
N a v i g a t i o n C o m m a n d s(Accepted on Map screen)
• How long/far to destination?
• Display destination
• Display entire route
D i s p l a y C o m m a n d s(Accepted on Map screen)
• Display/Hide: ATM
gas station
restaurant
post office
• Display north up/heading up
• Zoom in/out
• Go home
• Display current location
Press and release the Navi Talk button before you give a command.
A u d i o C o m m a n d s(Accepted on most screens)
• Radio on
• Radio # FM/AM
• Radio preset 1/2/3/4/5/6
• CD play
• CD play track #
• CD skip forward/back
• Auxiliary (AUX) play
S e t u p C o m m a n d s(Accepted on Setup screen)
• Brightness up/down
• Volume up/down/min/max/off
• Guidance prompts min/max/normal
C l i m a t e C o n t r o l C o m m a n d s(Accepted on most screens)
• Air conditioner on/off
• Rear defrost on/off
• Climate control recirculate/ fresh air
• Fan speed up/down
• Temperature # degrees (# = 57–87)
• Temperature max hot/cold
H e l p C o m m a n d s(Accepted on most screens)
• Help (list of available commands for current screen)
• Voice command help from INFO screen (list of all
available navigation\b audio\b and
climate control commands)
2\f21
11 CRZ TRG\fATG_NEW STYLE 4/15/2010 10\f02 AM Page 12

B L U E T O O T H®H A N D S F R E E L I N K®( i f e q u i p p e d )Place and receive phone calls through your vehicle’s audio system. Visit
handsfreelink.honda.com to check if your phone is Bluetoothcompatible.
Pairing Your Phone
Press and release the HFL Talk button before you give a command.
Making a Call
1.Press the HFL Talk button.
model with navigation shown
model with navigation shown
2.
Say “Call” or“Dial” and the
desired phone number. 3.
Press the HFL Talk button\b and
say “Call” or“Dial” to continue.
Receiving a Call
2.Press the HFL Talk button to
accept the call.
3. Press the HFL Back button to
end or decline the call.
4. The call is connected and heard through the vehicle’s speakers.
1. A notification is heard andthe incoming phone number
appears on the MID.
HFL Talk button: Give HFL
commands or answer incoming calls.
HFL \fack button: End a call\b go back
to the previous command\b or cancel an
operation.
2425
Press and release the HFL Talk button before you give a command.
1. Enable “Discovery” or “Search” mode on your
Bluetoothcompatible phone.
2. Say “Phone setup,” thensay
“Pair.”
3. HFL gives you a fourdigit code (that also appears on
the MID) and begins to search
for your phone. 4. Search for a Bluetooth
device from your phone\b and
connect to HFL.
6. HFL asks you to name the phone. For example\b say
“Mary’s phone.”
5. Enter the fourdigit code on
your phone when prompted.
