instrument panel HONDA CR-Z 2012 1.G Owners Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these features.
This owner's manual is for vehicles sold in the United States and Canada.
The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 29
For Safe Driving P. 30 Seat Belts P. 34 Airbags P. 41
2Instrument Panel P. 67
Indicators P. 68 Gauges and Multi-Information Display P. 81
2Controls P. 97
Setting the Clock P. 98 Locking and Unlocking the Doors P. 99
Operating the Switches Around the Steering Wheel P. 109
Interior Lights/Interior Convenience Items P. 124
2Features P. 135
Audio System P. 136 Audio without Navigation System P. 141
General Information on the Audio System P. 169
2Driving P. 191
Before Driving P. 192 Towing a Trailer P. 197
Refueling P. 232 Fuel Economy P. 235
2Maintenance P. 237
Before Performing Maintenance P. 238 Maintenance Minder ™
P. 241
Checking and Maintaining Wiper Blades P. 266
Climate Control System Maintenance P. 280
2 Handling the Unexpected P. 285
Tools P. 286 If a Tire Goes Flat P. 287
Overheating P. 297 Indicator, Coming On/Blinking P. 299
2Information P. 311
Specifications P. 312 Identification Numbers P. 314
Emissions Testing P. 317 Warranty Coverages P. 319
Main Menu2012 CR-Z Online Reference Owner's Manual

Contents
Child Safety P. 56 Exhaust Gas Hazard P. 64 Safety Labels P. 65
Opening and Closing the Hatch P. 104 Security System P. 105 Opening and Closing the Windows P. 107
Adjusting the Mirrors P. 118Adjusting the Seats P. 119
Climate Control System P. 132
Audio with Navigation System *
P. 151 Audio Error Messages P. 167
Bluetooth ® HandsFreeLink ®*
P. 173
When Driving P. 198 Braking P. 220 Parking Your Vehicle P. 224
Accessories and Modifications P. 236
Maintenance Under the Hood P. 245 Replacing Light Bulbs P. 258
Checking and Maintaining Tires P. 269 12 Volt Battery P. 278 Remote Transmitter Care P. 279
Cleaning P. 281
Engine Does Not Start P. 293 Jump Starting P. 294 Shift Lever Does Not Move P. 296
Fuses P. 304 Emergency Towing P. 308 When You Cannot Open the Hatch P. 310
Devices that Emit Radio Waves P. 315 Reporting Safety Defects P. 316
Authorized Manuals P. 321 Customer Service Information P. 322
Quick Reference GuideP. 2
Safe DrivingP. 29
Instrument PanelP. 67
ControlsP. 97
FeaturesP. 135
DrivingP. 191
MaintenanceP. 237
Handling the UnexpectedP. 285
InformationP. 311
IndexP. 323
Note: All page numbers referenced in this document are hyperlinked.
2012 CR-Z Online Reference Owner's Manual

5
Quick Reference Guide
❙Upper Instrument
Panel Storage
❙Rearview Mirror (P 118)
❙Interior Lights/Map Lights (P 124)
❙Sun Visors
❙Vanity Mirrors*
❙Seat Belts
(P 34)
❙Side Curtain Airbags
(P 51)
❙Interior Lights (Rear)
(P 124)
❙Cargo Area Light
❙Seats
(P 119)
❙Side Airbags (P 48)
❙Rear Cargo Console (P 128)
❙Cargo Area (P 128)
* Not available on all models

14
Quick Reference Guide
Instrument Panel (P67)
Tachometer
CHRG/ASST Indicators
IMA Battery Charge Level Indicator
Shift Up/Down Indicator *Multi-Information
Display
7-Speed Manual Shift Mode Indicator
*
System Indicators
Lights Reminders
Instant Fuel
Economy GaugeSpeedometer
Fuel Gauge
Security Alarm
System Indicator
Shift Lever
Position Indicator
Gauges
(P81)/Multi-Information Display (P83)/System Indicators (P68)
Ambient Meter
System Indicators System Indicators
System IndicatorsLights On Indicator
High Beam Indicator
Fog Light Indicator *
Malfunction
Indicator Lamp
Low Oil Pressure Indicator
12 Volt Battery
Charging System Indicator
Anti-lock Brake
System (ABS) Indicator
Vehicle Stability Assist (VSA
®) System
Indicator
VSA ® OFF Indicator
Turn Signal and
Hazard Warning
Indicators
Electric Power Steering (EPS) Indicator
Immobilizer System Indicator
IMA System Indicator
Auto Idle Stop
Indicator
Seat Belt Reminder
Indicator
Parking Brake and
Brake System
Indicator
Supplemental
Restraint System
Indicator
Side Airbag Off
Indicator
Low Tire Pressure/
TPMS Indicator
U.S. models only
Door/Hatch Open
Indicator
Cruise Main Indicator
Cruise Control
Indicator
System Message
Indicator
High Temperature Indicator
Low Temperature Indicator
SPORT Mode
Indicator
NORMAL Mode
Indicator
ECON Mode
Indicator Low Fuel Indicator

42
uuAirbagsuAirbag System Components
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. The airbag
system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
passenger's airbag is stored in the
dashboard. Both are marked “SRS AIRBAG.”
bTwo side airbags, one for the driver and
one for a passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked “SIDE AIRBAG.”
cTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
“SIDE CURTAIN AIRBAG.”
dAn electronic control unit that continually
monitors and records information about
the sensors, the airbag activators, the
seat belt tensioners, and driver and
passenger seat belt use when the ignition
switch is in ON
(w .
eAutomatic seat belt tensioners. The
driver's and passenger's seat belts
incorporate sensors that detect whether
or not they are fastened.
fA driver's seat position sensor. If the seat
is too far forward, the airbag will inflate
with less force.
gWeight sensors in the passenger's seat.
The passenger's airbag will be turned off if the weight on the seat is 65 lbs (29 kg)
or less (the weight of an infant or small child).
hImpact sensors that can detect a
moderate-to-severe front or side
collision.
iAn indicator on the dashboard that alerts
you that the passenger's front airbag has
been turned off.
jSensors that can detect if a child or small
statured adult is in the deployment path
of the passenger's side airbag.
kAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
lAn indicator on the instrument panel that
alerts you that the passenger's side
airbag has been turned off.

67
Instrument Panel
This chapter describes the bu ttons, indicators, and gauges that are used while driving.
Indicators............................................ 68
Multi-Information Display Warning and Information Messages ...................... 78
Gauges and Multi-Information Display
Gauges .............................................. 81
Multi-Information Display .................. 83

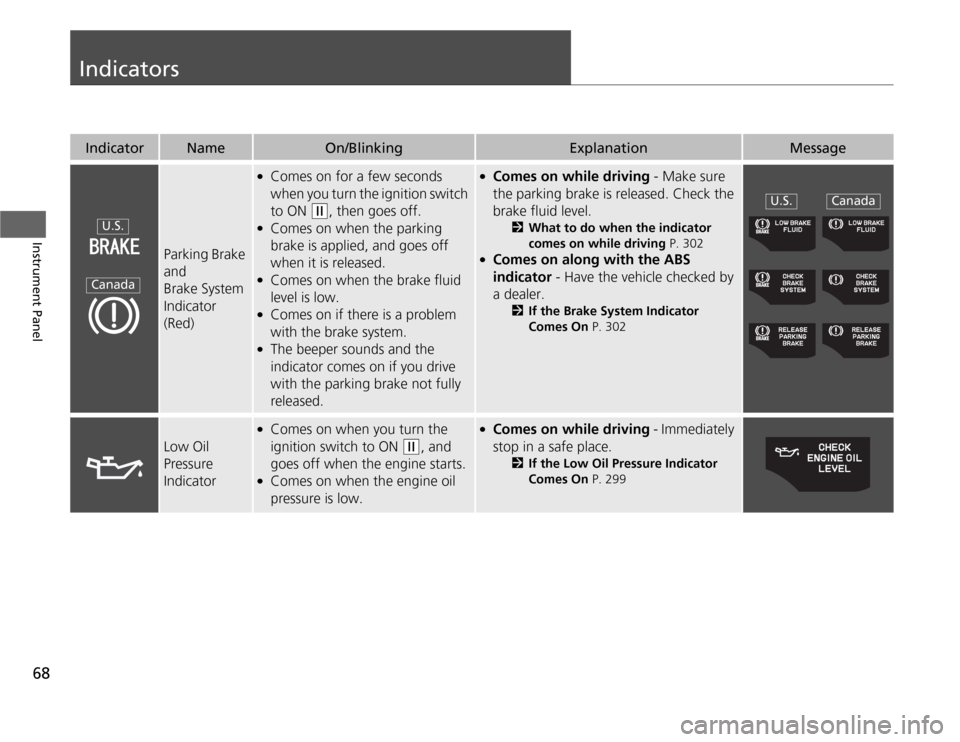

68
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake and
Brake System Indicator
(Red)
●Comes on for a few seconds
when you turn the ignition switch to ON
(w , then goes off.
● Comes on when the parking
brake is applied, and goes off when it is released.
● Comes on when the brake fluid
level is low.
● Comes on if there is a problem
with the brake system.
● The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level. 2What to do when the indicator
comes on while driving P. 302
● Comes on along with the ABS indicator - Have the vehicle checked by
a dealer. 2If the Brake System Indicator
Comes On P. 302
Low Oil
Pressure
Indicator
●
Comes on when you turn the
ignition switch to ON
(w , and
goes off when the engine starts.
● Comes on when the engine oil
pressure is low.
●
Comes on while driving - Immediately
stop in a safe place. 2If the Low Oil Pressure Indicator
Comes On P. 299
U.S.
Canada
U.S.Canada

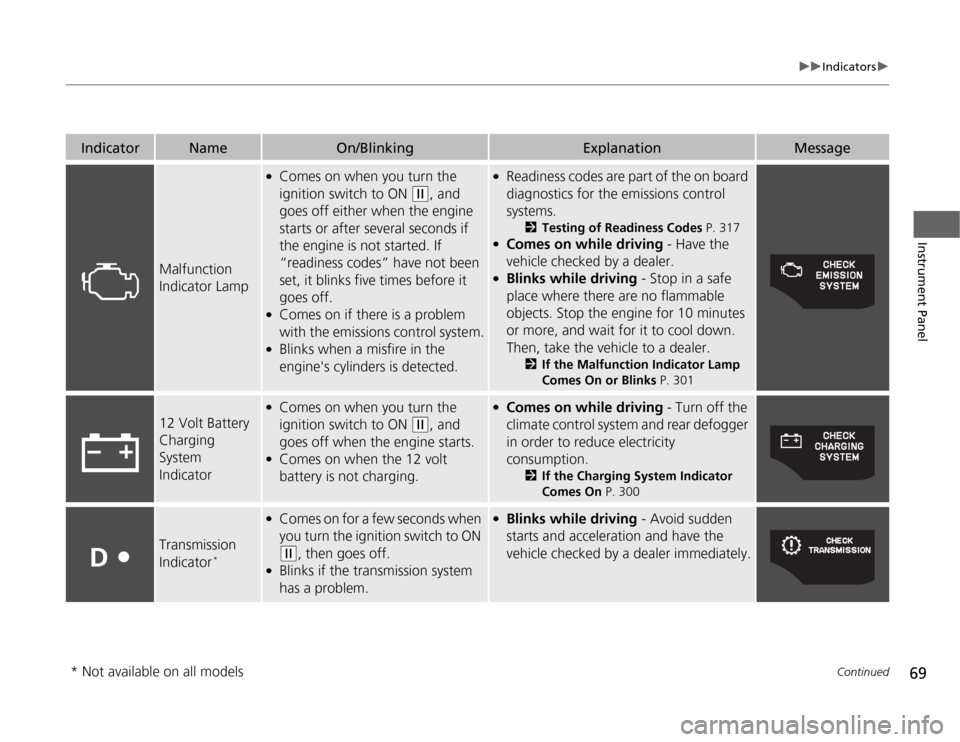

69
uuIndicatorsu
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Malfunction Indicator Lamp
●Comes on when you turn the ignition switch to ON
(w , and
goes off either when the engine
starts or after several seconds if
the engine is not started. If
“readiness codes” have not been
set, it blinks five times before it goes off.
● Comes on if there is a problem
with the emissions control system.
● Blinks when a misfire in the
engine's cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 317
● Comes on while driving - Have the
vehicle checked by a dealer.
● Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take the vehicle to a dealer. 2If the Malfunction Indicator Lamp
Comes On or Blinks P. 301
12 Volt Battery
Charging System
Indicator
●
Comes on when you turn the ignition switch to ON
(w , and
goes off when the engine starts.
● Comes on when the 12 volt
battery is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption. 2If the Charging System Indicator
Comes On P. 300
Transmission
Indicator*
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w , then goes off.
● Blinks if the transmission system
has a problem.
●Blinks while driving - Avoid sudden
starts and acceleration and have the
vehicle checked by a dealer immediately.
* Not available on all models

70
uuIndicatorsu
Instrument Panel
Seat Belt Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you turn the ignition switch to ON
(w . If the passenger is not
wearing a seat belt, the indicator
comes on about a few seconds
later.
● Blinks while driving if either you or
your passenger has not fastened a
seat belt. The beeper sounds and
the indicator blinks at regular intervals.
● The beeper stops and the indicator goes
off when you and your passenger fasten
your seat belts.
● Stays on after you or your passenger
has fastened the seat belt - A
detection error may have occurred in the
sensor. Have the vehicle checked by a dealer. 2Seat Belt Reminder P. 35
Low Fuel
Indicator
●
Comes on when the fuel reserve is
running low (approximately 1.8 U.S. gal./6.9 Liter left).
● Blinks if there is a problem with
the fuel gauge.●
Comes on - Refuel your vehicle as soon
as possible.
● Blinks - Have the vehicle checked by a
dealer.
ABS (Anti-lock
Brake System)
Indicator

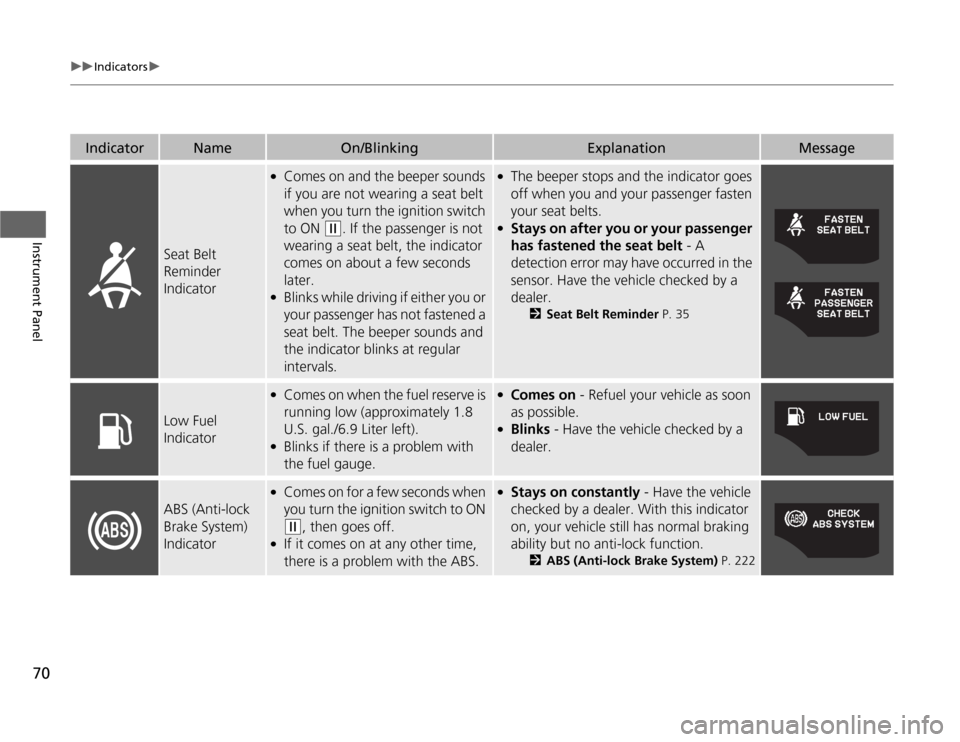

● Comes on for a few seconds when
you turn the ignition switch to ON
(w , then goes off.
● If it comes on at any other time,
there is a problem with the ABS.
●
Stays on constantly - Have the vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function. 2ABS (Anti-lock Brake System) P. 222
IndicatorNameOn/BlinkingExplanationMessage

71
uuIndicatorsu
Continued
Instrument Panel

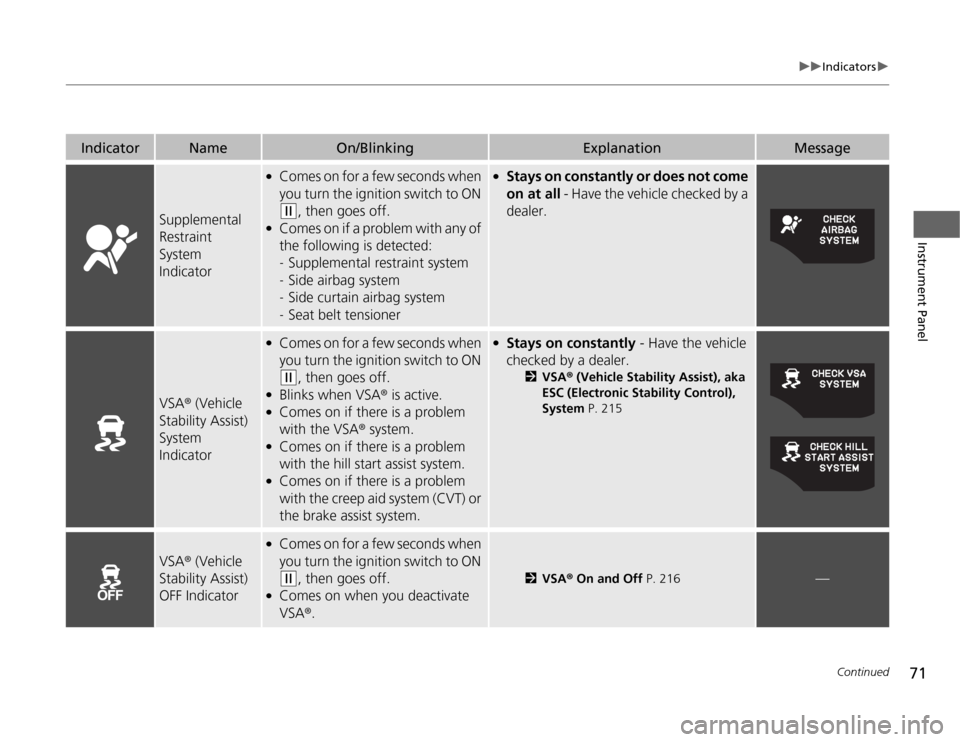

Supplemental
Restraint System
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w , then goes off.
● Comes on if a problem with any of
the following is detected: -Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●
Stays on constantly or does not come on at all - Have the vehicle checked by a
dealer.
VSA ® (Vehicle
Stability Assist) System
Indicator
● Comes on for a few seconds when
you turn the ignition switch to ON
(w , then goes off.
● Blinks when VSA ® is active.
● Comes on if there is a problem
with the VSA ® system.
● Comes on if there is a problem
with the hill start assist system.
● Comes on if there is a problem
with the creep aid system (CVT) or
the brake assist system.
●
Stays on constantly - Have the vehicle
checked by a dealer. 2VSA ® (Vehicle Stability Assist), aka
ESC (Electronic Stability Control), System P. 215
VSA® (Vehicle
Stability Assist)
OFF Indicator
● Comes on for a few seconds when
you turn the ignition switch to ON
(w , then goes off.
● Comes on when you deactivate VSA ®.2 VSA ® On and Off P. 216—
IndicatorNameOn/BlinkingExplanationMessage
