T E C H N O L O G Y R E F E R E N C E G U I D E

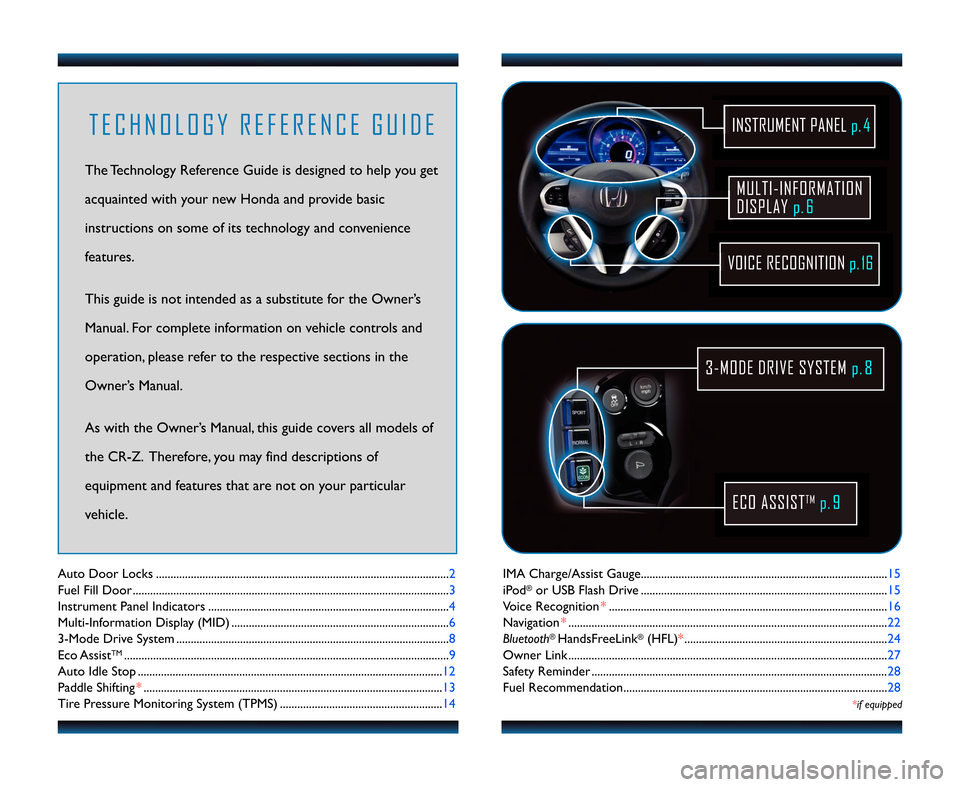

The Technology Reference Guide is designed to help you get
acquainted with your new Honda and provide basic
instructions on some of its technology and convenience
features.
This guide is not intended as a substitute for the Owner’s
Manual. For complete information on vehicle controls and
operation\b please refer to the respective sections in the
Owner’s Manual.
As with the Owner’s Manual\b this guide covers all models of
the CRZ. Therefore\b you may find descriptions of
equipment and features that are not on your particular
vehicle.
12 CRZ TRG\fATG_NEW STYLE 8/1\b/2011 11\f1\b AM Page 2

Default Lock\bUnlock Setting
Default Lock Setting
All doors and hatch are preset to
lock when your vehicle reaches
about 1\f mph.
Programmable Auto Door Lock\bUnlock Settings
Below are the different programmable options you can choose. See your Owner's
Manual for additional instructions on programming these settings.
Default Unlock Setting
Only the driver’s door and hatch
are preset to unlock when you shift
into Park (P)
*.
23
AUTO DOOR UNLOCK
Auto Unlock
(all doors and hatch)
When you turn
the ignition OFFWhen you shift into Park*
Auto Unlock
(only driver’s door andhatch)
When you turn
the ignition OFFWhen you shift into Park*
Turn off
Auto Unlock
Operate manually
AUTO DOOR LOCK
Auto Lock
When you
reach 1\f mphWhen you shift out of Park*
Turn off
Auto Lock
Operate manually
Modifying the Auto Door Unlock Setting
Press either Info (/) button to toggle to the “Customize Settings” display on the
MID\b then pressSEL/RESET to activate the menu.
1. Select “CHG SETTING.”
CHG SETTING
2.Select “DOOR SETUP.”
3. Select “AUTO DOOR UNLOCK.” 4.
Select “SHIFT TO P” (or “IGN OFF”
for manual transmission).
6. Select “EXIT” to save the setting and
exit the menu.
*In manual transmission vehicles, when you turn the ignition to LOCK (\b).
* Does not apply to manual transmission vehicles.

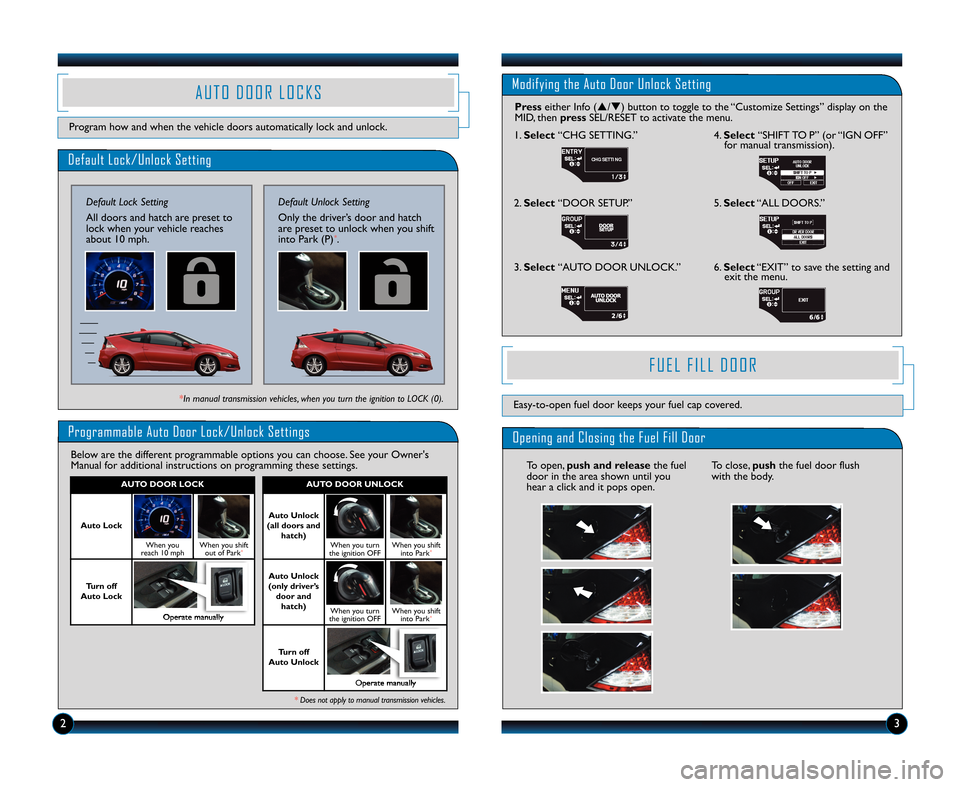

A U T O D O O R L O C K S
Program how and when the vehicle doors automatically lock and unlock.
F U E L F I L L D O O R
Opening and Closing the Fuel Fill Door
To open\b push and release the fuel
door in the area shown until you
hear a click and it pops open.To close\b pushthe fuel door flush
with the body.
Easytoopen fuel door keeps your fuel cap covered.
5. Select “ALL DOORS.”
12 CRZ TRG\fATG_NEW STYLE 8/1\b/2011 11\f1\b AM Page 3

Malfunction IndicatorsIf an indicator remains on\b there may be a problem; see a dealer
On\bOff Indicators
Condition IndicatorsAction is needed by driver
SIDE AIRBAGOFF
CRUISE CONTROL on
SPORT modeon
VSAOFFFog lights on(if equipped)
Exterior lights on
Turn signals/hazards on
Auto Idle Stopon(blinking)
NORMAL mode on
ECON modeon
High beamson
Charging system
Low brake fluid\b Brake system
Low oil pressure
ABS(antilock brake system)
Low tire pressure on:
Add air
Message indicator:
See MID
High temperature indicator:
Pull over and cool down
engine
IMA System
Malfunction lamp(check engine light)
VSA®(vehicle stability assist)SRS(supplemental restraint system)
EPS(electronic power steering)
Low temperature
TPMS (blinks and stays on)(tire pressure monitoring system)
Transmission (blinks)
Parking brake on:
Release
Door/Hatch open:
Close door(s) / hatch
Seat belt reminder:
Fasten seat belt(s)
Low fuel:
Refill

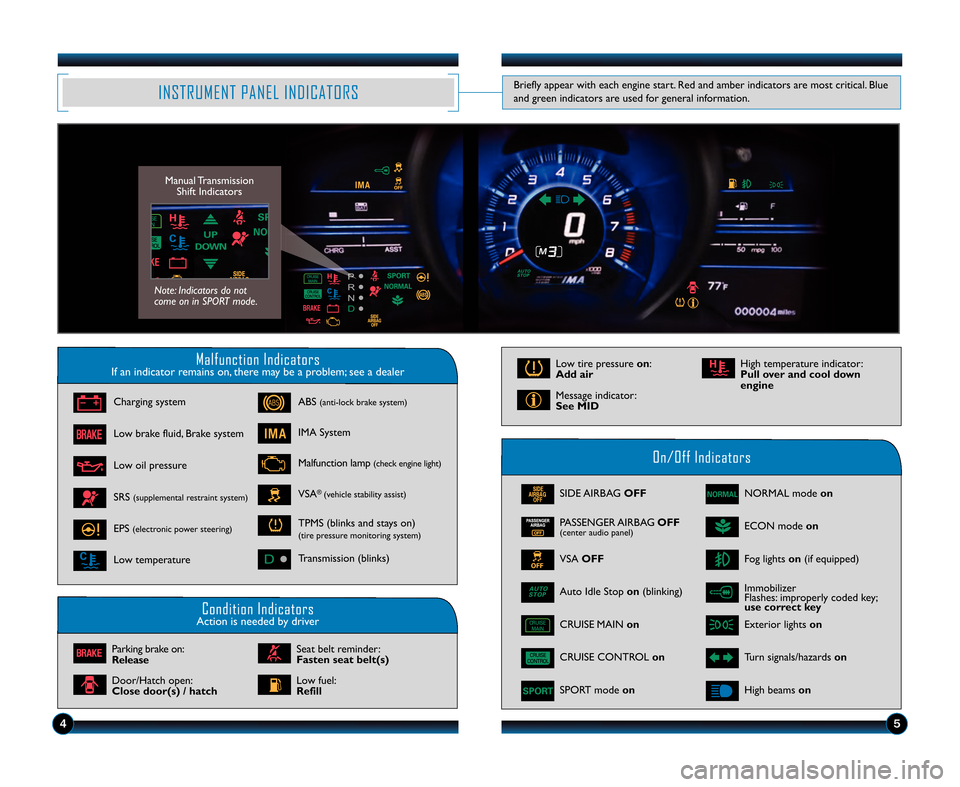

INSTRUMENT PANEL INDICATORS
Immobilizer
Flashes: improperly coded key;
use correct key
Briefly appear with each engine start. Red and amber indicators are most critical. Blue
and green indicators are used for general information.
45
CRUISE MAIN on
PASSENGER AIRBAG OFF(center audio panel)
Manual Transmission
Shift Indicators
Note: Indicators do not
come on in SPORT mode.
12 CRZ TRG\fATG_NEW STYLE 8/1\b/2011 11\f17 AM Page 4

Accessing the MultiInformation Display
MID Main Display
Bluetooth®HandsFreeLink®*
Customize Settings
Oil Life
IMA System PowerFlow Monitor
Average Vehicle Speed
Ecological Drive Display
Average Fuel Economy Records
Average Fuel Economy A
Range
Elapsed Time
*if a phone is paired and active
MID Main Displays
When you start the engine\b the
MID shows the main display.
Info
\futtons
SEL/RESET
\futton
To toggle between the MID
displays\bpresseither Info
button (/) for the main
displays\b and pressSEL/RESET
for the subdisplays.
67

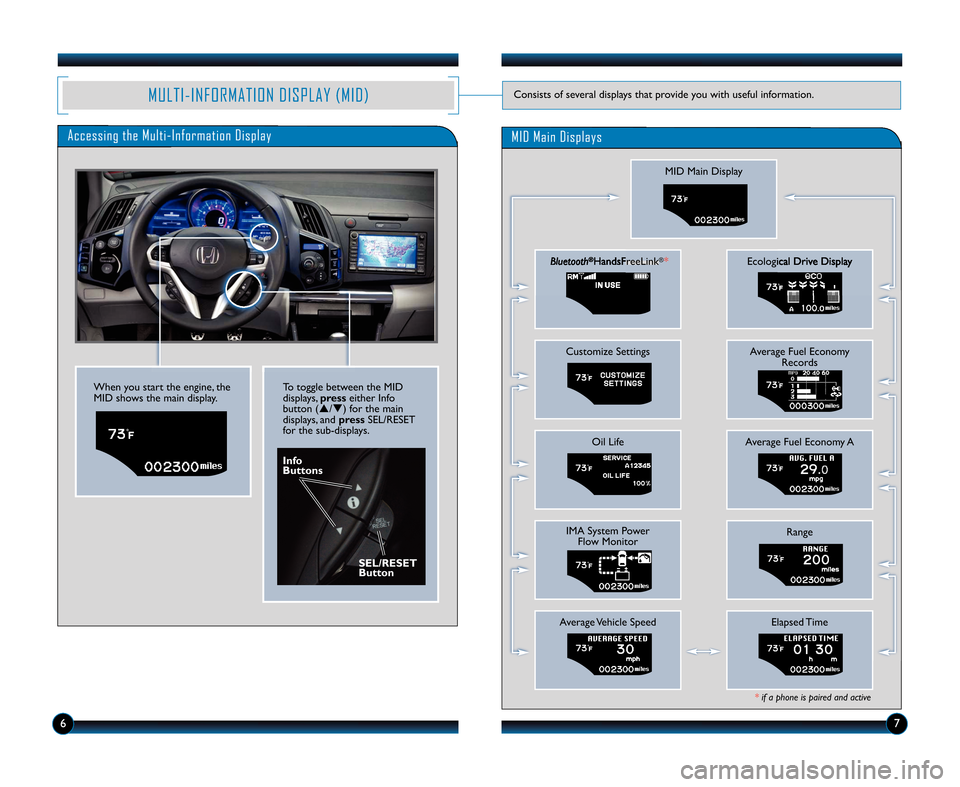

MULTIINFORMATION DISPLAY (MID)Consists of several displays that provide you with useful information.
12 CRZ TRG\fATG_NEW STYLE 11/4/2011 9\f44 AM Page 5

Activating the ECON Mode
NOTE:When turned on\b performance of the vehicle’s engine\b transmission\b cruise
control\b and air conditioning system may be affected to achieve maximum fuel economy.
1. Press theECON mode button.
2. TheECON mode indicator
comes on.
3. Check the MID.
4.Press either INFO (/)
button and toggleto the
Ecological Drive Display.
89

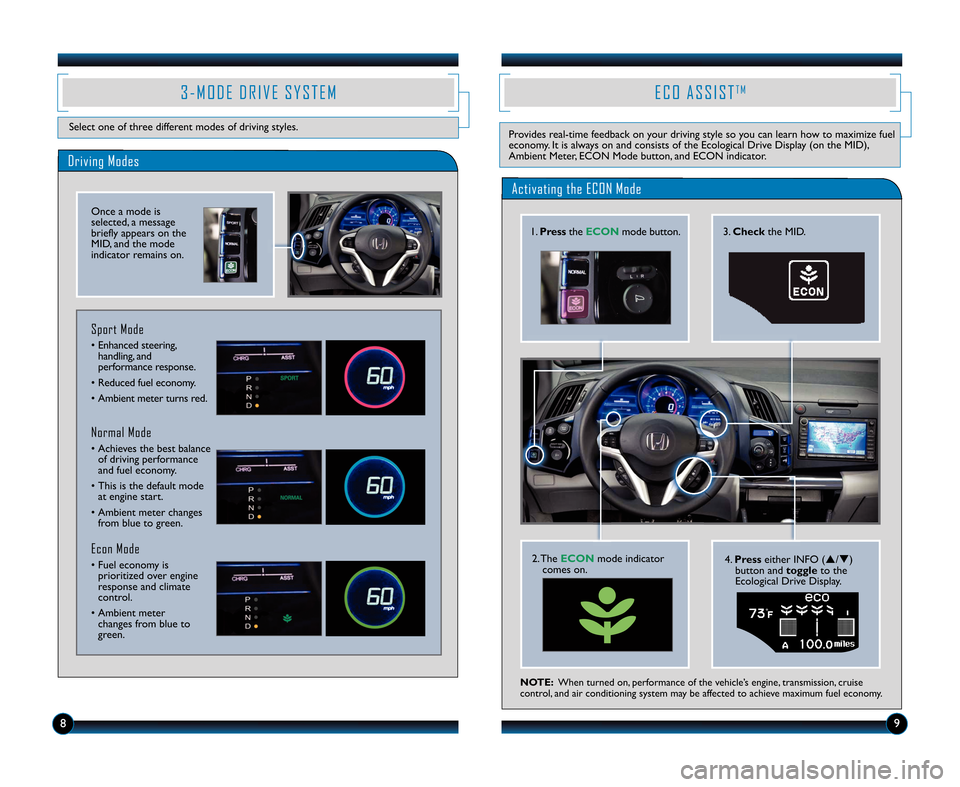

\f M O D E D R I V E S Y S T E M
Select one of three different modes of driving styles.
E C O A S S I S TT M
Provides realtime feedback on your driving style so you can learn how to maximize fuel
economy. It is always on and consists of the Ecological Drive Display (on the MID)\b
Ambient Meter\b ECON Mode button\b and ECON indicator.
Driving Modes
Normal Mode
• Achieves the best balance of driving performance
and fuel economy.
• This is the default mode at engine start.
• Ambient meter changes from blue to green.
Sport Mode
• Enhanced steering\bhandling\b and
performance response.
• Reduced fuel economy.
• Ambient meter turns red.
Econ Mode
• Fuel economy is prioritized over engine
response and climate
control.
• Ambient meter changes from blue to
green.
Once a mode is
selected\b a message
briefly appears on the
MID\b and the mode
indicator remains on.
12 CRZ TRG\fATG_NEW STYLE 11/4/2011 9\f45 AM Page \b

1\f11

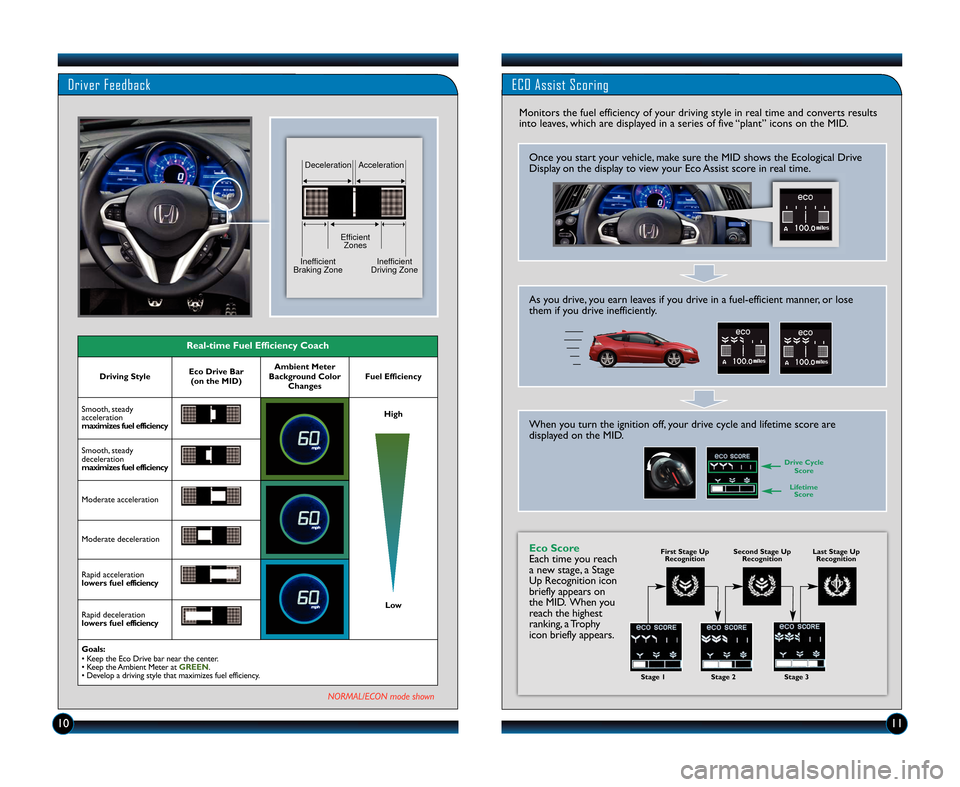

Driver Feedback
Realtime Fuel Efficiency Coach
Driving StyleEco Drive \far(on the MID)Ambient Meter
\fackground Color ChangesFuel Efficiency
Smooth\b steady
acceleration
maximizes fuel efficiencyHigh
Low
Smooth\b steady
deceleration
maximizes fuel efficiency
Moderate acceleration
Moderate deceleration
Rapid acceleration
lowers fuel efficiency
Rapid deceleration
lowers fuel efficiency
Goals:
• Keep the Eco Drive bar near the center.
• Keep the Ambient Meter at GREEN.
• Develop a driving style that maximizes fuel efficiency.
Deceleration
EfficientZones
Inefficient
Braking Zone Inefficient
Driving ZoneAcceleration
ECO Assist Scoring
Monitors the fuel efficiency of your driving style in real time and converts results
into leaves\b which are displayed in a series of five “plant” icons on the MID.
Once you start your vehicle\b make sure the MID shows the Ecological Drive
Display on the display to view your Eco Assist score in real time.
As you drive\b you earn leaves if you drive in a fuelefficient manner\b or lose
them if you drive inefficiently.
When you turn the ignition off\b your drive cycle and lifetime score are
displayed on the MID.
Eco Score
Each time you reach
a new stage\b a Stage
Up Recognition icon
briefly appears on
the MID. When you
reach the highest
ranking\b a Trophy
icon briefly appears.
NORMAL/ECON mode shown
Drive Cycle
Score
Stage 1Stage \bStage 3
LifetimeScore
First Stage Up Recognition Second Stage Up
Recognition Last Stage Up
Recognition
12 CRZ TRG\fATG_NEW STYLE 11/4/2011 9\f45 AM Page 7

1213

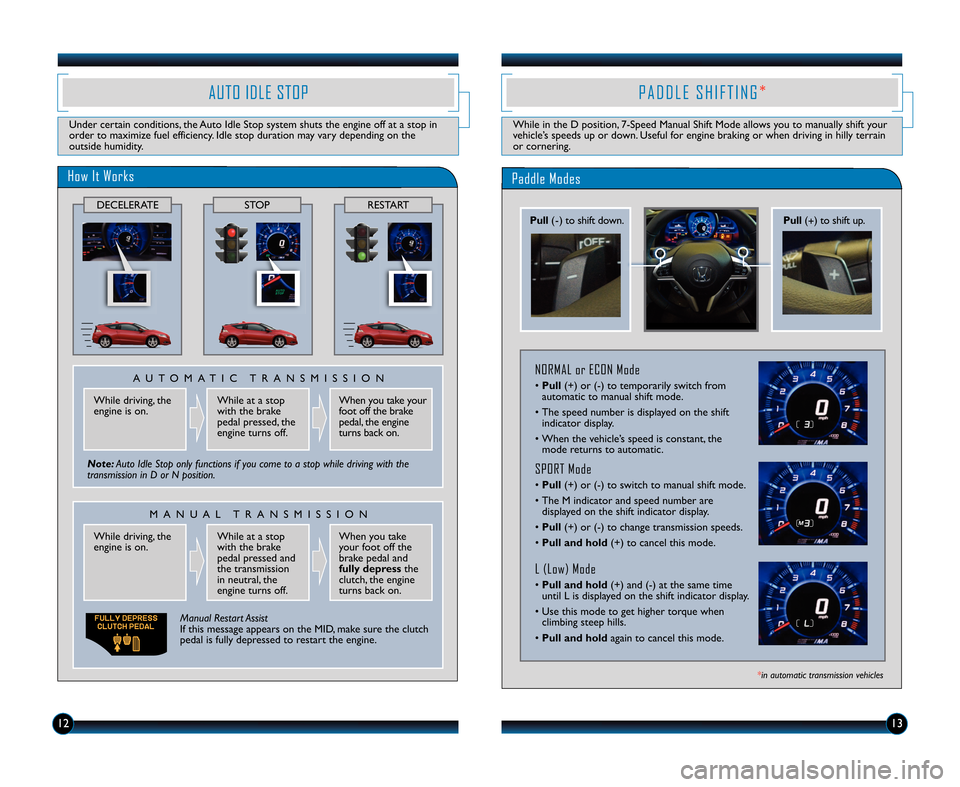

AUTO IDLE STOP
Under certain conditions\b the Auto Idle Stop system shuts the engine off at a stop in
order to maximize fuel efficiency. Idle stop duration may vary depending on the
outside humidity.
How It Works
While driving\b the
engine is on. A U T O M A T I C T R A N S M I S S I O N
While at a stop
with the brake
pedal pressed\b the
engine turns off. When you take your
foot off the brake
pedal\b the engine
turns back on.
While driving\b the
engine is on. M A N U A L T R A N S M I S S I O N
While at a stop
with the brake
pedal pressed and
the transmission
in neutral\b the
engine turns off. When you take
your foot off the
brake pedal and
fully depress the
clutch\b the engine
turns back on.
Paddle Modes
P A D D L E S H I F T I N G *
While in the D position\b 7Speed Manual Shift Mode allows you to manually shift your
vehicle’s speeds up or down. Useful for engine braking or when driving in hilly terrain
or cornering.
Manual Restart Assist
If this message appears on the MID\b make sure the clutch
pedal is fully depressed to restart the engine.
*in automatic transmission vehicles
Pull () to shift down. Pull(
+ ) to shift up.
DECELERATESTOPRESTART
NORMAL or ECON Mode
•
Pull (+) or () to temporarily switch from
automatic to manual shift mode.
• The speed number is displayed on the shift indicator display.
• When the vehicle’s speed is constant\b the mode returns to automatic.
SPORT Mode
•Pull (+) or () to switch to manual shift mode.
• The M indicator and speed number are displayed on the shift indicator display.
• Pull (+) or () to change transmission speeds.
• Pull and hold (+) to cancel this mode.
L (Low) Mode
•Pull and hold (+) and () at the same time
until L is displayed on the shift indicator display.
• Use this mode to get higher torque when climbing steep hills.
• Pull and hold again to cancel this mode.
Note:
Auto Idle Stop only functions if you come to a stop while driving with the
transmission in D or N position.
12 CRZ TRG\fATG_NEW STYLE 8/1\b/2011 11\f19 AM Page 8

1415
i P o d®O R U S B F L A S H D R I V E
Play audio files from your compatible iPod or USB flash drive through your vehicle’s
audio system.
Connecting Devices and Playing Audio Files
1. Pull out the USB adapter cable from
the center pocket.3. Press CD/AUX or AUX to begin
playing.
4. Press
orto change tracks.
2.Connect the USB connector to your
iPod dock connector or flash drive.
iPod is a registered trademark of Apple Computer, Inc .,
registered in the U.S. and other countries. iPod not included.

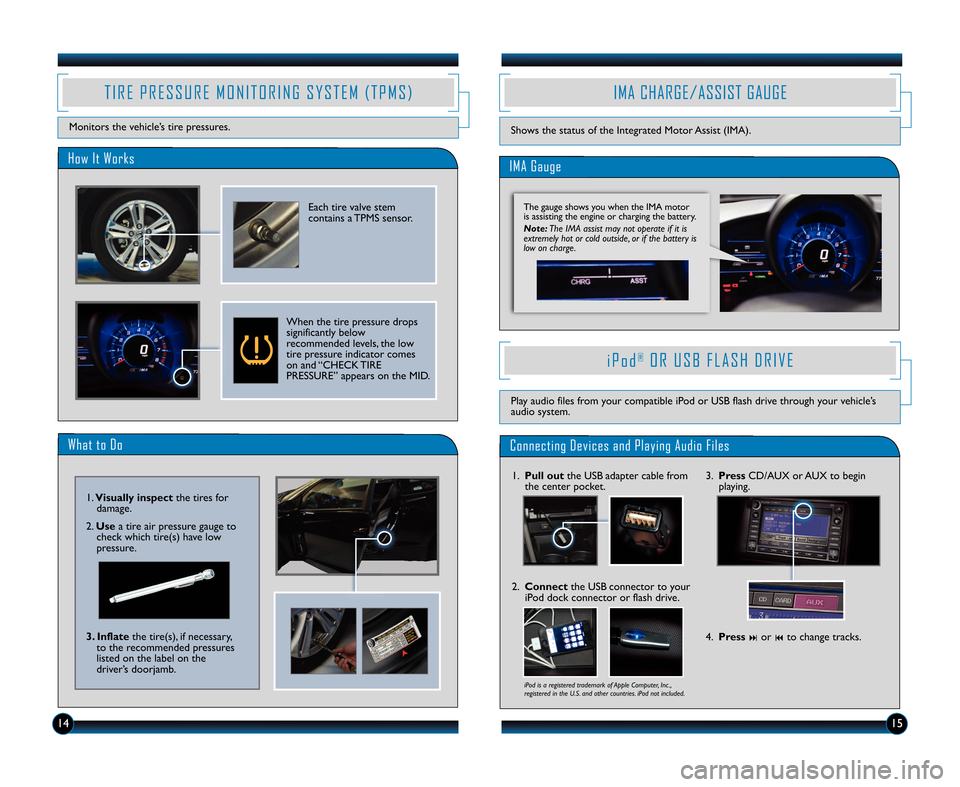

How It Works
T I R E P R E S S U R E M O N I T O R I N G S Y S T E M ( T P M S )
Monitors the vehicle’s tire pressures.
Each tire valve stem
contains a TPMS sensor.
When the tire pressure drops
significantly below
recommended levels\b the low
tire pressure indicator comes
on and “CHECK TIRE
PRESSURE” appears on the MID.
What to Do
1. Visually inspect the tires for
damage.
2. Use a tire air pressure gauge to
check which tire(s) have low
pressure.
3. Inflate the tire(s)\b if necessary\b
to the recommended pressures
listed on the label on the
driver’s doorjamb.
IMA CHARGE\bASSIST GAUGE
Shows the status of the Integrated Motor Assist (IMA).
IMA Gauge
The gauge shows you when the IMA motor
is assisting the engine or charging the battery.
Note: The IMA assist may not operate if it is
extremely hot or cold outside, or if the battery is
low on charge.
12 CRZ TRG\fATG_NEW STYLE 8/1\b/2011 11\f19 AM Page 9

V O I C E R E C O G N I T I O N ( i f e q u i p p e d )To keep your eyes on the road and hands on the wheel\b use voice commands for
handsfree calling\b navigation\b audio\b and climate control. For a full list of all system
commands\b say“Information” and “Voice Command Help. ”
Key Functions by Voice Command
B L U E T O O T H®H A N D S F R E E L I N K®p. 24
A U D I Op.21
C L I M A T Ep. 21
N A V I G A T I O Np. 22
Control four different systems with the steering wheel buttons and the ceiling
microphone.
Voice Command Tips
• Press and release the HFL or Navi Talk button\b wait for a beep\b then give a
command.
• For a list of available HFL commands\b
press and releasethe HFL Talk button
and say“Handsfree help.”
• For a list of available navigation commands\b press and releasethe Navi Talk
button and say“Help.”
• Speak in a clear\b natural voice.
• Reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
• Close the windows.
HFL Talk button: Give HFL commands or
answer incoming calls.
Navi Talk button: Give navigation\b audio\b
and climate control commands.
HFL \fack button: End a call\b go back to
the previous command\b or cancel an
operation
Navi \fack button: Cancel a command or
return to the previous screen.
1617
12 CRZ TRG\fATG_NEW STYLE 8/1\b/2011 11\f20 AM Page 10
