display HONDA CR-Z 2014 1.G Navigation Manual

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd., reserves the right,
however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.
Accessories Precautions
The GPS antenna is located in the dashboard. Metallic front or side window tinting can seriously degrade or obstruct GPS recept ion.
Signal noise from devices such as radar detectors, vehicle tracking devices, remote starters, and additional amplifiers can dis rupt the navigation system. If you
install any such item, install it away from the navigation display and antenna.
Important Safety Information
Avoid focusing on the screen or manually operating the system controls while driving.
Certain on-screen controls are disabled when driving, but most of the audible instructions and voice commands continue to function. Pull to the side of the road
if you need to devote more attention and time to look at the screen or access additional menus.
Route guidance may conflict with street closures, road construction, detours, and out-of-date map data.
The system itself may also have limitations. Verify route info rmation by carefully observing roads, signs, and signals. Always use your own judgment and obey
traffic laws.
2System Limitations
P. 184
NOTICE
This vehicle’s navigation display, if so equipped, includes mercury-containing compone nts. Upon removal, please reuse, recycle, or dispose of as hazardous waste.
Clean the screen with a soft, damp cloth. You may us e a mild cleaner intended for use on navigation screens.
Using the navigation system while driving can take your
attention away from the road, causing a crash in which you
could be seriously injured or killed.
Only operate system controls when the conditions permit you
to safely do so.
WARNING





4Quick Reference Guide
System Controls
3CD/AUX Button
(P121)
1E (Eject) Button
2 FM/AM Button
(P116)
Navigation Screen
(Touch Screen)
Audio Navigation
Voice Control/
Bluetooth® HandsFreeLink®
6 Disc Slot
(P6)
4AUDIO Button
(P6)
5SEEK/SKIP Button
(P116)
7a (Display Mode)
Button
(P26)
lb DEST Button
(P56)
9PHONE Button
(P144)
laMAP/GUIDE Button
(P90)
leCANCEL Button
lc
INFO Button
(P10)
ldZOOM IN/OUT Button
(P95)
lfJoystick/ENT Button
8 VOL 9 Knob
(P6) Press ENTER
Selects map location
or list item.
Move up Move Left Move down Move right Scrolls map or list.
CR-Z_KA-31SZT820.book 4 ページ ２０１２年８月１５日　水曜日　午前９時２９分

5Quick Reference Guide
lgMicrophone
(P19)
lhMODE Button
(P140)
lj NB (Channel) Button
(P141)
mcd (Talk) Button
(P5)
mb j (Hang-Up) Button
(P159)
ma h (Pick-Up) Button
(P159)
li RU (Volume) Button
(P141)
mdK (Back) Button
(P5)
Voice Control OperationzThe audio system is muted during voice control mode.
z Say “Help” to see all supported commands. A voice help
tutorial is also available.
Voice Help (P13)
z Carefully read the usage note for the voice control.
Voice Control System (P19)aPress and release the d (Talk) button.
z The icon is displayed and the system beeps when ready for a
command. Press the K (Back) button to cancel.
z Available voice commands are highlighted on the screen.b Say a voice command.
Voice Command (P193)d (Talk) Button A helpful prompt asks what you
would like to do. Press and release
the d
(Talk) button again to bypass
this prompt.
CR-Z_KA-31SZT820.book 5 ページ ２０１２年８月１５日　水曜日　午前９時２９分

6Quick Reference Guide
Audio SystemYou can play music from a wide array of media sources. You can also control the audio system using voice commands.Basic OperationaPress the VOL 9 (Volume/Power) button to turn the audio
system on or off.b Press the AUDIO button and select SOURCE on the screen.cSelect the audio source.
Or, press the FM/AM button or CD/AUX button repeatedly to
select the audio source.dRotate the VOL 9 (Volume/Power) knob to adjust
the volume.
Audio source
Audio Control DisplayPress the AUDIO button to display the audio system on the
navigation screen.
Track list
Open icon
Audio source
Displays selected source.
Music
information
Close icon
Sound
preferences
Folder/Track tab
Displays the list. Repeat and random playPlay mode
Displays or hides the
music information. Audio control
CR-Z_KA-31SZT820.book 6 ページ ２０１２年８月１５日　水曜日　午前９時２９分

7Quick Reference Guide
Map Screen LegendMap orientation (P97)
GPS signal strength
North up
Heading up Best reception
Good reception
No icon: Poor/No reception
Traffic status indicator (P99)
Traffic information available
Flow or incident data not available
Traffic information not available
Traffic information off or map
scale too large
Current map scale
Current street name/audio control
(Select to switch the display.)
Map menu (P85)
Map scale
(P95)
Current vehicle position
(P98)
Feature areas Streets
Landmark icons (P92)
Park
Hospital
Shopping Mall
Golf Course Airport
Water Area
Cemetery
University Freeways
State routes
Verified streets
Unverified streets
One-way streets
Acura dealer
Honda dealer
ATM
School
Parking lot
Parking garage
Grocery store
Hotel/Lodging
Gas station
Hospital
Post office
Restaurant
Freeway exit information
Traffic flow indicator (P99)
Heavy (approx.)
surface: 0 to 20 mph
freeway: 0 to 25 mph
Moderate (approx.) surface: 21 to 30 mph
freeway: 25 to 52 mph
Congestion
Accident/Incident
Weather
Construction
Road Closed
Traffic incident icons
(P99)
CR-Z_KA-31SZT820.book 7 ページ ２０１２年８月１５日　水曜日　午前９時２９分

8Quick Reference Guide
During Route GuidanceDuring route guidance, route information is displayed on the map/guidance screen.
Press the MAP/GUIDE button to display the guidance screen (factory default).Map Screen
Guidance ScreenCalculated route
(P80)
Destination direction
indicator
Direction “as the crow
flies.” Guidance indicator
Distance to the next
guidance point.
Distance to destination
Distance of the actual
route.
Estimated time to
destination Waypoint (P103) Destination icon
(P79)
Calculated route
(unverified roads)
(P82)Street name of
guidance point Route guidance list scroll bar
Select
R or U to scroll the list of
guidance points.
Route progress bar Distance to
guidance point
No entry icon
Day or Night ModePress the a (Display mode) button
to manually switch between day and
night mode.
Night mode
Day mode
CR-Z_KA-31SZT820.book 8 ページ ２０１２年８月１５日　水曜日　午前９時２９分

9Quick Reference Guide
How to Enter InformationYou can enter information (e.g., city names, street names, personal names, and business names comprising letters, numbers, and symbols)
when prompted on input screens by two different methods.Using Voice ControlWhen you see d in this manual, voice commands are available for
that feature.
z Say the letter, number, or symbol (e.g., say d “A”).
z Use spelling assist (e.g., say d “Alpha” to enter the letter “A” or
d “Hyphen” to enter a hyphen).
z The system beeps if you say an unavailable (grayed out) letter or
number.
z If a voice command is not recognized, a list is displayed with
possible options.On list screens:zSay the number of the list item (e.g., say d “Five” to select item
5).
z Say d “Up” or d “Previous” to scroll up one page.
z Say d “Down” or d “Next” to scroll down one page.
Using the Touch ScreenTouch a character or icon on the screen to select it.
zSelect Delete to remove the last entered character.
z Select Shift to display accented and upper/lower case characters.
z Select Space to enter a space character.
z Select More to display symbols.
You can also use the joystick to enter information.
2 System Controls P. 4On list screens:Scrolling through lists or tabs is limited while the vehicle is moving.
Certain touch screen functions are limited or inoperable while the
vehicle is moving. For these functions, use available voice
commands or pull over to proceed.
Number of Hits
On input search screens, the number of hits in the map database is
displayed. Select List to display a list of possible entries.
NOTE
CR-Z_KA-31SZT820.book 9 ページ ２０１２年８月１５日　水曜日　午前９時２９分

10Quick Reference Guide

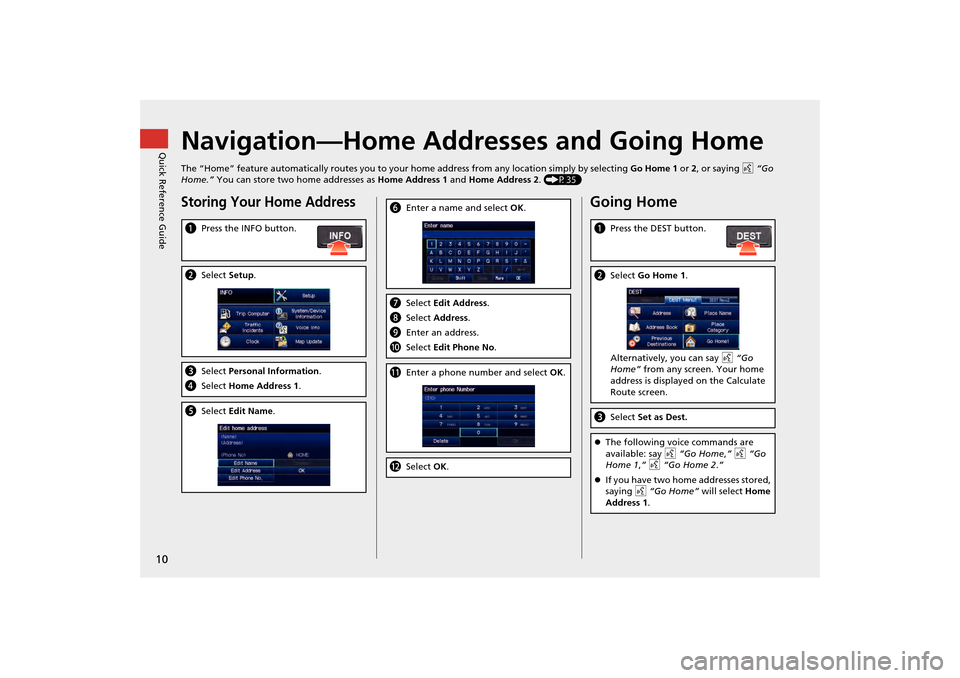

Navigation—Home Addresses and Going HomeThe “Home” feature automatically routes you to your home address from any location simply by selecting Go Home 1 or 2, or saying d “Go
Home.” You can store two home addresses as Home Address 1 and Home Address 2. (P35)Storing Your Home AddressaPress the INFO button.bSelect Setup.cSelect Personal Information.
d Select Home Address 1.eSelect Edit Name .
fEnter a name and select OK.g Select Edit Address.
h Select Address.
i Enter an address.
j Select Edit Phone No .kEnter a phone number and select OK.l Select OK.
Going Homea Press the DEST button.bSelect Go Home 1 .
Alternatively, you can say d “Go
Home” from any screen. Your home
address is displayed on the Calculate
Route screen.c Select Set as Dest.zThe following voice commands are
available: say d “Go Home ,” d “Go
Home 1 ,” d “Go Home 2.”
z If you have two home addresses stored,
saying d “Go Home” will select Home
Address 1 .
CR-Z_KA-31SZT820.book 10 ページ ２０１２年８月１５日　水曜日　午前９時２９分

11Quick Reference Guide

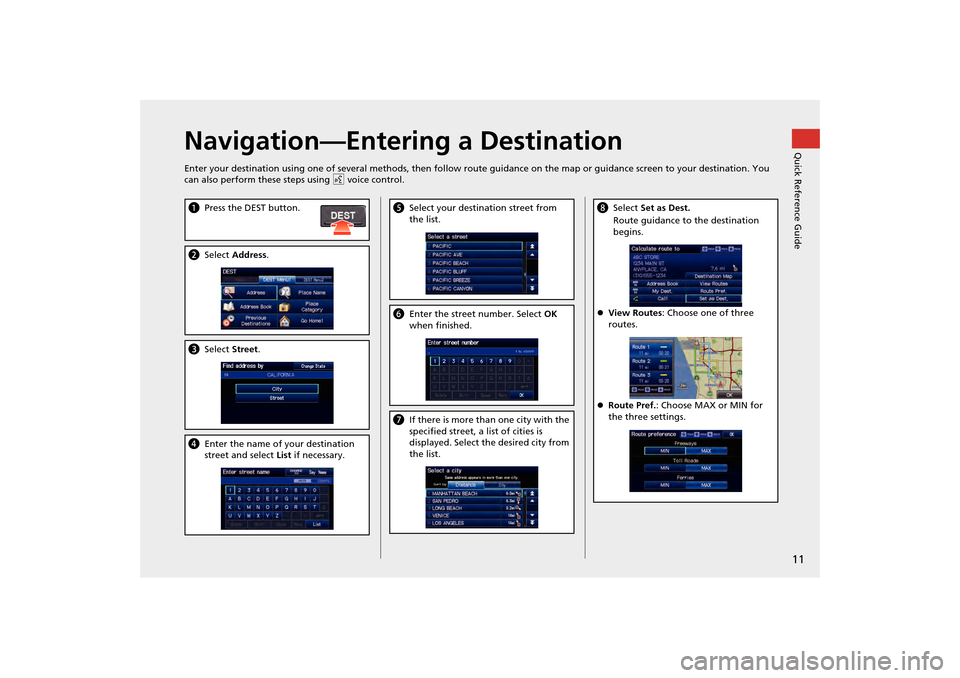

Navigation—Entering a DestinationEnter your destination using one of several methods, then follow route guidance on the map or guidance screen to your destinati on. You
can also perform these steps using d voice control.a Press the DEST button.bSelect Address .cSelect Street.dEnter the name of your destination
street and select List if necessary.
e Select your destination street from
the list.fEnter the street number. Select OK
when finished.g If there is more than one city with the
specified street, a list of cities is
displayed. Select the desired city from
the list.
hSelect Set as Dest.
Route guidance to the destination
begins.
z View Routes : Choose one of three
routes.
z Route Pref. : Choose MAX or MIN for
the three settings.
CR-Z_KA-31SZT820.book 11 ページ ２０１２年８月１５日　水曜日　午前９時２９分

14Quick Reference Guide
Troubleshooting
For more Information
(P169)
Why does the vehicle position icon on the map “lag” a
short distance behind my actual position, especially at
intersections?
This is normal. The navigation system is unaware of the
width of intersections. Large differences in vehicle position
can indicate a temporary loss of the GPS signal.
Why does the “time to destination” display sometimes
increase even though I am getting closer to my
destination?
The “time to destination” is based on the posted road
speed signs and your actual road speed to give you a
better estimate of arrival time.
Why does my clock frequently change the time forward
and backward by one hour?
The clock setting is automatically updated based on your
GPS location. If you normally drive between two time
zones, the clock may keep adjusting the time. You can
turn this feature off.
2Clock Adjustment
P. 46
How do I specify a destination when an entered city or
street could not be found?
Try entering the street first. Some cities are lumped in with
a major metro area. In rural “unverified” areas or new
subdivisions, streets may be missing or only partially
numbered.
How do I turn on the navigation system voice guidance?
1. Press the INFO button. Select Setup. Check that
Volume is not set to Off.
2. Select Other, then Basic Settings. Set Voice
Recognition Tutor to On if you want the system to
provide confirmations and system prompts.
My battery was disconnected or went dead, and the
navigation system is asking for a code. Where do I find it?
Your vehicle comes with a label in the Owner’s Manual kit
that includes the system’s secu rity code and serial number.
You should keep this label in a safe place outside your
vehicle. If you cannot find it, contact your dealer.
