HONDA CR-Z 2014 1.G Navigation Manual

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd., reserves the right,
however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.
Accessories Precautions
The GPS antenna is located in the dashboard. Metallic front or side window tinting can seriously degrade or obstruct GPS recept ion.
Signal noise from devices such as radar detectors, vehicle tracking devices, remote starters, and additional amplifiers can dis rupt the navigation system. If you
install any such item, install it away from the navigation display and antenna.
Important Safety Information
Avoid focusing on the screen or manually operating the system controls while driving.
Certain on-screen controls are disabled when driving, but most of the audible instructions and voice commands continue to function. Pull to the side of the road
if you need to devote more attention and time to look at the screen or access additional menus.
Route guidance may conflict with street closures, road construction, detours, and out-of-date map data.
The system itself may also have limitations. Verify route info rmation by carefully observing roads, signs, and signals. Always use your own judgment and obey
traffic laws.
2System Limitations
P. 184
NOTICE
This vehicle’s navigation display, if so equipped, includes mercury-containing compone nts. Upon removal, please reuse, recycle, or dispose of as hazardous waste.
Clean the screen with a soft, damp cloth. You may us e a mild cleaner intended for use on navigation screens.
Using the navigation system while driving can take your
attention away from the road, causing a crash in which you
could be seriously injured or killed.
Only operate system controls when the conditions permit you
to safely do so.
WARNING





Contents
2System Setup P. 17Start-up 18 Voice Control System 19 Inte rface Settings 21Personal Information 29
Routing & Guidance 39 Clock Adjustment 46 Vehicle 49Data Reset 522Navigation P. 55Entering a Destination 56 Calculating the Route 77 Driving to Your Destination 80 Map Menu 85
Changing Your Route 101 Changing Your Destination 108 Resuming Your Trip 1122Audio P. 113Audio System 114 Playing FM/AM Radio 116 Playing a Disc 121 Playing an iPod® 125
Playing Pandora® 129 Playing a USB Flash Drive 132 Playing Bluetooth®
Audio 136 Adjusting the Sound 139
Audio Remote Controls 1402 Bluetooth® HandsFreeLink® P. 143Bluetooth®
HandsFreeLink® 144 Pairing a Phone 146 Setting Up
Speed Dialing 151 Editing Phone
Information 154
Phone Setup 155 Making a Call 156 Receiving a Call 159 HFL Menus 160
Text Messages 1632 Other Features P. 165Trip Computer 166 Information Functions 167 Multi-View Rear Camera 1682Troubleshooting P. 169Troubleshooting 170 Error Messages 1772Reference Information P. 181System Initialization 182 System Limitations 184 Customer Assistance 186 Legal Information 1892Voice Commands P. 193Voice Commands 194
Quick Reference Guide
P.2
System Setup
P.17
Navigation
P.55
Audio
P.113
Bluetooth
® HandsFreeLink®
P.143
Other Features
P.165
Troubleshooting
P.169
Reference Information
P.181
Voice Commands
P.193
Index
P.204

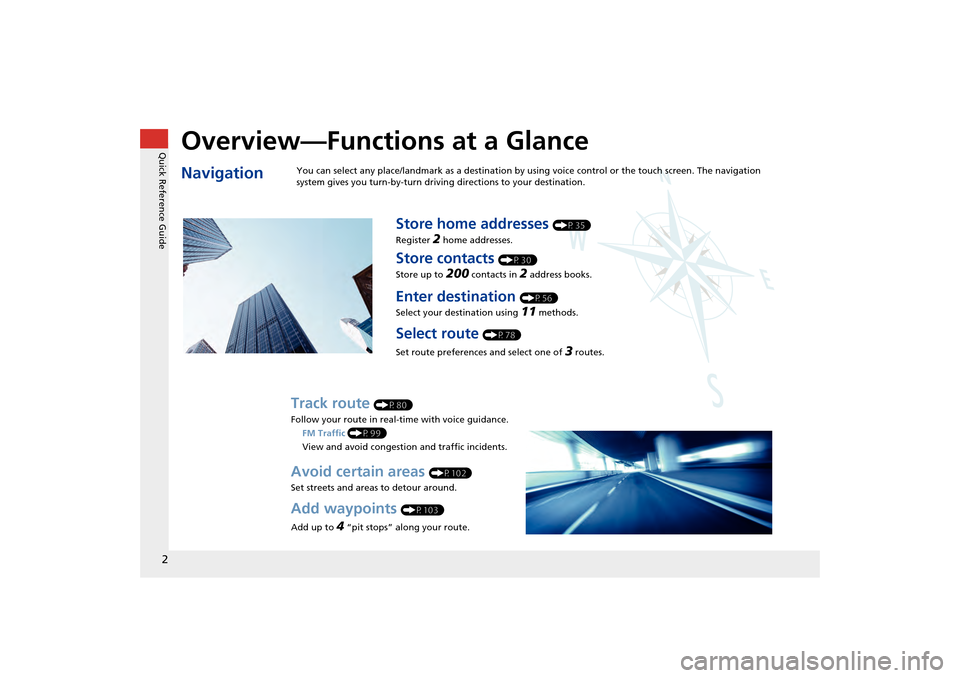

Quick Reference Guide2
Overview—Functions at a GlanceNavigation
You can select any place/landmark as a destination by using voice control or the touch screen. The navigation
system gives you turn-by-turn driving directions to your destination.
Store home addresses
(P35)
Register
2 home addresses.
Store contacts
(P30)
Store up to
200
contacts in
2 address books.
Enter destination
(P56)
Select your destination using 11
methods.
Select route
(P78)
Set route preferences and select one of
3 routes.
Track route
(P80)
Follow your route in real-time with voice guidance. FM Traffic (P99)
View and avoid congesti on and traffic incidents.
Avoid certain areas
(P102)
Set streets and areas to detour around.
Add waypoints
(P103)
Add up to
4 “pit stops” along your route.
CR-Z_KA-31SZT820.book 2 ページ ２０１２年８月１５日　水曜日　午前９時２９分

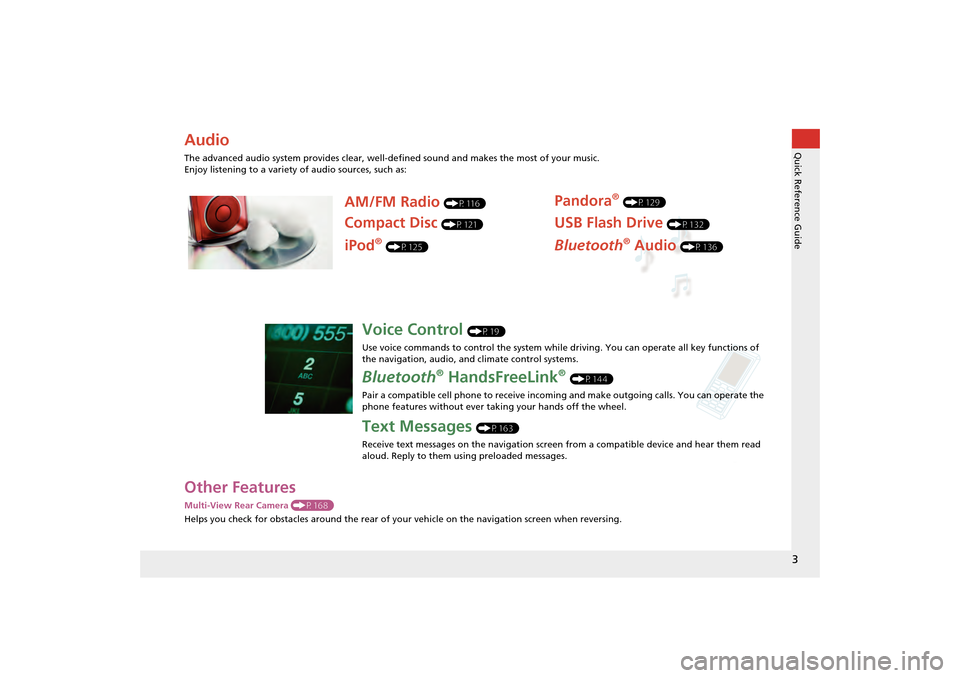

3Quick Reference Guide
Other FeaturesMulti-View Rear Camera (P168)
Helps you check for obstacles around the rear of your vehicle on the navigation screen when reversing.AudioThe advanced audio system provides clear, well-defined sound and makes the most of your music.
Enjoy listening to a variety of audio sources, such as:
AM/FM Radio
(P116)
Compact Disc
(P121)
Pandora
® (P129)
USB Flash Drive
(P132)
Bluetooth
® Audio
(P136)
iPod
® (P125)
Voice Control
(P19)
Use voice commands to control the system while driving. You can operate all key functions of
the navigation, audio, an d climate control systems.
Bluetooth
® HandsFreeLink
® (P144)
Pair a compatible cell phone to receive incoming and make outgoing calls. You can operate the
phone features without ever taking your hands off the wheel.
Text Messages
(P163)
Receive text messages on the navigation screen from a compatible device and hear them read
aloud. Reply to them using preloaded messages.
CR-Z_KA-31SZT820.book 3 ページ ２０１２年８月１５日　水曜日　午前９時２９分

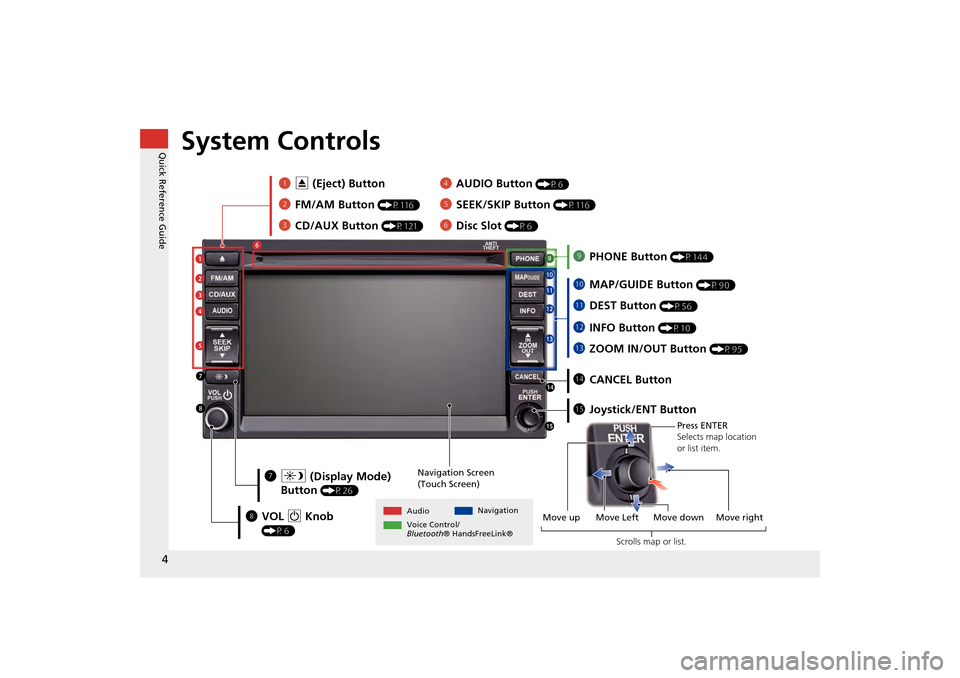

4Quick Reference Guide
System Controls
3CD/AUX Button
(P121)
1E (Eject) Button
2 FM/AM Button
(P116)
Navigation Screen
(Touch Screen)
Audio Navigation
Voice Control/
Bluetooth® HandsFreeLink®
6 Disc Slot
(P6)
4AUDIO Button
(P6)
5SEEK/SKIP Button
(P116)
7a (Display Mode)
Button
(P26)
lb DEST Button
(P56)
9PHONE Button
(P144)
laMAP/GUIDE Button
(P90)
leCANCEL Button
lc
INFO Button
(P10)
ldZOOM IN/OUT Button
(P95)
lfJoystick/ENT Button
8 VOL 9 Knob
(P6) Press ENTER
Selects map location
or list item.
Move up Move Left Move down Move right Scrolls map or list.
CR-Z_KA-31SZT820.book 4 ページ ２０１２年８月１５日　水曜日　午前９時２９分

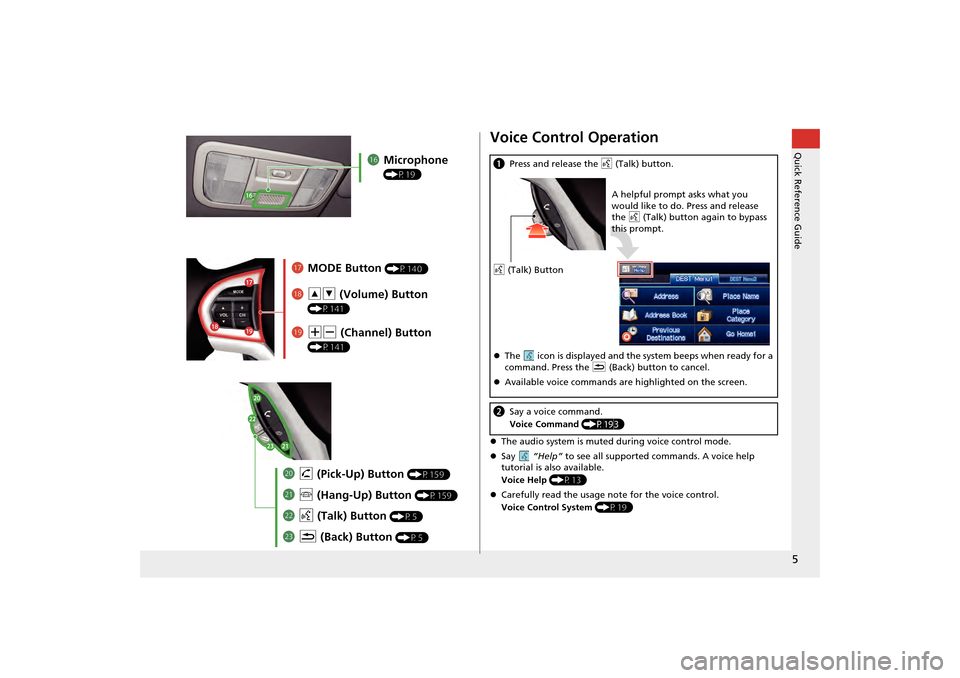

5Quick Reference Guide
lgMicrophone
(P19)
lhMODE Button
(P140)
lj NB (Channel) Button
(P141)
mcd (Talk) Button
(P5)
mb j (Hang-Up) Button
(P159)
ma h (Pick-Up) Button
(P159)
li RU (Volume) Button
(P141)
mdK (Back) Button
(P5)
Voice Control OperationzThe audio system is muted during voice control mode.
z Say “Help” to see all supported commands. A voice help
tutorial is also available.
Voice Help (P13)
z Carefully read the usage note for the voice control.
Voice Control System (P19)aPress and release the d (Talk) button.
z The icon is displayed and the system beeps when ready for a
command. Press the K (Back) button to cancel.
z Available voice commands are highlighted on the screen.b Say a voice command.
Voice Command (P193)d (Talk) Button A helpful prompt asks what you
would like to do. Press and release
the d
(Talk) button again to bypass
this prompt.
CR-Z_KA-31SZT820.book 5 ページ ２０１２年８月１５日　水曜日　午前９時２９分

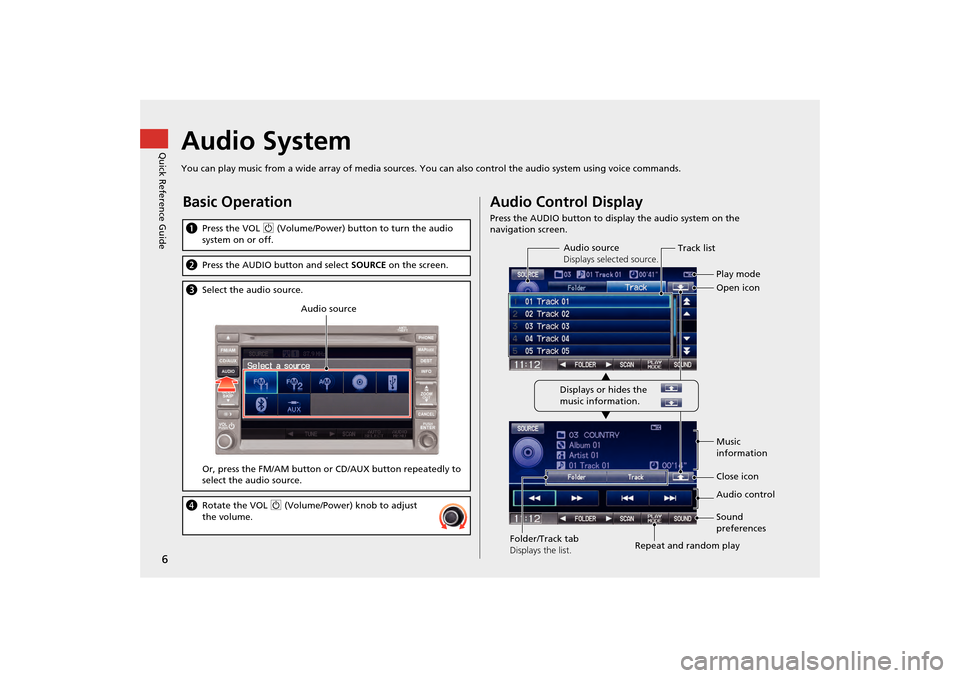

6Quick Reference Guide
Audio SystemYou can play music from a wide array of media sources. You can also control the audio system using voice commands.Basic OperationaPress the VOL 9 (Volume/Power) button to turn the audio
system on or off.b Press the AUDIO button and select SOURCE on the screen.cSelect the audio source.
Or, press the FM/AM button or CD/AUX button repeatedly to
select the audio source.dRotate the VOL 9 (Volume/Power) knob to adjust
the volume.
Audio source
Audio Control DisplayPress the AUDIO button to display the audio system on the
navigation screen.
Track list
Open icon
Audio source
Displays selected source.
Music
information
Close icon
Sound
preferences
Folder/Track tab
Displays the list. Repeat and random playPlay mode
Displays or hides the
music information. Audio control
CR-Z_KA-31SZT820.book 6 ページ ２０１２年８月１５日　水曜日　午前９時２９分

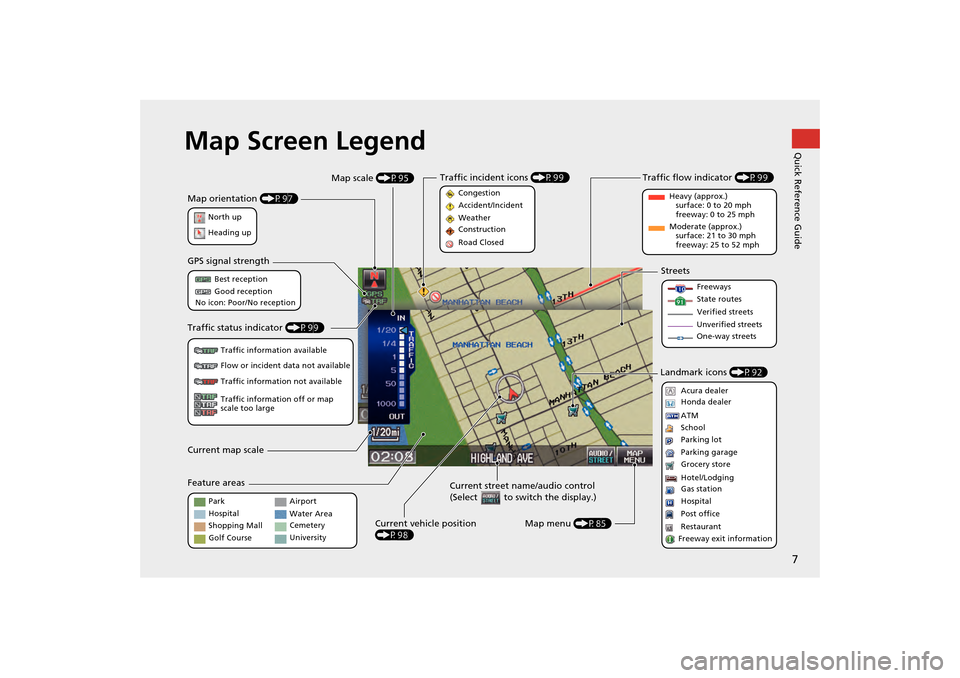

7Quick Reference Guide
Map Screen LegendMap orientation (P97)
GPS signal strength
North up
Heading up Best reception
Good reception
No icon: Poor/No reception
Traffic status indicator (P99)
Traffic information available
Flow or incident data not available
Traffic information not available
Traffic information off or map
scale too large
Current map scale
Current street name/audio control
(Select to switch the display.)
Map menu (P85)
Map scale
(P95)
Current vehicle position
(P98)
Feature areas Streets
Landmark icons (P92)
Park
Hospital
Shopping Mall
Golf Course Airport
Water Area
Cemetery
University Freeways
State routes
Verified streets
Unverified streets
One-way streets
Acura dealer
Honda dealer
ATM
School
Parking lot
Parking garage
Grocery store
Hotel/Lodging
Gas station
Hospital
Post office
Restaurant
Freeway exit information
Traffic flow indicator (P99)
Heavy (approx.)
surface: 0 to 20 mph
freeway: 0 to 25 mph
Moderate (approx.) surface: 21 to 30 mph
freeway: 25 to 52 mph
Congestion
Accident/Incident
Weather
Construction
Road Closed
Traffic incident icons
(P99)
CR-Z_KA-31SZT820.book 7 ページ ２０１２年８月１５日　水曜日　午前９時２９分

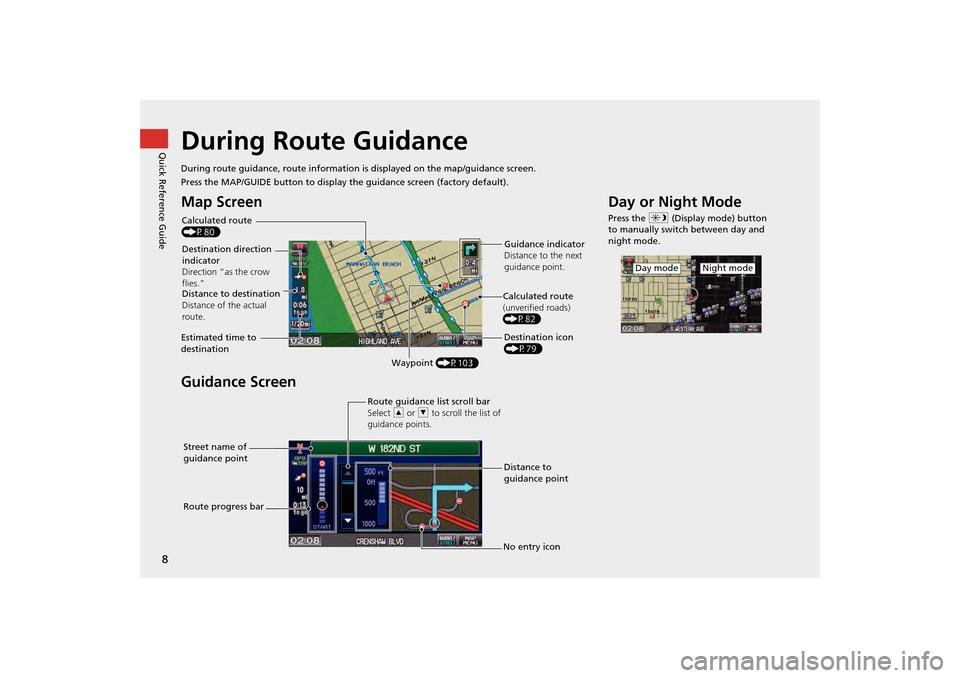

8Quick Reference Guide
During Route GuidanceDuring route guidance, route information is displayed on the map/guidance screen.
Press the MAP/GUIDE button to display the guidance screen (factory default).Map Screen
Guidance ScreenCalculated route
(P80)
Destination direction
indicator
Direction “as the crow
flies.” Guidance indicator
Distance to the next
guidance point.
Distance to destination
Distance of the actual
route.
Estimated time to
destination Waypoint (P103) Destination icon
(P79)
Calculated route
(unverified roads)
(P82)Street name of
guidance point Route guidance list scroll bar
Select
R or U to scroll the list of
guidance points.
Route progress bar Distance to
guidance point
No entry icon
Day or Night ModePress the a (Display mode) button
to manually switch between day and
night mode.
Night mode
Day mode
CR-Z_KA-31SZT820.book 8 ページ ２０１２年８月１５日　水曜日　午前９時２９分

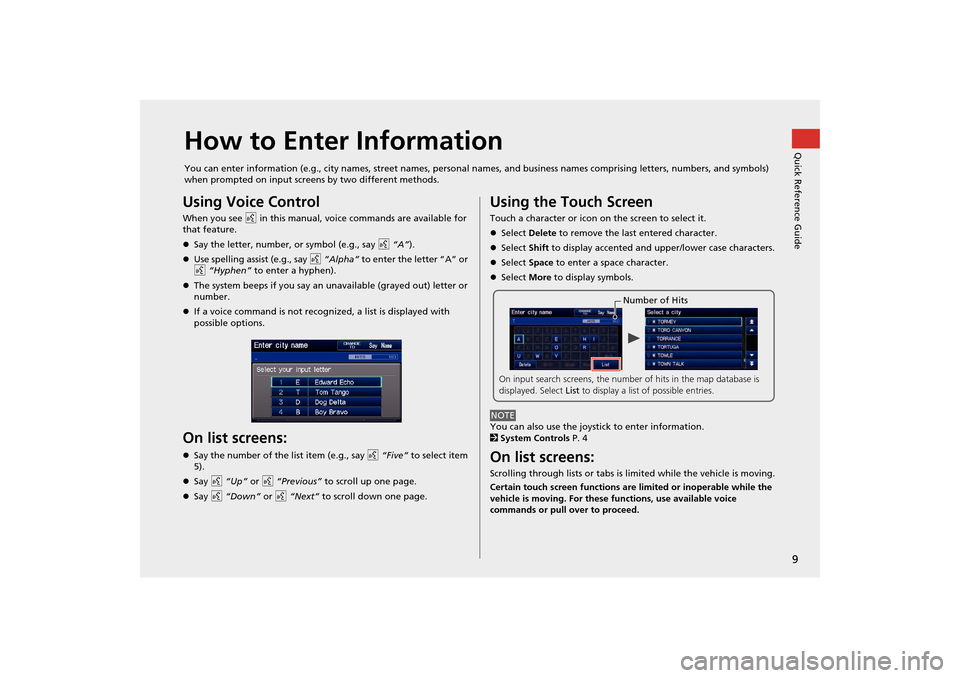

9Quick Reference Guide
How to Enter InformationYou can enter information (e.g., city names, street names, personal names, and business names comprising letters, numbers, and symbols)
when prompted on input screens by two different methods.Using Voice ControlWhen you see d in this manual, voice commands are available for
that feature.
z Say the letter, number, or symbol (e.g., say d “A”).
z Use spelling assist (e.g., say d “Alpha” to enter the letter “A” or
d “Hyphen” to enter a hyphen).
z The system beeps if you say an unavailable (grayed out) letter or
number.
z If a voice command is not recognized, a list is displayed with
possible options.On list screens:zSay the number of the list item (e.g., say d “Five” to select item
5).
z Say d “Up” or d “Previous” to scroll up one page.
z Say d “Down” or d “Next” to scroll down one page.
Using the Touch ScreenTouch a character or icon on the screen to select it.
zSelect Delete to remove the last entered character.
z Select Shift to display accented and upper/lower case characters.
z Select Space to enter a space character.
z Select More to display symbols.
You can also use the joystick to enter information.
2 System Controls P. 4On list screens:Scrolling through lists or tabs is limited while the vehicle is moving.
Certain touch screen functions are limited or inoperable while the
vehicle is moving. For these functions, use available voice
commands or pull over to proceed.
Number of Hits
On input search screens, the number of hits in the map database is
displayed. Select List to display a list of possible entries.
NOTE
