set clock HONDA CR-Z 2014 1.G Navigation Manual

Contents
2System Setup P. 17Start-up 18 Voice Control System 19 Inte rface Settings 21Personal Information 29
Routing & Guidance 39 Clock Adjustment 46 Vehicle 49Data Reset 522Navigation P. 55Entering a Destination 56 Calculating the Route 77 Driving to Your Destination 80 Map Menu 85
Changing Your Route 101 Changing Your Destination 108 Resuming Your Trip 1122Audio P. 113Audio System 114 Playing FM/AM Radio 116 Playing a Disc 121 Playing an iPod® 125
Playing Pandora® 129 Playing a USB Flash Drive 132 Playing Bluetooth®
Audio 136 Adjusting the Sound 139
Audio Remote Controls 1402 Bluetooth® HandsFreeLink® P. 143Bluetooth®
HandsFreeLink® 144 Pairing a Phone 146 Setting Up
Speed Dialing 151 Editing Phone
Information 154
Phone Setup 155 Making a Call 156 Receiving a Call 159 HFL Menus 160
Text Messages 1632 Other Features P. 165Trip Computer 166 Information Functions 167 Multi-View Rear Camera 1682Troubleshooting P. 169Troubleshooting 170 Error Messages 1772Reference Information P. 181System Initialization 182 System Limitations 184 Customer Assistance 186 Legal Information 1892Voice Commands P. 193Voice Commands 194
Quick Reference Guide
P.2
System Setup
P.17
Navigation
P.55
Audio
P.113
Bluetooth
® HandsFreeLink®
P.143
Other Features
P.165
Troubleshooting
P.169
Reference Information
P.181
Voice Commands
P.193
Index
P.204

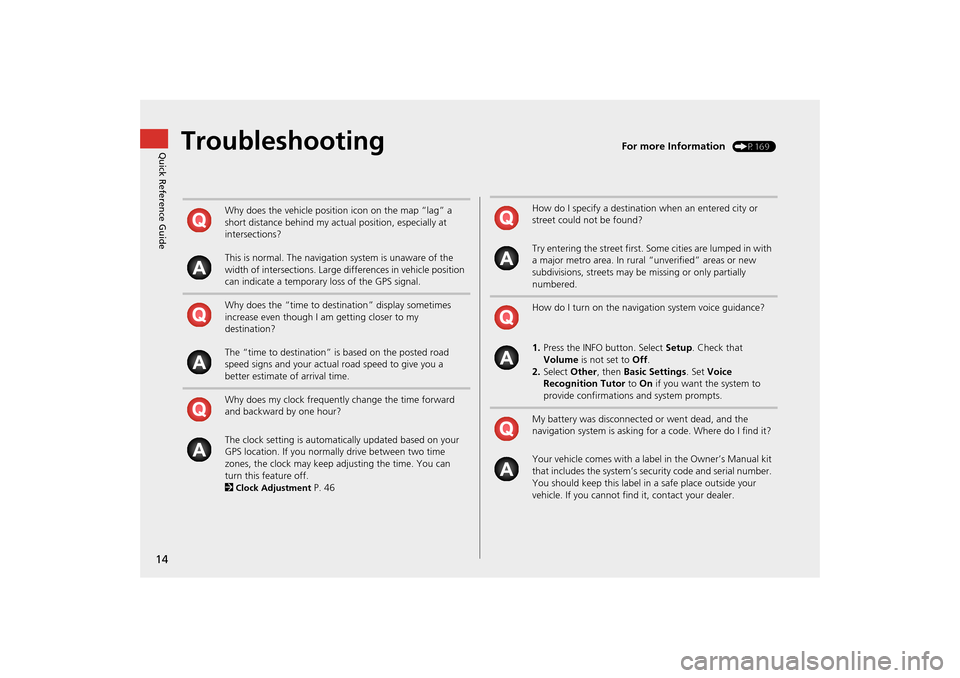

14Quick Reference Guide
Troubleshooting
For more Information
(P169)
Why does the vehicle position icon on the map “lag” a
short distance behind my actual position, especially at
intersections?
This is normal. The navigation system is unaware of the
width of intersections. Large differences in vehicle position
can indicate a temporary loss of the GPS signal.
Why does the “time to destination” display sometimes
increase even though I am getting closer to my
destination?
The “time to destination” is based on the posted road
speed signs and your actual road speed to give you a
better estimate of arrival time.
Why does my clock frequently change the time forward
and backward by one hour?
The clock setting is automatically updated based on your
GPS location. If you normally drive between two time
zones, the clock may keep adjusting the time. You can
turn this feature off.
2Clock Adjustment
P. 46
How do I specify a destination when an entered city or
street could not be found?
Try entering the street first. Some cities are lumped in with
a major metro area. In rural “unverified” areas or new
subdivisions, streets may be missing or only partially
numbered.
How do I turn on the navigation system voice guidance?
1. Press the INFO button. Select Setup. Check that
Volume is not set to Off.
2. Select Other, then Basic Settings. Set Voice
Recognition Tutor to On if you want the system to
provide confirmations and system prompts.
My battery was disconnected or went dead, and the
navigation system is asking for a code. Where do I find it?
Your vehicle comes with a label in the Owner’s Manual kit
that includes the system’s secu rity code and serial number.
You should keep this label in a safe place outside your
vehicle. If you cannot find it, contact your dealer.
CR-Z_KA-31SZT820.book 14 ページ ２０１２年８月１５日　水曜日　午前９時２９分

17
System Setup
This section describes the start-up procedure and the navigation andsetup functions.
Start-up................................................... 18
Voice Control System ............................. 19
Command Input .................................... 19
Voice Recognition .................................. 20
Interface Settings ................................... 21
Display and Volume Settings .................. 21
Guidance Prompts.................................. 22
Basic Settings ......................................... 23
Color ..................................................... 24
Language............................................... 28
Personal Information .............................. 29
Address Book ......................................... 30
Home Addresses .................................... 35
PIN Numbers .......................................... 36 User Name ..............................................37
Previous Destinations ..............................38
Routing & Guidance ................................39
Rerouting................................................40
Unverified Area Routing ..........................41
Edit Avoid Area .......................................43
Edit Waypoint Search Area ......................45
Clock Adjustment ....................................46
Adjust Time ............................................47
Resetting the Clock Settings ....................47
Setting the Clock Type ............................48
Vehicle ......................................................49
Off-road Tracking ...................................50
Correct Vehicle Position ..........................51 Data Reset
............................................... 52
Reset Factory Default Settings ................ 52
Clear All Speed Dial................................ 53





46System Setup
Clock AdjustmentHINFO button
 Setup
 Other
 Clock Adjustment
 Clock Adjustment
Set the automatic adjustment of the system clock for daylight saving and
international time zones.
Select an item.
The following item s are available:
• Auto Daylight : The navigation system automati cally adjusts the clock (“spring
ahead” or “fall back” by one hour) when a daylight saving time change occurs.
On (factory default): Adjust s the clock automatically.
Off : Disables the feature.
• Auto Time Zone : The navigation system automati cally adjusts the clock when
driving through different time zones.
On (factory default): Adjust s the clock automatically.
Off : Disables the feature.
• Clock Format : Sets the time notation to either 12-hour clock ( 12H, factory
default) or 24-hour clock ( 24H).
• Time Adjustment : Adjust the current time manually.
2Adjust Time
P. 47
• Reset : Reset the clock settings to the factory default.
2Resetting the Clock Settings
P. 47
1Clock Adjustment
You can check the time and date from any
screen using voice commands.
2 Global Commands P. 194
Auto Daylight
This function is not activated in areas that have
not adopted daylight saving time, even if you
have set Auto Daylight to On.
Auto Time Zone
If you live and work in two different time zones,
you may want to turn Auto Time Zone to Off.
When driving near a time zone boundary, the
displayed time zone ma y fluctuate between the
two zone times.





47

Clock Adjustment
Adjust Time
System Setup
Adjust TimeHINFO button
 Setup
 Other
 Clock Adjustment
 Clock Adjustment
Adjust the current time (hours and minutes).
1.Select B or N to adjust the value.
2. Select OK on the top right of the
screen.
Resetting the Clock SettingsH INFO button
 Setup
 Other
 Clock Adjustment
 Clock Adjustment
Reset all clock settings to the factory defaults. Select OK under Reset.





48

Clock Adjustment
Setting the Clock Type
System Setup
Setting the Clock TypeHINFO button
 Setup
 Other
 Clock Adjustment
 Clock Type
Set the design of the clock screen. 1.Select Clock Type or Background .
2. Select an option to change the
design.
3. Select OK.





52System Setup
Data ResetReset Factory Default SettingsHINFO button
 Setup
 Other
 Reset Factory Default
Reset all the settings on the Setup screens to their factory defaults. Select Yes.
1Reset Factory Default Settings
The following settings are reset:•Brightness, Contrast, Black Level, Volume,
Guidance Prompts•Basic Settings: Keyboard Layout, Units, Voice
Recognition Tutor, Verb al Reminder, Display
Voice Commands Tips•Routing & Guidance: Rer outing, Unverified
Area Routing, Edit Wayp oint Search Area,
Guidance Mode•Clock Adjustment: Auto Daylight, Auto Time
Zone, Clock Format Time, Clock Type•Vehicle: Off-road Tracking•Color: Map Color, Menu Color
When you transfer the vehicle to a third party,
reset all settings to default and delete all
personal data.
2 Deleting an Address Book Entry P. 34
2 Home Addresses P. 35
2 PIN Numbers P. 36
2 User Name P. 37
2 Previous Destinations P. 38
2 Edit Avoid Area P. 43
2 Deleting a Paired Phone P. 149





176

Troubleshooting
Miscellaneous Questions
Troubleshooting
Miscellaneous Questions
Problem
Solution
My clock frequently changes forward and backward by
one hour.
The clock setting is automatically updated based on your GPS location. If you live and
work on the boundary between two time zones, you can turn off this feature. 2Clock Adjustment
P. 46
The clock changes even when I am not driving near a
time zone boundary.
The time zone boundaries are only approximated in the navigation system. Depending
on the geography of the time zone boundary, the switch to a different zone can be
erratic. 2Clock Adjustment
P. 46
My state does not observe daylight saving time. How
do I turn off this feature?
Press the INFO button. Select Setup > Other > Clock Adjustment > Clock
Adjustment , and set Auto Daylight to Off . 2Clock Adjustment
P. 46
Daylight saving time has started, but the navigation
system did not change time even though Auto
Daylight is set to ON.
The automatic daylight saving time feat ure does not work in regions where the
daylight saving time system has not been adopted.
The navigation system automatic daylight feature is
not switching the navigation system clock on the
correct dates.
Press the INFO button. Select Setup > Other > Clock Adjustment > Clock
Adjustment , and set Auto Daylight to On. Note that the automatic daylight feature
does not work in regions where the daylight saving time system has not been
adopted. 2 Clock Adjustment
P. 46
The navigation system clock switched by one hour for
no apparent reason.
You may be driving near a time zone boundary. 2Clock Adjustment
P. 46
My battery was disconnected or went dead, and the
navigation system is asking for a code.
Your vehicle comes with a label in the Owner’s Manual kit that includes the system’s
security code and serial number. You should keep this label in a safe place outside
your vehicle. If you cannot find it, contact your dealer.
How do I change the interface language?
Press the INFO button. Select Setup > Other > Language, and set the language to
English , Français , or Español .





204Index
IndexSymbolsK (Back) Button
....................................5
, 19
NB (Channel) Button
............................141
a (Display Mode) Button
......................26
j (Hang-Up) Button
............................5
, 159
h (Pick-Up) Button
...................... 5
, 159
, 160
d (Talk) Button
......................................5
, 19
RU (Volume) Button
..............................141
AA.SEL (Auto Select)
....................................117
Add to Address Book
..........................77
, 112
Add to Dest. List
.................. 77
, 106
, 110
, 111
Address
Editing Address Book
.................................32
Editing Avoid Area
......................................44
Setting Destination
.....................................58
Address BookEditing Address Book
.................................30
Setting Destination
.....................................63
Address Book PIN
.........................................36
Adjust Time
...................................................47
Advanced (Place Category)
........................67
Audio
...........................................................113
Basic Operation
.............................................6
Remote Control
........................................140
Sound Setup
.............................................139
Voice Commands List
...............................197
AUDIO Button
................................................4
Audio Menu
Bluetooth ® Audio
....................................138
FM/AM Radio
............................................118
Auto Answer
..............................................155
Auto Daylight
.............................................. 46
Auto Service (Place Category)
................... 67
Auto Time Zone
.......................................... 46
Auto Transfer
............................................ 155
AUX
Input Jack
................................................. 114
Voice Commands List
.............................. 199
Avoid Streets
.............................................. 102
BBanking (Place Category)
........................... 67
Basic Settings
......................................... 23
, 24
Black Level
.................................................... 21
Bluetooth Setup
........................................ 155
Bluetooth Connection
.............................. 155
Bluetooth® Audio
Playing
...................................................... 136
Voice Commands List
.............................. 199
Bluetooth ® HandsFreeLink®
.................. 143
Editing Phone Info
................................... 154
Making a Call
........................................... 156
Pairing a Phone
........................................ 146
Phone Setup
............................................. 155
Receiving a Call
........................................ 159
Setting Speed Dials
.................................. 151
Brightness
............................................... 21
, 26
CCall
Calculate Route Screen
...................... 77
, 112
Call History
................................................. 158
Cancel Route
.............................................. 102
Category Editing Address Book
................................. 32
Place Category List
................................... 203
Setting Destination
..................................... 67
CD/AUX Button

..... 6
, 121
, 126
, 129
, 133
, 136
Change Language
....................................... 18
Change Route Preference
.......................... 78
Change State
................................................ 59
City
................................................................ 60
City Vicinity
Setting Destination
..................................... 68
Clear All Speed Dial
.................................... 53
Clock Adjustment
........................................ 46
Adjust Time
................................................ 47
Auto Daylight
............................................. 46
Auto Time Zone
.......................................... 46
Clock Format
.............................................. 46
Resetting
.................................................... 47
Clock Format
................................................ 46
Clock Type
.................................................... 48
Color
.............................................................. 24
Map Color
.................................................. 25
Menu Color
................................................ 25
Community (Place Category)
..................... 67
Connect (Phone)
........................................ 154
Continue Trip
............................................. 112
Contrast
........................................................ 21
Coordinate
................................................... 73
Correct Vehicle Position
............................. 51
Current Location
.......................................... 98
Current Position
Editing Address Book
................................. 32
Setting Destination
..................................... 75





206

Index
Index
Menu (Route)
.............................................101
Menu Color
...................................................25
MODE Button
.............................................140
Multi-View Rear Camera
..........................168
Music Search
iPod®
........................................................128
Mute
............................................................159
My Destination
Adding Waypoint
.....................................103
Editing
.......................................................107
NNight ModeMap Color
...................................................25
Menu Color
................................................25
Switching Display Mode
.............................26
North-up
.......................................................97
OOff-road Tracking
Driving
........................................................83
Setting
........................................................50
PPair Phone
...................................................146
Pairing Code
...............................................148
Pandora®
Playing
......................................................129
Voice Commands List
...............................198
Personal Information
..................................29
Phone
Voice Commands List
...............................199
PHONE Button
............................................... 4
Phone Setup
............................................... 144
Phonebook
Making a Call
........................................... 157
PIN NumbersPersonal Info
.............................................. 36
Phone
....................................................... 154
Place CategoryEditing Address Book
................................. 32
Place Category List
................................... 203
Setting Destination
.................................... 67
Place Name
Editing Address Book
................................. 32
Setting Destination
.............................. 65
, 68
Place Phone No.Editing Address Book
................................. 32
Setting Destination
.................................... 72
Previous DestinationDeleting
...................................................... 38
Editing Address Book
................................. 32
Setting Destination
.................................... 64
QQuick Mix
................................................... 131
RRadio
FM/AM
..................................................... 116
Random (Pairing Code)
............................ 148
RDS Search
................................................. 119
Read Radio Text
........................................ 120
Recalculation
......................................... 40
, 83
Repeat
iPod®
....................................................... 127
USB Flash Drive
......................................... 135
Replace this Phone
.................................... 154
Rerouting
...................................................... 40
Reset Clock Settings
.................................... 47
Reset Factory Default
.................................. 52
Restaurant (Place Category)
...................... 67
Route (Menu)
............................................. 101
Route Pref.
................................................... 78
Routing & Guidance
.................................... 39
SScan
Disc
........................................................... 122
FM/AM Radio
........................................... 117
USB Flash Drive
......................................... 134
Search by Keyword
...................................... 68
Security PIN Code
...................................... 182
SEEK/SKIP Button
........................................... 4
Shopping (Place Category)
......................... 67
Show icon on Map
...................................... 92
Single Screen
................................................ 90
Sort by Distance to Travel
.......................... 68
Sound Setup
............................................... 139
Speed Dial
Making a Call
........................................... 158
Registering
................................................ 151
Split Screen
................................................... 91
Street
............................................................. 61
System/Device Information
...................... 167
