HONDA CR-Z 2015 1.G Owners Manual

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
130
Controls

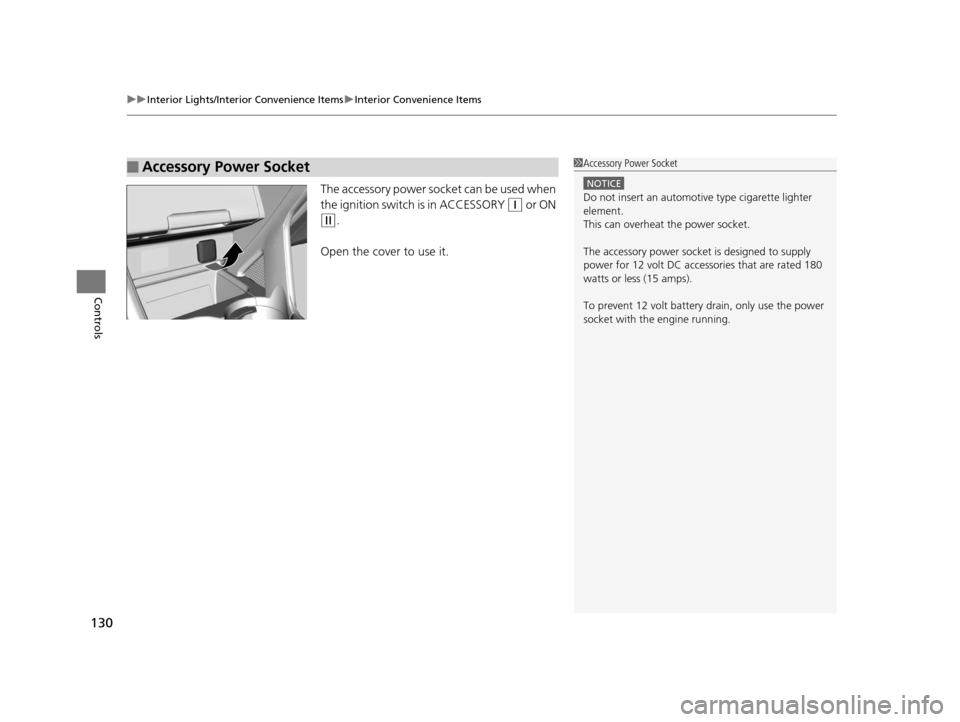

The accessory power soc ket can be used when
the ignition switch is in ACCESSORY
(q or ON
(w.
Open the cover to use it.
■Accessory Power Socket1 Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 180
watts or less (15 amps).
To prevent 12 volt battery drain, only use the power
socket with the engine running.
15 CR-Z-31SZT6400.book 130 ページ ２０１４年８月１日　金曜日　午後１時５９分

Continued131
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

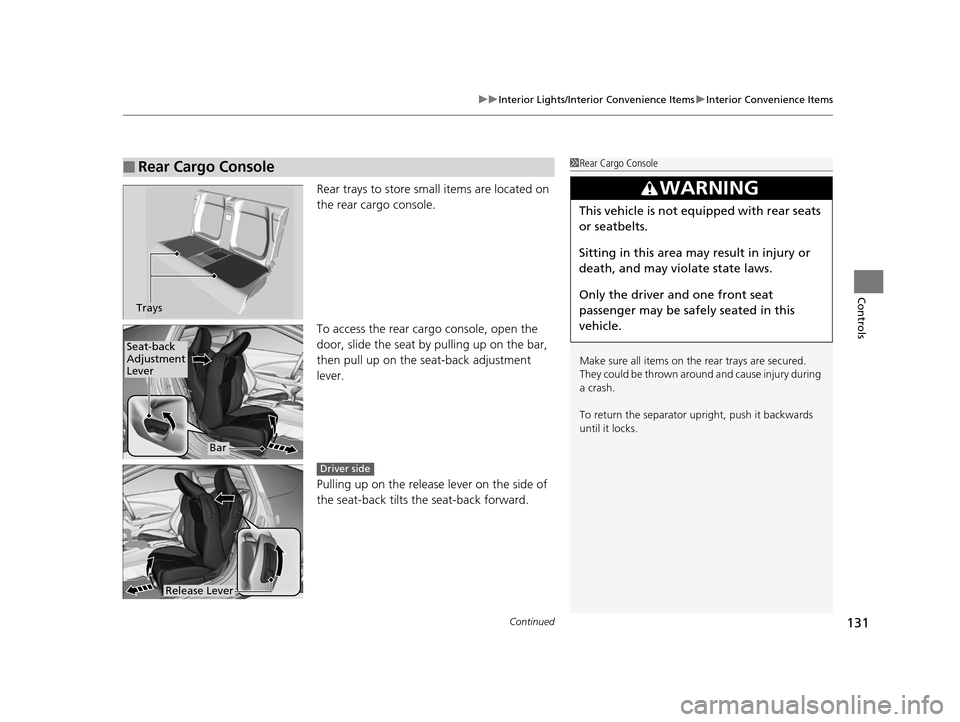

Rear trays to store small items are located on
the rear cargo console.
To access the rear ca rgo console, open the
door, slide the seat by pulling up on the bar,
then pull up on the seat-back adjustment
lever.
Pulling up on the release lever on the side of
the seat-back tilts the seat-back forward.
■Rear Cargo Console1 Rear Cargo Console
Make sure all items on the rear trays are secured.
They could be thrown around and cause injury during
a crash.
To return the separator upright, push it backwards
until it locks.
3WARNING
This vehicle is not equipped with rear seats
or seatbelts.
Sitting in this area may result in injury or
death, and may violate state laws.
Only the driver and one front seat
passenger may be safely seated in this
vehicle.
Trays
Seat-back
Adjustment
Lever
Bar
Release Lever
Driver side
15 CR-Z-31SZT6400.book 131 ページ ２０１４年８月１日　金曜日　午後１時５９分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
132
Controls

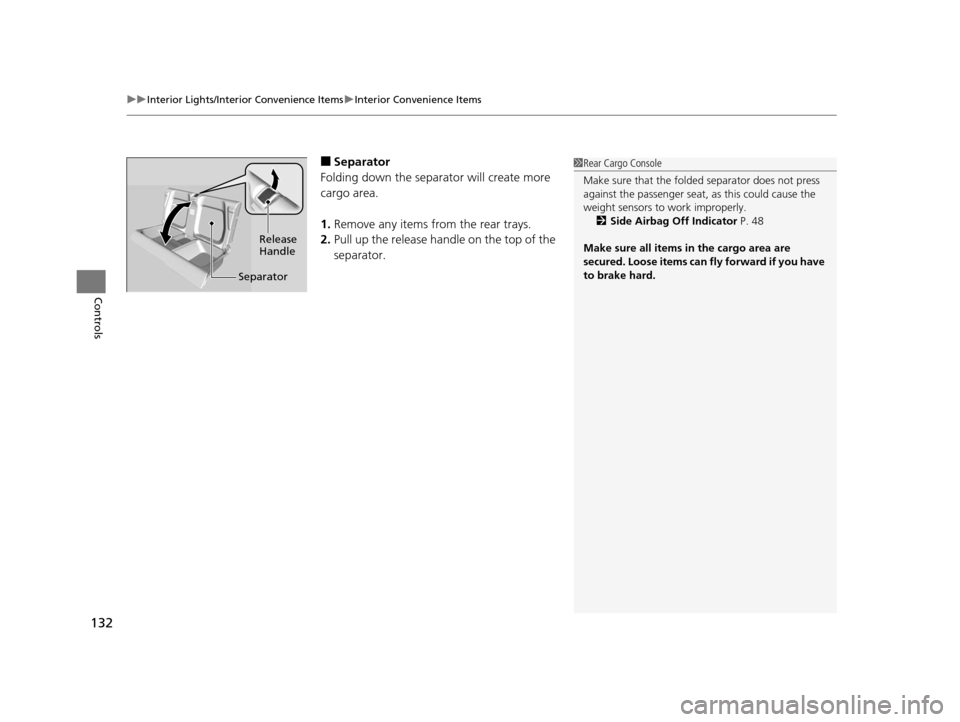

■Separator
Folding down the separato r will create more
cargo area.
1. Remove any items from the rear trays.
2. Pull up the release handle on the top of the
separator.1Rear Cargo Console
Make sure that the folded separator does not press
against the passenger seat, as this could cause the
weight sensors to work improperly.
2 Side Airbag Off Indicator P. 48
Make sure all items in the cargo area are
secured. Loose items can fly forward if you have
to brake hard.
Release
Handle
Separator
15 CR-Z-31SZT6400.book 132 ページ ２０１４年８月１日　金曜日　午後１時５９分

Continued133
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

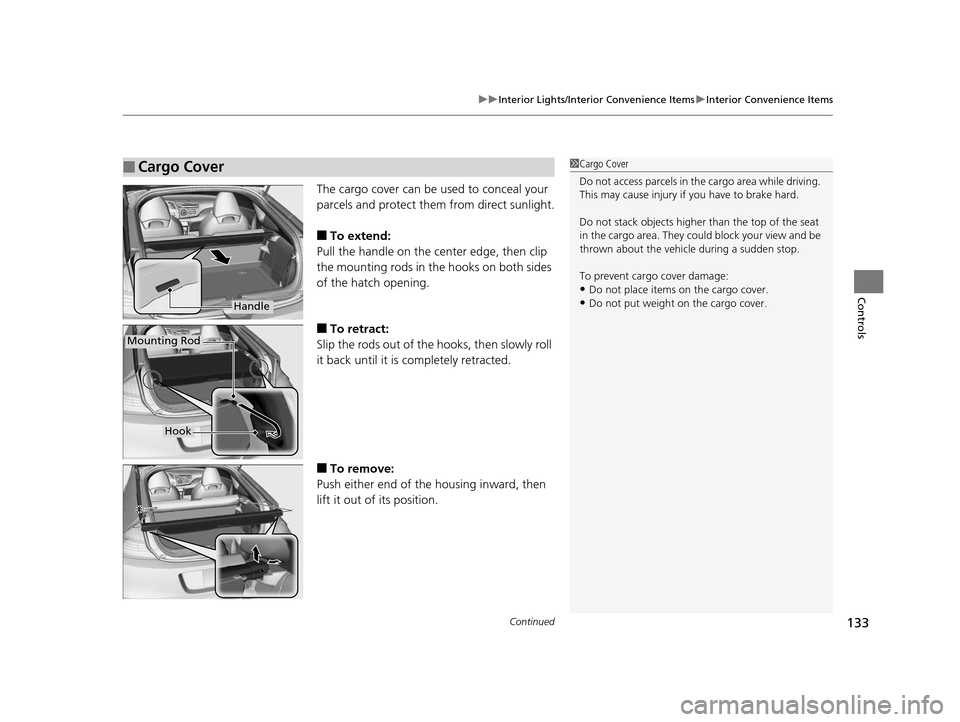

The cargo cover can be used to conceal your
parcels and protect them from direct sunlight.
■To extend:
Pull the handle on the center edge, then clip
the mounting rods in the hooks on both sides
of the hatch opening.
■To retract:
Slip the rods out of the hooks, then slowly roll
it back until it is completely retracted.
■To remove:
Push either end of th e housing inward, then
lift it out of its position.
■Cargo Cover1 Cargo Cover
Do not access parcels in the cargo area while driving.
This may cause injury if you have to brake hard.
Do not stack objects higher than the top of the seat
in the cargo area. They could block your view and be
thrown about the vehicle during a sudden stop.
To prevent cargo cover damage:
•Do not place items on the cargo cover.•Do not put weight on the cargo cover.Handle
Mounting Rod
Hook
15 CR-Z-31SZT6400.book 133 ページ ２０１４年８月１日　金曜日　午後１時５９分

134
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

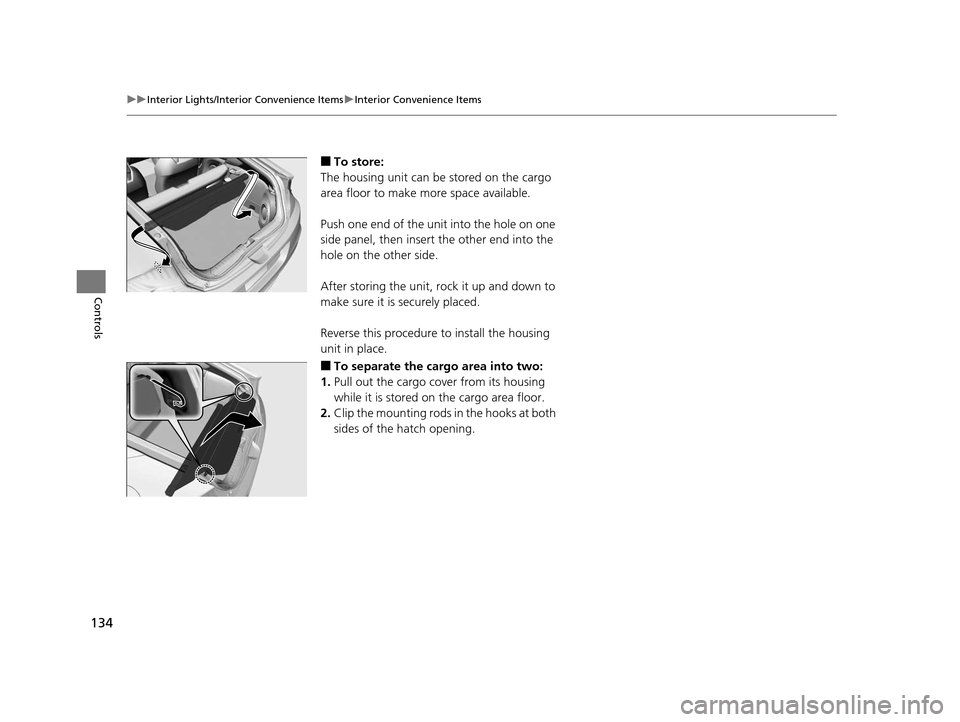

■To store:
The housing unit can be stored on the cargo
area floor to make more space available.
Push one end of the unit into the hole on one
side panel, then insert the other end into the
hole on the other side.
After storing the unit, rock it up and down to
make sure it is securely placed.
Reverse this procedure to install the housing
unit in place.
■To separate the cargo area into two:
1. Pull out the cargo cover from its housing
while it is stored on the cargo area floor.
2. Clip the mounting rods in the hooks at both
sides of the hatch opening.
15 CR-Z-31SZT6400.book 134 ページ ２０１４年８月１日　金曜日　午後１時５９分

135
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

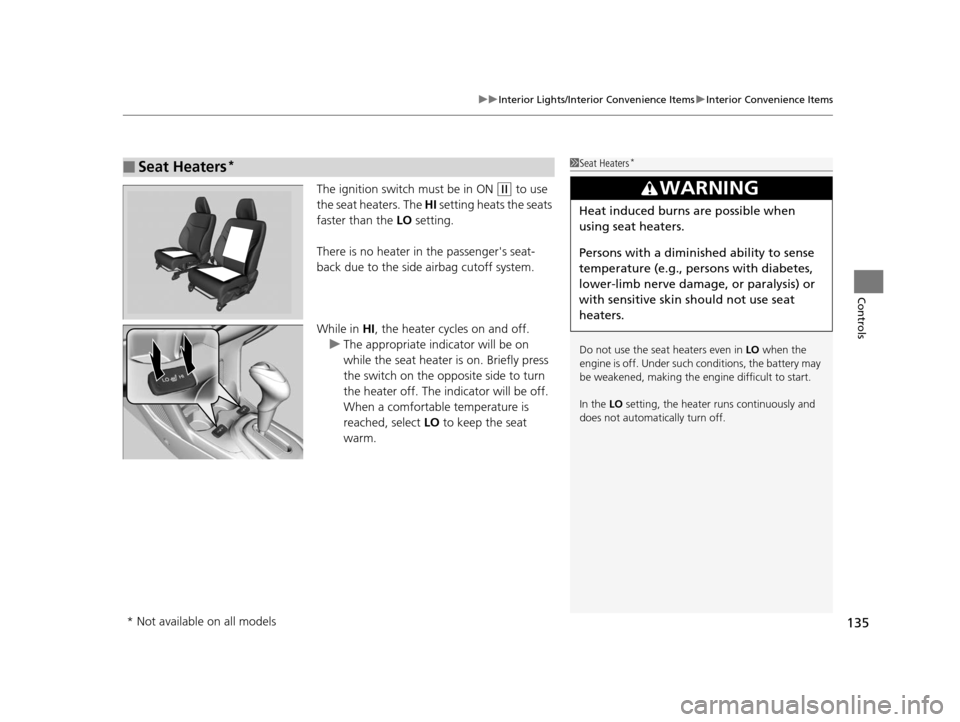

The ignition switch must be in ON (w to use
the seat heaters. The HI setting heats the seats
faster than the LO setting.
There is no heater in the passenger's seat-
back due to the side airbag cutoff system.
While in HI , the heater cycles on and off.
u The appropriate indicator will be on
while the seat heater is on. Briefly press
the switch on the opposite side to turn
the heater off. The indicator will be off.
When a comfortable temperature is
reached, select LO to keep the seat
warm.
■Seat Heaters*1 Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
15 CR-Z-31SZT6400.book 135 ページ ２０１４年８月１日　金曜日　午後１時５９分

136
Controls

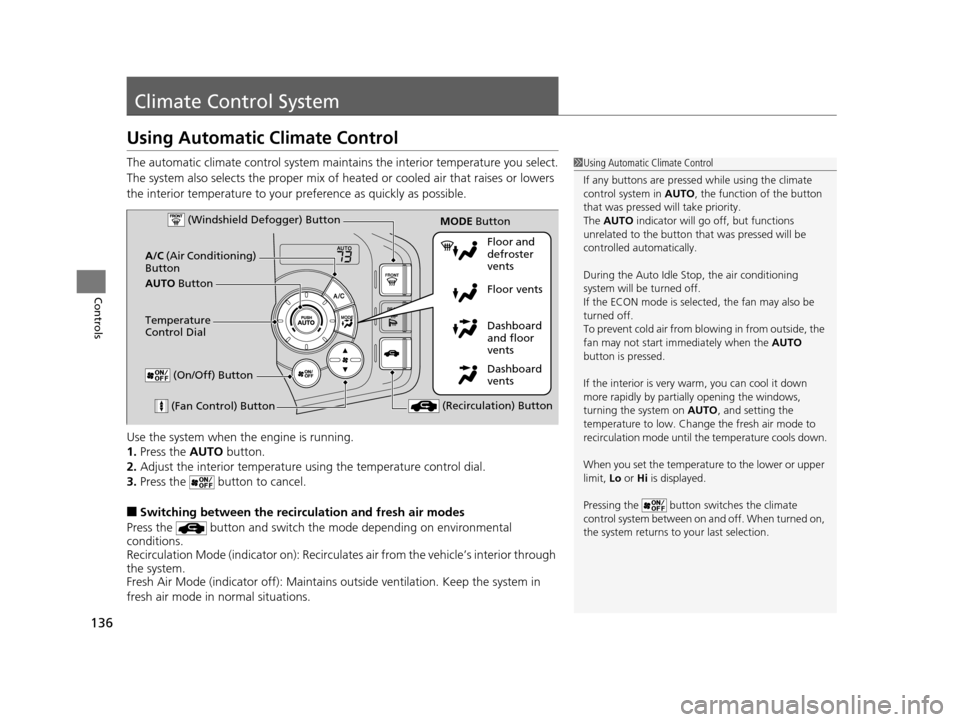

Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the butto n to cancel.
■Switching between the recirculation and fresh air modes
Press the button and switch the mode depending on environmental
conditions.
Recirculation Mode (indicator on): Recirculates air from the vehicle’s interior through
the system.
Fresh Air Mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
1 Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in AUTO, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button th at was pressed will be
controlled automatically.
During the Auto Idle Stop, the air conditioning
system will be turned off.
If the ECON mode is selected, the fan may also be
turned off.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on AUTO, and setting the
temperature to low. Change the fresh air mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate
control system between on and off. When turned on,
the system returns to your last selection.
Dashboard
vents Dashboard
and floor
vents Floor vents Floor and
defroster
vents
AUTO Button
A/C
(Air Conditioning)
Button
(Fan Control) Button
(Recirculation) Button
Temperature
Control Dial (Windshield Defogger) Button
(On/Off) Button
MODE Button
15 CR-Z-31SZT6400.book 136 ページ ２０１４年８月１日　金曜日　午後１時５９分

137
uuClimate Control System uUsing Automatic Climate Control
Controls

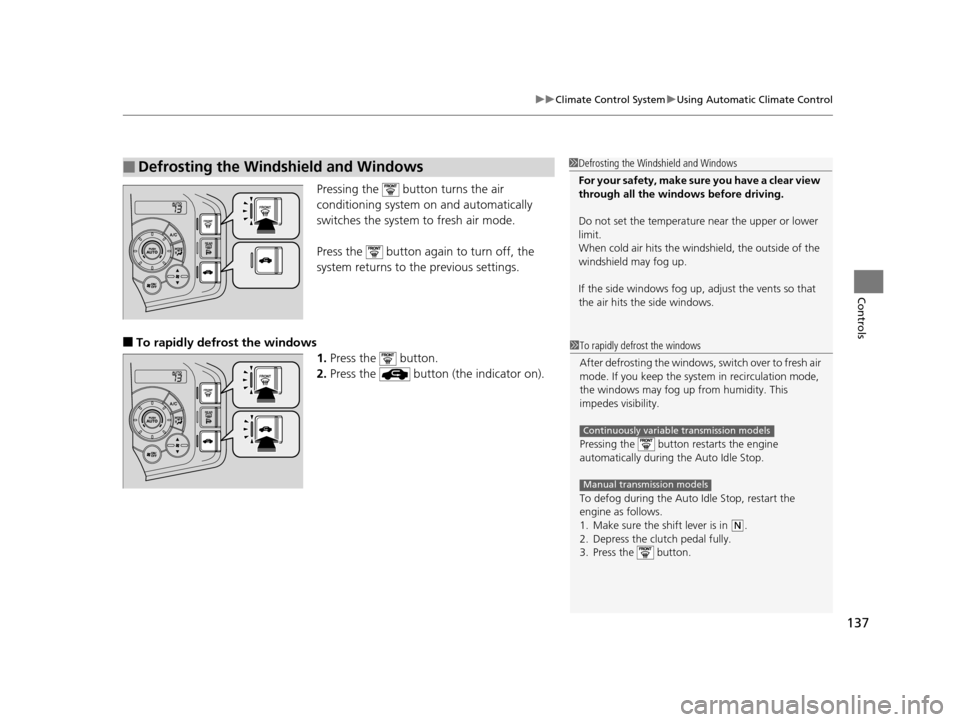

Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
Press the button again to turn off, the
system returns to the previous settings.
■To rapidly defrost the windows
1.Press the button.
2. Press the button (the indicator on).
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
Pressing the button re starts the engine
automatically during the Auto Idle Stop.
To defog during the Auto Idle Stop, restart the
engine as follows.
1. Make sure the shift lever is in
( N.
2. Depress the clutch pedal fully.
3. Press the button.
Continuously variable transmission models
Manual transmission models
15 CR-Z-31SZT6400.book 137 ページ ２０１４年８月１日　金曜日　午後１時５９分

138
uuClimate Control System uAutomatic Climate Control Sensors
Controls

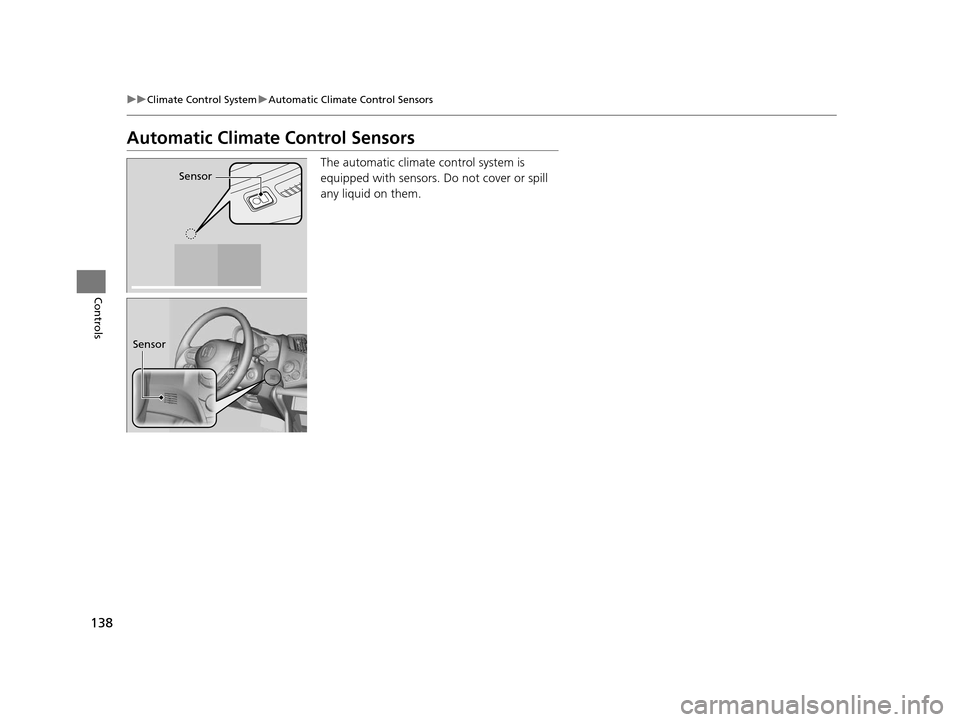

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
15 CR-Z-31SZT6400.book 138 ページ ２０１４年８月１日　金曜日　午後１時５９分

139

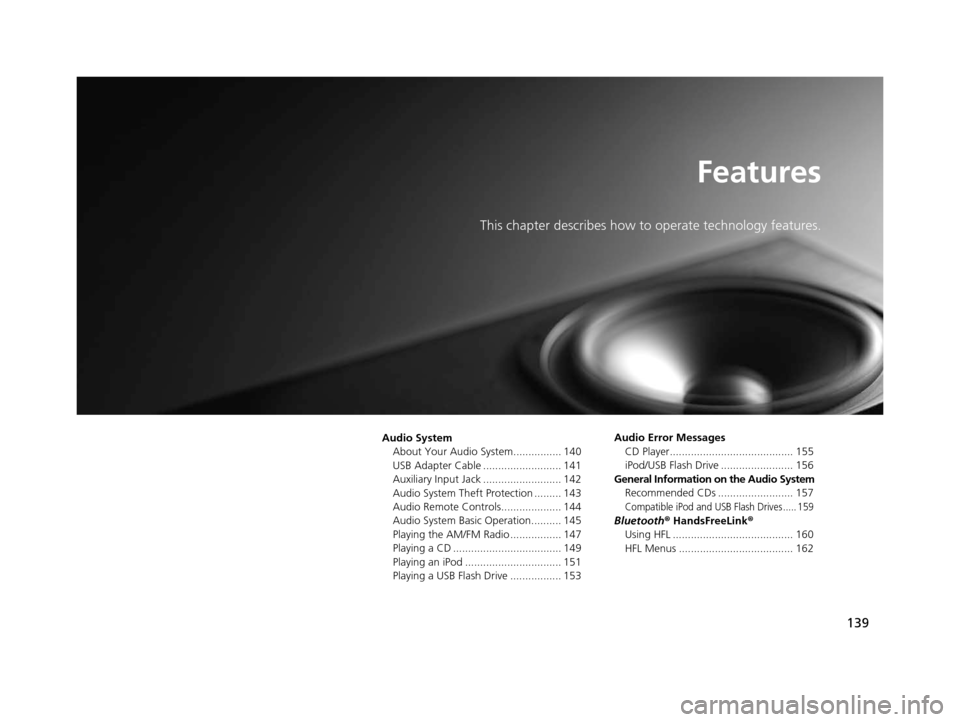

Features
This chapter describes how to operate technology features.
Audio System
About Your Audio System................ 140
USB Adapter Cable .......................... 141
Auxiliary Input Jack .......................... 142
Audio System Theft Protection ......... 143
Audio Remote Controls.................... 144
Audio System Basic Operation.......... 145
Playing the AM/FM Radio ................. 147
Playing a CD .................................... 149
Playing an iPod ................................ 151
Playing a USB Flash Drive ................. 153 Audio Error Messages
CD Player......................................... 155
iPod/USB Flash Drive ........................ 156
General Information on the Audio System Recommended CDs ......................... 157
Compatible iPod and USB Flash Drives ..... 159
Bluetooth ® HandsFreeLink®
Using HFL ........................................ 160
HFL Menus ...................................... 162
15 CR-Z-31SZT6400.book 139 ページ ２０１４年８月１日　金曜日　午後１時５９分
