HONDA CR-Z 2015 1.G Owner's Manual

20

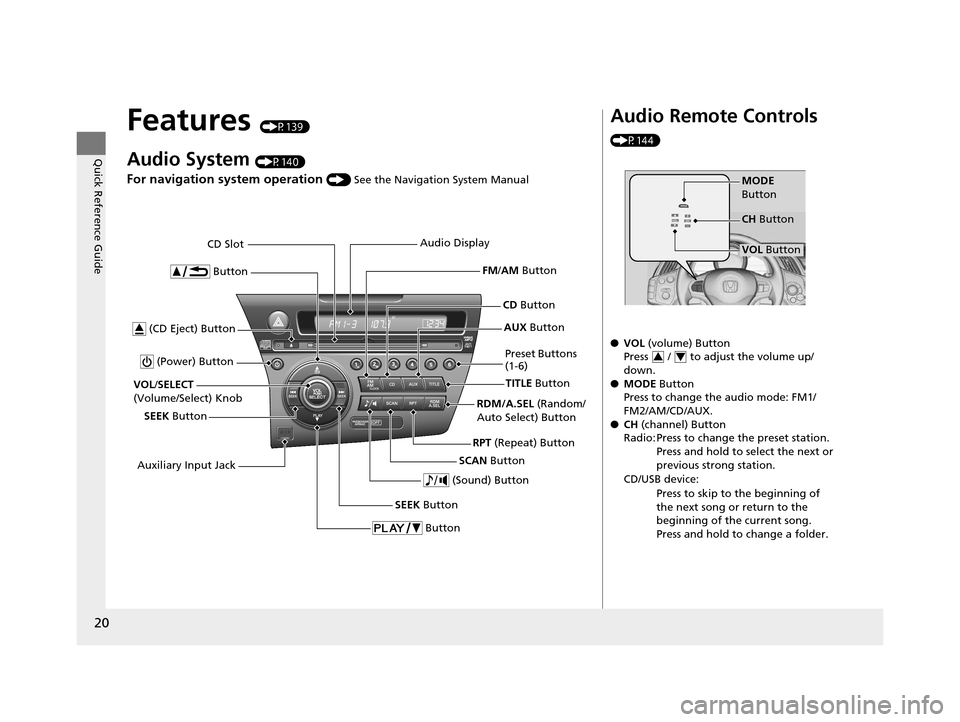

Quick Reference Guide
Features (P139)
Audio System (P140)
For navigation system operation () See the Navigation System Manual
Button
TITLE Button
FM
/AM Button
(Power) Button
CD Button
AUX Button
CD Slot
(CD Eject) Button
SCAN Button
(Sound) Button
VOL /SELECT
(Volume/Select) Knob
SEEK Button Preset Buttons
(1-6)
Button
SEEK Button
Auxiliary Input Jack Audio Display
RDM/A.SEL (Random/
Auto Select) Button
RPT (Repeat) Button
Audio Remote Controls
(P144)
●VOL (volume) Button
Press / to adjust the volume up/
down.
● MODE Button
Press to change the audio mode: FM1/
FM2/AM/CD/AUX.
● CH (channel) Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
CD/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
MODE
Button
VOL Button
CH
Button
34
15 CR-Z-31SZT6400.book 20 ページ ２０１４年８月１日　金曜日　午後１時５９分

21
Quick Reference Guide
Driving (P173)
Manual Transmission (P190)
Continuously Variable
Transmission
(P185)
● Shift to
(P and depress the brake pedal when
starting the engine.
● Shifting
7-Speed Manual Shift Mode (P187)
● Allows you to manually shift the transmission up or down without
removing your hands from the steering wheel.
●Pulling a paddle shifter changes the mode
from continuously vari able transmission
to 7-speed manual shift mode. The M
indicator and the selected speed number
are displayed in the shift indicator.
● Pulling a paddle shifter temporarily
changes the mode from continuously
variable transmission to 7-speed manual
shift mode. The selected speed number is
displayed in the shift indicator.
L (Low) Mode (P189)
● Use Low to get more power when
climbing steep hills.
● Pull the
(+ and (- paddle shifters at the
same time until the shift indicator display
changes to L.
SPORT Mode
NORMAL Mode/ECON Mode
(M Indicator
Shift Indicator
Shift Down
( -
Paddle Shifter Shift Up (
+
Paddle Shifter
Ignition Switch
Release
ButtonShift Lever
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
7-speed manual shift mode
can be used.
L mode is available.
Depress the brake pedal
and press the release
button to move out of
(P.
Move the shift lever
without pressing the
release button.
Press the release button to
move the shift lever.
15 CR-Z-31SZT6400.book 21 ページ ２０１４年８月１日　金曜日　午後１時５９分

22
Quick Reference Guide

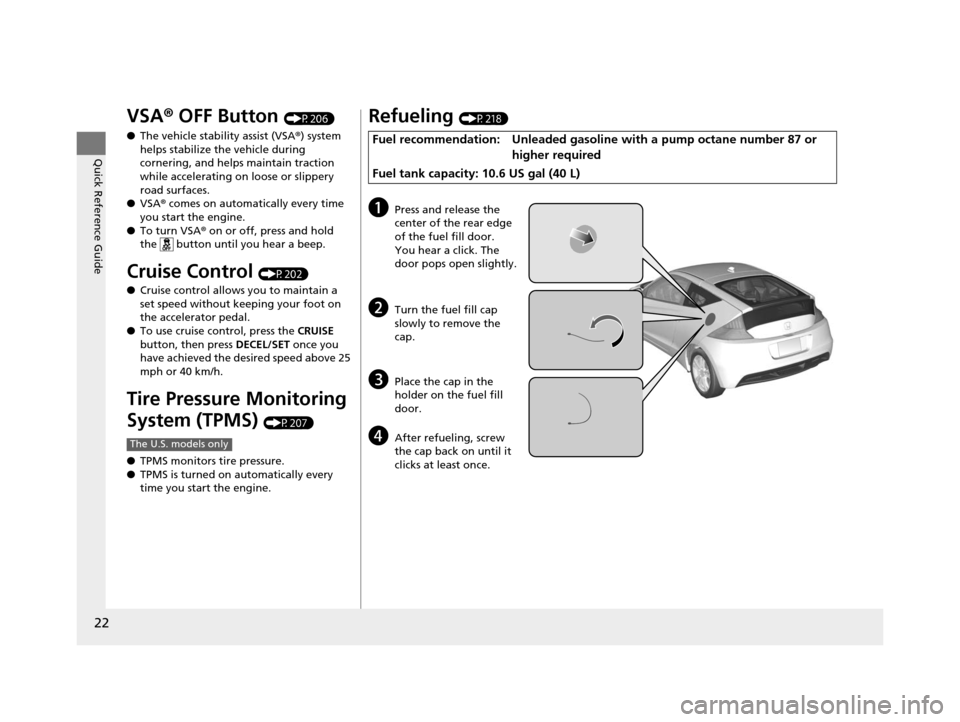

VSA® OFF Button (P206)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control (P202)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press DECEL/SET once you
have achieved the desired speed above 25
mph or 40 km/h.
Tire Pressure Monitoring
System (TPMS)
(P207)
● TPMS monitors tire pressure.
● TPMS is turned on automatically every
time you start the engine.
The U.S. models only
Refueling (P218)
Fuel recommendation: Unlea ded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 10.6 US gal (40 L)
aPress and release the
center of the rear edge
of the fuel fill door.
You hear a click. The
door pops open slightly.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
15 CR-Z-31SZT6400.book 22 ページ ２０１４年８月１日　金曜日　午後１時５９分

23
Quick Reference Guide

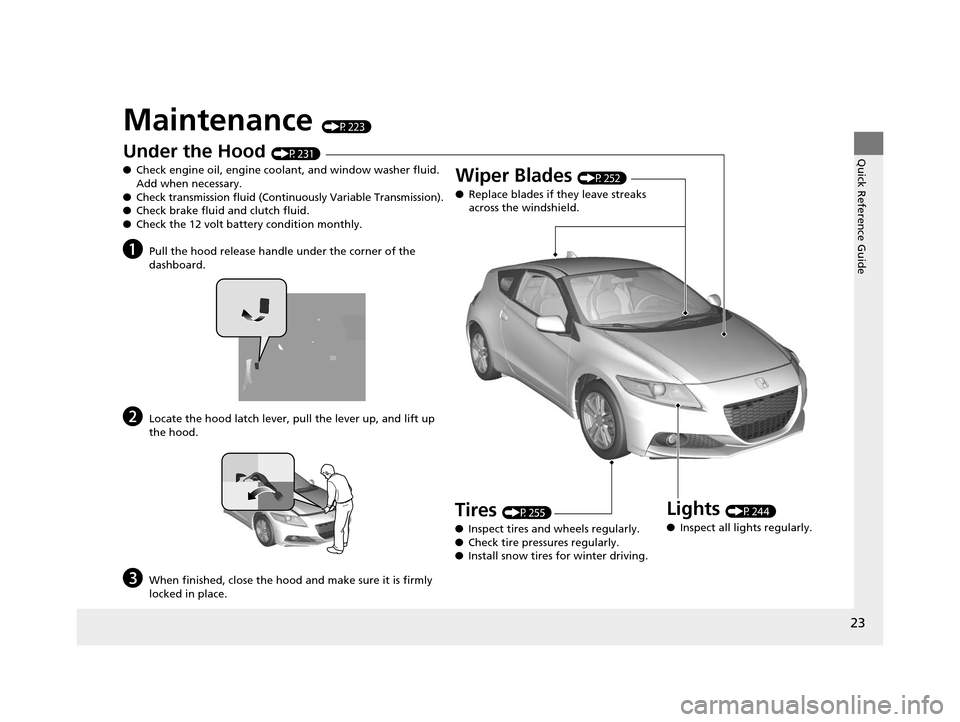

Maintenance (P223)
Under the Hood (P231)
● Check engine oil, engine coolant, and window washer fluid.
Add when necessary.
● Check transmission fluid (Continuously Variable Transmission).
● Check brake fluid and clutch fluid.
● Check the 12 volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P244)
● Inspect all lights regularly.
Wiper Blades (P252)
● Replace blades if they leave streaks
across the windshield.
Tires (P255)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
15 CR-Z-31SZT6400.book 23 ページ ２０１４年８月１日　金曜日　午後１時５９分

24
Quick Reference Guide

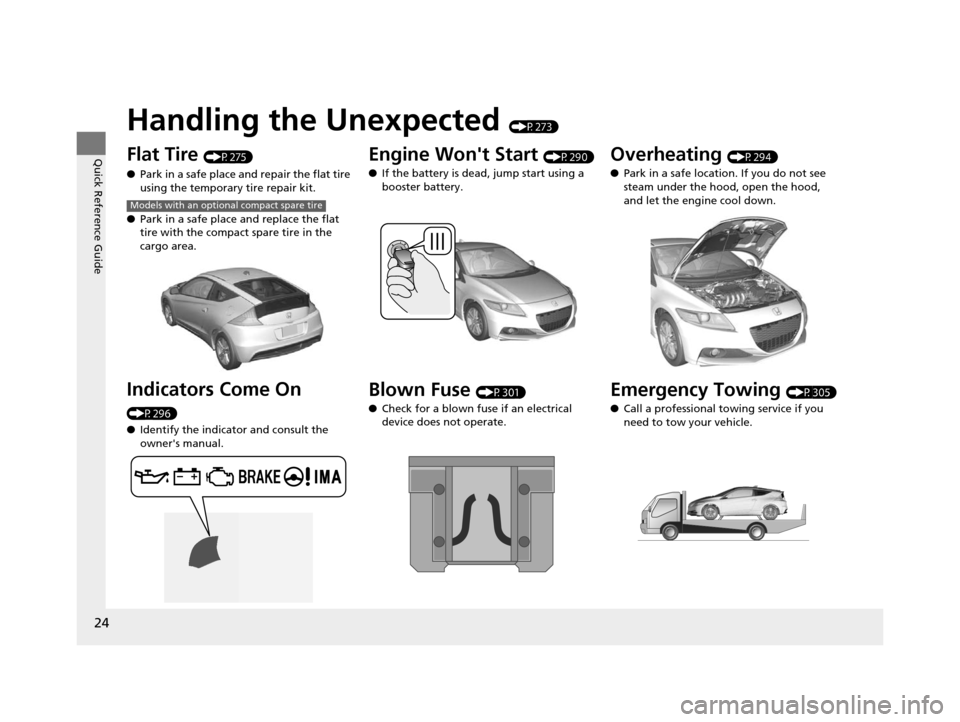

Handling the Unexpected (P273)
Flat Tire (P275)
● Park in a safe place and repair the flat tire
using the temporary tire repair kit.
● Park in a safe place and replace the flat
tire with the compact spare tire in the
cargo area.
Indicators Come On
(P296)
●Identify the indicator and consult the
owner's manual.
Models with an optional compact spare tire
Engine Won't Start (P290)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P301)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P294)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P305)
● Call a professional towing service if you
need to tow your vehicle.
15 CR-Z-31SZT6400.book 24 ページ ２０１４年８月１日　金曜日　午後１時５９分

25
Quick Reference Guide

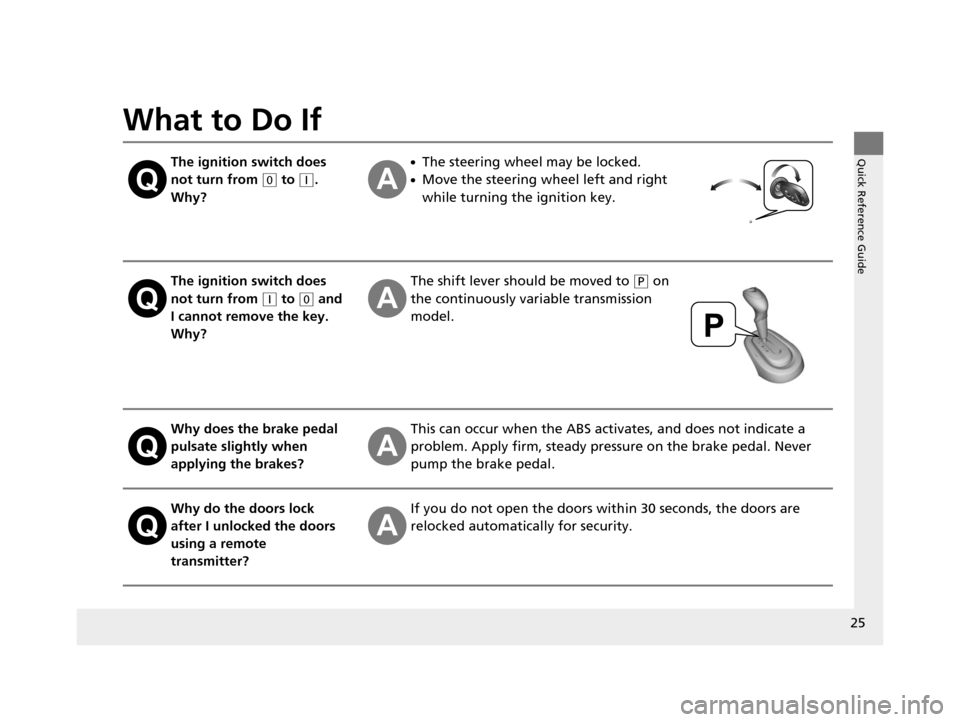

What to Do If
The ignition switch does
not turn from
(0 to (q.
Why?
●The steering wheel may be locked.
●Move the steering wheel left and right
while turning the ignition key.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The shift lever should be moved to (P on
the continuously variable transmission
model.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
15 CR-Z-31SZT6400.book 25 ページ ２０１４年８月１日　金曜日　午後１時５９分

26
Quick Reference Guide
Why does the beeper
sound when I open the
driver's door?The beeper sounds when:
●The key is left in the ignition switch.
●The exterior lights are left on.
●The Auto Idle Stop is in operation.
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or passenger are not wearing their seat belts.
●The parking brake lever is not fully released.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
15 CR-Z-31SZT6400.book 26 ページ ２０１４年８月１日　金曜日　午後１時５９分

27

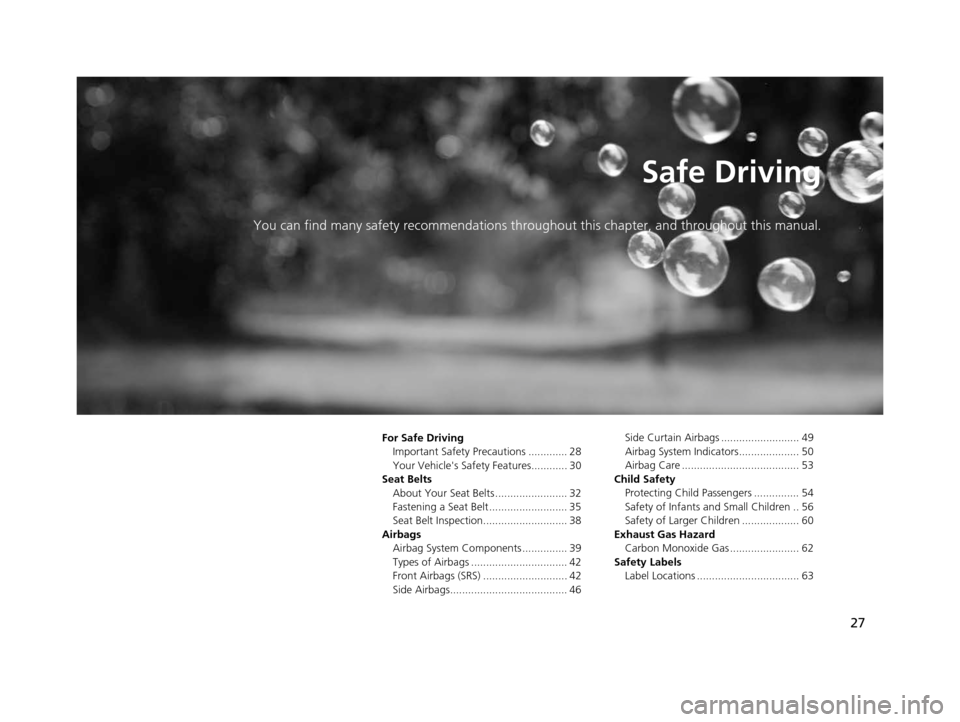

Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions ............. 28
Your Vehicle's Safety Features............ 30
Seat Belts About Your Seat Belts ........................ 32
Fastening a Seat Belt .......................... 35
Seat Belt Inspection............................ 38
Airbags Airbag System Components ............... 39
Types of Airbags ................................ 42
Front Airbags (SRS) ............................ 42
Side Airbags....................................... 46 Side Curtain Airbags .......................... 49
Airbag System Indicators.................... 50
Airbag Care ....................................... 53
Child Safety Protecting Child Passengers ............... 54
Safety of Infants a nd Small Children .. 56
Safety of Larger Children ................... 60
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 62
Safety Labels Label Locations .................................. 63
15 CR-Z-31SZT6400.book 27 ページ ２０１４年８月１日　金曜日　午後１時５９分

28
Safe Driving

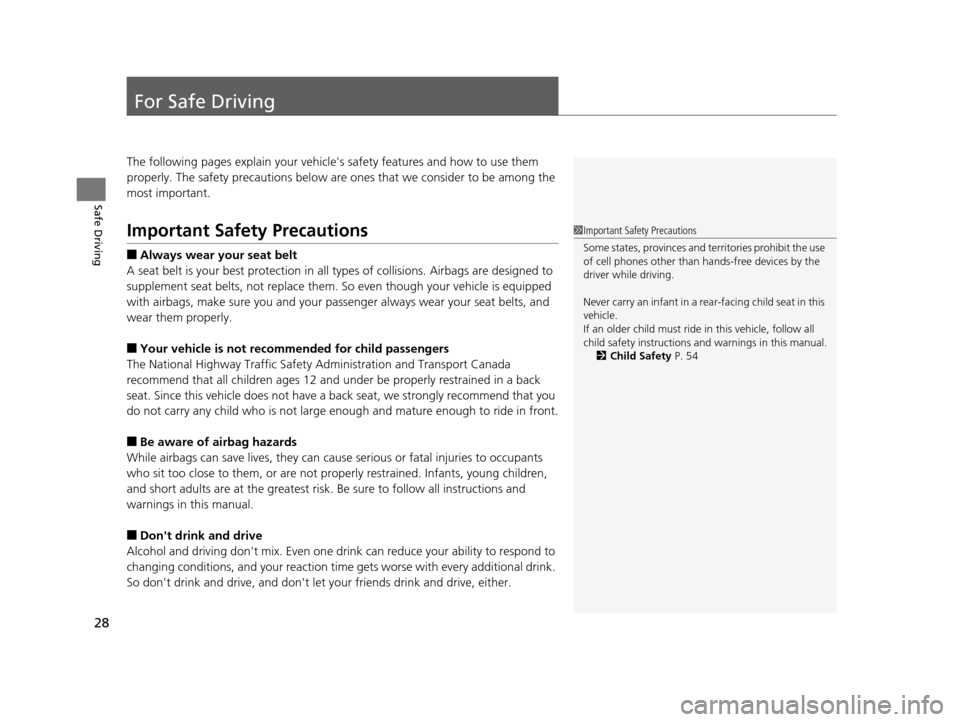

For Safe Driving
The following pages explain your vehicle's safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your pass enger always wear your seat belts, and
wear them properly.
■Your vehicle is not recommended for child passengers
The National Highway Traffic Safety Ad ministration and Transport Canada
recommend that all children ages 12 and under be properly restrained in a back
seat. Since this vehi cle does not have a back seat, we strongly recommend that you
do not carry any child who is not large enough and mature enough to ride in front.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don't drink and drive
Alcohol and driving don't mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don't drink and drive, and don't let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and territories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
Never carry an infant in a rear-facing child seat in this
vehicle.
If an older child must ride in this vehicle, follow all
child safety instructions a nd warnings in this manual.
2 Child Safety P. 54
15 CR-Z-31SZT6400.book 28 ページ ２０１４年８月１日　金曜日　午後１時５９分

29
uuFor Safe Driving uImportant Safety Precautions
Safe Driving

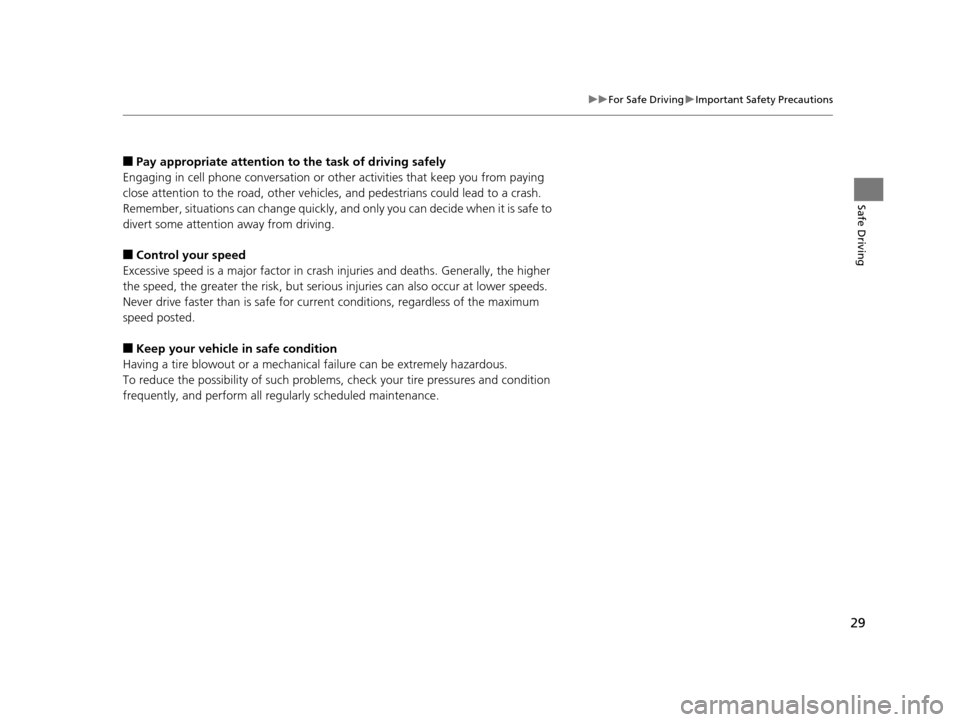

■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles , and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all re gularly scheduled maintenance.
15 CR-Z-31SZT6400.book 29 ページ ２０１４年８月１日　金曜日　午後１時５９分
