HONDA CR-Z 2015 1.G Owner's Guide

30
uuFor Safe Driving uYour Vehicle's Safety Features
Safe Driving
Your Vehicle's Safety Features
The following checklist will help you take an active role in protecting yourself and
your passenger.
1 Your Vehicle's Safety Features
Your vehicle is equipped wi th many features that
work together to help protect you and your
passenger dur ing a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zones, a collapsi ble steering
column, and tensioners that tighten the seat belts in
a sufficient crash.
However, you and your passenger cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
6
7
89
10
11
12
7
8
9
10
678910
12
Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Door Locks
Occupant Position Detection
System (OPDS) Sensor Side Airbags
11Automatic Seat Belt Tensioners
15 CR-Z-31SZT6400.book 30 ページ ２０１４年８月１日　金曜日　午後１時５９分

31
uuFor Safe Driving uYour Vehicle's Safety Features

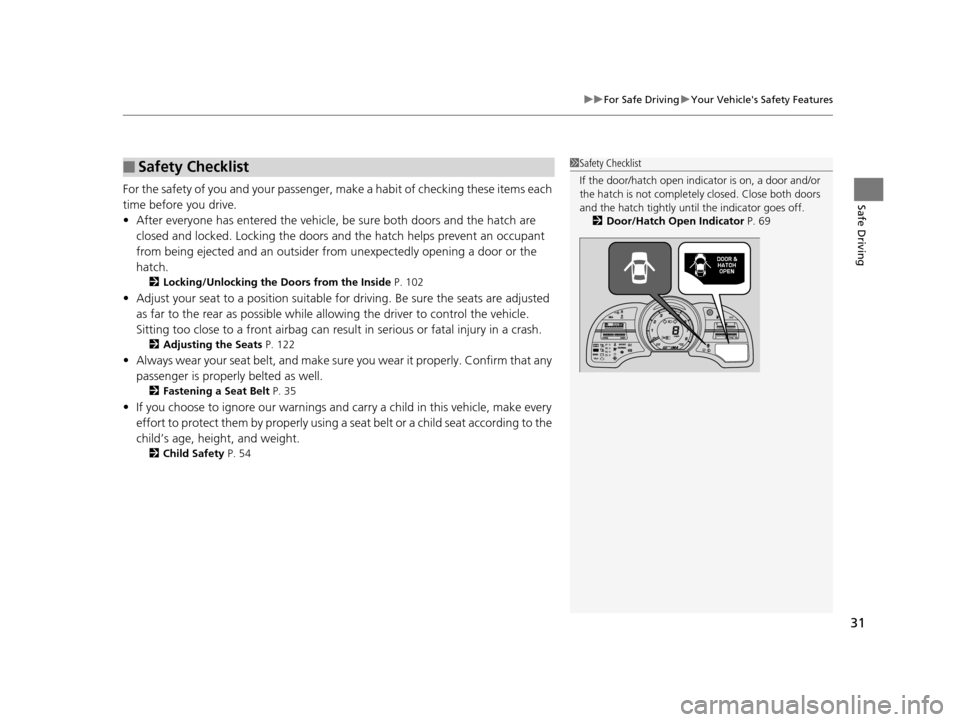

Safe DrivingFor the safety of you and your passenger, make a habit of checking these items each
time before you drive.
• After everyone has entered the vehicle, be sure both doors and the hatch are
closed and locked. Locking the doors and the hatch helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
hatch.
2 Locking/Unlocking the Doors from the Inside P. 102
•Adjust your seat to a position suitable fo r driving. Be sure the seats are adjusted
as far to the rear as possible while allo wing the driver to control the vehicle.
Sitting too close to a front airbag can resu lt in serious or fatal injury in a crash.
2Adjusting the Seats P. 122
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passenger is properly belted as well.
2 Fastening a Seat Belt P. 35
•If you choose to ignore our warnings and carry a child in this vehicle, make every
effort to protect them by properly using a s eat belt or a child seat according to the
child’s age, height, and weight.
2 Child Safety P. 54
■Safety Checklist1Safety Checklist
If the door/hatch open indica tor is on, a door and/or
the hatch is not complete ly closed. Close both doors
and the hatch tightly until the indicator goes off.
2 Door/Hatch Open Indicator P. 69
READY
15 CR-Z-31SZT6400.book 31 ページ ２０１４年８月１日　金曜日　午後１時５９分

32
Safe Driving

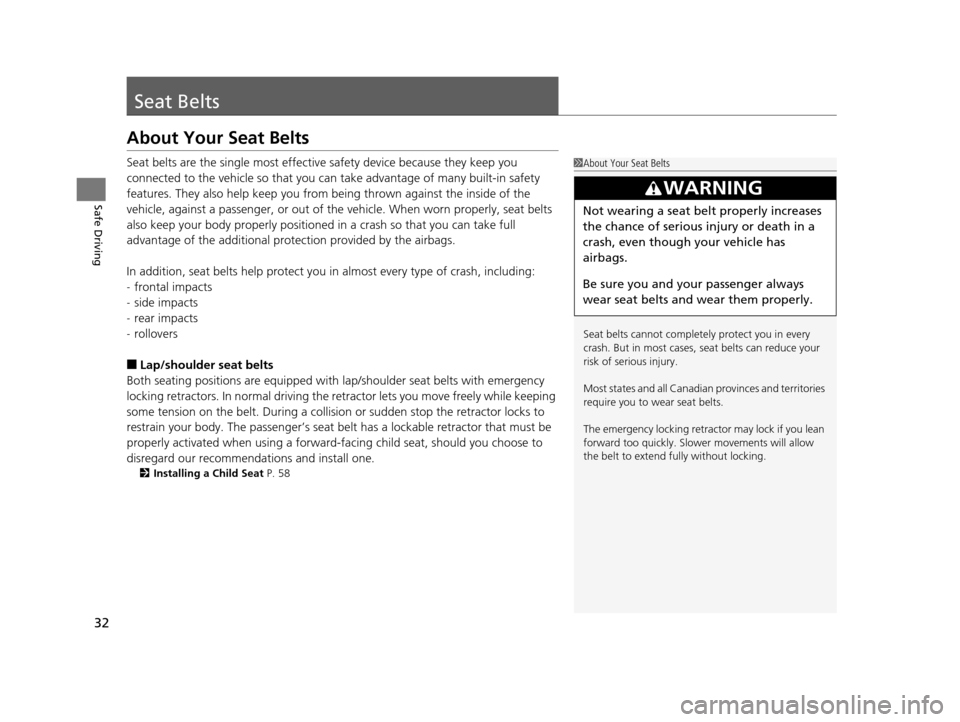

Seat Belts
About Your Seat Belts
Seat belts are the single most effective safety device because they keep you
connected to the vehicle so that you can take advantage of many built-in safety
features. They also help keep you from being thrown against the inside of the
vehicle, against a passenger, or out of th e vehicle. When worn properly, seat belts
also keep your body properly positioned in a crash so that you can take full
advantage of the additional prot ection provided by the airbags.
In addition, seat belts help protect you in almost every type of crash, including:
- frontal impacts
- side impacts
- rear impacts
- rollovers
■Lap/shoulder seat belts
Both seating positions are equipped with lap/shoulder seat belts with emergency
locking retractors. In normal driving the retractor lets you move freely while keeping
some tension on the belt. During a collis ion or sudden stop the retractor locks to
restrain your body. The passenger’s seat be lt has a lockable retractor that must be
properly activated when using a forward-facing child seat, should you choose to
disregard our recommendations and install one.
2 Installing a Child Seat P. 58
1About Your Seat Belts
Seat belts cannot complete ly protect you in every
crash. But in most cases, seat belts can reduce your
risk of serious injury.
Most states and all Canadian provinces and territories
require you to wear seat belts.
The emergency locking retrac tor may lock if you lean
forward too quickly. Slower movements will allow
the belt to extend fu lly without locking.
3WARNING
Not wearing a seat belt properly increases
the chance of serious injury or death in a
crash, even though your vehicle has
airbags.
Be sure you and your passenger always
wear seat belts and wear them properly.
15 CR-Z-31SZT6400.book 32 ページ ２０１４年８月１日　金曜日　午後１時５９分

Continued33
uuSeat Belts uAbout Your Seat Belts
Safe Driving
■Proper use of seat belts
Follow these guidelines for proper use:
• All occupants should sit upright, well back in the seat, and remain in that position
for the duration of the trip. Slouching and leaning reduc e the effectiveness of the
belt and can increase the chance of serious injury in a crash.
• Never place the shoulder part of a lap/shoulder seat belt under your arm or
behind your back. This could cause very serious injuries in a crash.
• Two people should never use the same seat belt. If they do, they could be very
seriously injured in a crash.
• Do not put any accessories on the seat belt s. Devices intended to improve comfort
or reposition the shoulder part of a seat belt can reduce the protective capability
and increase the chance of serious injury in a crash.
Your vehicle monitors seat belt use. If the
ignition switch is turned to ON
(w before the
driver's seat belt is fastened, the beeper will
sound and the indicator will blink. If the driver
does not fasten the belt before the beeper
stops, the indicato r will remain on.
The beeper will also periodically sound and
the indicator will blink while driving until the
driver's and passenger’s seat belts are
fastened.
■Seat Belt Reminder
1 About Your Seat Belts
If your passenger moves around and extends the seat
belt, the lockable retractor may activate. If this
happens, release the retractor by unfastening the
seat belt and allow the belt to retract completely.
Then refasten the belt.
1Seat Belt Reminder
The indicator will also co me on if a passenger does
not fasten their seat belt within six seconds after the
ignition switch is turned to ON
( w.
When no one is sitting in th e passenger's seat, or a
child or small adult is ridi ng there, the indicator will
not come on.
This is because the weight sensors in the seat cannot
detect their presence.
READY
15 CR-Z-31SZT6400.book 33 ページ ２０１４年８月１日　金曜日　午後１時５９分

uuSeat Belts uAbout Your Seat Belts
34

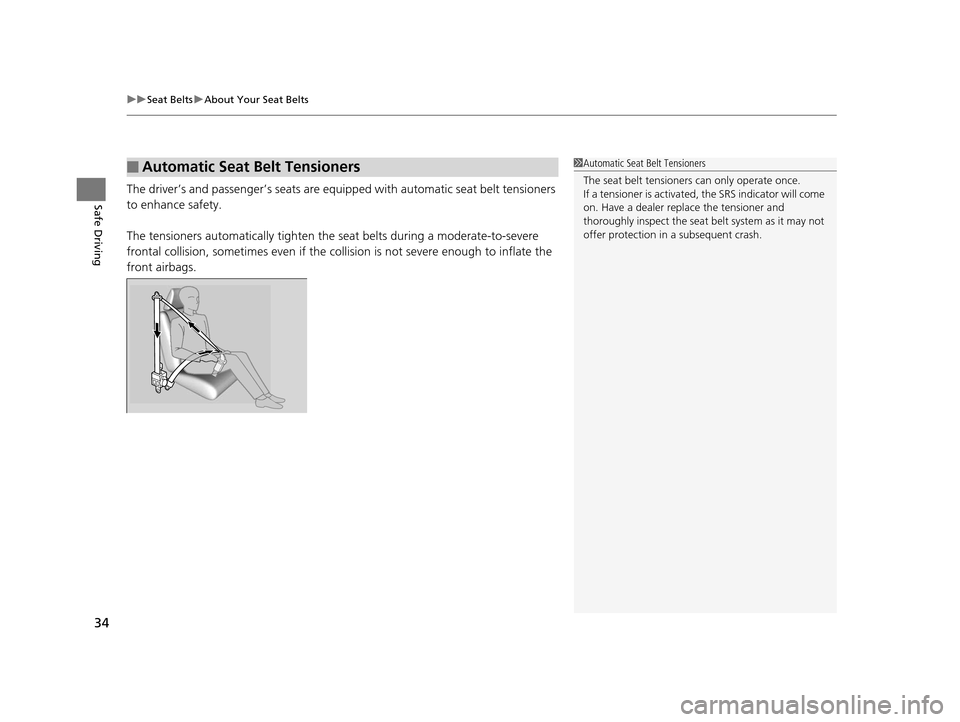

Safe DrivingThe driver’s and passenger’s seats are equipp ed with automatic seat belt tensioners
to enhance safety.
The tensioners automatically tighten the seat belts during a moderate-to-severe
frontal collision, sometimes even if the col lision is not severe enough to inflate the
front airbags.
■Automatic Seat Belt Tensioners1 Automatic Seat Belt Tensioners
The seat belt tensioners can only operate once.
If a tensioner is activated, the SRS indicator will come
on. Have a dealer replace the tensioner and
thoroughly inspect the seat belt system as it may not
offer protection in a subsequent crash.
15 CR-Z-31SZT6400.book 34 ページ ２０１４年８月１日　金曜日　午後１時５９分

35
uuSeat Belts uFastening a Seat Belt
Continued
Safe Driving

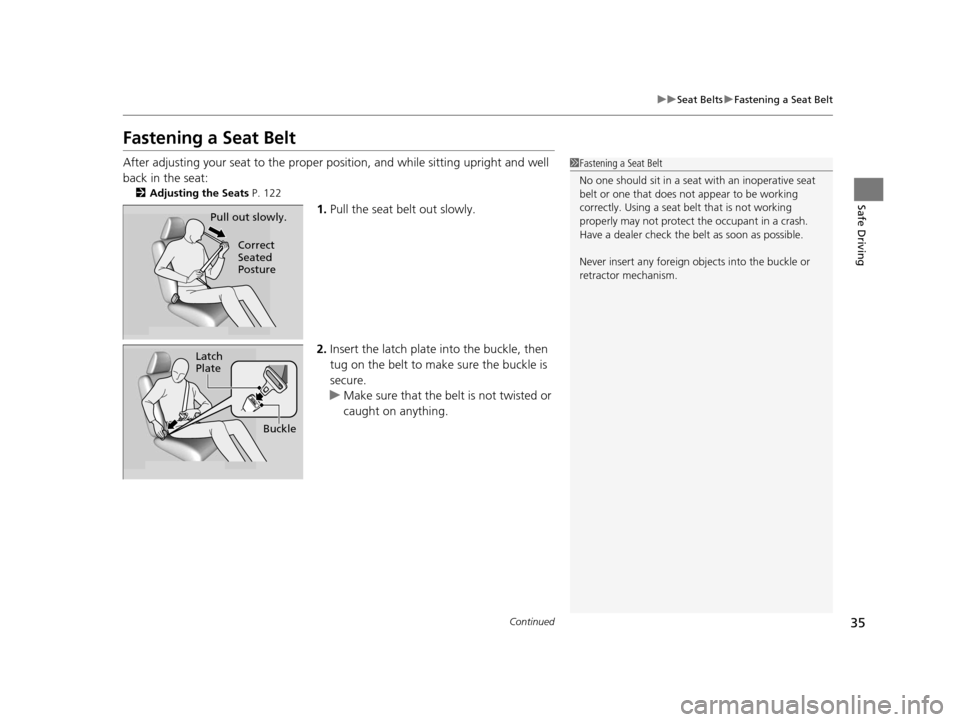

Fastening a Seat Belt
After adjusting your seat to the proper po sition, and while sitting upright and well
back in the seat:
2 Adjusting the Seats P. 122
1.Pull the seat belt out slowly.
2. Insert the latch plate into the buckle, then
tug on the belt to make sure the buckle is
secure.
u Make sure that the belt is not twisted or
caught on anything.
1Fastening a Seat Belt
No one should sit in a seat with an inoperative seat
belt or one that does not appear to be working
correctly. Using a seat be lt that is not working
properly may not protect the occupant in a crash.
Have a dealer check the belt as soon as possible.
Never insert any foreign obj ects into the buckle or
retractor mechanism.
Pull out slowly.
Correct
Seated
Posture
Latch
Plate
Buckle
15 CR-Z-31SZT6400.book 35 ページ ２０１４年８月１日　金曜日　午後１時５９分

uuSeat Belts uFastening a Seat Belt
36
Safe Driving

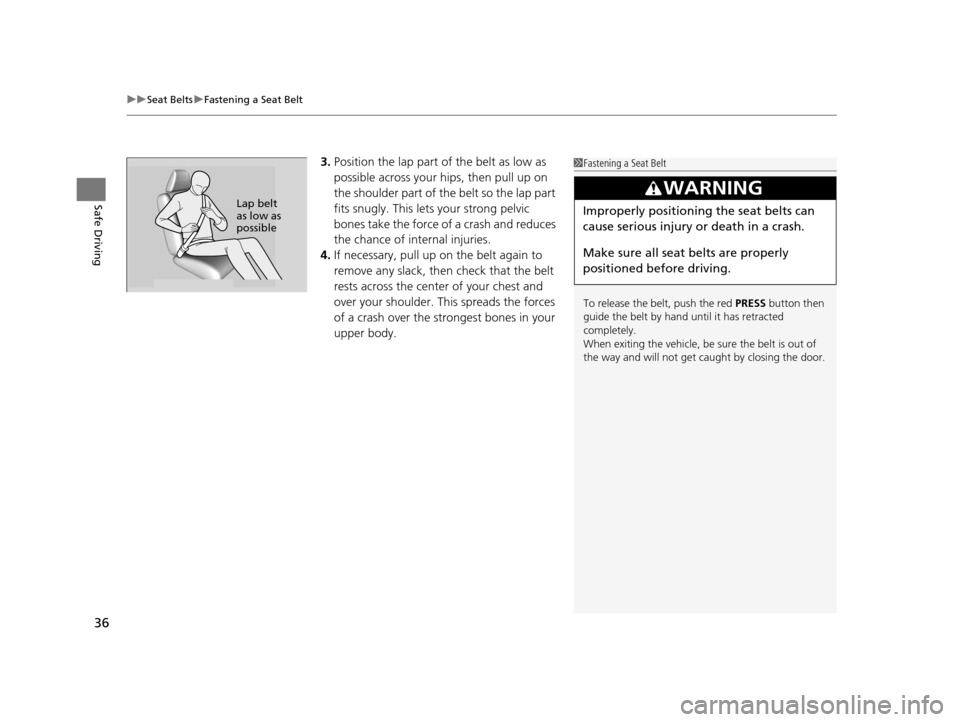

3. Position the lap part of the belt as low as
possible across your hips, then pull up on
the shoulder part of the belt so the lap part
fits snugly. This lets your strong pelvic
bones take the force of a crash and reduces
the chance of internal injuries.
4. If necessary, pull up on the belt again to
remove any slack, then check that the belt
rests across the center of your chest and
over your shoulder. Th is spreads the forces
of a crash over the strongest bones in your
upper body.1 Fastening a Seat Belt
To release the belt, push the red PRESS button then
guide the belt by hand until it has retracted
completely.
When exiting the vehicle, be sure the belt is out of
the way and will not get ca ught by closing the door.
3WARNING
Improperly positioning the seat belts can
cause serious injury or death in a crash.
Make sure all seat belts are properly
positioned before driving.Lap belt
as low as
possible
15 CR-Z-31SZT6400.book 36 ページ ２０１４年８月１日　金曜日　午後１時５９分

37
uuSeat Belts uFastening a Seat Belt

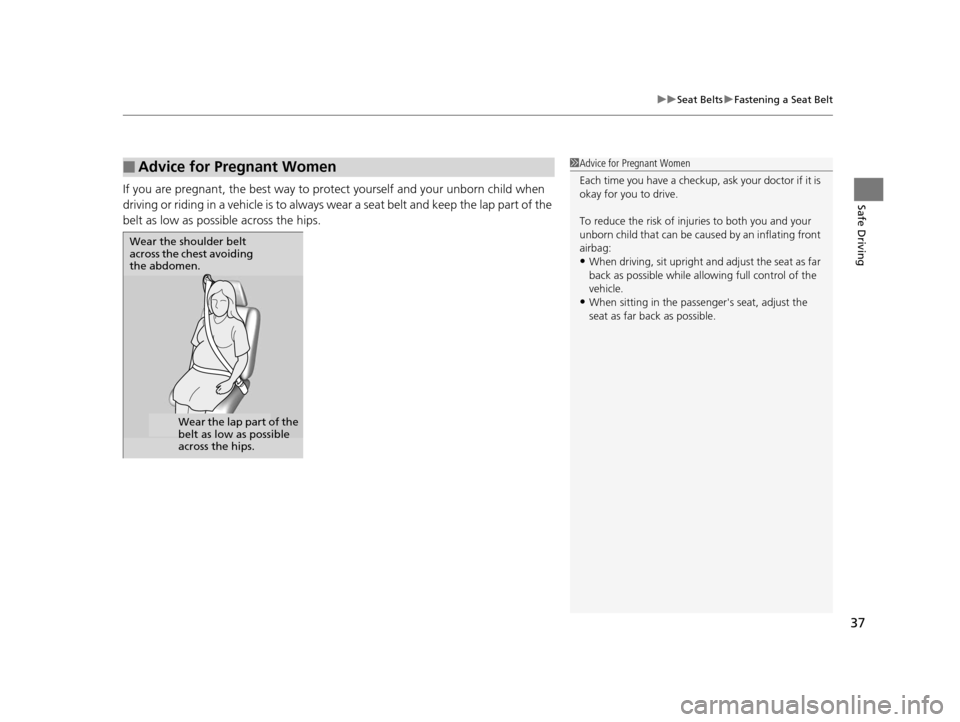

Safe DrivingIf you are pregnant, the best way to prot ect yourself and your unborn child when
driving or riding in a vehicle is to always wear a seat belt and keep the lap part of the
belt as low as possible across the hips.
■Advice for Pregnant Women1 Advice for Pregnant Women
Each time you have a checkup, ask your doctor if it is
okay for you to drive.
To reduce the risk of inju ries to both you and your
unborn child that can be caus ed by an inflating front
airbag:
•When driving, sit upright a nd adjust the seat as far
back as possible while allowing full control of the
vehicle.
•When sitting in the passenger's seat, adjust the
seat as far back as possible.
Wear the shoulder belt
across the chest avoiding
the abdomen.
Wear the lap part of the
belt as low as possible
across the hips.
15 CR-Z-31SZT6400.book 37 ページ ２０１４年８月１日　金曜日　午後１時５９分

38
uuSeat Belts uSeat Belt Inspection
Safe Driving

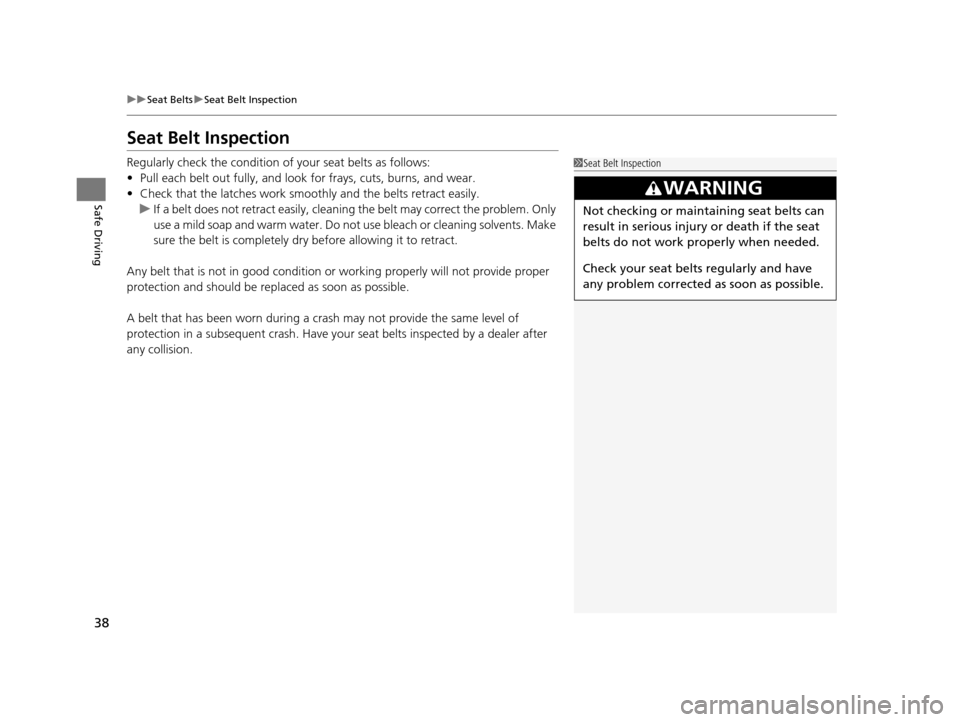

Seat Belt Inspection
Regularly check the condition of your seat belts as follows:
• Pull each belt out fully, and look for frays, cuts, burns, and wear.
• Check that the latches work smoothly and the belts retract easily.
u If a belt does not retract eas ily, cleaning the belt may correct the problem. Only
use a mild soap and warm water. Do not use bleach or cleaning solvents. Make
sure the belt is completely dry before allowing it to retract.
Any belt that is not in good condition or working properly will not provide proper
protection and should be repl aced as soon as possible.
A belt that has been worn during a cr ash may not provide the same level of
protection in a subsequent crash. Have your seat belts inspected by a dealer after
any collision.1 Seat Belt Inspection
3WARNING
Not checking or maintaining seat belts can
result in serious injury or death if the seat
belts do not work properly when needed.
Check your seat belts regularly and have
any problem corrected as soon as possible.
15 CR-Z-31SZT6400.book 38 ページ ２０１４年８月１日　金曜日　午後１時５９分

39Continued
Safe Driving
Airbags
Airbag System Components
6
789101112810
8
8
88
15 CR-Z-31SZT6400.book 39 ページ ２０１４年８月１日　金曜日　午後１時５９分
