sensor HONDA CR-Z 2016 1.G Navigation Manual

27Continued

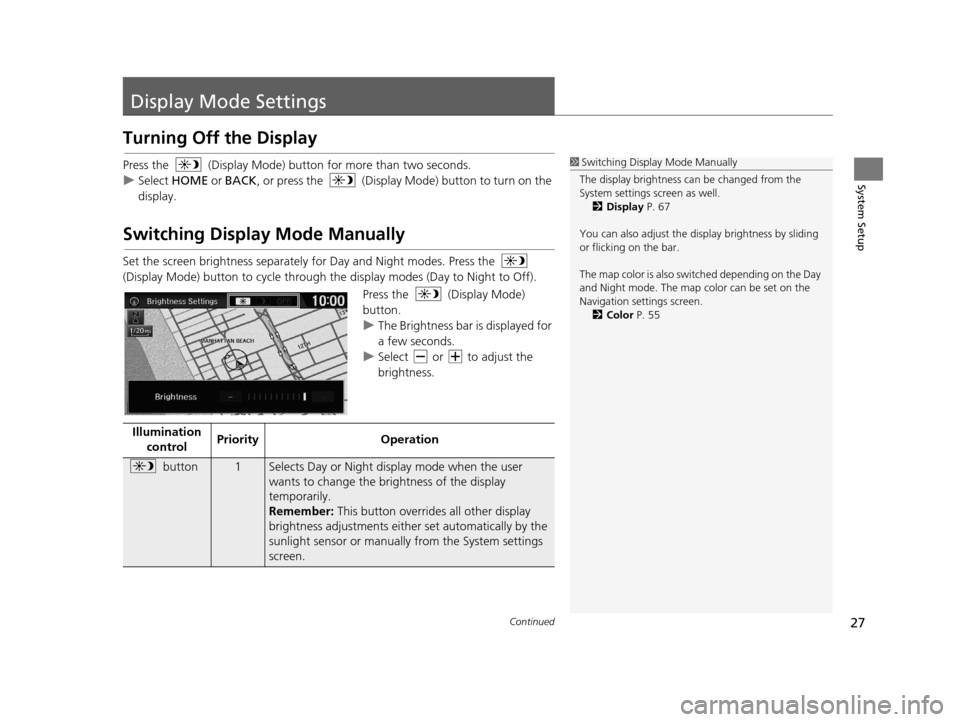

System Setup
Display Mode Settings
Turning Off the Display
Press the (Display Mode) button for more than two seconds.
u Select HOME or BACK , or press the (Display Mode) button to turn on the
display.
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display Mode) button to cycle through the display modes (Day to Night to Off).
Press the (Display Mode)
button.
uThe Brightness bar is displayed for
a few seconds.
u Select or to adjust the
brightness.
1Switching Display Mode Manually
The display brightness ca n be changed from the
System settings screen as well. 2 Display P. 67
You can also adjust the display brightness by sliding
or flicking on the bar.
The map color is also switched depending on the Day
and Night mode. The map color can be set on the
Navigation settings screen. 2 Color P. 55
Illumination
control Priority
Operation
button1Selects Day or Night display mode when the user
wants to change the brightness of the display
temporarily.
Remember: This button overrides all other display
brightness adjustments either set automatically by the
sunlight sensor or manual ly from the System settings
screen.
16 CR-Z NAVI-31SZT8500.book 27 ページ ２０１５年７月３０日　木曜日　午前９時１８分

28

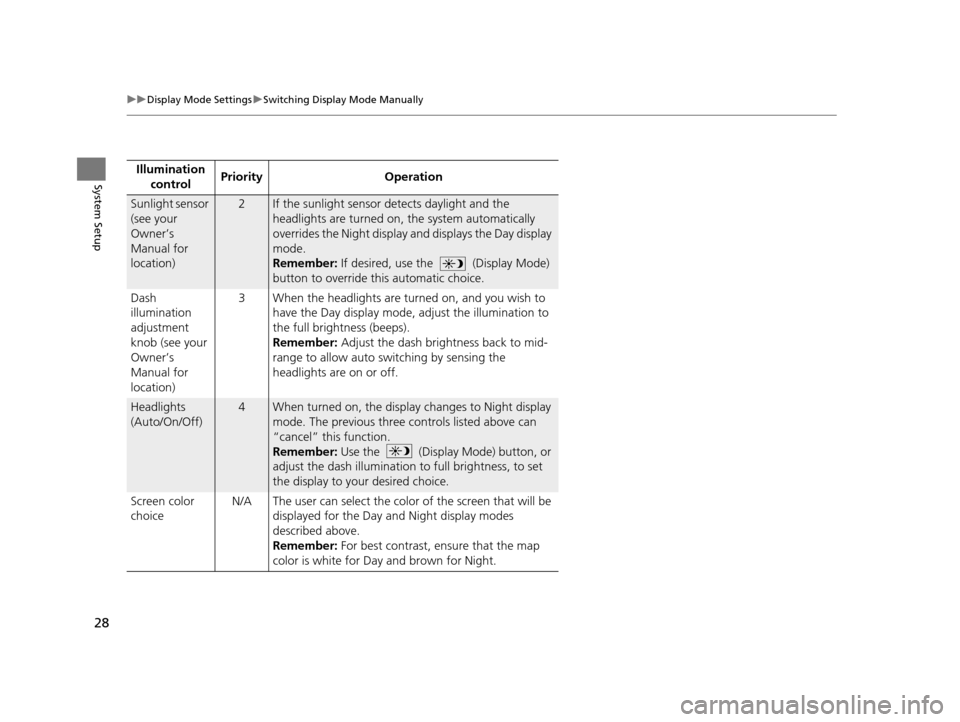

uuDisplay Mode Settings uSwitching Display Mode Manually
System SetupIllumination
control Priority Operation
Sunlight sensor
(see your
Owner’s
Manual for
location)2If the sunlight sensor detects daylight and the
headlights are turned on, the system automatically
overrides the Night display and displays the Day display
mode.
Remember:
If desired, use the (Display Mode)
button to override this automatic choice.
Dash
illumination
adjustment
knob (see your
Owner’s
Manual for
location) 3 When the headlights are tu
rned on, and you wish to
have the Day display mode, adjust the illumination to
the full brightness (beeps).
Remember: Adjust the dash brightness back to mid-
range to allow auto switching by sensing the
headlights are on or off.
Headlights
(Auto/On/Off)4When turned on, the displa y changes to Night display
mode. The previous three controls listed above can
“cancel” this function.
Remember: Use the (Display Mode) button, or
adjust the dash illumination to full brightness, to set
the display to your desired choice.
Screen color
choice N/A The user can select the color of the screen that will be
displayed for the Day and Night display modes
described above.
Remember: For best contrast, ensure that the map
color is white for Day and brown for Night.
16 CR-Z NAVI-31SZT8500.book 28 ページ ２０１５年７月３０日　木曜日　午前９時１８分
