California Proposition 65 Warning
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or le ss. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howe ver, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
WARNING: This product contains or emits
chemicals known to the state of California to cause
cancer and birth defects or other reproductive
harm.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can re ad the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle ow ner and may not be accessed by
anyone else except as legally requir ed or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with se rvice-related devices that record
information about powertrain perfo rmance. The data can be used
to verify emissions law requirem ents and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for res earch purposes, but it remains
confidential.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate ma terials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
NOTICE
16 CR-Z-31SZT6500.book 0 ページ 2015年9月11日 金曜日 午前11時47分 00X31-SZT-6500 2016 CR-Z Owner's Manual AOM02225
Page 2 of 409

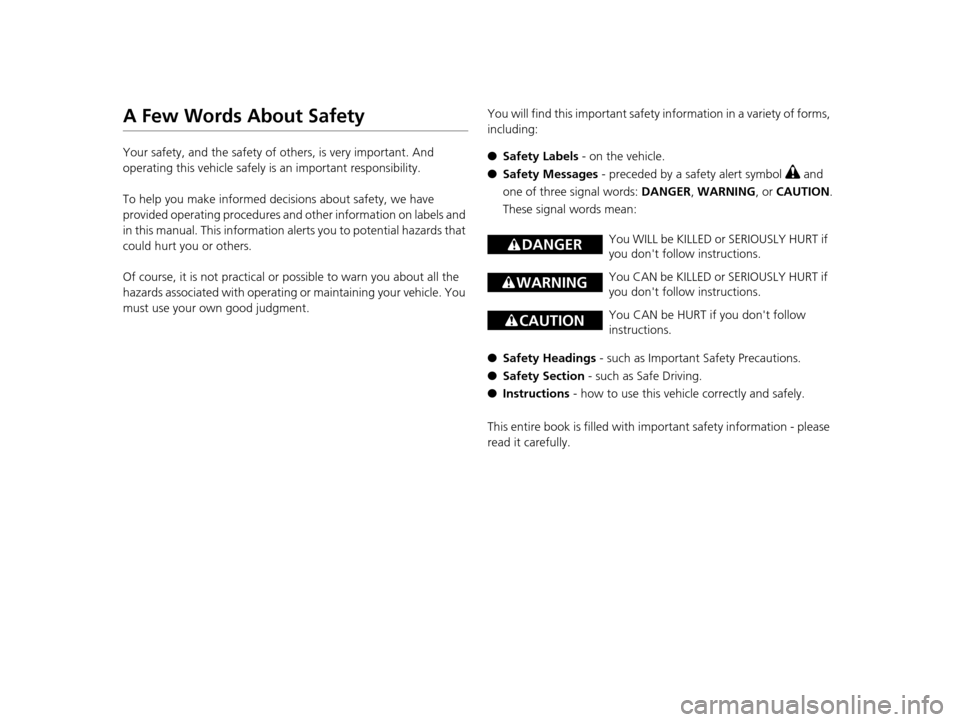

A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment. You will find this impo
rtant safety information in a variety of forms,
including:
● Safety Labels - on the vehicle.
● Safety Messages - preceded by a safety alert symbol
3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
● Safety Headings - such as Important Safety Precautions.
● Safety Section - such as Safe Driving.
● Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3CAUTIONYou CAN be HURT if you don't follow
instructions.
16 CR-Z-31SZT6500.book 1 ページ 2015年9月11日 金曜日 午前11時47分
Page 3 of 409
Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner's manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 31
For Safe Driving P. 32 Seat Belts P. 36 Airbags P. 43
2Instrument Panel P. 69
Indicators P. 70 Gauges and Multi-Information Display P. 89
2Controls P. 107
Clock P. 108 Locking and Unlocking the Doors P. 109
Operating the Switches Ar ound the Steering Wheel P. 126
Interior Lights/Interior Convenience Items P. 146
2 Features P. 159
Audio System P. 160 Audio System Basic Operation P. 166
Customized Features P. 202 Bluetooth® HandsFreeLink ® P. 213
2 Driving P. 243
Before Driving P. 244 Towing a Trailer P. 250
Multi-View Rear Camera P. 291
2Maintenance P. 299
Before Performing Maintenance P. 300 Maintenance MinderTM P. 303
Checking and Maintaining Wiper Blades P. 328
Climate Control System Maintenance P. 343
2Handling the Unexpected P. 349
Tools P. 350 If a Tire Goes Flat P. 351
Overheating P. 370 Indicator, Coming On/Blinking P. 372
2Information P. 387
Specifications P. 388 Identification Numbers P. 390
Emissions Testing P. 393 Warranty Coverages P. 395
16 CR-Z-31SZT6500.book 2 ページ 2015年9月11日 金曜日 午前11時47分
Page 4 of 409
Contents
Child Safety P. 58Exhaust Gas Hazard P. 66Safety Labels P. 67
Opening and Closing the Hatch P. 119 Security System P. 122 Opening and Closing the Windows P. 124
Adjusting the Mirrors P. 139 Adjusting the Seats P. 141
Climate Control System P. 155
Audio Error Messages P. 195 General Information on the Audio System P. 199
When Driving P. 251 Braking P. 284Parking Your Vehicle P. 290
Refueling P. 293 Fuel Economy P. 296Accessories and Modifications P. 297
Maintenance Under the Hood P. 307 Replacing Light Bulbs P. 320
Checking and Maintaining Tires P. 331 12-Volt Battery P. 340 Remote Transmitter Care P. 342
Cleaning P. 344
Engine Does Not Start P. 362 Jump Starting P. 366 Shift Lever Does Not Move P. 369
Fuses P. 378 Emergency Towing P. 383When You Cannot Open the Hatch P. 385
Devices that Emit Radio Waves P. 391 Reporting Safety Defects P. 392
Authorized Manuals P. 397 Customer Service Information P. 398
Quick Reference GuideP. 4
Safe DrivingP. 31
Instrument PanelP. 69
ControlsP. 107
FeaturesP. 159
DrivingP. 243
MaintenanceP. 299
Handling the UnexpectedP. 349
InformationP. 387
IndexP. 399
16 CR-Z-31SZT6500.book 3 ページ 2015年9月11日 金曜日 午前11時47分
Page 5 of 409
4
Quick Reference Guide
Quick Reference Guide

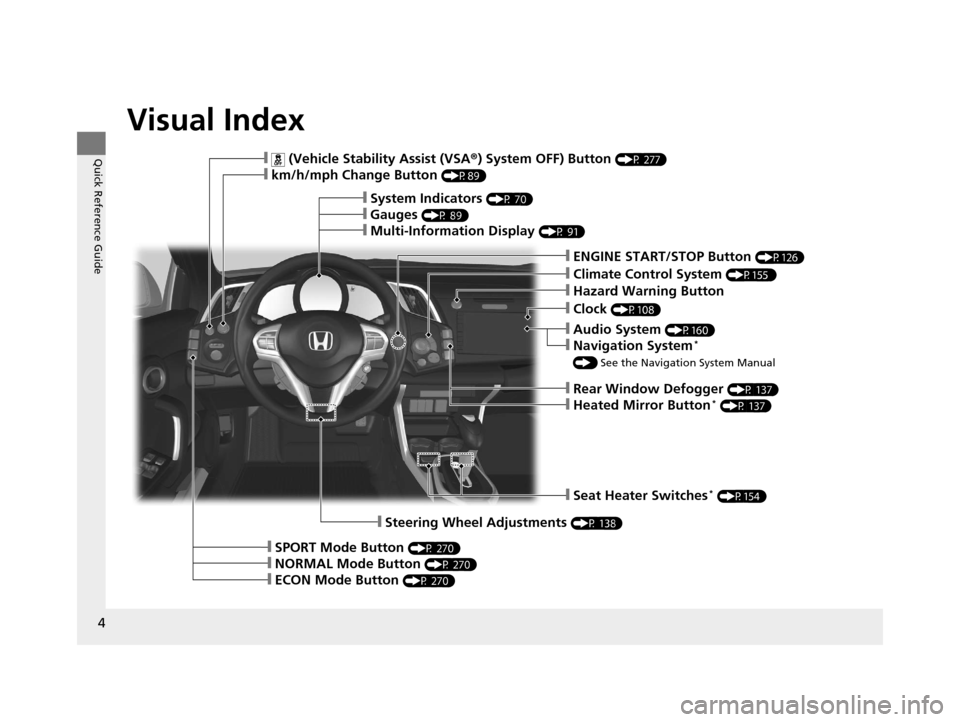

Visual Index
❙Steering Wheel Adjustments (P 138)
❙ (Vehicle Stability Assist (VSA®) System OFF) Button (P 277)
❙km/h/mph Change Button (P89)
❙Climate Control System (P155 )
❙ENGINE START/STOP Button (P126)
❙Clock (P108)
❙Hazard Warning Button
❙Audio System (P160)
❙Navigation System*
() See the Navigation System Manual
❙System Indicators (P 70)
❙Gauges (P 89)
❙Multi-Information Display (P 91)
❙Seat Heater Switches* (P154)
❙SPORT Mode Button (P 270)
❙NORMAL Mode Button (P 270)
❙ECON Mode Button (P 270)
❙Rear Window Defogger (P 137)
❙Heated Mirror Button* (P 137)
16 CR-Z-31SZT6500.book 4 ページ 2015年9月11日 金曜日 午前11時47分
Page 6 of 409
5
Quick Reference Guide

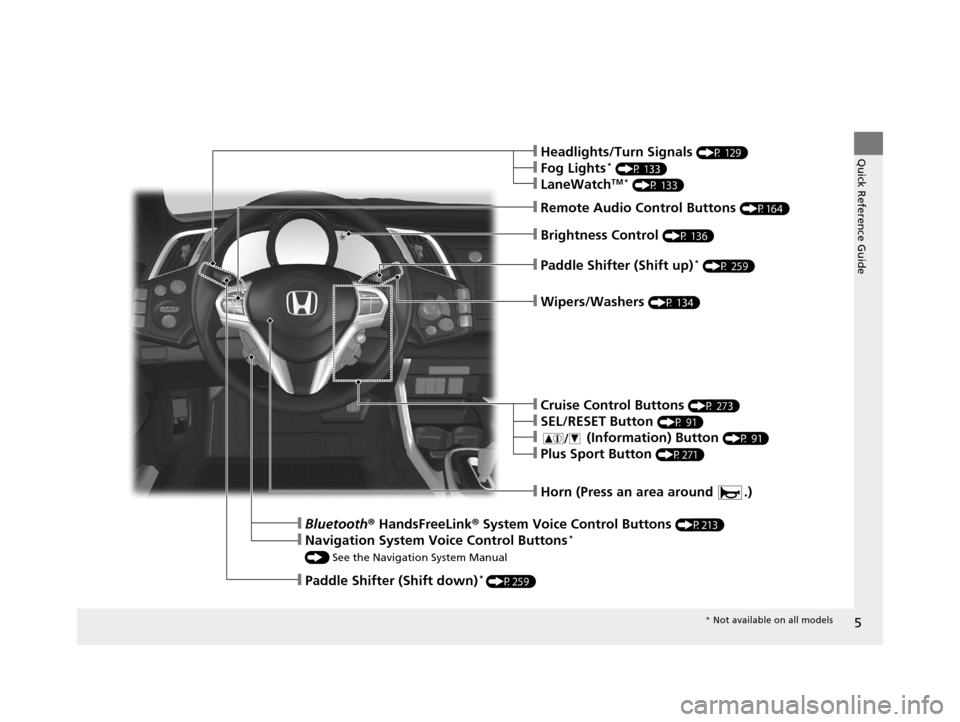

❙Paddle Shifter (Shift up)* (P 259)
❙Remote Audio Control Buttons (P164)
❙Paddle Shifter (Shift down)* (P259)
❙Horn (Press an area around .)
❙Bluetooth® HandsFreeLink® System Voice Control Buttons (P213)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Cruise Control Buttons (P 273)
❙SEL/RESET Button (P 91)
❙ (Information) Button (P 91)
❙Plus Sport Button (P271)
❙Wipers/Washers (P 134)
❙Brightness Control (P 136)
❙Headlights/Turn Signals (P 129)
❙Fog Lights* (P 133)
❙LaneWatchTM * (P 133)
* Not available on all models
16 CR-Z-31SZT6500.book 5 ページ 2015年9月11日 金曜日 午前11時47分
Page 7 of 409
Visual Index
6
Quick Reference Guide
❙Passenger's Front Airbag
(P 46)
❙Driver's Front Airbag (P 46)
❙Driver’s Door Lock Switch (P 116)
❙Door Mirror Controls (P 140)
❙Hood Release Handle (P 308)
❙Interior Fuse Box (P379)
❙Glove Box (P 147)
❙Electric Parking Brake Switch
(P284)
❙Power Door Lock Master Switch (P 117)
❙Power Window Switches (P 124)
❙Center Pocket
❙Accessory Power Socket
(P 149)
❙USB Ports (P161)
❙HDMITM Port (P162)
❙Shift Lever
Continuously Variable
Transmission
(P 256)
Manual Transmission (P 261)
16 CR-Z-31SZT6500.book 6 ページ 2015年9月11日 金曜日 午前11時47分
Page 8 of 409
7
Quick Reference Guide

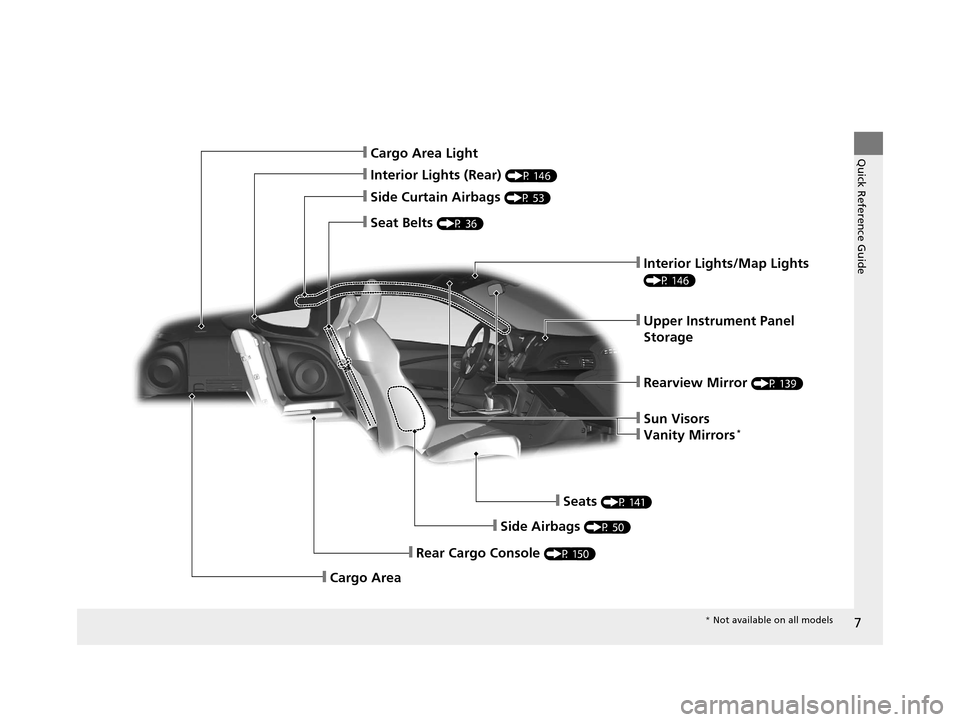

❙Upper Instrument Panel
Storage
❙Interior Lights/Map Lights
(P 146)
❙Seat Belts (P 36)
❙Side Curtain Airbags (P 53)
❙Interior Lights (Rear) (P 146)
❙Cargo Area Light
❙Seats (P 141)
❙Rear Cargo Console (P 150)
❙Cargo Area
❙Sun Visors
❙Vanity Mirrors*
❙Rearview Mirror (P 139)
❙Side Airbags (P 50)
* Not available on all models
16 CR-Z-31SZT6500.book 7 ページ 2015年9月11日 金曜日 午前11時47分
Page 9 of 409
Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P 307)
❙Windshield Wipers (P 134, 328)
❙Door Lock/Unlock
Control
(P 112)
❙Front Turn Signal/Parking/
Side Marker Lights
(P 129, 324)
❙Tires (P 331, 351)
❙Fog Lights* (P 133)
❙Brake/Taillights (P 326)
❙Back-Up Lights (P 325)
❙Rear Turn Signal Lights (P 325)
❙Rear Side Marker Lights (P 325)
❙High-Mount Brake
Light
(P 327)
❙How to Refuel (P 294)
❙Rear Wiper (P135,330)
❙Opening/Closing
the Hatch
(P 119)
❙Side Turn Signal
Lights
(P 129, 324)
❙Door Mirrors (P 140)
❙Rear License Plate
Lights
(P 327)
❙Multi-View Rear
Camera
(P291)❙Headlights (P 129, 320)
❙Hatch Release (P120)
16 CR-Z-31SZT6500.book 8 ページ 2015年9月11日 金曜日 午前11時47分
Page 10 of 409
9
Quick Reference Guide

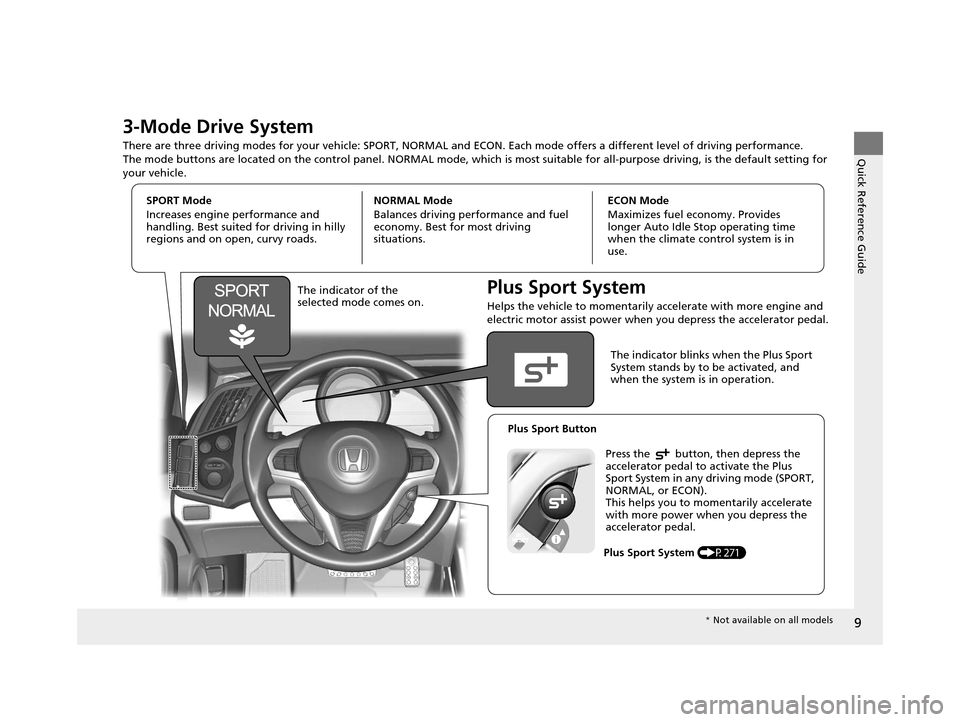

3-Mode Drive System
There are three driving modes for your vehicle: SPORT, NORMAL and ECON. Each mode offers a different level of driving performance.
The mode buttons are located on the control panel. NORMAL mode, wh ich is most suitable for all-purpose driving, is the default setting for
your vehicle.
The indicator of the
selected mode comes on.
SPORT Mode
Increases engine performance and
handling. Best suited for driving in hilly
regions and on open, curvy roads.
NORMAL Mode
Balances driving performance and fuel
economy. Best fo
r most driving
situations. ECON Mode
Maximizes fuel economy. Provides
longer Auto Idle Stop operating time
when the climate control system is in
use.
The indicator blinks when the Plus Sport
System stands by to be activated, and
when the system is in operation.
Press the button, then depress the
accelerator pedal to activate the Plus
Sport System in any driving mode (SPORT,
NORMAL, or ECON).
This helps you to momentarily accelerate
with more power when you depress the
accelerator pedal.
Plus Sport System (P271)
Plus Sport Button
Plus Sport System
Helps the vehicle to momentarily accelerate with more engine and
electric motor assist power when you depress the accelerator pedal.
*
Not available on all models
16 CR-Z-31SZT6500.book 9 ページ 2015年9月11日 金曜日 午前11時47分
