check engine light HONDA CR-Z 2016 1.G User Guide

367

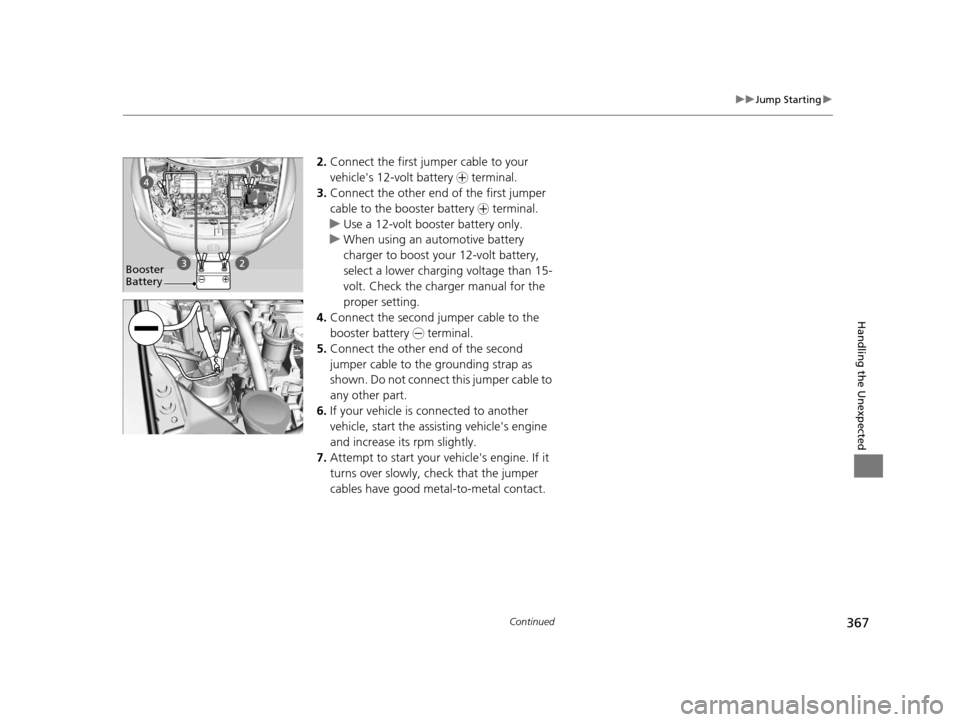

uuJump Starting u
Continued
Handling the Unexpected
2.Connect the first jumper cable to your
vehicle's 12-volt battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
5. Connect the other end of the second
jumper cable to the grounding strap as
shown. Do not connect this jumper cable to
any other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
7. Attempt to start your ve hicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Booster
Battery
16 CR-Z-31SZT6500.book 367 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

372
Handling the Unexpected

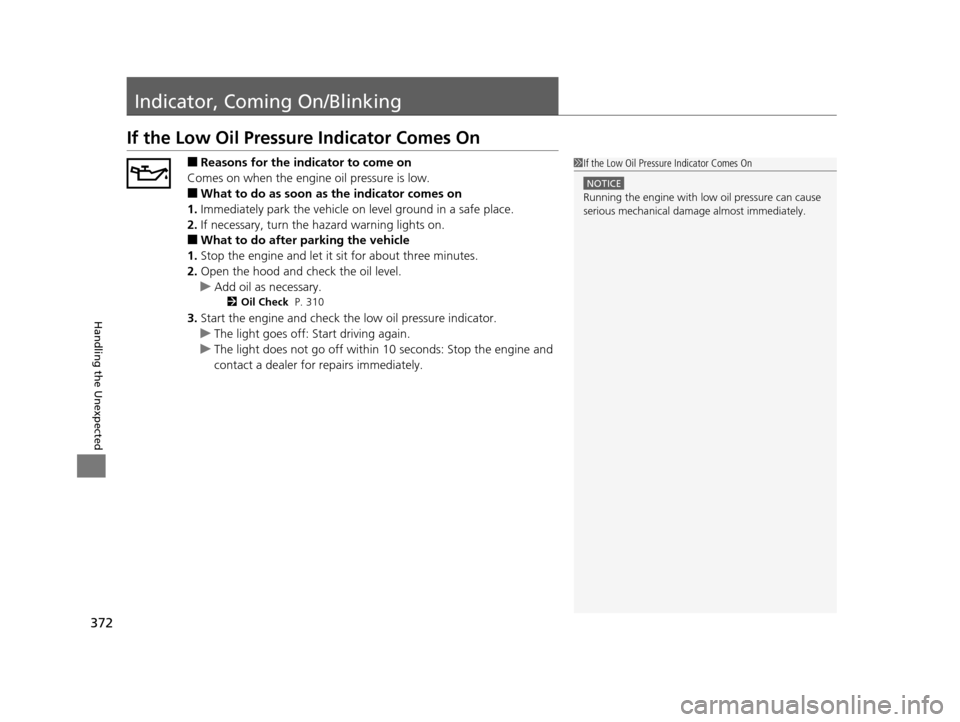

Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 310
3.Start the engine and check the low oil pressure indicator.
u The light goes off: Start driving again.
u The light does not go off within 10 seconds: Stop the engine and
contact a dealer for repairs immediately.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
16 CR-Z-31SZT6500.book 372 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

375
uuIndicator, Comi ng On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected

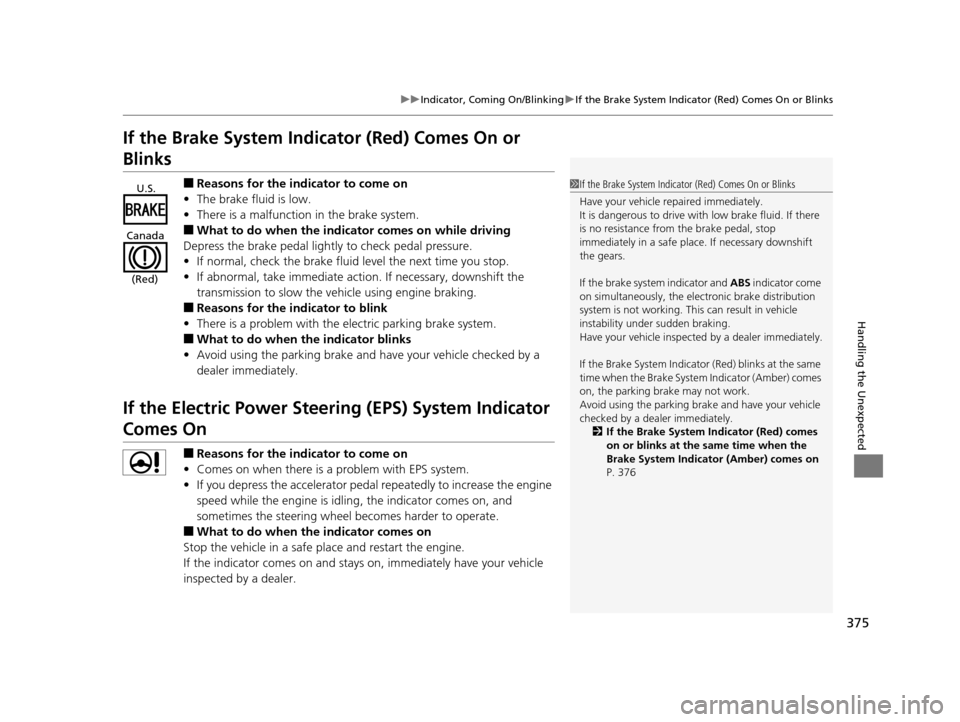

If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indica tor comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reasons for the indicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
• Avoid using the parking brake and have your vehicle checked by a
dealer immediately.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the Brake System Indicator (Red) blinks at the same
time when the Brake System Indicator (Amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately. 2 If the Brake System Indicator (Red) comes
on or blinks at the same time when the
Brake System Indicator (Amber) comes on
P. 376U.S.
Canada (Red)
16 CR-Z-31SZT6500.book 375 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

382
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

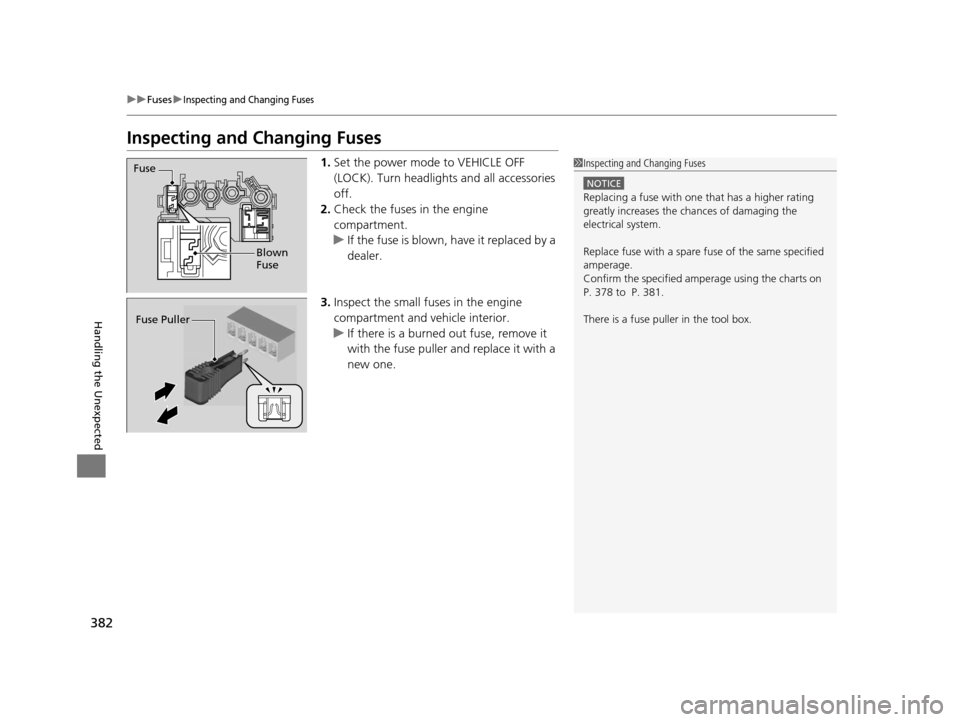

Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Check the fuses in the engine
compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Inspect the small fuses in the engine
compartment and vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 378 to P. 381.
There is a fuse puller in the tool box.
Fuse
Blown
Fuse
Fuse Puller
16 CR-Z-31SZT6500.book 382 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

Index
399
Index
Index
Numbers
12 Volt Battery Charging System Indicator ................................................... 72
3-Mode Drive System ............................... 270
ECON Mode Indicator ............................... 81
NORMAL Mode Indicator .......................... 81
SPORT Mode Indicator .............................. 81
7-Speed Manual Shift Mode ................... 258
A
ABS (Anti-lock Brake System) .................. 288
Accessories and Modifications ................ 297
Accessory Power Socket ........................... 149
Active Head Restraints ............................. 145
Additives
Coolant .................................................. 314
Engine Oil ............................................... 309
Washer ................................................... 319
Additives, Engine Oil ............................... 309
Adjusting
Clock ...................................................... 108
Headlights .............................................. 320
Mirrors.................................................... 139
Seats....................................................... 141
Steering Wheel ....................................... 138
Adjusting the Sound ................................ 173
Air Conditioning System (Climate Control System) .................................................... 155
Changing the Mode................................ 155 Defrosting the Windshield and
Windows ............................................... 156
Dust and Pollen Filter ............................... 343
Recirculation/Fresh Air Mode ................... 155
Sensors .................................................... 157
Using Automatic Climate Control ............ 155
Air Pressure ............................................... 331
Airbags ........................................................ 43
Advanced Airbags ..................................... 49
After a Collision ......................................... 57
Airbag Care ............................................... 57
Event Data Recorders ................................... 0
Front Airbags (SRS) .................................... 46
Indicator ........................................ 54, 74, 78
Passenger Airbag Off Indicator .................. 55
Sensors ...................................................... 49
Side Airbag Cutoff System ......................... 52
Side Airbag Off Indicator ........................... 52
Side Airbags .............................................. 50
Side Curtain Airbags .................................. 53
AM/FM Radio ............................................ 175
Anti-lock Brake System (ABS) .................. 288
Indicator .................................................... 74
ASST Indicator ............................................. 90
Audio Remote Controls ............................ 164
Audio System ............................................ 160
Adjusting the Sound ................................ 173
Error Messages ........................................ 195
General Information ................................ 199
HDMI
TM Port ............................................ 162
iPhone ..................................................... 201 iPod ........................................................ 181
MP3/WMA/AAC .............................. 178, 186
Reactivating ............................................ 163
Recommended CDs ................................. 199
Recommended Devices............................ 201
Security Code .......................................... 163
Theft Protection ...................................... 163
USB Flash Drives ...................................... 201
USB Ports ................................................ 161
Audio/Information Screen ....................... 168
Authorized Manuals ................................ 397
Auto Door Locking/Unlocking ................. 118
Customize ................................................. 98
Auto Idle Stop
Continuously Variable Transmission ......... 264
Manual Transmission ............................... 267
Auto Idle Stop Indicator ............................ 80
Automatic Lighting .................................. 131
Average Fuel Economy .............................. 96
Average Fuel Economy Records ................ 96
Average Speed ........................................... 93
B
Back-Up Light........................................... 325
Battery ...................................................... 340
Charging System Indicator................. 72, 373
Jump Starting .......................................... 366
Maintenance (Checking the 12 Volt Battery) ................................................. 340
16 CR-Z-31SZT6500.book 399 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

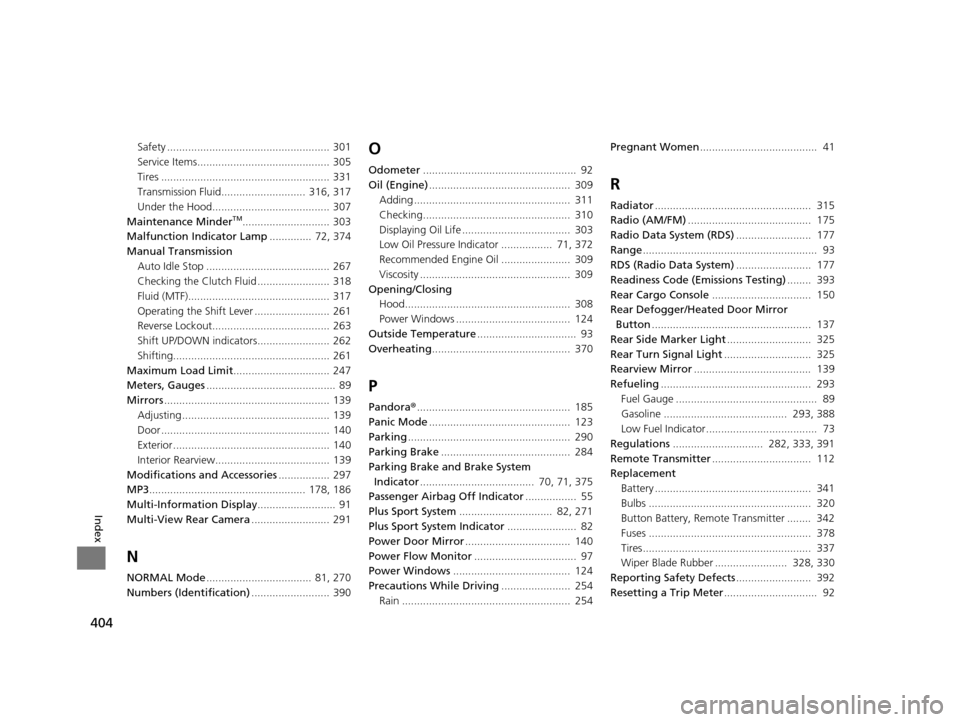

404
Index
Safety ...................................................... 301
Service Items............................................ 305
Tires ........................................................ 331
Transmission Fluid............................ 316, 317
Under the Hood....................................... 307
Maintenance Minder
TM............................. 303
Malfunction Indicator Lamp .............. 72, 374
Manual Transmission
Auto Idle Stop ......................................... 267
Checking the Clutch Fluid ........................ 318
Fluid (MTF)............................................... 317
Operating the Shift Lever ......................... 261
Reverse Lockout....................................... 263
Shift UP/DOWN indicators........................ 262
Shifting.................................................... 261
Maximum Load Limit ................................ 247
Meters, Gauges ........................................... 89
Mirrors ....................................................... 139
Adjusting ................................................. 139
Door ........................................................ 140
Exterior .................................................... 140
Interior Rearview...................................... 139
Modifications and Accessories ................. 297
MP3 .................................................... 178, 186
Multi-Information Display .......................... 91
Multi-View Rear Camera .......................... 291
N
NORMAL Mode................................... 81, 270
Numbers (Identification) .......................... 390
O
Odometer................................................... 92
Oil (Engine) ............................................... 309
Adding .................................................... 311
Checking................................................. 310
Displaying Oil Life .................................... 303
Low Oil Pressure Indicator ................. 71, 372
Recommended Engine Oil ....................... 309
Viscosity .................................................. 309
Opening/Closing Hood....................................................... 308
Power Windows ...................................... 124
Outside Temperature ................................. 93
Overheating .............................................. 370
P
Pandora®................................................... 185
Panic Mode ............................................... 123
Parking ...................................................... 290
Parking Brake ........................................... 284
Parking Brake and Brake System Indicator ...................................... 70, 71, 375
Passenger Airbag Off Indicator ................. 55
Plus Sport System ............................... 82, 271
Plus Sport System Indicator ....................... 82
Power Door Mirror ................................... 140
Power Flow Monitor .................................. 97
Power Windows ....................................... 124
Precautions While Driving ....................... 254
Rain ........................................................ 254 Pregnant Women
....................................... 41
R
Radiator.................................................... 315
Radio (AM/FM) ......................................... 175
Radio Data System (RDS) ......................... 177
Range .......................................................... 93
RDS (Radio Data System) ......................... 177
Readiness Code (Emissions Testing) ........ 393
Rear Cargo Console ................................. 150
Rear Defogger/Heated Door Mirror Button ..................................................... 137
Rear Side Marker Light ............................ 325
Rear Turn Signal Light ............................. 325
Rearview Mirror ....................................... 139
Refueling .................................................. 293
Fuel Gauge ............................................... 89
Gasoline ......................................... 293, 388
Low Fuel Indicator..................................... 73
Regulations .............................. 282, 333, 391
Remote Transmitter ................................. 112
Replacement Battery .................................................... 341
Bulbs ...................................................... 320
Button Battery, Remote Transmitter ........ 342
Fuses ...................................................... 378
Tires........................................................ 337
Wiper Blade Rubber ........................ 328, 330
Reporting Safety Defects ......................... 392
Resetting a Trip Meter ............................... 92
16 CR-Z-31SZT6500.book 404 ページ ２０１５年９月１１日　金曜日　午前１１時４７分
