HONDA CR-Z 2016 1.G Owners Manual

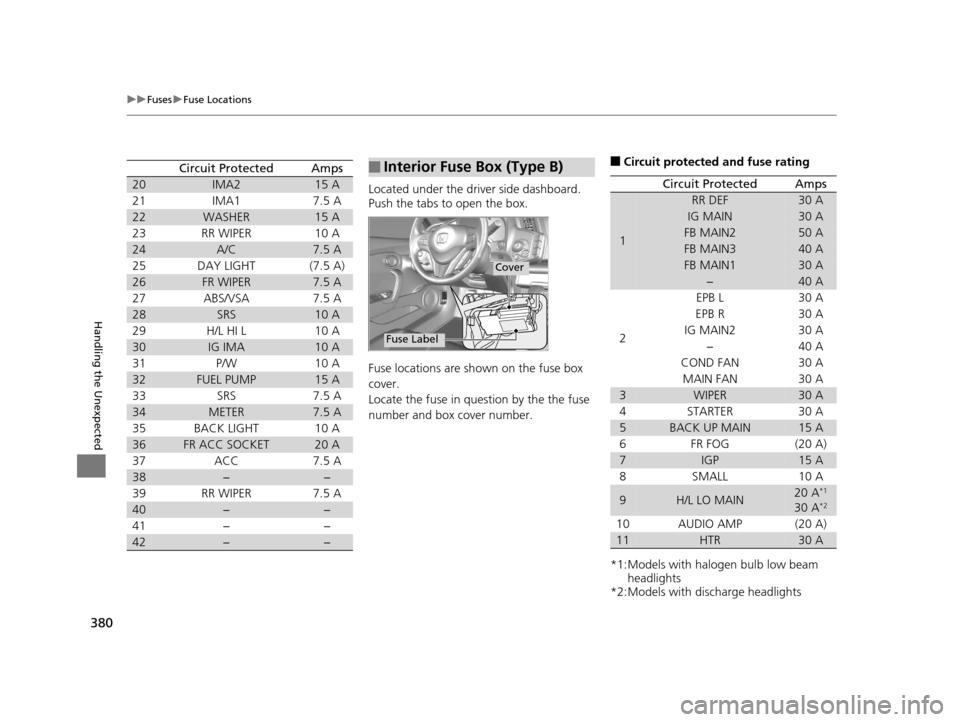

380
uuFuses uFuse Locations
Handling the Unexpected
Circuit ProtectedAmps
20IMA215 A
21IMA17.5 A
22WASHER15 A
23RR WIPER10 A
24A/C7.5 A
25DAY LIGHT(7.5 A)
26FR WIPER7.5 A
27ABS/VSA7.5 A
28SRS10 A
29H/L HI L10 A
30IG IMA10 A
31P/W10 A
32FUEL PUMP15 A
33SRS7.5 A
34METER7.5 A
35BACK LIGHT10 A
36FR ACC SOCKET20 A
37ACC7.5 A
38−−
39RR WIPER7.5 A
40−−
41−−
42−−
Located under the driver side dashboard.
Push the tabs to open the box.
Fuse locations are sh own on the fuse box
cover.
Locate the fuse in question by the the fuse
number and box cover number.
■Interior Fuse Box (Type B)
Cover
Fuse Label
■Circuit protected and fuse rating
*1:Models with halogen bulb low beam headlights
*2:Models with discharge headlights
Circuit ProtectedAmps
1
RR DEF30 A
IG MAIN30 A
FB MAIN250 A
FB MAIN340 A
FB MAIN130 A
−40 A
2
EPB L30 A
EPB R30 A
IG MAIN230 A
−40 A
COND FAN30 A
MAIN FAN30 A
3WIPER30 A
4STARTER30 A
5BACK UP MAIN15 A
6FR FOG(20 A)
7IGP15 A
8SMALL10 A
9H/L LO MAIN20 A*1
30 A*2
10AUDIO AMP(20 A)
11HTR30 A
16 CR-Z-31SZT6500.book 380 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

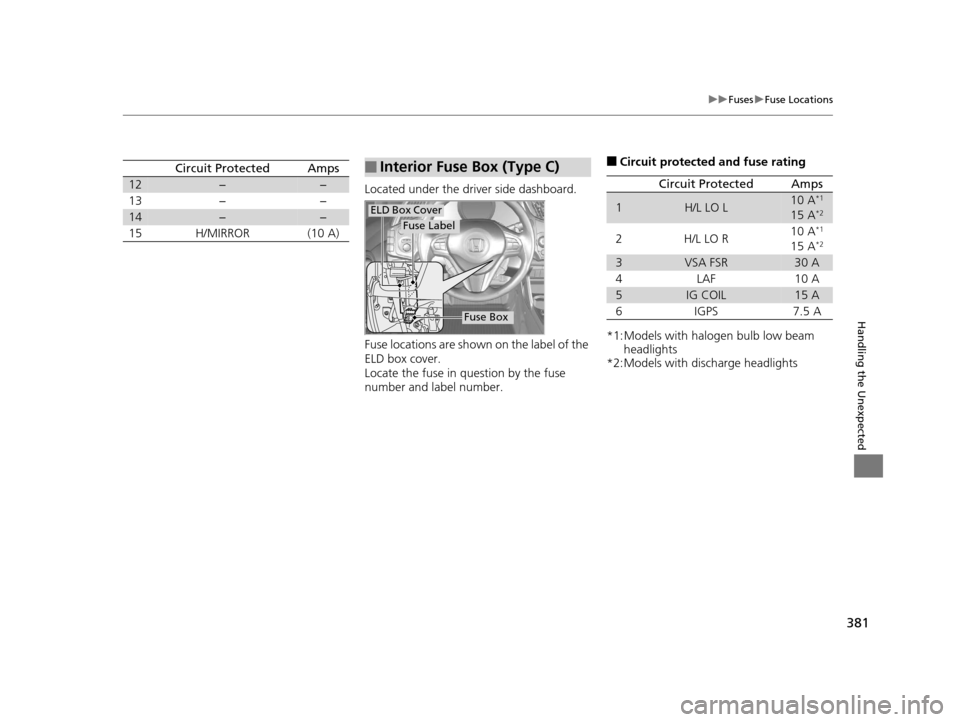

381
uuFuses uFuse Locations
Handling the Unexpected
Circuit ProtectedAmps
12−−
13−−
14−−
15H/MIRROR(10 A)
Located under the driver side dashboard.
Fuse locations are shown on the label of the
ELD box cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box (Type C)
ELD Box Cover
Fuse Box
Fuse Label
■Circuit protected and fuse rating
*1:Models with halogen bulb low beam headlights
*2:Models with discharge headlights
Circuit ProtectedAmps
1H/L LO L10 A*1
15 A*2
2H/L LO R10 A*1
15 A*2
3VSA FSR30 A
4LAF10 A
5IG COIL15 A
6IGPS7.5 A
16 CR-Z-31SZT6500.book 381 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

382
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Check the fuses in the engine
compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Inspect the small fuses in the engine
compartment and vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 378 to P. 381.
There is a fuse puller in the tool box.
Fuse
Blown
Fuse
Fuse Puller
16 CR-Z-31SZT6500.book 382 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

383Continued
Handling the Unexpected

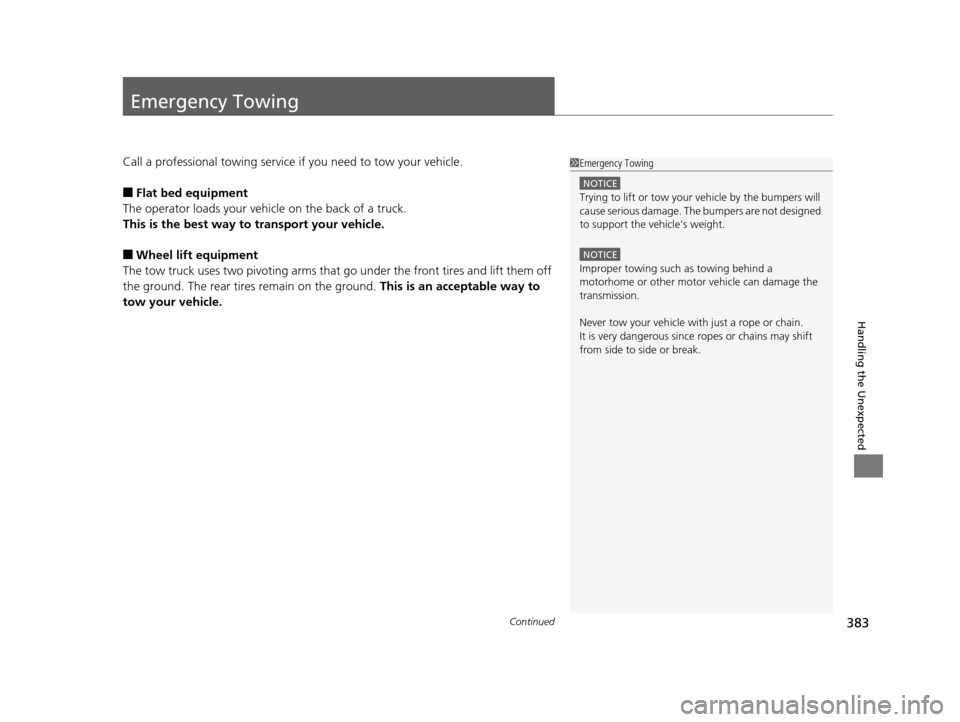

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
16 CR-Z-31SZT6500.book 383 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

uuEmergency Towing u
384
Handling the Unexpected

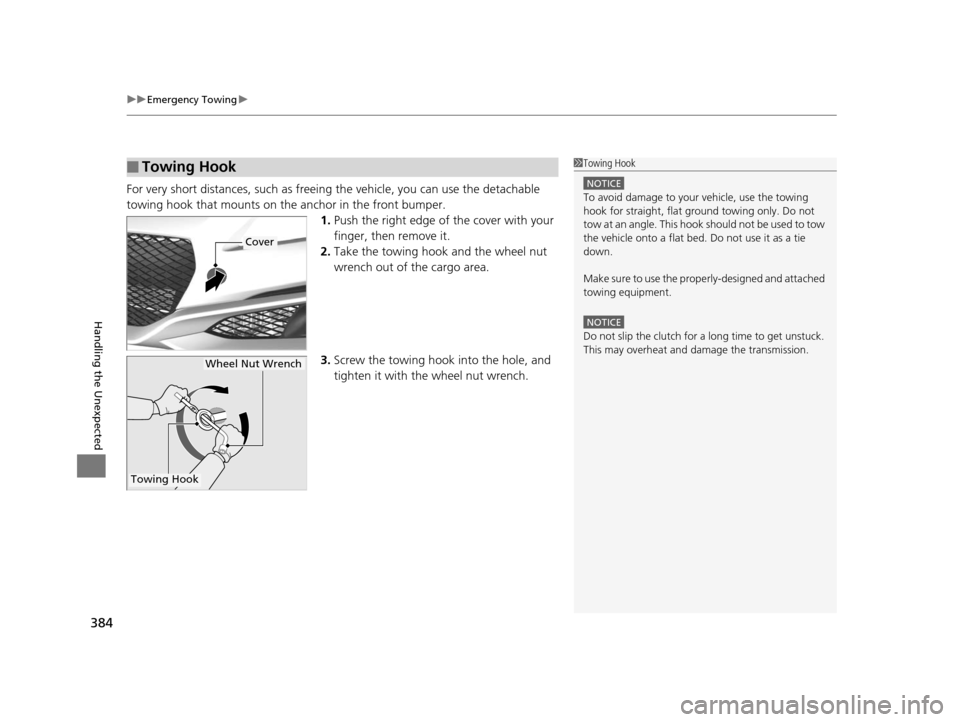

For very short distances, su ch as freeing the vehicle, you can use the detachable
towing hook that mounts on the anchor in the front bumper. 1.Push the right edge of the cover with your
finger, then remove it.
2. Take the towing hook and the wheel nut
wrench out of the cargo area.
3. Screw the towing hook into the hole, and
tighten it with the wheel nut wrench.
■Towing Hook1Towing Hook
NOTICE
To avoid damage to your vehicle, use the towing
hook for straight, flat ground towing only. Do not
tow at an angle. This hook should not be used to tow
the vehicle onto a flat bed. Do not use it as a tie
down.
Make sure to use the prope rly-designed and attached
towing equipment.
NOTICE
Do not slip the clutch for a long time to get unstuck.
This may overheat and damage the transmission.
Cover
Wheel Nut Wrench
Towing Hook
16 CR-Z-31SZT6500.book 384 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

385
Handling the Unexpected

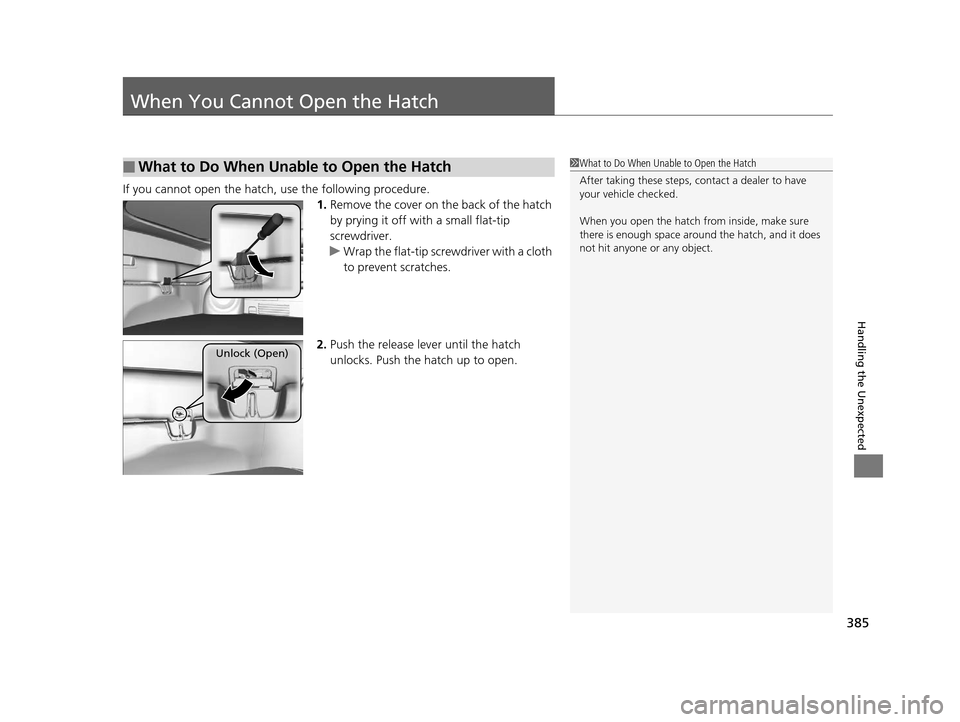

When You Cannot Open the Hatch
If you cannot open the hatch, use the following procedure.
1.Remove the cover on the back of the hatch
by prying it off with a small flat-tip
screwdriver.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. Push the release lever until the hatch
unlocks. Push the hatch up to open.
■What to Do When Unable to Open the Hatch1What to Do When Unab le to Open the Hatch
After taking these steps, contact a dealer to have
your vehicle checked.
When you open the hatch fr om inside, make sure
there is enough space around the hatch, and it does
not hit anyone or any object.
Unlock (Open)
16 CR-Z-31SZT6500.book 385 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

386
16 CR-Z-31SZT6500.book 386 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

387

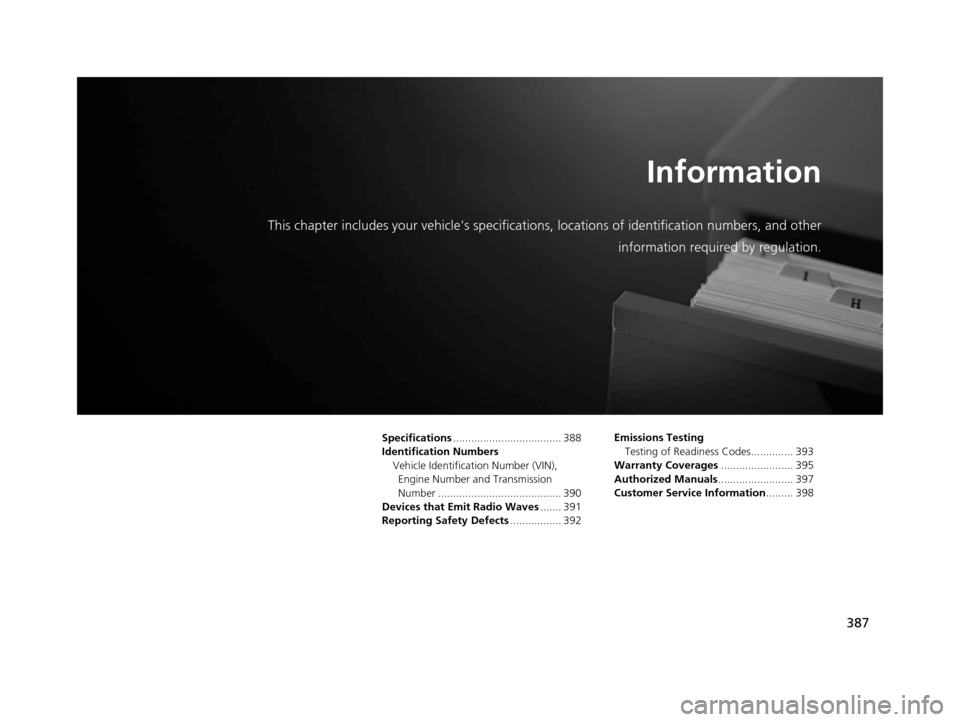

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 388
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 390
Devices that Emit Radio Waves ....... 391
Reporting Safety Defects ................. 392Emissions Testing
Testing of Readiness Codes.............. 393
Warranty Coverages ........................ 395
Authorized Manuals ......................... 397
Customer Service Information ......... 398
16 CR-Z-31SZT6500.book 387 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

388
Information
Specifications
■Vehicle Specifications
ModelCR-Z
No. of Passengers:
Front 2
Rear -
Total 2
Weights:Gross Vehicle
Weight Rating U.S.: 3,263 lbs (1,480 kg)
Canada: 1,480 kg
Gross Axle Weight
Rating (Front)U.S.: 1,819 lbs (825 kg)
Canada: 825 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,455 lbs (660 kg)
Canada: 660 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.8 – 17.6 oz (450 – 500 g)
Lubricant Type SP-10
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement91 cu-in (1,497 cm3)
Spark Plugs NGK DIFR6D13
DENSO DK20PR-D13
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.12 US qt (4.85 L)
■ Light Bulbs
*1: Vehicle with discharge headlights
*2: Vehicle with halogen bulb low beam headlights
Headlights (Low Beam)35W (D4S)*1
55W (H11)*2
Headlights (High Beam) 60W (HB3)Fog Lights*35W (H8)
Front Turn Signal/Parking*/Side
Marker Lights 28W/8W
Parking*/Daytime Running* LightLED
Rear Side Marker Lights 3CP
Brake/TaillightsLED
Side Turn Signal Lights
(on Door Mirrors) LED
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightsLED
License Plate Light 5W
Cargo Area Light5WInterior LightsFront8WRear3.4WVanity Mirror Lights*2WGlove Box Light1.4WCourtesy Lights2CP (3.8W)
* Not available on all models
16 CR-Z-31SZT6500.book 388 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

389
uuSpecifications u
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Continuously
Variable Transmission Fluid
Capacity Change 3.0 US qt (2.8 L)
SpecifiedHonda Manual Transmission
Fluid (MTF)
Capacity Change1.5 US qt (1.4 L)
■Engine Oil
■ Engine Coolant
*1: Manual transmission models
*2: Continuously variable transmission models
Recommended·Genuine Honda Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
Capacity Change 3.6 US qt (3.4 L)
Change
including
filter
3.8 US qt (3.6 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.17 US gal (4.42 L)*1
1.15 US gal (4.35 L)*2
(change including the remaining
0.116 US gal (0.44 L) in the reserve tank)
■ Tire
*1: Optional on Canadian models
Regular
SizeP195/55R16 86V205/45R17 84W*1
Pressure
psi (kPa
[kgf/cm
2])
Front30 (210 [2.1])32 (220 [2.2])*1
Rear30 (210 [2.1])30 (210 [2.1])*1
Wheel SizeRegular16 x 6J17 x 6 1/2J*1
* Not available on all models
