305
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder
Message
System Message
Indicator
Sub Items
Main Item
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
*2: If you drive primarily in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
●Check expiration date for Tire Repair Kit bottle
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
# : See information on maintenance and emissions warranty.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
16 CR-Z-31SZT6500.book 305 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

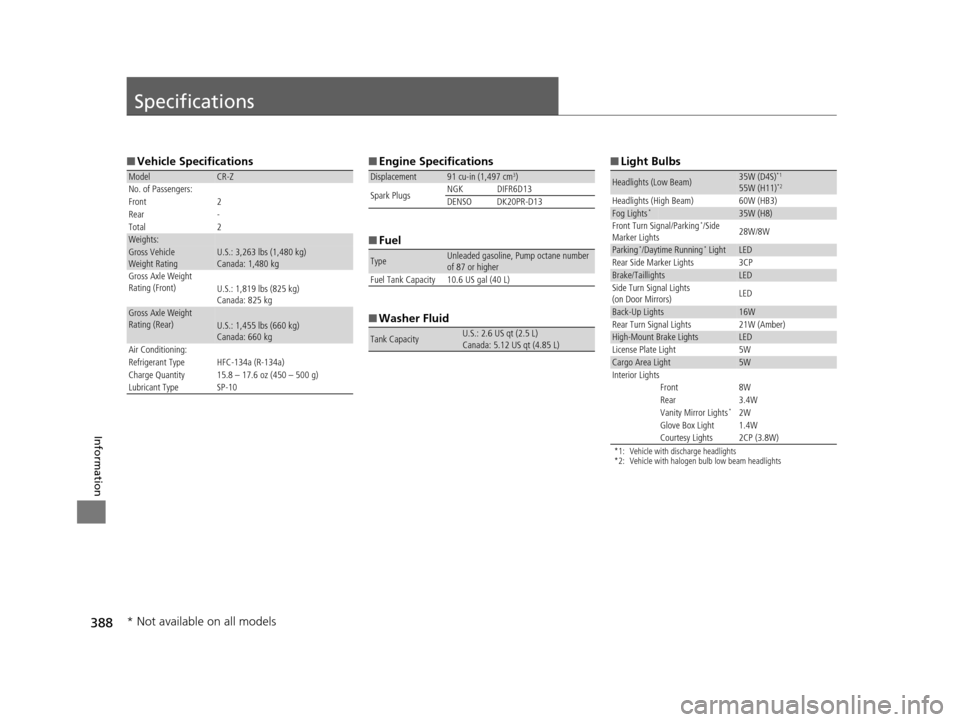

388
Information
Specifications
■Vehicle Specifications
ModelCR-Z
No. of Passengers:
Front 2
Rear -
Total 2
Weights:Gross Vehicle
Weight Rating U.S.: 3,263 lbs (1,480 kg)
Canada: 1,480 kg
Gross Axle Weight
Rating (Front)U.S.: 1,819 lbs (825 kg)
Canada: 825 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,455 lbs (660 kg)
Canada: 660 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.8 – 17.6 oz (450 – 500 g)
Lubricant Type SP-10
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement91 cu-in (1,497 cm3)
Spark Plugs NGK DIFR6D13
DENSO DK20PR-D13
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.12 US qt (4.85 L)
■ Light Bulbs
*1: Vehicle with discharge headlights
*2: Vehicle with halogen bulb low beam headlights
Headlights (Low Beam)35W (D4S)*1
55W (H11)*2
Headlights (High Beam) 60W (HB3)Fog Lights*35W (H8)
Front Turn Signal/Parking*/Side
Marker Lights 28W/8W
Parking*/Daytime Running* LightLED
Rear Side Marker Lights 3CP
Brake/TaillightsLED
Side Turn Signal Lights
(on Door Mirrors) LED
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightsLED
License Plate Light 5W
Cargo Area Light5WInterior LightsFront8WRear3.4WVanity Mirror Lights*2WGlove Box Light1.4WCourtesy Lights2CP (3.8W)
* Not available on all models
16 CR-Z-31SZT6500.book 388 ページ ２０１５年９月１１日　金曜日　午前１１時４７分

405
Index
S
Safe Driving................................................ 31
Safety Check ............................................... 35
Safety Labels .............................................. 67
Safety Message ............................................ 1
Seat ........................................................... 141
Adjusting ................................................ 141
Seat Heaters ........................................... 154
Seat Belts .................................................... 36
Automatic Seat Belt Tensioners ................. 38
Checking .................................................. 42
Fastening .................................................. 39
Installing a Child Seat................................ 62
Pregnant Women...................................... 41
Reminder .................................................. 37
Warning Indicator ............................... 37, 73
Seat Heaters ............................................. 154
Security System Immobilizer System Indicator..................... 80
Security System Alarm Indicator ................ 80
SEL/RESET Button ....................................... 98
Selecting a Child Seat ................................ 61
Setting the Clock ...................................... 108
Shift Lever .................................................. 23
Continuously Variable Transmission ........ 256
Operation ................................................. 23
Operation (Continuo usly Variable
Transmission) ........................................ 257
Operation (Manual Transmission) ............ 261
Releasing ................................................ 369
Won’t Move ........................................... 369 Shift Lever Position Indicator
................... 257
Shifting
Continuously Variable Transmission ......... 256
Manual Transmission ............................... 261
Side Airbags ................................................ 50
Cutoff System ........................................... 52
Off Indicator .............................................. 52
Side Curtain Airbags ................................... 53
Siri ® Eyes Free ........................................... 194
Snow Tires ................................................. 339
Spark Plugs ................................................ 388
Specifications ............................................ 388
Specified Fuel .................................... 293, 388
Speedometer .............................................. 89
SPORT Mode ....................................... 81, 270
SRS Airbags (Airbags) ................................. 43
Starting the Engine .................................. 251
Does Not Start ......................................... 362
Jump Starting .......................................... 366
Steering Wheel ......................................... 138
Adjusting ................................................. 138
Stopping .................................................... 290
Supplemental Restraint System (SRS) ........ 46
Switches (Around the Steering Wheel) ... 4, 5
System Message Indicator .......................... 78
T
Tachometer................................................. 89
Temperature
High Temperature Indicator ....................... 77 Low Temperature Indicator........................ 77
Temperature Sensor ................................. 157
Temporarily Repairing a Flat Tire ............ 351
Time (Setting) ........................................... 108
Tire Pressure Monitoring System
(TPMS) ..................................................... 280
Indicator............................................ 76, 377
Tires ........................................................... 331
Air Pressure ..................................... 332, 389
Checking and Maintaining ...................... 331
Inspection ............................................... 331
Labeling .................................................. 332
Regulations ............................................. 334
Rotation .................................................. 338
Tire Chains .............................................. 339
Wear Indicators ....................................... 336
Winter..................................................... 339
Tools .......................................................... 350
Towing a Trailer ....................................... 250
Towing Hook ............................................ 384
Towing Your Vehicle ................................ 250
Emergency .............................................. 383
TPMS (Tire Pressure Monitoring System) .................................................... 280
Indicator............................................ 76, 377
Transmission Continuously Variable ............................. 256
Fluid ................................................ 316, 317
Manual ................................................... 261
Number................................................... 390
Shift Lever Position Indicator.................... 257
