HONDA CROSSTOUR 2014 1.G Navigation Manual

39

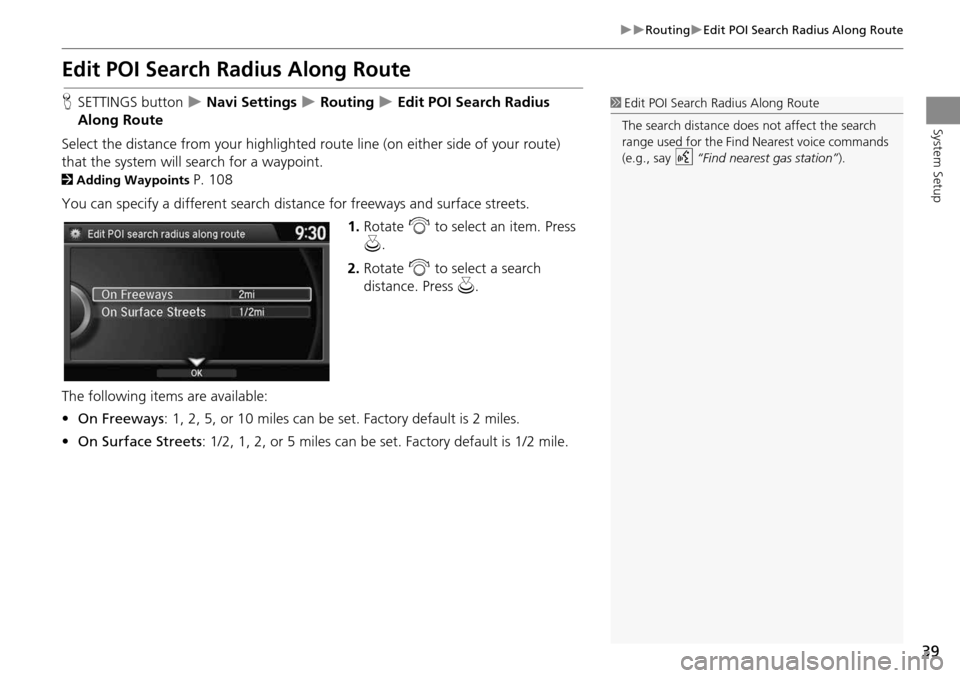

RoutingEdit POI Search Radius Along Route
System Setup
Edit POI Search Radius Along Route
HSETTINGS button  Navi Settings  Routing  Edit POI Search Radius
Along Route
Select the distance from your highlighted ro ute line (on either side of your route)
that the system will search for a waypoint.
2 Adding Waypoints P. 108
You can specify a different search distance for freeways and surface streets. 1.Rotate i to select an item. Press
u .
2. Rotate i to select a search
distance. Press u.
The following items are available:
• On Freeways : 1, 2, 5, or 10 miles can be set. Factory default is 2 miles.
• On Surface Streets : 1/2, 1, 2, or 5 miles can be set. Factory default is 1/2 mile.
1Edit POI Search Radius Along Route
The search distance does not affect the search
range used for the Find Nearest voice commands
(e.g., say
d “Find nearest gas station” ).

40

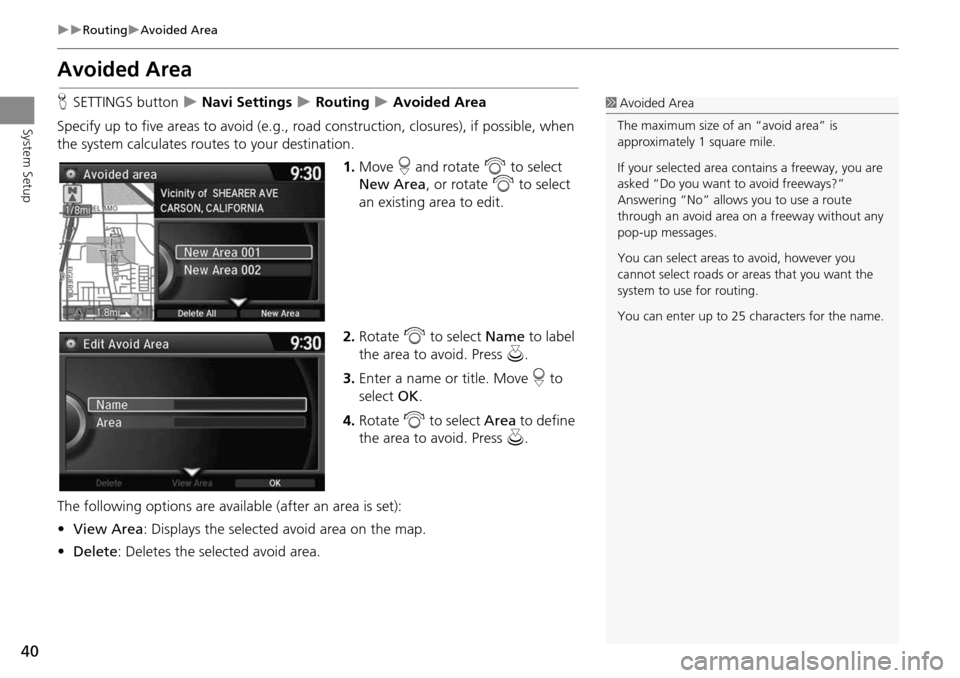

RoutingAvoided Area
System Setup
Avoided Area
HSETTINGS button  Navi Settings  Routing  Avoided Area
Specify up to five areas to avoid (e.g., road construction, closures), if possible, when
the system calculates rout es to your destination.
1.Move r and rotate i to select
New Area , or rotate i to select
an existing area to edit.
2. Rotate i to select Name to label
the area to avoid. Press u.
3. Enter a name or title. Move r to
select OK.
4. Rotate i to select Area to define
the area to avoid. Press u.
The following options are availa ble (after an area is set):
• View Area : Displays the selected avoid area on the map.
• Delete : Deletes the selected avoid area.1Avoided Area
The maximum size of an “avoid area” is
approximately 1 square mile.
If your selected area contains a freeway, you are
asked “Do you want to avoid freeways?”
Answering “No” allows you to use a route
through an avoid area on a freeway without any
pop-up messages.
You can select areas to avoid, however you
cannot select roads or areas that you want the
system to use for routing.
You can enter up to 25 ch aracters for the name.

41

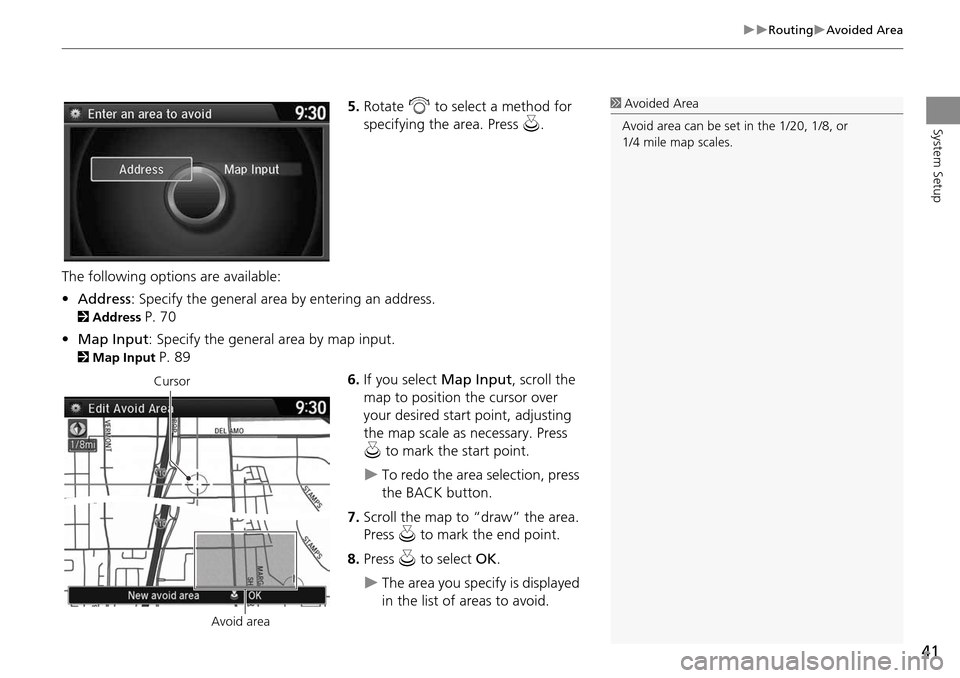

RoutingAvoided Area
System Setup
5.Rotate i to select a method for
specifying the area. Press u.
The following options are available:
• Address : Specify the general area by entering an address.
2Address P. 70
• Map Input : Specify the general area by map input.
2Map Input P. 89
6.If you select Map Input , scroll the
map to position the cursor over
your desired start point, adjusting
the map scale as necessary. Press
u to mark the start point.
To redo the area selection, press
the BACK button.
7. Scroll the map to “draw” the area.
Press u to mark the end point.
8. Press u to select OK.
The area you specify is displayed
in the list of areas to avoid.
1Avoided Area
Avoid area can be set in the 1/20, 1/8, or
1/4 mile map scales.
Cursor
Avoid area

42
System Setup

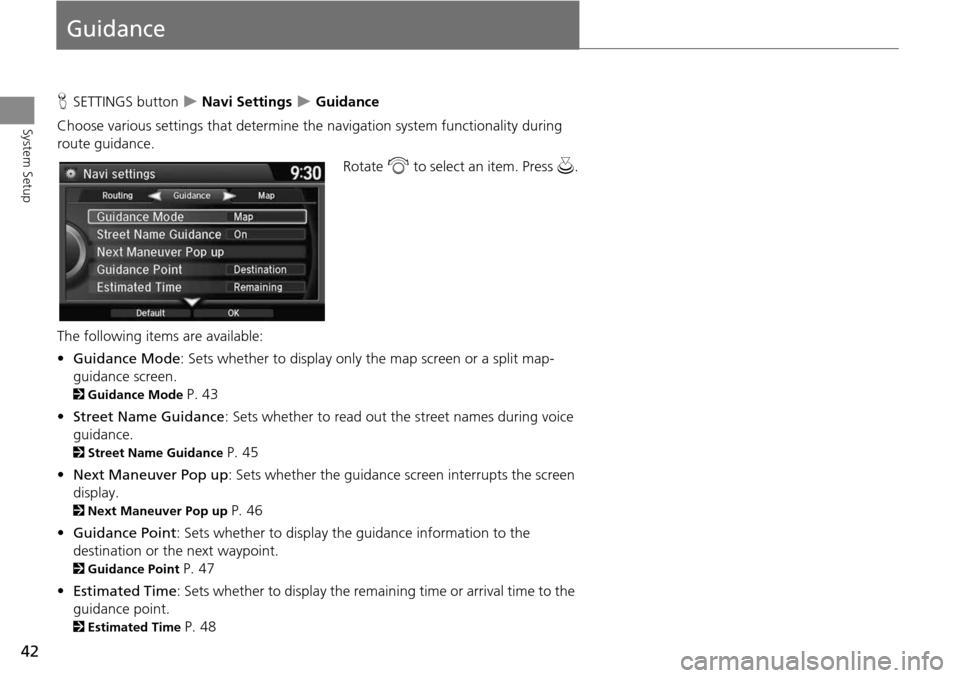

Guidance
HSETTINGS button  Navi Settings  Guidance
Choose various settings that determine th e navigation system functionality during
route guidance.
Rotate i to select an item. Press u .
The following item s are available:
• Guidance Mode : Sets whether to display only the map screen or a split map-
guidance screen.
2 Guidance Mode P. 43
• Street Name Guidance : Sets whether to read out the street names during voice
guidance.
2 Street Name Guidance P. 45
• Next Maneuver Pop up : Sets whether the guidance screen interrupts the screen
display.
2 Next Maneuver Pop up P. 46
• Guidance Point : Sets whether to display the guidance information to the
destination or the next waypoint.
2 Guidance Point P. 47
• Estimated Time : Sets whether to display the remaining time or arrival time to the
guidance point.
2 Estimated Time P. 48

43

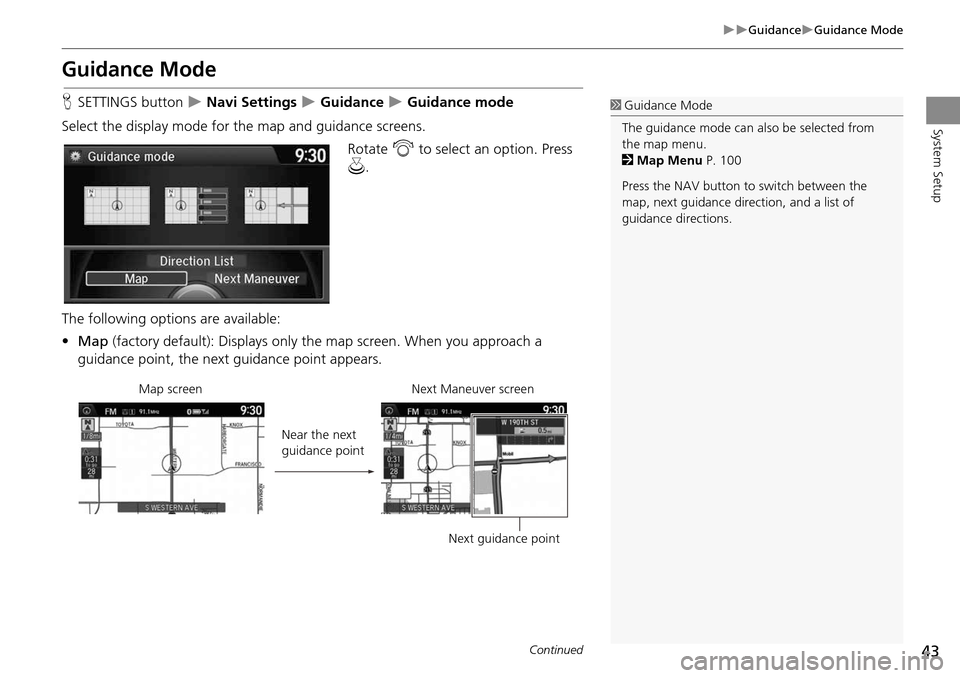

GuidanceGuidance Mode
System Setup
Guidance Mode
HSETTINGS button  Navi Settings  Guidance  Guidance mode
Select the display mode for the map and guidance screens. Rotate i to select an option. Press
u .
The following options are available:
• Map (factory default): Displays only the map screen. When you approach a
guidance point, the next guidance point appears.1Guidance Mode
The guidance mode can al so be selected from
the map menu.
2 Map Menu P. 100
Press the NAV button to switch between the
map, next guidance dire ction, and a list of
guidance directions.
Near the next
guidance point
Map screen Next Maneuver screen
Next guidance point
Continued

44

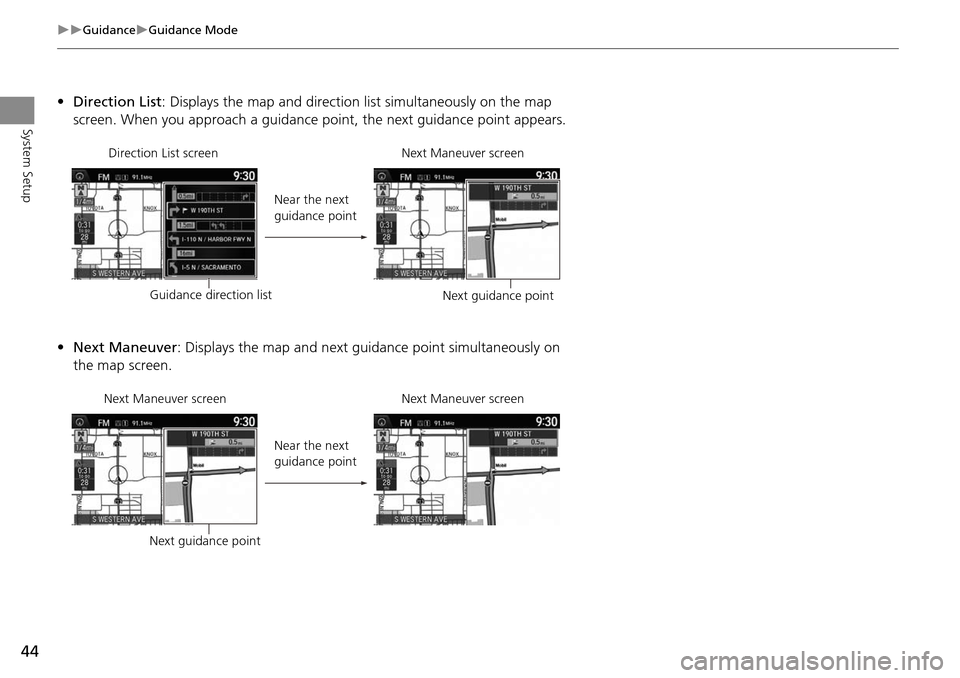

GuidanceGuidance Mode
System Setup
•Direction List: Displays the map and direction list simultaneously on the map
screen. When you approach a guidance point, the next guidance point appears.
• Next Maneuver : Displays the map and next guidance point simultaneously on
the map screen.
Guidance direction list Near the next
guidance point
Next guidance point
Direction List screen
Next Maneuver screen
Next guidance pointNear the next
guidance point
Next Maneuver screen
Next Maneuver screen

45
GuidanceStreet Name Guidance
System Setup
Street Name Guidance
HSETTINGS button  Navi Settings  Guidance  Street Name Guidance
The navigation system includes the street names during voice guidance (e.g., “Turn
right on Main Street”). Rotate i to select an option. Press
u .
The following options are available:
• On (factory default): Voice guidance includes the street names.
• Off : Disables the feature.1Street Name Guidance
This feature is only available when the system
language is set to English.
This feature may not be available in non-English
speaking areas.

46

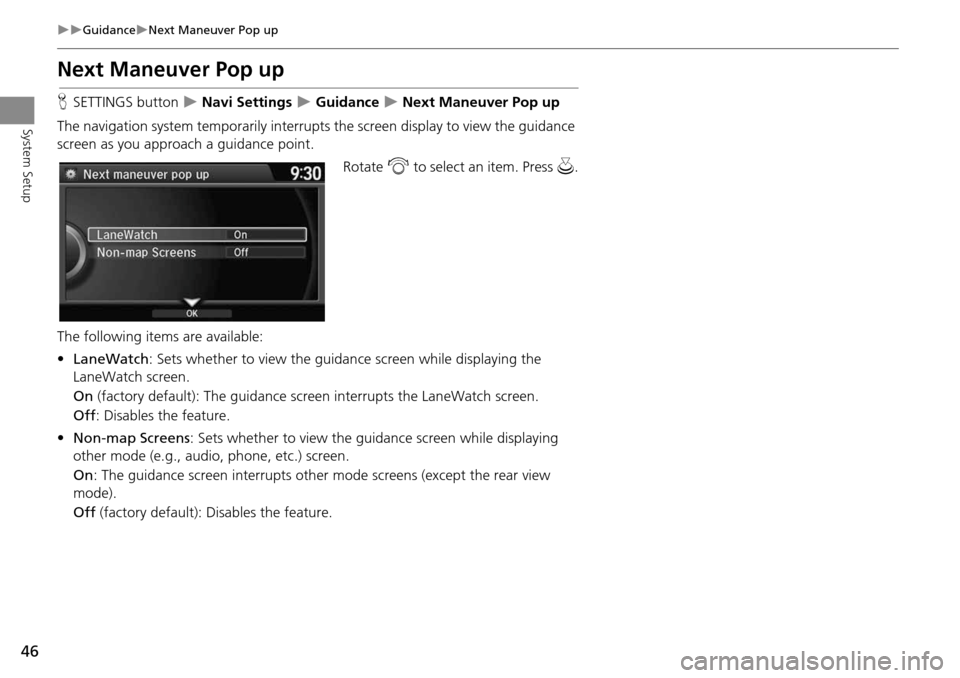

GuidanceNext Maneuver Pop up
System Setup
Next Maneuver Pop up
HSETTINGS button  Navi Settings  Guidance  Next Maneuver Pop up
The navigation system temporarily interrupts the screen display to view the guidance
screen as you approach a guidance point.
Rotate i to select an item. Press u .
The following item s are available:
• LaneWatch : Sets whether to view the guidanc e screen while displaying the
LaneWatch screen.
On (factory default): The guidance scre en interrupts the LaneWatch screen.
Off : Disables the feature.
• Non-map Screens : Sets whether to view the guidance screen while displaying
other mode (e.g., audio, phone, etc.) screen.
On : The guidance screen interrupts other mode screens (except the rear view
mode).
Off (factory default): Disables the feature.

47

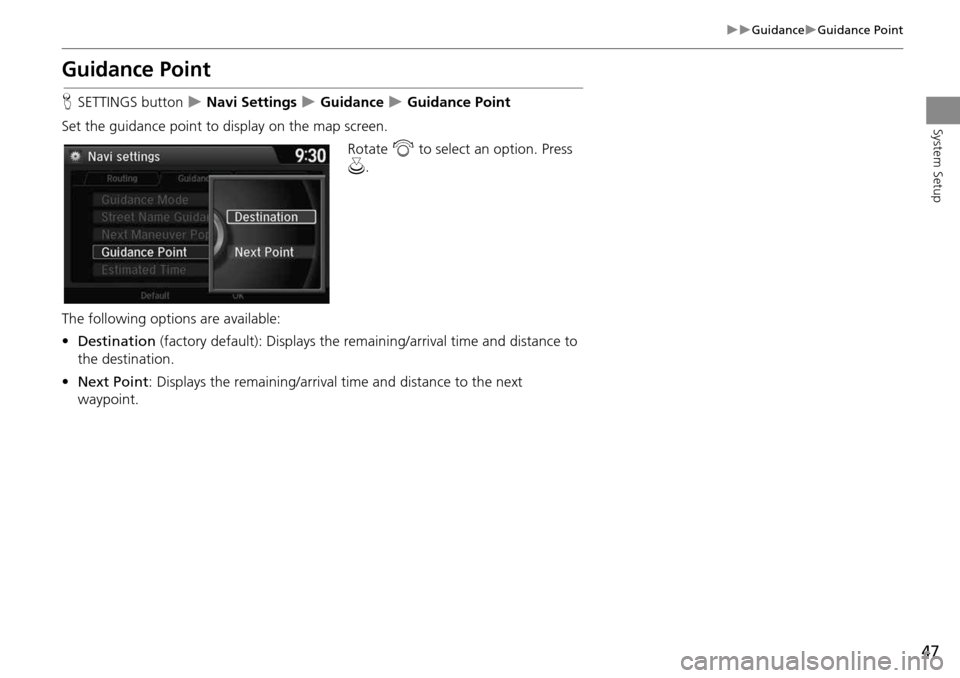

GuidanceGuidance Point
System Setup
Guidance Point
HSETTINGS button  Navi Settings  Guidance  Guidance Point
Set the guidance point to display on the map screen. Rotate i to select an option. Press
u .
The following options are available:
• Destination (factory default): Displays the remaining/arrival time and distance to
the destination.
• Next Point : Displays the remaining/arrival time and distance to the next
waypoint.

48
GuidanceEstimated Time
System Setup
Estimated Time
HSETTINGS button  Navi Settings  Guidance  Estimated Time
Select the estimated time to display on the screen.
Rotate i to select an option. Press
u .
The following options are available:
• Arrival : Displays the arrival time to the destination or the next waypoint.
• Remaining (factory default): Displays the rema ining time to the destination or the
next waypoint.
