HONDA CROSSTOUR 2015 1.G Owners Manual

uuBluetooth ® HandsFreeLink ®u HFL Menus
360
Features

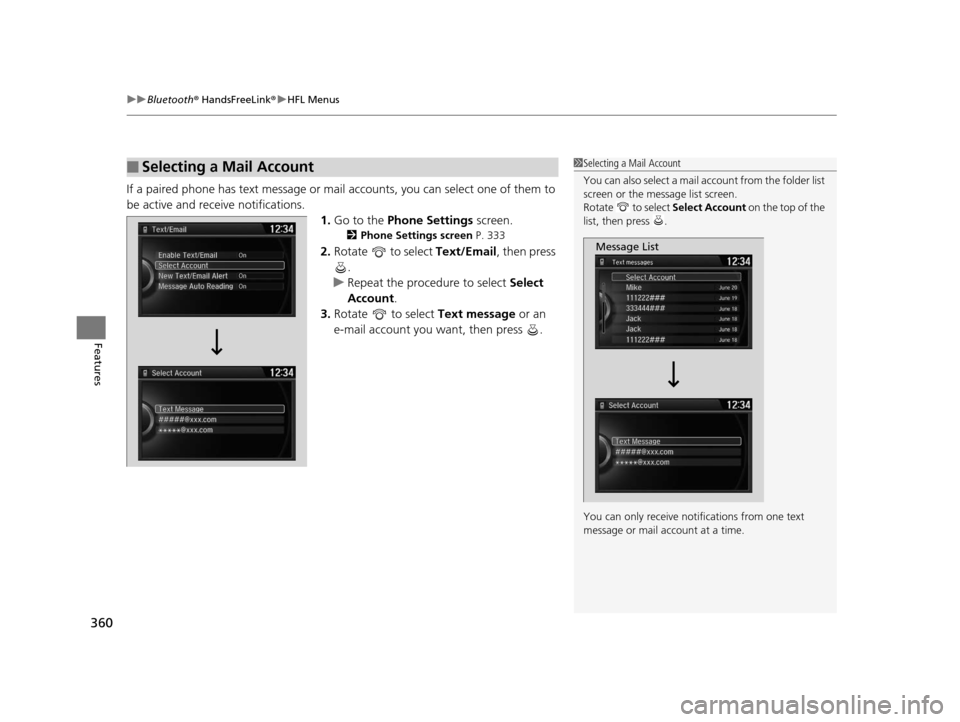

If a paired phone has text message or mail accounts, you can select one of them to
be active and receive notifications. 1.Go to the Phone Settings screen.
2Phone Settings screen P. 333
2.Rotate to select Text/Email, then press
.
u Repeat the procedure to select Select
Account .
3. Rotate to select Text message or an
e-mail account you want, then press .
■Selecting a Mail Account1 Selecting a Mail Account
You can also select a mail account from the folder list
screen or the message list screen.
Rotate to select Select Account on the top of the
list, then press .
You can only receive notif ications from one text
message or mail a ccount at a time.
Message List
15 CROSSTOUR-31TP66500.book 360 ページ ２０１４年７月３１日　木曜日　午後３時２３分

Continued361
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

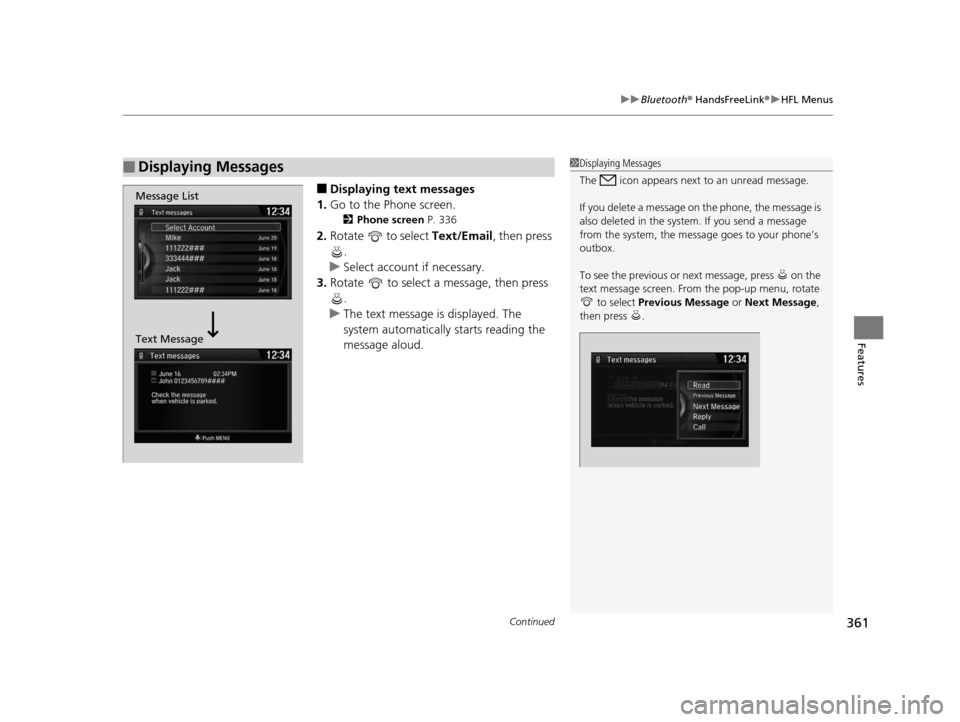

■Displaying text messages
1. Go to the Phone screen.
2 Phone screen P. 336
2.Rotate to select Text/Email, then press
.
u Select account if necessary.
3. Rotate to select a message, then press
.
u The text message is displayed. The
system automatically starts reading the
message aloud.
■Displaying Messages1Displaying Messages
The icon appears next to an unread message.
If you delete a message on the phone, the message is
also deleted in the system. If you send a message
from the system, the message goes to your phone’s
outbox.
To see the previous or next message, press on the
text message screen. From the pop-up menu, rotate
to select Previous Message or Next Message ,
then press .
Message List
Text Message
15 CROSSTOUR-31TP66500.book 361 ページ ２０１４年７月３１日　木曜日　午後３時２３分

uuBluetooth ® HandsFreeLink ®u HFL Menus
362
Features

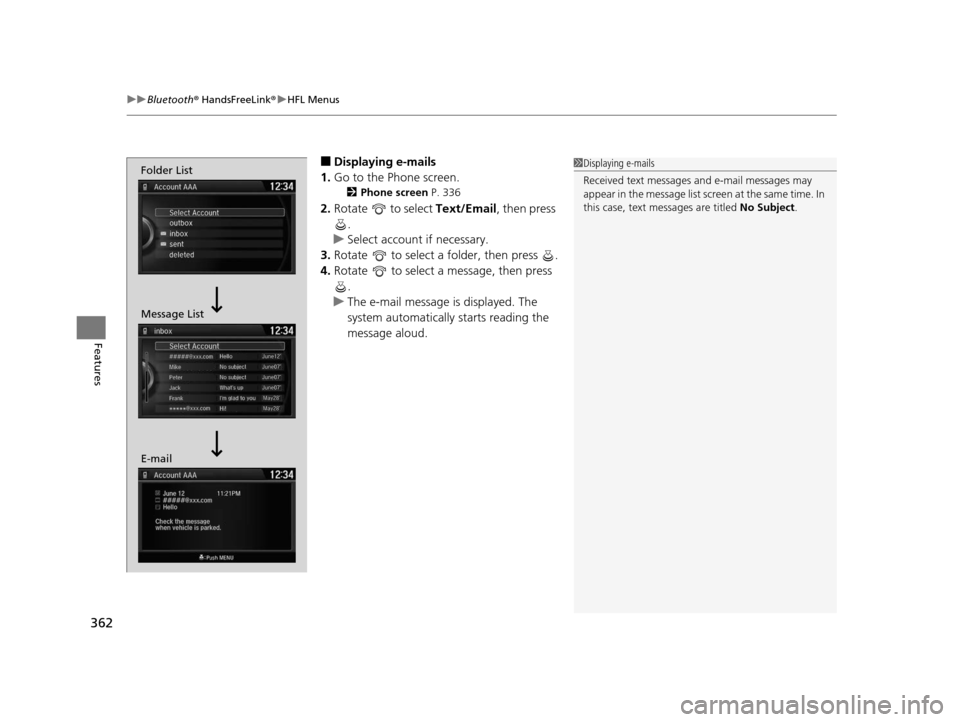

■Displaying e-mails
1. Go to the Phone screen.
2 Phone screen P. 336
2.Rotate to select Text/Email, then press
.
u Select account if necessary.
3. Rotate to select a folder, then press .
4. Rotate to select a message, then press
.
u The e-mail message is displayed. The
system automatically starts reading the
message aloud.
1Displaying e-mails
Received text messages and e-mail messages may
appear in the message list screen at the same time. In
this case, text messages are titled No Subject.
Message List
E-mail Folder List
15 CROSSTOUR-31TP66500.book 362 ページ ２０１４年７月３１日　木曜日　午後３時２３分

Continued363
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

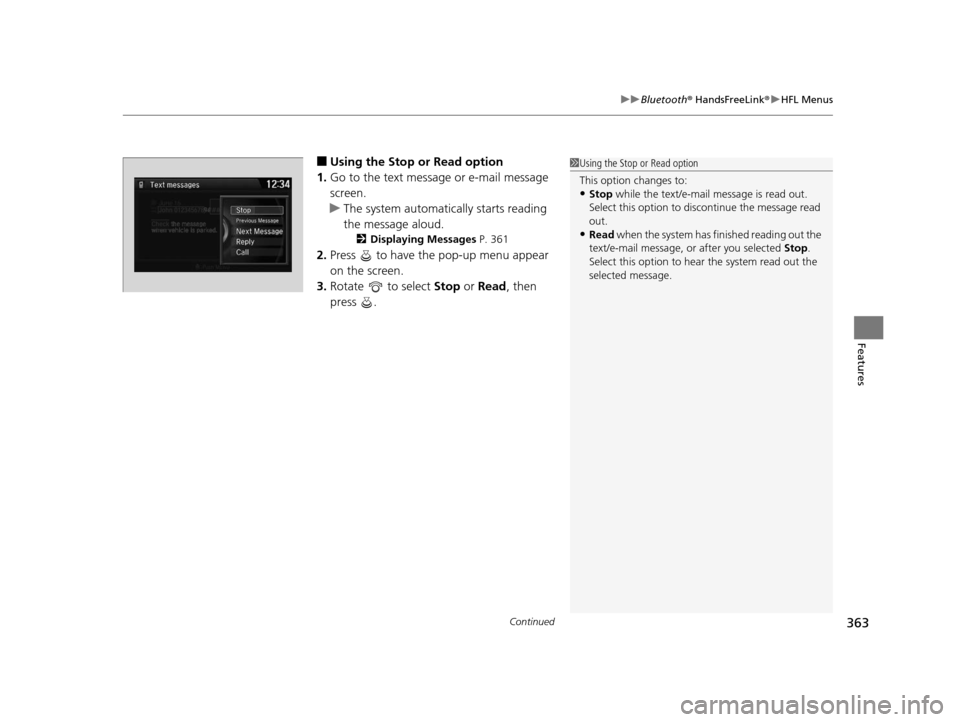

■Using the Stop or Read option
1. Go to the text message or e-mail message
screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 361
2.Press to have the pop-up menu appear
on the screen.
3. Rotate to select Stop or Read , then
press .
1 Using the Stop or Read option
This option changes to:
•Stop while the text/e-mail message is read out.
Select this option to disc ontinue the message read
out.
•Read when the system has finished reading out the
text/e-mail message, or after you selected Stop.
Select this option to hear the system read out the
selected message.
15 CROSSTOUR-31TP66500.book 363 ページ ２０１４年７月３１日　木曜日　午後３時２３分

uuBluetooth ® HandsFreeLink ®u HFL Menus
364
Features

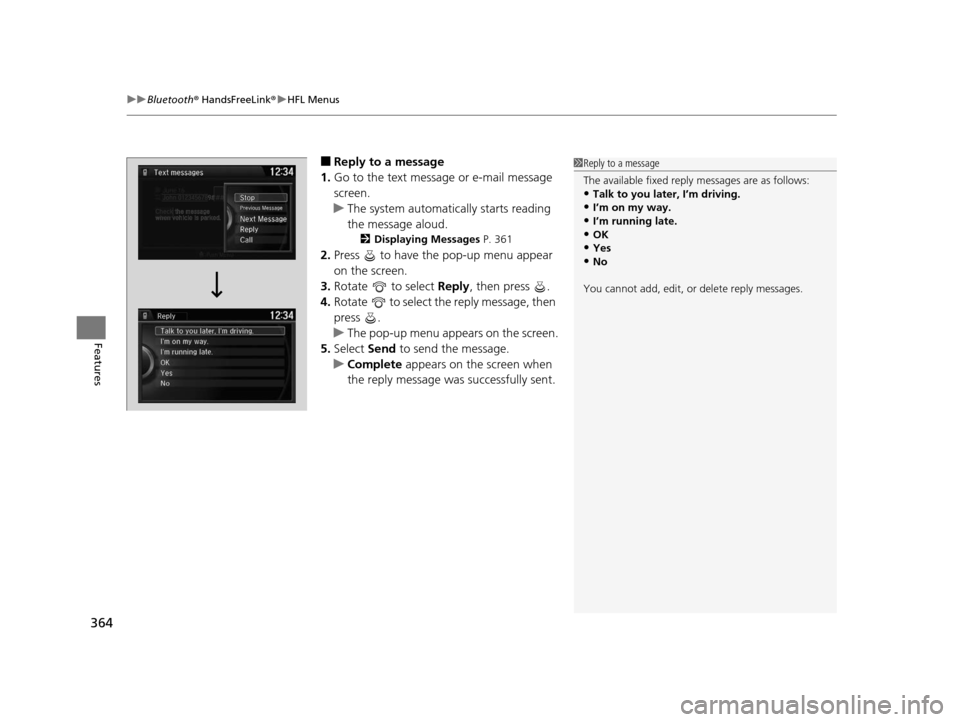

■Reply to a message
1. Go to the text message or e-mail message
screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 361
2.Press to have the pop-up menu appear
on the screen.
3. Rotate to select Reply, then press .
4. Rotate to select the reply message, then
press .
u The pop-up menu appears on the screen.
5. Select Send to send the message.
u Complete appears on the screen when
the reply message was successfully sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.
•I’m on my way.
•I’m running late.•OK
•Yes
•No
You cannot add, edit, or delete reply messages.
15 CROSSTOUR-31TP66500.book 364 ページ ２０１４年７月３１日　木曜日　午後３時２３分

365
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

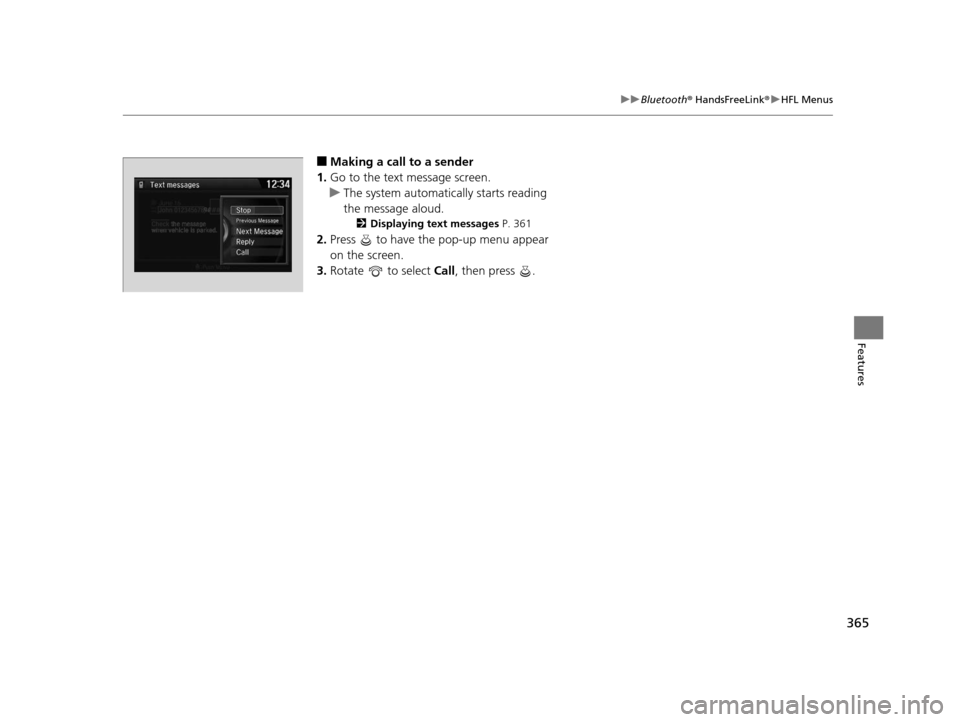

■Making a call to a sender
1. Go to the text message screen.
u The system automatically starts reading
the message aloud.
2 Displaying text messages P. 361
2.Press to have the pop-up menu appear
on the screen.
3. Rotate to select Call, then press .
15 CROSSTOUR-31TP66500.book 365 ページ ２０１４年７月３１日　木曜日　午後３時２３分

366
Features

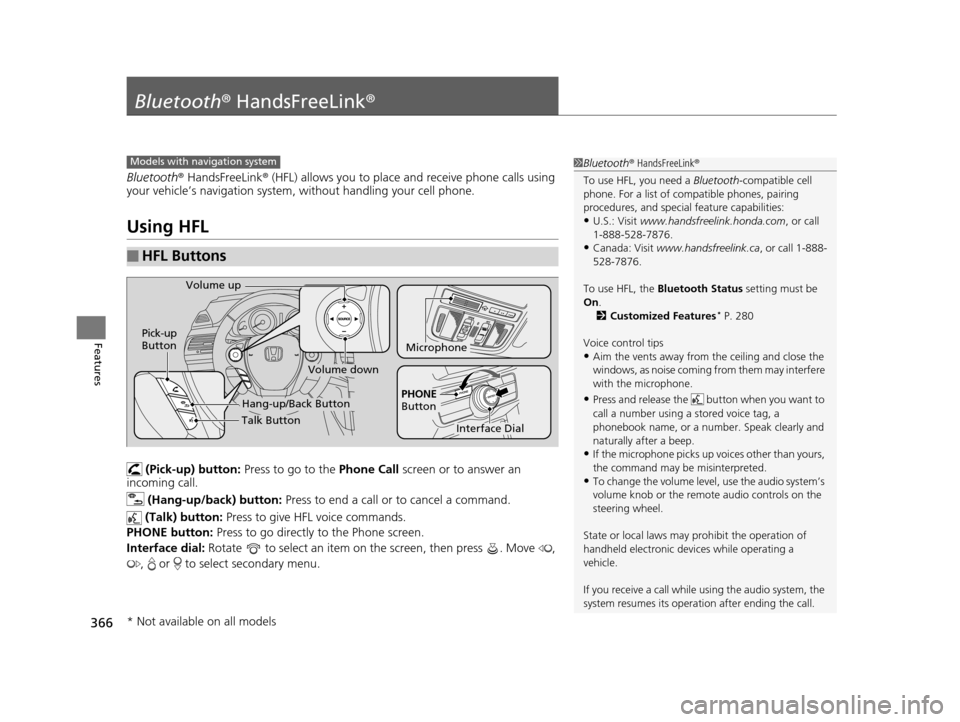

Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s navigation system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to go to the Phone Call screen or to answer an
incoming call.
(Hang-up/back) button: Press to end a call or to cancel a command.
(Talk) button: Press to give HFL voice commands.
PHONE button: Press to go directly to the Phone screen.
Interface dial: Rotate to select an item on the screen, then press . Move ,
, or to select secondary menu.
■HFL Buttons
1 Bluetooth ® HandsFreeLink ®
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
To use HFL, the Bluetooth Status setting must be
On .
2 Customized Features
* P. 280
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphone.
•Press and release the but ton when you want to
call a number using a stored voice tag, a
phonebook name, or a numbe r. Speak clearly and
naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, use the audio system’s
volume knob or the remote audio controls on the
steering wheel.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
If you receive a call while using the audio system, the
system resumes its operati on after ending the call.
Models with navigation system
Talk Button
Volume up
Microphone
Hang-up/Back Button
Pick-up
Button
Volume down
Interface Dial
PHONE

Button
* Not available on all models
15 CROSSTOUR-31TP66500.book 366 ページ ２０１４年７月３１日　木曜日　午後３時２３分

367
uuBluetooth ® HandsFreeLink ®u Using HFL
Features

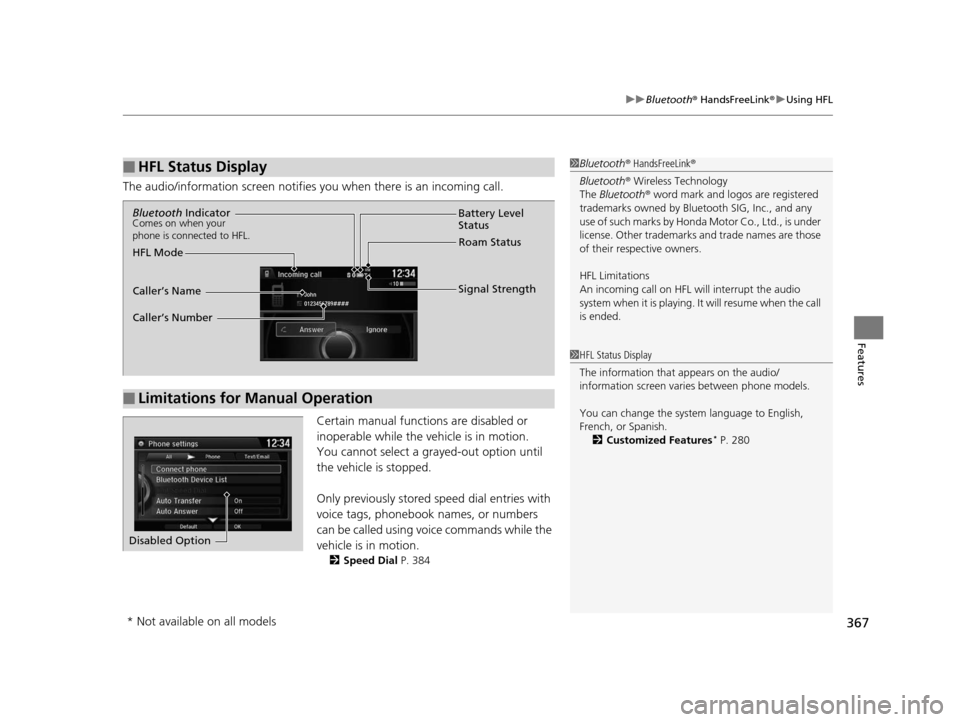

The audio/information scr een notifies you when there is an incoming call.
Certain manual functions are disabled or
inoperable while the ve hicle is in motion.
You cannot select a grayed-out option until
the vehicle is stopped.
Only previously stored speed dial entries with
voice tags, phonebook names, or numbers
can be called using voice commands while the
vehicle is in motion.
2 Speed Dial P. 384
■HFL Status Display1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Blue tooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.
1 HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language to English,
French, or Spanish. 2 Customized Features
* P. 280
■Limitations for Manual Operation
Bluetooth IndicatorComes on when your
phone is connected to HFL.
Signal Strength
HFL Mode Battery Level
Status
Roam Status
Caller’s Name
Caller’s Number
Disabled Option
* Not available on all models
15 CROSSTOUR-31TP66500.book 367 ページ ２０１４年７月３１日　木曜日　午後３時２３分

368
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

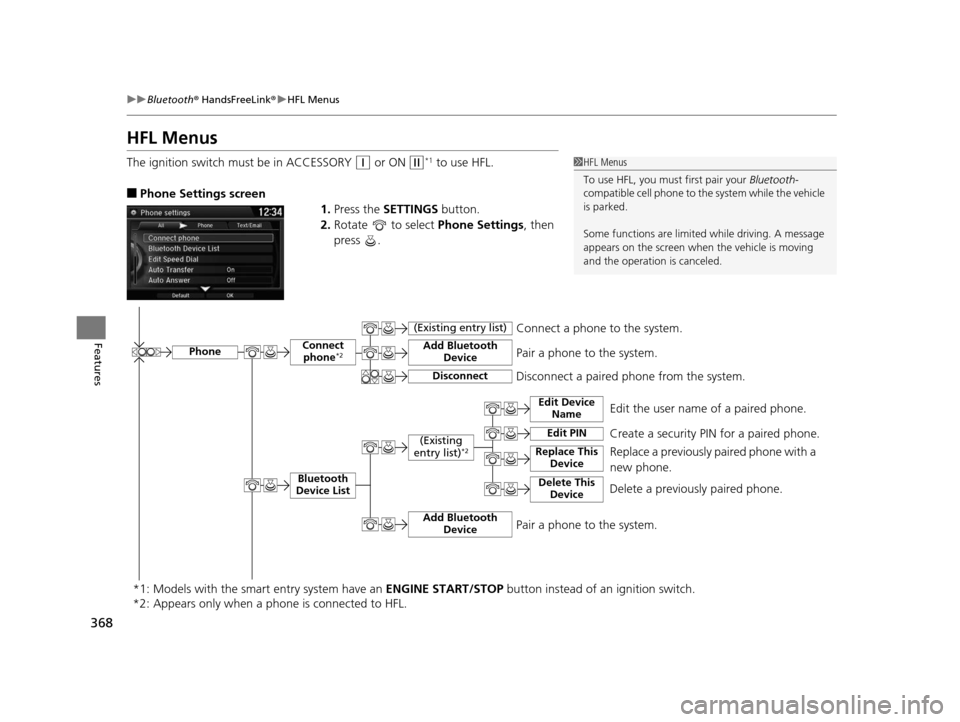

HFL Menus
The ignition switch must be in ACCESSORY (q or ON (w*1 to use HFL.
■Phone Settings screen
1.Press the SETTINGS button.
2. Rotate to select Phone Settings, then
press .
1 HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
Edit the user name of a paired phone.
Phone
Edit Device Name
Connect phone*2
Bluetooth
Device List

(Existing
entry list)*2

Replace This Device
Add Bluetooth Device
Disconnect a paired phone from the system.Connect a phone to the system.Disconnect
(Existing entry list)


Pair a phone to the system.
Edit PIN Create a security PIN for a paired phone.
Replace a previously paired phone with a
new phone.
Delete This DeviceDelete a previously paired phone.



Add Bluetooth DevicePair a phone to the system.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2: Appears only when a phone is connected to HFL.
15 CROSSTOUR-31TP66500.book 368 ページ ２０１４年７月３１日　木曜日　午後３時２３分

369
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

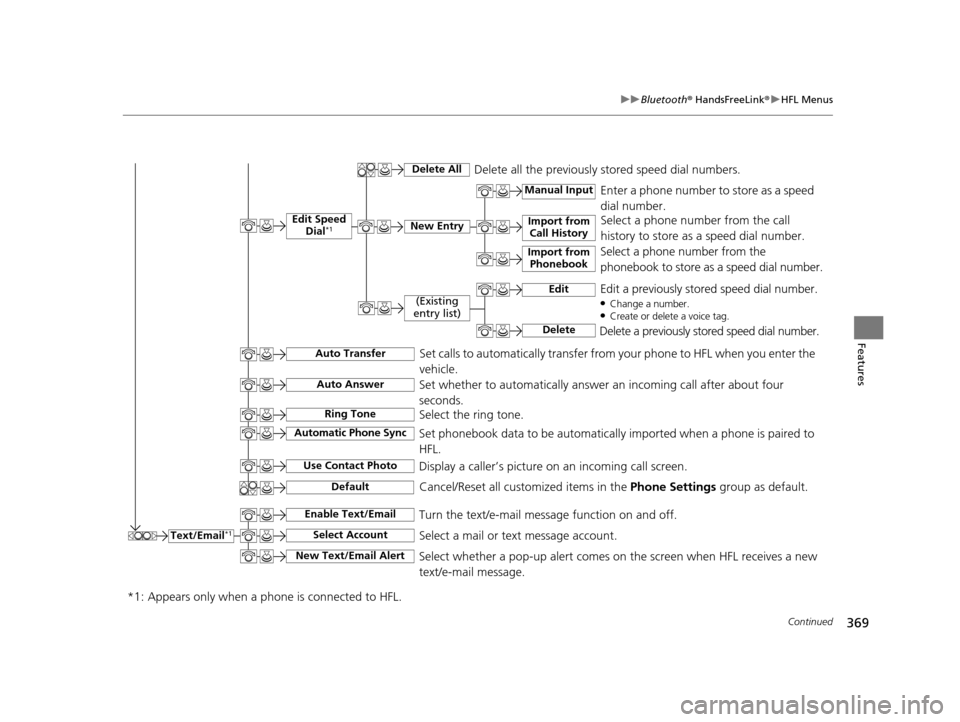

Text/Email*1
Manual Input
Edit Speed
Dial*1New Entry

Import from Call History
*1: Appears only when a p hone is connected to HFL.



Import from
Phonebook


Delete AllDelete all the previously stored speed dial numbers.
Select a phone number from the call
history to store as a speed dial number.
Select a phone number from the
phonebook to store as a speed dial number. Enter a phone number to store as a speed
dial number.

Edit
Delete
(Existing
entry list)Edit a previously stored speed dial number.●Change a number.●Create or delete a voice tag.
Delete a previously stored speed dial number.

Set calls to automatically transfer from your phone to HFL when you enter the
vehicle.Auto Transfer
Auto Answer
Ring Tone
Set whether to automatically answer an incoming call after about four
seconds.
Select the ring tone.
Use Contact Photo
Set phonebook data to be automatically imported when a phone is paired to
HFL.
Display a caller’s picture on an incoming call screen.Automatic Phone Sync




Select AccountSelect a mail or text message account.

Enable Text/EmailTurn the text/e-mail message function on and off.
New Text/Email AlertSelect whether a pop-up alert comes on the screen when HFL receives a new
text/e-mail message.

Cancel/Reset all customized items in the Phone Settings group as default.Default
15 CROSSTOUR-31TP66500.book 369 ページ ２０１４年７月３１日　木曜日　午後３時２３分
