HONDA CRV 2022 Owners Manual
Manufacturer: HONDA, Model Year: 2022, Model line: CRV, Model: HONDA CRV 2022Pages: 692, PDF Size: 22.05 MB
Page 481 of 692

Continued479
uuWhen Driving uShifting
Driving

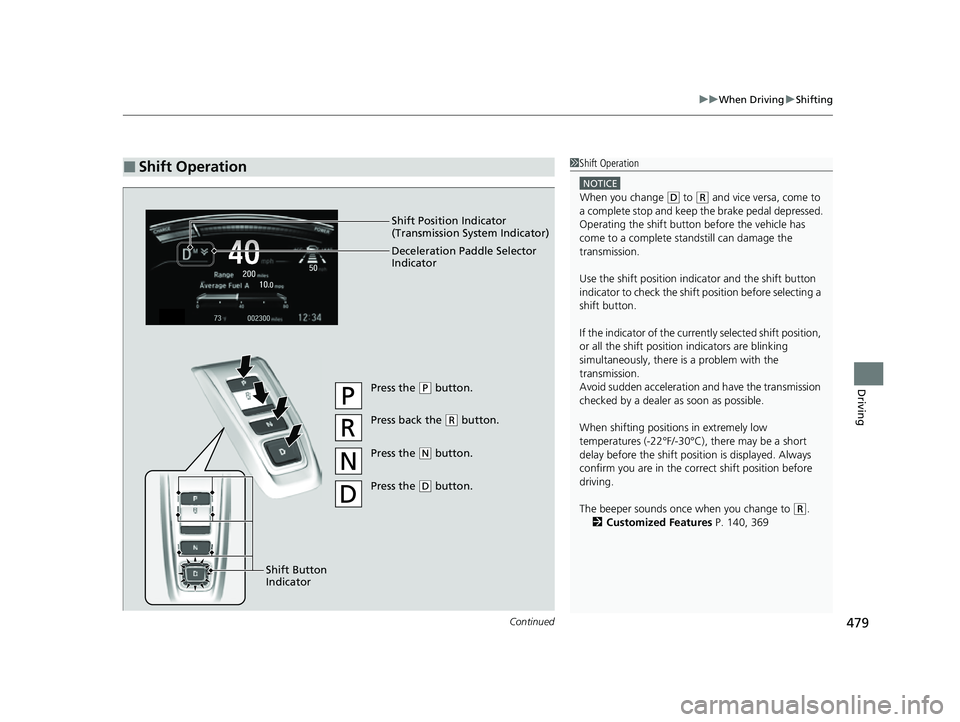

■Shift Operation1Shift Operation
NOTICE
When you change (D to (R and vice versa, come to
a complete stop and keep the brake pedal depressed.
Operating the shift button before the vehicle has
come to a complete standstill can damage the
transmission.
Use the shift position indi cator and the shift button
indicator to check the shift position before selecting a
shift button.
If the indicator of the currently selected shift position,
or all the shift position indicators are blinking
simultaneously, there is a problem with the
transmission.
Avoid sudden acceleration and have the transmission
checked by a dealer as soon as possible.
When shifting positions in extremely low
temperatures (-22°F/-30°C), there may be a short
delay before the shift posit ion is displayed. Always
confirm you are in the corr ect shift position before
driving.
The beeper sounds once when you change to
( R.
2 Customized Features P. 140, 369
Shift Position Indicator
(Transmission System Indicator)
Press the (P button.
Press back the (R button.
Press the
( N button.
Press the
( D button.
Shift Button
Indicator Deceleration Paddle Selector
Indicator
22 CR-V HEV ELP-31TPG6200.book 479 ページ 2021年6月30日 水曜日 午前11時6分
Page 482 of 692

uuWhen Driving uShifting
480
Driving

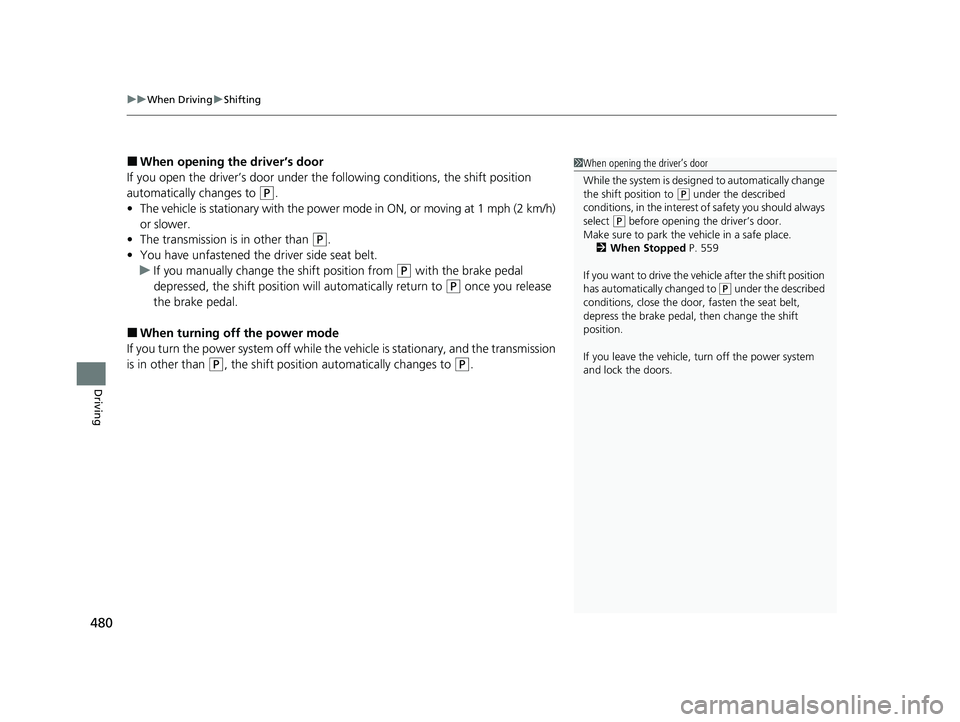

■When opening the driver’s door
If you open the driver’s door under the following conditions, the shift position
automatically changes to
(P.
• The vehicle is stationary with the power mode in ON, or moving at 1 mph (2 km/h)
or slower.
• The transmission is in other than
(P.
• You have unfastened the driver side seat belt.
u If you manually change the shift position from
(P with the brake pedal
depressed, the shift position w ill automatically return to
(P once you release
the brake pedal.
■When turning o ff the power mode
If you turn the power system off while the vehicle is stationary, and the transmission
is in other than
(P, the shift position automatically changes to (P.
1 When opening the driver’s door
While the system is designed to automatically change
the shift position to
(P under the described
conditions, in the interest of safety you should always
select
( P before opening the driver’s door.
Make sure to park the vehicle in a safe place.
2 When Stopped P. 559
If you want to drive the ve hicle after the shift position
has automatically changed to
( P under the described
conditions, close the door, fasten the seat belt,
depress the brake pedal, then change the shift
position.
If you leave the vehicle, turn off the power system
and lock the doors.
22 CR-V HEV ELP-31TPG6200.book 480 ページ 2021年6月30日 水曜日 午前11時6分
Page 483 of 692
![HONDA CRV 2022 Owners Manual Continued481
uuWhen Driving uShifting
Driving
■If you want to keep the transmission in (N position [car wash mode]
With the power system on:
1. Press and hold the brake pedal.
2. Press and release t HONDA CRV 2022 Owners Manual Continued481
uuWhen Driving uShifting
Driving
■If you want to keep the transmission in (N position [car wash mode]
With the power system on:
1. Press and hold the brake pedal.
2. Press and release t](/img/13/58866/w960_58866-482.png)
Continued481
uuWhen Driving uShifting
Driving

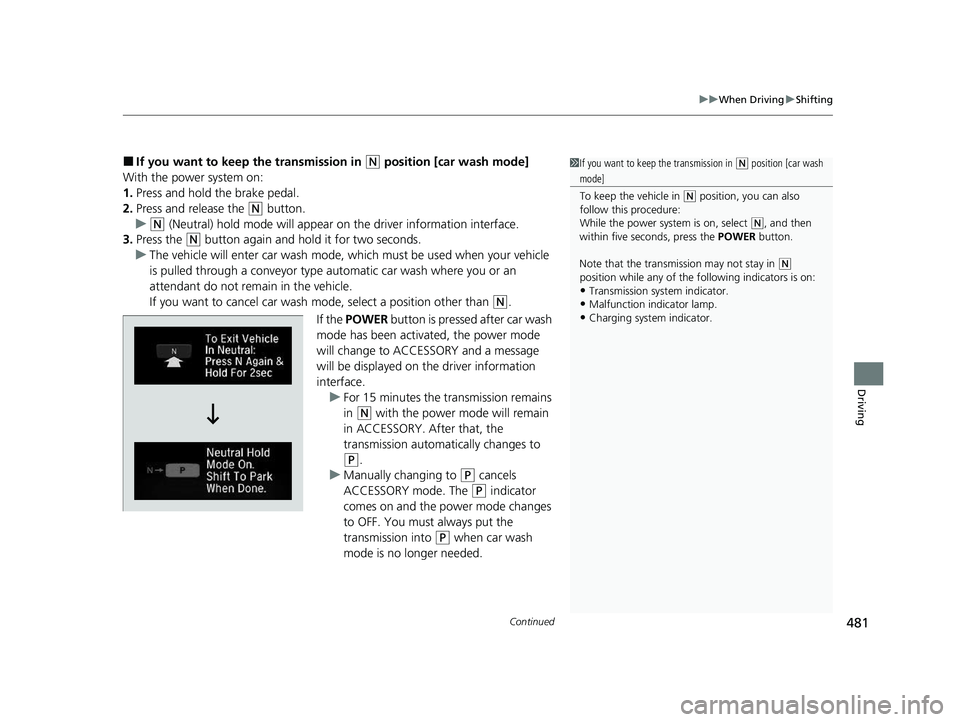

■If you want to keep the transmission in (N position [car wash mode]
With the power system on:
1. Press and hold the brake pedal.
2. Press and release the
(N button.
u
(N (Neutral) hold mode will appear on the driver information interface.
3. Press the
(N button again and hold it for two seconds.
u The vehicle will enter car wash mode, which must be used when your vehicle
is pulled through a conveyor type automatic car wash where you or an
attendant do not remain in the vehicle.
If you want to cancel car wash mode, select a position other than
(N.
If the POWER button is presse d after car wash
mode has been activated, the power mode
will change to ACCESSORY and a message
will be displayed on the driver information
interface.
u For 15 minutes the transmission remains
in
(N with the power mode will remain
in ACCESSORY. After that, the
transmission automatically changes to
(P.
u Manually changing to
(P cancels
ACCESSORY mode. The
(P indicator
comes on and the power mode changes
to OFF. You must always put the
transmission into
(P when car wash
mode is no longer needed.
1 If you want to keep the transmission in (N position [car wash
mode]
To keep the vehicle in
(N position, you can also
follow this procedure:
While the power system is on, select
( N, and then
within five seconds, press the POWER button.
Note that the transmiss ion may not stay in
(N
position while any of the following indicators is on:
•Transmission system indicator.
•Malfunction indicator lamp.•Charging system indicator.
22 CR-V HEV ELP-31TPG6200.book 481 ページ 2021年6月30日 水曜日 午前11時6分
Page 484 of 692

482
uuWhen Driving uShifting
Driving

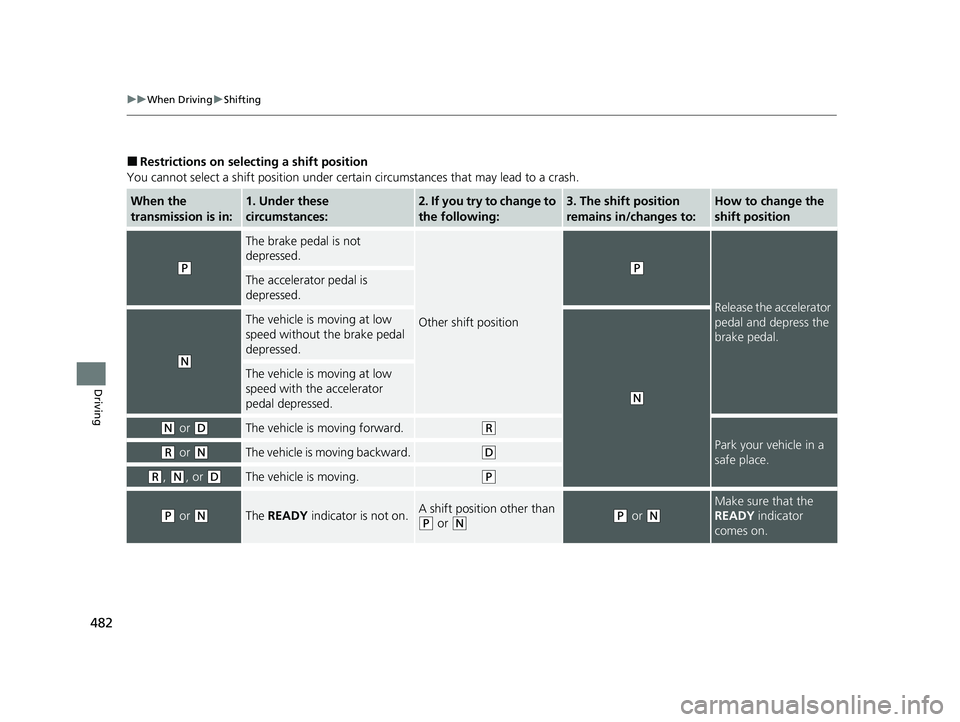

■Restrictions on selecting a shift position
You cannot select a shift position under certain circumstances that may lead to a crash.
When the
transmission is in:1. Under these
circumstances:2. If you try to change to
the following:3. The shif t position
remains in/changes to:How to change the
shift position
(P
The brake pedal is not
depressed.
Other shift position
(P
Release the accelerator
pedal and depress the
brake pedal.
The accelerator pedal is
depressed.
(N
The vehicle is moving at low
speed without the brake pedal
depressed.
(N
The vehicle is moving at low
speed with the accelerator
pedal depressed.
(N or (DThe vehicle is moving forward.(R
Park your vehicle in a
safe place.(R or (NThe vehicle is moving backward.(D
(R, (N, or (DThe vehicle is moving.(P
(P or (NThe READY indicator is not on.A shift position other than
(P or (N(P or (N
Make sure that the
READY indicator
comes on.
22 CR-V HEV ELP-31TPG6200.book 482 ページ 2021年6月30日 水曜日 午前11時6分
Page 485 of 692

483
uuWhen Driving uSPORT Mode
Driving

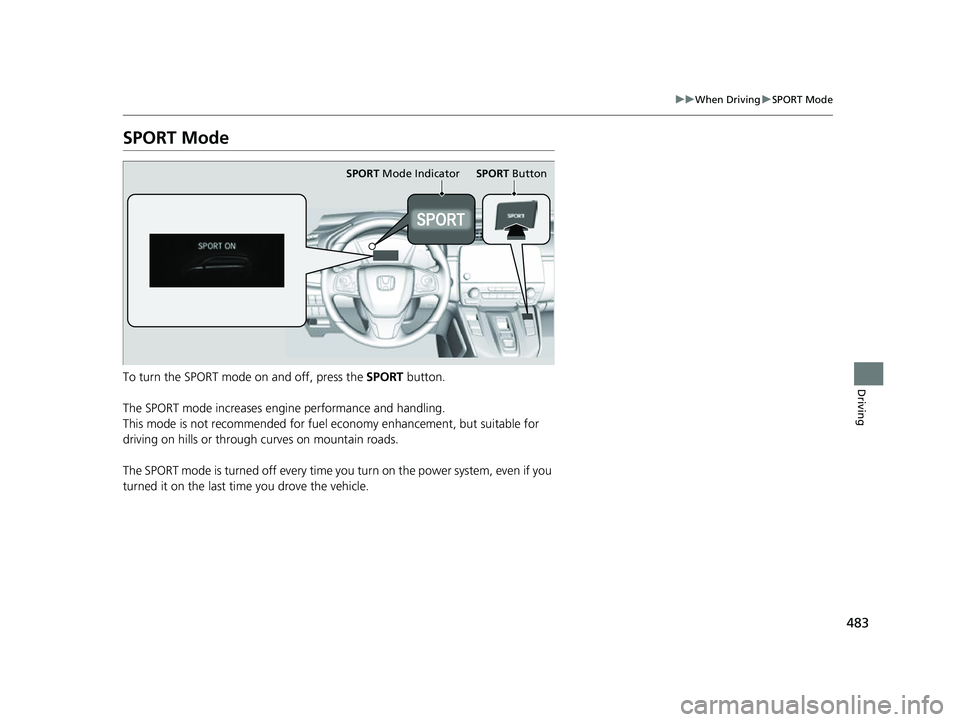

SPORT Mode
To turn the SPORT mode on and off, press the SPORT button.
The SPORT mode increases engine performance and handling.
This mode is not recommended for fuel economy enhancement, but suitable for
driving on hills or through curves on mountain roads.
The SPORT mode is turned off every time you turn on the power system, even if you
turned it on the last time you drove the vehicle.
SPORT Button
SPORT Mode Indicator
22 CR-V HEV ELP-31TPG6200.book 483 ページ 2021年6月30日 水曜日 午前11時6分
Page 486 of 692

484
uuWhen Driving uDeceleration Paddle Selector
Driving

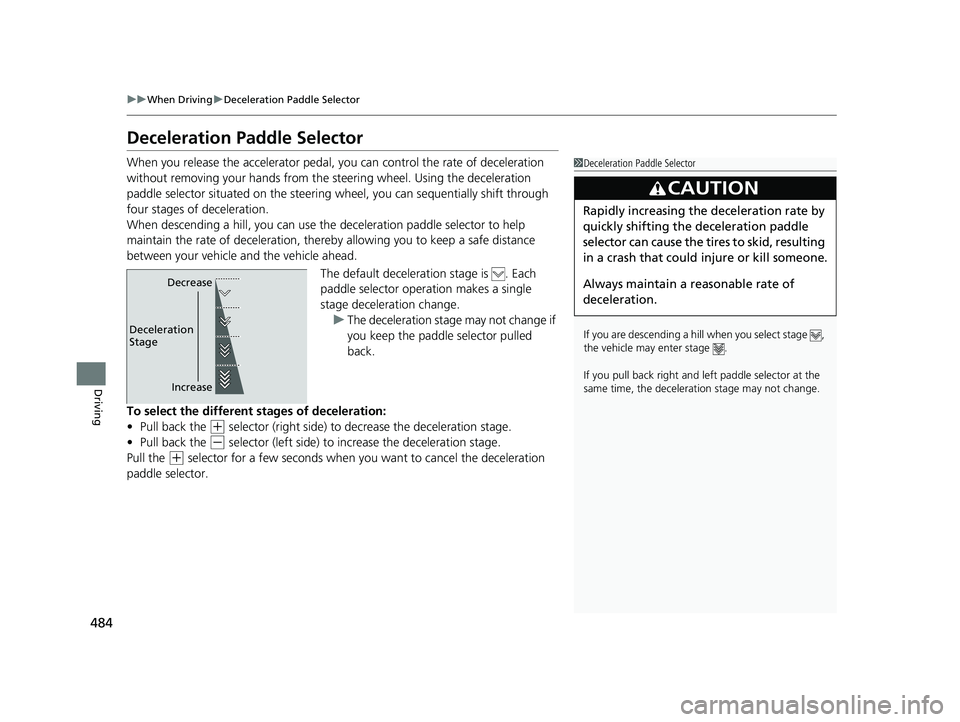

Deceleration Paddle Selector
When you release the accelerator pedal, yo u can control the rate of deceleration
without removing your hands from the steering wheel. Using the deceleration
paddle selector situated on the steering wheel, you can sequentially shift through
four stages of deceleration.
When descending a hill, you can use the deceleration paddle selector to help
maintain the rate of deceleration, thereb y allowing you to keep a safe distance
between your vehicle and the vehicle ahead.
The default deceleration stage is . Each
paddle selector operation makes a single
stage deceleration change. u The deceleration stage may not change if
you keep the paddle selector pulled
back.
To select the different stages of deceleration:
• Pull back the
(+ selector (right side) to decrease the deceleration stage.
• Pull back the
(- selector (left side) to increase the deceleration stage.
Pull the
(+ selector for a few seconds when you want to cancel the deceleration
paddle selector.
1 Deceleration Paddle Selector
If you are descending a hill when you select stage ,
the vehicle may enter stage .
If you pull back right and le ft paddle selector at the
same time, the decelerati on stage may not change.
3CAUTION
Rapidly increasing the deceleration rate by
quickly shifting the deceleration paddle
selector can cause the tires to skid, resulting
in a crash that could injure or kill someone.
Always maintain a reasonable rate of
deceleration.
Increase
Deceleration
Stage Decrease
22 CR-V HEV ELP-31TPG6200.book 484 ページ 2021年6月30日 水曜日 午前11時6分
Page 487 of 692

Continued485
uuWhen Driving uDeceleration Paddle Selector
Driving

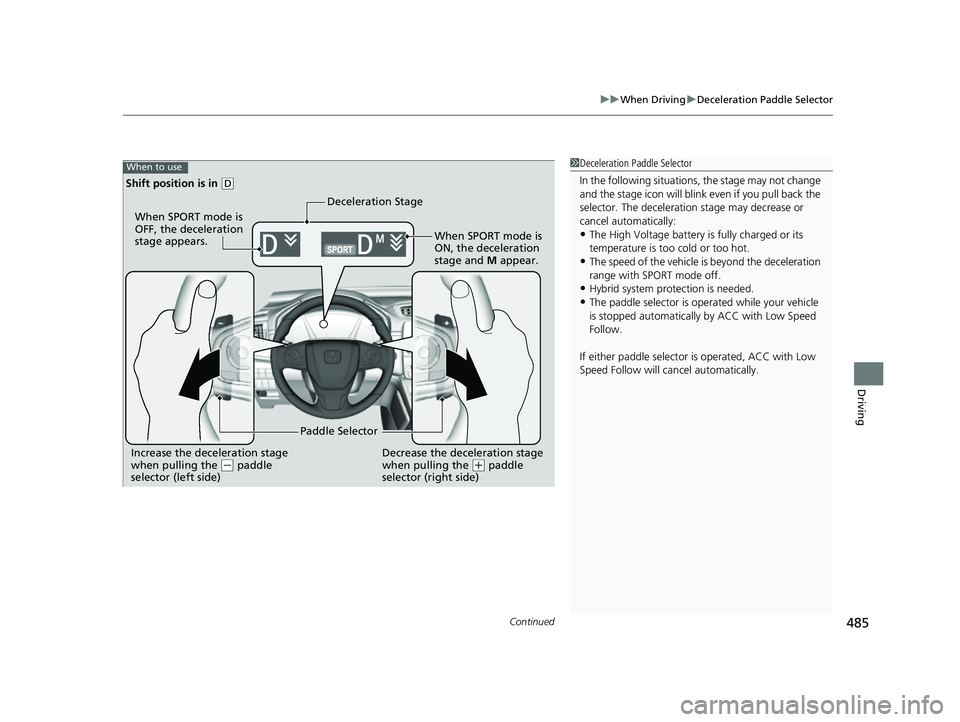

1Deceleration Paddle Selector
In the following situations , the stage may not change
and the stage icon will blink even if you pull back the
selector. The dece leration stage may decrease or
cancel automatically:
•The High Voltage battery is fully charged or its
temperature is too cold or too hot.
•The speed of the vehicle is beyond the deceleration
range with SPORT mode off.
•Hybrid system protection is needed.
•The paddle selector is ope rated while your vehicle
is stopped automatically by ACC with Low Speed
Follow.
If either paddle selector is operated, ACC with Low
Speed Follow will ca ncel automatically.
* O D S F B T F U I F E F D F M F S B U J P O T U B H F
X I F O Q V M M J O H U I F (- paddle
selector (left side) Paddle SelectorDecrease the deceleration stage
when pulling the (
+ paddle
selector (right side)
When to use
Shift position is in ( D
Deceleration Stage
When SPORT mode is
OFF, the deceleration
stage appears.
When SPORT mode is
ON, the deceleration
stage and M appear.
22 CR-V HEV ELP-31TPG6200.book 485 ページ 2021年6月30日 水曜日 午前11時6分
Page 488 of 692

486
uuWhen Driving uDeceleration Paddle Selector
Driving

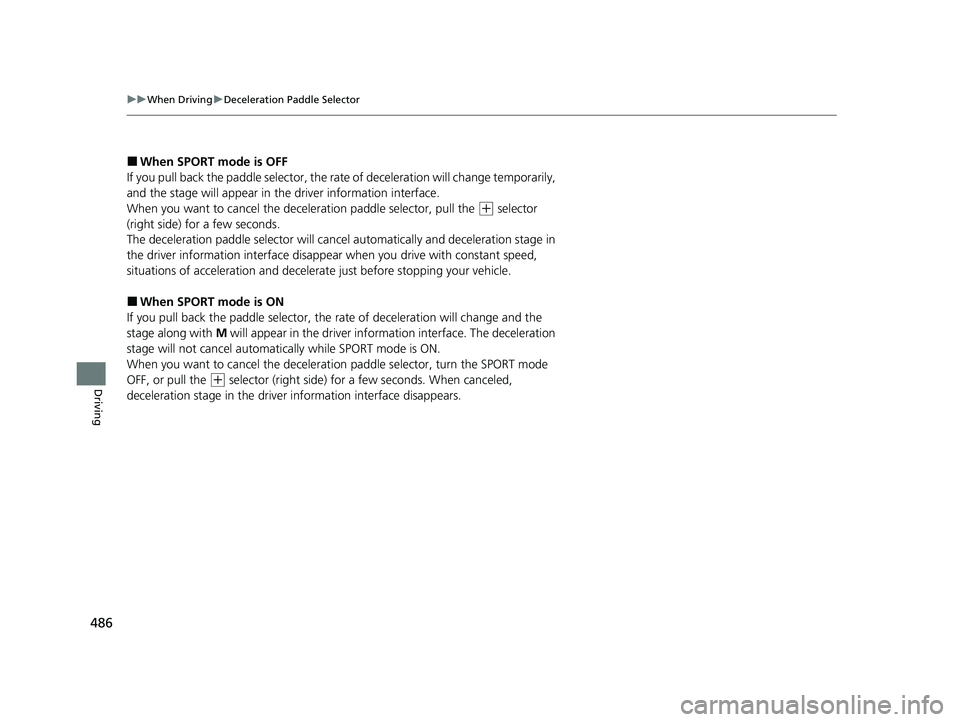

■When SPORT mode is OFF
If you pull back the paddle selector, the rate of deceleration will change temporarily,
and the stage will appear in th e driver information interface.
When you want to cancel the deceleration paddle selector, pull the
(+ selector
(right side) for a few seconds.
The deceleration paddle selector will cancel automatically and deceleration stage in
the driver information interface disappear when you drive with constant speed,
situations of acceleration and decelerate just before stopping your vehicle.
■When SPORT mode is ON
If you pull back the paddle selector, the rate of deceleration will change and the
stage along with M will appear in the driver info rmation interface. The deceleration
stage will not cancel automatically while SPORT mode is ON.
When you want to cancel the decelerati on paddle selector, turn the SPORT mode
OFF, or pull the
(+ selector (right side) for a few seconds. When canceled,
deceleration stage in the driver information interface disappears.
22 CR-V HEV ELP-31TPG6200.book 486 ページ 2021年6月30日 水曜日 午前11時6分
Page 489 of 692

487
uuWhen Driving uECON Mode
Driving

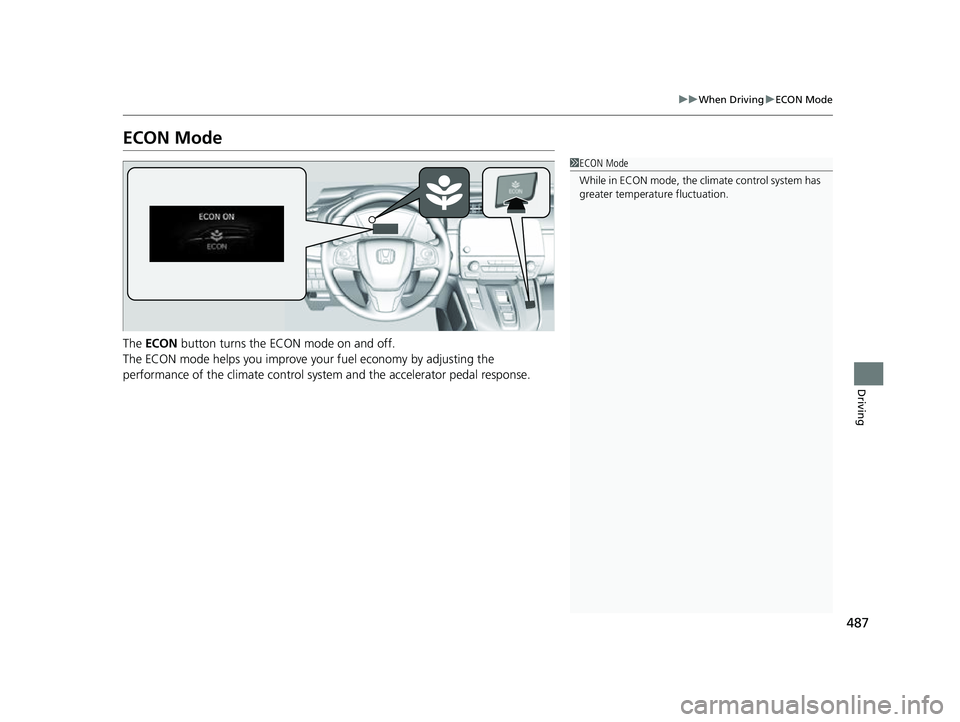

ECON Mode
The ECON button turns the ECON mode on and off.
The ECON mode helps you improve yo ur fuel economy by adjusting the
performance of the climate control syst em and the accelerator pedal response.
1ECON Mode
While in ECON mode, the climate control system has
greater temperature fluctuation.
22 CR-V HEV ELP-31TPG6200.book 487 ページ 2021年6月30日 水曜日 午前11時6分
Page 490 of 692

488
uuWhen Driving uAcoustic Vehicle Alerting System
Driving

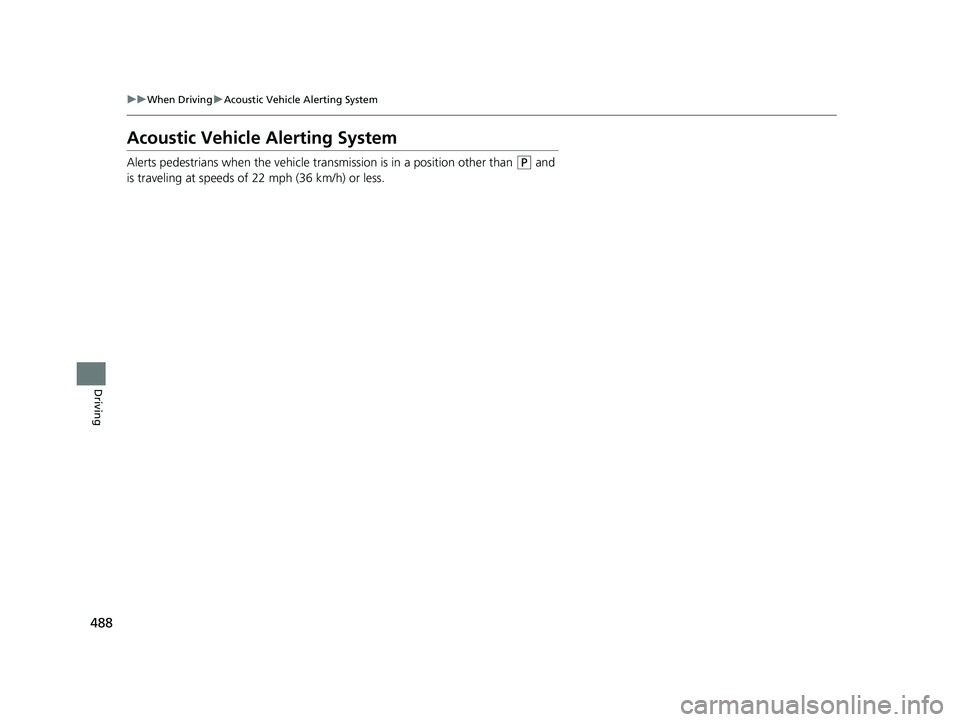

Acoustic Vehicle Alerting System
Alerts pedestrians when the vehicle transmission is in a position other than (P and
is traveling at speeds of 22 mph (36 km/h) or less.
22 CR-V HEV ELP-31TPG6200.book 488 ページ 2021年6月30日 水曜日 午前11時6分
