HONDA CRV 2022 Owners Manual
Manufacturer: HONDA, Model Year: 2022, Model line: CRV, Model: HONDA CRV 2022Pages: 692, PDF Size: 22.05 MB
Page 1 of 692
202 2 CR-V
Hybrid
Owner’s Manual
Page 2 of 692

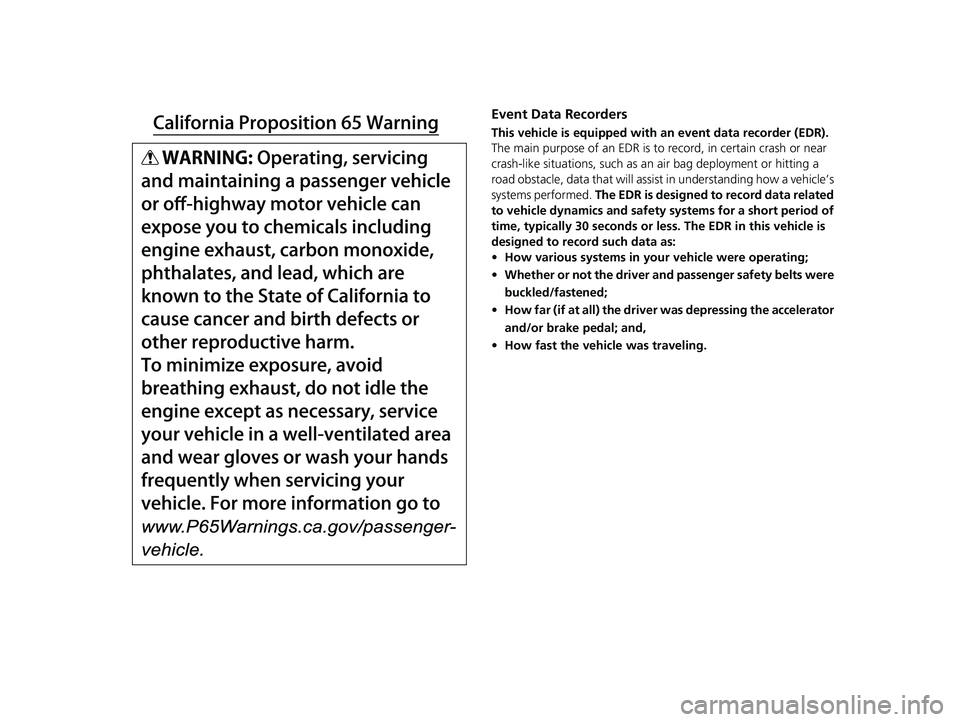

Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
22 CR-V HEV ELP-31TPG6200.book 0 ページ 2021年6月30日 水曜日 午前11時6分
Page 3 of 692

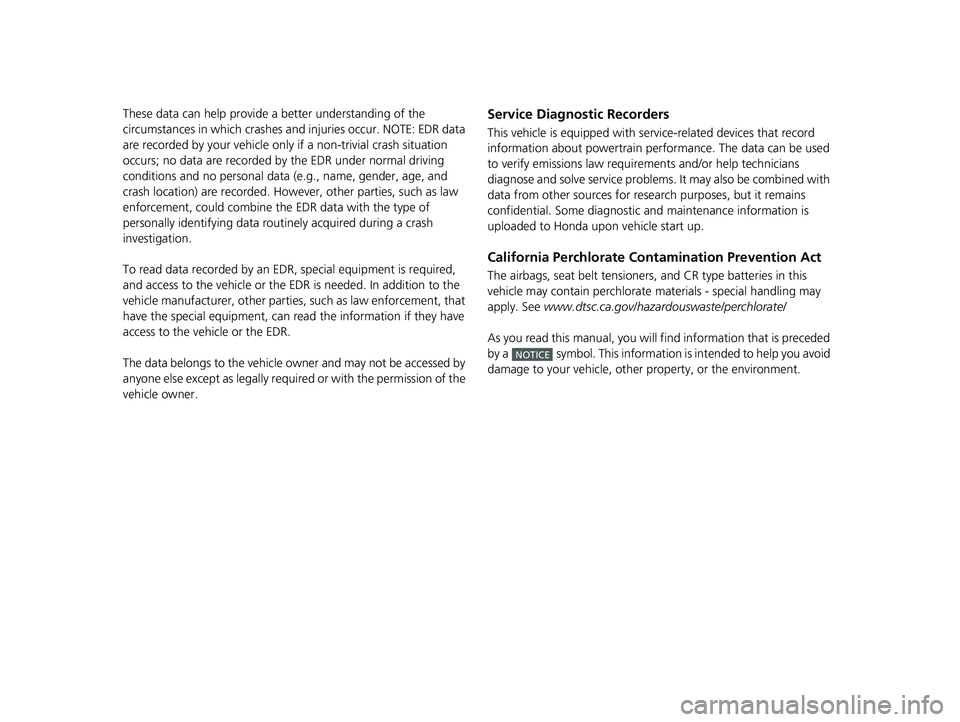

These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-tri vial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howe ver, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the ED R is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can r ead the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.Service Diagnostic Recorders
This vehicle is equipped with serv ice-related devices that record
information about powertrain perfor mance. The data can be used
to verify emissions law requirements and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for research purposes, but it remains
confidential. Some diagnostic and maintenance information is
uploaded to Honda upon vehicle start up.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, other property, or the environment.
NOTICE
22 CR-V HEV ELP-31TPG6200.book 1 ページ 2021年6月30日 水曜日 午前11時6分
Page 4 of 692

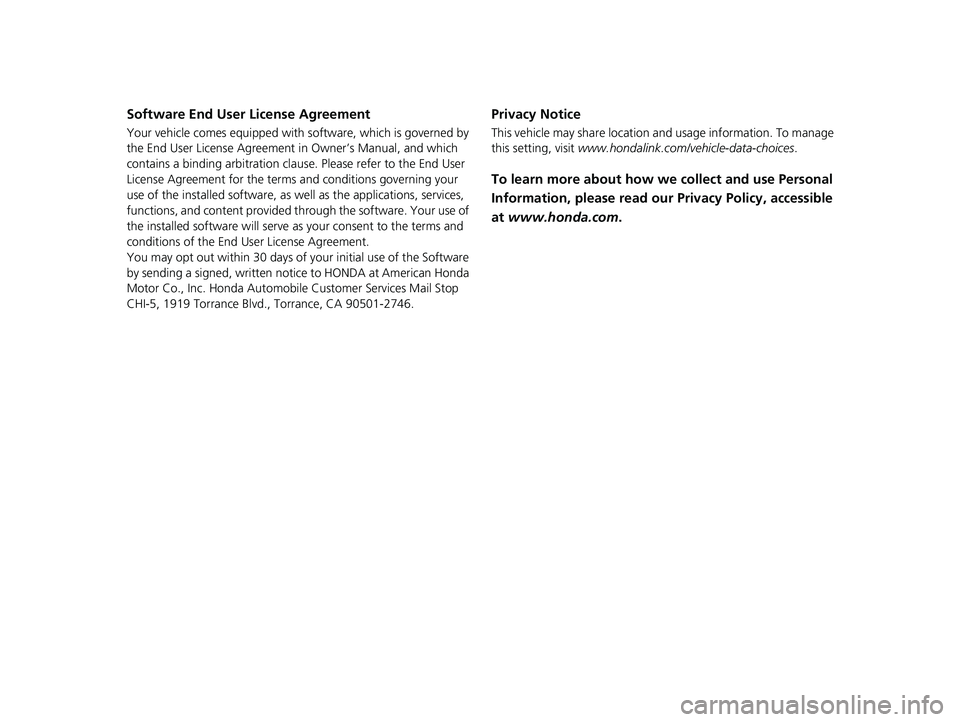

Software End User License Agreement
Your vehicle comes equipped with software, which is governed by
the End User License Agreement in Owner’s Manual, and which
contains a binding arbitration clau se. Please refer to the End User
License Agreement for the terms and conditions governing your
use of the installed software, as well as the applications, services,
functions, and content provided through the software. Your use of
the installed software will serve as your consent to the terms and
conditions of the End User License Agreement.
You may opt out within 30 days of your initial use of the Software
by sending a signed, written notice to HONDA at American Honda
Motor Co., Inc. Honda Automobile Customer Services Mail Stop
CHI-5, 1919 Torrance Blvd., Torrance, CA 90501-2746.
Privacy Notice
This vehicle may share location and usage information. To manage
this setting, visit www.hondalink.com/vehicle-data-choices .
To learn more about how we collect and use Personal
Information, please read our Privacy Policy, accessible
at www.honda.com .
22 CR-V HEV ELP-31TPG6200.book 2 ページ 2021年6月30日 水曜日 午前11時6分
Page 5 of 692

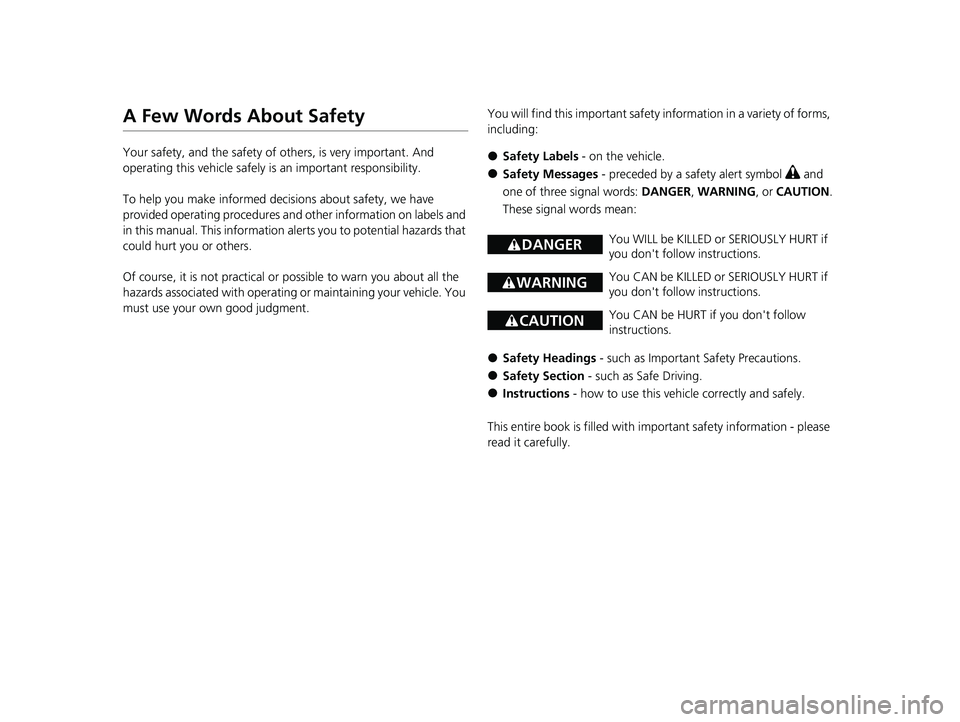

A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information al erts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment. You will find this impo
rtant safety information in a variety of forms,
including:●Safety Labels - on the vehicle.
●Safety Messages - preceded by a safety alert symbol 3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
●Safety Headings - such as Important Safety Precautions.
●Safety Section - such as Safe Driving.
●Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3CAUTIONYou CAN be HURT if you don't follow
instructions.
22 CR-V HEV ELP-31TPG6200.book 3 ページ 2021年6月30日 水曜日 午前11時6分
Page 6 of 692

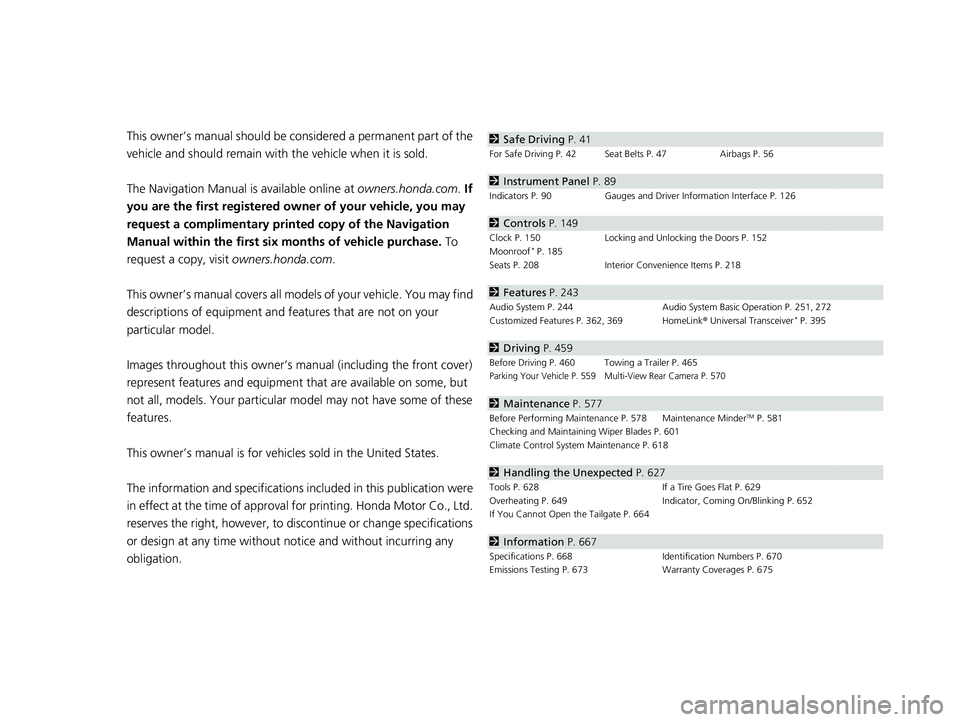

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at owners.honda.com. If
you are the first registered owner of your vehicle, you may
request a complimentary printed copy of the Navigation
Manual within the first six months of vehicle purchase. To
request a copy, visit owners.honda.com.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s ma nual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 41
For Safe Driving P. 42 Seat Belts P. 47 Airbags P. 56
2Instrument Panel P. 89
Indicators P. 90 Gauges and Driver Information Interface P. 126
2Controls P. 149
Clock P. 150 Locking and Unlocking the Doors P. 152
Moonroof* P. 185
Seats P. 208 Interior Convenience Items P. 218
2 Features P. 243
Audio System P. 244 Audio System Basic Operation P. 251, 272
Customized Features P. 362, 369 HomeLink ® Universal Transceiver* P. 395
2 Driving P. 459
Before Driving P. 460 Towing a Trailer P. 465Parking Your Vehicle P. 559 Multi-View Rear Camera P. 570
2Maintenance P. 577
Before Performing Maintenance P. 578 Maintenance MinderTM P. 581
Checking and Maintaining Wiper Blades P. 601
Climate Control System Maintenance P. 618
2Handling the Unexpected P. 627
Tools P. 628 If a Tire Goes Flat P. 629
Overheating P. 649 Indicator, Coming On/Blinking P. 652
If You Cannot Open the Tailgate P. 664
2Information P. 667
Specifications P. 668 Identification Numbers P. 670
Emissions Testing P. 673 Warranty Coverages P. 675
22 CR-V HEV ELP-31TPG6200.book 4 ページ 2021年6月30日 水曜日 午前11時6分
Page 7 of 692
Contents
Child Safety P. 72Exhaust Gas Hazard P. 86Safety Labels P. 87
Tailgate P. 167 Security System P. 178 Windows P. 181
Operating the Switches Around the Steering Wheel P. 186 Mirrors P. 206
Climate Control System P. 235
Audio Error Messages P. 340 General Information on the Audio System P. 345
Bluetooth ® HandsFreeLink ® P. 398, 422 Compass* P. 456
Off-Highway Driving Guidelines P. 467 When Driving P. 469 Honda Sensing ® P. 503 Braking P. 551
Refueling P. 572 Fuel Economy and CO
2 Emissions P. 575
Maintenance Under the Hood P. 586 Replacing Light Bulbs P. 598
Checking and Maintaining Tires P. 606 12-volt Battery P. 615 Remote Transmitter Care P. 617
Cleaning P. 619 Accessories and Modifications P. 624
Handling of the Jack P. 643 Power System Won’t Start P. 644 If the 12-Volt Battery Is Dead P. 647
Fuses P. 659 Emergency Towing P. 663
Refueling P. 665
Devices that Emit Radio Waves P. 671 Reporting Safety Defects P. 672
Authorized Manuals P. 678 Customer Service Information P. 679
Quick Reference GuideP. 6
Safe DrivingP. 41
Instrument PanelP. 89
ControlsP. 149
FeaturesP. 243
DrivingP. 459
MaintenanceP. 577
Handling the UnexpectedP. 627
InformationP. 667
IndexP. 681
22 CR-V HEV ELP-31TPG6200.book 5 ページ 2021年6月30日 水曜日 午前11時6分
Page 8 of 692
6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Steering Wheel Adjustments (P205)
❚Hazard Warning Button
❚System Indicators (P90)
❚Rear Defogger (P201)
❚Gauges (P126)
❚POWER Button (P186)
❚Audio System (P251, 272)
❚Navigation System*
() See the Navigation System Manual
❚Heated Door Mirror Button* (P201)
❚Seat Heater Buttons* (P234)
❚Driver Information Interface (P128)
❚Collision Mitigation Braking SystemTM (CMBSTM) OFF Button (P510)
❚ (Vehicle Stability AssistTM (VSA ®) System OFF) Button (P490)
❚Road Departure Mitigation (RDM) Button (P545)
❚Climate Control System (P235)
❚Parking Sensor System Button* (P562)
❚Power Tailgate Button* (P173)
22 CR-V HEV ELP-31TPG6200.book 6 ページ 2021年6月30日 水曜日 午前11時6分
Page 9 of 692
7

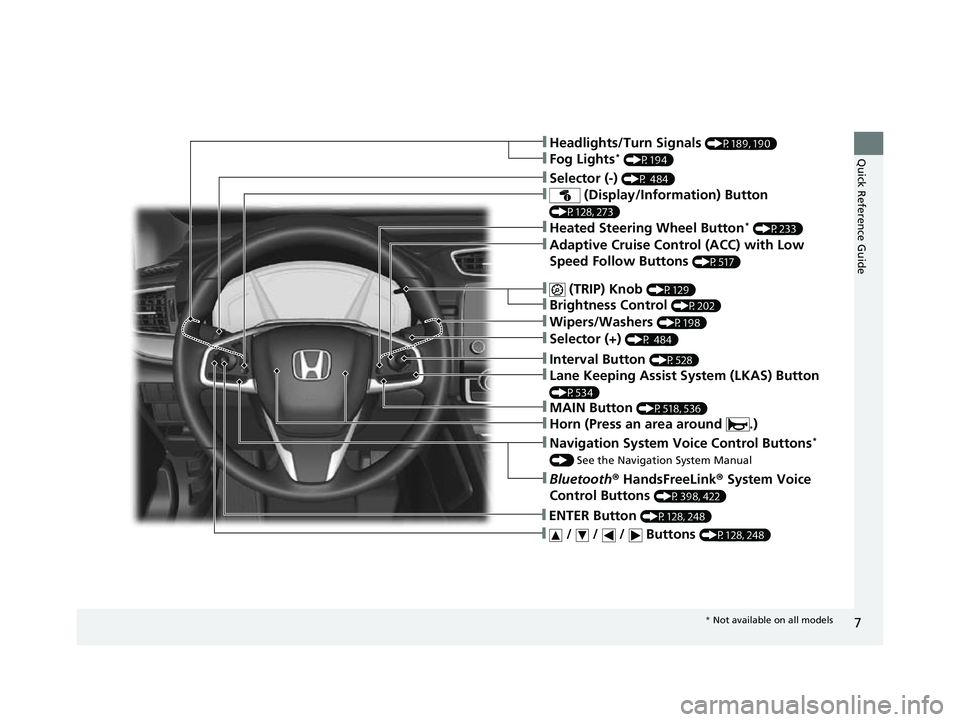

Quick Reference Guide
❚Navigation System Voice Control Buttons*
() See the Navigation System Manual
❚Bluetooth ® HandsFreeLink ® System Voice
Control Buttons
(P398, 422)
❚ / / / Buttons (P128, 248)
❚ENTER Button (P128, 248)
❚Wipers/Washers (P198)
❚Headlights/Turn Signals (P189, 190)
❚Fog Lights* (P194)
❚Interval Button (P528)
❚MAIN Button (P518, 536)
❚ (Display/Information) Button
(P128, 273)
❚Selector (-) (P 484)
❚Selector (+) (P 484)
❚ (TRIP) Knob (P129)
❚Brightness Control (P202)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P517)
❚Lane Keeping Assist System (LKAS) Button
(P534)
❚Horn (Press an area around .)
❚Heated Steering Wheel Button* (P233)
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 7 ページ 2021年6月30日 水曜日 午前11時6分
Page 10 of 692

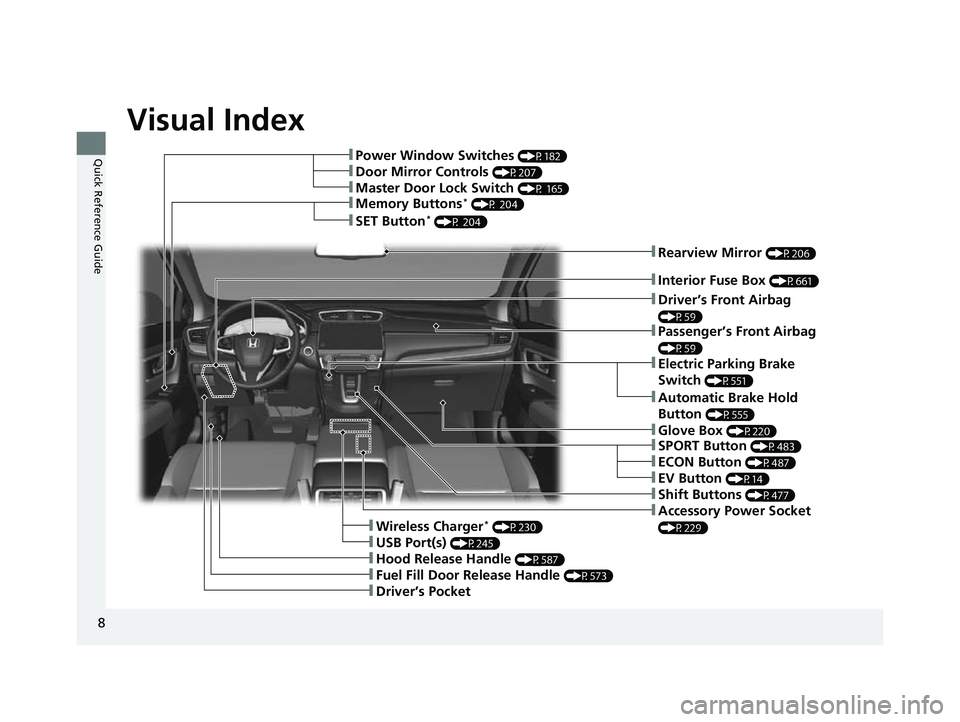

Visual Index
8
Quick Reference Guide
❚Rearview Mirror (P206)
❚Driver’s Front Airbag
(P59)
❚Memory Buttons* (P 204)
❚Interior Fuse Box (P661)
❚Passenger’s Front Airbag
(P59)
❚SET Button* (P 204)
❚Power Window Switches (P182)
❚Door Mirror Controls (P207)
❚Master Door Lock Switch (P 165)
❚Electric Parking Brake
Switch
(P551)
❚Automatic Brake Hold
Button
(P555)
❚Glove Box (P220)
❚SPORT Button (P483)
❚Accessory Power Socket
(P229)
❚Shift Buttons (P477)
❚EV Button (P14)
❚ECON Button (P487)
❚Wireless Charger* (P230)
❚USB Port(s) (P245)
❚Hood Release Handle (P587)
❚Fuel Fill Door Release Handle (P573)
❚Driver’s Pocket
22 CR-V HEV ELP-31TPG6200.book 8 ページ 2021年6月30日 水曜日 午前11時6分
