HONDA CRV 2022 Owners Manual

629Continued
Handling the Unexpected

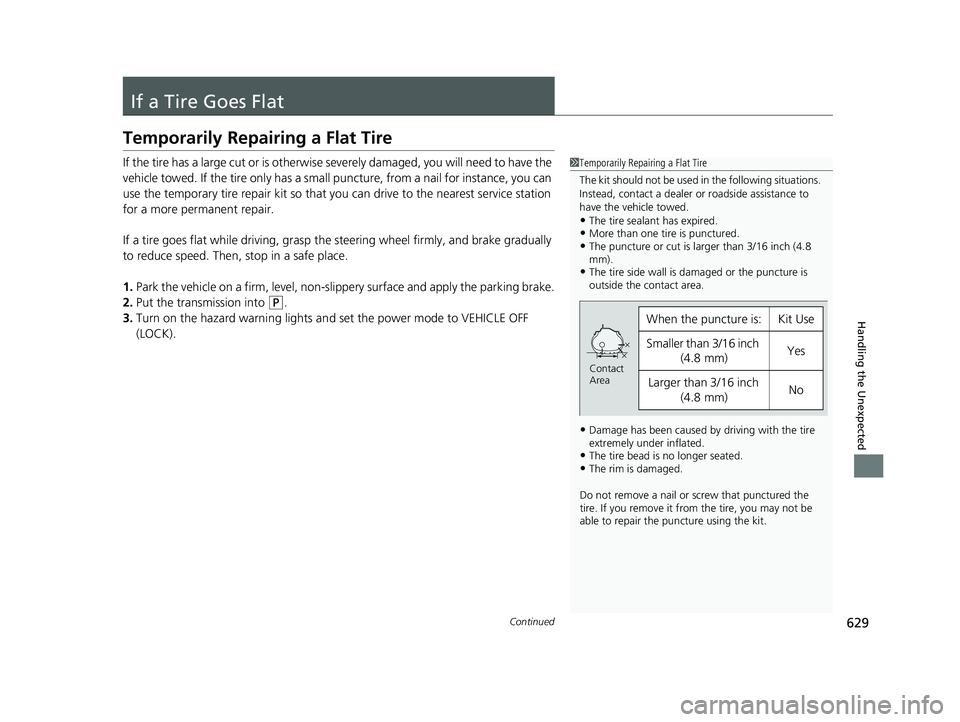

If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4.8
mm).
•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4.8 mm)Yes
Larger than 3/16 inch
(4.8 mm)No
Contact
Area
22 CR-V HEV ELP-31TPG6200.book 629 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
630
Handling the Unexpected

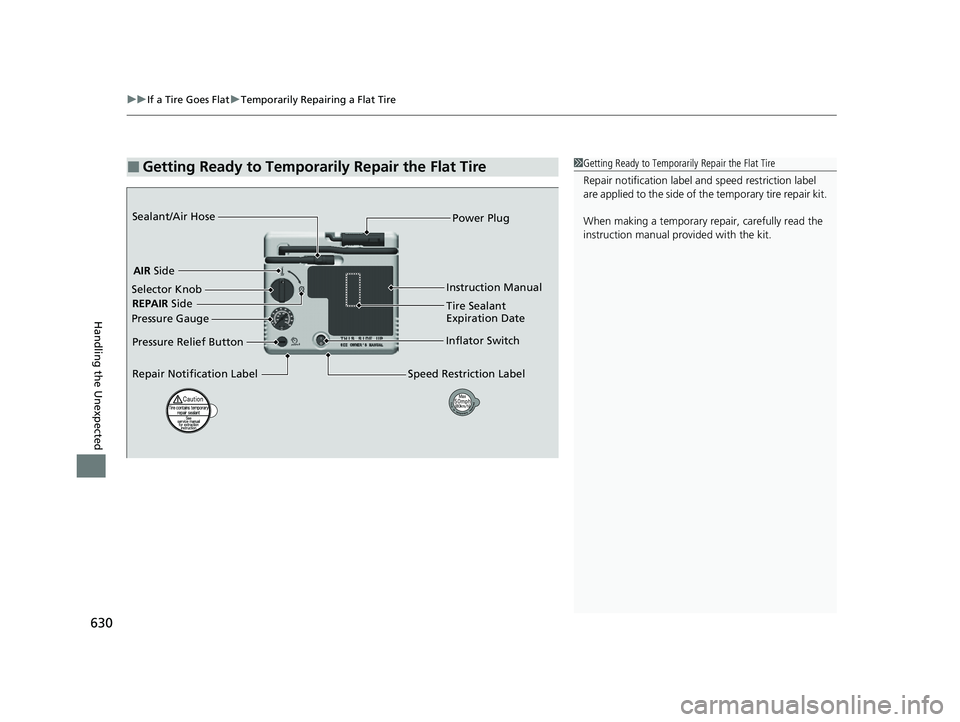

■Getting Ready to Temporarily Repair the Flat Tire1Getting Ready to Temporarily Repair the Flat Tire
Repair notificati on label and speed restriction label
are applied to the side of th e temporary tire repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
Selector Knob
Speed Restriction Label
Repair Notification Label Pressure Relief Button Inflator SwitchInstruction Manual
REPAIR Side
Sealant/Air Hose
AIR Side Power Plug
Pressure Gauge Tire Sealant
Expiration Date
22 CR-V HEV ELP-31TPG6200.book 630 ページ ２０２１年６月３０日　水曜日　午前１１時６分

631
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

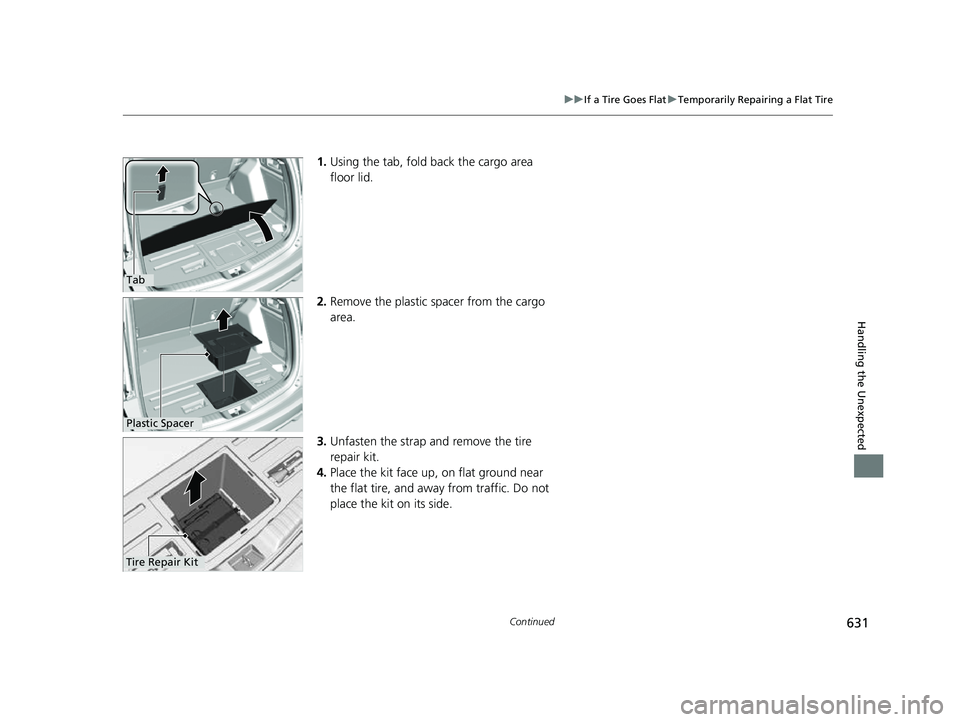

1. Using the tab, fold back the cargo area
floor lid.
2. Remove the plastic spacer from the cargo
area.
3. Unfasten the strap and remove the tire
repair kit.
4. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Tab
Plastic Spacer
Tire Repair Kit
22 CR-V HEV ELP-31TPG6200.book 631 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
632
Handling the Unexpected

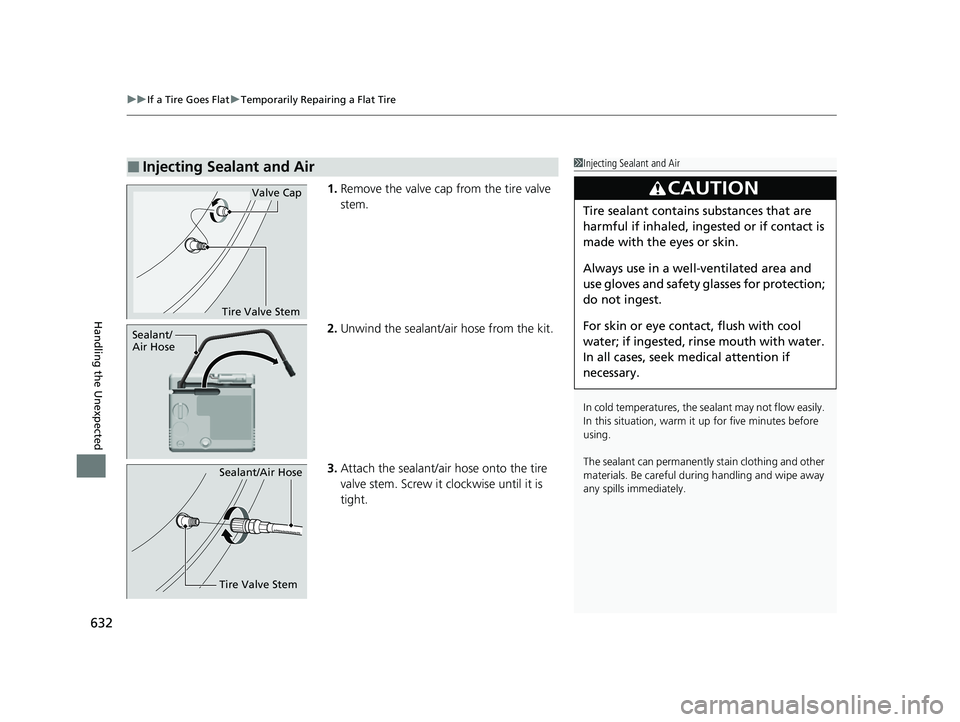

1. Remove the valve cap from the tire valve
stem.
2. Unwind the sealant/air hose from the kit.
3. Attach the sealant/air hose onto the tire
valve stem. Screw it clockwise until it is
tight.
■Injecting Sealant and Air1Injecting Sealant and Air
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant can permanentl y stain clothing and other
materials. Be careful duri ng handling and wipe away
any spills immediately.
3CAUTION
Tire sealant contains substances that are
harmful if inhaled, ingested or if contact is
made with the eyes or skin.
Always use in a well-ventilated area and
use gloves and safety glasses for protection;
do not ingest.
For skin or eye contact, flush with cool
water; if ingested, rinse mouth with water.
In all cases, seek medical attention if
necessary.
Tire Valve Stem
Valve Cap
Sealant/
Air Hose
Tire Valve Stem
Sealant/Air Hose
22 CR-V HEV ELP-31TPG6200.book 632 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued633
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

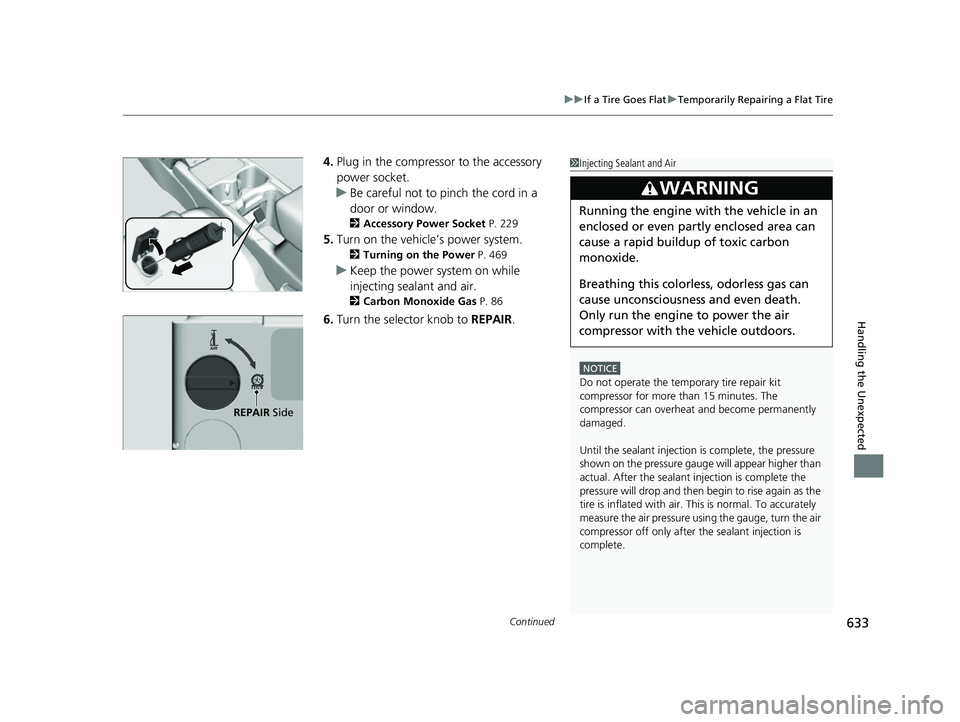

4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 229
5.Turn on the vehicle’s power system.
2 Turning on the Power P. 469
uKeep the power system on while
injecting sealant and air.
2 Carbon Monoxide Gas P. 86
6.Turn the selector knob to REPAIR.
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usin g the gauge, turn the air
compressor off only after the sealant injection is
completeM
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
REPAIR Side
22 CR-V HEV ELP-31TPG6200.book 633 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
634
Handling the Unexpected

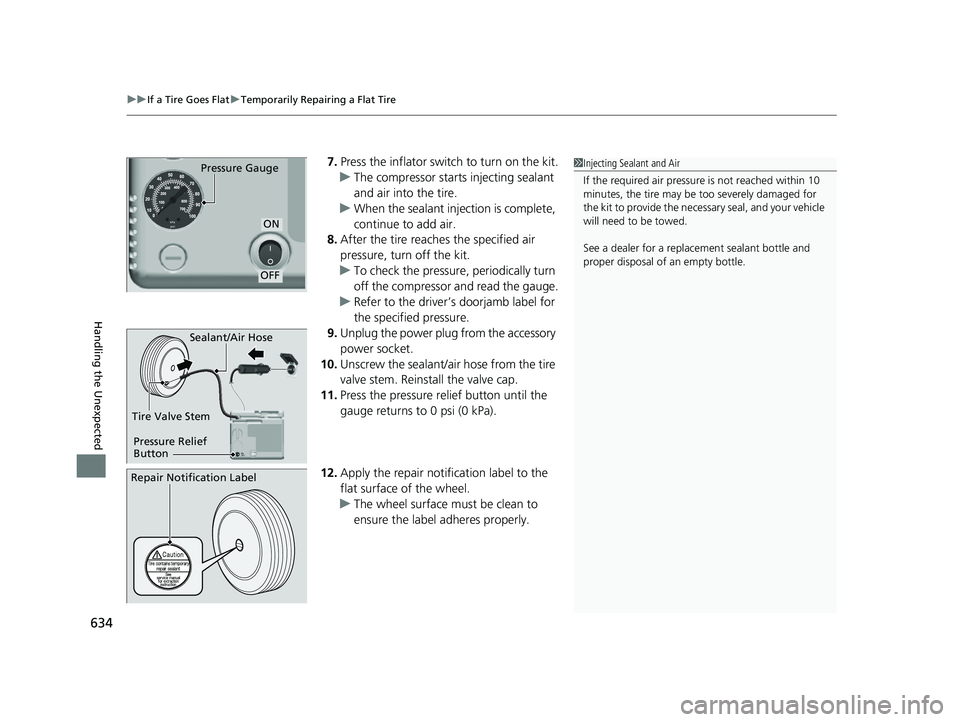

7. Press the inflator swit ch to turn on the kit.
u The compressor starts injecting sealant
and air into the tire.
u When the sealant injection is complete,
continue to add air.
8. After the tire reaches the specified air
pressure, turn off the kit.
u To check the pressure, periodically turn
off the compressor and read the gauge.
u Refer to the driver’s doorjamb label for
the specified pressure.
9. Unplug the power plug from the accessory
power socket.
10. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.
11. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
12. Apply the repair notification label to the
flat surface of the wheel.
u The wheel surface must be clean to
ensure the label adheres properly.Pressure Gauge
OFF
ON
1Injecting Sealant and Air
If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal, and your vehicle
will need to be towed.
See a dealer for a replacement sealant bottle and
proper disposal of an empty bottle.
Sealant/Air Hose
Tire Valve Stem
Pressure Relief
Button
Repair Notification Label
22 CR-V HEV ELP-31TPG6200.book 634 ページ ２０２１年６月３０日　水曜日　午前１１時６分

635
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

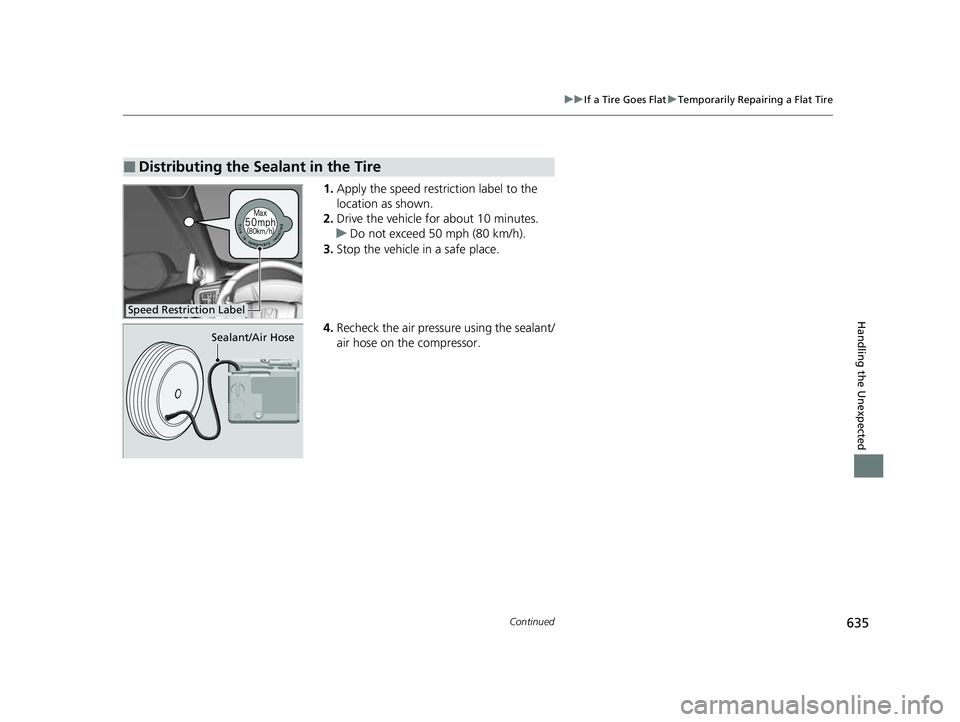

1. Apply the speed restriction label to the
location as shown.
2. Drive the vehicle for about 10 minutes.
u Do not exceed 50 mph (80 km/h).
3. Stop the vehicle in a safe place.
4. Recheck the air pressure using the sealant/
air hose on the compressor.
■Distributing the Sealant in the Tire
Speed Restriction Label
Sealant/Air Hose
22 CR-V HEV ELP-31TPG6200.book 635 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
636
Handling the Unexpected
5. Turn the selector knob to AIR.
u Do not turn the air compressor on while
checking the pressure.
2 Inflating an Under-inflated Tire P. 640
1Distributing the Sealant in the Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
AIR Side
22 CR-V HEV ELP-31TPG6200.book 636 ページ ２０２１年６月３０日　水曜日　午前１１時６分

637
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

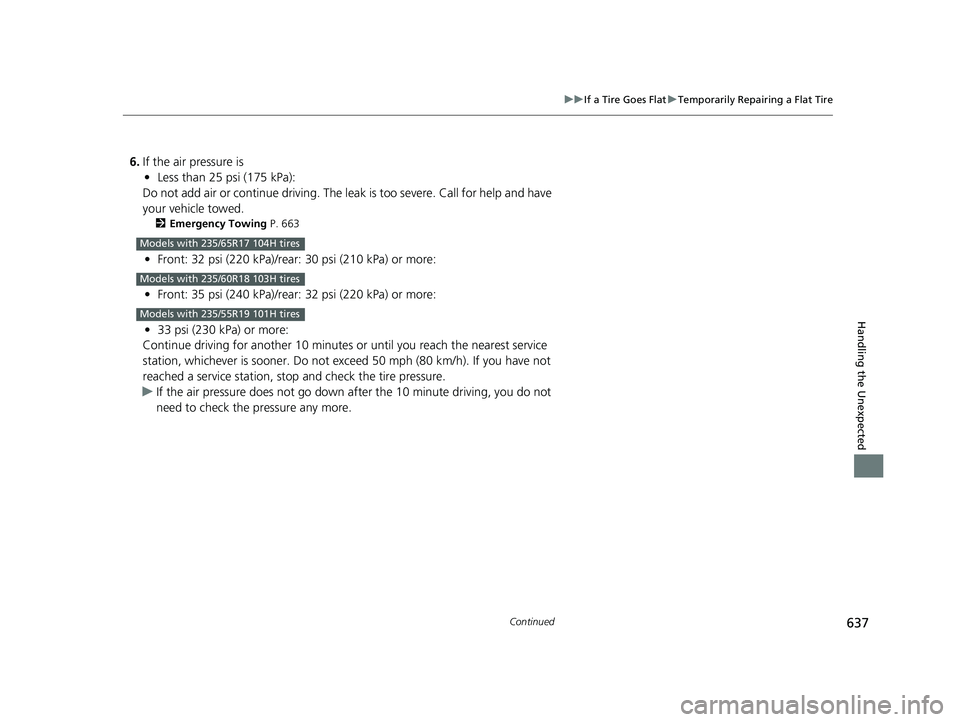

6. If the air pressure is
• Less than 25 psi (175 kPa):
Do not add air or continue driving. The leak is too severe. Call for help and have
your vehicle towed.
2 Emergency Towing P. 663
•Front: 32 psi (220 kPa)/rear: 30 psi (210 kPa) or more:
• Front: 35 psi (240 kPa)/rear: 32 psi (220 kPa) or more:
• 33 psi (230 kPa) or more:
Continue driving for another 10 minutes or until you reach the nearest service
station, whichever is sooner. Do not exc eed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.
u If the air pressure does not go down after the 10 minute driving, you do not
need to check the pressure any more.
Models with 235/65R17 104H tires
Models with 235/60R18 103H tires
Models with 235/55R19 101H tires
22 CR-V HEV ELP-31TPG6200.book 637 ページ ２０２１年６月３０日　水曜日　午前１１時６分

638
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

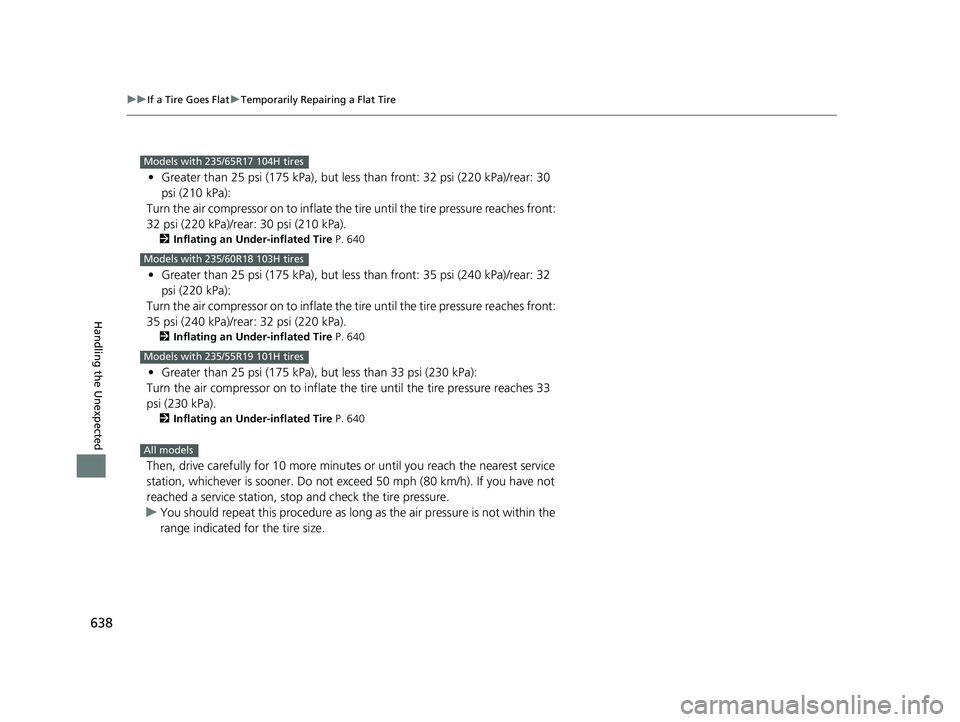

• Greater than 25 psi (175 kPa), but less than front: 32 psi (220 kPa)/rear: 30
psi (210 kPa):
Turn the air compressor on to inflate the ti re until the tire pressure reaches front:
32 psi (220 kPa)/rear: 30 psi (210 kPa).
2 Inflating an Under-inflated Tire P. 640
•Greater than 25 psi (175 kPa), but less than front: 35 psi (240 kPa)/rear: 32
psi (220 kPa):
Turn the air compressor on to inflate the ti re until the tire pressure reaches front:
35 psi (240 kPa)/rear: 32 psi (220 kPa).
2 Inflating an Under-inflated Tire P. 640
•Greater than 25 psi (175 kPa), but less than 33 psi (230 kPa):
Turn the air compressor on to inflate the tire until the tire pressure reaches 33
psi (230 kPa).
2 Inflating an Under-inflated Tire P. 640
Then, drive carefully for 10 more minutes or until you reach the nearest service
station, whichever is sooner. Do not exceed 50 mph (80 km/h). If you have not
reached a service station, stop and check the tire pressure.
u You should repeat this procedure as long as the air pressure is not within the
range indicated for the tire size.
Models with 235/65R17 104H tires
Models with 235/60R18 103H tires
Models with 235/55R19 101H tires
All models
