HONDA CRV 2023 Owner's Manual

20
Quick Reference Guide

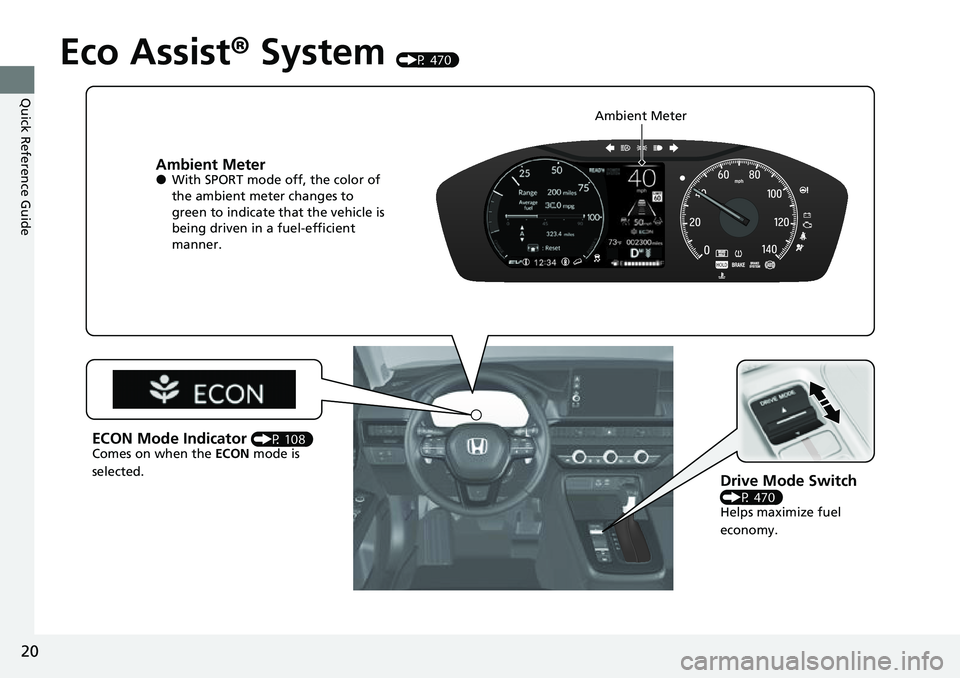

Eco Assist® System (P 470)
Ambient Meter●With SPORT mode off, the color of
the ambient meter changes to
green to indicate that the vehicle is
being driven in a fuel-efficient
manner.
Drive Mode Switch
(P 470)
Helps maximize fuel
economy.
ECON Mode Indicator (P 108)
Comes on when the ECON mode is
selected. Ambient Meter

21
Quick Reference Guide
Safe Driving (P43)
Airbags (P59)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P79)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restra ined in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P92)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P48)
●Before driving, check that the front seats, head
restraints, steering wheel, and mirrors have been
properly adjusted.
Seat Belts (P49)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.

22
Quick Reference Guide

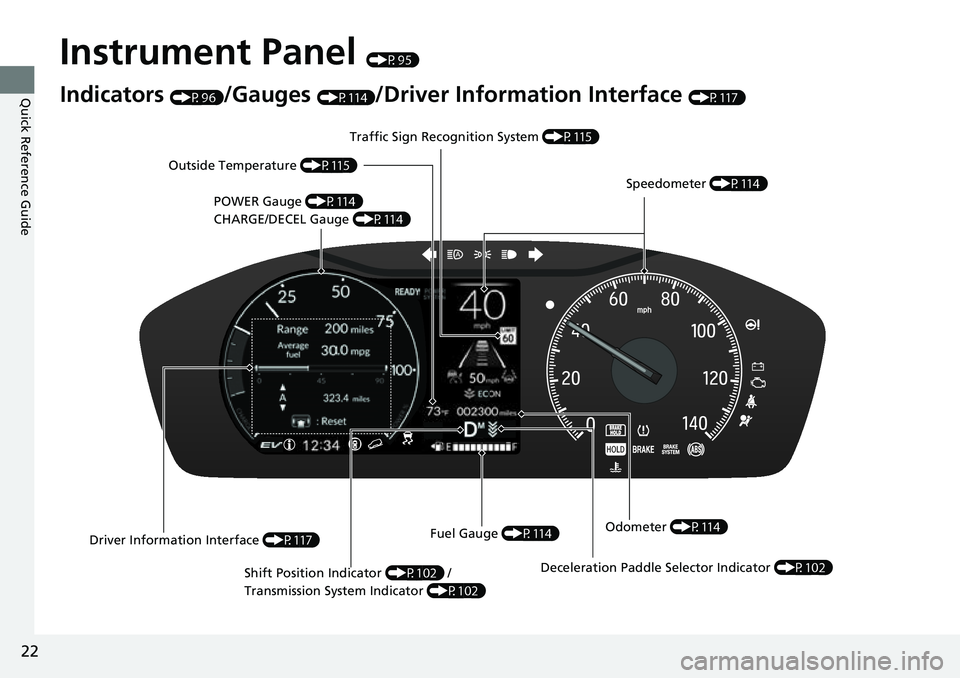

Instrument Panel (P95)
Indicators (P96)/Gauges (P114)/Driver Information Interface (P117)
POWER Gauge (P114)
CHARGE/DECEL Gauge (P114) Speedometer
(P114)
Traffic Sign Recognition System
(P115)
Driver Information Interface (P117)Fuel Gauge
(P114)
Outside Temperature
(P115)
Odometer (P114)
Shift Position Indicator (P102) /
Transmission System Indicator (P102)
Deceleration Paddle Selector Indicator (P102)

23
Quick Reference Guide

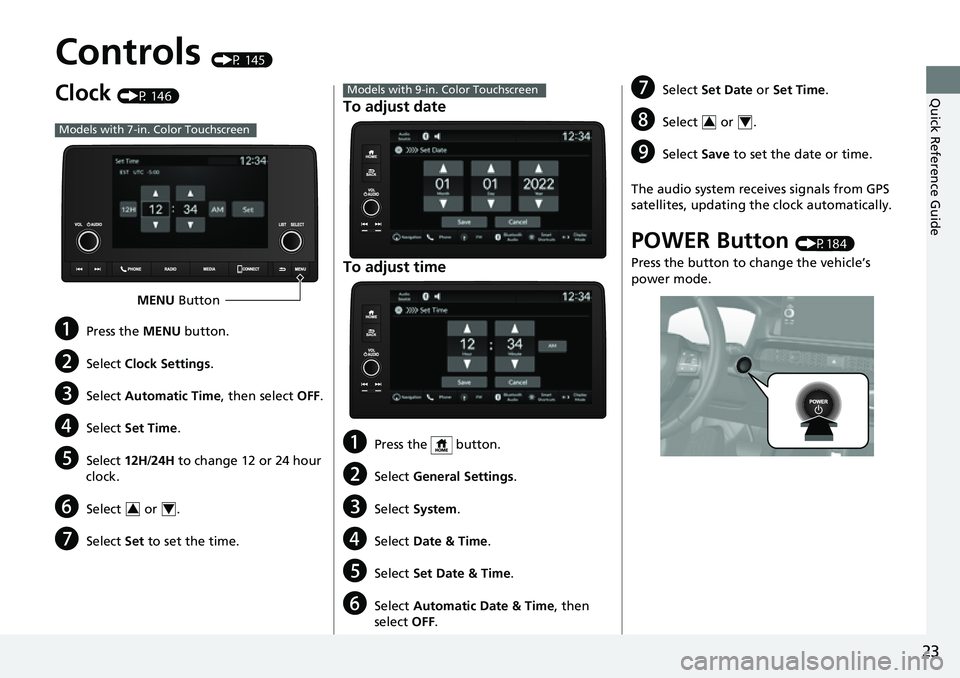

Controls (P 145)
Clock (P 146)
aPress the MENU button.
bSelect Clock Settings .
cSelect Automatic Time , then select OFF.
dSelect Set Time .
eSelect 12H/24H to change 12 or 24 hour
clock.
fSelect or .
gSelect Set to set the time.
Models with 7-in. Color Touchscreen
MENU Button
34
To adjust date
To adjust time
aPress the button.
bSelect General Settings .
cSelect System .
dSelect Date & Time .
eSelect Set Date & Time .
fSelect Automatic Date & Time , then
select OFF.
Models with 9-in. Color TouchscreengSelect Set Date or Set Time.
hSelect or .
iSelect Save to set the date or time.
The audio system receives signals from GPS
satellites, updating the clock automatically.
POWER Button (P184)
Press the button to change the vehicle’s
power mode.
34

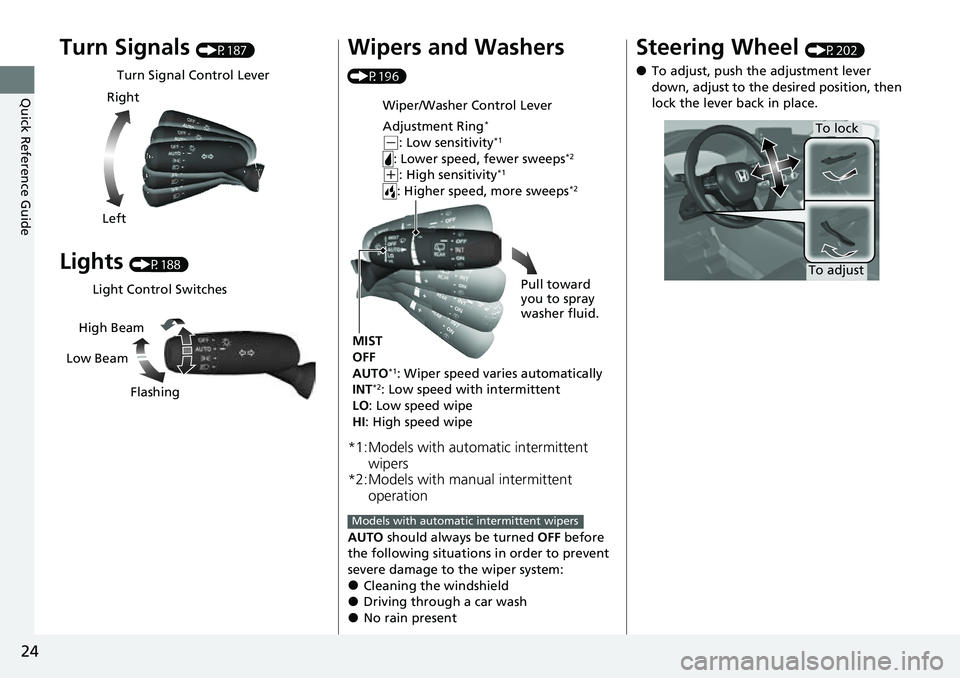

24
Quick Reference Guide
Turn Signals (P187)
Lights (P188)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P196)
*1:Models with automatic intermittent wipers
*2:Models with manual intermittent operation
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Wiper/Washer Control Lever
Adjustment Ring
*
( -: Low sensitivity*1
: Lower speed, fewer sweeps*2
(+: High sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
Steering Wheel (P202)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
To adjust
To lock

25
Quick Reference Guide

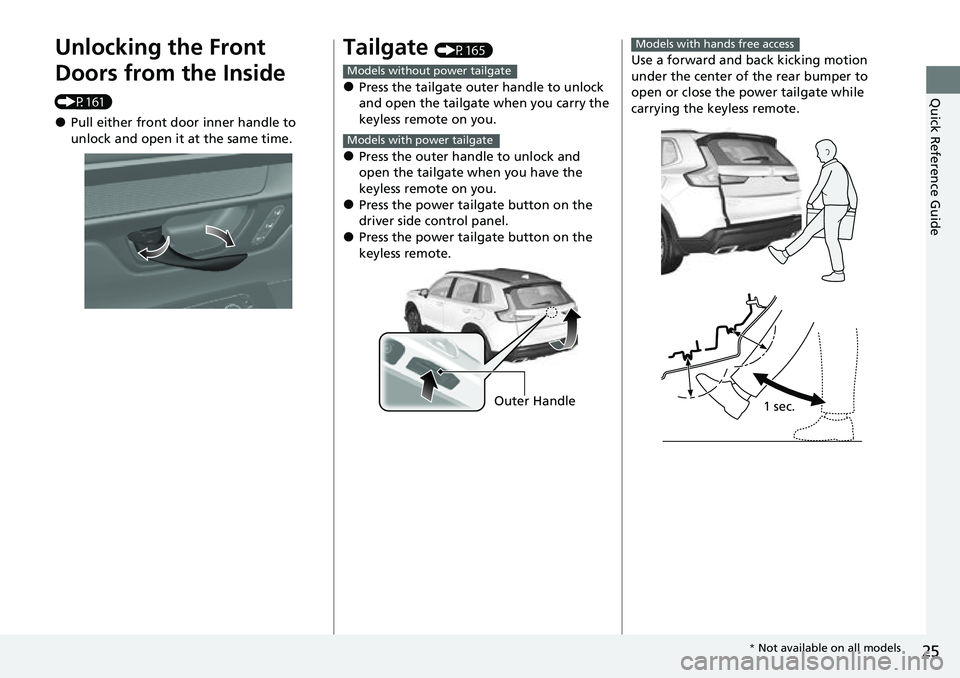

Unlocking the Front
Doors from the Inside
(P161)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P165)
●Press the tailgate outer handle to unlock
and open the tailgate when you carry the
keyless remote on you.
●Press the outer handle to unlock and
open the tailgate when you have the
keyless remote on you.
●Press the power tailgate button on the
driver side control panel.
●Press the power tailgate button on the
keyless remote.
Models without power tailgate
Models with power tailgate
Outer Handle
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the keyless remote.
Models with hands free access
1 sec.
* Not available on all models

26
Quick Reference Guide

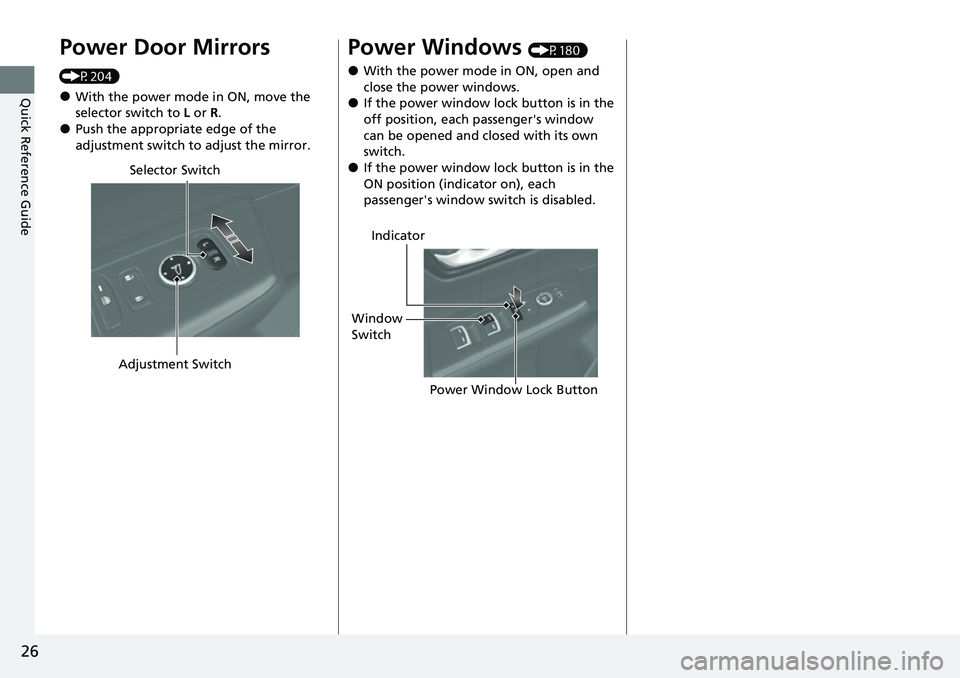

Power Door Mirrors
(P204)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P180)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger's window
can be opened and closed with its own
switch.
●If the power window lock button is in the
ON position (indicator on), each
passenger's window switch is disabled.
Power Window Lock Button
Window
Switch Indicator

27
Quick Reference Guide

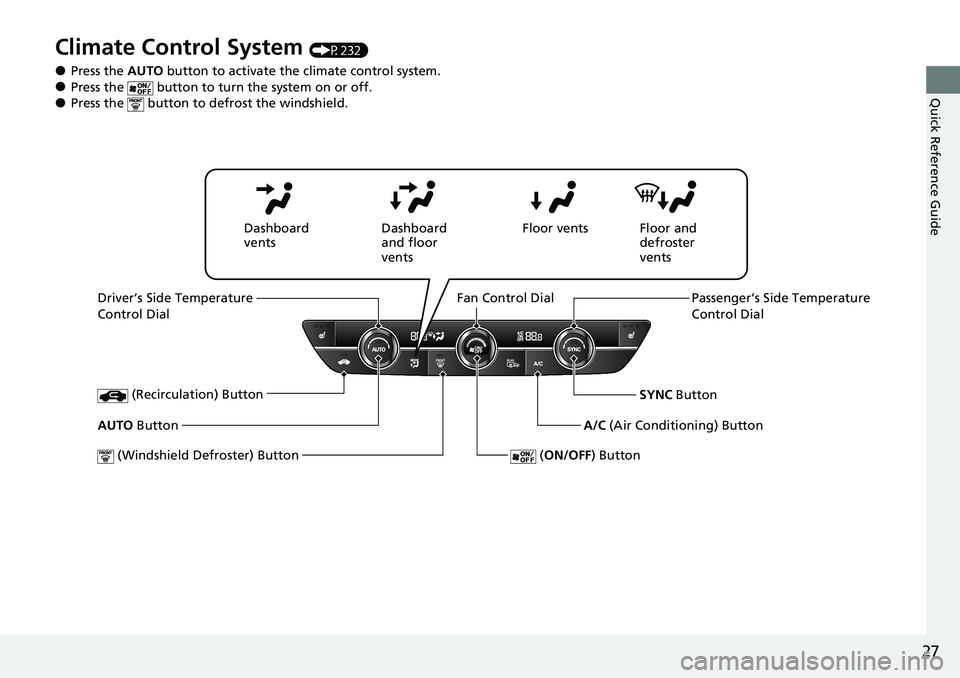

Climate Control System (P232)
●Press the AUTO button to activate th e climate control system.●Press the button to turn the system on or off.●Press the button to de frost the windshield.
Fan Control Dial
(Windshield Defroster) ButtonDriver’s Side Temperature
Control Dial (Recirculation) Button
(ON/OFF ) Button
AUTO Button A/C (Air Conditioning) Button
Dashboard
vent
s D

ashboard
and floor
vents Floor vents Floor and
defroster
vents
Passenger’s Side Temperature
Control D ial
SYNC Button

28
Quick Reference Guide

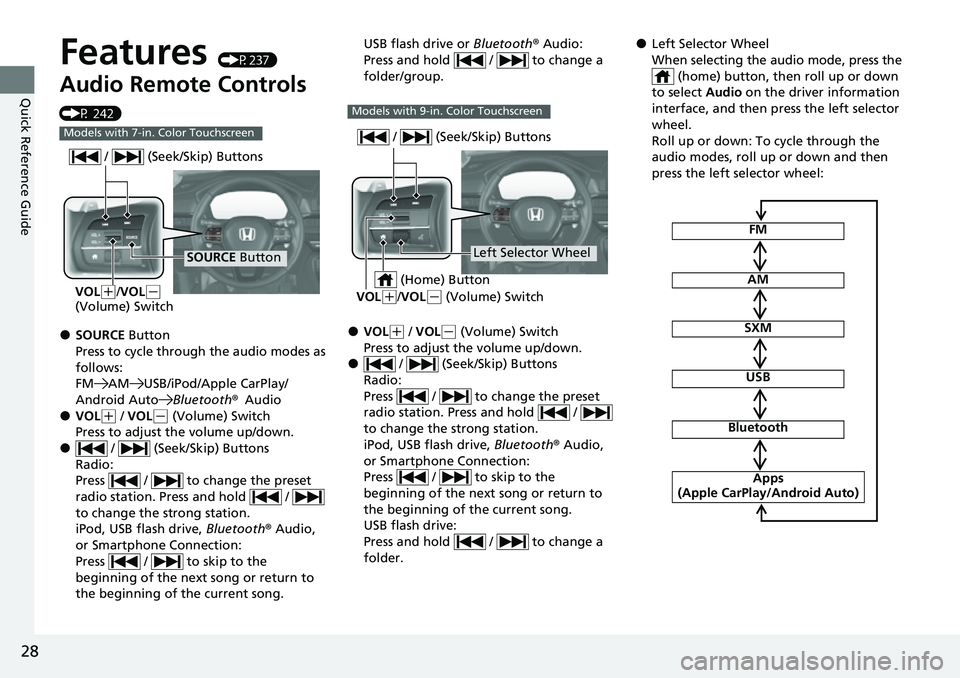

Features (P237)
Audio Remote Controls
(P 242)
●SOURCE Button
Press to cycle through the audio modes as
follows:
FM AM USB/iPod/Apple CarPlay/
Android Auto Bluetooth®Audio
●VOL(+ / VOL(- (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
Models with 7-in. Color Touchscreen
SOURCE Button
/ (Seek/Skip) Buttons
VOL(
+/VOL(-
(Volume) Switch
USB flash drive or Bluetooth® Audio:
Press and hold / to change a
folder/group.
●VOL( + / VOL(- (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
USB flash drive:
Press and hold / to change a
folder.
Models with 9-in. Color Touchscreen
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL(- (Volume) Switch
(Home) Button
●Left Selector Wheel
When selecting the audio mode, press the
(home) button, then roll up or down
to select Audio on the driver information
interface, and then press the left selector
wheel.
Roll up or down: To cycle through the
audio modes, roll up or down and then
press the left selector wheel:
FM
AM
SXM
USB
Bluetooth
Apps
(Apple CarPlay/Android Auto)

29
Quick Reference Guide

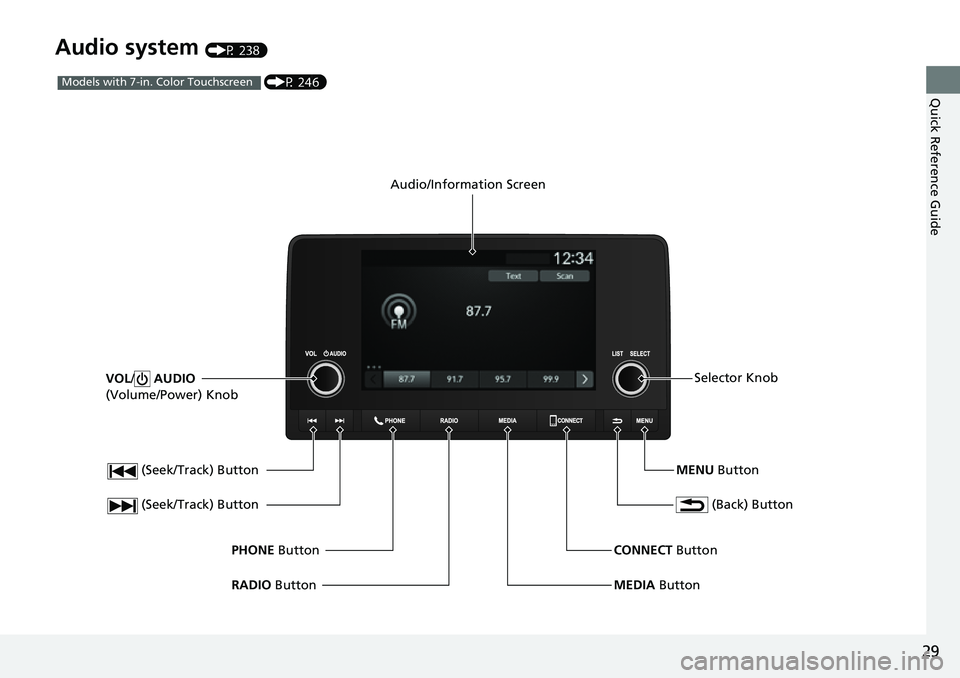

Audio system (P 238)
(Seek/Track) Button
RADIO Button
PHONE
Button
(Seek/Track) Button
VOL
/ AUDIO
(Volume/Power) Knob
Audio/Information Screen
(Back) Button
MENU ButtonSelector Knob
MEDIA Button
CONNECT
Button
(P 246)Models with 7-in. Color Touchscreen
