HONDA CRV 2023 Owner's Guide

30

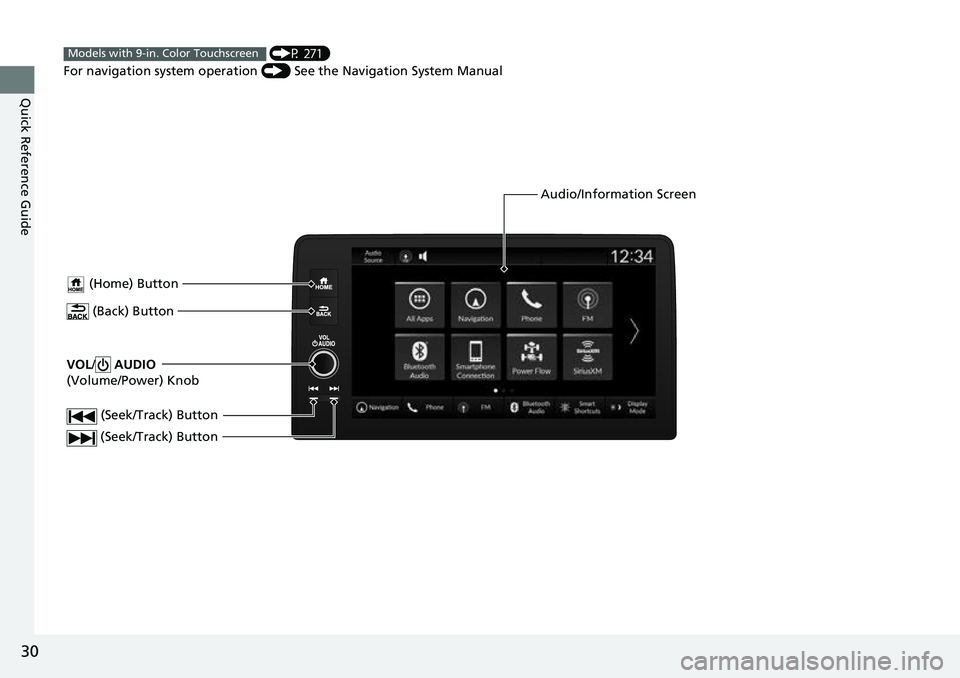

Quick Reference Guide
VOL/ AUDIO
(Volume/Power) Knob
(Home) Button
(Back) Button
Audio/Information Screen
(Seek/Track) Button
(Seek/Track) Button
(P 271)
For navigation system operation () See the Navigation System ManualModels with 9-in. Color Touchscreen

31
Quick Reference Guide

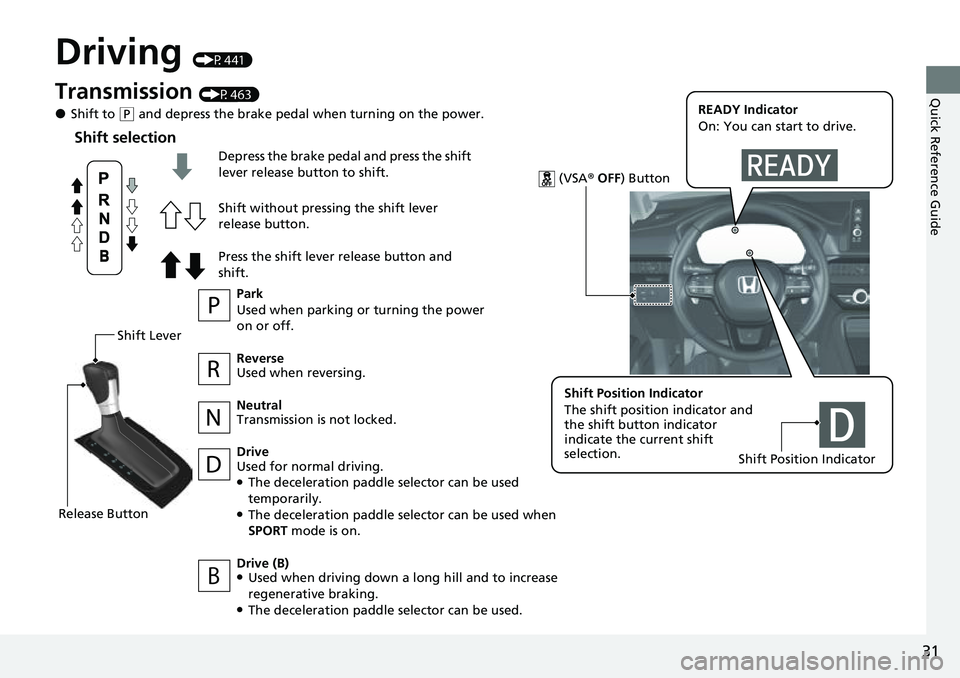

Driving (P441)
Transmission (P463)
●Shift to (P and depress the brake pedal when turning on the power.
Depress the brake pedal and press the shift
lever release button to shift.
Shift without pressing the shift lever
release button.
Press the shift lever release button and
shift.
Park
Used when parking or turning the power
on or off.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Used for normal driving.
●The deceleration paddle selector can be used
temporarily.
●The deceleration paddle selector can be used when
SPORT mode is on.
Drive (B)
●Used when driving down a long hill and to increase
regenerative braking.
●The deceleration paddle selector can be used.
Release Button Shift Lever
Shift selection
(VSA
® OFF) Button
READY Indicator
On: You can start to drive.
Shift Position Indicator
Shift Position Indicator
The shift position indicator and
the shift button indicator
indicate the current shift
selection.

32
Quick Reference Guide

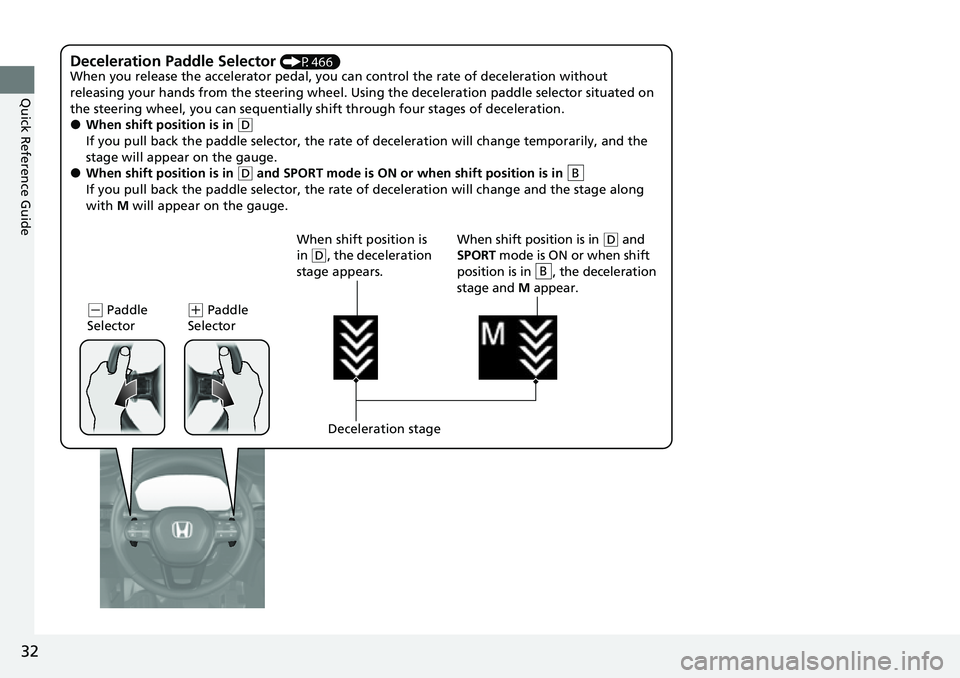

Deceleration Paddle Selector (P466)
When you release the accelerator pedal, you ca n control the rate of deceleration without
releasing your hands from the steering wheel. Using the deceleration paddle selector situated on
the steering wheel, you can sequentially sh ift through four stages of deceleration.
●When shift position is in (D
If you pull back the paddle selector, the rate of deceleration will change temporarily, and the
stage will appear on the gauge.
●When shift position is in (D and SPORT mode is ON or when shift position is in
If you pull back the paddle selector, the rate of deceleration will change and the stage along
with M will appear on the gauge.B
(- Paddle
Selector( + Paddle
Selector
Deceleration stage
When shift position is
in
(
D, the deceleration
stage appears. When shift position is in (
D and
SPORT mode is ON or when shift
position is in , the deceleration
stage and M appear.
B

33
Quick Reference Guide

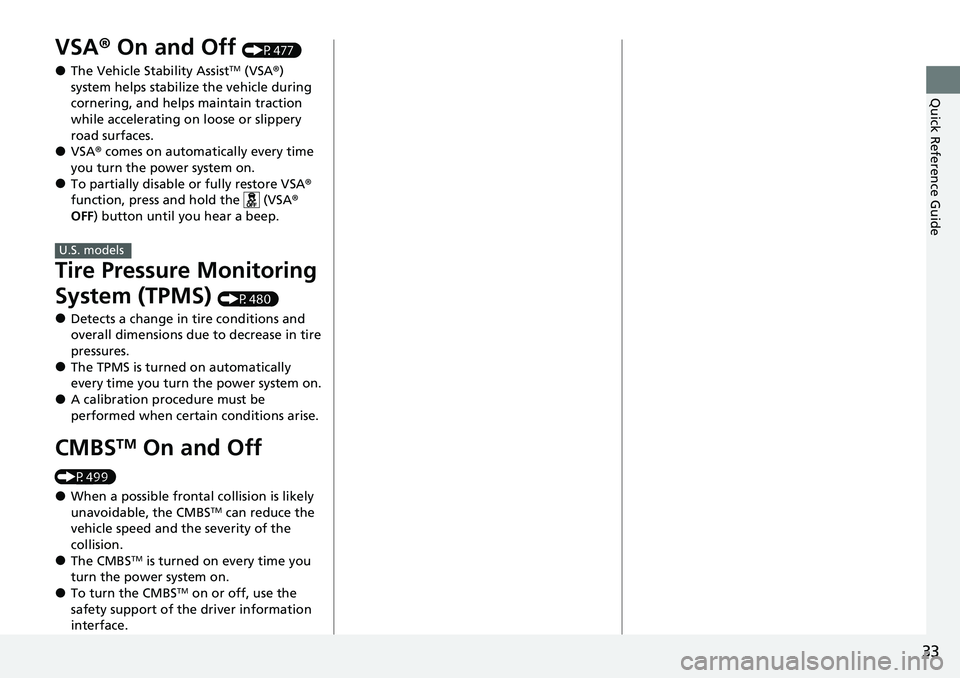

VSA® On and Off (P477)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you turn the power system on.
●To partially disable or fully restore VSA®
function, press and hold the (VSA ®
OFF) button until you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P480)
●Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
●The TPMS is turned on automatically
every time you turn the power system on.
●A calibration procedure must be
performed when certain conditions arise.
CMBSTM On and Off
(P499)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can reduce the
vehicle speed and the severity of the
collision.
●The CMBSTM is turned on every time you
turn the power system on.
●To turn the CMBSTM on or off, use the
safety support of th e driver information
interface.
U.S. models

34
Quick Reference Guide

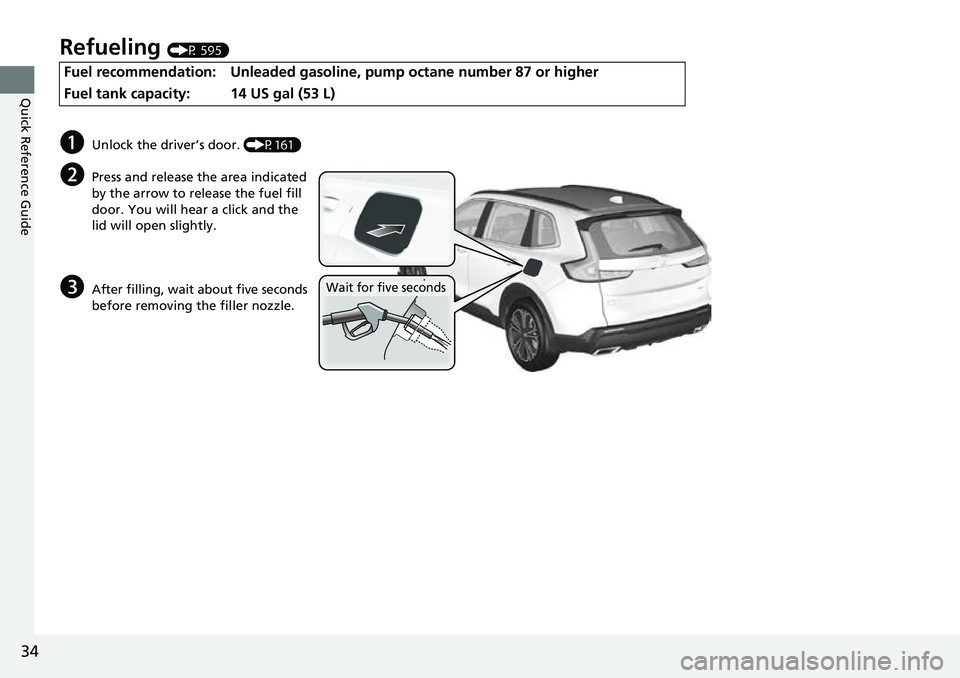

Refueling (P 595)
Fuel recommendation: Unleaded gasoline, pump octane number 87 or higher
Fuel tank capacity:
14 US gal (53 L)
aUnlock the driver’s door. (P161)
bPress and release the area indicated
by the arrow to release the fuel fill
door. You will hear a click and the
lid will open slightly.
cAfter filling, wait about five seconds
before removing the filler nozzle.Wait for five seconds

35
Quick Reference Guide

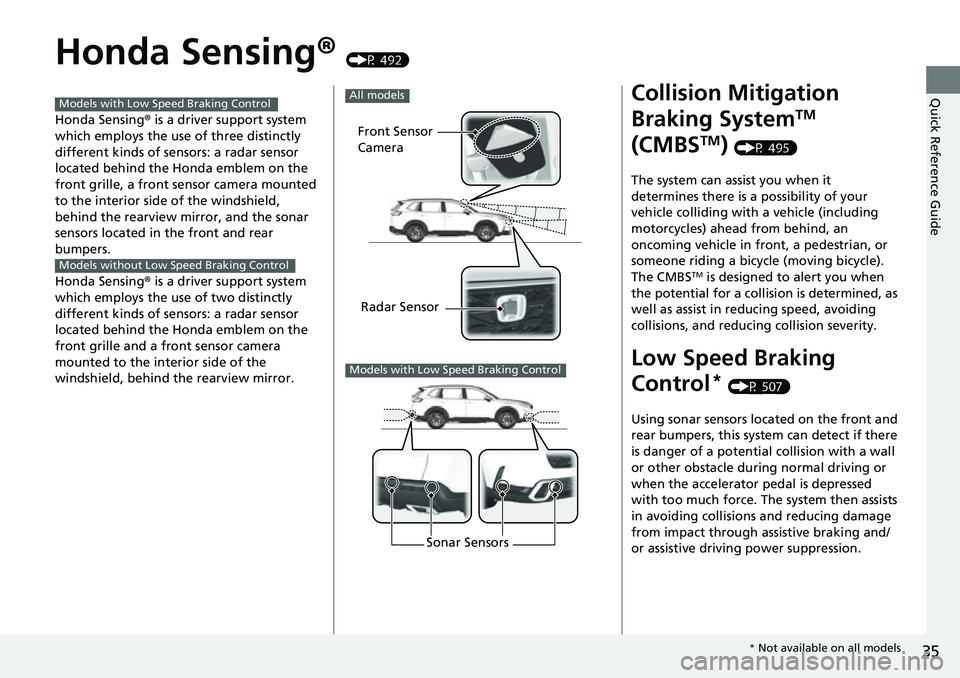

Honda Sensing® (P 492)
Honda Sensing ® is a driver support system
which employs the use of three distinctly
different kinds of sensors: a radar sensor
located behind the Honda emblem on the
front grille, a front sensor camera mounted
to the interior side of the windshield,
behind the rearview mirror, and the sonar
sensors located in the front and rear
bumpers.
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors: a radar sensor
located behind the Honda emblem on the
front grille and a front sensor camera
mounted to the interior side of the
windshield, behind the rearview mirror.
Models with Low Speed Braking Control
Models without Low Speed Braking Control
Front Sensor
Camera
Radar Sensor
All models
Models with Low Speed Braking Control
Sonar Sensors
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 495)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle (including
motorcycles) ahead from behind, an
oncoming vehicle in front, a pedestrian, or
someone riding a bicycle (moving bicycle).
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as assist in reducing speed, avoiding
collisions, and reducing collision severity.
Low Speed Braking
Control
* (P 507)
Using sonar sensors located on the front and
rear bumpers, this system can detect if there
is danger of a potential collision with a wall
or other obstacle during normal driving or
when the accelerator pedal is depressed
with too much force. The system then assists
in avoiding collisions and reducing damage
from impact through assistive braking and/
or assistive driving power suppression.
* Not available on all models

36
Quick Reference Guide

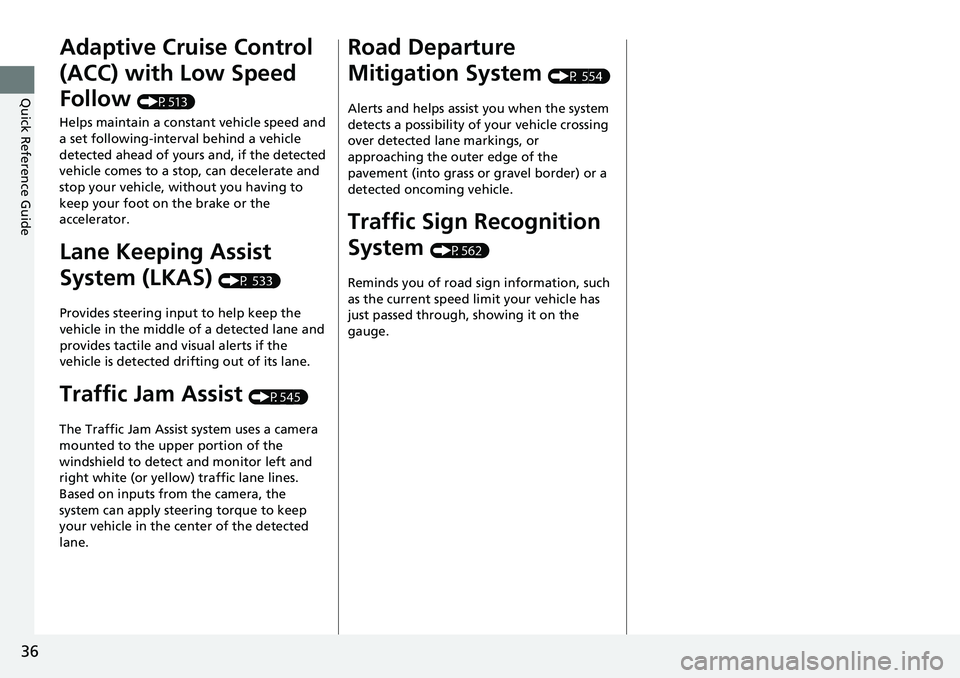

Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P513)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P 533)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Traffic Jam Assist (P545)
The Traffic Jam Assist system uses a camera
mounted to the uppe r portion of the
windshield to detect and monitor left and
right white (or yellow) traffic lane lines.
Based on inputs from the camera, the
system can apply steering torque to keep
your vehicle in the center of the detected
lane.
Road Departure
Mitigation System
(P 554)
Alerts and helps assist you when the system
detects a possibility of your vehicle crossing
over detected lane markings, or
approaching the outer edge of the
pavement (into grass or gravel border) or a
detected oncoming vehicle.
Traffic Sign Recognition
System
(P562)
Reminds you of road si gn information, such
as the current speed limit your vehicle has
just passed through, showing it on the
gauge.

37
Quick Reference Guide

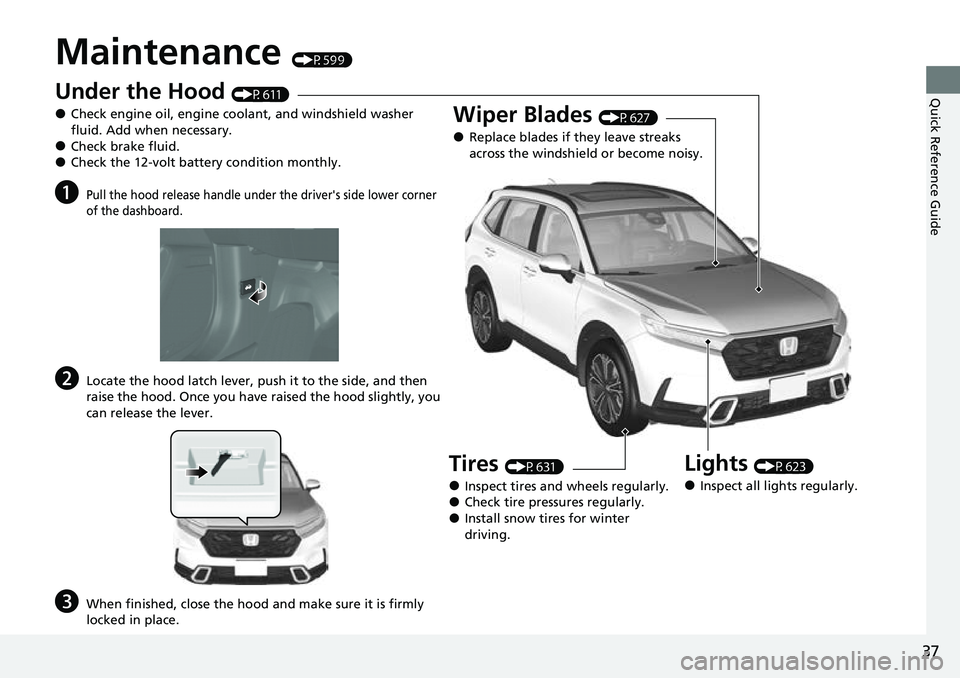

Maintenance (P599)
Under the Hood (P611)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the 12-volt battery condition monthly.
aPull the hood release handle under the driver's side lower corner
of the dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P623)
●Inspect all lights regularly.
Wiper Blades (P627)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P631)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.

38
Quick Reference Guide

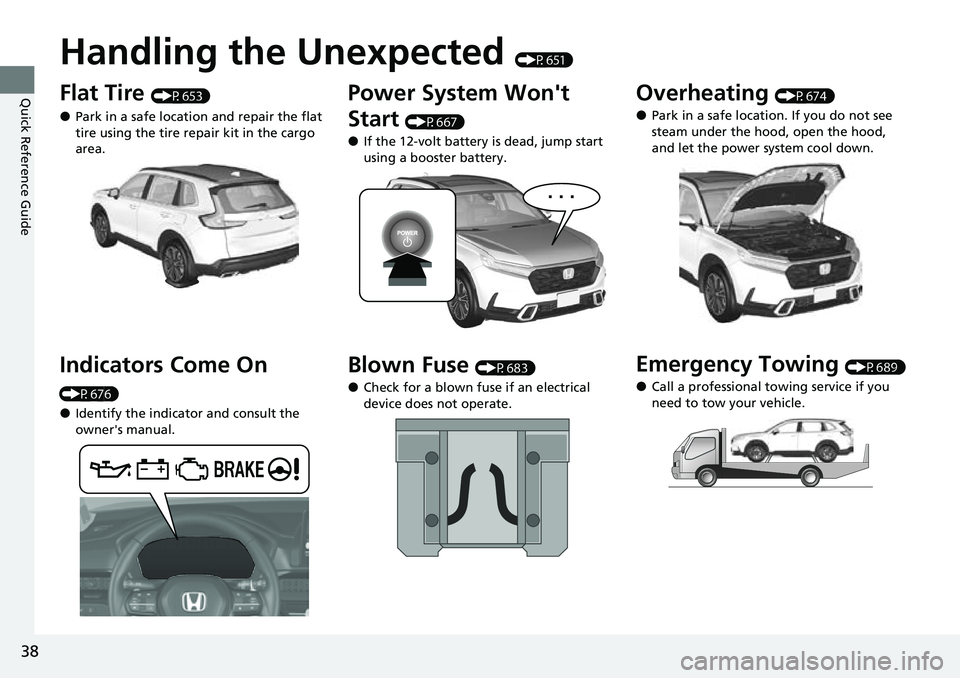

Handling the Unexpected (P651)
Flat Tire (P653)
●Park in a safe location and repair the flat
tire using the tire repair kit in the cargo
area.
Indicators Come On
(P676)
●Identify the indicator and consult the
owner's manual.
Power System Won't
Start
(P667)
●If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse (P683)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P674)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power system cool down.
Emergency Towing (P689)
●Call a professional towing service if you
need to tow your vehicle.

39
Quick Reference Guide

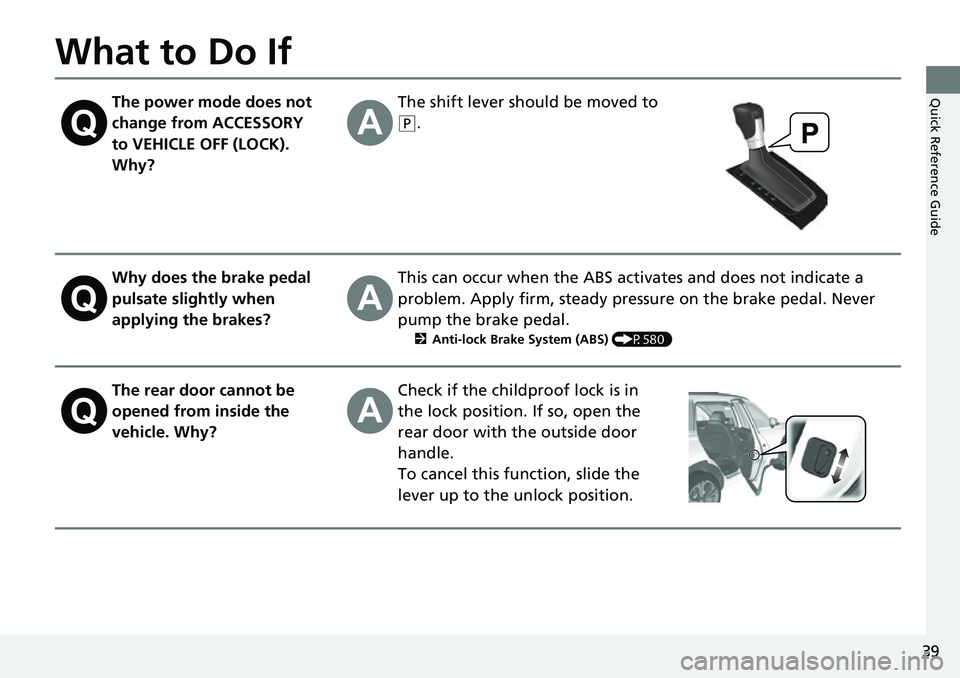

What to Do If
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?The shift lever should be moved to
(P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P580)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever up to the unlock position.
