TPMS HONDA CRV 2023 Owner's Manual

631
Maintenance

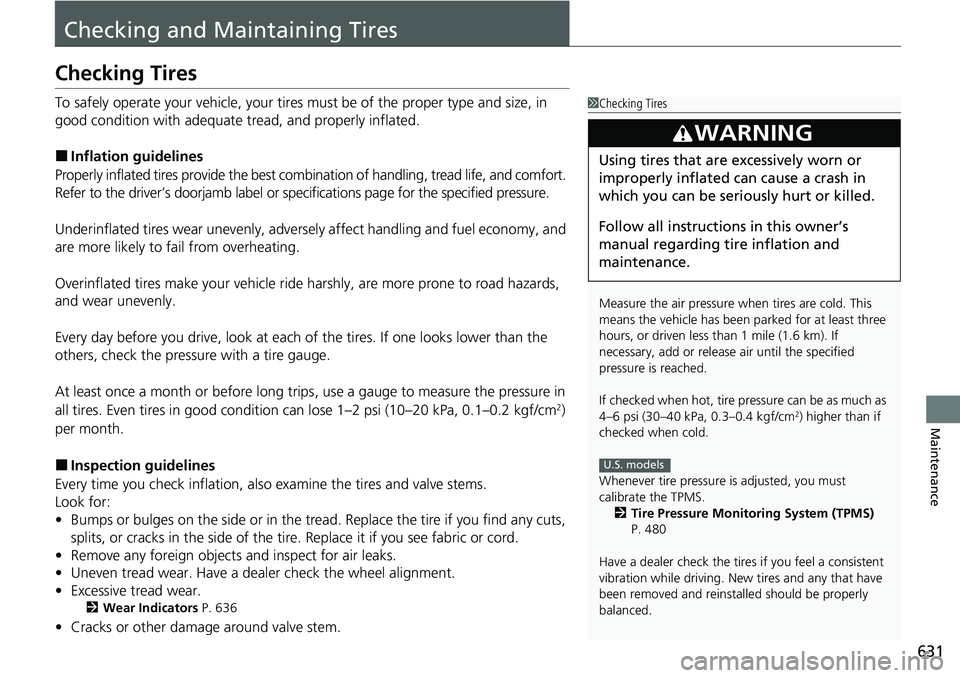

Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provid e the best combination of hand ling, tread life, and comfort.
Refer to the driver’s doorjamb label or spec ifications page for the specified pressure.
Underinflated tires wear unev enly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride ha rshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips , use a gauge to measure the pressure in
all tires. Even tires in good condition can lose 1–2 psi (10–20 kPa, 0.1–0.2 kgf/cm
2)
per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire . Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 636
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm
2) higher than if
checked when cold.
Whenever tire pressure is adjusted, you must
calibrate the TPMS. 2 Tire Pressure Monitoring System (TPMS)
P. 480
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding ti re inflation and
maintenance.
U.S. models

638
uuChecking and Maintaining Tires uTire Rotation
Maintenance

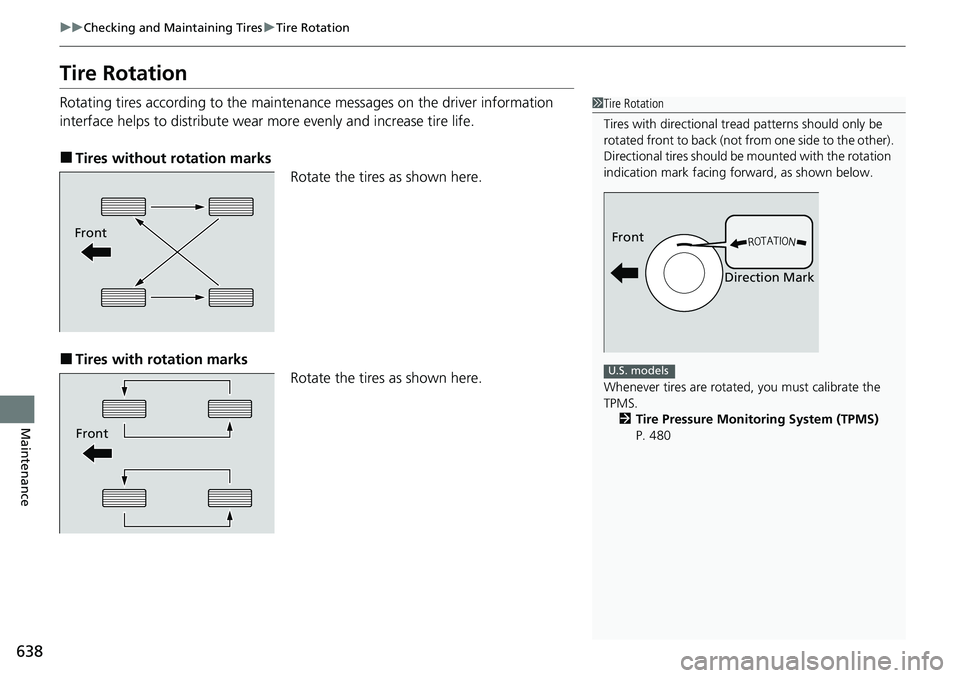

Tire Rotation
Rotating tires according to the maintena nce messages on the driver information
interface helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 Tire Pressure Monitoring System (TPMS)
P. 480
Front
Direction Mark
U.S. models
Front
Front

641
uu12-Volt Battery uCharging the 12-Volt Battery
Maintenance

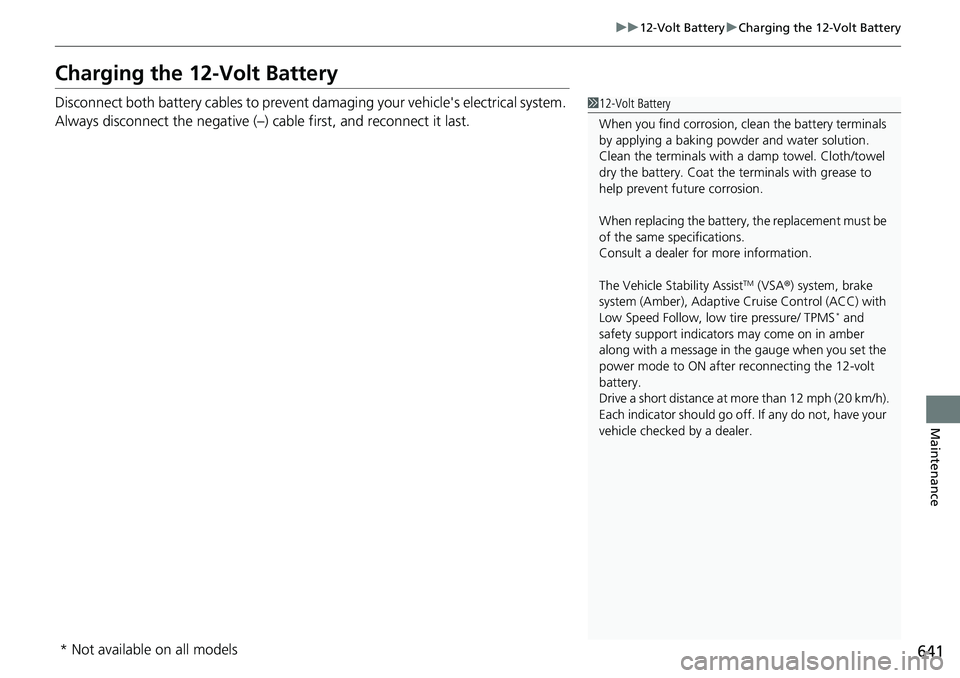

Charging the 12-Volt Battery
Disconnect both battery cables to prevent damaging your vehicle's electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.112-Volt Battery
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
The Vehicle Stability Assist
TM (VSA ®) system, brake
system (Amber), Adaptive Cruise Control (ACC) with
Low Speed Follow, low tire pressure/ TPMS
* and
safety support indicators may come on in amber
along with a message in the gauge when you set the
power mode to ON after reconnecting the 12-volt
battery.
Drive a short distance at mo re than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
* Not available on all models

651
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 652
If a Tire Goes Flat
Temporarily Repairi ng a Flat Tire....... 653
Handling of the Jack ......................... 666
Power System Won’t Start Checking the Procedure ................... 667
If the Keyless Remote Battery is Weak ... 668Emergency Power System On ........... 669
Emergency Power System Off........... 670
If the 12-Volt Battery Is Dead .......... 671
Shift Lever Does Not Move .............. 673
Overheating How to Handle Overheating ............. 674 Indicator, Coming On/Blinking
If the Engine oil pressure low Warning Appears ......................................... 676
If the 12-Volt Battery Charging System Indicator Comes On ....................... 677
If the Limited stopping power Warning
Appears ......................................... 677
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 678
If the Brake System Indicator (Red) Comes On or Blinks ................................... 679
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On.... 680
If the Electric Power Steering (EPS) System
Indicator Comes On ....................... 681
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 682
Fuses Fuse Locations ................................. 683
Inspecting and Changing Fuses ........ 687
Emergency Towing ........................... 689
If You Cannot Unlock the Fuel Fill Door... 690If You Cannot Open the Tailgate.......... 691Refueling................................................. 692
U.S. models

671Continued
Handling the Unexpected
If the 12-Volt Battery Is Dead
Jump Starting Procedure
Turn off the power to electric devices, such as audio and lights. Turn off the power
system, then open the hood. 1.Open the terminal cover on your vehicle’s
12-volt battery positive + terminal.
2. Connect the first jumper cable to your
vehicle's 12-volt battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u
When using an automotive battery charger
to boost your 12-volt battery, select a
lower charging voltage than 15-volt. Check
the charger manual for the proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
5. Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
7. Attempt to start your ve hicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
1 Jump Starting Procedure
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Be careful
not to tangle the jumper cables or allow the cable
ends to touch each other while attaching or
detaching the jumper cables.
12-volt battery performa nce degrades in cold
conditions and may prevent the engine from starting.
The Vehicle Stability Assist
TM (VSA ®) system, brake
system (Amber), Adaptive Cruise Control (ACC) with
Low Speed Follow, low tire pressure/TPMS
* and
Safety Support indicators may come on along with a
message in the gauge when you set the power mode
to ON after reconnecting the 12-volt battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
3WARNING
A 12-volt battery can explode if you do not
follow the correct procedure, seriously
injuring anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.
Booster Battery
* Not available on all models

682
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

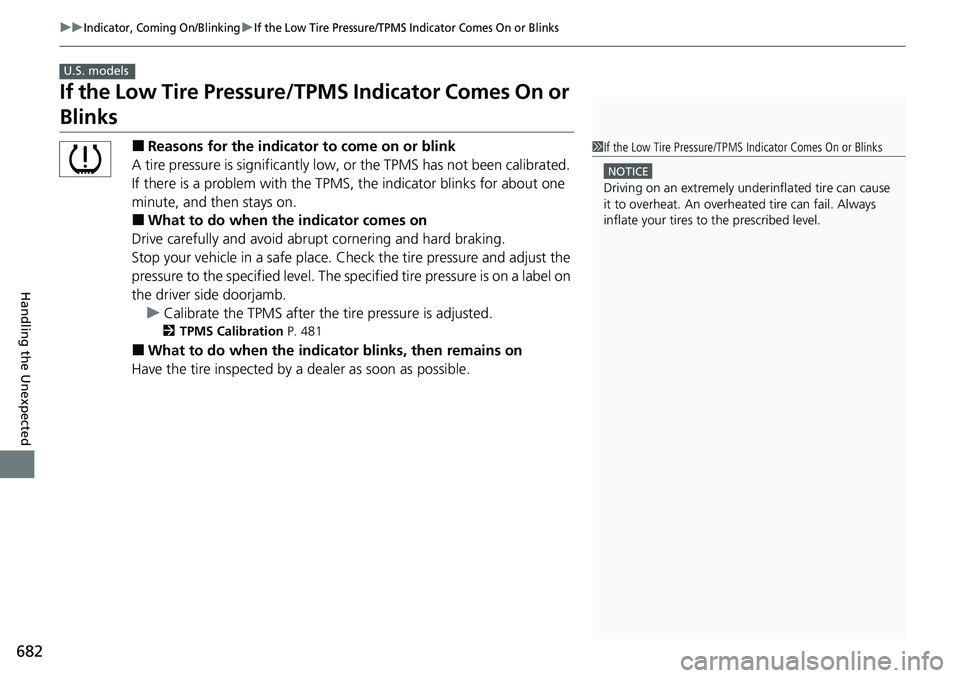

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is signifi cantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
2 TPMS Calibration P. 481
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible.
U.S. models
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

712
Index
Heating and Cooling SystemDust and Pollen Filter ............................... 643
HFL (HandsFreeLink ®)....................... 400, 420
High Beam Indicator ................................. 106
High Voltage Battery ................................ 491
Hill Descent Control System ..................... 474
Hill Descent Control System Indicator ..... 108
Hill Start Assist System .............................. 460
Honda App License Agreement ............... 349
Honda Sensing ®................................ 35, 492
HondaLink ®............................................. 320
HondaLink ® Assist ..................................... 437
Hybrid Vehicle SPORT HYBRID i-MMD (int elligent Multi-Mode
Drive) ....................................................... 13
I
Identification Numbers ............................ 696
Engine, Motor and Transmission .............. 696
Vehicle Identification ............................... 696
If the 12-Volt Battery Is Dead .................. 671
Immobilizer System .................................. 176
Indicator .................................................. 107
Indicators ..................................................... 96
12-Volt Battery Charging System ..... 101, 677
Adaptive Cruise Control (ACC) with Low
Speed Follow (Amber) ............................ 109
Adaptive Cruise Control (ACC) with Low Speed Follow (White/Green)........... 109, 514
Anti-lock Brake System (ABS) ................... 103 Auto High-Beam ..................................... 106
Automatic Brake Hold ..................... 101, 577
Automatic Brake Hold System ......... 101, 577
Cruise Mode (White/Green) ..................... 109
Deceleration Paddle Selector ................... 102
ECON Mode .................................... 108, 470
Electric Power Steering (EPS)
System .......................................... 104, 681
EV ........................................................... 100
High Beam .............................................. 106
Hill Descent Control System (White/Green)........................................ 108
Immobilizer System ................................. 107
Lane Keeping Assist System (LKAS)
(Amber) ................................................. 110
Lane Keeping Assist System (LKAS) (White/Green)........................................ 110
Lights On ................................................ 106
Low Fuel (Amber) .................................... 103
Low Tire Pressure/TPMS ... 105, 480, 485, 682
Malfunction Indicator Lamp............. 101, 678
NORMAL Mode ............................... 108, 470
Parking Brake a nd Brake System
(Amber) ......................................... 100, 680
Parking Brake a nd Brake System
(Red) ................................. 98, 99, 679, 680
POWER SYSTEM ...................................... 100
READY .................................................... 100
Safety Support (Amber) ........................... 111
Safety Support (Green/Gray) .................... 113
Seat Belt Reminder ............................ 51, 103 Security System Alarm............................. 107
Shift Position................................... 102, 465
SNOW Mode .................................. 108, 470
SPORT Mode................................... 108, 470
Supplemental Restraint System ......... 75, 104
System Message ..................................... 108
Transmission System ............................... 102
Turn Signal and Hazard Warning ............. 106
Vehicle Stability Assist
TM (VSA
®)
OFF ............................................... 105, 477
Vehicle Stability Assist
TM (VSA ®)
System .......................................... 104, 476
Information .............................................. 693
Instant Fuel Economy .............................. 122
Instrument Panel ........................................ 95
Interior Lights ........................................... 216
Interior Rearview Mirror ......................... 203
iPod ................................................... 251, 311
J
Jump Starting ........................................... 671

715
Index
S
Safe Driving................................................ 43
Safety Check ............................................... 48
Safety Labels .............................................. 93
Safety Message ............................................ 4
Safety Support ......................................... 130
Seat Belts .................................................... 49
Adjusting the Shoulder Anchor ................. 55
Automatic Seat Belt Tensioners ................. 53
Checking .................................................. 58
Detachable Anchor ................................... 56
Fastening .................................................. 54
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 86
Pregnant Women...................................... 57
Reminder .................................................. 51
Warning Indicator ............................. 51, 103
Seat Heaters ..................................... 230, 231
Seats .......................................................... 205
Adjusting ................................................ 205
Driver’s Seat Lumbar Support .................. 206
Front Seat Heaters .................................. 230
Front Seats.............................................. 205
Rear Seat Heaters.................................... 231
Rear Seats ............................................... 209
Security System ........................................ 176
Immobilizer System Indicator................... 107
Security System Alarm Indicator .............. 107
Selecting a Child Seat ................................ 83
Selector Knob (Audio) ............................. 246
Setting the Clock ...................................... 146 Settings
..................................................... 135
Shift Lever ................................................. 464
Operation ................................................ 465
Releasing ................................................. 673
Won’t Move ............................................ 673
Shift Position Indicator ..................... 102, 465
Shifting (Transmission) ............................. 464
Shoulder Anchor ......................................... 55
Side Airbags ................................................ 70
Side Curtain Airbags ................................... 73
Siri Eyes Free ............................................. 261
SiriusXM ® Radio ........................................ 300
Smart Shortcuts ........................................ 324
SNOW Mode ..................................... 108, 470
Snow Tires ................................................. 639
Spark Plugs ................................................ 694
Specifications ............................................ 694
Specified Fuel .................................... 595, 694
Speedometer ............................................ 114
SPORT HYBRID i-MMD (intelligent Multi-Mode Drive) ................ 13
SPORT Mode ..................................... 108, 470
SRS Airbags (Airbags) ................................. 62
Steering Wheel ......................................... 202
Adjusting ................................................. 202
Stopping .................................................... 582
Summer Tires ............................................ 639
Sunglasses Holder ..................................... 223
Supplemental Restraint System (SRS) ........ 62
Switches (Around the Steering Wheel) ........ 8, 9, 184System Message Indicator
........................ 108
System Updates ........................................ 284
T
Tailgate..................................................... 165
Unable to Open....................................... 691
Temperature Outside Temperature Display ................... 115
Temperature Sensor ......................... 115, 236
Temporary Repair Kit (TRK) ..................... 653
Time (Setting) ........................................... 146
Tire Pressure Monitoring System
(TPMS) ..................................................... 480
Indicator.................................................. 105
Tires ........................................................... 631
Air Pressure ..................................... 632, 695
Checking and Maintaining ...................... 631
Inspection ............................................... 631
Labeling .................................................. 632
Puncture (Flat Tire) .................................. 653
Regulations ............................................. 634
Rotation .................................................. 638
Summer .................................................. 639
Temporary Repair Kit (TRK) ...................... 653
Tire Chains .............................................. 639
Wear Indicators ....................................... 636
Winter..................................................... 639
Tools .......................................................... 652

716
Index
Towing a Trailer........................................ 447
Equipment and Accessories...................... 448
Load Limits .............................................. 447
Towing Your Vehicle ................................ 452
Behind a Motorhome............................... 452
Emergency............................................... 689
TPMS (Tire Pressure Monitoring System) ......... 480
Indicator .................................................. 105
Traffic Jam Assist ...................................... 545
Traffic Sign Recognition System ...... 115, 562
Transmission .............................................. 464
Creeping ................................................. 463
Fluid ........................................................ 620
Kickdown ................................................ 463
Number ................................................... 696
Operation .......................................... 31, 465
Shift Lever Does Not Move....................... 673
Shift Position Indicator ..................... 102, 465
Shifting.................................................... 464
Trip Computer ........................................... 275
Trip Meter ................................................. 122
TRK (Temporary Repair Kit) ..................... 653
Troubleshooting ....................................... 651
Blown Fuse ...................................... 683, 685
Brake Pedal Vibrates .................................. 39
Buzzer Sounds When Opening Door .......... 40
Emergency Towing .................................. 689
If the 12-Volt Battery Is Dead ................... 671
Noise When Braking .................................. 41
Overheating............................................. 674 Power System Won’t Start ....................... 667
Puncture/Flat Tire .................................... 653
Rear Door Won’t Open...................... 39, 163
Shift Lever Won’t Move ........................... 673
Warning Indicators .................................... 96
Turn Signals .............................................. 187
Indicators (Instrument Panel) ................... 106
Turning on the Power
Does Not Activate ................................... 667
Engine Switch Buzzer .............................. 185
If the 12-Volt Battery Is Dead................... 671
U
Unlocking the Doors ................................ 151
Unlocking the Front Doors
from the Inside ................................. 25, 161
USB Flash Drives ............... 238, 254, 314, 348
USB Ports ................................................... 239
Using the Keyless Access System ............. 151
V
Vanity Mirrors............................................. 11
Vehicle Identification Number ................ 696
Vehicle Stability Assist
TM (VSA ®) .............. 476
Off Button............................................... 477
OFF Indicator ........................................... 105
System Indicator ...................................... 104
Viscosity (Oil) .................................... 613, 695 Voice Control Operation
......................... 293
Audio Commands ................................... 294
General Commands ................................ 294
List Commands ....................................... 295
Navigation Commands............................ 295
Phone Commands .................................. 294
Standard Commands .............................. 295
Voice Portal Screen ................................. 294
Voice Recognition ................................... 293
VSA ® (Vehicle Stability Assist
TM).............. 476
W
Wallpaper ................................................. 276
Warning Indicator On/Blinking ............... 676
Warning Labels .......................................... 93
Warnings .................................................. 134
Warranties (Warranty Manual provided
separately) .............................................. 701
Watts ........................................................ 694
Wear Indicators (Tire) .............................. 636
Wi-Fi Connection ..................................... 327
Window Washers ..................................... 196
Adding/Refilling Fluid .............................. 622
Switch .................................................... 196
Windows (Opening and Closing) ............ 179
Windshield ............................................... 196
Cleaning ......................................... 644, 647
Defrosting/Defogging ............................. 234
Washer Fluid ........................................... 622
Wiper Blades........................................... 627
