On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This comes on with the high beam
headlights. See page f or
inf ormation on the headlight
controls.
Thiscomesonasareminderthat
you must ref uel soon.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicator does not
blink or blinks rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
Thiscomesonwhenyousetthe
cruise control. See page f or
inf ormation on operating the cruise
control.
WhenyouturnontheHazard
Warning button, both turn signal
indicators blink. All turn signals on
the outside of the vehicle should
flash. 167
10762
62
Canadian models only
On EX models
Inst rument s and Cont rols
Instrument Panel
Turn Signal and Hazard Warning
Indicators ‘‘Daytime Running
Lights’’ Indicator
High Beam Indicator
Low Fuel Indicator
Cruise Control Indicator
56
—
—y
y
(+
y
y

Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area or pull a trailer, a
readjustment may be required.
Adjustments should be perf ormed by
a Honda dealer or other qualif ied
mechanic.Open the hood.
If you need to change the
headlight bulb on the driver’s side,
remove the f ront end of the air
intake duct by pulling it out.
Your vehicle has halogen headlight
bulbs. Handle it by its steel base and
protect the glass f rom contact with
your skin or hard objects. If you
touch the glass, clean it with
denaturedalcoholandacleancloth.
1.
Headlight A iming Replacing a Headlight Bulb
Lights
Maint enance166
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
—
—y
y
(+
y

y

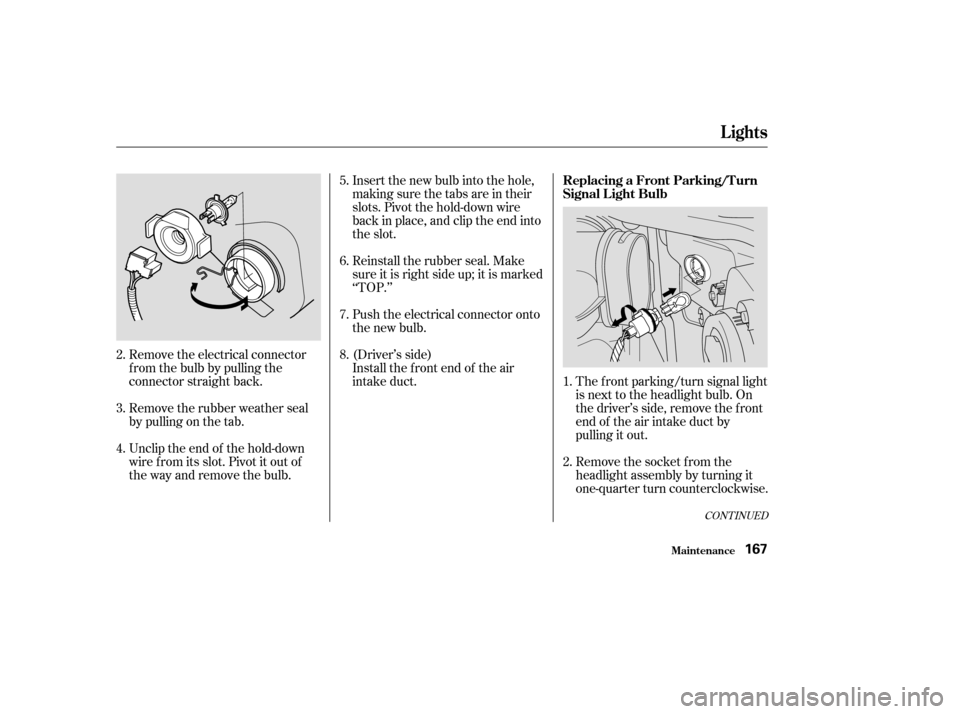

Remove the electrical connector
f rom the bulb by pulling the
connector straight back.
Remove the rubber weather seal
by pulling on the tab.
Unclip the end of the hold-down
wire f rom its slot. Pivot it out of
the way and remove the bulb.Insert the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
Reinstall the rubber seal. Make
sure it is right side up; it is marked
‘‘TOP.’’
The f ront parking/turn signal light
is next to the headlight bulb. On
the driver’s side, remove the f ront
end of the air intake duct by
pulling it out.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Push the electrical connector onto
the new bulb.
(Driver’s side)
Install the f ront end of the air
intake duct. 1.
2. 3. 4. 5. 6. 7. 8.
2.
CONT INUED
Replacing a Front Parking/Turn
Signal Light Bulb
Lights
Maint enance167
—
—y
y
(+
y
y

Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
(Driver’s side)
Install the f ront end of the air

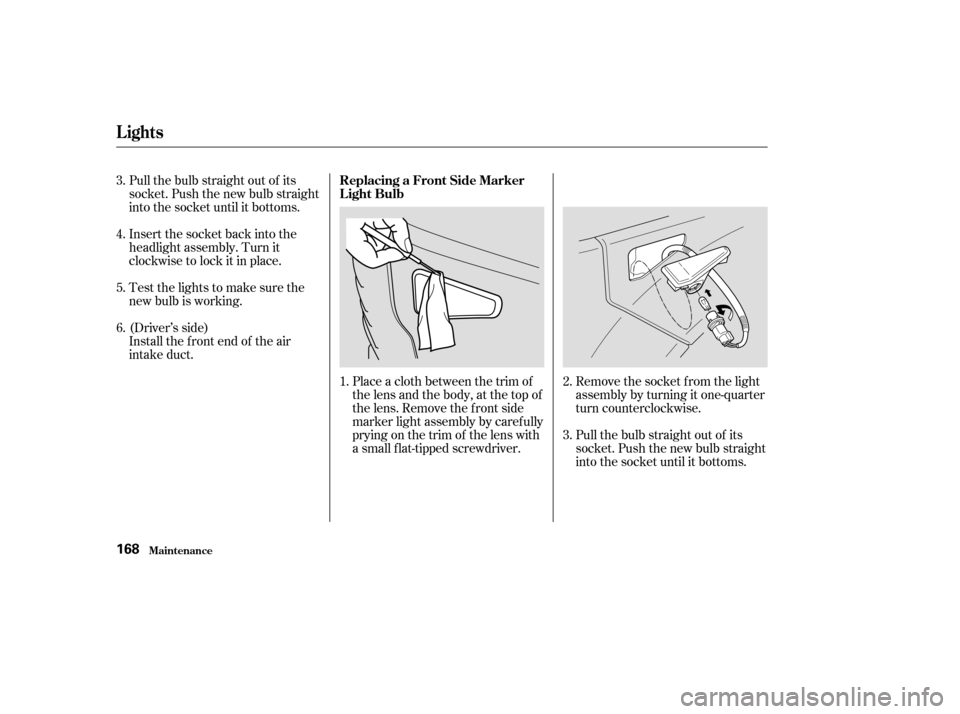

intake duct.Place a cloth between the trim of
the lens and the body, at the top of
the lens. Remove the front side
marker light assembly by caref ully
prying on the trim of the lens with
a small f lat-tipped screwdriver.Remove the socket f rom the light
assembly by turning it one-quarter
turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
1.
3. 4.5.
2.3.
6. Replacing a Front Side Marker
Light Bulb
Lights
Maint enance168
—
—y
y
(+
y
y
