If your f uel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message
appears as text in the odometer/trip
meter display after you start the
engine. Turn the engine of f and
conf irm the f uel cap is installed. If it
is, loosen the cap, then retighten it at
least 3 clicks. When you restart the
engine, the message appears again.
To clear the message, press and hold
the select/reset button until the
message is replaced the odometer/
trip meter display.This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. Turn to
page f or instructions and
precautions on checking the engine’s
cooling system.
If the system still detects a loose or
missing f uel cap, the malf unction
indicator lamp (MIL) comes on.
Turn the engine of f and check or
retighten the f uel cap at least 3 clicks.
The MIL goes out af ter 3 days of
normal driving once the cap is
tightened or replaced. If it does not
go out, have your dealer inspect the
vehicle. For more inf ormation, see
page .
210 207
Gauges
Check Fuel Cap Indicator
(odometer/trip meter message) Temperature Gauge
Inst rument s and Cont rols
59

Î
Î
To use the horn, press the center pad of the steering wheel.
:

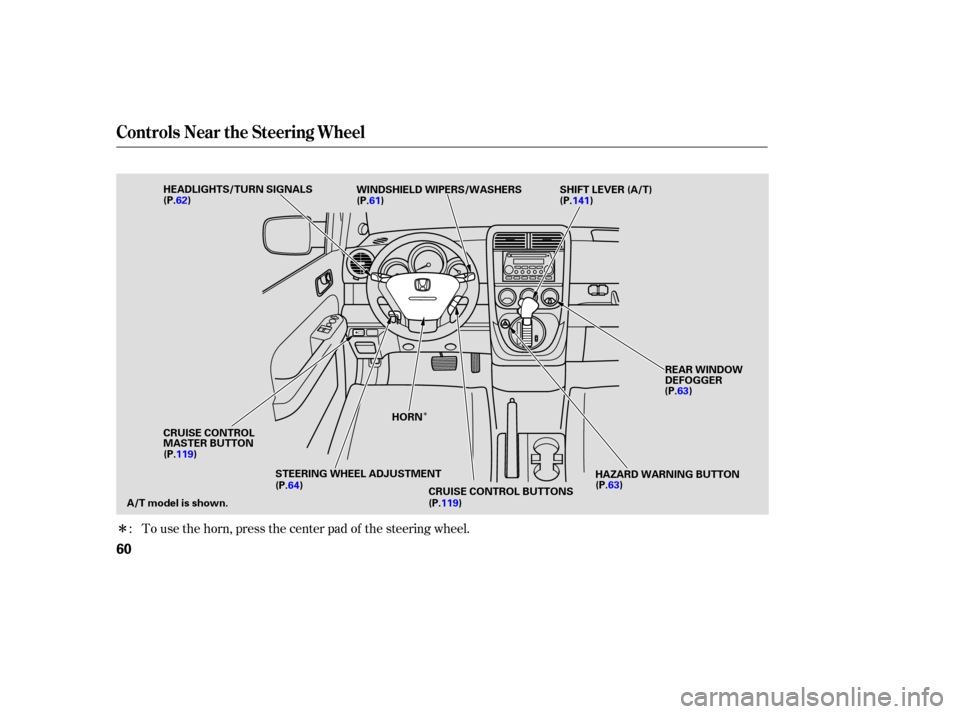

Controls Near the Steering Wheel
60
HEADLIGHTS/TURN SIGNALS
REAR WINDOW
DEFOGGER
SHIFT LEVER (A/T)
STEERING WHEEL ADJUSTMENT HAZARD WARNING BUTTON
HORN
(P.62)
(P.64)(P.
61)
(P.63)
(P.63)
WINDSHIELD WIPERS/WASHERS
(P.141)
A/T model is shown. (P.119)
CRUISE CONTROL
MASTER BUTTON
CRUISE CONTROL BUTTONS
(P.119)

µ
µ
µ
µ
µ
µ µ
µ
µ

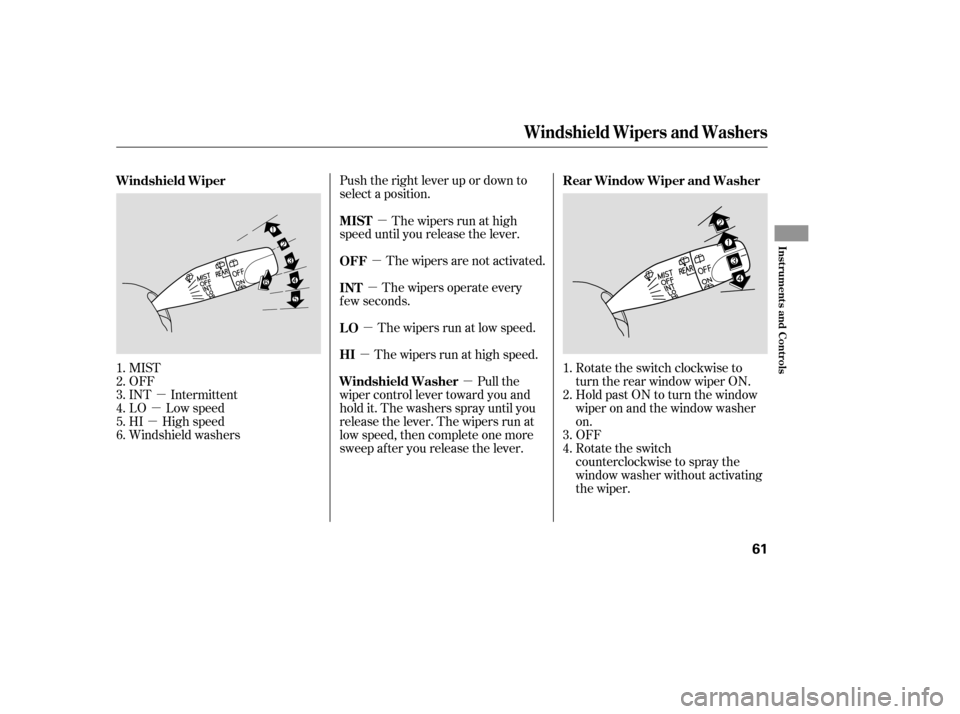

Push the right lever up or down to
select a position.
The wipers are not activated.
The wipers run at low speed.
The wipers run at high speed. Rotate the switch clockwise to
turn the rear window wiper ON.
OFF
Rotate the switch
counterclockwise to spray the
window washer without activating
the wiper.
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers The wipers run at high
speed until you release the lever.
The wipers operate every
f ew seconds.
Pull the
wiper control lever toward you and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever. Hold past ON to turn the window
wiper on and the window washer
on.
1.
2.
3.
4.
5.
6. 1.
2.
3.
4.
Windshield Wiper
OFF
LO
HIRear Window Wiper and Washer
MIST
INT
Windshield Washer
Windshield Wipers and Washers
Inst rument s and Cont rols
61

µ
µ µ

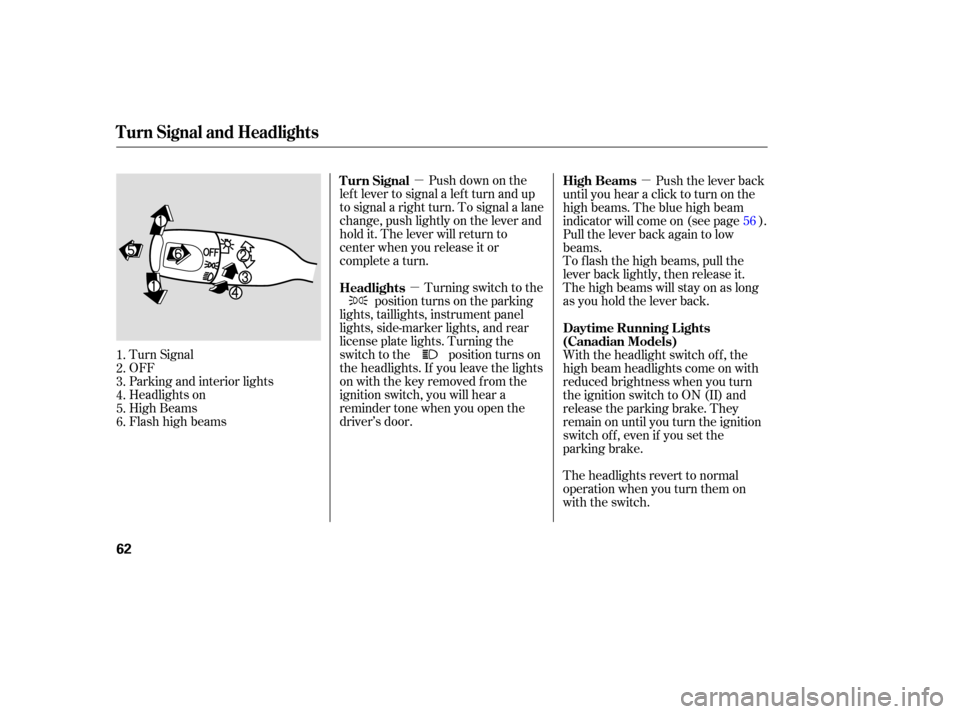

Push down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn. To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Turn Signal
OFF
Parking and interior lights
Headlights on
High Beams
Flashhighbeams Turning switch to the
position turns on the parking
lights, taillights, instrument panel
lights, side-marker lights, and rear
license plate lights. Turning the
switch to the position turns on
the headlights. If you leave the lights
on with the key removed from the
ignition switch, you will hear a
reminder tone when you open the
driver’s door. Push the lever back
untilyouhearaclicktoturnonthe
high beams. The blue high beam
indicator will come on (see page ).
Pull the lever back again to low
beams.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
switch of f , even if you set the
parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
1.
2.
3.
4.
5.
6. 56
Turn Signal
Daytime Running L ights
Headlights High Beams
(Canadian Models)
Turn Signal and Headlights
62

Push the button next to the shift
levertoturnonthehazardwarning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both turn indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traf f ic, or if your vehicle is disabled.The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle.
Push the button in the speedometer
repeatedly to adjust the brightness
of the instrument panel lights. There
are six brightness levels. A segment
display shows the current brightness
level.
CONT INUED
Instrument Panel Brightness
Rear Window Def ogger
Hazard Warning Button
Instrument Panel Brightness, Hazard Warning Button, Rear Window Def ogger
Inst rument s and Cont rols
63

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,

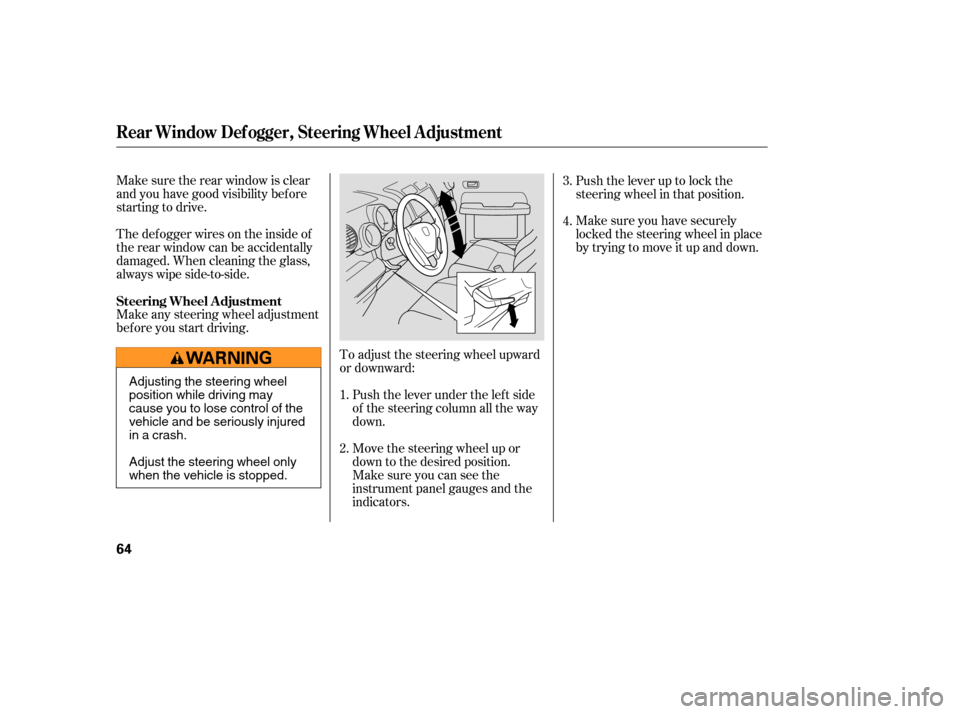

always wipe side-to-side.Push the lever up to lock the
steering wheel in that position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up and down.
Make any steering wheel adjustment
bef ore you start driving. Push the lever under the lef t side
of the steering column all the way
down.
To adjust the steering wheel upward
or downward:
Move the steering wheel up or
down to the desired position.
Make sure you can see the
instrument panel gauges and the
indicators.
1.
2. 3.
4.
Steering Wheel A djustment
Rear Window Def ogger, Steering Wheel A djustment
64
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.

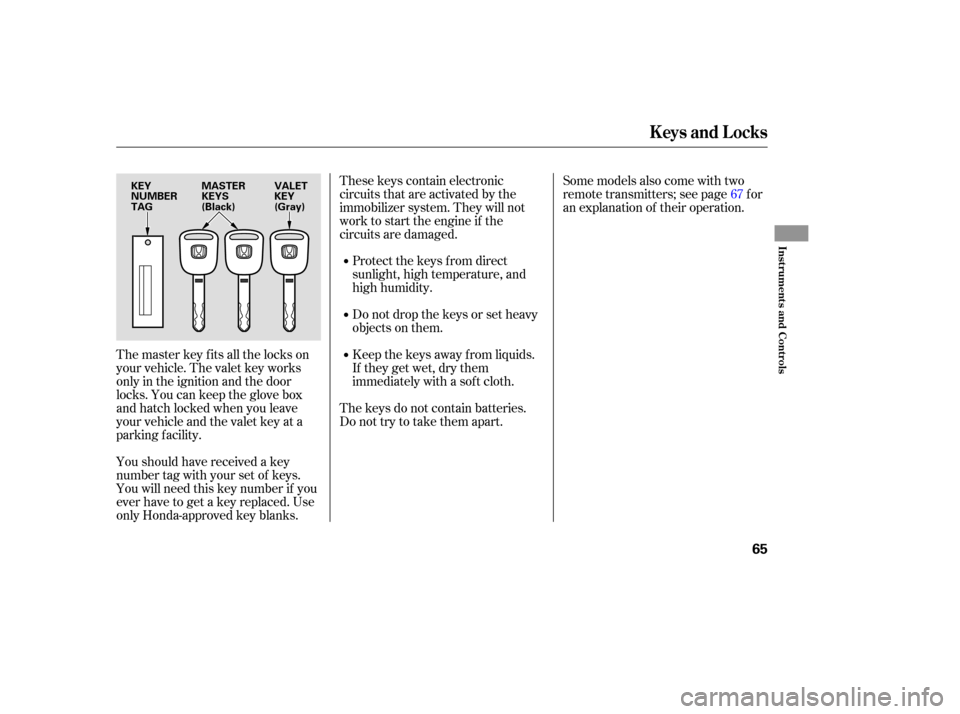

The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the door
locks. You can keep the glove box
and hatch locked when you leave
your vehicle and the valet key at a
parking f acility.Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The keys do not contain batteries.
Do not try to take them apart. Some models also come with two
remote transmitters; see page for
an explanation of their operation.
Youshouldhavereceivedakey
number tag with your set of keys.
You will need this key number if you
ever have to get a key replaced. Use
only Honda-approved key blanks. These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.
67
Keys and Locks
Inst rument s and Cont rols
65
KEY
NUMBER
TAG
MASTER
KEYS
(Black) VALET
KEY
(Gray)

If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.
If you have lost your key and cannot
start your engine, contact your
dealer.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
f ob) is near the ignition switch when
you insert the key. The immobilizer system protects
your vehicle f rom thef t. If an
improperly-coded key (or other
device) is used, the engine will not
start.
When you turn the ignition switch to
ON (II), the immobilizer system
indicator should come on f or a f ew
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.As required by the FCC: This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Immobilizer Syst em
66

µµ
µ

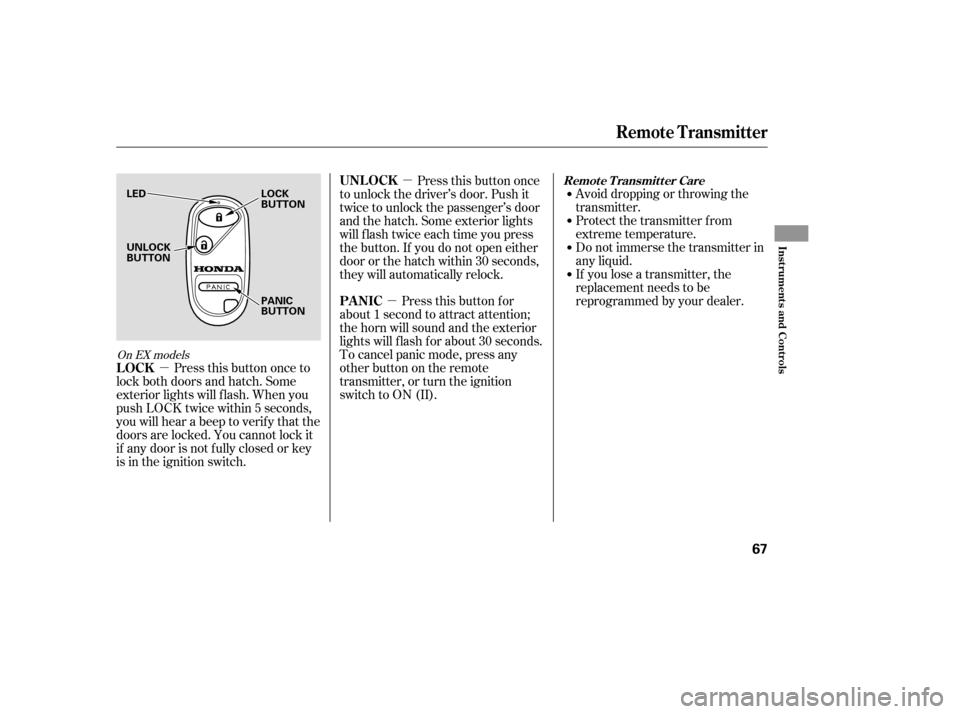

Press this button once to
lock both doors and hatch. Some
exterior lights will f lash. When you
push LOCK twice within 5 seconds,
you will hear a beep to verify that the
doors are locked. You cannot lock it
if any door is not f ully closed or key
is in the ignition switch. Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
Press this button once
to unlock the driver’s door. Push it
twice to unlock the passenger’s door
and the hatch. Some exterior lights
will f lash twice each time you press
the button. If you do not open either
door or the hatch within 30 seconds,
they will automatically relock.
Pressthisbuttonfor
about 1 second to attract attention;
thehornwillsoundandtheexterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to ON (II).
On EX models
Remote Transmitter
LOCK UNL OCK
PA NIC
Remote Transmitter Care
Inst rument s and Cont rols
67
UNLOCK
BUTTON LED
LOCK
BUTTON
PANIC
BUTTON

´
Õ Ü
If it takes several pushes on the
button to lock or unlock the doors
and the hatch, replace the battery as
soon as possible.

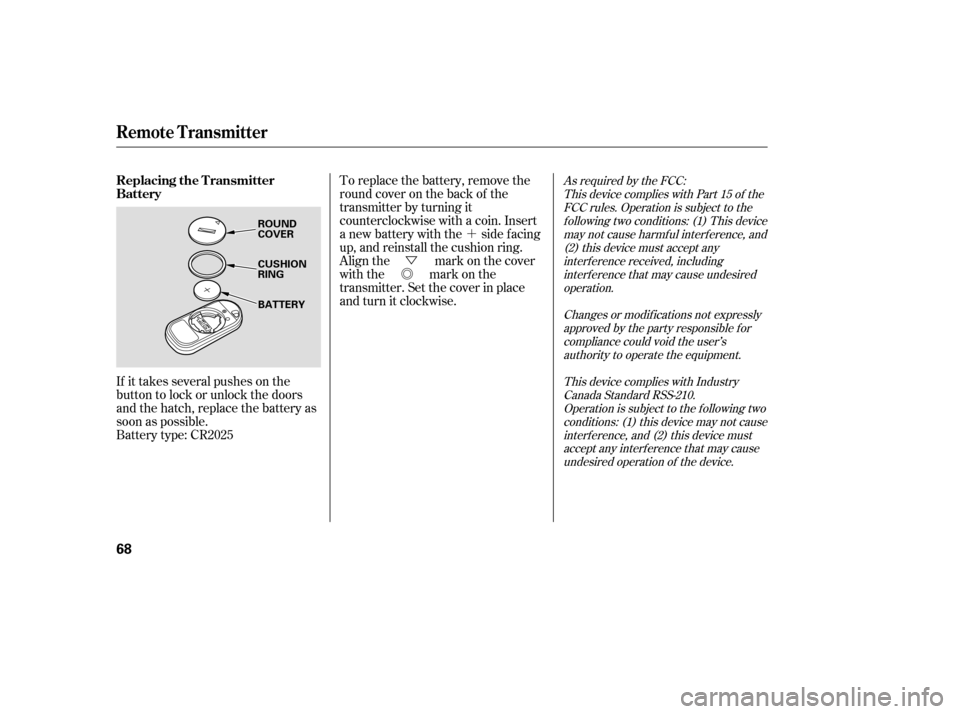

Battery type: CR2025 To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up, and reinstall the cushion ring.
Align the mark on the cover
with the mark on the
transmitter. Set the cover in place
andturnitclockwise.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Remote Transmitter
Replacing the Transmitter
Battery
68
ROUND
COVER
CUSHION
RING
BATTERY
