HONDA ELEMENT 2005 1.G Owners Manual

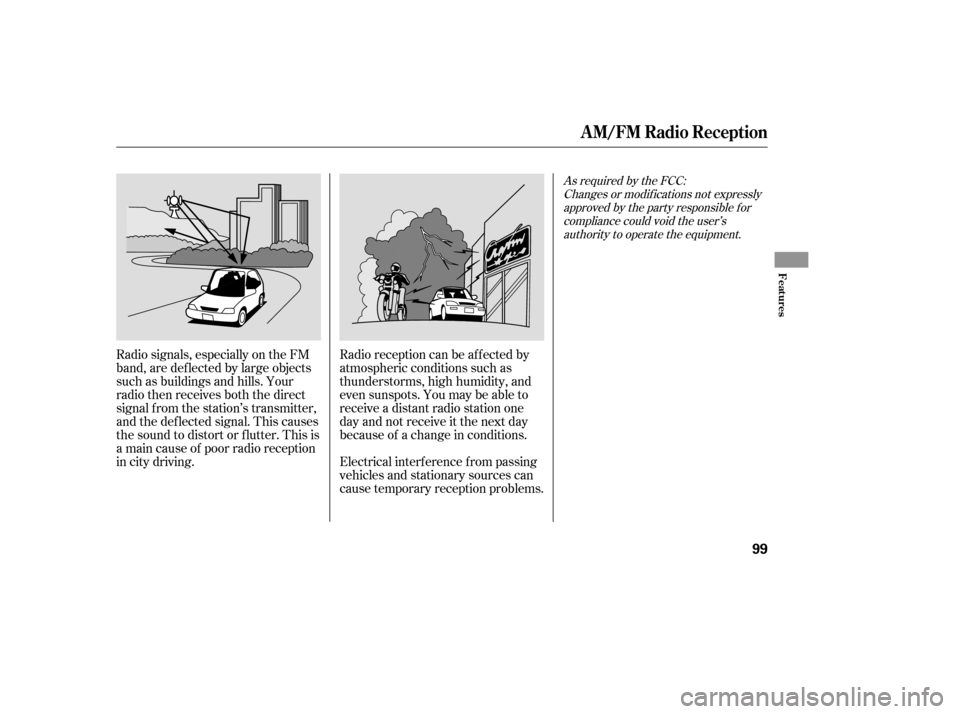

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
A M/FM Radio Recept ion
Features
99

Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States, except Hawaii and
Alaska.
XM
is a registered trade mark of
XM Satellite Radio, Inc.
Satellite radio is only available on U.S.
models.
U.S. EX models
Satellite Digital Radio
Playing the XM Satellite Radio
100
TUNE
KNOB
PWR/VOL
KNOB
CATEGORY INDICATOR
CATEGORY
BUTTONS
XM BUTTON
SCAN
BUTTON PRESET
BUTTONSCHANNEL
INDICATOR
DISPLAY BUTTON
TM

µµPress and release this
button to change the display. The
display will change in the f ollowing
sequence: channel name, channel
number, category, artist name, and
music title. Turn the TUNE knob to
change channels. Turn the knob
right f or higher numbered channels
and lef t f or lower numbered
channels.
To listen to XM radio, turn the
ignition switch to ACCESSORY (I)
or ON (II). Push the PWR/VOL
knob to turn on the audio system,
and press the ‘‘XM’’ button. Adjust
the volume by turning the PWR/
VOL knob. The last channel you
listened to will show in the display.
When in the satellite radio mode,
you can use any of three methods to
f ind channels: TUNE, SEEK/SKIP
(CATEGORY), and SCAN. To change between channel mode
and category mode, press and hold
the DISP button.
CONT INUED
Playing the XM Satellite Radio
DISP
T UNE
T o Select a Channel To Play XMSatellite Radio
Features
101
TM

µ
µ
µThe scan f unction samples
all channels f or 5 seconds. To
activate the f unction, push the SCAN
button. Push it again to get out of the
sequence.
Use the TUNE, SEEK or SCAN
function to tune the radio to a
desired channel.
The
SEEK/SKIP f unction selects the
various categories in XM, such as
Jazz/Blues, Rock, Classical, etc.
Push the to change the
category f orward. Push the to
change the category backward. To
search f or channels within a
category, turn the TUNE knob
clockwise. Each preset button can
store one channel in XM1 and one in
XM2. Push the XM button. (You will see
XM1 or XM2.)
Pick a preset button and hold it
until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations each on XM1 and
XM2.
1.
2.
3.
4. SCAN
SEEK /SK IP (CA T EGORY)
Preset
Playing the XM Satellite Radio
102
TM

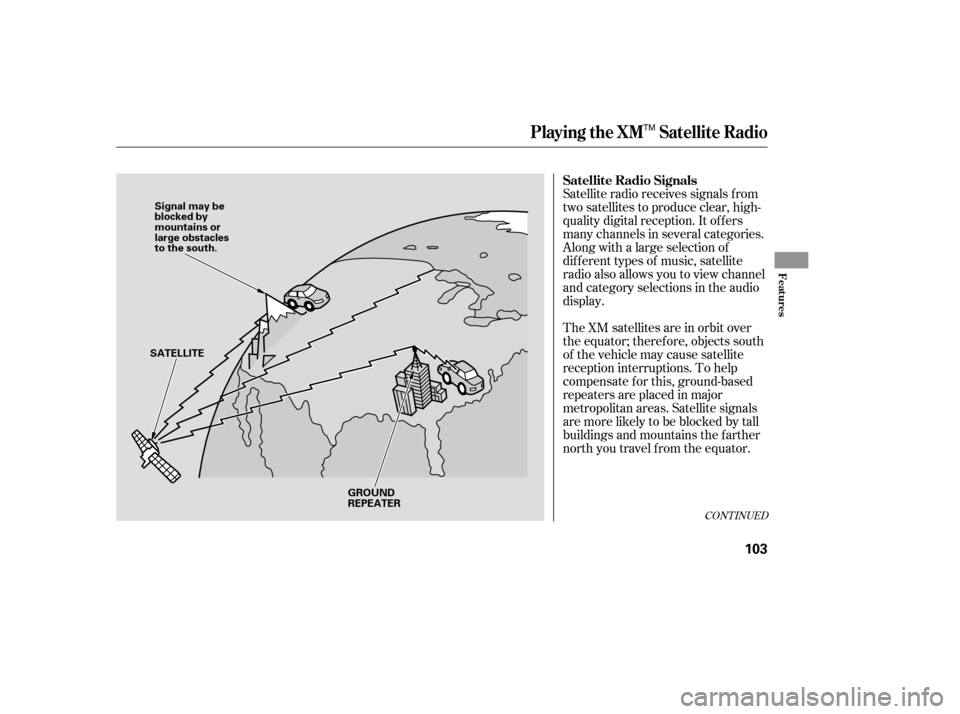

Satellite radio receives signals f rom
two satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, satellite
radio also allows you to view channel
and category selections in the audio
display.
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas. Satellite signals
aremorelikelytobeblockedbytall
buildings and mountains the f arther
north you travel f rom the equator.
CONT INUED
Satellite Radio Signals
Playing the XM Satellite Radio
Features
103
Signal may be
blocked by
mountains or
large obstacles
to the south.
SATELLITE
GROUND
REPEATER
TM

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Drivingonaneast/westroadwith
a mountain on the south side of
the road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you. Driving on the lower level of a
multi-tiered road. Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you. Driving in the tunnels.
Driving on the north side of a
large commercial truck on an
east/west road.
There may be other geographic
situations that could af f ect XM radio
reception. Cargo on a roof rack. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
preview of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or ON (II) position, push the
PWR/VOL knob to turn on the audio
system and press the XM button. An
XM Radio preview will play.As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.Receiving Satellite Radio Service
Playing the XM Satellite Radio
104
TM

If you decide to purchase XM
Satellite Radio service, contact XM
Radio at, or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number.
Turn the TUNE knob until
‘‘0’’ appears in the display. Your I.D.
will appear in the display.
Af ter you have registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
f or activation. This should take about
30 minutes. While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, ‘‘category’’
or ‘‘CH’’ will appear in the display,
andyou’llbeabletolistentoXM
Radio broadcasts. XM Radio will
continue to send an activation signal
to your vehicle for at least 12 hours
from the activation request. If the
service has not been activated after
36 hours, contact XM Radio.
www.xmradio.com
Playing the XM Satellite Radio
To get your XM Satellite radio ID
number:Features
105
TM

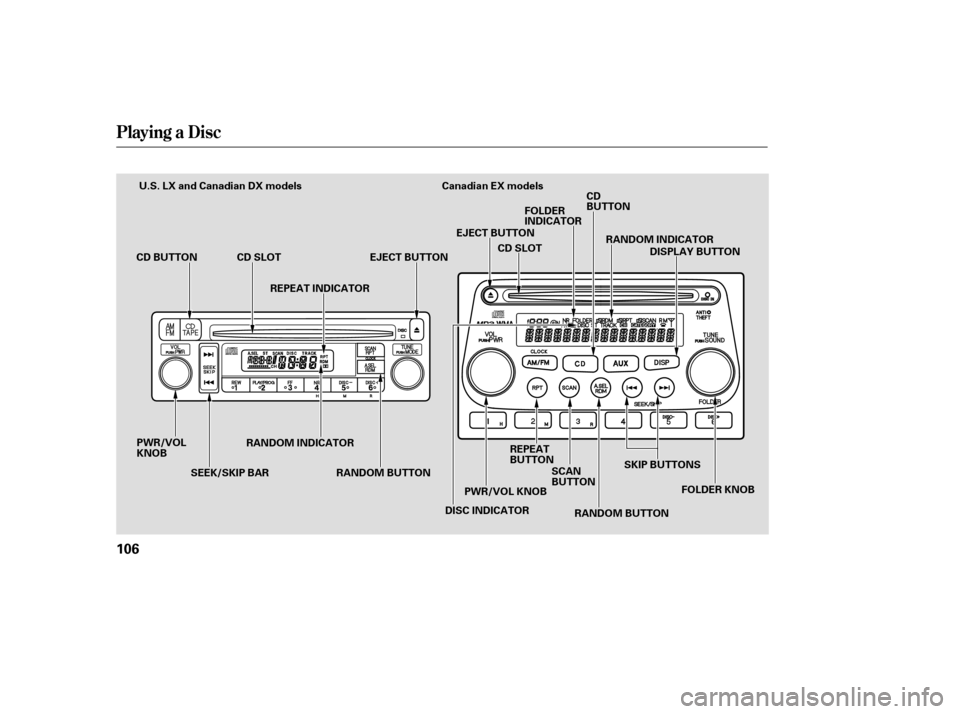

Playing a Disc
106
PWR/VOL
KNOB
CD BUTTON
REPEAT INDICATOREJECT BUTTON
CD SLOT
SEEK/SKIP BAR SKIP BUTTONS
EJECT BUTTON
CD SLOT
PWR/VOL KNOB
RANDOM INDICATOR
RANDOM BUTTON
RANDOM BUTTONRANDOM INDICATOR
DISPLAY BUTTON
FOLDER KNOB
CD
BUTTON
FOLDER
INDICATOR
REPEAT
BUTTON SCAN
BUTTON
DISC INDICATOR
U.S. LX and Canadian DX models
Canadian EX models

Playing a Disc
Features
107
CD BUTTONSKIP BUTTONS
EJECT BUTTON
CD SLOT
PWR/VOL KNOB RANDOM INDICATOR
FOLDER INDICATOR
DISC INDICATOR
REPEAT
BUTTONSCAN
BUTTON DISPLAY BUTTON
FOLDER KNOB
RANDOM BUTTON

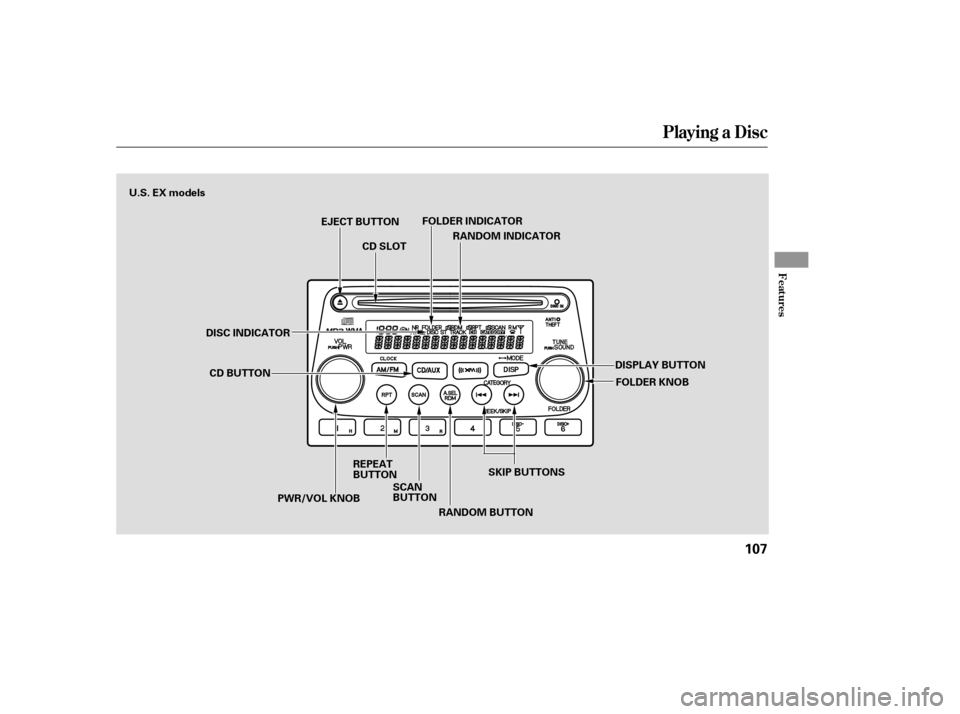

U.S. EX models

To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.The disc player can also play CD-Rs
WMA f iles, and CD-RWs
compressed in MP3 standard. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. You can select
up to f olders or tracks.Video CDs and DVDs will not work
in this unit.
The specif ications of the compatible
MP3 f ile are:
Sampling f requency: 32/44.1/48 kHz
Bit rate: 8/16/24/32/40/48/56/64/
80/96/112/128/160/192/224/256/
320 kbps
Compatible with variable bit rate and
multi-session.
Maximum layers (including ROOT):
8
Because the compressed audio
format of MP3 and WMA discs
allows them to store large
amounts of f iles and tagging
inf ormation, these discs may take
more time to begin playing.
The sound quality of MP3 and
WMA discs generally degrades as
the bit rate increases.
If a f ile on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio
unit displays FORMAT, and then
skips to the next f ile.
You operate the disc player with the
same controls used f or the radio. To
select the disc player, press the CD/
AUX button. You will see ‘‘CD’’ in the
display. The number of the track
playing is shown in the display. The
system will continuously play a disc
until you change modes.
255
On EX models
Playing a Disc
To Play a Disc
Note:
108
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
