This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .52
............................
Instrument Panel .53
..........
Instrument Panel Indicators .54
.............................................
Gauges .58
...................................
Trip Meter .58
.....................................
Odometer .58
..................................
Fuel Gauge .59
..........
Check Fuel Cap Indicator .59
...................
Temperature Gauge .59
Controls Near the Steering .......................................
Wheel .60
.
Windshield Wipers and Washers .61
...........
Turn Signal and Headlights .62
........
Instrument Panel Brightness .63
.................
Hazard Warning Button .63
.................
Rear Window Def ogger .63
..........
Steering Wheel Adjustment .64
...............................
Keys and Locks .65
........................
Immobilizer System .66
.......................
Remote Transmitter .67
................................
Ignition Switch .69
......................................
Door Locks .70
......................
Power Door Locks .70
..................................
Rear Doors .70
............................................
Hatch .71
........................................
Tailgate .72.................................................
Seats .73
........................
Seat Adjustments .73
Driver’s Seat Height ..............................
Adjustment .74
...................
FrontSeatArmrests .74
..........................
Head Restraints .75
........................
Rear Seat Access .75
..........
Reclining the Front Seats .76
...............
Folding the Rear Seats .77
..........
Removing the Rear Seats .79
..............................
Power Windows .81
.............................................
Mirrors .82
....
Adjusting the Power Mirrors .82
.................................
Rear Windows .83
.................................
Parking Brake .83
............................................
Skylight .83
...........
Interior Convenience Items .86
.......................
Beverage Holders .87
..........
Accessory Power Sockets .87
....................................
Glove Box .87
.................................
Interior Lights .88
................................
Ceiling Light .88
........................
Cargo Area Light .88
.....................................
Spotlights .88
..................
Ignition Switch Light .88
Instruments and Controls
Inst rument s and Cont rols
51

Control L ocations
52

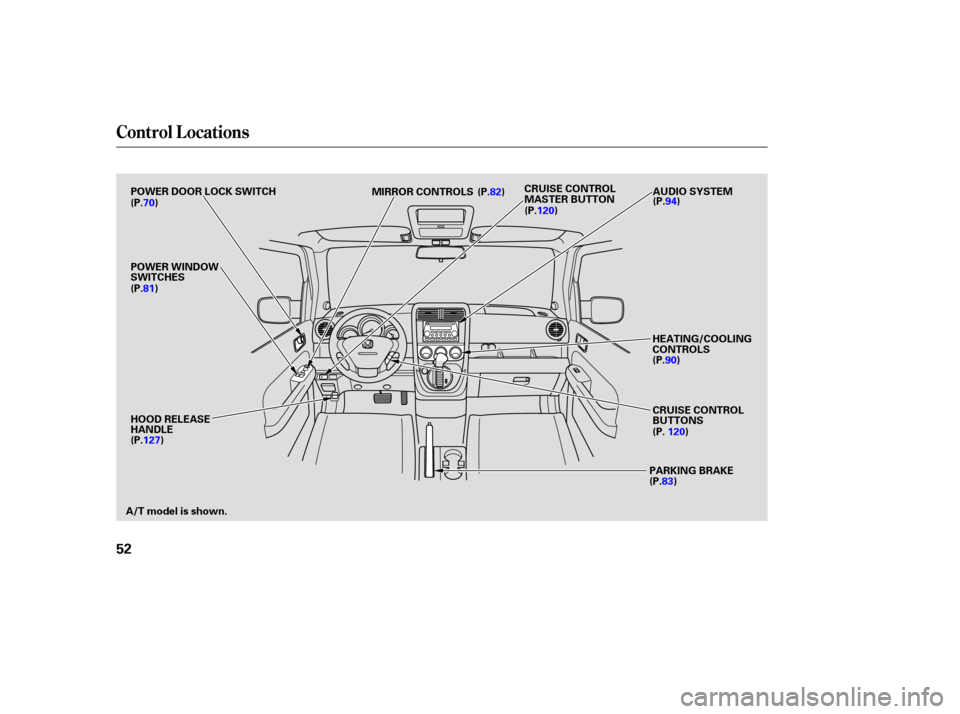

POWER DOOR LOCK SWITCHAUDIO SYSTEM
A/T model is shown. HOOD RELEASE
HANDLE POWER WINDOW
SWITCHES
HEATING/COOLING
CONTROLS
(P.70)
(P.81)
(P.82)
(P.94)
(P.90)
MIRROR CONTROLS
PARKING BRAKE
(P.83)
CRUISE CONTROL
MASTER BUTTON
CRUISE CONTROL
BUTTONS
(P.127) (P.120)
(P.120)

Î
ÎThe U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
53

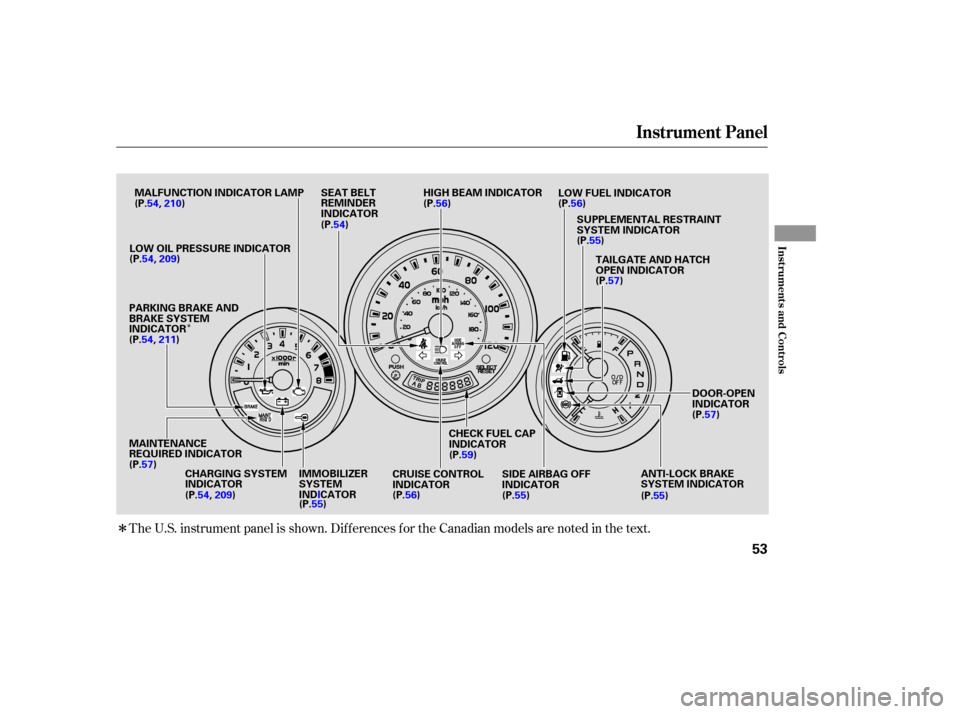

IMMOBILIZER
SYSTEM
INDICATOR
MAINTENANCE
REQUIRED INDICATOR DOOR-OPEN
INDICATOR
CRUISE CONTROL
INDICATOR
LOW OIL PRESSURE INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
CHARGING SYSTEM
INDICATOR LOW FUEL INDICATOR
HIGH BEAM INDICATOR
TAILGATE AND HATCH
OPEN INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
MALFUNCTION INDICATOR LAMP
ANTI-LOCK BRAKE
SYSTEM INDICATOR
SEAT BELT
REMINDER
INDICATOR
SIDE AIRBAG OFF
INDICATOR
(P.57)
(P.55)(P.
56)
(P.55)
(P.55)(P.57)
(P.57)
(P.55)
(P.56)
(P.56)
(P.54)
(P.54,
210)
(P.54, 209)
(P.54,
211)
(P.54,
209)
CHECK FUEL CAP
INDICATOR(P. 59)

The instrument panel has many
indicators that give you important
inf ormation about your vehicle.
See page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. Driving with
the parking brake not f ully
released can damage the brakes
and tires.
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more information, see page . This indicator has two f unctions:
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on.
If you continue driving without
f astening your seat belt, the beeper
sounds and the indicator f lashes
again at regular intervals.
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
2. 1.
210
209
209 211
Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
Charging System
Indicator Parking Brake and
Brake System
Indicator
Seat Belt Reminder
Indicator
Instrument Panel Indicators
54
U.S. Canada

This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates a potential
problem with your f ront airbags or
automatic seat belt tensioners. On
models equipped with side airbags,
this indicator will also alert you to a
potential problem with your side
airbags or passenger’s side airbag
automatic cutoff system. For
complete inf ormation, see page .This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position. This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
then go of f if you have inserted a
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink, and the engine
will not start (see page ).
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With the
indicator on, your vehicle still has normal braking ability but no anti-
lock brakes. For more inf ormation,
see page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
inf ormation, see page .
27 28150
66
Standard on U.S. EX models andCanadian Y package
Supplemental Restraint
System Indicator
Immobilizer System
Indicator
Anti-lock Brake System
(A BS) Indicator
Side Airbag Of f Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
55
Canada
U.S.

This indicator comes on when you
turn the ignition switch to the ON
(II) position with the headlight
switch of f and the parking brake set.
It should go of f if you turn on the
headlights or release the parking
brake. If it comes on at any other
time, it means there is a problem
withtheDRL.Theremayalsobea
problem with the high beam
headlights.This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator comes on as a
reminder that you must ref uel soon.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink
or they blink rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
Whenyouturnonthehazard
warning button, both turn signal
indicators blink. All turn signals on
the outside of the vehicle should
flash. On Canadian models, this indicator
comes on with reduced brightness
when the daytime running lights
(DRL) are on (see page ).
When the indicator comes on, there
is about 1.6 U.S. gal (6
)of fuel
remaining in the tank bef ore the
needle reaches E. There is a small
reserve of f uel remaining in the tank
when the needle does reach E.
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control.
180
62
62
120
Canadian models only
If equippedTurn Signal and Hazard Warning
Indicators ‘‘Daytime Running
Lights’’ Indicator
High Beam Indicator
Low Fuel Indicator
Cruise Control Indicator
Instrument Panel Indicators
56

µ
Canadian models onlyThis indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
This indicator comes on if any door
is not closed tightly. This indicator comes on if the
tailgate or the hatch is not closed
tightly. This indicator comes on when the
washer f luid level is low. Add washer
f luid when you see this indicator
come on (see page ). Ref er to the maintenance schedules
f or normal and severe driving
conditions on pages
.
For the f irst 8,000 miles (12,800 km)
af ter the maintenance required
indicator is reset, it will come on f or
2 seconds when you turn the ignition
switch to the ON (II) position.
Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km), this
indicator will come on f or 2 seconds
when you first turn the ignition
switch to the ON (II) position, and
then f lash f or 10 seconds. Hold the button for about 10
seconds until the indicator goes
of f . Press and hold the Select/Reset
button on the instrument panel,
then turn the ignition switch to the
ON (II) position. Turn of f the engine.
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
notdonebyyourdealer,resetthe
indicator as f ollows. If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
1.
2.
3.
174
165 166
Washer L evel Indicator
Maintenance Required
Indicator
Door-open Indicator Tailgate and Hatch Open
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
57

This shows the number of miles (U.S.)
or kilometers (Canada) driven since
you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer by
pressing the Select/Reset button
repeatedly.Each trip meter works independently,
so you can keep track of two
dif f erent distances.
To reset a trip meter, display it, and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0.’’ Both trip meters will reset if
the vehicle’s battery goes dead or is
disconnected.The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated. Odometer
Trip Meter
Gauges
58

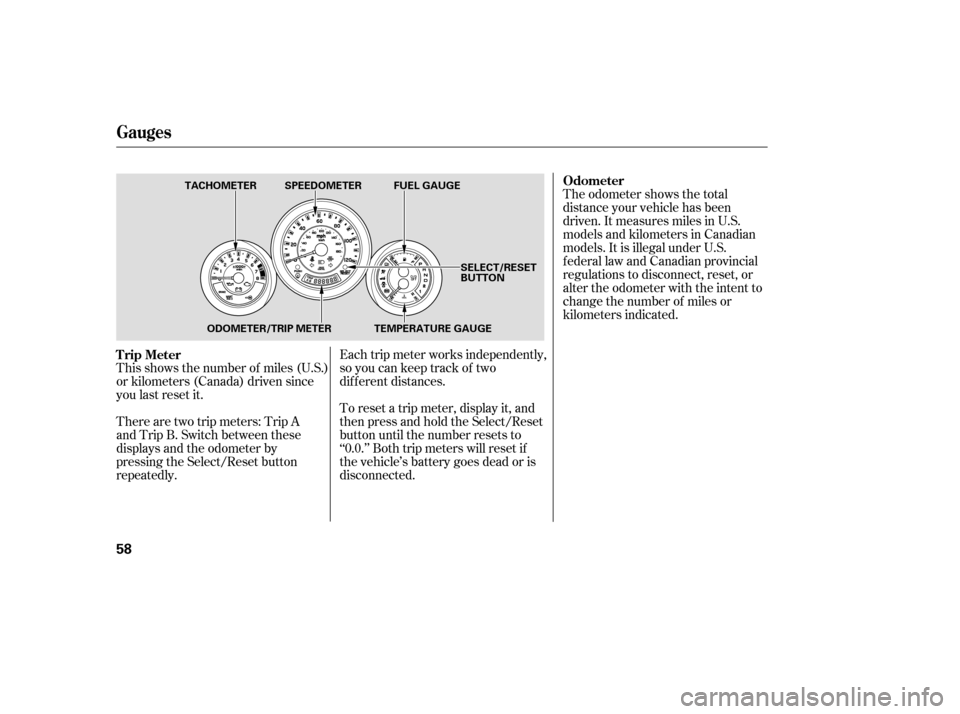

TACHOMETER SPEEDOMETER FUEL GAUGE
ODOMETER/TRIP METER TEMPERATURE GAUGE SELECT/RESET
BUTTON
