Both seats can be removed to give
more cargo capacity. To remove a
seat:Pull the release strap on the seat
support to unlock the seat support. Remove the cover between the
seat cushion and the side wall by
pulling the tab and pulling the
cover straight up.
Push the lock lever f orward to
unlock the seat.
1. 3.
2.
CONT INUED
Removing the Rear Seats
Seats
Inst rument s and Cont rols
79
RELEASE STRAP
COVERTAB
LOCK LEVER STEEL HANDLE

Reverse this procedure to reinstall
the seat. Make sure the seat is
securely locked.
Always remove an unsecured seat
f rom the vehicle bef ore driving. A
seat that is not locked in place could
be thrown about and cause injury in
a sudden stop or crash.
Hold the steel handle next to the
lock lever and the handle strap at
the outside edge of the seat
cushion, and remove the entire
seat by pulling it up and backward.
4.
Seats
80
STEEL HANDLE
HANDLE STRAP

µµ
If the MAIN switch is OFF, the
passenger’s window cannot be raised
or lowered. Keep the MAIN switch
off whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
passenger’s window unintentionally. To open/close the driver’s
window, push the window switch
f irmly down or up to the second
detent, and release it. The window
will automatically go up or down all
the way. To stop the window, pull/
push on the window switch brief ly. If the driver’s
window senses any obstacle while it
is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window f use is removed, the
AUTO f unction will be disabled. The
power window system needs to be
reset af ter reconnecting the battery
or installing the f use.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by your dealer. Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
f or about 2 seconds. Start the engine. Push down and
hold the driver’s window switch
until the window is f ully open.
Turn the ignition switch to the ON
(II) position to raise or lower either
window. To open the window, push
the switch down and hold it. Release
the switch when you want the
window to stop. Pull back on the
switchandholdittoclosethe
window. 1.
2.
AUTO AUTO REVERSE
Power Windows
Inst rument s and Cont rols
81
DRIVER’S WINDOW SWITCH
MAIN SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passenger is
away from the window before
closing it.

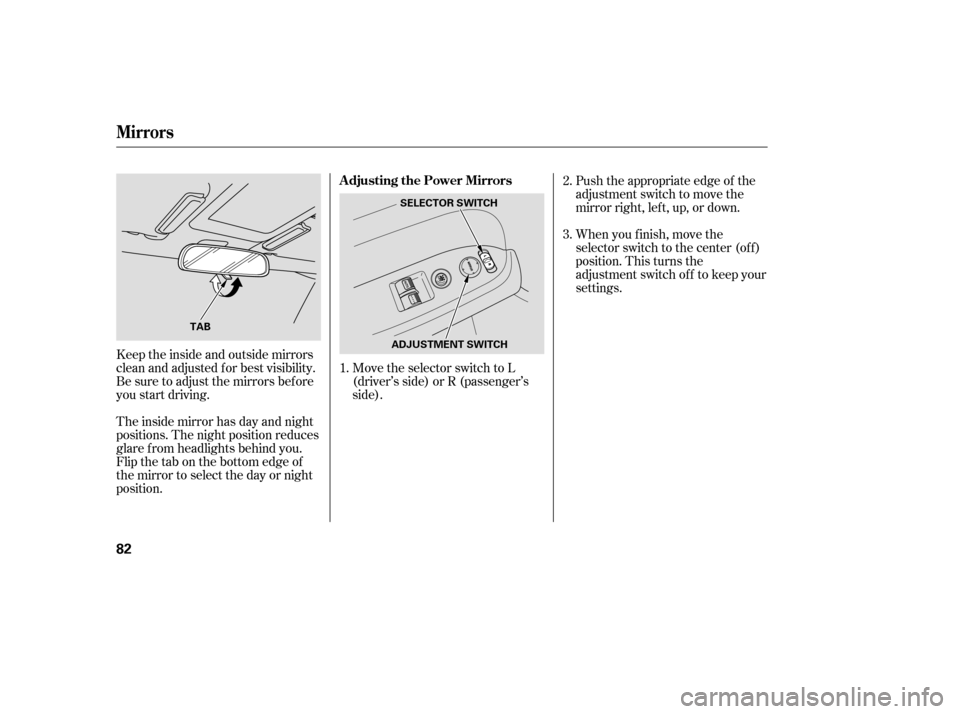

Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
1. 2.
3.
Mirrors
Adjusting the Power Mirrors
82
TAB
SELECTOR SWITCH
ADJUSTMENT SWITCH

To open a rear window, pull the lever
towards you, then push it out until it
locks. To close the rear window pull
the lever towards you, then push it
back. Make sure the window is f ully
closed and locked.Toliftuptherearoftheskylightfor
ventilation, pull down the lever to
unlock the skylight, then push it up
until the skylight is locked in the tilt-
up position.
To close the skylight, pull down the
lever to unlock the skylight, then
push it back in place. Make sure the
skylight is f ully closed and locked.
To apply the parking brake, pull the
lever up f ully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is f ully released (see page ).
54
CONT INUED
If equipped
Rear Windows, Parking Brake, Skylight
Parking Brake
Rear Windows Skylight
Inst rument s and Cont rols
83
PARKING BRAKE LEVER
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles.

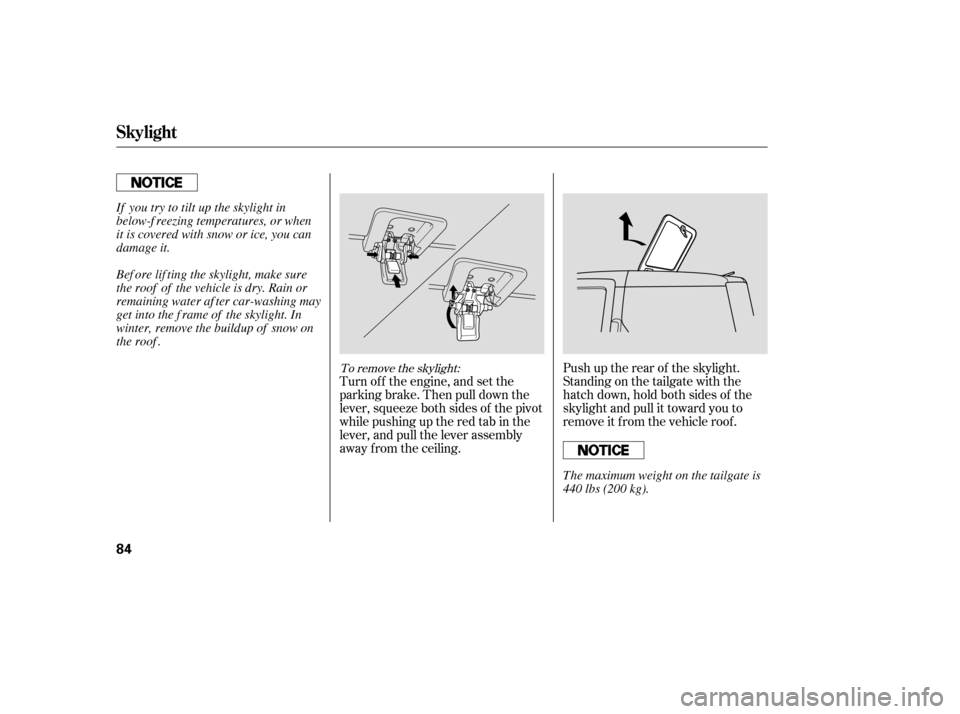

Turn of f the engine, and set the
parkingbrake.Thenpulldownthe
lever, squeeze both sides of the pivot
while pushing up the red tab in the
lever, and pull the lever assembly
away from the ceiling.Push up the rear of the skylight.
Standing on the tailgate with the
hatch down, hold both sides of the
skylight and pull it toward you to
remove it f rom the vehicle roof .
To remove the skylight:
Skylight
84
Bef ore lif ting the skylight, make sure
the roof of the vehicle is dry. Rain or
remaining water af ter car-washing may
get into the f rame of the skylight. In
winter, remove the buildup of snow on
the roof . If you try to tilt up the skylight in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage it.
The maximum weight on the tailgate is
440 lbs (200 kg).

With the rear seats in their upright
position, store the skylight, f ace
down in its bag in the cargo area.
Secure the bag with four hooks on
the cargo area f loor. Do not store
anything on top of the skylight.To reinstall the skylight, make sure
the air deflector is pushed down.
When reinstalling the lever assembly,
push in both red pivots, and align
with the receptacle holes. Let the
pivots move out until they rest in the
holes securely. Make sure the
skylight is f ully closed and latched.
Skylight
Inst rument s and Cont rols
85
An unsecured skylight can be
thrown about and cause serious
injury in a sudden stop or crash.
Make sure to store the skylight
in its bag, and secure the bag to
the hooks on the cargo area
floor.

ÎÎ
Î
Î
Î Î
Î

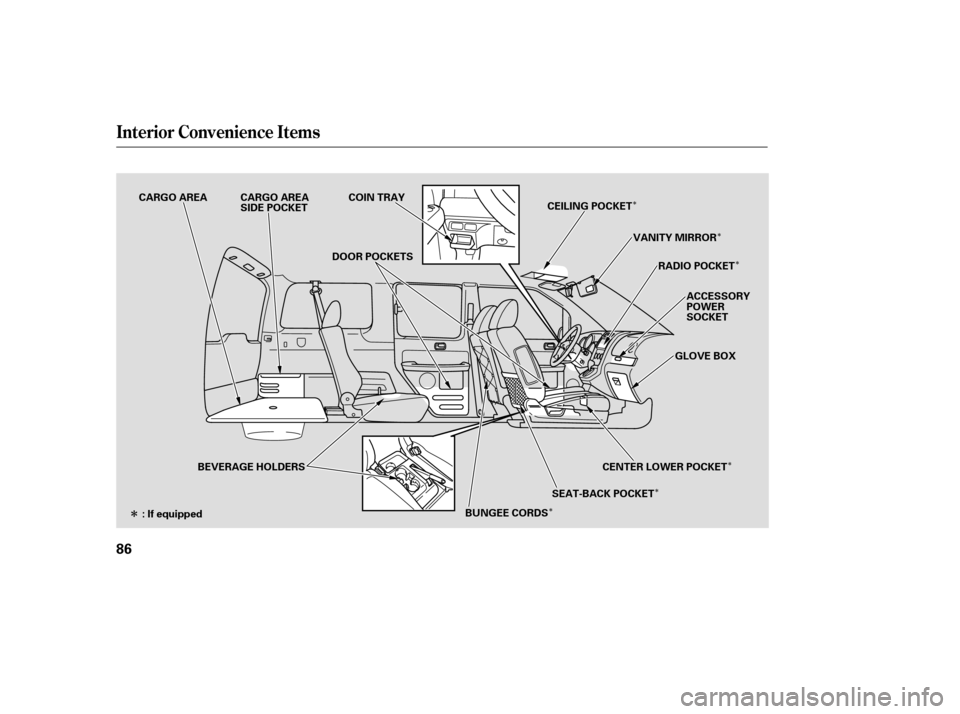

Interior Convenience Items
86
CARGO AREA
COIN TRAY
CARGO AREA
SIDE POCKET
DOOR POCKETS VANITY MIRROR
RADIO POCKET
ACCESSORY
POWER
SOCKET
GLOVE BOX
CENTER LOWER POCKET
BEVERAGE HOLDERS CEILING POCKET
: If equipped BUNGEE CORDSSEAT-BACK POCKET

These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).Open the glove box by pulling the
bottom of the handle. Close it with a
f irm push. Lock or unlock the glove
box with the master key.
Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, and
electrical components in the interior.
Your vehicle has one or two
accessory power sockets, depending
on the model. All models have a
f ront accessory power socket on the
dashboard above the glove box.
The EX model has another
accessory power socket in the cargo
area on the passenger’s side. None of the sockets will power an
automotive type cigarette lighter
element. When more than one
socket is being used, the combined
power rating of the accessories
should be 120 watts or less
(10 amps).
Interior Convenience Items
Beverage Holders
Glove Box
A ccessory Power Sockets
Inst rument s and Cont rols
87
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.

The ceiling light has a three-position
switch: ON, Door Activated, and
OFF.
In the Door Activated (center)
position, the light comes on when
you:Open any door.
Remove the key from the ignition.
If you do not open a door, the light
f ades out in about 30 seconds.
Unlock the doors with the key or
remote transmitter. The cargo area light has a three-
position switch. In the center
position, the light comes on when
you open the hatch.
The ignition switch light comes on
when you unlock the driver’s door,
and f ades out about 30 seconds af ter
you close the door. Turn on the spotlight by pushing the
lens. Push the lens again to turn it
of f . You can use the spotlights at all
times.
On U.S. EX models and Canadian Ypackage
Interior Lights
Ceiling L ight Spotlights
Cargo Area Light
Ignition Switch L ight
88
ON
OFF DOOR ACTIVATED
