fuse box HONDA ELEMENT 2009 1.G Owners Manual

The vehicle's fuses are located in two
fuse boxes. The under-hood fuse box
is located in the engine compartment
on the driver's side. To open it, push
the tabs as shown.
The interior fuse box is underneath
the steering column. To remove the
fuse box lid, turn the knobs
clockwise and pull the lid out of its
hinges.Checking and Replacing Fuses
If something electrical in your
vehicle stops working, check for a
blown fuse first. Determine from the
chart on pages301and302,or the
diagram on the fuse box lid, which
fuse or fuses control that device.
Check those fuses first, but check all
the fuses before deciding that a
blown fuse is the cause. Replace any
blown fuses, and check if the device
works.
1. Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are off.
2. Remove the cover from the fuse box.
UNDER-HOOD
TAB
INTERIOR
KNOBS
Fuses298
2009 Element

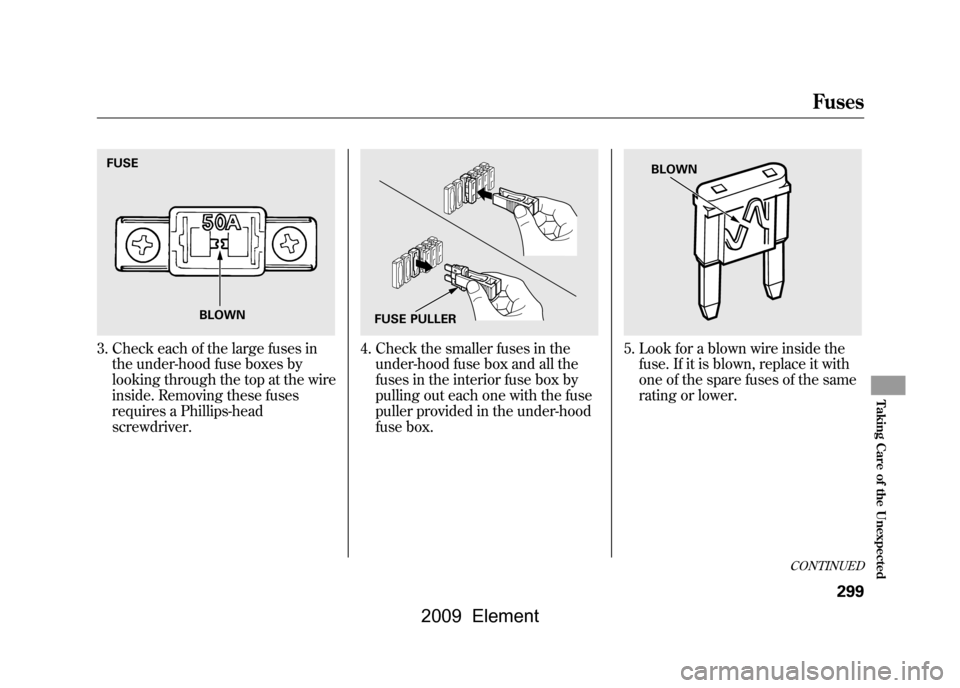

3. Check each of the large fuses inthe under-hood fuse boxes by
looking through the top at the wire
inside. Removing these fuses
requires a Phillips-head
screwdriver.
4. Check the smaller fuses in theunder-hood fuse box and all the
fuses in the interior fuse box by
pulling out each one with the fuse
puller provided in the under-hood
fuse box.
5. Look for a blown wire inside thefuse. If it is blown, replace it with
one of the spare fuses of the same
rating or lower.
FUSE
BLOWN
FUSE PULLER
BLOWN
CONTINUED
Fuses
299
Taking Care of the Unexpected
2009 Element

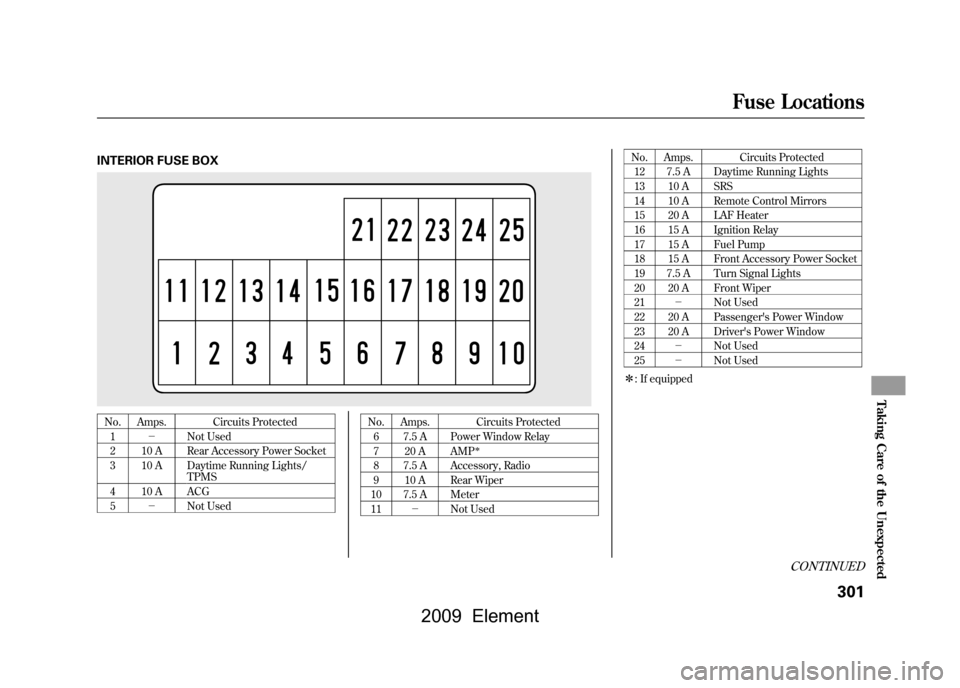

INTERIOR FUSE BOXNo. Amps. Circuits Protected1 － Not Used
2 10 A Rear Accessory Power Socket
3 10 A Daytime Running Lights/ TPMS
4 10 A ACG
5 － Not Used No. Amps. Circuits Protected
6 7.5 A Power Window Relay
7 20 A AMP
ꭧ
8 7.5 A Accessory, Radio
9 10 A Rear Wiper
10 7.5 A Meter
11 － Not Used No. Amps. Circuits Protected
12 7.5 A Daytime Running Lights
13 10 A SRS
14 10 A Remote Control Mirrors
15 20 A LAF Heater
16 15 A Ignition Relay
17 15 A Fuel Pump
18 15 A Front Accessory Power Socket
19 7.5 A Turn Signal Lights
20 20 A Front Wiper
21 － Not Used
22 20 A Passenger's Power Window
23 20 A Driver's Power Window
24 － Not Used
25 － Not Used
ꭧ : If equipped
CONTINUED
Fuse Locations
301
Taking Care of the Unexpected
2009 Element

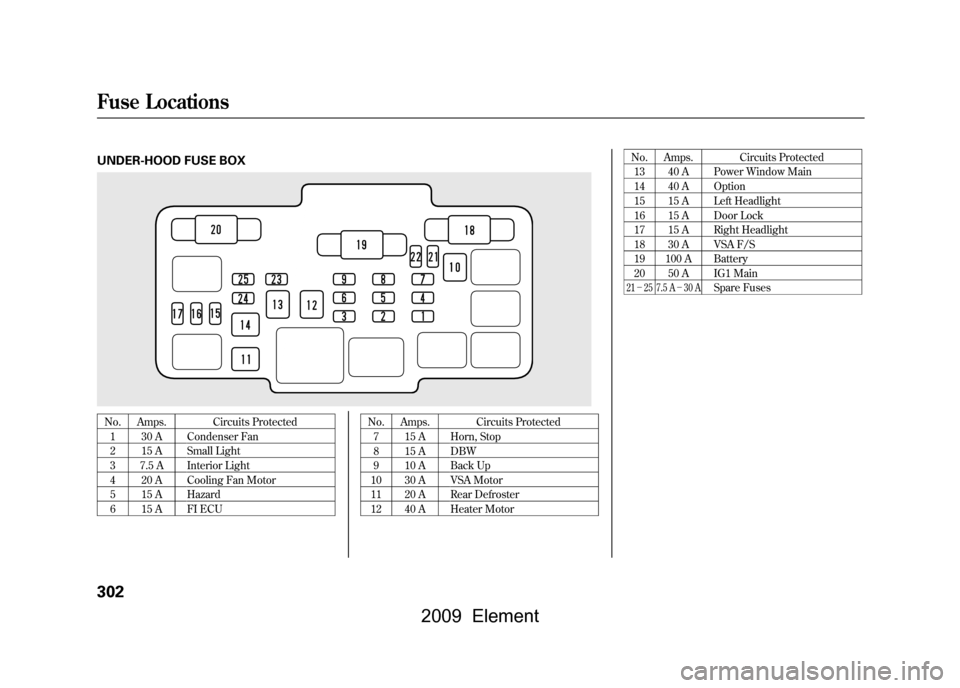

UNDER-HOOD FUSE BOXNo. Amps. Circuits Protected1 30 A Condenser Fan
2 15 A Small Light
3 7.5 A Interior Light
4 20 A Cooling Fan Motor
5 15 A Hazard
6 15 A FI ECU No. Amps. Circuits Protected
7 15 A Horn, Stop
8 15 A DBW
9 10 A Back Up
10 30 A VSA Motor
11 20 A Rear Defroster
12 40 A Heater Motor No. Amps. Circuits Protected
13 40 A Power Window Main
14 40 A Option
15 15 A Left Headlight
16 15 A Door Lock
17 15 A Right Headlight
18 30 A VSA F/S
19 100 A Battery
20 50 A IG1 Main
21 － 25 7.5 A －30 A
Spare Fuses
Fuse Locations302
2009 Element

Air ConditioningRefrigerant type HFC-134a (R-134a)
Charge quantity 17.6－19.4 oz (500 －550 g)
Lubricant type ND-OIL8
Lights Headlights 12 V－60/55 W (H4/HB2)
Daytime running lights 12 V－60 W (HB3)
Front turn signal/parking lights 12 V －27/8 W (Amber)
Front side marker lights 12 V－3CP
Side turn signal lights 12 V－3CP
Rear turn signal lights 12 V－21 W (Amber)
Rear side marker lights 12 V－3CP
Brake/Taillights 12 V－21/5 W
Back-up lights 12 V－21CP
License plate lights 12 V－5W
Ceiling light 12 V－8W
ꭧ1
12 V －5W
ꭧ2, ꭧ3
Spotlights 12 V－8W
ꭧ2, ꭧ3
Cargo area light 12 V－8W
High-mount brake light 12 V－21 W
Battery Capacity 12 V－47 AH/20 HR
12 V －38 AH/5 HR Fuses
Interior See page301or the fuse label
attached to the inside of the fuse
box door under the steering
column.
Under-hood See page302or the fuse box cover.
Alignment Toe-in Front 0.0 in (0 mm)
Rear 0.08 in (2.0 mm)
Camber Front －0°13 ’
ꭧ1, ꭧ2
－ 0°24 ’
ꭧ3
Rear －1°00 ’
ꭧ1, ꭧ2
－ 1°06 ’
ꭧ3
Caster Front 1°50’
Tires Size Front/Rear P215/70R16 99S
ꭧ1, ꭧ2
P225/55R18 97H
ꭧ3
Pressure Front 33 psi (230 kPa, 2.3 kgf/cm
2)ꭧ1, ꭧ2
32 psi (220 kPa, 2.2 kgf/cm
2)ꭧ3
Rear 35 psi (240 kPa, 2.4 kgf/cm
2)ꭧ1, ꭧ2
32 psi (220 kPa, 2.2 kgf/cm
2)ꭧ3
Spare 60 psi (420 kPa, 4.2 kgf/cm
2)
ꭧ 1: LX model
ꭧ 2: EX model
ꭧ 3: SC model
Specifications310
