HONDA ELEMENT 2011 1.G Owners Manual

With the front wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speed below 35 mph (55 km/h).The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns freely before you begin
towing.
Emergency Towing
245
Taking Care of the Unexpected
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

24610/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

The diagrams in this section give you
the dimensions and capacities of
your vehicle and the locations of the
identification numbers. It also
includes information you should
know about your vehicle's tires and
emissions control systems.Identification Numbers
...............
248
Specifications
..............................
250
DOT Tire Quality Grading (U.S. Vehicles)
.............................
253
Uniform Tire Quality Grading
...............................
253
Treadwear
...............................
253
Traction
..................................
253
Temperature
...........................
254
Tire Labeling
..............................
255
Tire Pressure Monitoring System
(TPMS) －Required Federal
Explanation
.........................
256
Emissions Controls
.....................
258
The Clean Air Act
....................
258
Crankcase Emissions Control System
................................
258
Evaporative Emissions Control
System
................................
258
Onboard Refueling Vapor
Recovery
.............................
258
Exhaust Emissions
Controls
..............................
259 Three Way Catalytic
Converter
................................
260
Emissions Testing
.......................
261
Technical Information
247
Technical Information
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

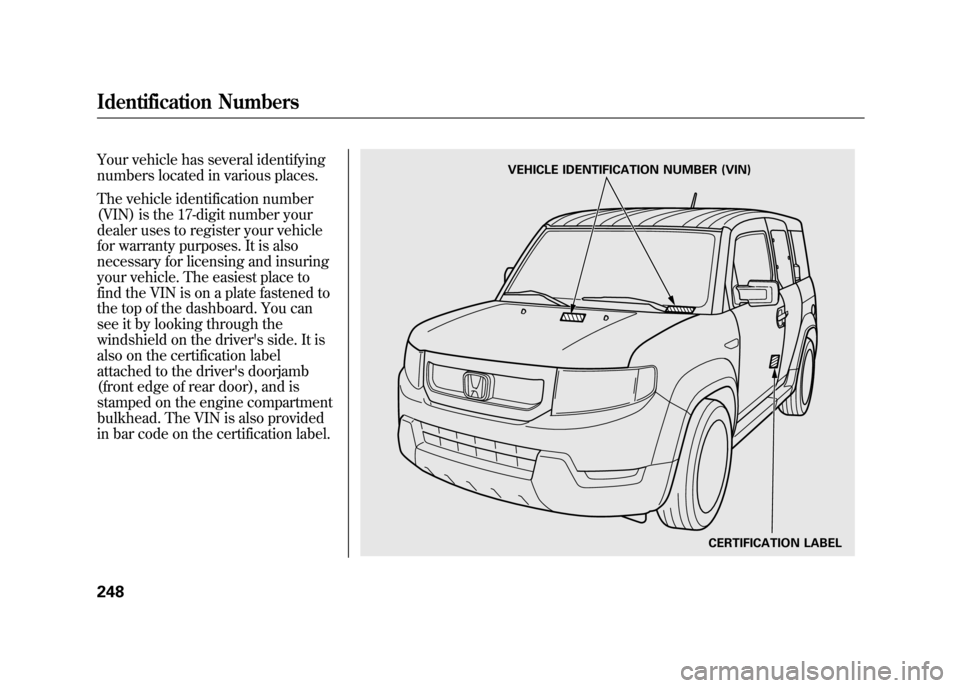

Your vehicle has several identifying
numbers located in various places.
The vehicle identification number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
for warranty purposes. It is also
necessary for licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
see it by looking through the
windshield on the driver's side. It is
also on the certification label
attached to the driver's doorjamb
(front edge of rear door), and is
stamped on the engine compartment
bulkhead. The VIN is also provided
in bar code on the certification label.
VEHICLE IDENTIFICATION NUMBER (VIN)CERTIFICATION LABEL
Identification Numbers24810/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

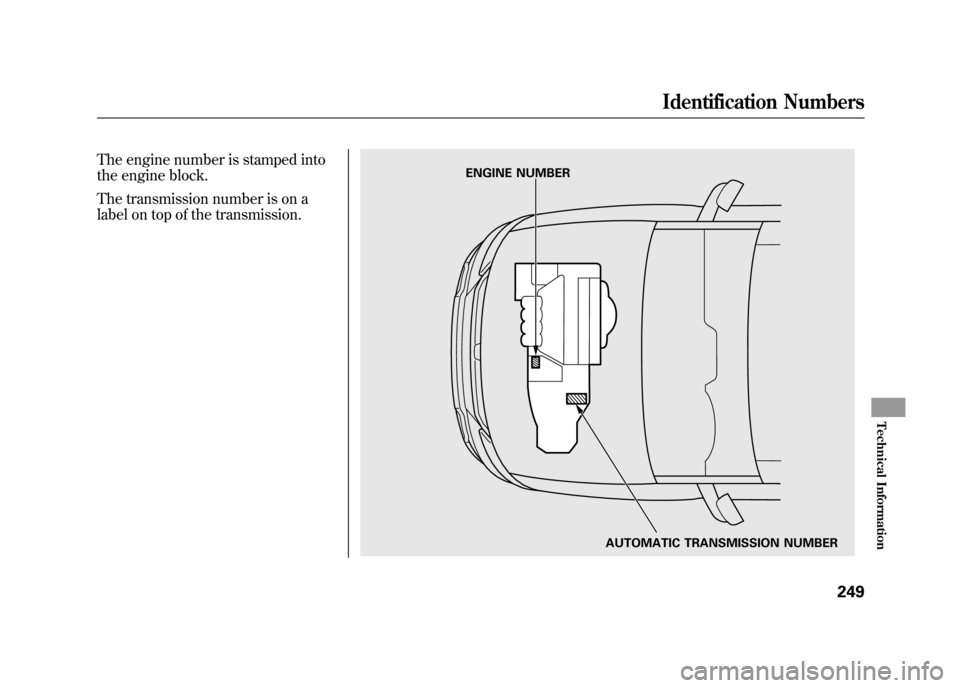

The engine number is stamped into
the engine block.
The transmission number is on a
label on top of the transmission.
AUTOMATIC TRANSMISSION NUMBER
ENGINE NUMBER
Identification Numbers
249
Technical Information
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

DimensionsLength 169.9 in (4,316 mm)
Width 71.6 in (1,819 mm)
Height 70.4 in (1,788 mm)
Wheelbase 101.4 in (2,575 mm)
Track Front 62.1 in (1,577 mm)
Rear 62.3 in (1,582 mm)
Weights Gross vehicle weight rating See the certification label attached to the driver's doorjamb
(front edge of rear door). Seating Capacities
Total 4
Front 2
Rear 2
Engine Type Water cooled 4-stroke DOHC
i-VTEC 4-cylinder gasoline engine
Bore x Stroke 3.43 x 3.90 in (87.0 x 99.0 mm)
Displacement 144 cu-in (2,354 cm
3)
Compression ratio 9.7 : 1
Spark plugs NGK: IZFR6K11 DENSO: SKJ20DR-M11
Specifications25010/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

CapacitiesFuel tank Approx.
15.9 US gal (60 L)
Engine oil Change
ꭧ 1
Including filter 4.4 US qt (4.2 L)
Without filter 4.2 US qt (4.0 L)
Total 5.6 US qt (5.3 L)
Capacities Engine coolant Change
ꭧ 2
1.35 US gal (5.1 L)
Total 1.90 US gal (7.2 L)
Automatic
transmission
fluid Change
4WD 2.6 US qt (2.5 L)
2WD 2.7 US qt (2.6 L)
Total 4WD 7.6 US qt (7.2 L)
2WD 7.4 US qt (7.0 L)
Rear
differential
fluid (4WD) Change 1.1 US qt (1.0 L)
Total 1.3 US qt (1.2 L)
Windshield washer reservoir 4.8 US qt (4.5 L)
ꭧ1: Excluding the oil remaining in the engine
ꭧ2: Including the coolant in the reserve tank and that remaining in the engine Reserve tank capacity:
0.15 US gal (0.55 L)
Specifications
251
Technical Information
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Air ConditioningRefrigerant type HFC-134a (R-134a)
Charge quantity 17.6－19.4 oz (500 －550 g)
Lubricant type ND-OIL8
Lights Headlights 60/55 W (H4/HB2)
Daytime running lights 60 W (HB3)
Front turn signal/parking lights 27/8 W (Amber)
Front side marker lights 3 CP
Side turn signal lights 3 CP
Rear turn signal lights 21 W (Amber)
Rear side marker lights 3 CP
Stop/taillights 21/5 W
Back-up lights 21 CP
License plate lights 5 W
Ceiling light 8 W
ꭧ1
5W
ꭧ2
Spotlights 8 W
ꭧ2
Cargo area light 8 W
High-mount brake light 21 W
Battery Capacity 12 V－47 AH/20 HR
12 V －38 AH/5 HR Fuses
Interior See page 242 or the fuse label
attached to the inside of the fuse
box lid under the steering
column.
Under-hood See page 243 or the fuse box
cover.
Alignment Toe-in Front 0.0 in (0 mm)
Rear 0.08 in (2.0 mm)
Camber Front －0°13 ’
Rear －1°00 ’
Caster Front 1°50’
Tires Size Front/Rear P215/70R16 99S
Pressure Front 33 psi (230 kPa, 2.3 kgf/cm
2)
Rear 35 psi (240 kPa, 2.4 kgf/cm2)
Spare 60 psi (420 kPa, 4.2 kgf/cm2)
ꭧ 1: LX model
ꭧ 2: EX model
Specifications25210/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

The tires on your vehicle meet all
U.S. Federal Safety Requirements.
All tires are also graded for
treadwear, traction, and temperature
performance according to
Department of Transportation (DOT)
standards. The following explains
these gradings.
Uniform Tire Quality Grading
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades. Treadwear
The treadwear grade is a
comparative rating based on the wear
rate of the tire when tested under
controlled conditions on a specified
government test course. For
example, a tire graded 150 would
wear one and one-half (1 1/2) times
as well on the government course as
a tire graded 100. The relative
performance of tires depends upon
the actual conditions of their use,
however, and may depart
significantly from the norm due to
variations in driving habits, service
practices and differences in road
characteristics and climate.
Traction
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire's ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces of
asphalt and concrete. A tire marked
C may have poor traction
performance.
Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
DOT Tire Quality Grading (U.S. Vehicles)
253
Technical Information
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Temperature
The temperature grades are A (the
highest), B, and C, representing the
tire's resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal
Motor Vehicle Safety Standard No.
109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the
minimum required by law.Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.DOT Tire Quality Grading (U.S. Vehicles)25410/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu
