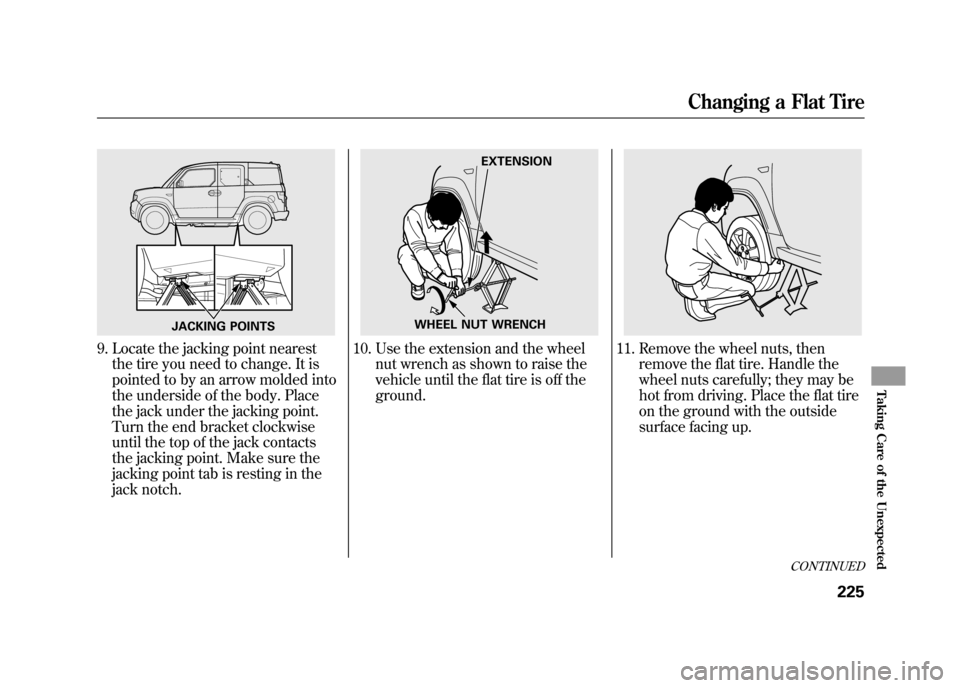

9. Locate the jacking point nearestthe tire you need to change. It is
pointed to by an arrow molded into
the underside of the body. Place
the jack under the jacking point.
Turn the end bracket clockwise
until the top of the jack contacts
the jacking point. Make sure the
jacking point tab is resting in the
jack notch.
10. Use the extension and the wheel nut wrench as shown to raise the
vehicle until the flat tire is off the
ground.
11. Remove the wheel nuts, thenremove the flat tire. Handle the
wheel nuts carefully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
JACKING POINTS
EXTENSION
WHEEL NUT WRENCH
CONTINUED
Changing a Flat Tire
225
Taking Care of the Unexpected
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

I
Identification Number,Vehicle
...................................
248
Ignition Keys
.........................................
75
Switch
......................................
79
Immobilizer System
.....................
76
Important Safety Precautions
.........
6
Indicators, Instrument Panel
........
57
ABS (Anti-lock Brake)
.......
59, 168
Brake (Parking and Brake System)
.........................
58, 237
Charging System
..............
58, 235
Cruise Control
..........................
60
Cruise Main
.............................
60
Door and Tailgate Open
...........
61
DRL (Daytime Running Lights)
..................................
60
High Beam
...............................
61
Key (Immobilizer System)
.......
60
Lights On
.................................
61
Low Fuel
..................................
61
Low Oil Pressure
..............
58, 235
Low Tire Pressure
.............
62, 169 Maintenance Minder
TM
.....
59, 185
Malfunction Indicator Lamp
.............................
58, 236
Passenger Airbag Off
...............
32
Seat Belt Reminder
.............
18, 58
Side Airbag Off
....................
31, 59
SRS
.....................................
30, 59
TPMS
................................
63, 170
Turn Signal and Hazard Warning
...............................
60
VSA OFF
..................................
62
VSA System
.............................
62
Individual Map Lights
..................
95
Infant Restraint
............................
40
Infant Seats
..................................
40
Tether Anchorage Points
.........
48
Inflation, Proper Tire
..................
212
Recommended Pressures
.......
213
Inside Mirror
...............................
93
Inspection, Tire
..........................
214
Installing a Child Seat
..................
43
Instrument Panel
..........................
57
Instrument Panel Brightness
.......
72
Instruments and Controls
.............
55
Interior Lights
..............................
95
Introduction
...................................
i J
Jacking up the Vehicle
...............
223
Jack, Tire
...................................
223
Jump Starting
.............................
231
K
Keys
.............................................
75
L
Label, Certification
.....................
248
Lane Change, Signaling
...............
71
Lap/Shoulder Belt
.................
14, 19
LATCH Anchorage System
..........
44
Light Control Switch
....................
95
Lights Bulb Replacement
...................
202
Indicator
...................................
57
Interior
.....................................
95
Parking
....................................
71
Turn Signal
..............................
71
Load Limit
..................................
152
CONTINUED
Index
V
INDEX
