snow chains HONDA ELEMENT 2011 1.G Owners Manual

It is best to replace all four tires at
the same time. If that is not possible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle's handling.
If you ever replace a wheel, make
sure that the wheel's specifications
match those of the original wheels.
Also be sure you use only TPMS
specific wheels. If you do not, the tire
pressure monitoring system will not
work.
Replacement wheels are available at
your dealer.
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner's manual.
Wheel and Tire Specifications
Wheels: 16 x 6 1/2JJ
Tires: P215/70R16 99S
See page 253 for DOT tire quality
grading information, and page 255
for tire size and labeling information. Winter Driving
Tires marked
‘‘M ＋ S’’ or ‘‘All
Season ’’on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
Tires21610/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Snow Tires
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all four wheels. The traction provided
by snow tires on dry roads may be
lower than your original tires. Check
with the tire dealer for maximum
speed recommendations.
Tire ChainsMount tire chains on your tires when
required by driving conditions or local
laws. Install them only on the front
tires.
Because your vehicle has limited tire
clearance, use only SAE Class‘‘S ’’
cable-type traction devices, with
rubber chain tensioners, on the front
tires. Use traction devices only when
required by driving conditions or local
laws. Make sure they are the correct
size for your tires. Metal link-type
‘‘ chains ’’should not be used.Traction devices that are the wrong size
or improperly installed can damage your
vehicle's brake lines, suspension, body,
and wheels. Stop driving if they are
hitting any part of the vehicle.
When installing cables, follow the
manufacturer's instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
you begin driving on cleared roads.
Using the wrong chains, or not
properly installing chains, can
damage the brake lines and
cause a crash in which you can
be seriously injured or killed.
Follow all instructions in this
owner's manual regarding the
selection and use of tire chains.
Tires
217
Maintenance
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or
replaced, and put it back on your
vehicle as soon as you can.
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
60 psi (420 kPa, 4.2 kgf/cm
2)
Follow these precautions:
●Never exceed 50 mph (80 km/h).●This tire gives a harsher ride and
less traction on some road
surfaces. Use greater caution while
driving.●Do not mount snow chains on the
compact spare tire.
●Do not use your compact spare tire
on another vehicle unless it is the
same make and model.●The low tire pressure indicator
comes on and stays on after you
replace the flat tire with the
compact spare tire. After several
miles (kilometers) driving with the
compact spare tire, the TPMS
indicator comes on and the low tire
pressure indicator goes off.

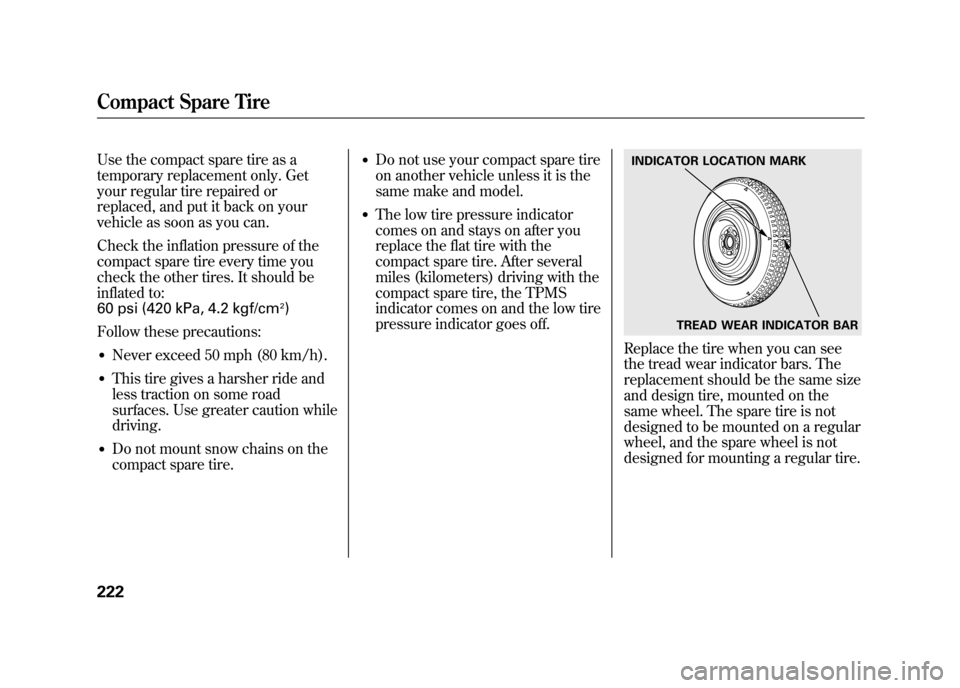

Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
Compact Spare Tire22210/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Sun Visor
...................................
100
Supplemental Restraint System
..............................
9, 22
Servicing
..................................
33
SRS Indicator
......................
30, 59
System Components
................
22
Synthetic Oil
..............................
194
T
Tachometer
..................................
64
Tailgate
........................................
82
Open Indicator
.........................
61
Opening the
.............................
82
Taillights, Changing Bulbs in
.....
206
Taking Care of the Unexpected
............................
221
Technical Descriptions DOT Tire Quality Grading (U.S. Vehicles)
.............................
253
Emissions Control Systems
.....
258
Three Way Catalytic Converter
............................
260
Tire Labeling
...........................
255 Tire Pressure Monitoring System
(TPMS) －Required Federal
Explanation
......................
256
Temperature Gauge
.....................
67
Tensioners, Seat Belts
..................
20
Tether Anchorage Points
.............
48
Theft Protection, Radio
..............
132
Three Way Catalytic Converter
...............................
260
Tilt the Steering Wheel
................
74
Time, Setting the
........................
133
Tire Chains
................................
217
Tire, How to Change a Flat
........
223
Tire Information
.........................
255
Tire Labeling
..............................
255
Tire Pressure Monitoring System (TPMS)
...........................
169, 256
Tires
..........................................
212
Air Pressure
............................
213
Chains
.....................................
217
Checking Wear
.......................
214
Compact Spare
........................
222
DOT Tire Quality Grading (U.S. Vehicles)
.............................
253
Inflation
...................................
212
Inspection
...............................
214 Labeling
..................................
255
Low Tire Pressure Indicator
........................
62, 169
Maintenance
...........................
215
Pressure Monitoring System
...
169
Replacing
................................
215
Rotating
..................................
215
Snow
.......................................
217
Specifications
..........................
252
Tools, Tire Changing
.................
223
Towing A Trailer
..................................
174
Emergency Wrecker
...............
244
TPMS (Tire Pressure Monitoring System)
..............................
169
Indicator
............................
63, 170
Required Federal Explanation
.........................
256
Transmission Checking Fluid Level
..............
198
Fluid Selection
........................
198
Identification Number
.............
248
Shifting the Automatic
.............
161
Treadwear
..................................
253
Trip Meter
...................................
66
CONTINUED
Index
IX
INDEX
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu
