window HONDA ELEMENT 2011 1.G Owners Manual

ꭧ: If equipped
POWER DOOR
LOCK SWITCH
(P. 80)
POWER WINDOW
SWITCHES
(P. 92)
HOOD RELEASE
HANDLE
(P. 144)
Ex model is shown. AUTOMATIC TRANSMISSION (P. 161)
PARKING BRAKE
(P. 94) HEATING/COOLING
CONTROLS
(P. 104) PASSENGER'S
FRONT AIRBAG
(P. 9, 24)
DRIVER'S FRONT
AIRBAG (P. 9, 24) INSTRUMENT PANEL (P. 57)
GAUGES (P. 64)
MIRROR CONTROLS
(P. 93)
CONTINUED
Your Vehicle at a Glance
3
Your Vehicle at a Glance
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

ꭧ1: To use the horn, press the center pad of the steering wheel.
ꭧ 2: If equipped
HEADLIGHTS/TURN SIGNALS
(P. 71)
REMOTE AUDIO
CONTROLS
ꭧ 2
(P. 135)
Ex model is shown. STEERING WHEEL ADJUSTMENT
(P. 74)
CRUISE CONTROL BUTTONS
(P. 137)
WINDSHIELD WIPERS/WASHERS
(P. 70)
PASSENGER AIRBAG
OFF INDICATOR
(P. 32)
AUDIO SYSTEM
(P. 109)
DIGITAL CLOCK
(P. 133)
REAR WINDOW
DEFOGGER BUTTON
(P. 74) ACCESSORY POWER
SOCKET
(P. 100)
HORN
ꭧ 1
VSA OFF SWITCH
(P. 173)
HAZARD WARNING
BUTTON
(P. 73)
Your Vehicle at a Glance410/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Your airbag system includes:●Two SRS (supplemental restraint
system) front airbags. The driver's
airbag is stored in the center of the
steering wheel; the front
passenger's airbag is stored in the
dashboard. Both are marked‘‘SRS
AIRBAG ’’(see page 24).●Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG ’’(see page 28).●Two side curtain airbags, one for
each side of the vehicle. The
airbags are stored in the ceiling,
above the side windows. The front
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG ’’(see page 29).
●Automatic front seat belt
tensioners (see page 20).●Sensors that can detect a moderate
to severe front impact, side impact,
or rollover.●Sensors that can detect whether a
child is in the passenger's side
airbag path and signal the control
unit to turn the airbag off (see
page 29).●Sensors that can detect whether
the driver's seat belt and the front
passenger's seat belt are latched or
unlatched (see page 18).●A rollover sensor that can detect if
your vehicle is about to roll over
and signal the control unit to
deploy both side curtain airbags
(see page 29).
●A driver's seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inflate with less force (see page
26).●Weight sensors that monitor the
weight on the front passenger's
seat. If the weight is about 65 lbs
(29 kg) or less (the weight of an
infant or small child), the
passenger's front airbag will be
turned off (see page 26).●A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and front
passenger seat belt use when the
ignition switch is in the ON (II)
position.
CONTINUED
Additional Information About Your Airbags
23
Driver and Passenger Safety
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Your vehicle's exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
follow the information on this page.
Have the exhaust system inspected
for leaks whenever:●The vehicle is raised for an oil
change.●You notice a change in the sound
of the exhaust.●The vehicle was in a collision that
may have damaged the underside.
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage. With the tailgate or hatch open, air
flow can pull exhaust gas into your
vehicle's interior and create a
hazardous condition. If you must
drive with the tailgate or hatch open,
open all the windows and set the
heating and cooling system as shown
below.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the heating
and cooling system as follows:
1. Select the fresh air mode.
2. Select the
mode.
3. Turn the fan on high speed.
4. Set the temperature control to a comfortable setting.
Carbon Monoxide Hazard5210/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

This section gives information about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.
Control Locations
..........................
56
Instrument Panel
..........................
57
Instrument Panel Indicators
..........
58
Gauges
..........................................
64
Information Display
..................
65
Odometer
..................................
65
Trip Meter
................................
66
Fuel Gauge
...............................
66
Check Fuel Cap Message
.........
66
Temperature Gauge
..................
67
Maintenance Minder ™
..............
67Outside Temperature
Indicator
...............................
68
Controls Near the Steering Wheel
.......................................
69
Windshield Wipers and Washers
....................................
70
Turn Signals and Headlights
.........
71
Instrument Panel Brightness
........
72
Hazard Warning Button
................
73
Rear Window Defogger
.................
74
Steering Wheel Adjustment
..........
74
Keys and Locks
.............................
75
Immobilizer System
......................
76
Remote Transmitter
......................
77
Ignition Switch
..............................
79
Door Locks
...................................
80
Power Door Locks
....................
80
Rear Doors
................................
81
Hatch
........................................
81
Tailgate
.....................................
82
Seats
.............................................
83
Seat Adjustments
......................
83
Driver's Seat Height Adjustment
...........................
84 Front Seat Armrests
..................
85
Head Restraints
.........................
85
Reclining the Front Seats
..........
87
Folding the Rear Seats
..............
88
Removing the Rear Seats
..........
90
Power Windows
............................
92
Mirrors
.........................................
93
Adjusting the Power Mirrors
.....
93
Rear Windows
...............................
94
Parking Brake
...............................
94
Interior Lights
...............................
95
Light Control Switch
.................
95
Individual Map Lights
...............
95
Ceiling Light
.............................
96
Cargo Area Light
.......................
96
Ignition Switch Light
.................
96
Interior Convenience Items
...........
97
Cooler Box
................................
98
Beverage Holders
.....................
99
Accessory Power Sockets
.......
100
Glove Box
...............................
100
Sun Visor
................................
100
Vanity Mirror
..........................
101
Overhead Console
..................
101
Instruments and Controls
55
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

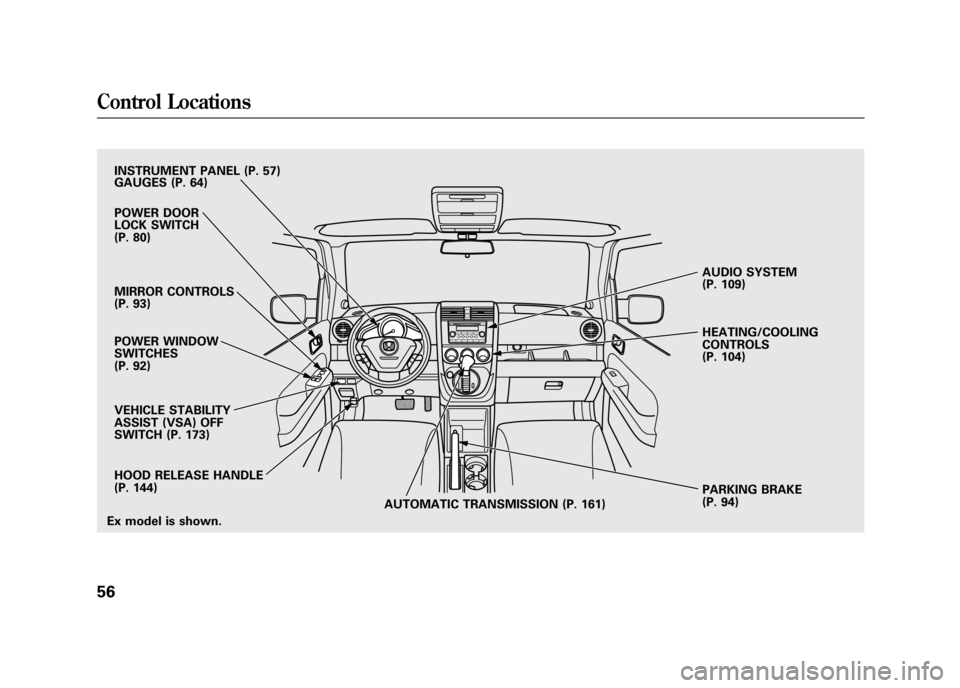

VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH (P. 173)PARKING BRAKE
(P. 94) AUDIO SYSTEM
(P. 109)
HEATING/COOLING
CONTROLS
(P. 104)
Ex model is shown. POWER DOOR
LOCK SWITCH
(P. 80)
MIRROR CONTROLS
(P. 93)
POWER WINDOW
SWITCHES
(P. 92) INSTRUMENT PANEL (P. 57)
HOOD RELEASE HANDLE
(P. 144) GAUGES (P. 64)
AUTOMATIC TRANSMISSION (P. 161)
Control Locations5610/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

ꭧ1: To use the horn, press the center pad of the steering wheel.
ꭧ 2: If equipped
HAZARD WARNING BUTTON
(P. 73)
CRUISE CONTROL BUTTONS (P. 137)
STEERING WHEEL ADJUSTMENT (P. 74) HORN
ꭧ
1
Ex model is shown. VSA OFF SWITCH
(P. 173) REMOTE AUDIO
CONTROLS
ꭧ
2
(P. 135) HEADLIGHTS/TURN SIGNALS
(P. 71) WINDSHIELD WIPERS/WASHERS
(P. 70)
REAR WINDOW
DEFOGGER BUTTON
(P. 74) AUTOMATIC
TRANSMISSION
(P. 161)
ACCESSORY
POWER SOCKET
(P. 100)
Controls Near the Steering Wheel
69
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Windshield Wiper1. MIST
2. OFF
3. INT－Intermittent
3. LO －Low speed
5. HI －High speed
6. Windshield washers Push the right lever up or down to
select a position.
MIST
－The wipers run at high
speed until you release the lever.
OFF －The wipers are not activated.
INT －The length of the wipe
interval is varied automatically
according to vehicle's speed.
Vary the delay by turning the
adjustment ring. If you turn it to the
shortest delay (
position), the
wipers change to low speed
operation when the vehicle speed
exceeds 12 mph (20 km/h).
LO －The wipers run at low speed.
HI －The wipers run at high speed.
Windshield Washer －Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever. Rear Window Wiper and Washer
1. Rotate the switch clockwise to turn
the rear window wiper ON.
2. Hold past ON to turn the window wiper on and the window washer
on.
3. OFF
4. Rotate the switch counterclockwise and hold to
spray the window washer and
operate the wiper.





ADJUSTMENT RING




Windshield Wipers and Washers7010/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Rear Window DefoggerThe rear window defogger will clear
fog, frost, and thin ice from the
window. Push the defogger button to
turn it on and off. The indicator in the
button comes on to show the
defogger is on. If you do not turn it
off, the defogger will shut itself off
after about 15 minutes. It also shuts
off when you turn off the ignition
switch. You have to turn the
defogger on again when you restart
the vehicle.Make sure the rear window is clear
and you have good visibility before
starting to drive.
The defogger wires on the inside of
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side.
Steering Wheel Adjustment
Make any steering wheel adjustment
before you start driving.
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
in a crash.
Adjust the steering wheel only
when the vehicle is stopped.
Rear Window Defogger, Steering Wheel Adjustment7410/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Turn the ignition switch to the ON
(II) position to raise or lower either
window. To open a window, push the
switch down and hold it. Release the
switch when you want the window to
stop. Pull back on the switch and
hold it to close the window.
Closing a power window on
someone's hands or fingers can
cause serious injury.
Make sure your passengers are
away from the window before
closing them.
AUTO －To open/close the driver's
window, push the window switch
firmly down or up to the second
detent, and release it. The window
will automatically go up or down all
the way. To stop the window, pull/
push on the window switch briefly.
If the MAIN switch is OFF, the
passenger's window cannot be raised
or lowered. Keep the MAIN switch
off when you have children in the
vehicle so they do not injure
themselves by operating the
passenger's window unintentionally.
AUTO REVERSE －If the driver's
window senses any obstacle while it is
closing automatically, it will reverse
direction, and then stop. To close the
window, remove the obstacle, then use
the window switch again.
If your vehicle's battery is disconnected
or goes dead, or the driver's window
fuse is removed, the AUTO function
may be disabled. If this happens, the
power window system will need to be
reset after reconnecting the battery or
installing the fuse.
1. Start the engine. Push down and hold the driver's window switch until
the window is fully open.
2. Pull and hold the driver's window switch to close the window
completely, then hold the switch for
about 2 seconds.
If the power windows do not operate
properly after resetting, have your
vehicle checked by your dealer.
DRIVER'S WINDOW SWITCH
MAIN SWITCH
Power Windows9210/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu
