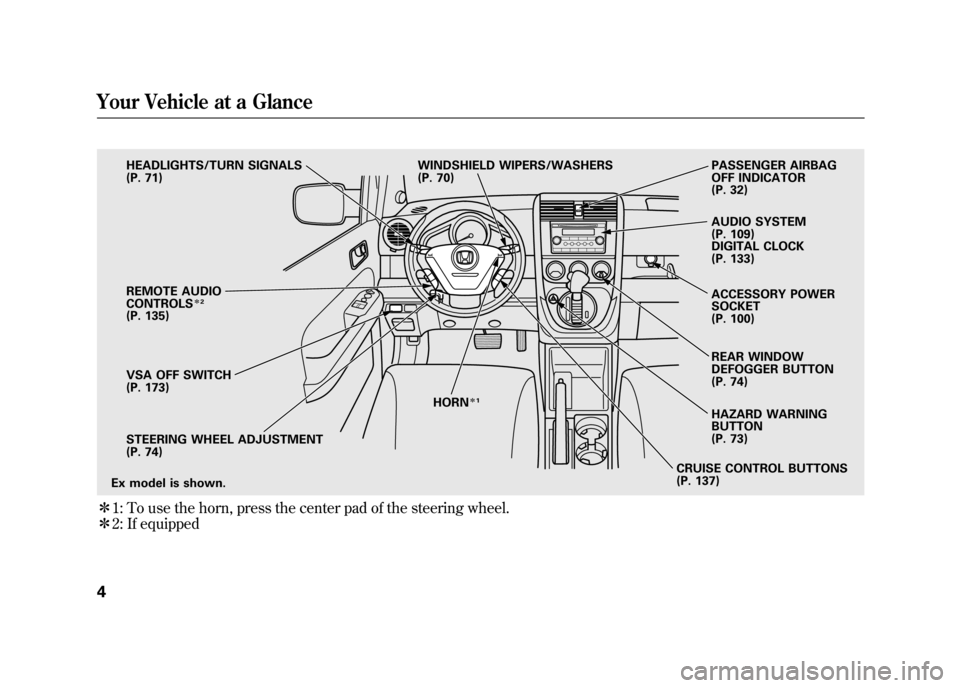

ꭧ1: To use the horn, press the center pad of the steering wheel.
ꭧ 2: If equipped
HEADLIGHTS/TURN SIGNALS
(P. 71)
REMOTE AUDIO
CONTROLS
ꭧ 2
(P. 135)
Ex model is shown. STEERING WHEEL ADJUSTMENT
(P. 74)
CRUISE CONTROL BUTTONS
(P. 137)
WINDSHIELD WIPERS/WASHERS
(P. 70)
PASSENGER AIRBAG
OFF INDICATOR
(P. 32)
AUDIO SYSTEM
(P. 109)
DIGITAL CLOCK
(P. 133)
REAR WINDOW
DEFOGGER BUTTON
(P. 74) ACCESSORY POWER
SOCKET
(P. 100)
HORN
ꭧ 1
VSA OFF SWITCH
(P. 173)
HAZARD WARNING
BUTTON
(P. 73)
Your Vehicle at a Glance410/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Your airbag system includes:●Two SRS (supplemental restraint
system) front airbags. The driver's
airbag is stored in the center of the
steering wheel; the front
passenger's airbag is stored in the
dashboard. Both are marked‘‘SRS
AIRBAG ’’(see page 24).●Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG ’’(see page 28).●Two side curtain airbags, one for
each side of the vehicle. The
airbags are stored in the ceiling,
above the side windows. The front
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG ’’(see page 29).
●Automatic front seat belt
tensioners (see page 20).●Sensors that can detect a moderate
to severe front impact, side impact,
or rollover.●Sensors that can detect whether a
child is in the passenger's side
airbag path and signal the control
unit to turn the airbag off (see
page 29).●Sensors that can detect whether
the driver's seat belt and the front
passenger's seat belt are latched or
unlatched (see page 18).●A rollover sensor that can detect if
your vehicle is about to roll over
and signal the control unit to
deploy both side curtain airbags
(see page 29).
●A driver's seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inflate with less force (see page
26).●Weight sensors that monitor the
weight on the front passenger's
seat. If the weight is about 65 lbs
(29 kg) or less (the weight of an
infant or small child), the
passenger's front airbag will be
turned off (see page 26).●A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and front
passenger seat belt use when the
ignition switch is in the ON (II)
position.
CONTINUED
Additional Information About Your Airbags
23
Driver and Passenger Safety
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Side Airbag Cutoff SystemYour vehicle has a side airbag cutoff
system designed primarily to protect
a child riding in the front passenger's
seat.
Although Honda does not encourage
children to ride in front, if the
position sensors detect a child has
leaned into the side airbag's
deployment path, the airbag will shut
off.
The side airbag may also shut off if a
short adult leans sideways, or a
larger adult slouches and leans
sideways into the airbag's
deployment path.
Objects placed on the front
passenger seat can also cause the
side airbag to be shut off.If the side airbag off indicator comes
on (see page 31), have the passenger
sit upright. Once the passenger is
out of the airbag's deployment path,
the system will turn the airbag back
on, and the indicator will go out.
There will be some delay between
the moment the passenger moves
into or out of the airbag deployment
path and when the indicator comes
on or goes off.
A front seat passenger should not
use a cushion or another object as a
backrest. It may prevent the cutoff
system from working properly.
How Your Side Curtain Airbags
Work
In a Side ImpactIn a moderate to severe side impact,
sensors will detect rapid acceleration
and signal the control unit to
instantly inflate the side curtain
airbag.
SIDE CURTAIN AIRBAG
CONTINUED
Additional Information About Your Airbags
29
Driver and Passenger Safety
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

If the impact is on the passenger's
side, the passenger's side curtain
airbag will inflate even if there are no
occupants on that side of the vehicle.In a RolloverIf the rollover sensor detects your
vehicle is about to roll over, it signals
the control unit, which immediately
deploys both side curtain airbags and
activates both front seat belt
tensioners.
The airbag on the passenger's side
will deploy, and the seat belt
tensioner will activate, even if there
are no passengers on that side of the
vehicle.To get the best protection from the
side curtain airbags, occupants
should wear their seat belts and sit
upright and well back in their seats.
How the SRS Indicator Works
The SRS indicator alerts
you to a potential problem
with your airbag system components.
When you turn the ignition switch to
the ON (II) position, this indicator
comes on briefly then goes off. This
tells you the system is working
properly.
Additional Information About Your Airbags3010/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

This section gives information about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.
Control Locations
..........................
56
Instrument Panel
..........................
57
Instrument Panel Indicators
..........
58
Gauges
..........................................
64
Information Display
..................
65
Odometer
..................................
65
Trip Meter
................................
66
Fuel Gauge
...............................
66
Check Fuel Cap Message
.........
66
Temperature Gauge
..................
67
Maintenance Minder ™
..............
67Outside Temperature
Indicator
...............................
68
Controls Near the Steering Wheel
.......................................
69
Windshield Wipers and Washers
....................................
70
Turn Signals and Headlights
.........
71
Instrument Panel Brightness
........
72
Hazard Warning Button
................
73
Rear Window Defogger
.................
74
Steering Wheel Adjustment
..........
74
Keys and Locks
.............................
75
Immobilizer System
......................
76
Remote Transmitter
......................
77
Ignition Switch
..............................
79
Door Locks
...................................
80
Power Door Locks
....................
80
Rear Doors
................................
81
Hatch
........................................
81
Tailgate
.....................................
82
Seats
.............................................
83
Seat Adjustments
......................
83
Driver's Seat Height Adjustment
...........................
84 Front Seat Armrests
..................
85
Head Restraints
.........................
85
Reclining the Front Seats
..........
87
Folding the Rear Seats
..............
88
Removing the Rear Seats
..........
90
Power Windows
............................
92
Mirrors
.........................................
93
Adjusting the Power Mirrors
.....
93
Rear Windows
...............................
94
Parking Brake
...............................
94
Interior Lights
...............................
95
Light Control Switch
.................
95
Individual Map Lights
...............
95
Ceiling Light
.............................
96
Cargo Area Light
.......................
96
Ignition Switch Light
.................
96
Interior Convenience Items
...........
97
Cooler Box
................................
98
Beverage Holders
.....................
99
Accessory Power Sockets
.......
100
Glove Box
...............................
100
Sun Visor
................................
100
Vanity Mirror
..........................
101
Overhead Console
..................
101
Instruments and Controls
55
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Immobilizer System
Indicator
This indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. It will
then go off if you have inserted a
properly coded ignition key. If it is
not a properly coded key, the
indicator will blink, and the engine
will not start (see page 76).
This indicator also blinks several
times when you turn the ignition
switch from the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
Turn Signal and
Hazard Warning
Indicators
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink
or they blink rapidly, it usually
means one of the turn signal bulbs is
burned out (see page 204). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle flash.
Daytime Running Lights
Indicator
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
with a circuit. Have your vehicle
checked by your dealer.Cruise Control Indicator
This indicator comes on when you
set the cruise control. See page 137
for information on operating the
cruise control.Cruise Main Indicator
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button on the
steering wheel (see page 137).
Instrument Panel Indicators6010/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

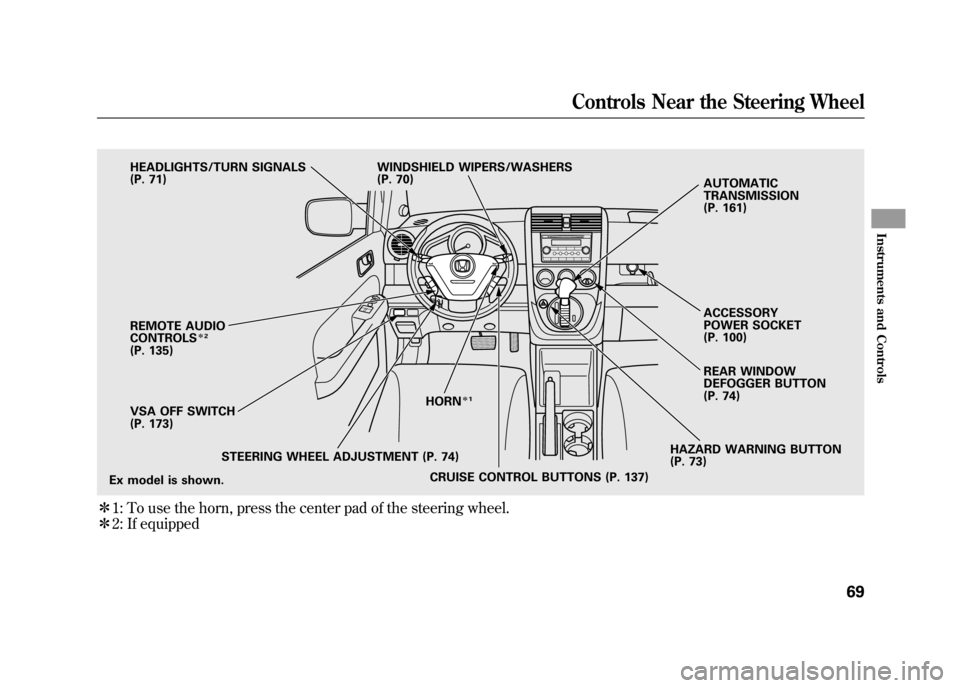

ꭧ1: To use the horn, press the center pad of the steering wheel.
ꭧ 2: If equipped
HAZARD WARNING BUTTON
(P. 73)
CRUISE CONTROL BUTTONS (P. 137)
STEERING WHEEL ADJUSTMENT (P. 74) HORN
ꭧ
1
Ex model is shown. VSA OFF SWITCH
(P. 173) REMOTE AUDIO
CONTROLS
ꭧ
2
(P. 135) HEADLIGHTS/TURN SIGNALS
(P. 71) WINDSHIELD WIPERS/WASHERS
(P. 70)
REAR WINDOW
DEFOGGER BUTTON
(P. 74) AUTOMATIC
TRANSMISSION
(P. 161)
ACCESSORY
POWER SOCKET
(P. 100)
Controls Near the Steering Wheel
69
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

1. Turn signal
2. Off
3. Parking and instrument panel
lights
4. Headlights on
5. High beams
6. Flash high beamsTurn Signal
－Push down on the
lever to signal a left turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn. Headlights
－Turning the switch to
the ‘‘
’’position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turning the switch to the ‘‘
’’
position turns on the headlights.
When the light switch is in the
‘‘
’’ or ‘‘
’’position, the lights
on indicator comes on as a reminder.
This indicator stays on if you leave
the light switch on and turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position.
If you leave the lights on with the key
removed from the ignition switch,
you will hear a reminder chime when
you open the driver's door.







CONTINUED
Turn Signals and Headlights
71
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

High Beams－Push the lever back
until you hear a click to turn on the
high beams. The blue high beam
indicator will come on (see page 61).
Pull the lever back again to low
beams.
To flash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back. Daytime Running Lights
With the headlight switch off, the
daytime running lights come on
when you turn the ignition switch to
the ON (II) position and release the
parking brake. They remain on until
you turn the ignition switch off, even
if you set the parking brake.
When the headlights are on, the
daytime running lights are off.Instrument Panel Brightness
The select/reset knob on the
instrument panel controls the
brightness of the instrument panel
lights. Turn the knob to adjust the
brightness.
Separate adjustments can be made
when the headlights are on and off.
Turn Signals and Headlights, Instrument Panel Brightness7210/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

The level of brightness is shown on
the information display while you
adjust it. It goes out about 5 seconds
after you finish adjusting.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or
. Turning the select/reset
knob to the right until you hear a
beep will cancel the reduced
brightness. The instrument panel will illuminate
with reduced brightness when you
unlock and open the driver's door.
The brightness will increase slightly
when you insert the key in the
ignition switch, then go to normal
brightness when you turn the
ignition switch to the ON (II)
position.
If you do not insert the key in the
ignition switch after opening the
driver's door, the illumination turns
off about 30 seconds after you close
the door.
If you insert the key but do not turn
the ignition switch to the ON (II)
position, the illumination turns off in
about 10 seconds.
Hazard Warning Button
Push the button next to the shift
lever to turn on the hazard warning
lights (four-way flashers). This
causes all four outside turn signals
and both turn indicators in the
instrument panel to flash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traffic, or if your vehicle is disabled.
BRIGHTNESS LEVEL
Instrument Panel Brightness, Hazard Warning Button
73
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu
