HONDA FIT 2007 1.G Owners Manual

You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f . 73
Playing the AM/FM Radio
A udio System L ighting
Features
109

The radio can receive the complete
AM and FM bands.
Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHzHow well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned f requencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned f requencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’ Radio Frequencies Radio Reception
A M/FM Radio Reception
110

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
A M/FM Radio Reception
Features
111

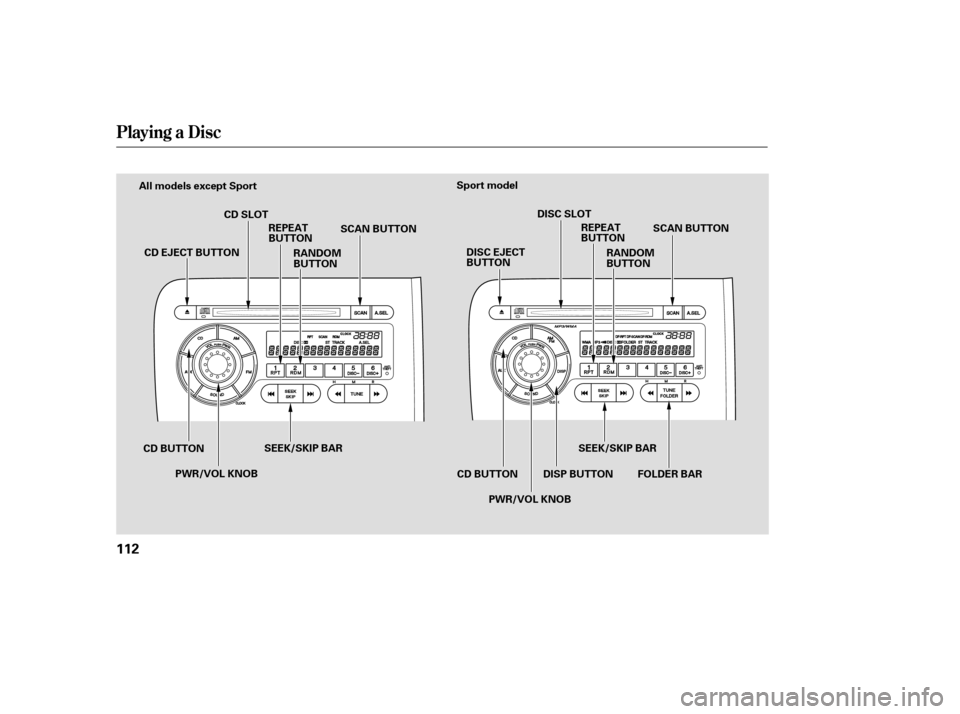

Playing a Disc
112
PWR/VOL KNOB
CD BUTTON CD SLOT
CD EJECT BUTTON SCAN BUTTON
PWR/VOL KNOB
CD BUTTON
SEEK/SKIP BAR
FOLDER BARSCAN BUTTON
DISP BUTTON SEEK/SKIP BAR
RANDOM
BUTTON
RANDOM
BUTTON
REPEAT
BUTTON
REPEAT
BUTTON
All models except Sport
Sport model
DISC SLOT
DISC EJECT
BUTTON

µµ
To play the radio when a CD is
playing, press the AM or FM button.
Press the CD button again to switch
back to the CD player.
To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or the ON(II) position.
You operate the CD player with the
same controls used f or the radio. To
select the CD player, press the CD
button. The number of the track
playing is shown in the display. The
system will continuously play a CD
until you change modes.
Insert a CD about half way into the
CD slot. The drive will pull the CD in
the rest of the way to and begin play
it. When the system reaches the end
of the disc, it will return to the
beginning and play the disc again.
You cannot load and play 3-inch
(8-cm)discsinthissystem. If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition
switch, the disc will stay in the drive.
When you turn the system back on,
the CD will begin playing where it
left off. Each time you press and
releasethe sideof theSKIPbar,
the player skips forward to the
beginning of the next track. Press
and release the side, to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
To move rapidly within a track, press
andholdthe or side.
To move rapidly within a
track, press and hold the SEEK/
SKIP bar. Press and hold to
move forward. Press and hold to move backward. Release the
bar when the system reaches the
point you want.All models except Sport
T o Play a CD T o Change or Select T racks
SK IP
SEEK
Playing a Disc
Features
113
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.

µ
µ µ
If you turn the system of f while a
disc is playing, either with the PWR/
VOL knob or by turning of f the
ignition switch, the disc will stay in
the drive. When you turn the system
back on, the disc will begin playing
where it lef t of f .
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 10 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM or FM button to
switch to the radio while a CD is
playing. To play the CD, press the
CD button.
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press it again to turn it of f .
The scan f unction samples
all the tracks on the disc in the order
they are recorded on the CD. To
activate it, press the SCAN button.
You will see SCAN in the display.
You will get a 10 second sampling of
each track on the CD. Press the
SCAN button again to get out of the
system and play the last track
sampled. This f eature plays the
tracks in random order. To activate
random play, press and release the
RDM button. You will see RDM in
the display. Press it again to return
to normal play. To Stop Playing a CD
REPEAT
SCAN RANDOM
Playing a Disc
114

The specif ications of the compatible
MP3 f ile are:
Sampling f requency: 32/44.1/48 kHz
(MPEG1), 24, 22.05, 16 kHz
(MPEG2)
Bit rate: 32/40/48/56/64/80/96/
112/128/160/192/224/256/320 kbps
(MPEG1), 8/16/24/32/40/48/56/
64/80/96/112/128/160 kbps
(MPEG2)
Compatible with variable bit rate and
multi-session.
Maximum layers
(including ROOT): 8 layers
You operate the disc player with the
same controls used f or the radio. To
select the disc player, press the CD
button. You will see ‘‘CD’’ in the
display. The number of the track
playing is shown in the display. The
system will continuously play a disc
until you change modes.
The disc player can also play CD-Rs
andCD-RWscompressedinCD-
TEXT,MP3,andWMAformats.
When playing a disc in MP3 or WMA,
you will see ‘‘MP3’’ or ‘‘WMA’’ in the
display. You can select up to 255
folders or tracks.
Video CDs and DVDs will not work
in this unit. To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
Sampling f requency: 32/44.1/48 kHz
Bit rate: 48/64/80/96/128/160/192
kbps
Compatible with variable bit rate and
multi-session.
Maximum layers (including ROOT):
8 layers The specif ications of the compatible
WMA f ile are:
CONT INUED
On Sport model
Playing a Disc
To Play a Disc
Features
115

When you insert a disc, and the
system begins to play.
Each time a new track, file, or
f older plays, other than in normal
display mode.
Each time you press the DISP button
while playing a CD-TEXT, the
display mode changes f rom album
name, to track name, to artist name,
andthentonormaldisplay.When
playing a disc in MP3/WMA, the
display mode changes f rom f older
name,tofilename,toartisttag,to
album tag, to track tag, and then to
normal display.
If the title is too long, it will not show
all at once. Press and hold the DISP
button, and the rest of the title will
show in the display.
Insert the disc about half way into the
disc slot. The drive will pull the disc
in the rest of the way and begin to
play it. When the system reaches the
end of the disc, it will return to the
beginning and play the disc again.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
To play the AM/FM radio when a
disc is playing, press the AM/FM
button. Press the CD button again to
switch back to the disc player.
You will also see the album/track
name (CD-TEXT), or the f older/f ile
name (MP3/WMA) under these
conditions:
Playing a Disc
Name Display Funct ion
116
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.

µ
µ
CONT INUED
In MP3/WMA mode
To
select a dif f erent f older, press the
lef t or right side of the FOLDER bar.
Press the side to skip to the
next f older, and the side to
move to the beginning of the current
folder.Pressitagaintoskiptothe
previous f older.
Each time you
press and release the side, the
player skips f orward to the
beginning of the next track (f iles in
MP3/WMA mode). Press and
release the side to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
To move rapidly within a track, press
and hold the or side of the
SEEK/SKIP bar.
You can use the SEEK/SKIP bar
while a disc is playing to select
passages and change tracks (f iles in
MP3/WMA mode).
In MP3/WMA mode, use the
FOLDER bar to select f olders in the
disc, and use the SEEK/SKIP bar to
change f iles.
Playing a Disc
FOLDER SELECTION
SEEK /SK IP
T o Change or Select T racks/Files
Features
117

µ
µ
µ This f eature plays the
tracks within a disc in random order.
In MP3/WMA mode, all f iles in all
f olders are played in random order.
To activate random mode, press the
RDM button repeatedly until you see
RDM in the display. Press and
release the RDM button again to
return to normal play.
This feature,
when activated, replays all the f iles
on the selected f older in the order
they are compressed in MP3/WMA.
To activate f older repeat mode, press
the RPT button repeatedly until you
seeF-RPTinthedisplay.Thesystem
continuously replays the current
folder.PressandholdtheRPT
button to turn it of f .
Each time you press and release the
RPT button, the mode changes f rom
f ile repeat to f older repeat, then to
normal playing.
To continuously replay
a track (f ile in MP3/WMA mode),
press and release the RPT button.
You will see RPT in the display.
Press and hold the RPT button to
turn it off.In MP3/WMA mode
Playing a Disc
RANDOM
FOL DER-REPEA T
REPEAT (TRACK/FILE
REPEAT)
