The lock tab on each passenger’s
door locks and unlocks only that
door. Pulling up the driver’s lock tab
only unlocks the driver’s door. To
unlock only the driver’s door f rom
the outside, turn the key and release
it. If you turn it again, the remaining
doors and the tailgate unlock.
To lock a passenger’s door when
getting out of the vehicle, push in the
lock tab and close the door. To lock
the driver’s door, remove key f rom
ignition switch and push in the lock
tab or push the top of the master
door lock switch, then close the door.With the driver’s door open and the
key in the ignition switch, the master
door lock switch is disabled. It is not
disabled if the driver’s door is closed.
If you try to lock the open driver’s
door with the key in the ignition
switch by pushing in the lock tab, the
tabs on all doors pop up when you
close the door.
The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position, the door
cannot be opened f rom inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up, and use the outside door
handle.
Power Door L ocks, Childproof Door L ocks
L ockout Prevent ionChildproof Door L ocks
Inst rument s and Cont rols
79
Lock
Unlock
LEVER

The tailgate will lock or unlock when
you lock or unlock the driver’s door
by using the key, the lock tab on the
driver’s door, the master door lock
switch or the remote transmitter (if
equipped).To open the tailgate, pull the handle,
then lif t up.
You can lock or unlock the tailgate
with the key.
All models except Sport
All models except Canadian DX
Tailgate
80
KEY
HANDLE
UNLOCK
LOCK

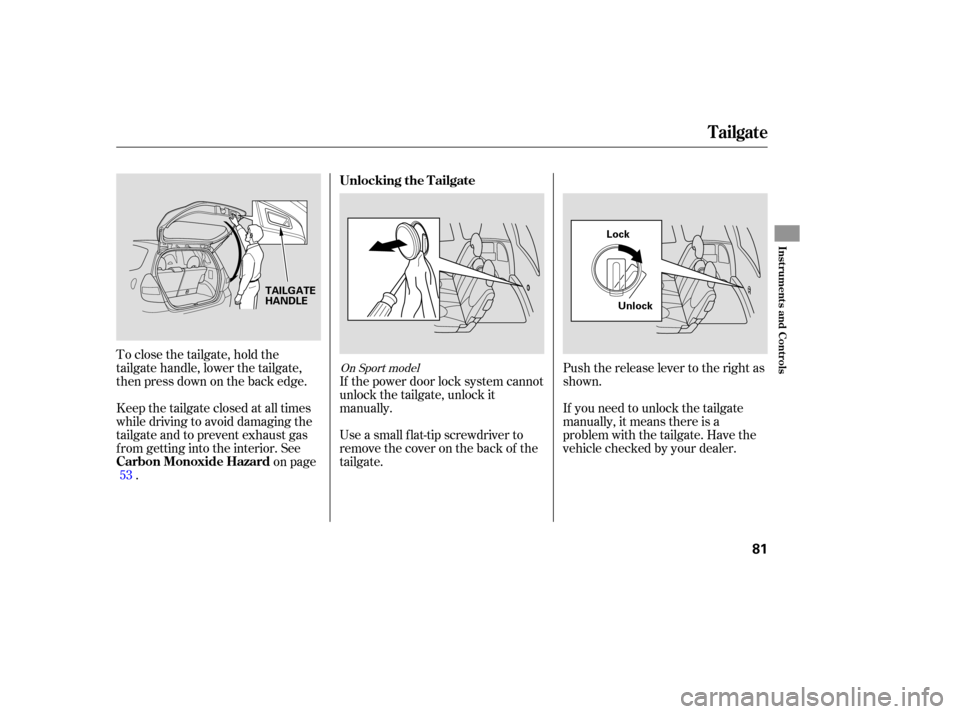

To close the tailgate, hold the
tailgate handle, lower the tailgate,
then press down on the back edge.
Keep the tailgate closed at all times
while driving to avoid damaging the
tailgate and to prevent exhaust gas
from getting into the interior. See
on page
. If the power door lock system cannot
unlock the tailgate, unlock it
manually.
Use a small flat-tip screwdriver to
remove the cover on the back of the
tailgate. Push the release lever to the right as
shown.
If you need to unlock the tailgate
manually, it means there is a
problem with the tailgate. Have the
vehicle checked by your dealer.
53
On Sport model
Carbon Monoxide Hazard Unlocking the T ailgate
Tailgate
Inst rument s and Cont rols
81
TAILGATE
HANDLE
Unlock
Lock

µµ
µ Press this button once
to unlock the driver’s door. Push it
twice to unlock the remaining doors
and the tailgate. Some exterior lights
will f lash twice each time you press
the button.
The ceiling light (if the ceiling light
switch is in the door activated
position) will come on when you
press the UNLOCK button. If you do
not open any door or the tailgate
within 30 seconds, the light f ades out.
If you relock the doors and the
tailgate with the remote transmitter
bef ore 30 seconds have elapsed, the
light will go of f immediately.
If you do not open any door or the
tailgate within 30 seconds, they will
automatically relock and the security
system will set. Pressthisbuttonfor
about 2 seconds to attract attention:
the horn will sound, and the exterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
Press this button once to
lock all doors and the tailgate. Some
exterior lights will f lash once. When
you push LOCK twice within 5
seconds, the horn will sound to
verify that the doors and the tailgate
arelockedandthesecuritysystem
has set. You cannot lock the doors
and the tailgate if any door or the
tailgate is not f ully closed or the key
is in the ignition switch.
On Sport model
Remote Transmitter
UNL OCK PA NIC
LOCK
82
LED
UNLOCK
BUTTON LOCK
BUTTON
PANIC
BUTTON

Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.If it takes several pushes on the
button to lock or unlock the doors
and the tailgate, replace the battery
as soon as possible.
Battery type: CR1616

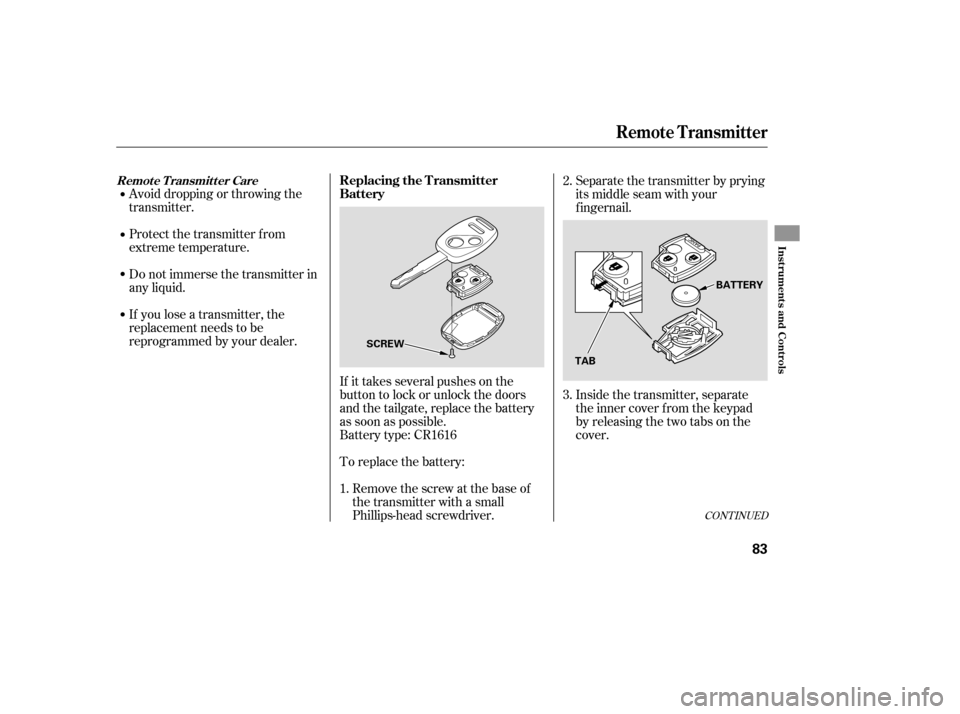

To replace the battery:Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver. Separate the transmitter by prying
its middle seam with your
f ingernail.
Inside the transmitter, separate
the inner cover f rom the keypad
by releasing the two tabs on the
cover.
1. 3. 2.
CONT INUED
Remote Transmitter
Remote Transmitter CareReplacing the Transmitter
Battery
Inst rument s and Cont rols
83
SCREW
TABBATTERY

´
Remove the old battery, and insert
a new battery into the back of the
cover with the side f acing down.
Install the parts in reverse order. An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations
for battery disposal.
5. 4.
As required by the FCC: This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Remote Transmitter
84

µ
See pages for important safety
inf ormation and warnings about how to properly position the seats and seat-backs. 11 13
Make all seat adjustments bef ore
you start driving.
The seat can also be adjusted
f orward and backward using the
lever on the side of the seat-back.
Pull out the lever and push it f orward,
holding the seat-back with your hand.
Move the seat to the desired position,
andchecktheseattomakesureitis
locked in position.
To adjust the seat forward and
backward, pull up on the lever under
the seat cushion’s f ront edge. Move
the seat to the desired position, and
releasethelever.Trytomovethe
seat to make sure it is locked in
position.
Seats
FrontSeatAdjustments
Inst rument s and Cont rols
85
LEVER

See page for important safety
inf ormation and a warning about how to properly position the head restraints. 13
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers f rom whiplash and other
injuries.
They are most ef f ective when you
adjust them so the back of the
occupant’s head rests against the
center of the restraint.

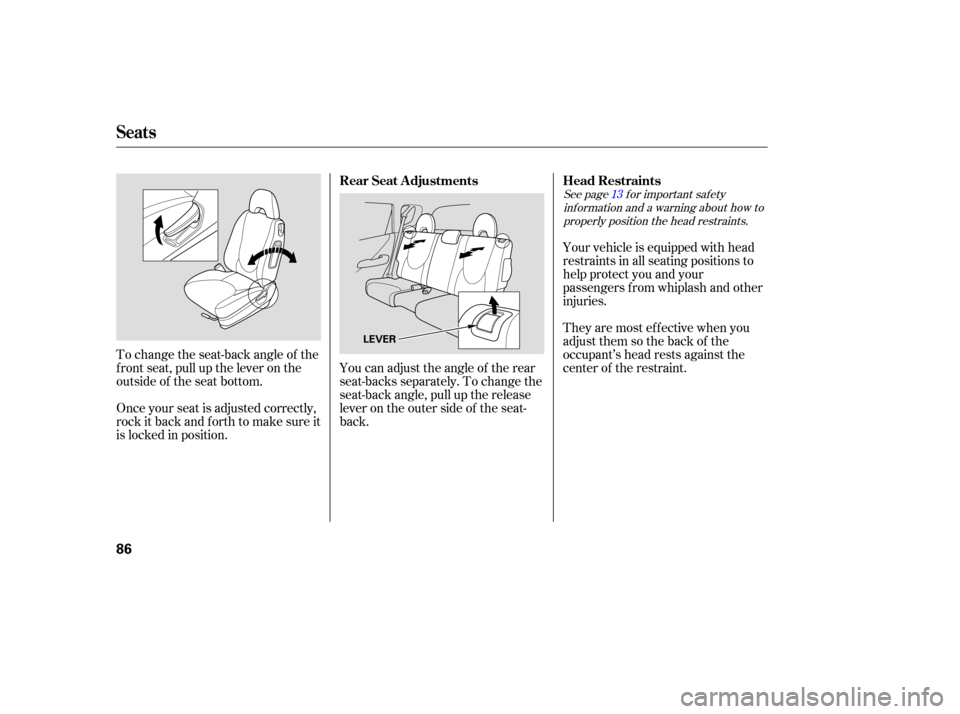

To change the seat-back angle of the
f ront seat, pull up the lever on the
outside of the seat bottom.
Once your seat is adjusted correctly,
rock it back and f orth to make sure it
is locked in position. You can adjust the angle of the rear
seat-backs separately. To change the
seat-back angle, pull up the release
leverontheoutersideof theseat-
back.Head Restraints
Rear Seat Adjustments
Seats
86
LEVER

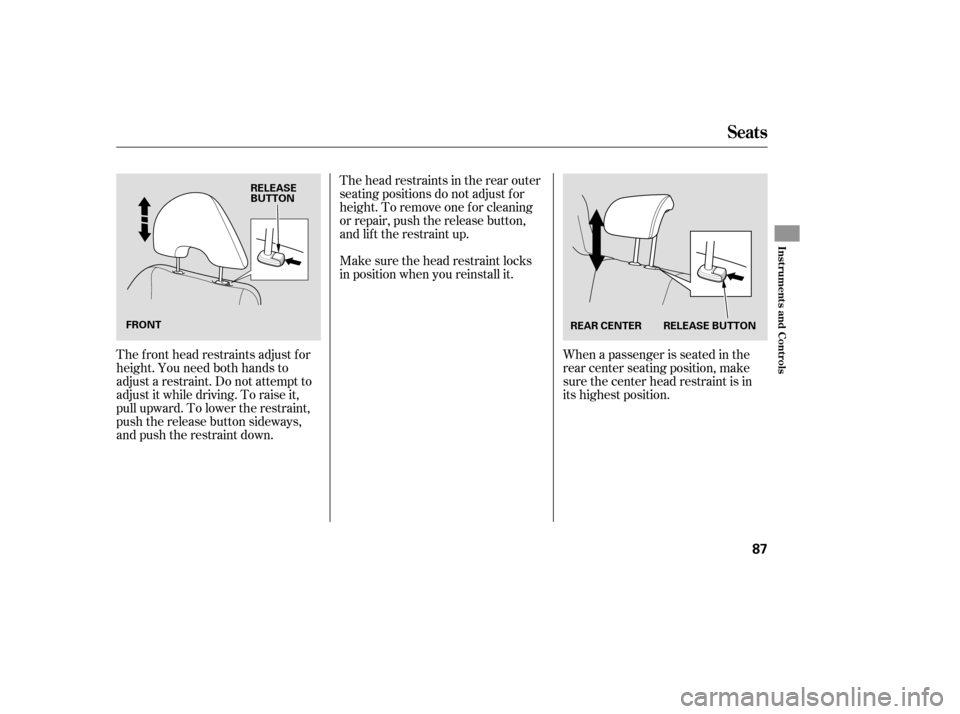

The head restraints in the rear outer
seating positions do not adjust f or
height. To remove one f or cleaning
or repair, push the release button,
and lif t the restraint up.
The f ront head restraints adjust f or
height. You need both hands to
adjust a restraint. Do not attempt to
adjust it while driving. To raise it,
pull upward. To lower the restraint,
push the release button sideways,
and push the restraint down. When a passenger is seated in the
rear center seating position, make
sure the center head restraint is in
its highest position.
Make sure the head restraint locks
in position when you reinstall it.
Seats
Inst rument s and Cont rols
87
RELEASE BUTTON
RELEASE
BUTTON
REAR CENTER
FRONT

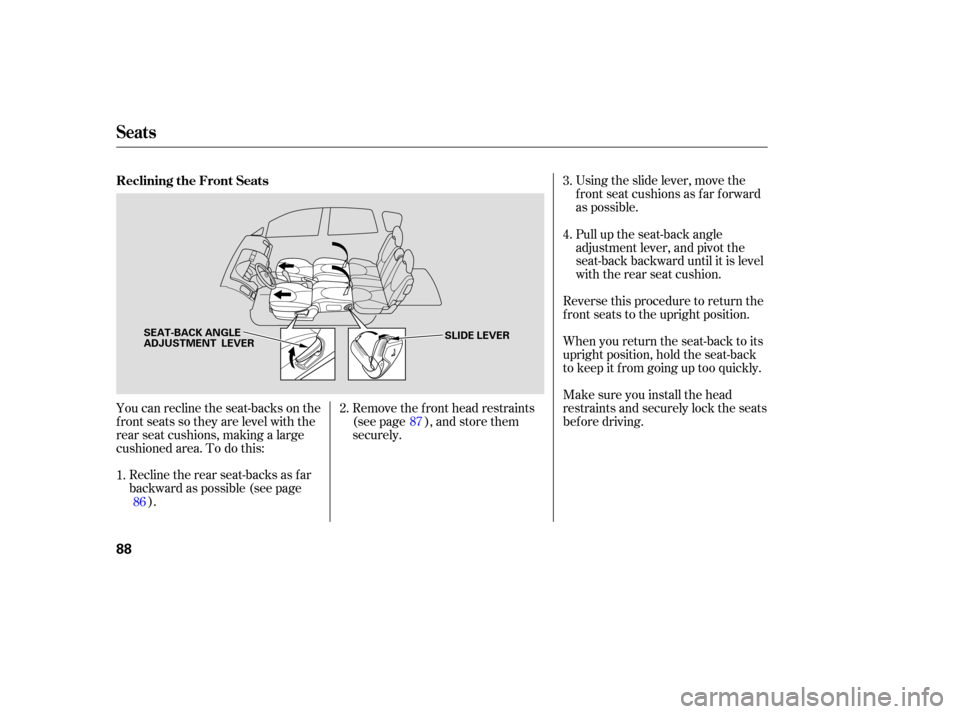

You can recline the seat-backs on the
front seats so they are level with the
rear seat cushions, making a large
cushioned area. To do this:
Recline the rear seat-backs as far
backward as possible (see page
). Using
the slide lever, move the
frontseatcushionsasfarforward
as possible.
Remove the front head restraints
(see page ), and store them
securely. Reverse this procedure to return the
f ront seats to the upright position.
When you return the seat-back to its
upright position, hold the seat-back
to keep it f rom going up too quickly.
Make sure you install the head
restraints and securely lock the seats
bef ore driving.Pull up the seat-back angle
adjustment lever, and pivot the
seat-back backward until it is level
with the rear seat cushion.
1. 3.
4.
2.
86 87
Reclining the Front Seats
Seats
88
SEAT-BACK ANGLE
ADJUSTMENT LEVER
SLIDE LEVER
