HONDA FIT 2008 1.G Owners Manual

Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic f ive-digit code in the
preset buttons. Because there are
hundreds of number combinations
possible f rom f ive digits, making the
system work without knowing the
exact code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.
If you lose the card, you must obtain
the code number f rom a dealer. To
do this, you will need the system’s
serial number.If your vehicle’s battery is
disconnected or goes dead, or the
radio f use is removed, the audio
system will disable itself . If this
happens, you will see ‘‘ENTER
CODE’’ in the f requency display the
nexttimeyouturnonthesystem.
Use the preset buttons to enter the
code. The code is on the radio code
card included in your owner’s
manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have 10 tries to
enter the correct code. If you are
unsuccessf ul in 10 attempts, you
must then leave the system on for 1
hour bef ore trying again.
Radio T hef t Protection
128
\f—\f—y\f\fy
(
\fy\f
y
2008 Fit

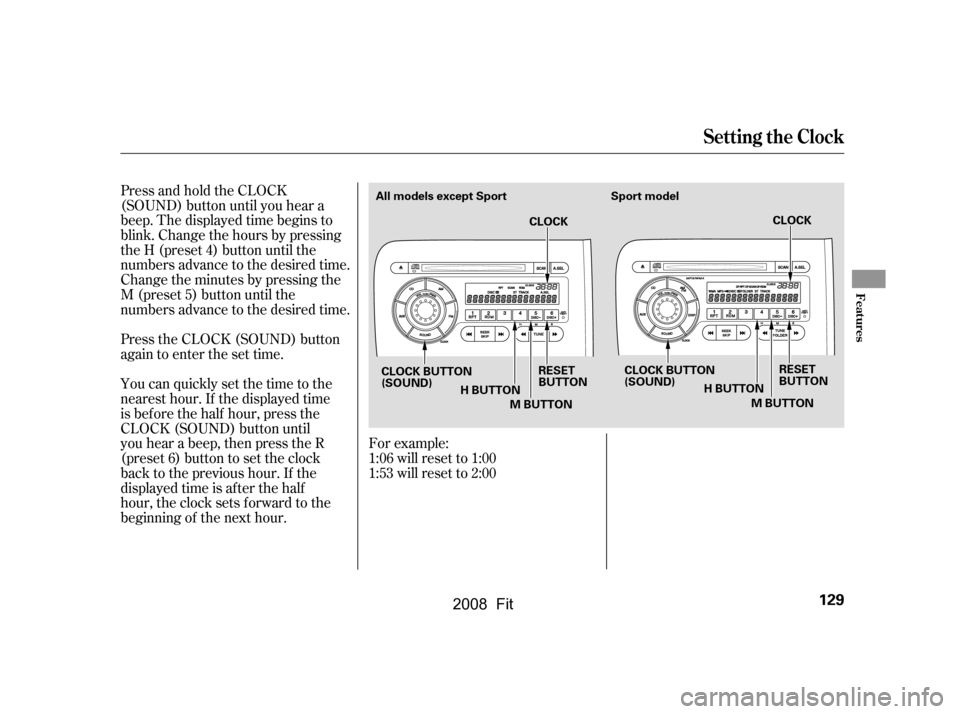

Press and hold the CLOCK
(SOUND) button until you hear a
beep. The displayed time begins to
blink. Change the hours by pressing
the H (preset 4) button until the
numbers advance to the desired time.
Change the minutes by pressing the
M (preset 5) button until the
numbers advance to the desired time.For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
Press the CLOCK (SOUND) button
again to enter the set time.
You can quickly set the time to the
nearest hour. If the displayed time
is bef ore the half hour, press the
CLOCK (SOUND) button until
you hear a beep, then press the R
(preset 6) button to set the clock
back to the previous hour. If the
displayed time is af ter the half
hour, the clock sets f orward to the
beginning of the next hour.
Setting the Clock
Features
129
CLOCK
H BUTTON CLOCK
H BUTTON
M BUTTON RESET
BUTTON
RESET
BUTTON
M BUTTON
All models except Sport Sport model
CLOCK BUTTON
(SOUND) CLOCK BUTTON
(SOUND)
\f—\f—y\f
y
(
\fy\f
y
2008 Fit

Once the security system is set,
opening any door, the tailgate, or the
hood without using the key or the
remote transmitter, will cause it to
alarm. It also alarms if the radio is
removed f rom the dashboard or the
wiring is cut.The security system will not set if
the hood, tailgate, or any door is not
f ully closed. If the system will not set,
check the door and tailgate open
indicator on the instrument panel
(see page ) to see if the doors and
tailgatearefullyclosed.Sinceitis
notpartofthemonitordisplay,
manually check the hood.
To see if the system is set
af ter you exit the vehicle, press the
LOCK button on the remote
transmitter within 5 seconds. If the
system is set, the horn will beep
once.
Do not attempt to alter this system
or add other devices to it.
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, position lights, side
marker lights and taillights f lashes if
someone attempts to break into your
vehicle or remove the audio unit.
This alarm continues f or 2 minutes,
then the system resets. To reset an
alarming system before the 2
minutes have elapsed, unlock the
driver’s door with the key or the
remote transmitter.
The alarm will also be activated if
the passenger inside the locked
vehicle turns the ignition switch on.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and the tailgate. For the
system to activate, you must lock the
doorsandthetailgatefromthe
outside with the key, driver’s lock
tab, door lock master switch, or

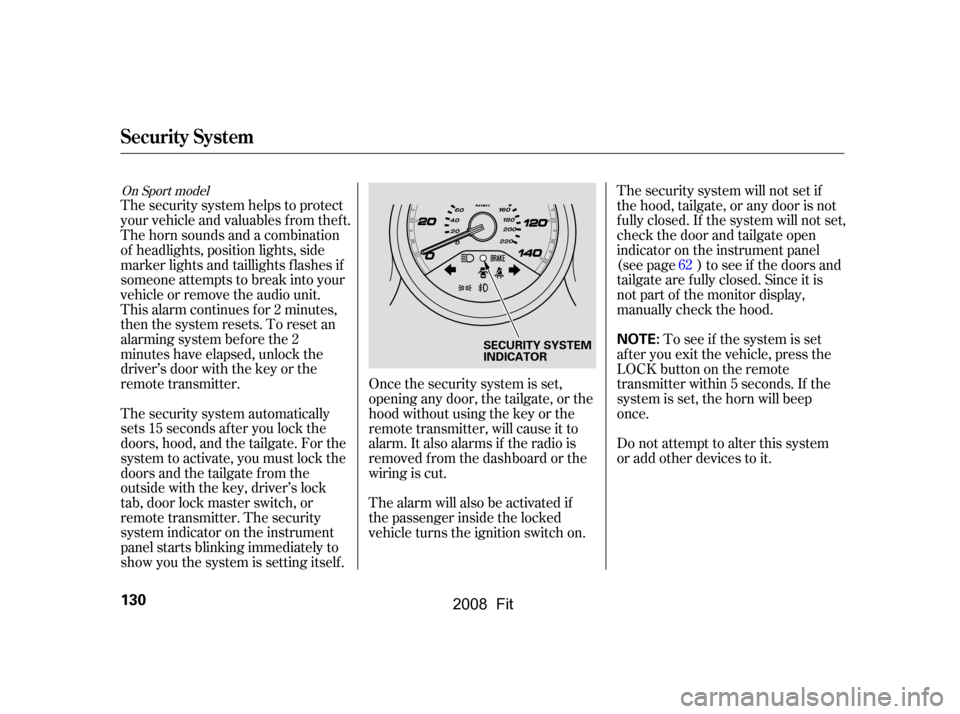

remote transmitter. The security
system indicator on the instrument
panel starts blinking immediately to
show you the system is setting itself . 62
On Sport model
Security System
130
NOTE:SECURITY SYSTEM
INDICATOR
\f—\f—y\f
y
(
\fy\f
y
2008 Fit

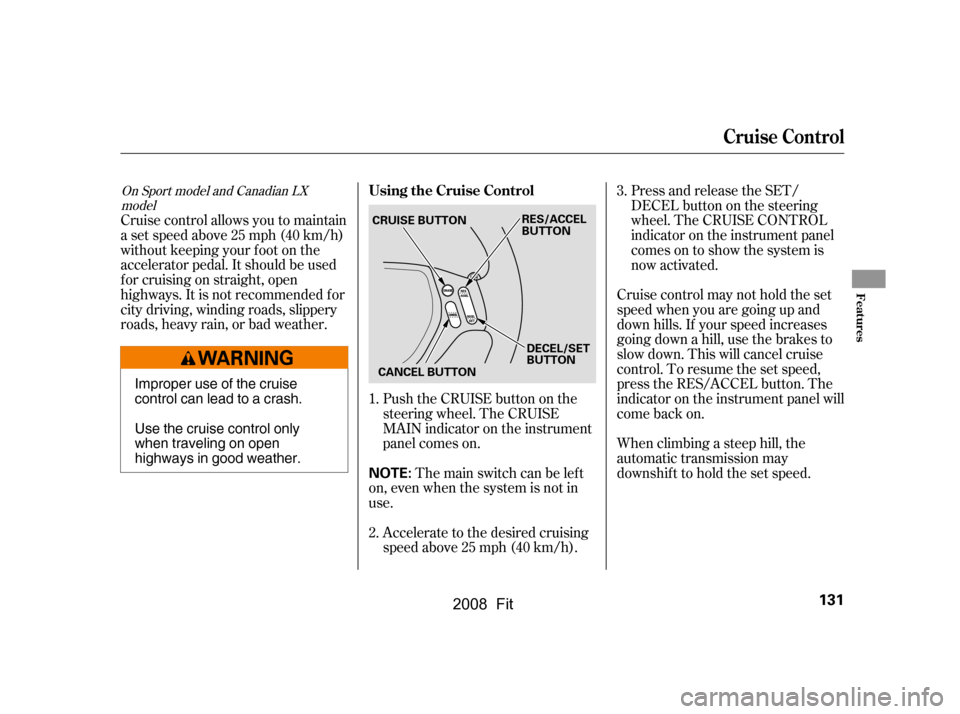

Push the CRUISE button on the
steering wheel. The CRUISE
MAIN indicator on the instrument
panel comes on.Press and release the SET/
DECELbuttononthesteering
wheel. The CRUISE CONTROL
indicator on the instrument panel
comes on to show the system is
now activated.
Cruise control may not hold the set
speed when you are going up and
down hills. If your speed increases
going down a hill, use the brakes to
slowdown.Thiswillcancelcruise
control. To resume the set speed,
press the RES/ACCEL button. The
indicator on the instrument panel will
come back on.
When climbing a steep hill, the
automatic transmission may
downshifttoholdthesetspeed.
Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your f oot on the
accelerator pedal. It should be used
f or cruising on straight, open
highways. It is not recommended f or
city driving, winding roads, slippery
roads, heavy rain, or bad weather.
Accelerate to the desired cruising
speedabove25mph(40km/h).The main switch can be left
on,evenwhenthesystemisnotin
use.
1.
2. 3.
On Sport model and Canadian LX
model
Cruise Control
Using the Cruise Control
Features
131
NOTE:
DECEL/SET
BUTTON
CRUISE BUTTON
RES/ACCEL
BUTTON
CANCEL BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
\f—\f—y\fy
(
\fy\f
y
2008 Fit

You can increase the set cruising
speed in any of these ways:Press and hold the RES/ACCEL
button. When you reach the
desired cruising speed, release the
button.
To increase your speed in very
small amounts, tap the RES/
ACCEL button. Each time you do
this, the vehicle will speed up
about 1 mph (1.6 km/h). Press and hold the SET/DECEL
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the SET/DECEL
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
Tap the brake or clutch pedal
lightly with your f oot. The
CRUISE CONTROL indicator on
the instrument panel goes out.
When the vehicle slows to the
desired speed, press the DECEL/
SET button.
You can decrease the set cruising
speed in any of these ways:
Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up f or passing. Af ter
completing the pass, take your foot
of f the accelerator pedal. The vehicle
will return to the set cruising speed.
Resting your f oot on the brake or
clutch pedal causes the cruise
control to cancel.
Push on the accelerator pedal.
Accelerate to the desired cruising
speed, then press the SET/
DECEL button.
Cruise Control
Changing the Set Speed
132
\f—\f—y\fy
(
\fy\f
y
2008 Fit

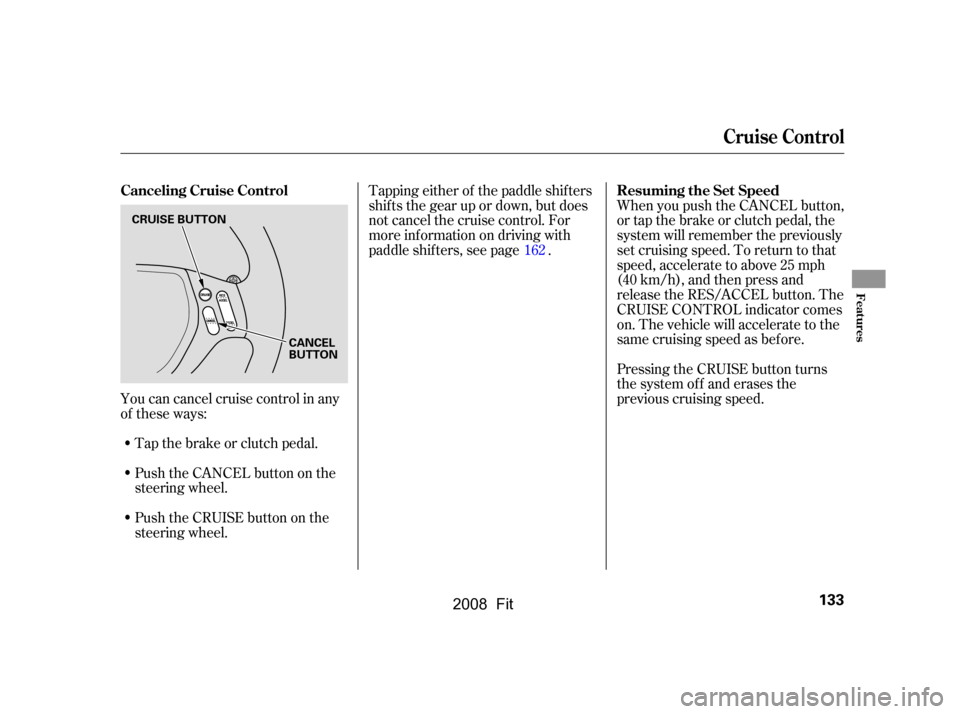

You can cancel cruise control in any
of these ways:Tap the brake or clutch pedal.
Push the CANCEL button on the
steering wheel.
Push the CRUISE button on the
steering wheel. When you push the CANCEL button,
or tap the brake or clutch pedal, the
system will remember the previously
set cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h), and then press and
release the RES/ACCEL button. The
CRUISE CONTROL indicator comes
on. The vehicle will accelerate to the
same cruising speed as bef ore.
Pressing the CRUISE button turns
the system off and erases the
previous cruising speed.
Tapping either of the paddle shif ters
shif ts the gear up or down, but does
not cancel the cruise control. For
more information on driving with
paddle shif ters, see page .
162
Cruise Control
Canceling Cruise Control Resuming the Set Speed
Features
133
CRUISE BUTTON
CANCEL
BUTTON
\f—\f—y\fy
(
\fy\f
y
2008 Fit

134
\f—\f—y\fy
(
\fy\f
y
2008 Fit

Bef ore you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important f luids. You also
need to know how to properly store
luggage or packages. The
inf ormation in this section will help
you. If you plan to add any
accessories to your vehicle, please
read the information in this section
first..............................
Break-in Period .136
.................
Fuel Recommendation .136
.........
Service Station Procedures .137
....................................
Ref ueling .137
Opening and Closing
................................
the Hood .138
...................................
Oil Check .139
.............
Engine Coolant Check .140
...............................
Fuel Economy .141
...
Accessories and Modif ications .144
.............................
Carrying Cargo .146
Bef ore Driving
Bef ore Driving
135
\f—\f—y\f
y
(
\fy\f
\fy
2008 Fit

Help assure your vehicle’s f uture
reliability and perf ormance by paying
extra attention to how you drive
during the f irst 600 miles (1,000 km).Avoid full-throttle starts and rapid
acceleration.
During this period: Your vehicle is designed to operate
on unleaded gasoline with a pump
octane number of 87 or higher. Use
of a lower octane gasoline can cause
a persistent, heavy metallic rapping
noise that can lead to engine damage.
In addition, in order to maintain good
perf ormance, f uel economy, and
emissions control, we strongly
recommend, in areas where it is
available, the use of gasoline that
does NOT contain manganese-based
f uel additives such as MMT.
Use of gasoline with these additives
may adversely af f ect perf ormance,
and cause the malfunction indicator
lamp on your instrument panel to
come on. If this happens, contactyour authorized dealer f or service.
Some gasoline today is blended with
oxygenates such as ethanol or
MTBE. Your vehicle is designed to
operate on oxygenated gasoline
containing up to 10 % ethanol by
volume and up to 15 % MTBE by
volume. Do not use gasoline
containing methanol.
If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
For f urther important f uel-related
inf ormation, please ref er to your
.
Avoidhardbrakingforthefirst
200 miles (300 km).
Do not change the oil until the
scheduled maintenance time.
You should also f ollow these
recommendations with an
overhauled or exchanged engine, or
when the brakes are replaced. We recommend using quality
gasolines containing detergent
additives that help prevent fuel
system and engine deposits.
Break-in Period Fuel Recommendation
Quick Start Guide
Break-in Period, Fuel Recommendation
136
\f—\f—y\f\f\fy
(
\fy\f

y
2008 Fit

CONT INUED
Stop f illing the tank af ter the f uel
nozzle automatically clicks of f . Do
not try to ‘‘top off’’ the tank. Leave
some room f or the f uel to expand
with temperature changes.

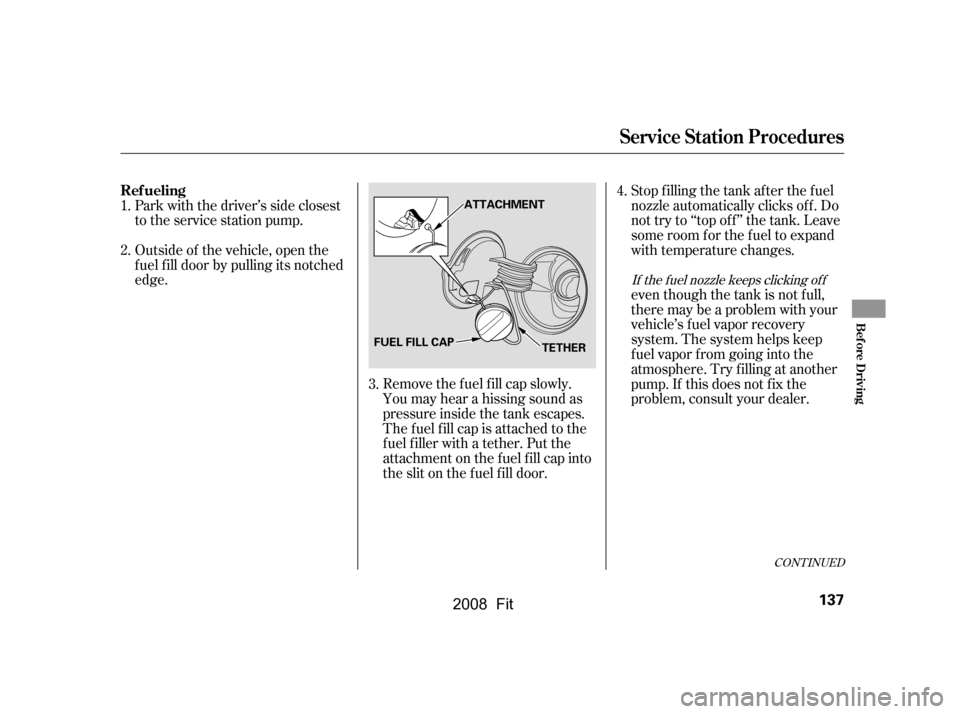

Remove the f uel f ill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
The fuel fill cap is attached to the
f uel f iller with a tether. Put the
attachment on the fuel fill cap into
the slit on the f uel f ill door.
Park with the driver’s side closest
to the service station pump.
Outside of the vehicle, open the
f uel f ill door by pulling its notched
edge.
even though the tank is not f ull,
there may be a problem with your
vehicle’s fuel vapor recovery
system. The system helps keep
f uel vapor f rom going into the
atmosphere. Try f illing at another
pump. If this does not f ix the
problem, consult your dealer.
1.
2.
3.4.
If the f uel nozzle keeps clicking of f
Service Station Procedures
Ref ueling
Bef ore Driving
137
ATTACHMENT
FUEL FILL CAP TETHER
\f—\f—y\f\fy
(
\fy\f
y
2008 Fit
