display HONDA FIT 2010 2.G Technology Reference Guide

Indicators/InfoDisplay/TPMS
Instrument Panel Indicators
Indicators briefly appear with each engine start. Red and amber indicators are most critical. Blue and
green indicators are used for general information.
ABS (anti-lock brake system)
DRL (daytime running lights)
Malfunction lamp (check engine light)
TPMS (tire pressure monitoring system)
VSA (vehicle stability assist)*
Malfunction Indicators: If an indicator remains on, there may be a problem; see your dealer.
Charging system
Low oil pressure
SRS (supplemental restraint system)
Low brake fluid
EPS (electronic power steering)*
Low temperature indicator
10 Fit TRG_Inside Front:Inside Cvr 6/30/2009 9:36 AM Page 1 2010 Fit

Information DisplayConsists of several displays that provide you with useful information.
Once you start the engine, the information display
shows your last active selection from the previous
drive cycle.
To toggle between the different displays, press
and release the select/reset knob repeatedly. Information Displays
Accessing the Information Display
Oil life
Instant and
average
MPG
Instant MPG,
Trip meter
Instant MPG,
Odometer
10 Fit TRG_1ab:ExtraPages.qxd 6/30/2009 9:38 AM Page b1 2010 Fit

Indicators/InfoDisplay/TPMS
Tire Pressure Monitoring System (TPMS)
Each tire valve stem contains a TPMS
sensor.
When the tire pressure drops
significantly below recommended levels,
the low tire pressure indicator comes on. Visually inspect
the tires and use a tire air pressure
gauge to check which tire(s) have low pressure.
How It Works What to Do
Inflatethe tire(s) to the recommended pressures
listed on the label on the driver’s doorjamb.
INSPECT
Monitors the vehicle’s tire pressures.
and
10 Fit TRG_Base:Base 6/30/2009 9:36 AM Page 2 2010 Fit

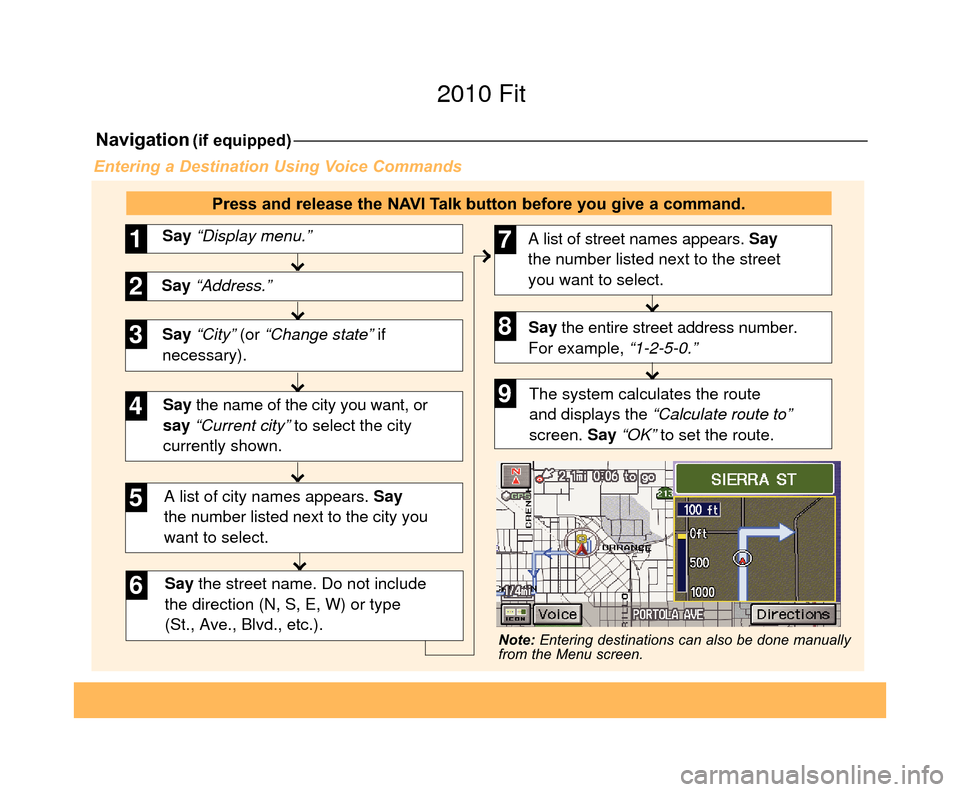

Navigation(if equipped)
Say “City” (or “Change state” if
necessary). Say “Display menu.”
1
Say “Address.”2
3
A list of city names appears. Say
the number listed next to the city you
want to select.
Say the street name. Do not include
the direction (N, S, E, W) or type
(St., Ave., Blvd., etc.).
4
6
Say the name of the city you want, or
say “Current city” to select the city
currently shown.
5
A list of street names appears. Say
the number listed next to the street
you want to select.
Say the entire street address number.
For example, “1-2-5-0.”7
8
The system calculates the route
and displays the “Calculate route to”
screen. Say “OK” to set the route.9
Entering a Destination Using Voice Commands
Press and release the NAVI Talk button before you give a command.
Note: Entering destinations can also be done manually
from the Menu screen.
10 Fit TRG_5abc:ExtraPages.qxd 6/30/2009 9:38 AM Page a5 2010 Fit

1. Say “Find nearest ATM.”
2. A list of the nearest ATMs are displayed by shortest distance to
destination. 3.
Say the number you want to select.
4. The system calculates the route and displays the “Calculate route to” screen.
Say “OK” to set the route.
Press and release the NAVI Talk button before you give a command.
Entering a Destination Using the “Find Nearest” Command
Try these simple steps to find a nearby point of interest, such as a gas station, movie theater, restaurant, etc.
10 Fit TRG_5abc:ExtraPages.qxd 6/30/2009 9:38 AM Page b5 2010 Fit

Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these to familiarize yourself with
the voice command system.
Press and release the NAVI Talk button before you give a command.
Look for Restaurants in Your Location
Saya command like “Display Chinese restaurants” to
see restaurant icons appear on the map.
Make Audio Selections
Say a command like “Radio 97.1 FM” or “CD play
track 5” to select that station or song.
Get Estimated Distance to Destination
After a destination is entered, say“How far to
destination?” to hear the remaining distance.
Adjust the System Volume
Say“Display setup ” then “Volume up ” to increase
the volume of the system voice response.
10 Fit TRG_5abc:ExtraPages.qxd 6/30/2009 9:38 AM Page c5 2010 Fit

Commonly Used Voice Commands (continued)Navigation Commands
(Accepted on Map screen
after a destination is entered)
• How long/far to the destination?
• Display destination
• Display entire route
• Find nearest: - ATM
- gas station
- Mexican restaurant
- post office - bank
- Honda dealer
- airport
- hospital
Display Commands(Accepted on Map screen)
• Display (or hide):
- ATM
- gas station
- Mexican restaurant
- post office • Display north up/
heading up
• Zoom in/out
• Go home
• Display current location
• Display map
• Display menu
• Setup
• Information
• Display audio screen
• What time is it?
Press and release the NAVI Talk button before you give a command.
General Commands
(Accepted on most screens to change displays)
Find Place Commands(Accepted on Map screen)
10 Fit TRG_5abc:ExtraPages.qxd 6/30/2009 9:38 AM Page d5 2010 Fit

Audio
Components
Connecting and Beginning Play
1. Press OPEN.
PC Card Instructions (Models with Navigation)
2. If necessary, insertyour PC card into a PC
card adapter.4. Press AUDIO to show the audio display. Use
the |

and |buttons to skip through
tracks on the card.
3. Insert the PC card into the slot and press
CLOSE.
CLOSE
Button PC card
slot
