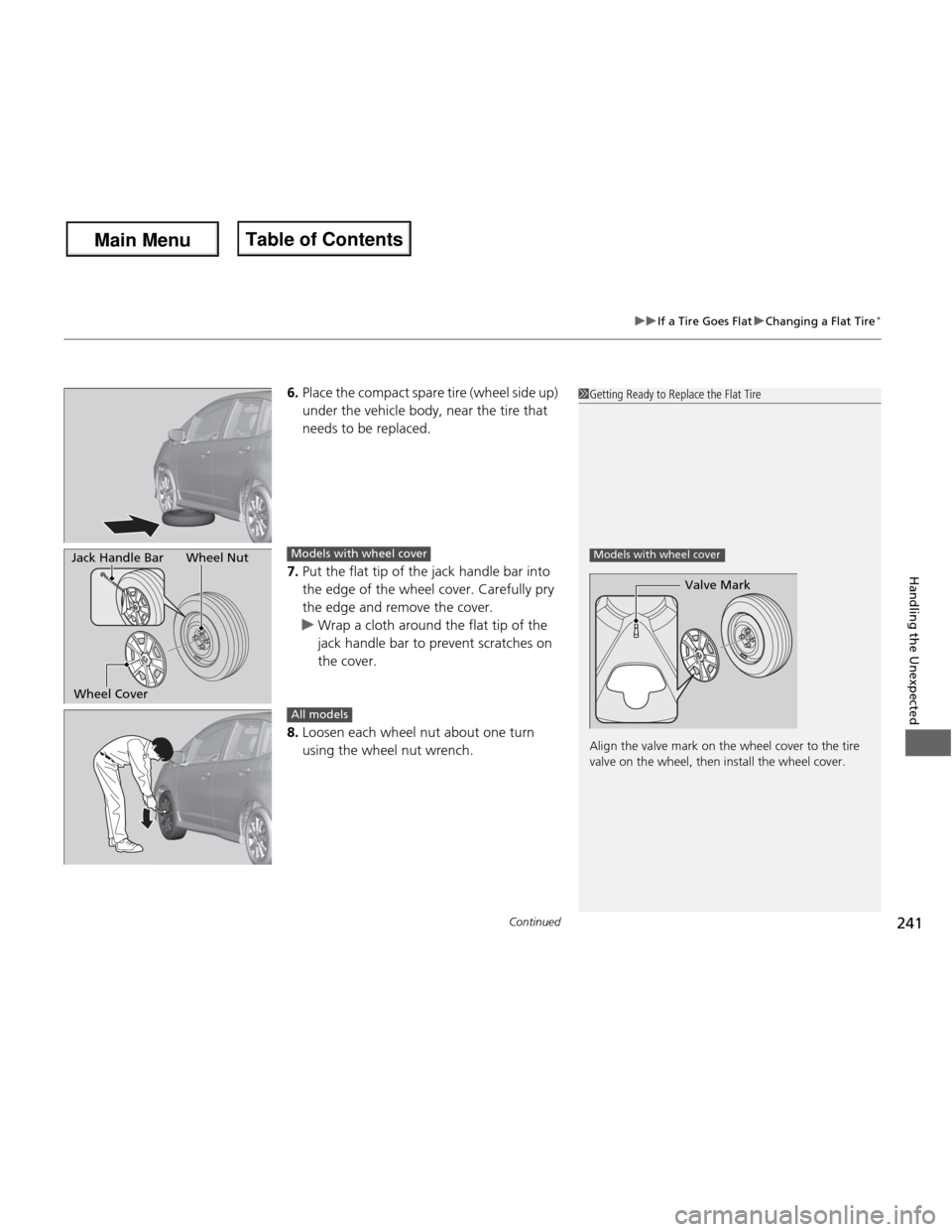

uuIf a Tire Goes FlatuChanging a Flat Tire*
Handling the Unexpected

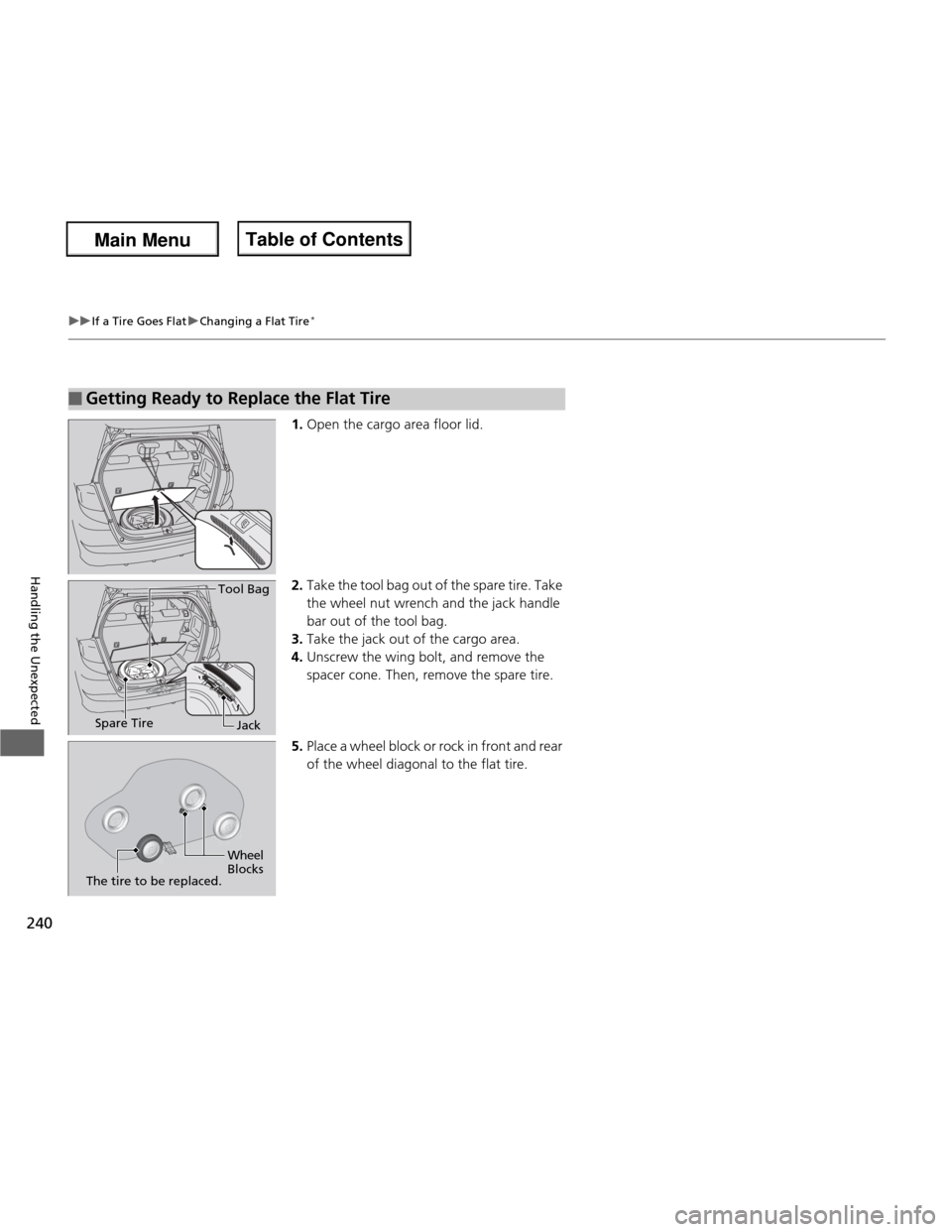

1.
Open the cargo area floor lid.
2. Take the tool bag out of the spare tire. Take
the wheel nut wrench and the jack handle
bar out of the tool bag.
3. Take the jack out of the cargo area.
4. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.
5. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
■Getting Ready to Replace the Flat Tire
Tool Bag
JackSpare Tire
Wheel
Blocks
The tire to be replaced.
Main Menu
Main MenuTable of Contents

Continued241
uuIf a Tire Goes FlatuChanging a Flat Tire*
Handling the Unexpected
6.
Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
7. Put the flat tip of the jack handle bar into
the edge of the wheel cover. Carefully pry
the edge and remove the cover.
uWrap a cloth around the flat tip of the
jack handle bar to prevent scratches on
the cover.
8. Loosen each wheel nut about one turn
using the wheel nut wrench.
1Getting Ready to Replace the Flat Tire
Align the valve mark on the wheel cover to the tire
valve on the wheel, then install the wheel cover.
Models with wheel cover
Valve Mark
Jack Handle Bar Wheel Nut
Wheel CoverModels with wheel cover
All models
Main Menu
Main MenuTable of Contents

uuIf a Tire Goes FlatuChanging a Flat Tire*
242
Handling the Unexpected

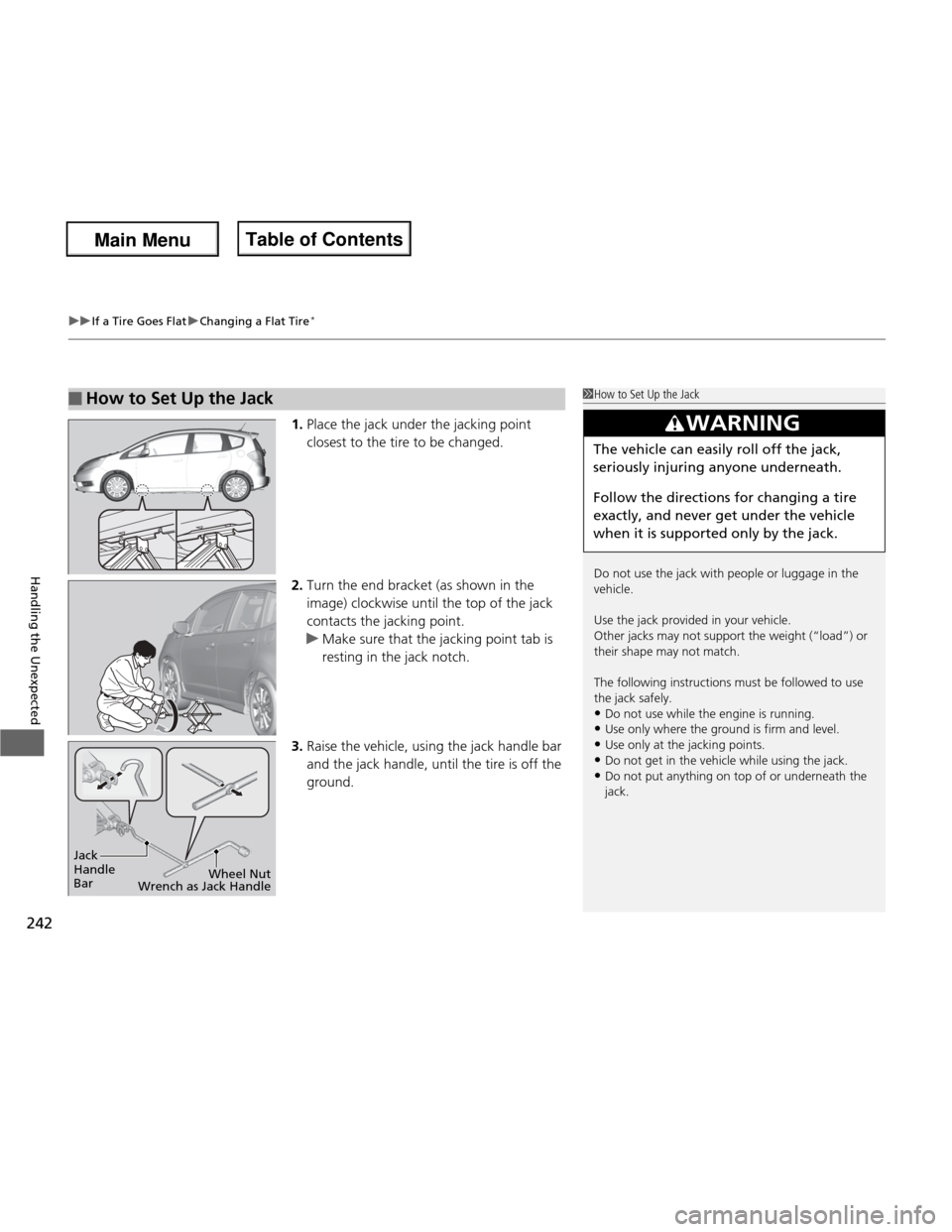

1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket (as shown in the
image) clockwise until the top of the jack
contacts the jacking point.
uMake sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or their shape may not match.
The following instructions must be followed to use the jack safely.
• Do not use while the engine is running.
• Use only where the ground is firm and level.
• Use only at the jacking points.
• Do not get in the vehicle while using the jack.
• Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jack Handle Bar Wheel Nut
Wrench as Jack Handle
Main Menu
Main MenuTable of Contents

Continued243
uuIf a Tire Goes FlatuChanging a Flat Tire*
Handling the Unexpected

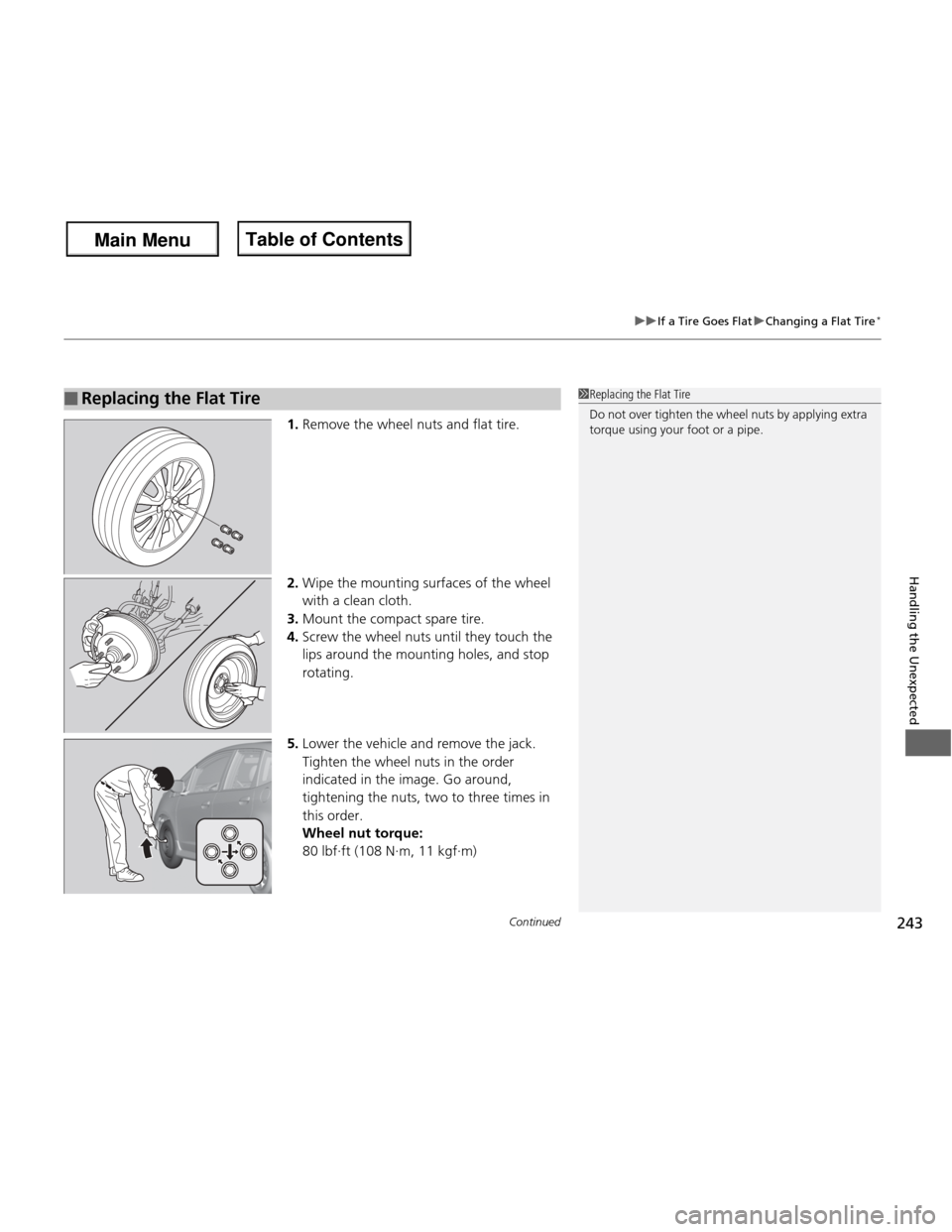

1.
Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, and stop rotating.
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
80 lbfft (108 Nm, 11 kgfm)
■Replacing the Flat Tire1Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
Main Menu
Main MenuTable of Contents

uuIf a Tire Goes FlatuChanging a Flat Tire*
244
Handling the Unexpected

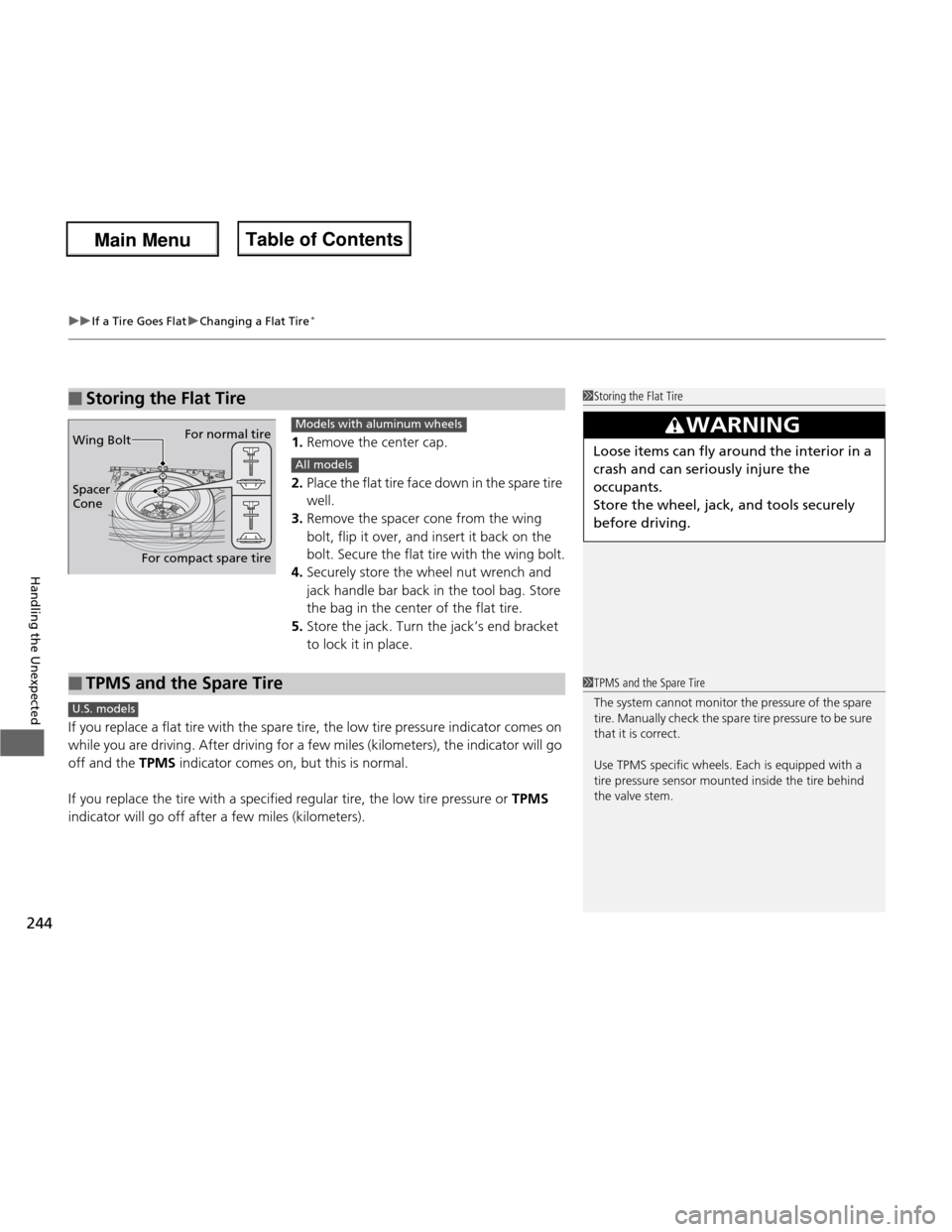

1. Remove the center cap.
2. Place the flat tire face down in the spare tire well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely store the wheel nut wrench and
jack handle bar back in the tool bag. Store
the bag in the center of the flat tire.
5. Store the jack. Turn the jack’s end bracket
to lock it in place.
If you replace a flat tire with the spare tire, the low tire pressure indicator comes on
while you are driving. After driving for a few miles (kilometers), the indicator will go off and the TPMS indicator comes on, but this is normal.
If you replace the tire with a specified regular tire, the low tire pressure or TPMS
indicator will go off after a few miles (kilometers).
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely before driving.
For normal tire
For compact spare tire
Wing Bolt
Spacer
Cone
Models with aluminum wheels
All models
■TPMS and the Spare Tire1TPMS and the Spare Tire
The system cannot monitor the pressure of the spare
tire. Manually check
the spare tire pressure to be sure
that it is correct.
Use TPMS specific wheels. Each is equipped with a
tire pressure sensor mounted inside the tire behind
the valve stem.
U.S. models
Main Menu
Main MenuTable of Contents

245
uuIf a Tire Goes FlatuTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the tire repair kit so that you can drive to the nearest service station for a more
permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place. 1.Park the vehicle on firm, level, and non-slippery ground.
2. Put the shift lever in
(P .
3. Set the parking brake.
4. Turn on the hazard warning lights and turn the ignition switch to LOCK
(0 .
■Getting Ready to Temporarily Repair the Flat Tire
Canadian models with automatic transmission
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or a roadside assistant to
have the vehicle towed.
• The tire sealant has expired.
• More than two tires are punctured.
• The puncture is greater than 3/16 inch (4 mm) in diameter.
• The tire side wall is damaged or the puncture is
outside the tire tread.
• Damage has been caused by driving with the tires
extremely under inflated.
• The tire bead is no longer seated.
• A rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the ki t that came with your vehicle. If
used, you may permanently damage the tire pressure
sensor.

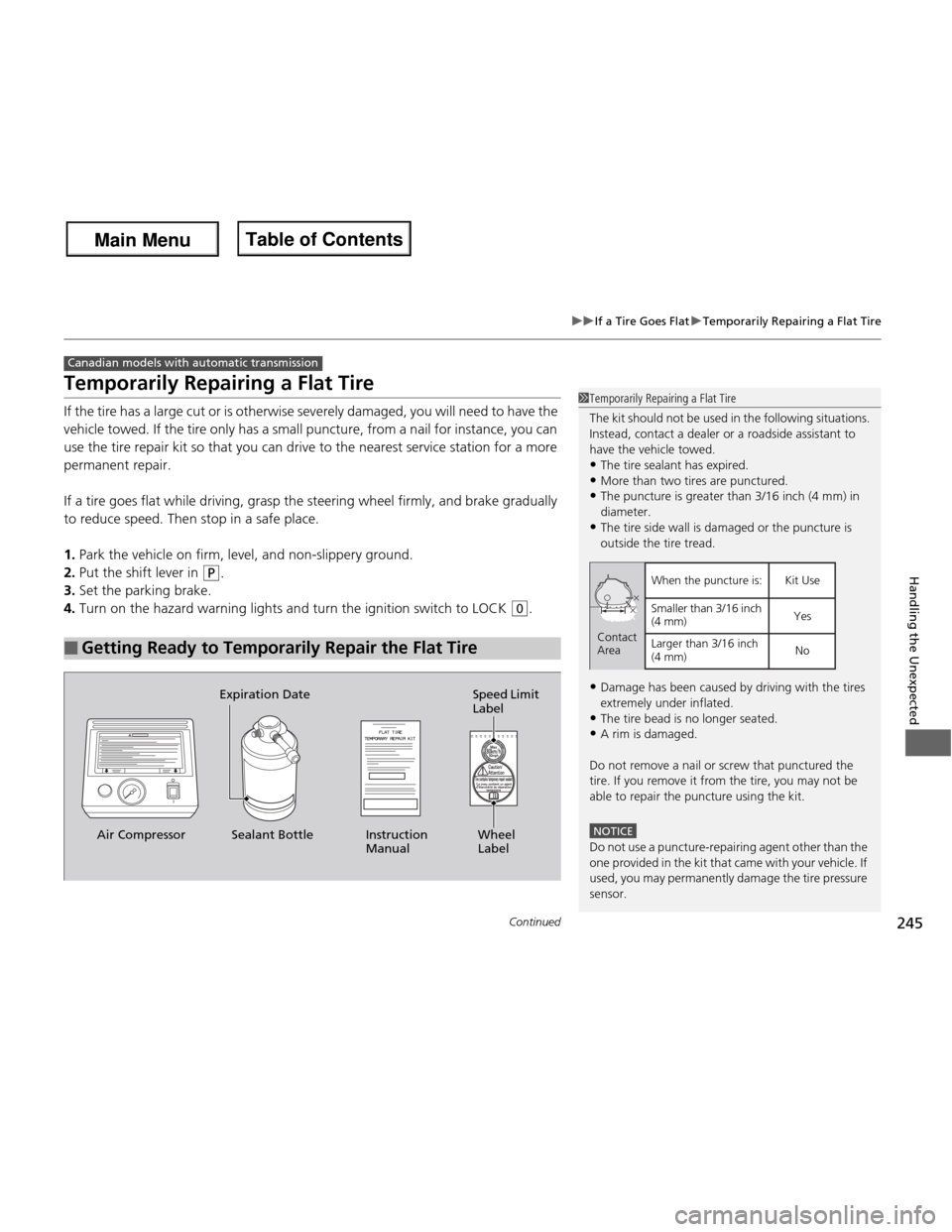

When the puncture is:
Smaller than 3/16 inch
(4 mm)
Larger than 3/16 inch
(4 mm) Kit Use
YesNo
Contact
Area
Instruction Manual
Air Compressor
Wheel
Label
Sealant Bottle
Expiration Date
Speed Limit Label
Main Menu
Main MenuTable of Contents

uuIf a Tire Goes FlatuTemporarily Repairing a Flat Tire
246
Handling the Unexpected

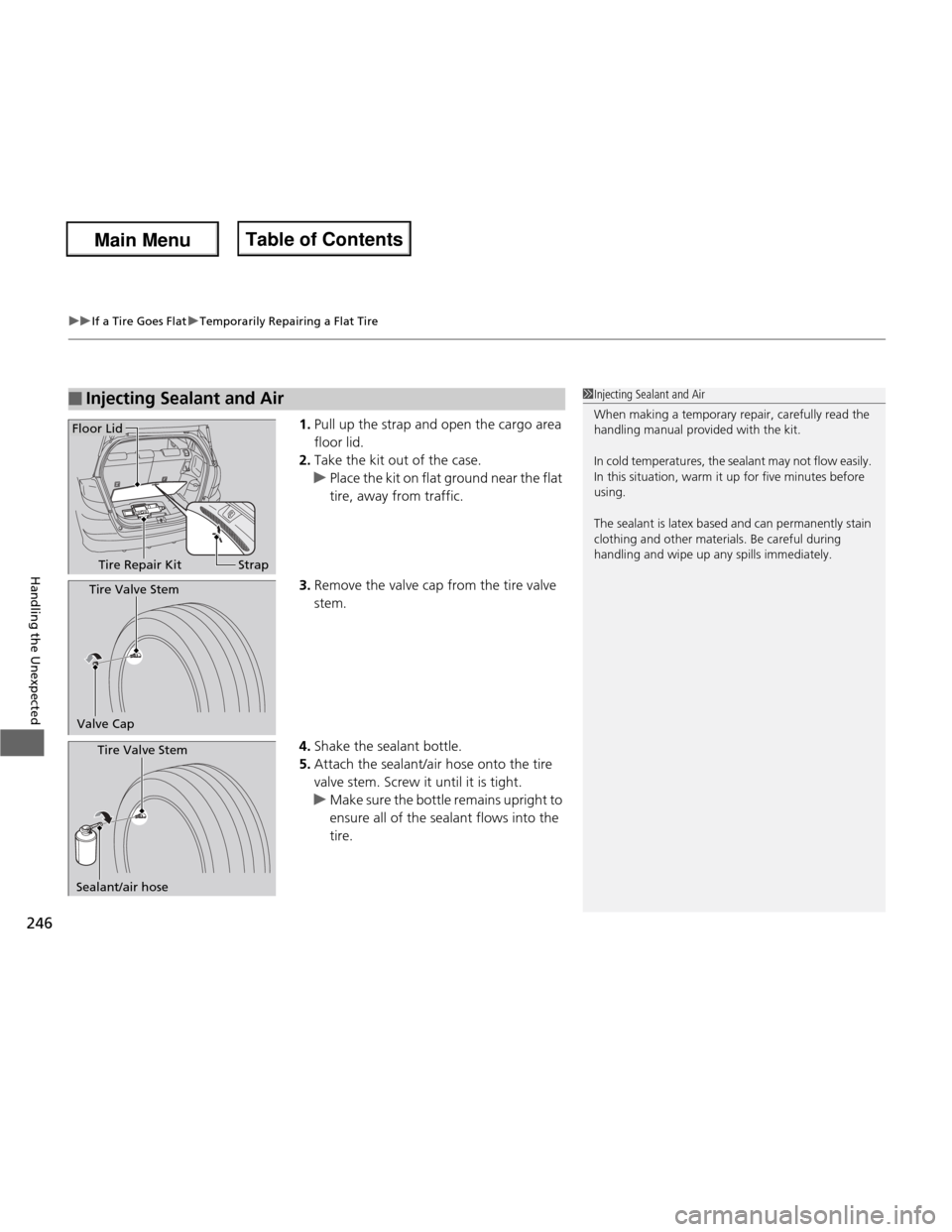

1. Pull up the strap and open the cargo area
floor lid.
2. Take the kit out of the case.
uPlace the kit on flat ground near the flat
tire, away from traffic.
3. Remove the valve cap from the tire valve
stem.
4. Shake the sealant bottle.
5. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
uMake sure the bottle remains upright to
ensure all of the sealant flows into the tire.
■Injecting Sealant and Air1Injecting Sealant and Air
When making a temporary re pair, carefully read the
handling manual provided with the kit.
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant is latex based and can permanently stain
clothing and other materials. Be careful during
handling and wipe up any spills immediately.
Floor Lid
Tire Repair Kit Strap
Tire Valve Stem
Valve Cap
Tire Valve Stem
Sealant/air hose
Main Menu
Main MenuTable of Contents

Continued247
uuIf a Tire Goes FlatuTemporarily Repairing a Flat Tire
Handling the Unexpected

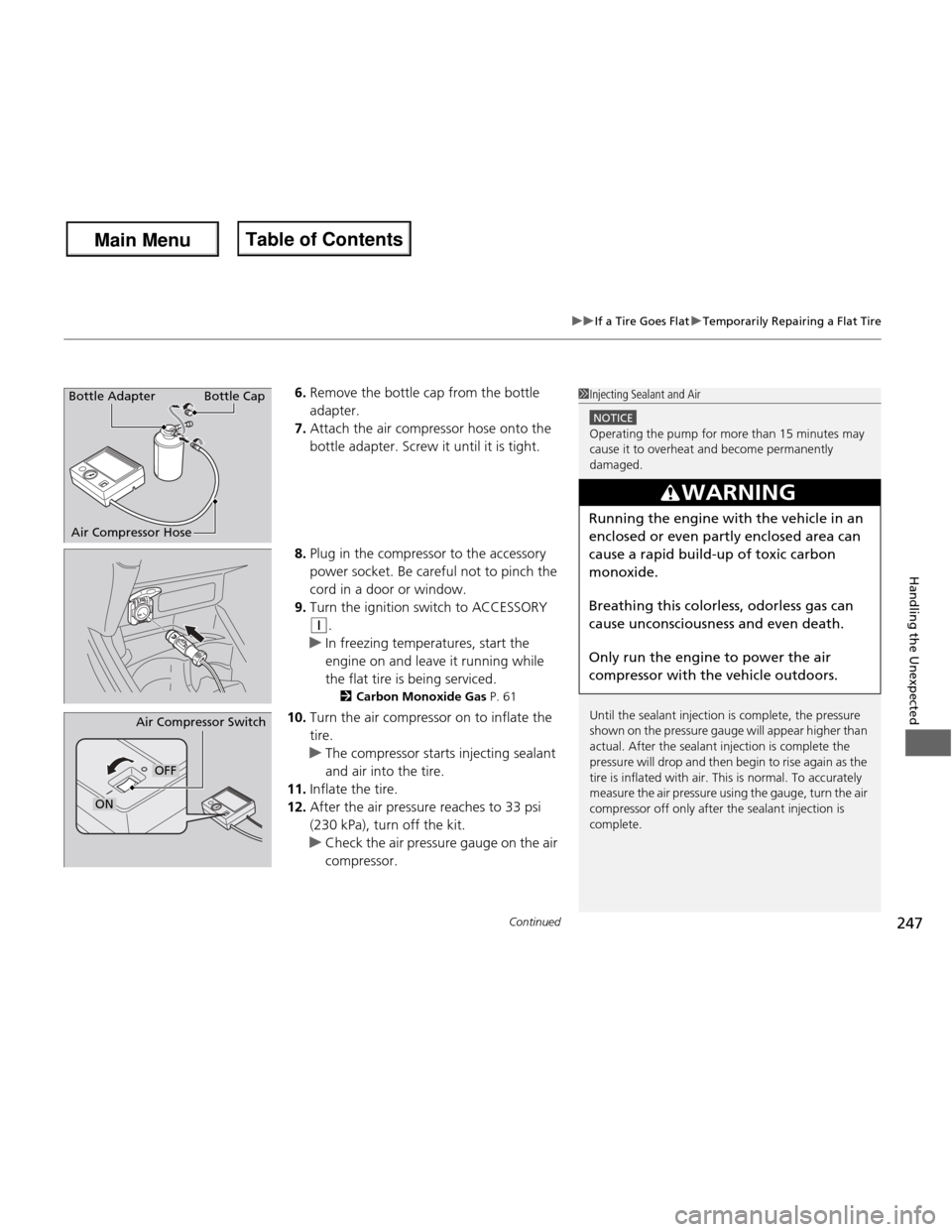

6.Remove the bottle cap from the bottle
adapter.
7. Attach the air compressor hose onto the
bottle adapter. Screw it until it is tight.
8. Plug in the compressor to the accessory power socket. Be careful not to pinch the
cord in a door or window.
9. Turn the ignition switch to ACCESSORY
(q .
uIn freezing temperatures, start the
engine on and leave it running while
the flat tire is being serviced.
2 Carbon Monoxide Gas P. 61
10. Turn the air compressor on to inflate the tire.
uThe compressor starts injecting sealant
and air into the tire.
11. Inflate the tire.
12. After the air pressure reaches to 33 psi
(230 kPa), turn off the kit.
uCheck the air pressure gauge on the air
compressor.
1Injecting Sealant and Air
NOTICE
Operating the pump for more than 15 minutes may
cause it to overheat and become permanently damaged.
Until the sealant injectio n is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealan t injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. Th is is normal. To accurately
measure the air pressure using the gauge, turn the air
compressor off only after the sealant injection is complete.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death. Only run the engi ne to power the air
compressor with the vehicle outdoors.
Bottle Adapter
Air Compressor Hose Bottle Cap
Air Compressor Switch
OFF
ON
Main Menu
Main MenuTable of Contents

uuIf a Tire Goes FlatuTemporarily Repairing a Flat Tire
248
Handling the Unexpected
13. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.
14. Push the deflate button until the gauge returns 0 psi.
15. Apply the wheel label to the flat surface of
the wheel.
uThe wheel surface must be clean to
ensure the label adheres properly.
1. Apply the speed limit label to the location as shown.
2. Drive the vehicle for about 5 minutes.
uDo not exceed 50 mph (80 km/h).
3. Stop the vehicle in a safe place.
Air Pressure Gauge
Deflate Button
Wheel Label
■Distributing the Sealant in the Tire
1Injecting Sealant and Air
If the required air pressure is not reached within 15
minutes, the tire may be too severely damaged for
the kit to provide the necessary seal and your vehicle will need to be towed.
Keep the empty bottle after the sealant is injected.
The sealant bottle will be used to collect the injected
sealant by a professional.
1Distributing the Sealant in the Tire
Stop and recheck the air pressure after every 5
minutes of driving as necessary until you reach the
nearest service station where you should have the tire
permanently repaired or replaced.
Speed Limit Label
Main Menu
Main MenuTable of Contents

249
uuIf a Tire Goes FlatuTemporarily Repairing a Flat Tire
Handling the Unexpected

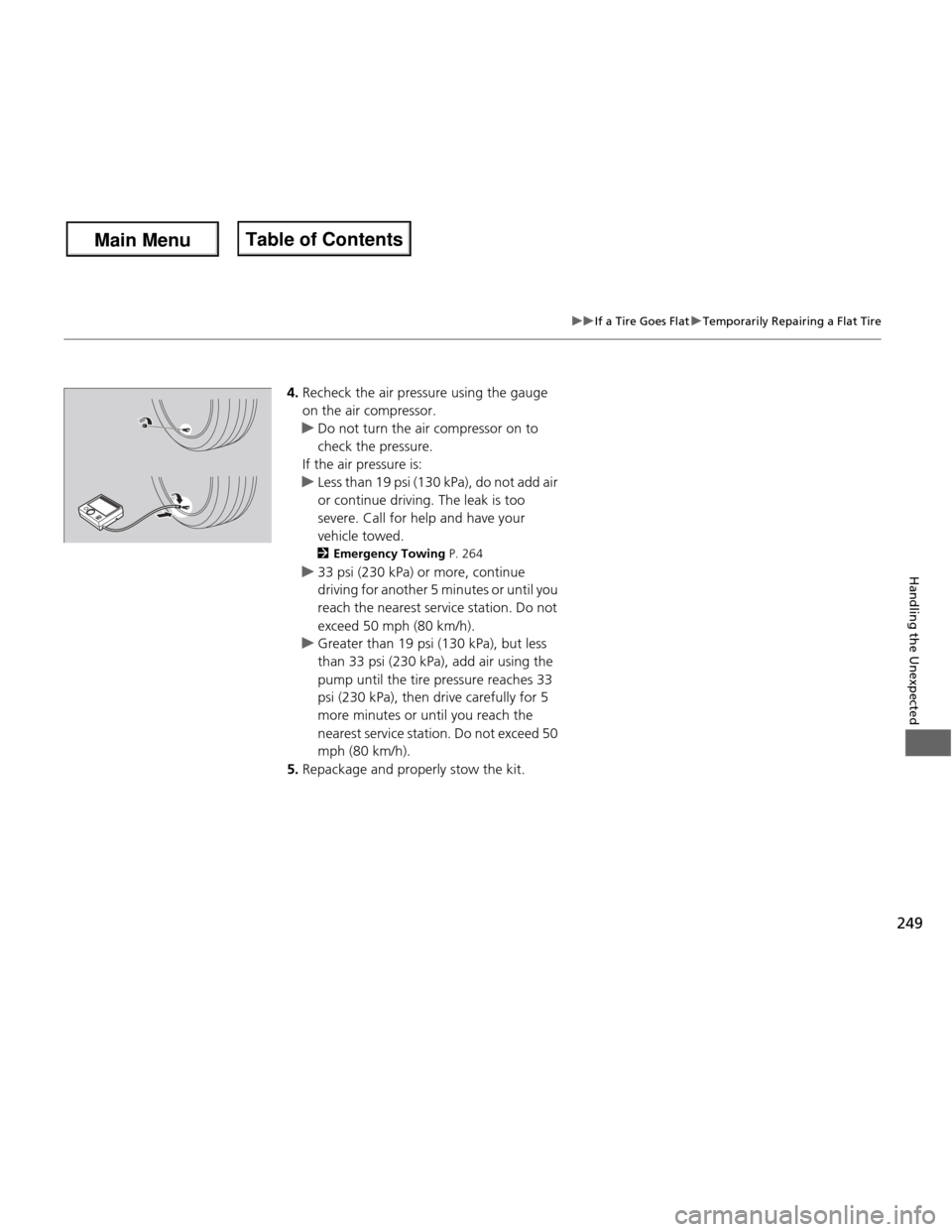

4.Recheck the air pressure using the gauge
on the air compressor.
uDo not turn the air compressor on to
check the pressure.
If the air pressure is:
uLess than 19 psi (130 kPa), do not add air
or continue driving. The leak is too
severe. Call for help and have your
vehicle towed.
2 Emergency Towing P. 264
u33 psi (230 kPa) or more, continue
driving for another 5 minutes or until you
reach the nearest service station. Do not
exceed 50 mph (80 km/h).
uGreater than 19 psi (130 kPa), but less
than 33 psi (230 kPa), add air using the
pump until the tire pressure reaches 33
psi (230 kPa), then drive carefully for 5
more minutes or until you reach the
nearest service station. Do not exceed 50
mph (80 km/h).
5. Repackage and properly stow the kit.
Main Menu
Main MenuTable of Contents
