Page 161 of 453

160
uuClimate Control System*uAutomatic Climate Control Sensors
Controls

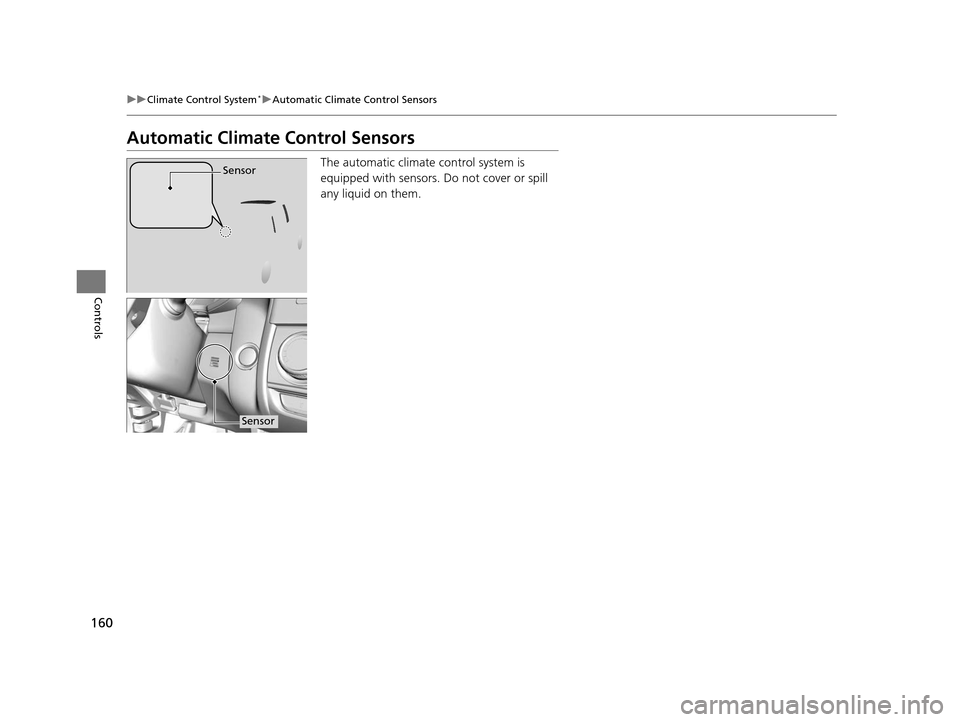

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
15 US FIT-31T5A6000.book 160 ページ 2014年3月6日 木曜日 午後7時5分
Page 162 of 453

161

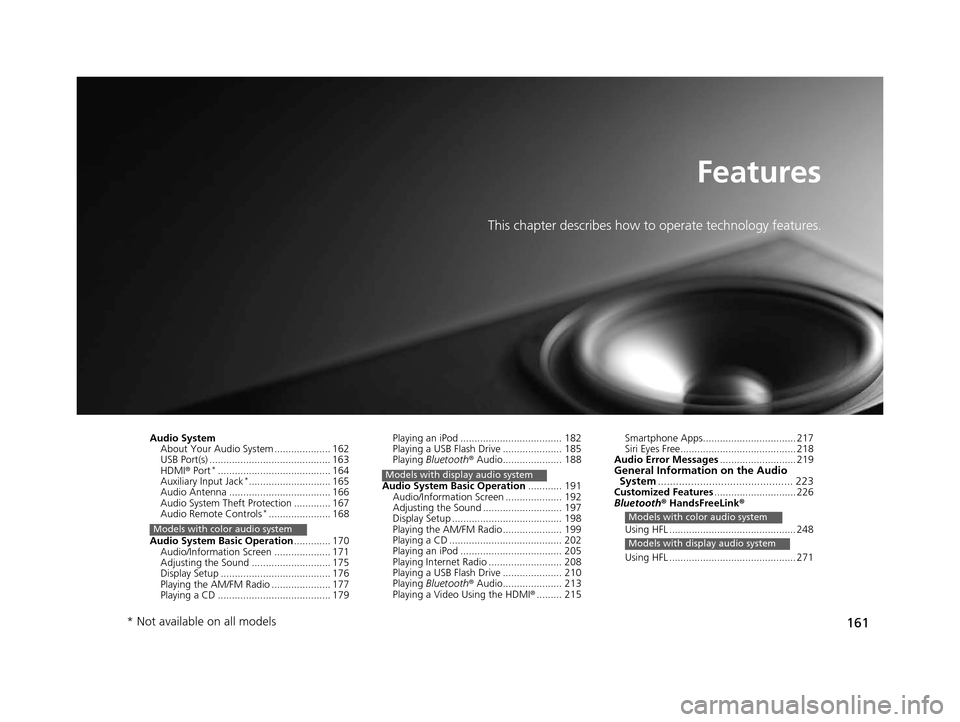

Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System .................... 162
USB Port(s) ........................................... 163
HDMI ® Port
*........................................ 164
Auxiliary Input Jack*............................. 165
Audio Antenna .................................... 166
Audio System Theft Protection ............. 167
Audio Remote Controls
*...................... 168
Audio System Basic Operation ............. 170
Audio/Information Screen .................... 171
Adjusting the Sound ............................ 175
Display Setup ....................................... 176
Playing the AM/FM Radio ..................... 177
Playing a CD ........................................ 179
Models with color audio system
Playing an iPod .................................... 182
Playing a USB Flash Drive ..................... 185
Playing Bluetooth ® Audio..................... 188
Audio System Basic Operation ............ 191
Audio/Information Screen .................... 192
Adjusting the Sound ............................ 197
Display Setup ....................................... 198
Playing the AM/FM Radio..................... 199
Playing a CD ........................................ 202
Playing an iPod .................................... 205
Playing Internet Radio .......................... 208
Playing a USB Flash Drive ..................... 210
Playing Bluetooth ® Audio..................... 213
Playing a Video Using the HDMI ®......... 215
Models with display audio system
Smartphone Apps................................. 217
Siri Eyes Free......................................... 218
Audio Error Messages ........................... 219
General Information on the Audio
System ............................................. 223
Customized Features ............................. 226
Bluetooth ® HandsFreeLink ®
Using HFL ............................................. 248
Using HFL ............................................. 271
Models with color audio system
Models with display audio system
* Not available on all models
15 US FIT-31T5A6000.book 161 ページ 2014年3月6日 木曜日 午後7時5分
Page 163 of 453

162
Features
Audio System

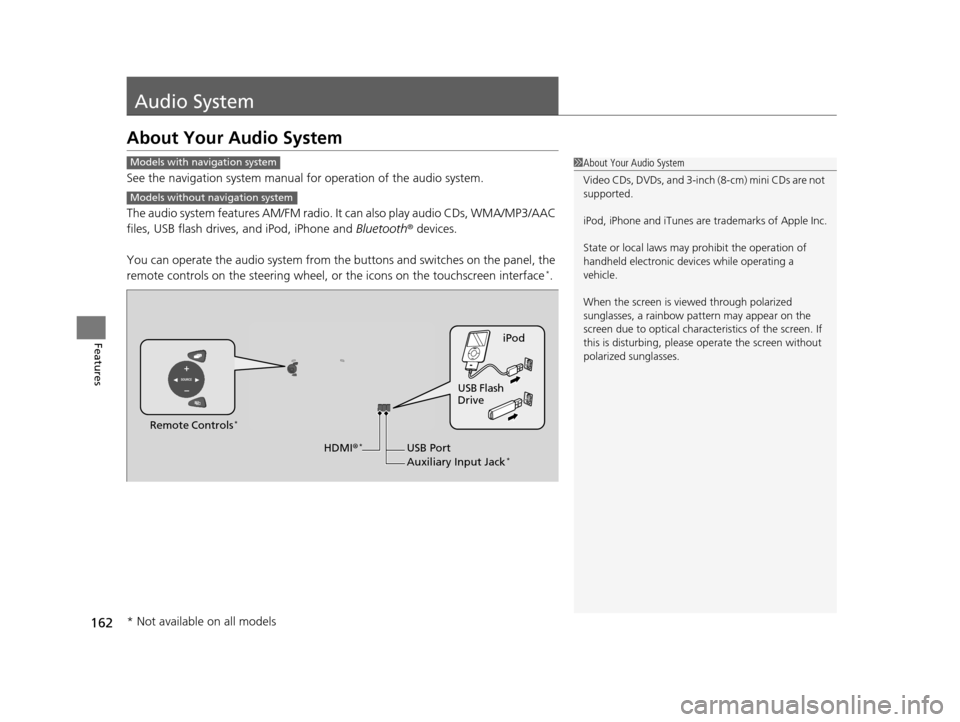

About Your Audio System
See the navigation system manual for operation of the audio system.
The audio system features AM/FM radio. It can also play audio CDs, WMA/MP3/AAC
files, USB flash drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface
*.
1About Your Audio System
Video CDs, DVDs, and 3-inch (8-cm) mini CDs are not
supported.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
When the screen is vi ewed through polarized
sunglasses, a rainbow pa ttern may appear on the
screen due to optical characteristics of the screen. If
this is disturbing, please operate the screen without
polarized sunglasses.Models with navigation system
Models without navigation system
iPod
USB Flash
Drive
USB Port
Auxiliary Input Jack
*
Remote Controls*
HDMI ®*
* Not available on all models
15 US FIT-31T5A6000.book 162 ページ 2014年3月6日 木曜日 午後7時5分
Page 164 of 453

163
uuAudio System uUSB Port(s)
Features

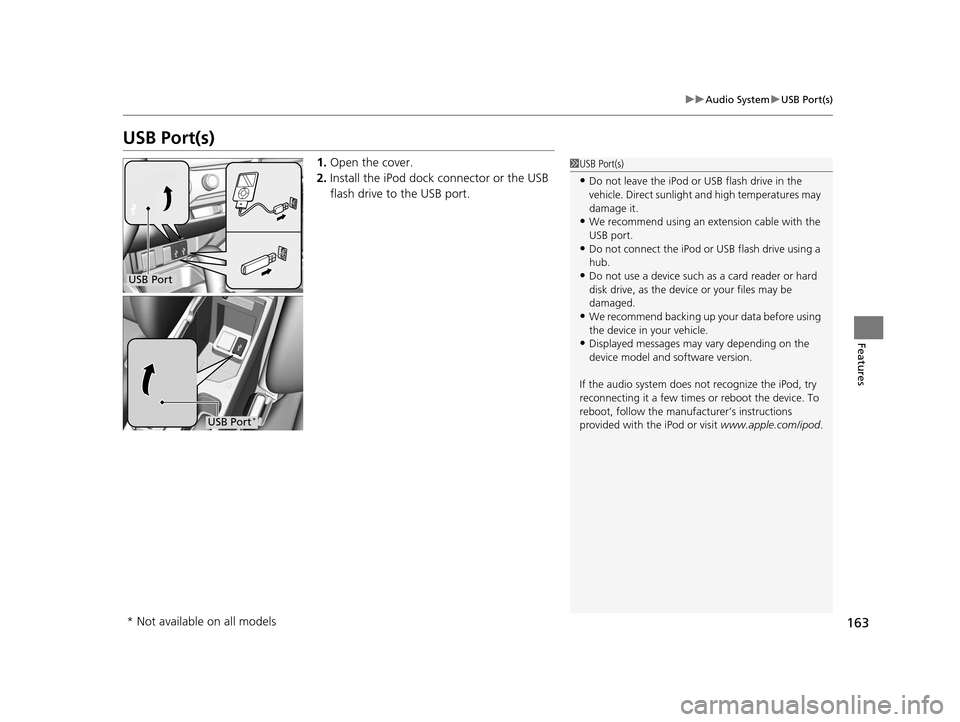

USB Port(s)
1. Open the cover.
2. Install the iPod dock connector or the USB
flash drive to the USB port.1USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an ex tension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
USB Port
USB Port*
* Not available on all models
15 US FIT-31T5A6000.book 163 ページ 2014年3月6日 木曜日 午後7時5分
Page 165 of 453

164
uuAudio System uHDMI ® Port*
Features

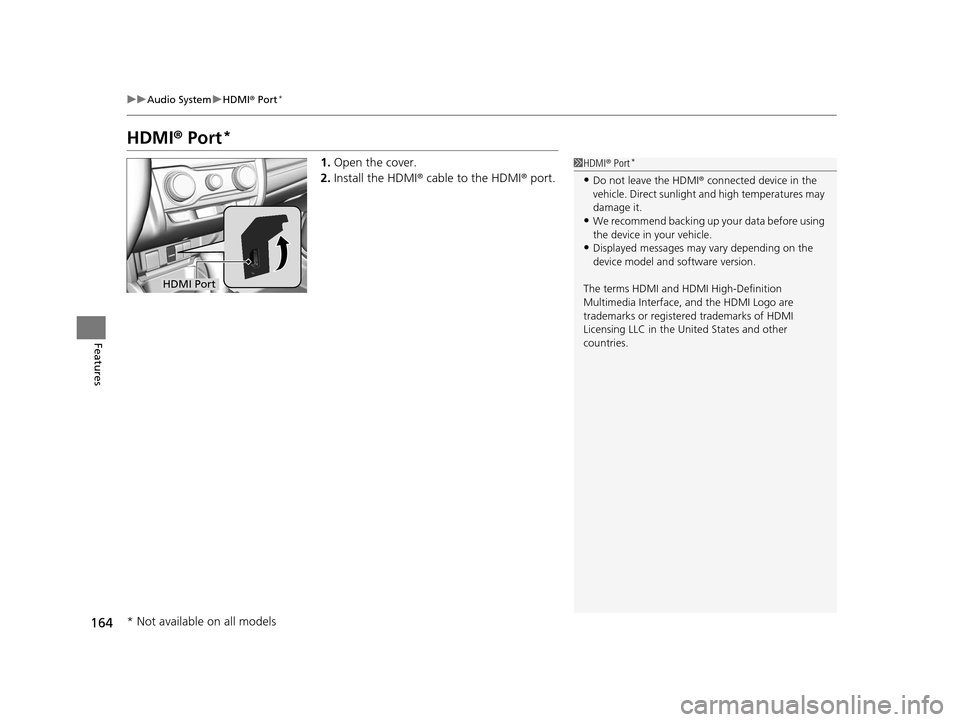

HDMI ® Port*
1. Open the cover.
2. Install the HDMI ® cable to the HDMI ® port.1 HDMI ® Port*
•Do not leave the HDMI ® connected device in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend backing up yo ur data before using
the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
HDMI Port
* Not available on all models
15 US FIT-31T5A6000.book 164 ページ 2014年3月6日 木曜日 午後7時5分
Page 166 of 453

165
uuAudio System uAuxiliary Input Jack*
Features

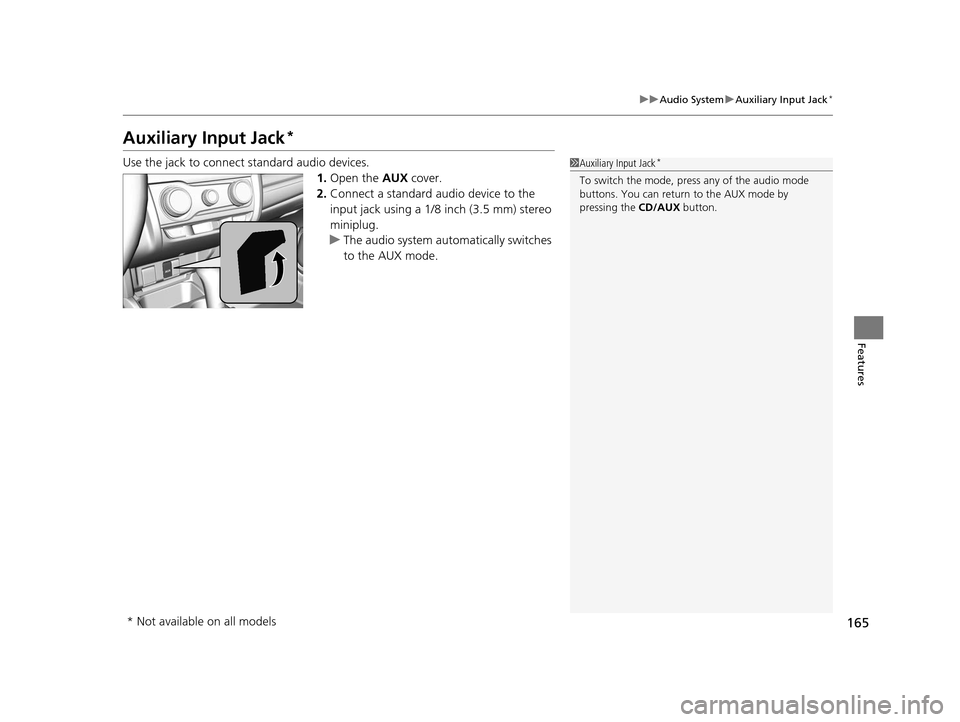

Auxiliary Input Jack*
Use the jack to connect standard audio devices.
1.Open the AUX cover.
2. Connect a standard audio device to the
input jack using a 1/8 inch (3.5 mm) stereo
miniplug.
u The audio system auto matically switches
to the AUX mode.1 Auxiliary Input Jack*
To switch the mode, pres s any of the audio mode
buttons. You can return to the AUX mode by
pressing the CD/AUX button.
* Not available on all models
15 US FIT-31T5A6000.book 165 ページ 2014年3月6日 木曜日 午後7時5分
Page 167 of 453

166
uuAudio System uAudio Antenna
Features

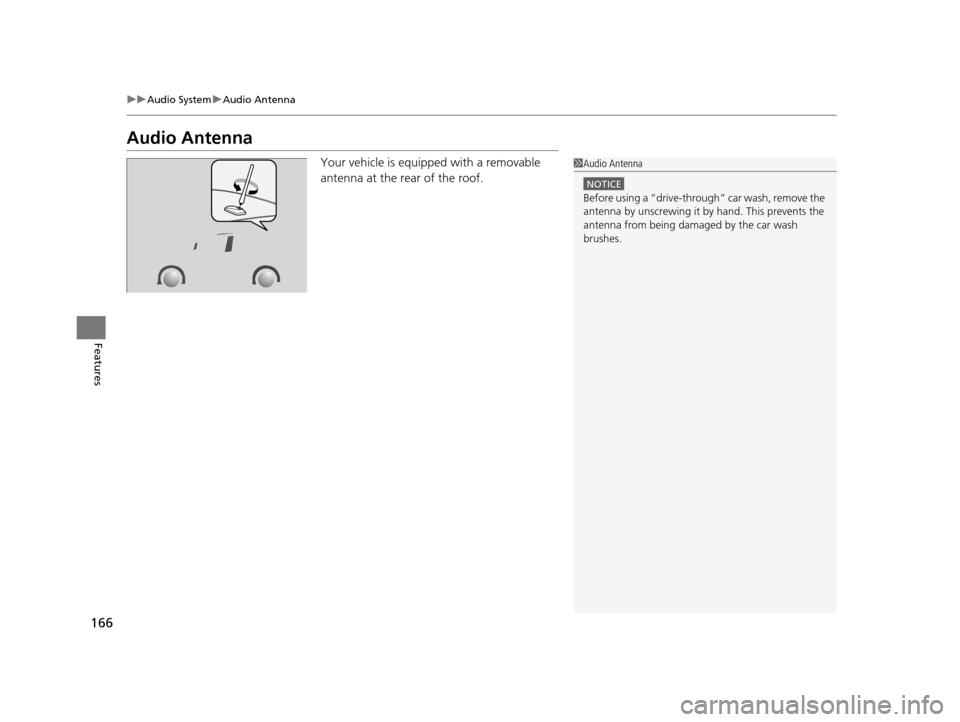

Audio Antenna
Your vehicle is equipped with a removable
antenna at the rear of the roof.1Audio Antenna
NOTICE
Before using a
Page 168 of 453

167
uuAudio System uAudio System Theft Protection
Features

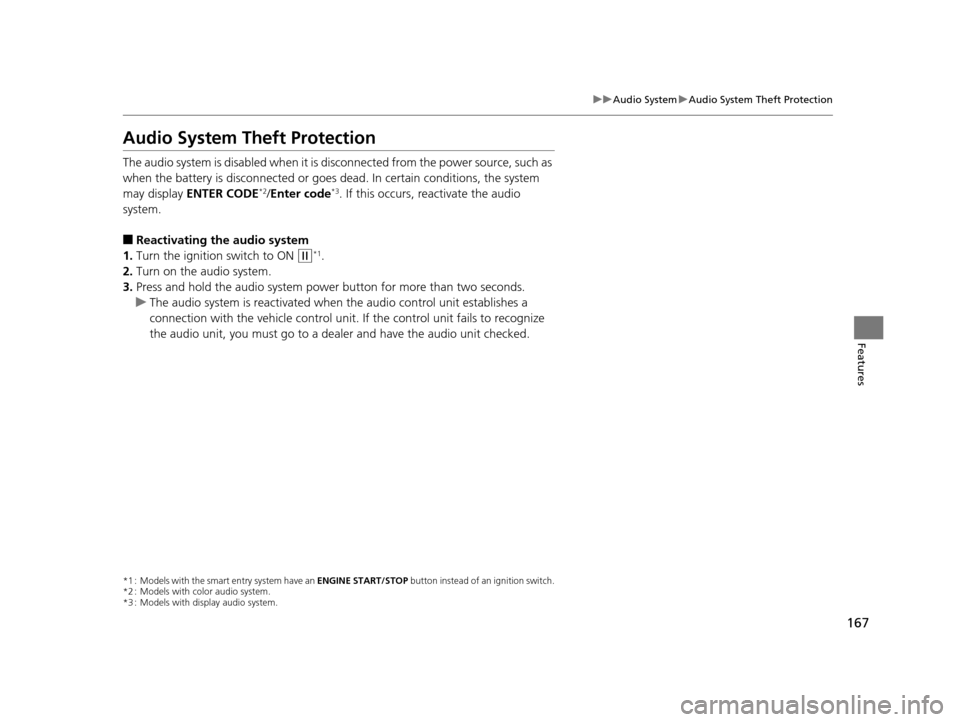

Audio System Theft Protection
The audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display ENTER CODE
*2/Enter code*3. If this occurs, r eactivate the audio
system.
■Reactivating the audio system
1. Turn the ignition switch to ON
(w*1.
2. Turn on the audio system.
3. Press and hold the audio system powe r button for more than two seconds.
u The audio system is reac tivated when the audio co ntrol unit establishes a
connection with the vehicl e control unit. If the control unit fails to recognize
the audio unit, you must go to a deal er and have the audio unit checked.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2 : Models with color audio system.
*3 : Models with display audio system.
15 US FIT-31T5A6000.book 167 ページ 2014年3月6日 木曜日 午後7時5分
Page 169 of 453

168
uuAudio System uAudio Remote Controls*
Features

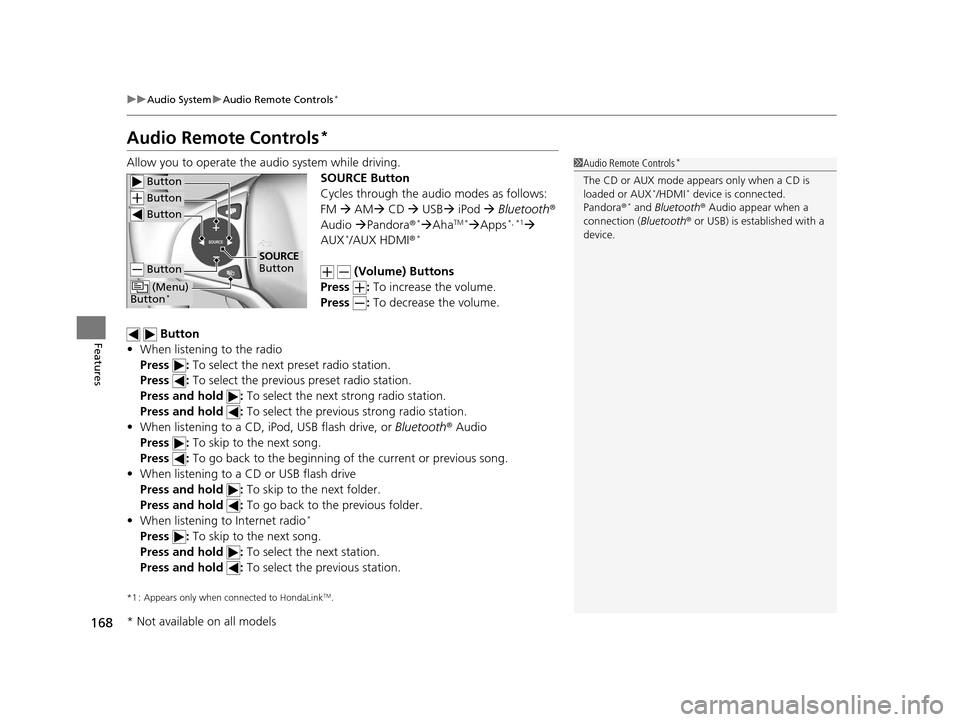

Audio Remote Controls*
Allow you to operate the au dio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FM AM CD USB iPod Bluetooth ®
Audio Pandora®
*AhaTM *Apps*, *1
AUX*/AUX HDMI ®*
(Volume) Buttons
Press : To increase the volume.
Press : To decrease the volume.
Button
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong radio station.
Press and hold : To select the previous strong radio station.
• When listening to a CD, iPod, USB flash drive, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to a CD or USB flash drive
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
• When listening to Internet radio
*
Press : To skip to the next song.
Press and hold : To select the next station.
Press and hold : To select the previous station.
*1 : Appears only when co nnected to HondaLinkTM.
1Audio Remote Controls*
The CD or AUX mode appears only when a CD is
loaded or AUX*/HDMI* device is connected.
Pandora ®* and Bluetooth ® Audio appear when a
connection (Bluetooth ® or USB) is established with a
device.
Button
Button
Button
Button
(Menu)
Button*
SOURCE
Button
* Not available on all models
15 US FIT-31T5A6000.book 168 ページ 2014年3月6日 木曜日 午後7時5分
Page 170 of 453

169
uuAudio System uAudio Remote Controls*
Features

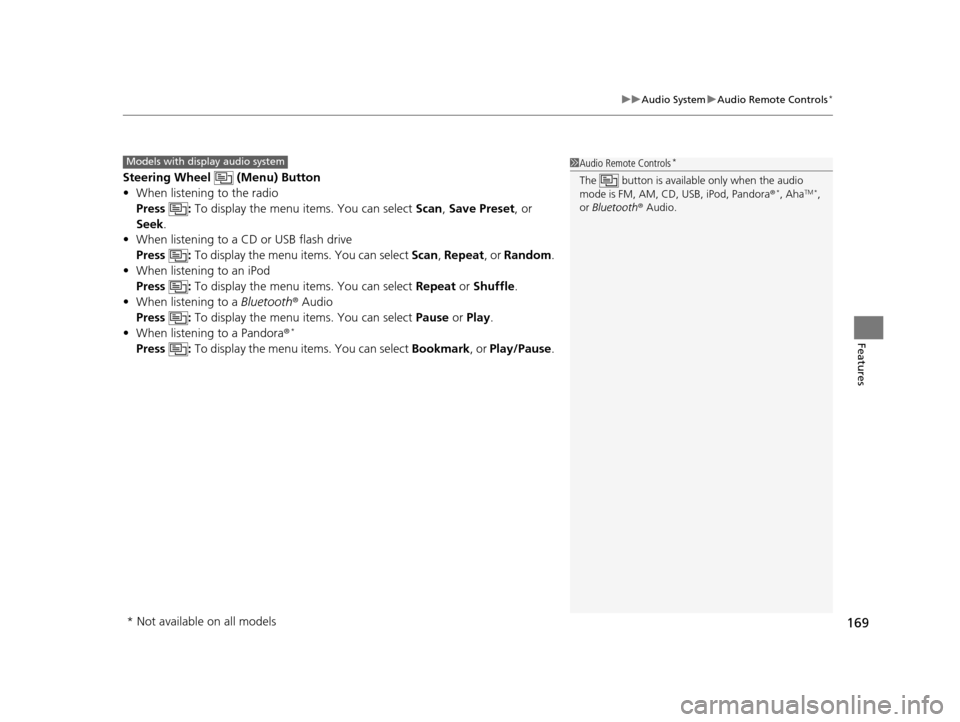

Steering Wheel (Menu) Button
• When listening to the radio
Press : To display the menu items. You can select Scan, Save Preset , or
Seek.
• When listening to a CD or USB flash drive
Press : To display the menu items. You can select Scan, Repeat , or Random .
• When listening to an iPod
Press : To display the menu items. You can select Repeat or Shuffle .
• When listening to a Bluetooth® Audio
Press : To display the menu items. You can select Pause or Play .
• When listening to a Pandora ®
*
Press : To display the menu items. You can select Bookmark, or Play/Pause.
1Audio Remote Controls*
The button is available only when the audio
mode is FM, AM, CD, USB, iPod, Pandora ®*, AhaTM *,
or Bluetooth ® Audio.
Models with display audio system
* Not available on all models
15 US FIT-31T5A6000.book 169 ページ 2014年3月6日 木曜日 午後7時5分
