Page 271 of 453

uuBluetooth ® HandsFreeLink ®u HFL Menus
270
Features

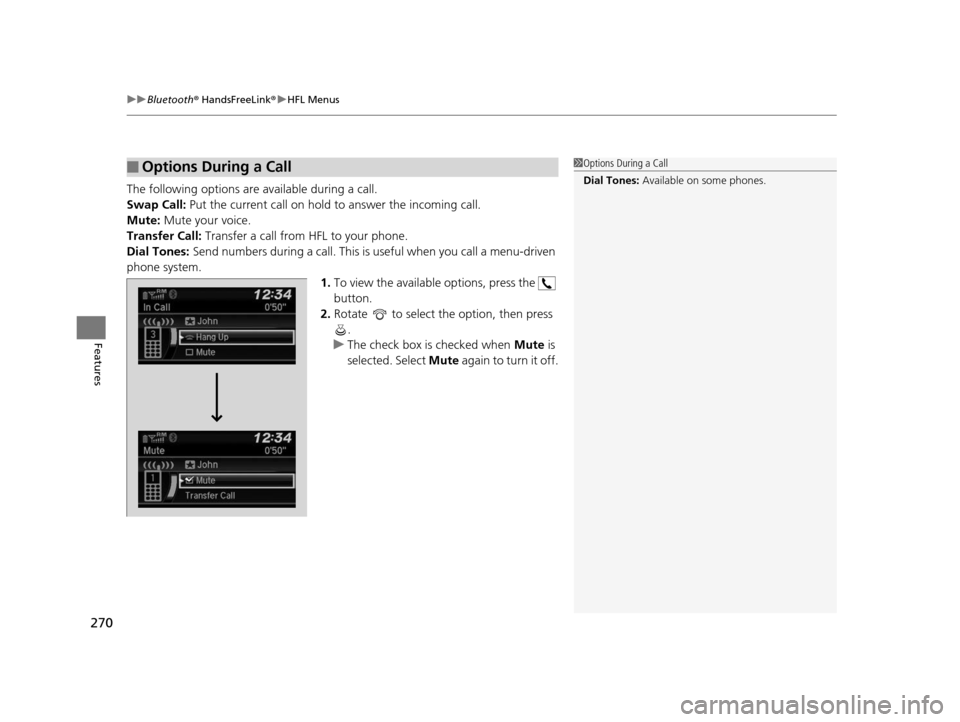

The following options are available during a call.
Swap Call: Put the current call on hold to answer the incoming call.
Mute: Mute your voice.
Transfer Call: Transfer a call from HFL to your phone.
Dial Tones: Send numbers during a call. This is useful when you call a menu-driven
phone system. 1.To view the available options, press the
button.
2. Rotate to select the option, then press
.
u The check box is checked when Mute is
selected. Select Mute again to turn it off.
■Options During a Call1Options During a Call
Dial Tones: Available on some phones.
15 US FIT-31T5A6000.book 270 ページ 2014年3月6日 木曜日 午後7時5分
Page 272 of 453

271
uuBluetooth ® HandsFreeLink ®u Using HFL
Continued
Features

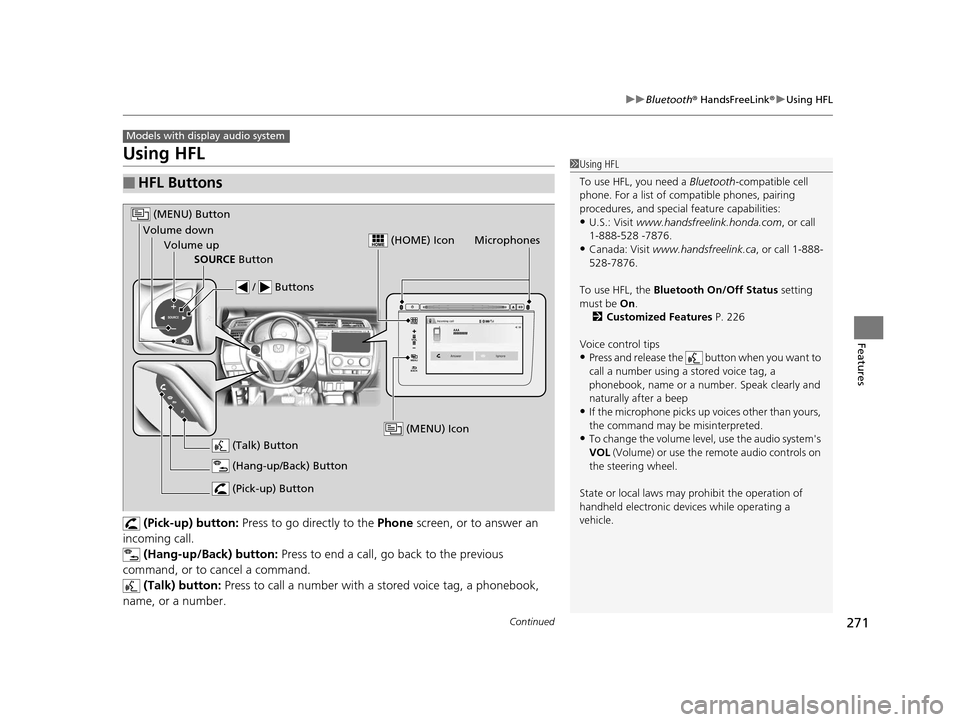

Using HFL
(Pick-up) button: Press to go directly to the Phone screen, or to answer an
incoming call.
(Hang-up/Back) button: Press to end a call, go back to the previous
command, or to cancel a command. (Talk) button: Press to call a number with a st ored voice tag, a phonebook,
name, or a number.
■HFL Buttons
Models with display audio system
1 Using HFL
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528 -7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
To use HFL, the Bluetooth On/Off Status setting
must be On.
2 Customized Features P. 226
Voice control tips
•Press and release the button when you want to
call a number using a stored voice tag, a
phonebook, name or a numbe r. Speak clearly and
naturally after a beep
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, use the audio system's
VOL (Volume) or use the remote audio controls on
the steering wheel.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
VOL
HOME
MENU
BACK
Microphones
(Pick-up) Button
(Hang-up/Back) Button
Volume up (Talk) Button
(MENU) Button
Volume downSOURCE Button / Buttons
(MENU) Icon
(HOME) Icon
15 US FIT-31T5A6000.book 271 ページ 2014年3月6日 木曜日 午後7時5分
Page 273 of 453

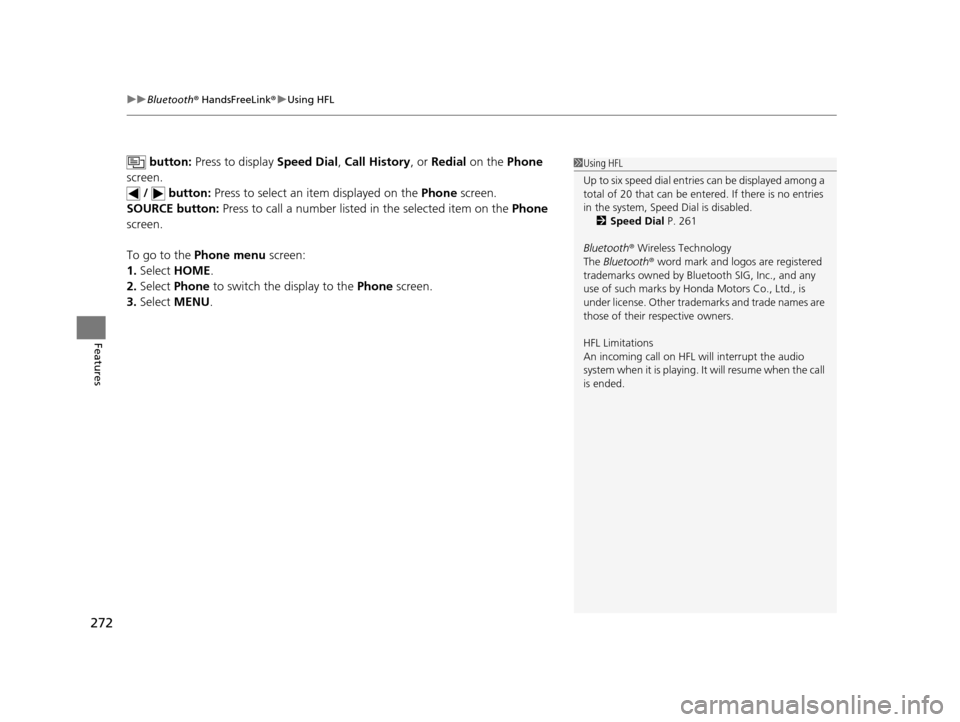

uuBluetooth ® HandsFreeLink ®u Using HFL
272
Features
button: Press to display Speed Dial, Call History , or Redial on the Phone
screen. / button: Press to select an item displayed on the Phone screen.
SOURCE button: Press to call a number listed in the selected item on the Phone
screen.
To go to the Phone menu screen:
1. Select HOME .
2. Select Phone to switch the display to the Phone screen.
3. Select MENU .1Using HFL
Up to six speed dial entrie s can be displayed among a
total of 20 that can be entered. If there is no entries
in the system, Speed Dial is disabled.
2 Speed Dial P. 261
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Blue tooth SIG, Inc., and any
use of such marks by Honda Motors Co., Ltd., is
under license. Other tradem arks and trade names are
those of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
s y s t e m wh e n it is p la y i n g . It wi ll r e s u m e w h en t h e c a l l
is ended.
15 US FIT-31T5A6000.book 272 ページ 2014年3月6日 木曜日 午後7時5分
Page 274 of 453

273
uuBluetooth ® HandsFreeLink ®u Using HFL
Features

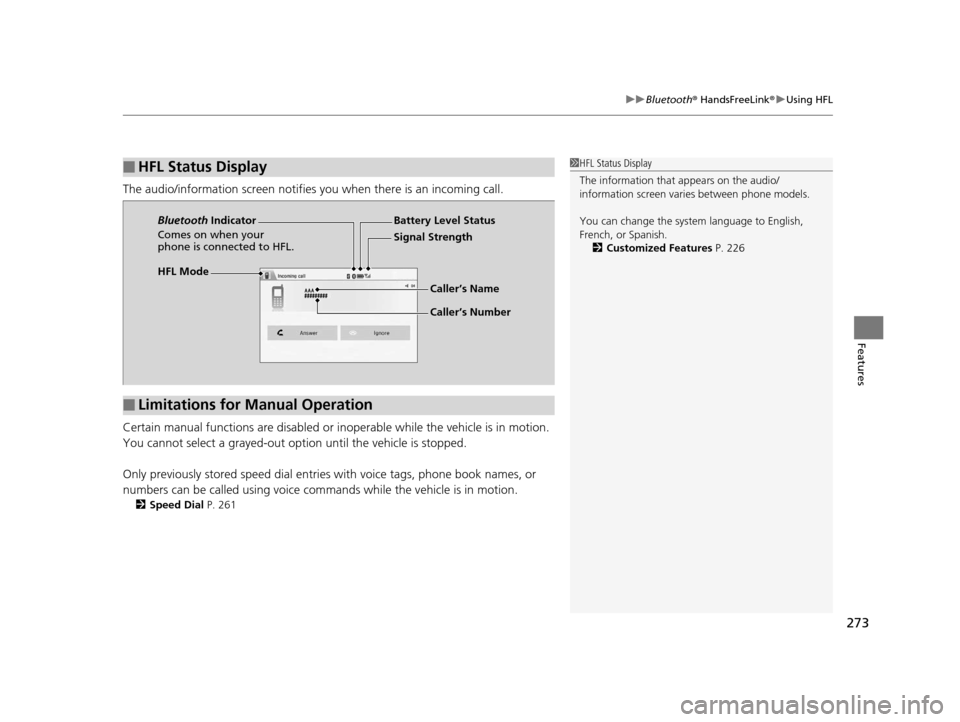

The audio/information scr een notifies you when there is an incoming call.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries with voice tags, phone book names, or
numbers can be called using voice commands while the vehicle is in motion.
2 Speed Dial P. 261
■HFL Status Display1HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language to English,
French, or Spanish. 2 Customized Features P. 226
HFL Mode Battery Level Status
Signal Strength
Bluetooth
Indicator
Comes on when your
phone is connected to HFL.
Caller’s Name
Caller’s Number
■Limitations for Manual Operation
15 US FIT-31T5A6000.book 273 ページ 2014年3月6日 木曜日 午後7時5分
Page 275 of 453

274
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

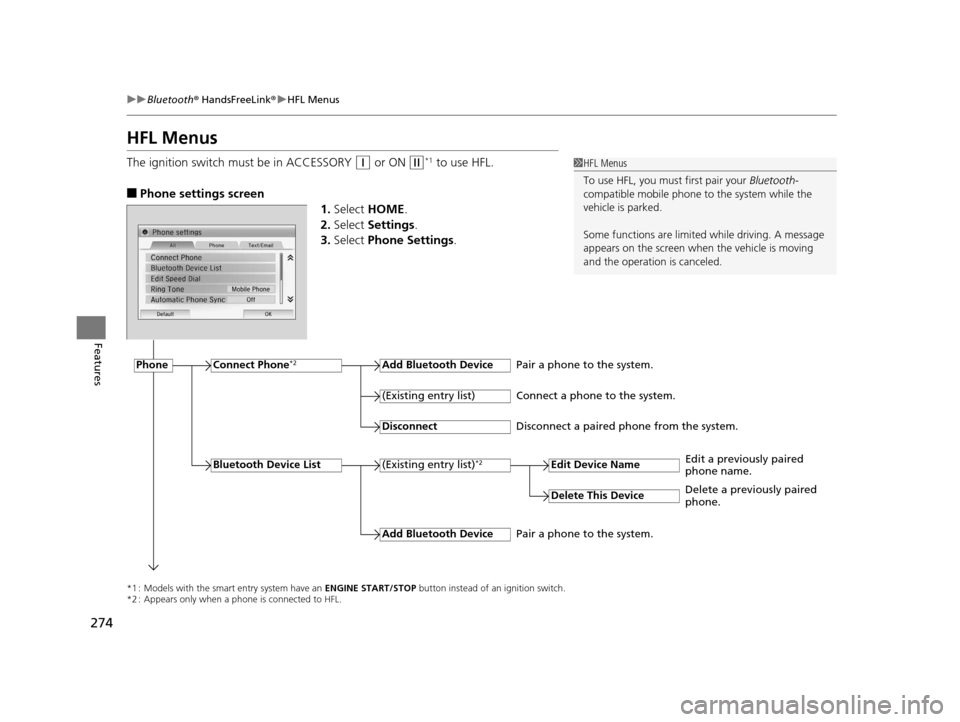

HFL Menus
The ignition switch must be in ACCESSORY (q or ON (w*1 to use HFL.
■Phone settings screen
1.Select HOME .
2. Select Settings .
3. Select Phone Settings.
1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible mobile phone to the system while the
vehicle is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2 : Appears only when a phone is connected to HFL.
PhoneConnect Phone*2Add Bluetooth Device
(Existing entry list)*2
(Existing entry list)
Disconnect
Edit Device Name
Add Bluetooth Device
Bluetooth Device List
Delete This Device
Pair a phone to the system.
Connect a phone to the system.
Disconnect a paired phone from the system.
Edit a previously paired
phone name.
Pair a phone to the system. Delete a previously paired
phone.
15 US FIT-31T5A6000.book 274 ページ 2014年3月6日 木曜日 午後7時5分
Page 276 of 453

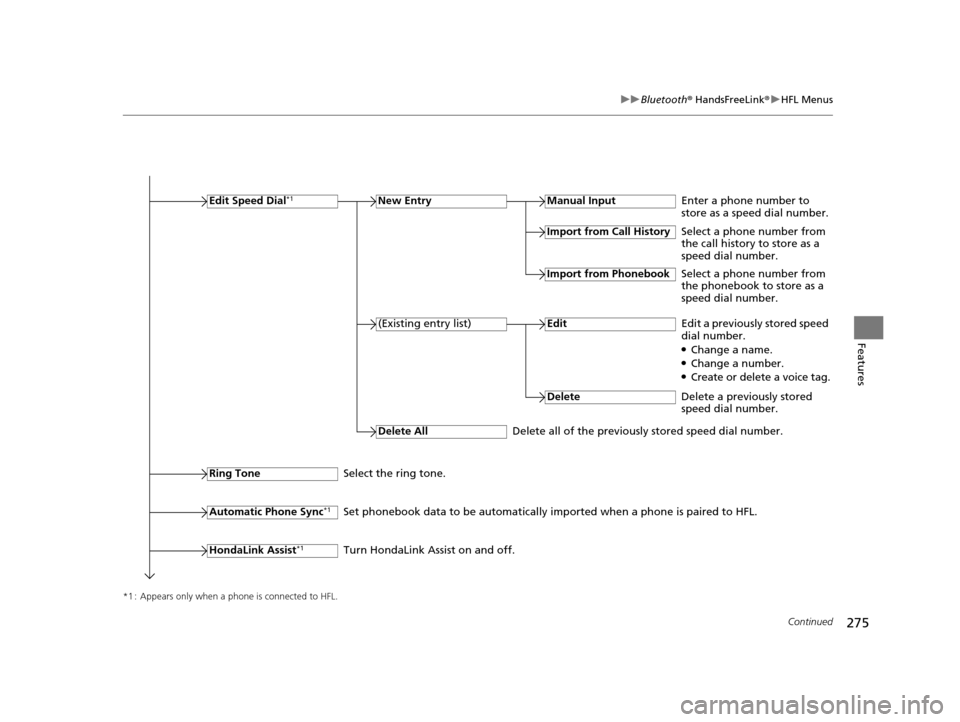

275
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
*1 : Appears only when a phone is connected to HFL.
Edit Speed Dial*1New Entry
Delete All
Automatic Phone Sync*1
Manual Input
HondaLink Assist*1
Ring Tone
Import from Call History
Enter a phone number to
store as a speed dial number.
Select the ring tone. Select a phone number from
the call history to store as a
speed dial number.
Import from Phonebook
Select a phone number from
the phonebook to store as a
speed dial number.
(Existing entry list)EditEdit a previously stored speed
dial number.
●Change a name.●Change a number.●Create or delete a voice tag.
Delete all of the previously stored speed dial number. Delete
Delete a previously stored
speed dial number.
Set phonebook data to be automatically imported when a phone is paired to HFL.
Turn HondaLink A ssist on and off.
15 US FIT-31T5A6000.book 275 ページ 2014年3月6日 木曜日 午後7時5分
Page 277 of 453

276
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

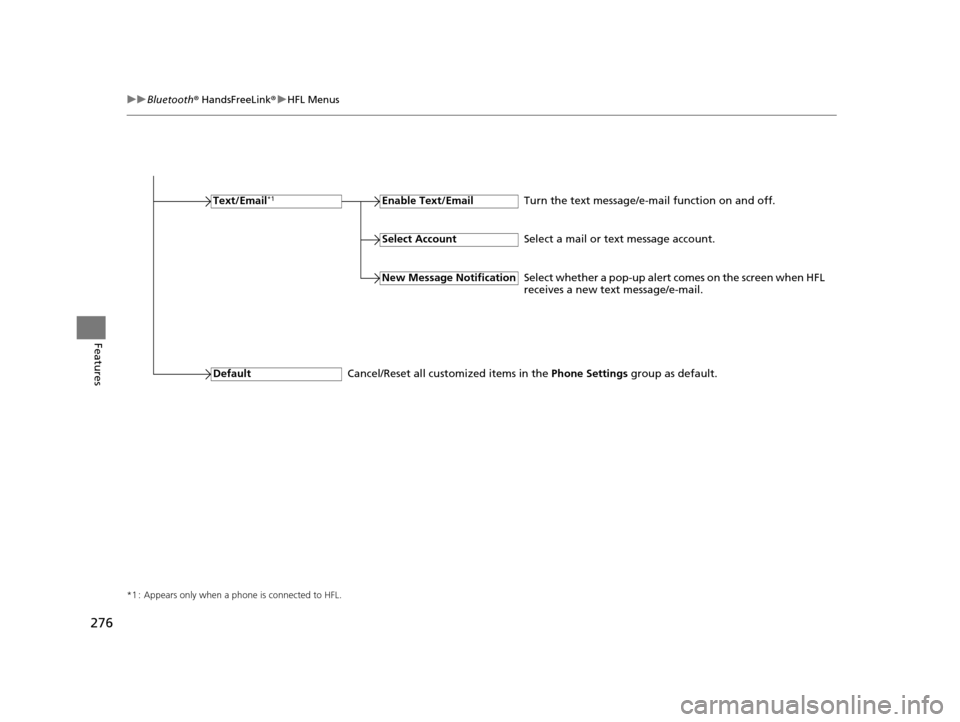

*1 : Appears only when a phone is connected to HFL.
Text/Email*1Enable Text/Email
New Message Notification
Default
Turn the text message/e-m ail function on and off.
Select a mail or text message account.
Select Account
Select whether a pop-up alert comes on the screen when HFL
receives a new text message/e-mail.
Cancel/Reset all customized items in the Phone Settings group as default.
15 US FIT-31T5A6000.book 276 ページ 2014年3月6日 木曜日 午後7時5分
Page 278 of 453

277
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

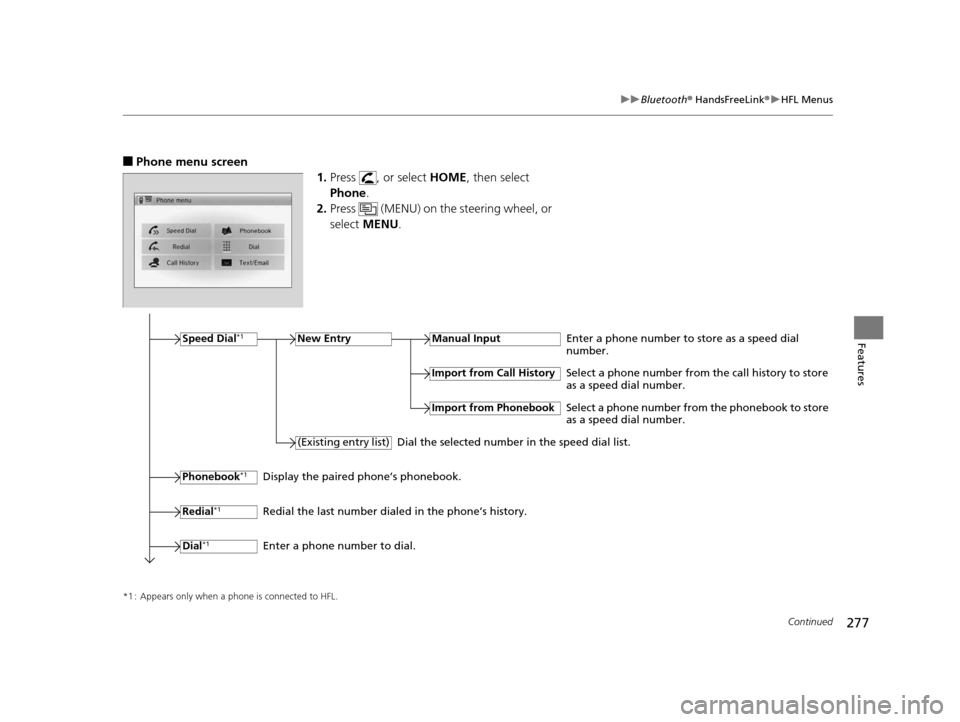

■Phone menu screen
1.Press , or select HOME, then select
Phone .
2. Press (MENU) on the steering wheel, or
select MENU .
*1 : Appears only when a phone is connected to HFL.
Speed Dial*1New EntryManual InputEnter a phone number to store as a speed dial
number.
Phonebook*1
(Existing entry list)
Import from Call History
Import from Phonebook
Select a phone number from the call history to store
as a speed dial number.
Select a phone number from the phonebook to store
as a speed dial number.
Dial the selected number in the speed dial list.
Display the paired phone’s phonebook.
Redial
*1Redial the last number dialed in the phone’s history.
Dial
*1Enter a phone number to dial.
15 US FIT-31T5A6000.book 277 ページ 2014年3月6日 木曜日 午後7時5分
Page 279 of 453

278
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

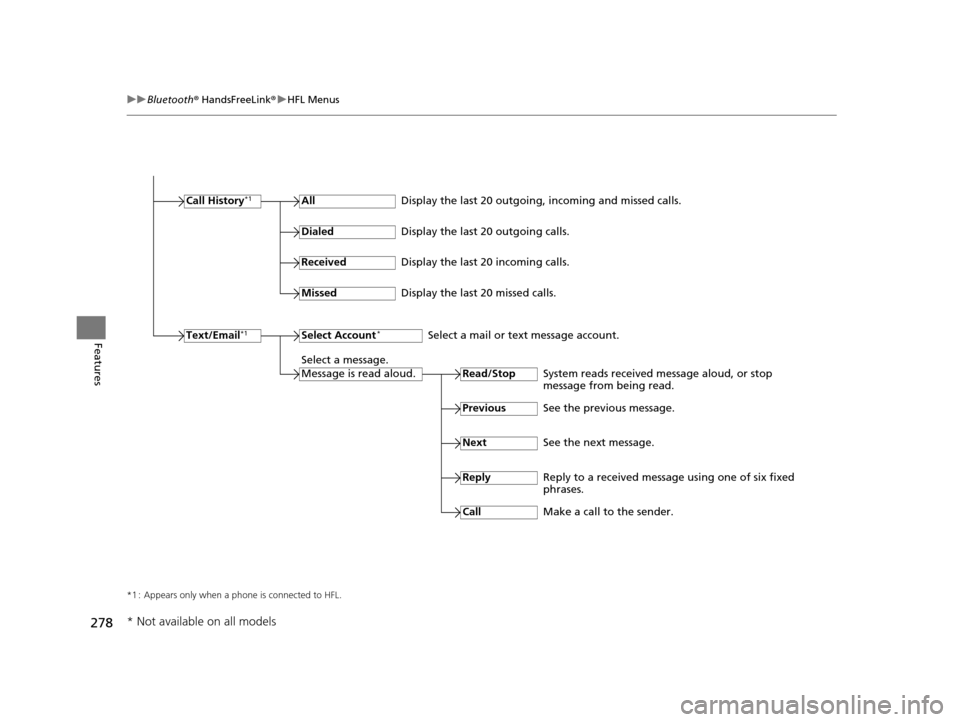

*1 : Appears only when a phone is connected to HFL.
Call History*1All
Read/StopSystem reads received message aloud, or stop
message from being read.
Text/Email*1
Previous
Next
Display the last 20 outgoing, incoming and missed calls.
Dialed
Display the last 20 outgoing calls.
Received
Display the last 20 incoming calls.
Missed
Display the last 20 missed calls.
Select Account*Select a mail or text message account.
Select a message.
Message is read aloud.
See the previous message.
See the next message.
Reply
Reply to a received message using one of six fixed
phrases.
Call
Make a call to the sender.
* Not available on all models
15 US FIT-31T5A6000.book 278 ページ 2014年3月6日 木曜日 午後7時5分
Page 280 of 453

Continued279
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

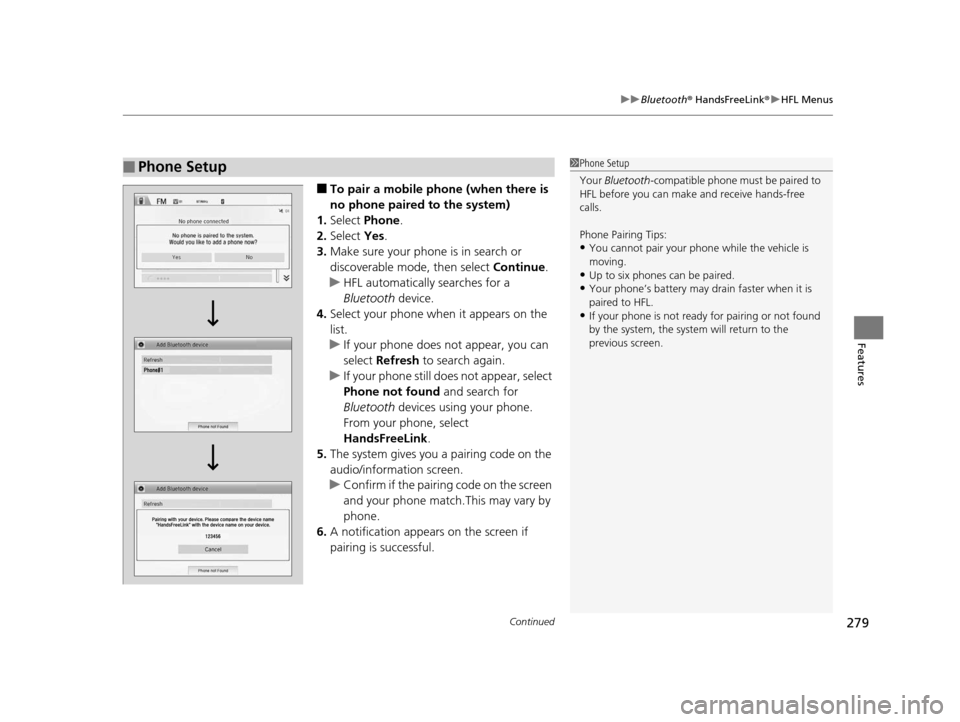

■To pair a mobile phone (when there is
no phone paired to the system)
1. Select Phone.
2. Select Yes.
3. Make sure your phone is in search or
discoverable mode, then select Continue.
u HFL automatically searches for a
Bluetooth device.
4. Select your phone when it appears on the
list.
u If your phone does not appear, you can
select Refresh to search again.
u If your phone still do es not appear, select
Phone not found and search for
Bluetooth devices using your phone.
From your phone, select
HandsFreeLink .
5. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.This may vary by
phone.
6. A notification appears on the screen if
pairing is successful.
■Phone Setup1Phone Setup
Your Bluetooth -compatible phone must be paired to
HFL before you can make and receive hands-free
calls.
Phone Pairing Tips:
•You cannot pair your phone while the vehicle is
moving.
•Up to six phones can be paired.
•Your phone’s battery may dr ain faster when it is
paired to HFL.
•If your phone is not ready for pairing or not found
by the system, the system will return to the
previous screen.
