HONDA FIT 2015 3.G Owner's Manual

20
Quick Reference Guide

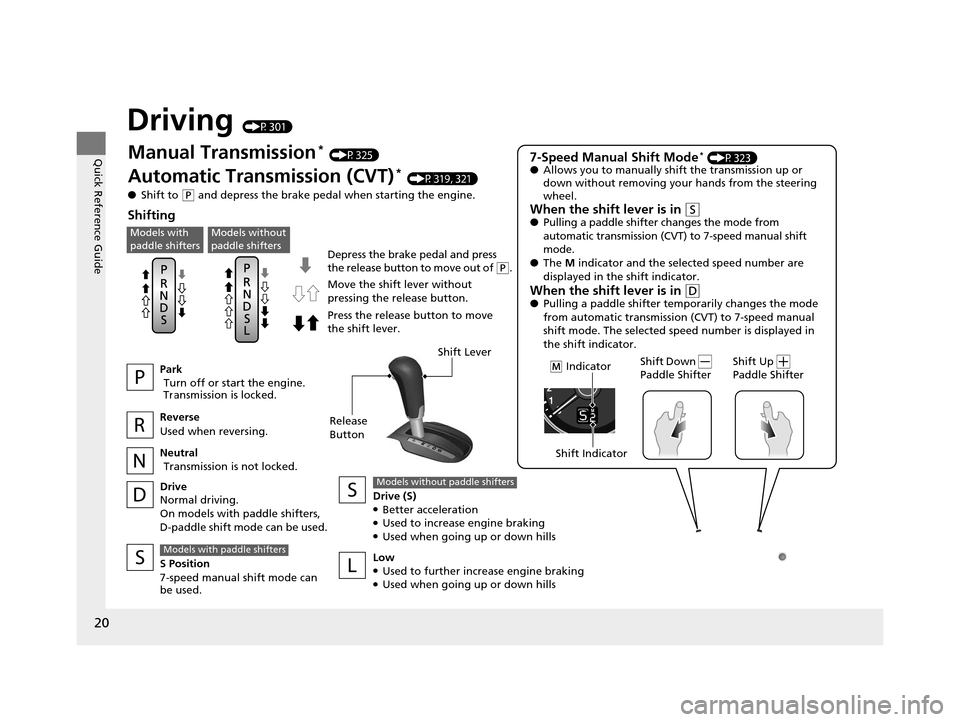

Driving (P301)
Depress the brake pedal and press
the release button to move out of
(P.
Manual Transmission* (P325)
Automatic Transmission (CVT)* (P319, 321)
● Shift to
(P and depress the brake pedal when starting the engine.
Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral Transmission is not locked.
Drive
Normal driving.
On models with paddle shifters,
D-paddle shift mode can be used. Drive (S)
●Better acceleration●Used to increase engine braking●Used when going up or down hills
Models without paddle shifters
Low●Used to further increase engine braking●Used when going up or down hills
S Position
7-speed manual shift mode can
be used.
Models with paddle shifters
Move the shift lever without
pressing the release button.
Press the release button to move
the shift lever.
7-Speed Manual Shift Mode* (P323)
● Allows you to manually shift the transmission up or
down without removing yo ur hands from the steering
wheel.
When the shift lever is in (S● Pulling a paddle shifter changes the mode from
automatic transmission (CVT) to 7-speed manual shift
mode.
● The M indicator and the selected speed number are
displayed in the shift indicator.
When the shift lever is in (D● Pulling a paddle shifter temporarily changes the mode
from automatic transmission (CVT) to 7-speed manual
shift mode. The selected speed number is displayed in
the shift indicator.
Shift Down
Paddle Shifter
Shift Up
Paddle Shifter (M Indicator
Models with
paddle shiftersModels without
paddle shifters
Shift Lever
Release
Button
Shift Indicator
15 US FIT-31T5A6000.book 20 ページ ２０１４年３月６日　木曜日　午後７時５分

21
Quick Reference Guide

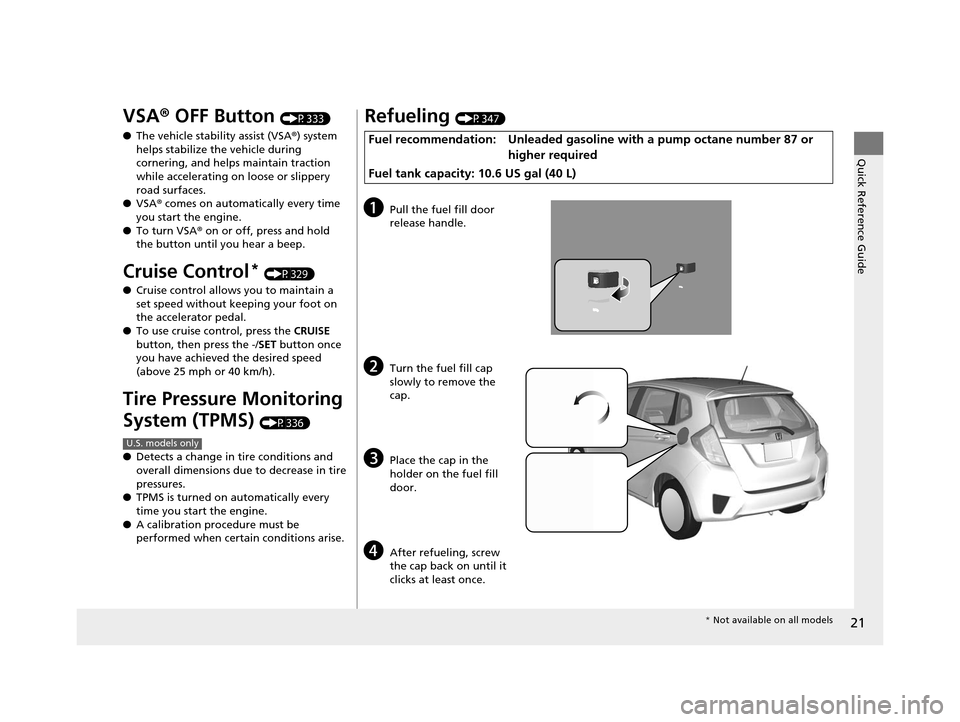

VSA® OFF Button (P333)
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control* (P329)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the -/ SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P336)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
● TPMS is turned on automatically every
time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
U.S. models only
Refueling (P347)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 10.6 US gal (40 L)
aPull the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
* Not available on all models
15 US FIT-31T5A6000.book 21 ページ ２０１４年３月６日　木曜日　午後７時５分

22
Quick Reference Guide

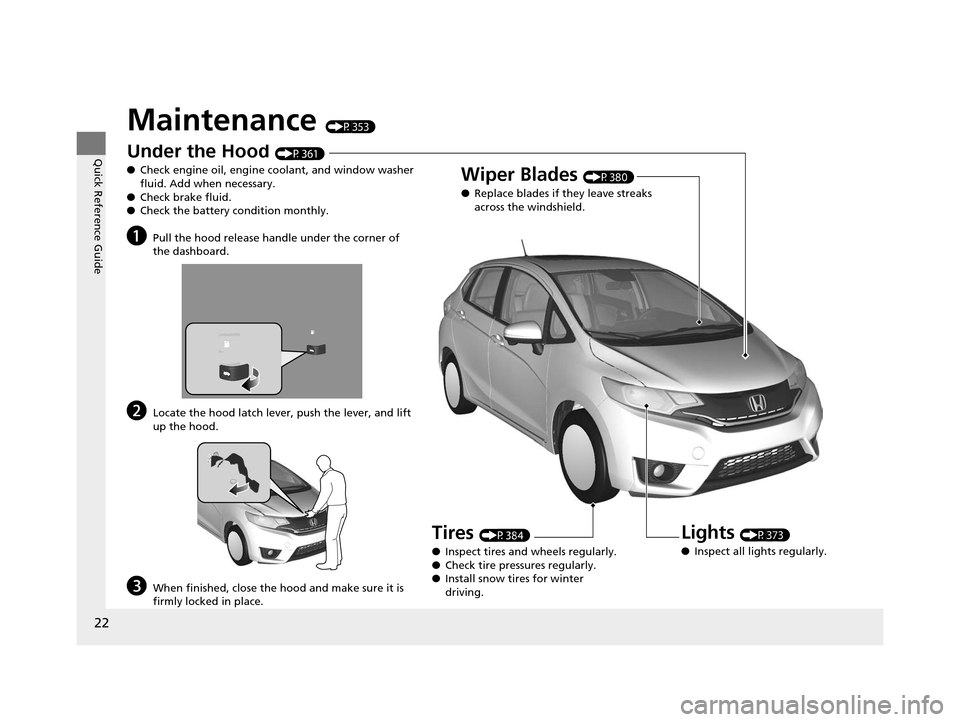

Maintenance (P353)
Under the Hood (P361)
● Check engine oil, engine coolant, and window washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of
the dashboard.
bLocate the hood latch leve r, push the lever, and lift
up the hood.
cWhen finished, close the hood and make sure it is
firmly locked in place.
Lights (P373)
● Inspect all lights regularly.
Wiper Blades (P380)
● Replace blades if they leave streaks
across the windshield.
Tires (P384)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
15 US FIT-31T5A6000.book 22 ページ ２０１４年３月６日　木曜日　午後７時５分

Quick Reference Guide
23

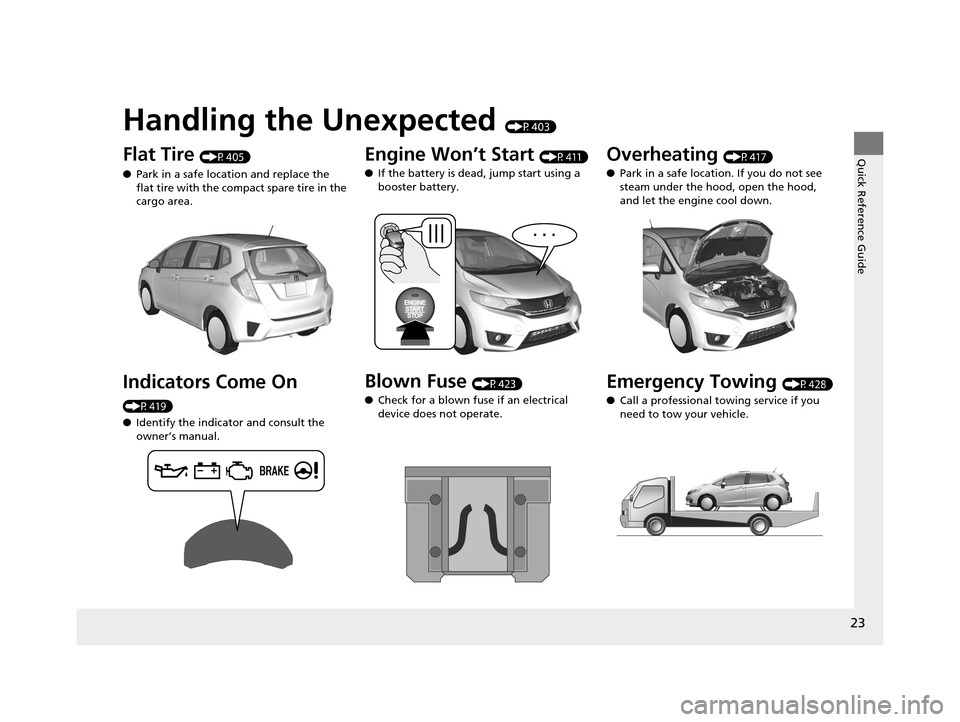

Handling the Unexpected (P403)
Flat Tire (P405)
● Park in a safe location and replace the
flat tire with the comp act spare tire in the
cargo area.
Indicators Come On
(P419)
● Identify the indica tor and consult the
owner’s manual.
Engine Won’t Start (P411)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P423)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P417)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P428)
● Call a professional towing service if you
need to tow your vehicle.
15 US FIT-31T5A6000.book 23 ページ ２０１４年３月６日　木曜日　午後７時５分

24
Quick Reference Guide

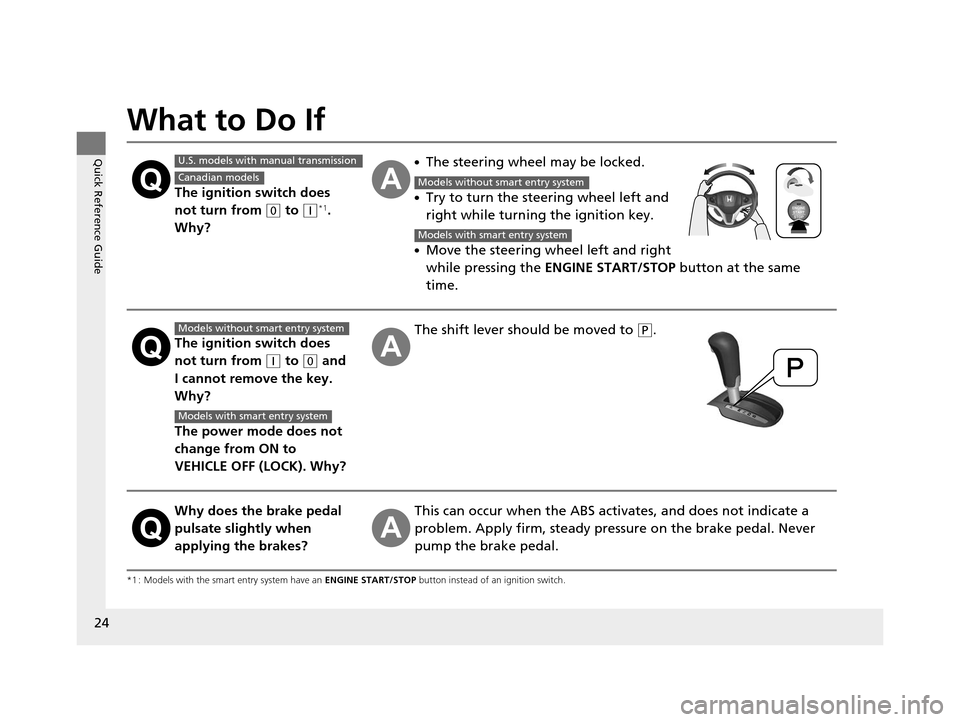

What to Do If
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
The ignition switch does
not turn from
(0 to (q*1.
Why?
●The steering wheel may be locked.
●Try to turn the steering wheel left and
right while turning the ignition key.
●Move the steering wheel left and right
while pressing the ENGINE START/STOP button at the same
time.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ON to
VEHICLE OFF (LOCK). Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
U.S. models with manual transmission
Canadian modelsModels without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
15 US FIT-31T5A6000.book 24 ページ ２０１４年３月６日　木曜日　午後７時５分

25
Quick Reference Guide

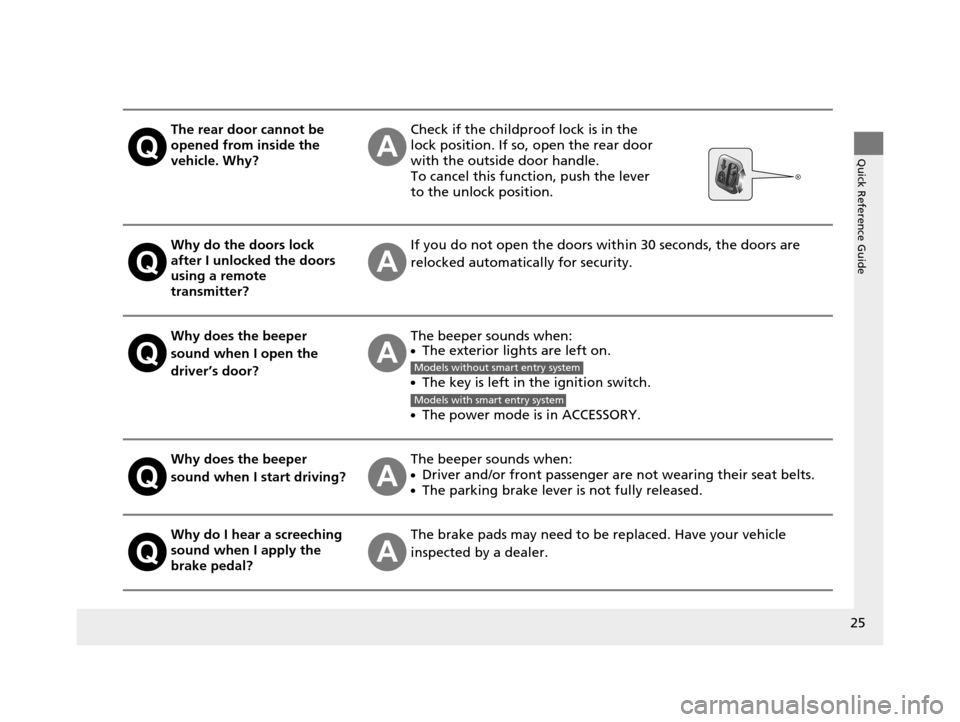

The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear door
with the outside door handle.
To cancel this function, push the lever
to the unlock position.
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:●The exterior lights are left on.
●The key is left in the ignition switch.
●The power mode is in ACCESSORY.
Why does the beeper
sound when I start driving?The beeper sounds when:
●Driver and/or front passenger are not wearing their seat belts.
●The parking brake lever is not fully released.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Models without smart entry system
Models with smart entry system
15 US FIT-31T5A6000.book 25 ページ ２０１４年３月６日　木曜日　午後７時５分

26
15 US FIT-31T5A6000.book 26 ページ ２０１４年３月６日　木曜日　午後７時５分

27
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions ............. 28
Your Vehicle’s Safety Features............ 30
Seat Belts About Your Seat Belts ........................ 32
Fastening a Seat Belt .......................... 35
Seat Belt Inspection............................ 40
Airbags Airbag System Components ............... 41
Types of Airbags ................................ 44
Front Airbags (SRS) ............................ 44
Side Airbags....................................... 48 Side Curtain Airbags .......................... 50
Airbag System Indicators.................... 51
Airbag Care ....................................... 53
Child Safety Protecting Child Passengers ............... 54
Safety of Infants a nd Small Children .. 56
Safety of Larger Children ................... 64
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 66
Safety Labels Label Locations .................................. 67
15 US FIT-31T5A6000.book 27 ページ ２０１４年３月６日　木曜日　午後７時５分

28

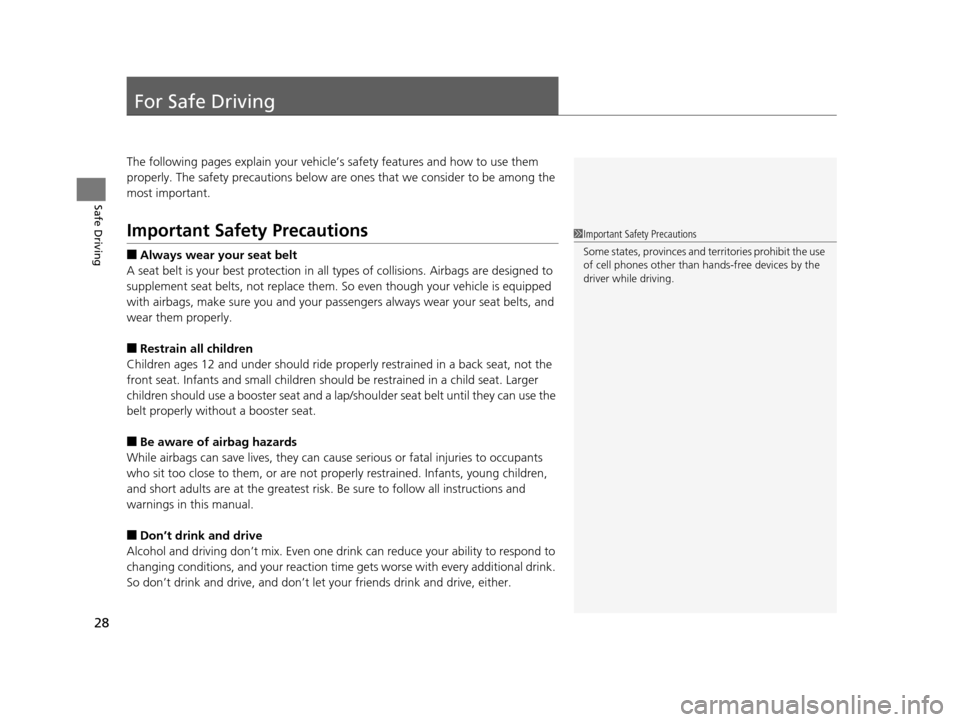

Safe Driving
For Safe Driving
The following pages explain your vehicle’s safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passengers always wear your seat belts, and
wear them properly.
■Restrain all children
Children ages 12 and under should ride prop erly restrained in a back seat, not the
front seat. Infants and small children should be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don’t drink and drive
Alcohol and driving don’t mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don’t drink and drive, and don’t let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and territories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
15 US FIT-31T5A6000.book 28 ページ ２０１４年３月６日　木曜日　午後７時５分

29

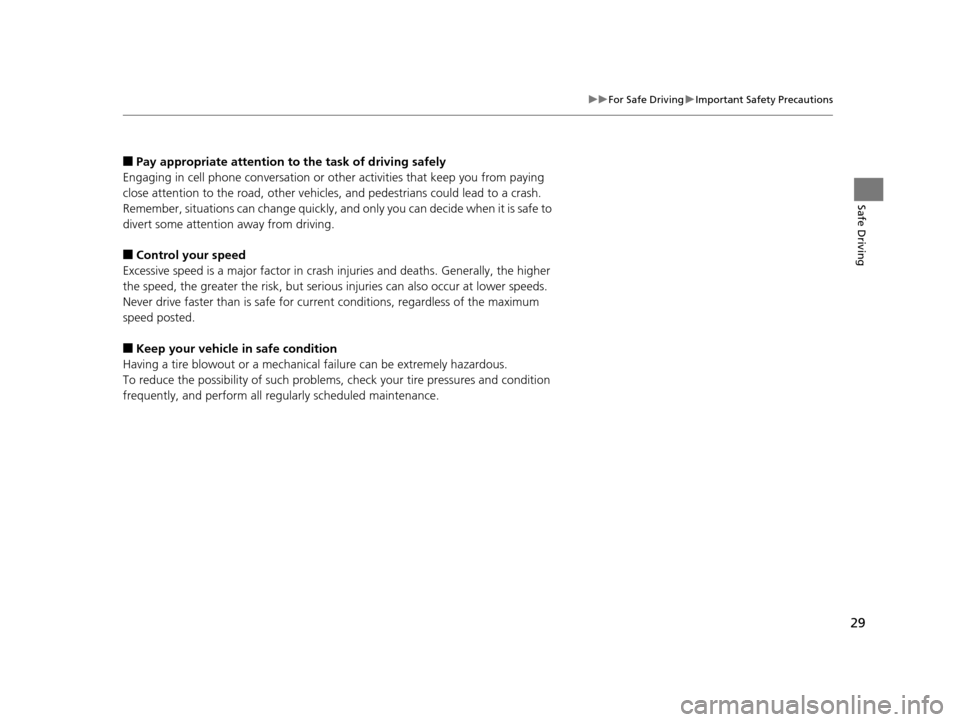

uuFor Safe Driving uImportant Safety Precautions
Safe Driving
■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles , and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all re gularly scheduled maintenance.
15 US FIT-31T5A6000.book 29 ページ ２０１４年３月６日　木曜日　午後７時５分
