VISUAL INDEX
Quickly locate items in the vehicle’s interior.
Steering Wheel and Nearby Controls
1  Lights/turn signals/LaneWatch

       button*   
p. 35, p. 36, p. 94
2  SEL/RESET knob*   p. 28

Brightness control p. 35
3  Wipers/washers   p. 37
4  Cruise control buttons*   p. 93
5 Horn
6 Bluetooth ®
HandsFreeLink ®
/
  voice recognition buttons   
p. 66,
p. 69, p. 77
7  Instrument panel   p. 24
8  Information display  p. 28
9 Audio controls p. 48

MENU button*   p. 48

Display button*   p. 56
10  ENGINE START/STOP button*   p. 88
11 ECON button* p. 92
12  Vehicle Stability Assist (VSA ®
) OFF
  button   
p. 92
Tire Pressure Monitoring System
  (TPMS) button*   
p. 102
  Paddle shifters*   p. 89
VISUAL INDEX
*if equipped
*if equipped
7
125641013
14111283
13
14
9
NAVIGATION* ...................................... 76
Basic Navigation Operation
.............76
Entering a Destination .......................79
Routing .................................................. 81
DRIVING
................................................ 83
Before Driving
..................................... 83
Maximum Load Limit ..........................85
Starting to Drive .................................. 87
Shifting .................................................. 88
Braking ................................................. 90
Vehicle Stability Assist (VSA ®
), aka
Electronic Stability Control (ESC) System ................................................... 92
ECON Button* ...................................... 92
Cruise Control ...................................... 93
LaneWatch™* ..................................... 94
Multi-View Rear Camera* .................95
Refueling .............................................. 97
HANDLING THE UNEXPECTED
.........98
Smart Entry Remote Battery Strength*
...98
Jump Starting ...................................... 98
Shift Lever Does Not Move* .............99
Overheating ........................................ 100
Emergency Engine Stop* .................101
Emergency Towing ...........................101
Tire Pressure Monitoring System (TPMS) ................................................ 102Changing a Flat Tire
..........................104
Fuse Locations ................................... 108
MAINTENANCE
................................. 112
Safety Precautions
...........................112
Maintenance Minder™....................113 Under the Hood .................................. 115
Engine Oil ........................................... 116
Engine Coolant .................................. 118
Brake Fluid ......................................... 119
Window Washer Fluid .....................119
Checking the Battery ........................120
Changing Wiper Blades ...................121
Tire Information ................................. 123
Tire Labeling ...................................... 126
DOT Tire Quality Grading .................127
Testing of Readiness Codes ............129
SPECIFICATIONS
............................... 130
CUSTOMER INFORMATION .............132
Frequently Asked Questions/
Troubleshooting
................................ 132
Contact Us .......................................... 133
Honda Roadside Assistance ...........134
Warranty Coverages .........................134
VOICE COMMAND INDEX
................135
INDEX .................................................. 141

4 || 5
S
AFETY
SAFETY
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless, 
odorless, and highly toxic gas. As long as you properly maintain your vehicle and
follow the instructions set forth below, you will not accumulate dangerous levels 
of carbon monoxide gas in the vehicle interior. Have the exhaust system inspected for leaks whenever:
•  The exhaust system is making an unusual noise.
•  The exhaust system may have been damaged.
•  The vehicle is raised for an oil change.
When you operate a vehicle with the tailgate open, airow can pull exhaust gas into the interior and create a hazardous condition. If you must drive with the 
tailgate open, open all the windows and set the climate control system as shown
below.
1. Select the fresh air mode.
2. Select the
mode.
3. Set the fan speed to high. 4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked vehicle with the engine running.
Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and  even kill you.
Avoid any enclosed areas or activities that expose you to carbon monoxide.
WARNING
An enclosed area such as a garage can quickly ill up with carbon monoxide gas.  Do not run the engine with the garage door closed. Even when the garage door is open, drive out of the garage immediately after starting the engine.
Seat Belts
A seat belt is your best protection in all types of collisions. Airbags are designed to  supplement seat belts, not replace them. So even though your vehicle is equipped 
with airbags, make sure you and your passengers always wear your seat belts and 
wear them properly.
Lap/Shoulder Seat Belts
All ive seating positions are equipped with lap/shoulder seat belts with 
emergency locking retractors. In normal driving, the retractor lets you move 
freely while keeping some tension on the belt. During a collision or sudden stop, 
the retractor locks to restrain your body. The rear seat belts also have a lockable retractor for use with child seats. The front seats are equipped with automatic seat belt tensioners to enhance 
safety. The tensioners automatically tighten the front seat belts during a moderate 
to severe frontal collision, sometimes even if the collision is not severe enough to inlate the front airbags.
Proper Use of Seat Belts
Follow these guidelines for proper use:
•  All occupants should sit upright, well back in the seat, and remain in that 
position for the duration of the trip. Slouching and leaning reduces the effectiveness of the belt and can increase the chance of serious injury in a crash.
•  Never place the shoulder part of a lap/shoulder seat belt under your arm or 
behind your back. This could cause very serious injuries in a crash.
•  Two people should never use the same seat belt. If they do, they could be very  seriously injured in a crash.
•  Do not put any accessories on the seat belts. Devices intended to improve 
comfort or reposition the shoulder part of a seat belt can reduce the protective capability and increase the chance of serious injury in a crash.
•  No one should sit in a seat with an inoperative seat belt or one that does not  appear to be working correctly. Using a seat belt that is not working properly may not protect the occupant in a crash. Have a dealer check the belt as soon as possible.
Not wearing a seat belt properly increases the chance of a serious injury or  death in a crash, even though your vehicle has airbags. Be sure you and your passengers always wear seat belts and wear them 
properly.
WARNING

24 || 25
I
NSTRUMENT PANEL
INSTRUMENT PANEL
Smart Entry system* There is a problem with the smart entry system. Malfunction indicator lamp (check engine light)
• The emissions control system may have a problem, or the fuel cap is loose   or missing.
• (Blinks) A misire in the engine’s cylinders is detected. Stop in a safe place, 
and wait for the engine to cool down. Anti-lock Brake System (ABS)
There is a problem with the anti-lock brake system. Your vehicle still has 
normal braking ability, but no anti-lock function. 
Tire Pressure Monitoring System (TPMS) (U.S. models only)
There is a problem with the tire pressure monitoring system, or the vehicle is  tted with the compact spare tire.
Vehicle Stability Assist (VSA ®
)
There is a problem with the VSA system or hill start assist system. Brake system There is a problem with a braking system component. Electric power steering There is a problem with the system. Stop in a safe place, and restart the vehicle. Starter system* There is a problem with the starter system. High temperature The engine coolant temperature is high. Drive slowly to prevent overheating. If the indicator remains on, immediately stop the vehicle in a safe place (see page 100). Low temperature
The engine coolant temperature is low. If the indicator remains on, there  may be a problem with temperature sensors.
Canada U.S.
U.S.
Canada
Learn about the indicators, gauges, and displays related to driving the vehicle. Indicators briely appear with each engine start and then go out. Red and amber 
indicators are most critical. Blue and green indicators are used for general information.
Malfunction Indicators
These are the most critical indicators. If they come on and stay lit while driving or at 
any other time, there may be a problem. See your dealer if necessary.
Brake system
• Brake luid is low.• The brake system has a problem.Press the brake pedal lightly to check pedal pressure. If normal, check 
the brake luid level when you stop. If abnormal, take immediate action. If 
necessary, downshift the transmission to slow the vehicle using engine
braking. Have your vehicle repaired immediately. Low oil pressure
Engine oil pressure is low. Stop in a safe place. Open the hood. Check the oil 
level, and add oil if necessary (see page 117). If the indicator does not turn 
off, have your vehicle repaired immediately. Charging system
The battery is not charging. Turn off all electrical items, but do not turn off  the vehicle to prevent further battery discharge. Have your vehicle repaired 
immediately. Supplemental Restraint System (SRS)
There is a problem with one of the airbag systems or seat belt tensioners. 
Canada
U.S.
INSTRUMENT PANEL
*if equipped

26 || 27
I
NSTRUMENT PANEL
INSTRUMENT PANEL
Condition Indicators
These indicators may require you to perform an action.
Parking brake
Release the parking brake before driving. You will hear a beep if you drive with it not fully released. Seat belt reminder Make sure seat belts are fastened for you and all passengers. The indicator  blinks and beeps sound continuously if you or your front passenger has not fastened your seat belts when you begin driving. If the indicator remains on 
after seat belts are fastened, see your dealer. Door/tailgate open
A door or the tailgate is open. A beep sounds if any door or the tailgate is open while driving. Low fuel
Refuel as soon as possible. If the indicator blinks, there is a problem with the 
fuel gauge. See your dealer. Low tire pressure
Stop in a safe place, check tire pressures, and inlate tire(s) if necessary. If  the indicator remains on after tire inlation, you need to calibrate the system (see page 102). The indicator also appears if your vehicle is tted with the
compact spare tire. Have your regular tire repaired or replaced as soon as possible.
Washer uid level (Canadian models only)
Washer uid is low. Rell the reservoir (see page 119).Maintenance Minder™ Scheduled maintenance for your vehicle is due (see page 113).
Ca nada
U.S.
Immobilizer
Your key or remote transmitter cannot be recognized by the vehicle. If the 
indicator blinks, you may not be able to start the engine. Turn the vehicle off, and then on again. If it continues to blink, there may be a problem with the 
system. See your dealer.
On/Off Indicators
These indicators remind you when an item is on or off.
VSA off VSA on (blinks)
CRUISE MAIN onCRUISE CONTROL on
Turn signals/hazards on Fog lights* onHigh beams onExterior lights onECON mode* on
*if equipped

88 || 89
DRIVING
DRIVING
Changing the Power Mode*
Use the
ENGINE START/STOP button to cycle through power modes or start the 
engine. Accessory or On mode: Press ENGINE START/STOP 
once without pressing the brake pedal for Accessory  mode. Press it again for On mode. Starting the engine: Press and hold the brake pedal 
(and the clutch for manual transmission), then press
ENGINE START/STOP. Keep your foot irmly on the brake pedal when starting the engine.
Turning the vehicle off: Shift to Park (P) (or apply the parking brake for manual 
transmission), then press ENGINE START/STOP. If you press the button and the  shift lever is not in Park (P), the vehicle goes into Accessory mode.
*if equipped
Shifting
Change the shift position based on your driving needs.
Continuously Variable Transmission (CVT)*
Park (P): Used for parking or starting/stopping 
the engine. Press the brake pedal, then press the  release button to shift. Reverse (R): Used for reversing.
Neutral (N): Used for idling.
Drive (D): Used for normal driving.
Drive (S): Used for better acceleration, increased 
engine braking, driving in hilly terrain, or when using  paddle shifters*. Low (L)*: Used for stronger engine braking when driving in hilly terrain.
When you change the shift lever from D to R and vice versa, come to a complete  stop and keep the brake pedal pressed. Operating the shift lever before the vehicle has come to a complete standstill can damage the transmission.
Do not operate the shift lever while pressing the accelerator pedal. You could  damage the transmission.
NOTICE
Release button
Paddle Shifters*
Use the paddle shifters to change gears from 1st through 7th without removing your hands from the steering wheel.
*if equipped
When the shift lever is in D:
The vehicle goes into manual shift mode temporarily,
and the gear number appears. When you start traveling at a constant speed,  manual shift mode automatically switches off, and the gear number goes off.  When the shift lever is in S: The vehicle goes into manual shift mode, and the
M indicator and gear number appear. When the vehicle comes to a stop, it 
automatically shifts down into 1st gear. You can pull away only in 1st gear. If the 
vehicle speed increases and the engine speed approaches the tachometer’s red zone, the transmission automatically shifts up. As the vehicle speed slows down,
the transmission automatically shifts down accordingly.
To cancel manual shift mode, move the shift lever from S to D. The M indicator and gear number go off. 
M indicator/gear  position indicator
Shift up Normal acceleration1 to 215 mph (24 km/h)
2 to 32 5 mph (40 km/h)
3 to 440 mph (64 km/h)
4 to 54 5 mph (72 km/h)
5 to 650 mph (80 km/h)
6 to 75 5 mph (89 km/h)
Recommended shift points
(-) paddle shifter:

Pull to shift down
to a lower gear. (+) paddle shifter:

Pull to shift up to
a higher gear.

92 || 93
DRIVING
DRIVING
Vehicle Stability Assist (VSA ®
), aka Electronic Stability Control
(ESC) System
Helps to stabilize the vehicle during cornering if the vehicle turns more or less 
than what was intended. It assists in maintaining traction on slippery surfaces by regulating engine output and selectively applying the brakes.
Turning VSA On or Off
VSA is turned on every time you start the engine,
even if you previously turned it off. If you turn VSA  off, your vehicle has normal braking and cornering 
ability, but VSA traction and stability enhancement become less effective. Press and hold the VSA OFF button until you hear a  beep to turn VSA on or off. The VSA OFF indicator appears when the system is off. When VSA is turned off, traction control stops functioning, which may make it
easier when trying to free your vehicle if it is stuck in mud or snow.VSA OFF indicator
VSA OFF button
Cruise Control
Maintain a constant vehicle speed without having to keep your foot on the accelerator pedal. Use cruise control on freeways or open roads where you can travel at a constant speed with little acceleration or deceleration.
CRUISE button RES/+ button -/SET button
CANCEL button
Improper use of the cruise control can lead to a crash.
Use cruise control only when traveling on open highways in good weather.
WARNING
Activating and Setting the Vehicle Speed
1.
Press CRUISE. The CRUISE MAIN indicator appears.
2. Accelerate to the desired speed (above 25 mph/
40 km/h). Take your foot off the pedal and press 
-/SET to set the speed. The CRUISE CONTROL indicator  appears.
Adjusting the Vehicle Speed
Press RES/+ to increase or -/SET to decrease. Each time you press the button, the vehicle speed is  increased or decreased by about 1 mph (1.6 km/h). If you keep the button pressed, the vehicle speed increases or decreases until you release it.
Canceling Cruise Control
Press CANCEL or the brake pedal. The CRUISE CONTROL  indicator goes off. After cruise control has been canceled, you can still  resume the prior set speed by pressing RES/+ while driving at a speed of at least 25 mph (40 km/h). Press CRUISE to turn the system off.
ECON Button*
Can help improve your fuel economy by adjusting the performance of the engine,  transmission, climate control system, and cruise control. Press the ECON button to turn the system on or off.  The ECON Mode indicator appears when the system is turned on.

98 || 99
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Learn about what to do in critical or emergency situations.
Smart Entry Remote Battery Strength*
If the battery life in your remote transmitter is weak, follow the below steps to start  the engine. 1. Touch the back of the remote transmitter to the 
ENGINE START/STOP button while the indicator is ashing.
2. With the brake pedal pressed (and the clutch pedal for manual transmission), press the ENGINE 
START/STOP button within 10 seconds.
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine, then open the hood. 1. Remove the under-hood fuse box cover (see  page 108). Connect the irst jumper cable to your 
vehicle’s battery (+) terminal.
2. Connect the other end of the irst jumper cable to the booster battery (+) terminal. Use a 12-volt 
booster battery only.
3. Connect the second jumper cable to the booster battery (-) terminal.
4. Connect the other end of the second jumper cable to the stud bolt as shown. Do not connect this jumper cable to any other part.
5. If your vehicle is connected to another vehicle, 
start the assisting vehicle’s engine and increase its
rpm slightly.
6. Attempt to start your vehicle’s engine. If it turns over slowly, make sure that the  jumper cables have good metal-to-metal contact.
HANDLING THE UNEXPECTED
*if equipped
A battery can explode if you do not follow the correct procedure, seriously 
injuring anyone nearby.
Keep all sparks, open lames, and smoking materials away from the battery.
WARNING
Booster battery WARNING:
Battery posts, terminals, and related accessories contain lead and lead
compounds. Wash your hands after handling.
After the Engine Starts
Once your vehicle’s engine has started, remove the jumper cables in the following  order: 1. Disconnect the jumper cable from your vehicle’s stud bolt.
2. Disconnect the other end of the jumper cable from the booster battery (-)  terminal.
3. Disconnect the jumper cable from your vehicle’s battery (+) terminal.
4. Disconnect the other end of the jumper cable from the booster battery (+) terminal.
5. Have your vehicle inspected by a nearby service station or a dealer.
Shift Lever Does Not Move*
Follow the procedure below if you cannot move the shift lever out of Park (P). 1. Set the parking brake.
2. Remove the key from the ignition, or remove the built-in key from the remote transmitter.
3. Wrap a cloth around the tip of a small at-tip screwdriver. Put it into the shift lock release slot as
shown in the image, and remove the cover.
4. Insert the key into the shift release lock.
5. While pushing the key down, press the shift lever release button and place the shift lever into Neutral   (N). The lock is now released. Have the shift lever checked by a dealer as soon as possible.
*if equipped
Slot
Release button Shift lock release slot
Cover

100 || 101
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED

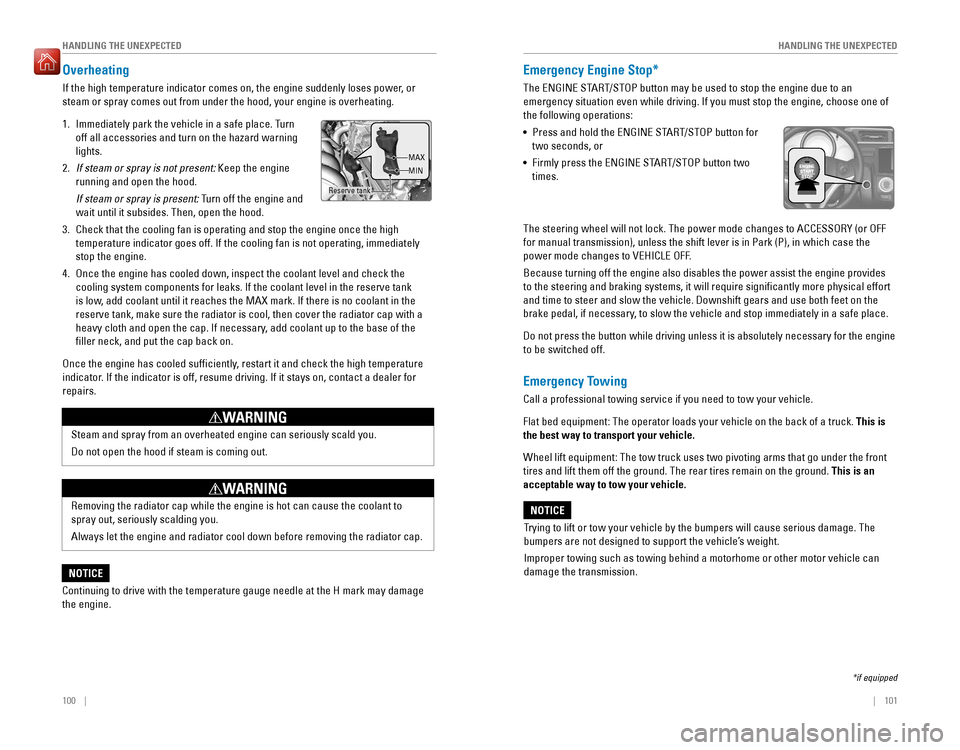

Overheating
If the high temperature indicator comes on, the engine suddenly loses power, or  steam or spray comes out from under the hood, your engine is overheating. 1. Immediately park the vehicle in a safe place. Turn  off all accessories and turn on the hazard warning lights.
2. If steam or spray is not present: Keep the engine
running and open the hood.
  If steam or spray is present: Turn off the engine and
wait until it subsides. Then, open the hood.
3. Check that the cooling fan is operating and stop the engine once the high temperature indicator goes off. If the cooling fan is not operating, immediately stop the engine.
4. Once the engine has cooled down, inspect the coolant level and check the cooling system components for leaks. If the coolant level in the reserve tank 
is low, add coolant until it reaches the MAX mark. If there is no coolant in the 
reserve tank, make sure the radiator is cool, then cover the radiator cap with a
heavy cloth and open the cap. If necessary, add coolant up to the base of the iller neck, and put the cap back on.
Once the engine has cooled sufciently, restart it and check the high temperature
indicator. If the indicator is off, resume driving. If it stays on, contact a dealer for repairs.
Steam and spray from an overheated engine can seriously scald you. Do not open the hood if steam is coming out.
WARNING
Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you. Always let the engine and radiator cool down before removing the radiator cap.
WARNING
Continuing to drive with the temperature gauge needle at the H mark may damage the engine.
NOTICE
Emergency Engine Stop*
The ENGINE START/STOP button may be used to stop the engine due to an 
emergency situation even while driving. If you must stop the engine, choose one of the following operations: •  Press and hold the ENGINE START/STOP button for 
two seconds, or
•  Firmly press the ENGINE START/STOP button two 
times.
The steering wheel will not lock. The power mode changes to ACCESSORY (or OFF 
for manual transmission), unless the shift lever is in Park (P), in which case the
power mode changes to VEHICLE OFF. Because turning off the engine also disables the power assist the engine provides 
to the steering and braking systems, it will require signiicantly more physical effort and time to steer and slow the vehicle. Downshift gears and use both feet on the 
brake pedal, if necessary, to slow the vehicle and stop immediately in a safe place.
Do not press the button while driving unless it is absolutely necessary for the engine  to be switched off.
Emergency Towing
Call a professional towing service if you need to tow your vehicle. Flat bed equipment: The operator loads your vehicle on the back of a truck.  This is
the best way to transport your vehicle.
Wheel lift equipment: The tow truck uses two pivoting arms that go under the front  tires and lift them off the ground. The rear tires remain on the ground. This is an
acceptable way to tow your vehicle.
Trying to lift or tow your vehicle by the bumpers will cause serious damage. The 
bumpers are not designed to support the vehicle’s weight.
Improper towing such as towing behind a motorhome or other motor vehicle can  damage the transmission.
NOTICE
*if equipped
Reserve tank MAX MIN

102 || 103
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Tire Pressure Monitoring System (TPMS)
Monitors the tire pressure while you are driving. Available on U.S. models only.
If your vehicle’s tire pressure becomes signiicantly 
low, the low tire pressure indicator comes on. Stop your vehicle in a safe place. Check the tire pressure and adjust the pressure to the specied level. The speciied tire pressure is on a label on the 
driver’s doorjamb.
TPMS Calibration
Any time you inate, change, or rotate one of more
of the tires, you need to recalibrate the system. Press and hold the TPMS button. The TPMS  indicator blinks, and calibration begins. The calibration process requires approximately 30  minutes of cumulative driving at speeds between 30–60 mph (48–97 km/h). The process inishes 
automatically.
Driving on an extremely underinlated tire can cause it to overheat. An overheated tire can fail. Always inate your tires to the specied pressure.
NOTICE
TPMS button
Low tire
pressure indicator
Tire Pressure Monitoring System (TPMS)—Required Federal Explanation
U.S. models only
Each tire, including the spare (if provided), should be checked monthly  when cold and inlated to the inlation pressure recommended by the vehicle manufacturer on the vehicle placard or tire ination pressure label. (If your vehicle has tires of a different size than the size indicated on the  vehicle placard or tire inlation pressure label, you should determine the proper tire ination pressure for those tires.) As an added safety feature, your vehicle has been equipped  with a tire pressure monitoring system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is
signicantly under-inated.
Accordingly, when the low tire pressure telltale illuminates, you should
stop and check your tires as soon as possible, and inlate them to the proper pressure.
Driving on a signiicantly under-inlated tire causes the tire to overheat 
and can lead to tire failure. Under-ination also reduces fuel efciency
and tire tread life, and may affect the vehicle’s handling and stopping
ability. Please note that the TPMS is not a substitute for proper tire maintenance, 
and it is the driver’s responsibility to maintain correct tire pressure, even 
if under-ination has not reached the level to trigger illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator 
to indicate when the system is not operating properly. The TPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, the telltale will ash for approximately one minute and then remain continuously illuminated. This sequence will continue upon subsequent vehicle start-ups as long as the malfunction exists. When the malfunction indicator is illuminated, the system may not be able  to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function
properly.

108 || 109
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Fuse Locations
If any electrical devices are not working, turn the vehicle off and check to see if any 
applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the 
fuse in question by the fuse number and box cover number. 
Engine Compartment Fuse Box
Located under the hood near the brake luid reservoir. Push the tabs to open the  box.
Circuit ProtectedAmps1Headlight Low Beam Main20 A2CDC *(30 A)3Hazard10
A4DBW15 A5Wiper(30 A)6Stop10 A7IGP15 A8IG Coi l15A9ECP *(10 A)10INJ(20 A)11––12Main Fa
n30A
*if equipped
Ta b
13Starter SW(30 A)14MG Clutch7.5A15Battery Senso r(7.5A )16––17Daytime Running Lights(7.5A )18Horn10A19Fog Ligh t*(15 A)20––
Circuit Protecte
dAmps
21Back Up Main15A22Interior Lights7.5 A23Sub Fa n(30A )24––25Smart Entry Auto Start *(7.5 A)26ST MG(7.5
A)27––28––29Back Up(10A )30IGP LAF(10A )31IGPS(7.5 A)32Right Headlight Low Beam10A33Left Headlight Low Beam10A
Circuit Protecte dAmps1Door Lock(20 A)2––3Smart*(10 A)4Driver Side Door Unlock15
A5Passenger Side Door Unlock15 A6Driver Door Unlock(10 A)7Driver Door Lock(10 A)8Driver’s Power Window20A9Passenger’s Power Window20A10Rear Left Power Window20A11Rear Right Power Window20A12Driver Side Door Lock15A13Passenger Side Door Lock15A14––15Right Headlight High Beam10A16STS *(7.
5A )
Interior Fuse Boxes
Fuse box A
Located behind the dashboard next to the steering wheel.
*if equipped
Fuse label
17ACC Socket (Console*
)(20 A)18Moonroof *(20 A)19Front Seat Heater *(20 A)20––
Circuit Protecte
dAmps
21––22Washer15A23Rear Wiper(10A )24A/C7.5A25Daytime Running Lights7.5 A26Starter Cut7.5A27ABS/VSA7.5 A28SRS10 A29Left Headlight High Beam10A30ACG10A31Power Window10 A32Fuel Pump15 A33SRS7.5A34Mete r7.5A35Mission SOL7.5A36Front ACC Socket20 A37ACC7.5A38ACC Key Lock7.5A39Option(1 0A )40Rear Wiper10 A4142
