HONDA FIT 2016 3.G Quick Guide

owners.honda.com (U.S.)
myhonda.ca (Canada)
AOG01406
31T5AG00 2016 Honda Fit Owner’s Guide
00X31-T5A-G000 ©2015 Honda Motor Co., Ltd. — All Rights Reserved Printed in U.S.A.
2016
OWNER’S GUIDE

Devices That Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation:•   
 
 
 
Audio
system • Immobilizer system
•   
 
 
 
Bluetooth ®
Audio • Remote transmitter
•   
 
 
Bluetooth ®
HandsFreeLink ®
• Smart Entry System
   
 
 
 
 
 
 
     
   
 
  
 
 
   
Each of the above complies with the appropriate requirements or the required
standards of the FCC (Federal Communications Commission) and Industry Canada,
described below:
   
 
As required by the FCC:
 
 
   
 
 
 
 
 
 
 
 
 
   
 
 
 
  
 
 
  
 
     
  
 
 
    
 
 
 
 
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
  
  
 
  
 
    
 
   
 
  
  
Changes or modiications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
 
 
  
 
As required by Industry Canada:
   
 
 
 
 
   
 
 
 
 
 
 
  
 
    
 
 
  
 
 
   
    
 
 
 
 
 
 
 
This device complies with Industry Canada Standard RSS-Gen/210/251/310.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
California Perchlorate Contamination Prevention Act
 
 
 
  
 
 
 
 
 
 
 
The airbags, seat belt tensioners, and CR-type batteries in this vehicle may
contain perchlorate materials—special handling may apply. See
www.dtsc.
ca.gov/hazardouswaste/perchlorate/ for more information.
California Proposition 65 Warning
 
 
  
 
 
 
 
  
WARNING:
This product contains or emits chemicals known to the state of
California to cause cancer and birth defects or other reproductive harm.

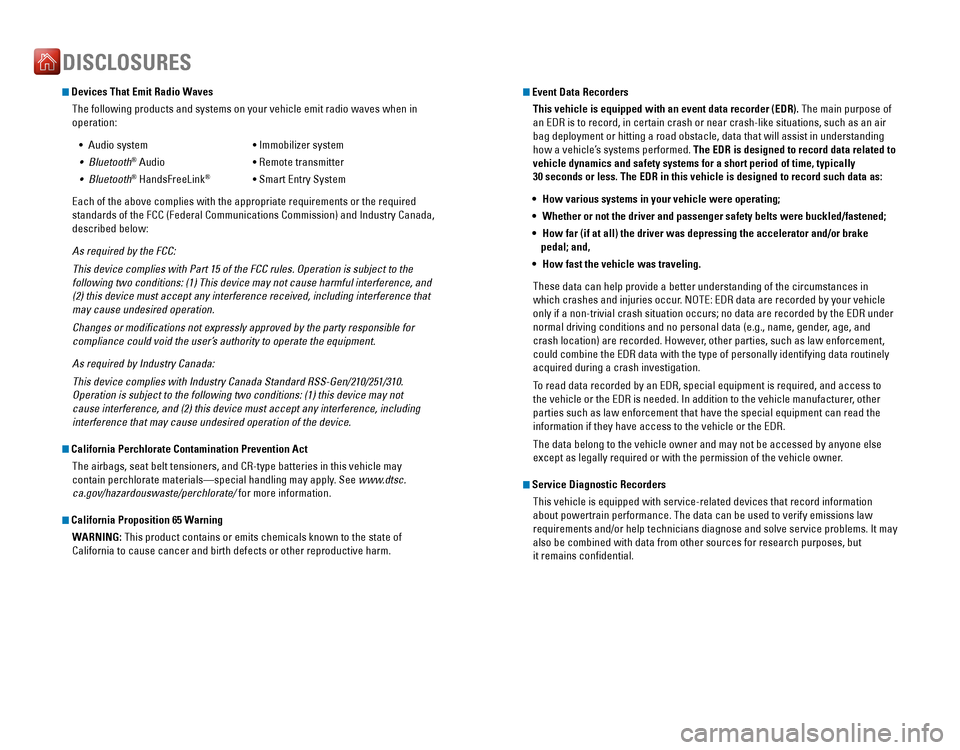

DISCLOSURES
Event Data Recorders
 
  
 
 
 
 
 
  
  
      
 
 
 
  
 
  
   
 
This vehicle is equipped with an event data recorder (EDR).
The main purpose of
an

EDR is to record, in certain crash or near crash-like situations, such as an air
bag deployment or hitting a road obstacle, data that will assist in understanding
how a vehicle’s systems performed. The EDR is designed to record data related to
vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:
•  How various systems in your vehicle were operating;
•  Whether or not the driver and passenger safety belts were buckled/fastened;
•  How far (if at all) the driver was depressing the accelerator and/or brake
pedal; and,
•  How fast the vehicle was traveling.
 
  
   
 
 
 
  
  
 
 
  
   
 
   
  
  
 
 
 
     
 
  
  
 
 
 
 
 
 
    
   
 
  
 
 
 
 
These
data can help provide a better understanding of the circumstances in
which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle
only if a non-trivial crash situation occurs; no data are recorded by the EDR under
normal driving conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. However, other parties, such as law enforcement,
could combine the EDR data with the type of personally identifying data routinely
acquired during a crash investigation.
   
   
 
 
     
 
 
 
  
 
 
 
  
   
 
 
   
  
  
   
    
 
 
  
 
 
   
 
 
 
To read data recorded by an EDR, special equipment is required, and access to
the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other
parties such as law enforcement that have the special equipment can read the
information if they have access to the vehicle or the EDR.
 
   
  
  
 
    
 
  
   
 
 
 
   
 
 
The data belong to the vehicle owner and may not be accessed by anyone else
except as legally required or with the permission of the vehicle owner.
Service Diagnostic Recorders
  
 
  
 
 
 
 
 
    
  
 
 
 
 
 
 
 
   
 
 
  
  
 
 
 
 
   
 
 
 
 
 
 
  
 
This

vehicle is equipped with service-related devices that record information
about powertrain performance. The data can be used to verify emissions law
requirements and/or help technicians diagnose and solve service problems. It may
also be combined with data from other sources for research purposes, butit remains condential.

Honda Automobile Customer Service
Your authorized Honda dealer should be able to answer any questions you have 
about your vehicle. However, if you are dissatisied with the information you receive, you can call Honda Automobile Customer Service (see page 133).
Honda Roadside Assistance
24-hour emergency road service is available to you in the United States and Canada 
throughout your 3-year/36,000-mile warranty term. Services include jump starting, at tire and lockout assistance, towing, and more (limitations apply).
This Owner’s Guide is intended to help you quickly get acquainted with your 2016 Honda Fit
. It provides basic information and instructions on technology and 
convenience features, as well as emergency procedures and how to get assistance. This guide is for vehicles sold in the United States and Canada. It covers all Fit  models, so you may ind descriptions of features and equipment that are not in your vehicle. Images throughout this guide are from U.S. vehicles and represent features and equipment that are available on some, but not all, models.
This guide is not intended to be a substitute for the Owner’s Manual. The Owner 
Information CD enclosed in your glove box kit includes the Owner’s Manual, Navigation Manual, and vehicle and tire warranties in electronic format. This information can be viewed on a computer (PC or Mac platform) and saved or printed 
for your reference. You can also visit owners.honda.com (U.S.) or myhonda.ca
(Canada) to view the complete and most current information.
If you are the irst registered owner of your vehicle, you may request a complimentary 
printed copy of the Owner’s Manual, Navigation Manual, or Vehicle Warranty within
the irst six months of vehicle purchase. To request a copy, visit  owners.honda.com
(U.S.) and create or log in to your account. In Canada, please request a copy from 
your Honda dealer. American Honda Motor Company strives to be proactive in protecting our 
environment and natural resources. By using electronic delivery for a considerable 
portion of the information typically found in a vehicle owner’s manual, we are further reducing our impact on the environment.

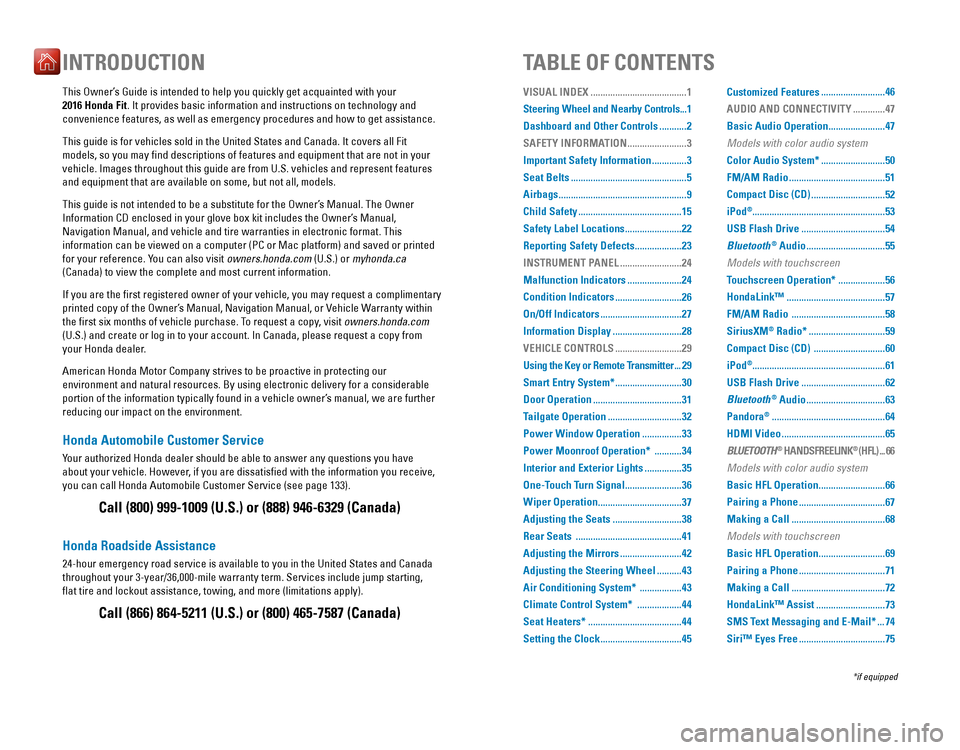

INTRODUCTION TABLE OF CONTENTS
Call (800) 999-1009 (U.S.) or (888) 946-6329 (Canada) Call (866) 864-5211 (U.S.) or (800) 465-7587 (Canada)
VISUAL INDEX ....................................... 1
Steering Wheel and Nearby Controls ...1

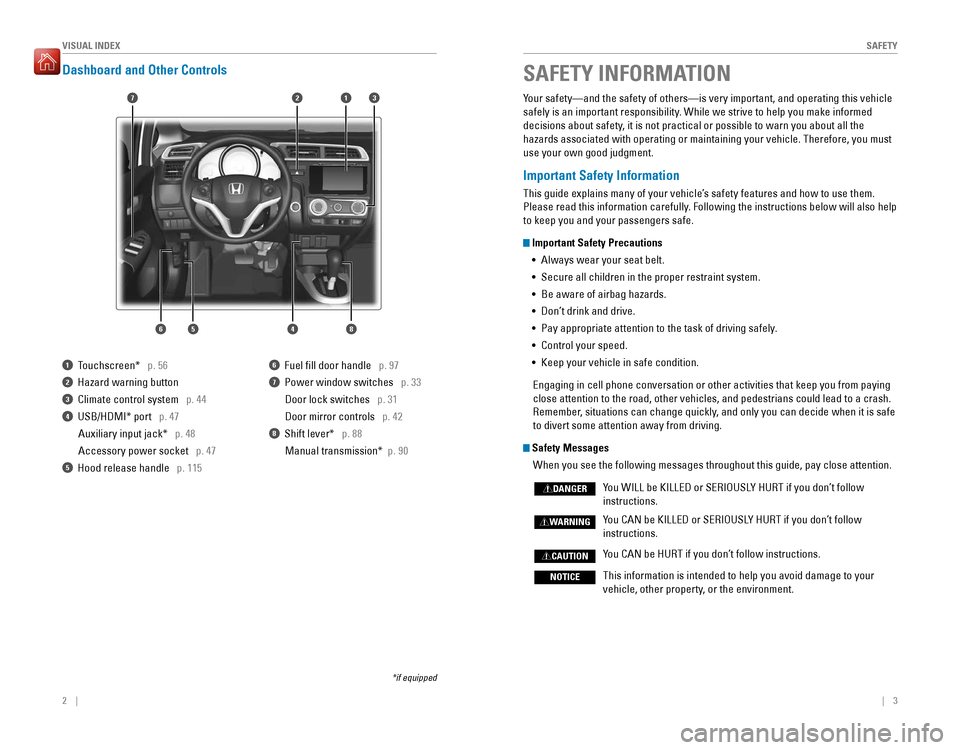

Dashboard and Other Controls ...........2
SAFETY INFORMATION
........................3
Important Safety Information
..............3

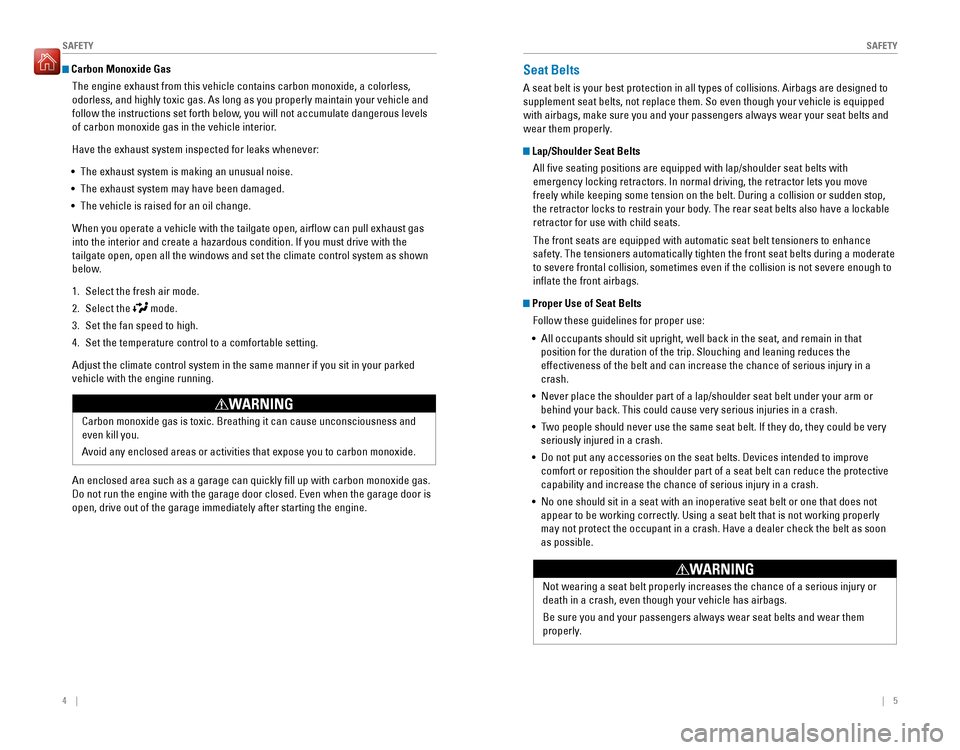

Seat Belts ............................................... 5

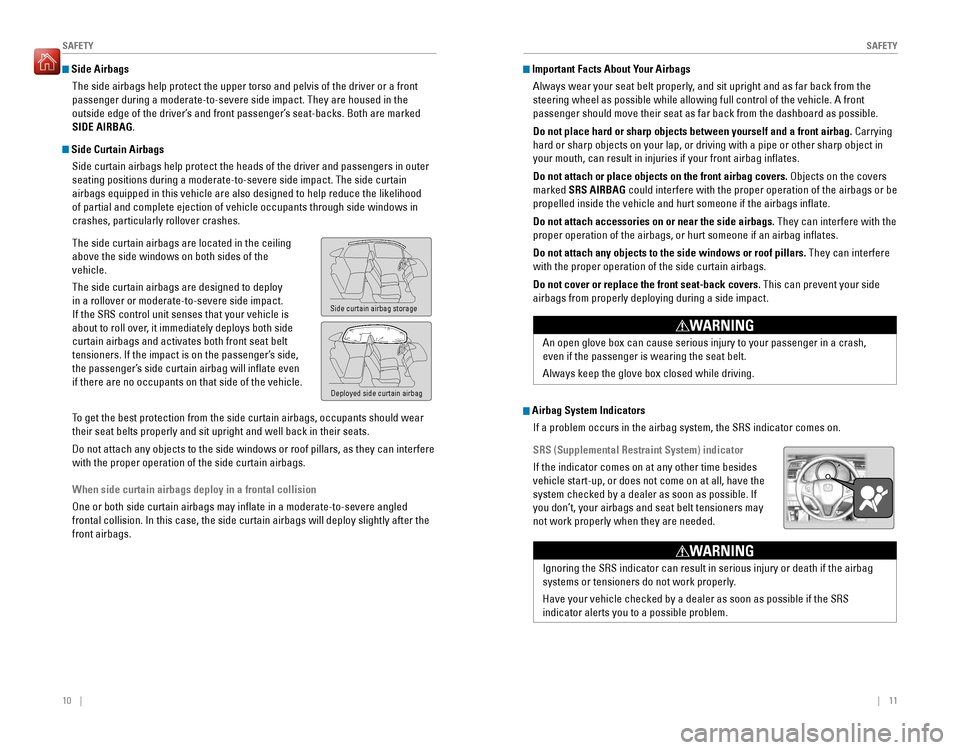

Airbags .................................................... 9
Child Safety .......................................... 15
Safety Label Locations .......................22
Reporting Safety Defects ...................23
INSTRUMENT PANEL
.........................24
Malfunction Indicators
......................24
Condition Indicators ...........................26
On/Off Indicators ................................. 27
Information Display ............................28
VEHICLE CONTROLS
...........................29
Using the Key or Remote Transmitter
...29
Smart Entry System* ...........................30
Door Operation .................................... 31
Tailgate Operation ..............................32
Power Window Operation ................33
Power Moonroof Operation* ...........34
Interior and Exterior Lights ...............35
One-Touch Turn Signal .......................36
Wiper Operation .................................. 37
Adjusting the Seats ............................38
Rear Seats ........................................... 41
Adjusting the Mirrors .........................42
Adjusting the Steering Wheel ..........43
Air Conditioning System* .................43
Climate Control System* ..................44
Seat Heaters* ...................................... 44
Setting the Clock ................................. 45Customized Features
..........................
46
AUDIO AND CONNECTIVITY
.............47
Basic Audio Operation
.......................47
Models with color audio system
Color Audio System* ..........................50
FM/AM Radio ....................................... 51
Compact Disc (CD) ..............................52
iPod ®
......................................................53
USB Flash Drive .................................. 54
Bluetooth ®
Audio ................................ 55
Models with touchscreen
Touchscreen Operation* ...................56
HondaLinkâ„¢ ........................................ 57
FM/AM Radio ...................................... 58
SiriusXM ®
Radio* ............................... 59
Compact Disc (CD) .............................60
iPod ®
......................................................61
USB Flash Drive .................................. 62
Bluetooth ®
Audio ................................ 63
Pandora ®
.............................................. 64
HDMI Video .......................................... 65
BLUETOOTH®
HANDSFREELINK ®
(HFL) ...66
Models with color audio system
Basic HFL Operation ...........................66
Pairing a Phone ................................... 67
Making a Call ...................................... 68
Models with touchscreen
Basic HFL Operation ...........................69
Pairing a Phone ................................... 71
Making a Call ...................................... 72
HondaLinkâ„¢ Assist ............................73
SMS Text Messaging and E-Mail* ...74
Siriâ„¢ Eyes Free ................................... 75
*if equipped

| 1

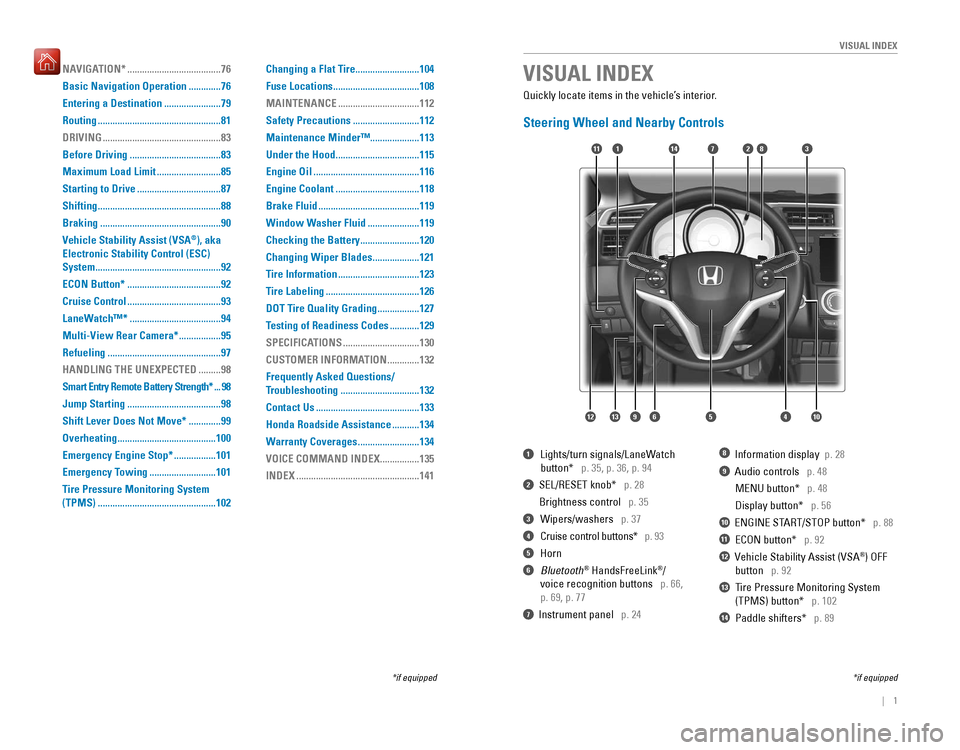

VISUAL INDEX
Quickly locate items in the vehicle’s interior.
Steering Wheel and Nearby Controls
1  Lights/turn signals/LaneWatch

       button*   
p. 35, p. 36, p. 94
2  SEL/RESET knob*   p. 28

Brightness control p. 35
3  Wipers/washers   p. 37
4  Cruise control buttons*   p. 93
5 Horn
6 Bluetooth ®
HandsFreeLink ®
/
  voice recognition buttons   
p. 66,
p. 69, p. 77
7  Instrument panel   p. 24
8  Information display  p. 28
9 Audio controls p. 48

MENU button*   p. 48

Display button*   p. 56
10  ENGINE START/STOP button*   p. 88
11 ECON button* p. 92
12  Vehicle Stability Assist (VSA ®
) OFF
  button   
p. 92
Tire Pressure Monitoring System
  (TPMS) button*   
p. 102
  Paddle shifters*   p. 89
VISUAL INDEX
*if equipped
*if equipped
7
125641013
14111283
13
14
9
NAVIGATION* ...................................... 76
Basic Navigation Operation
.............76
Entering a Destination .......................79
Routing .................................................. 81
DRIVING
................................................ 83
Before Driving
..................................... 83
Maximum Load Limit ..........................85
Starting to Drive .................................. 87
Shifting .................................................. 88
Braking ................................................. 90
Vehicle Stability Assist (VSA ®
), aka
Electronic Stability Control (ESC) System ................................................... 92
ECON Button* ...................................... 92
Cruise Control ...................................... 93
LaneWatchâ„¢* ..................................... 94
Multi-View Rear Camera* .................95
Refueling .............................................. 97
HANDLING THE UNEXPECTED
.........98
Smart Entry Remote Battery Strength*
...98
Jump Starting ...................................... 98
Shift Lever Does Not Move* .............99
Overheating ........................................ 100
Emergency Engine Stop* .................101
Emergency Towing ...........................101
Tire Pressure Monitoring System (TPMS) ................................................ 102Changing a Flat Tire
..........................104
Fuse Locations ................................... 108
MAINTENANCE
................................. 112
Safety Precautions
...........................112
Maintenance Minderâ„¢....................113 Under the Hood .................................. 115
Engine Oil ........................................... 116
Engine Coolant .................................. 118
Brake Fluid ......................................... 119
Window Washer Fluid .....................119
Checking the Battery ........................120
Changing Wiper Blades ...................121
Tire Information ................................. 123
Tire Labeling ...................................... 126
DOT Tire Quality Grading .................127
Testing of Readiness Codes ............129
SPECIFICATIONS
............................... 130
CUSTOMER INFORMATION .............132
Frequently Asked Questions/
Troubleshooting
................................ 132
Contact Us .......................................... 133
Honda Roadside Assistance ...........134
Warranty Coverages .........................134
VOICE COMMAND INDEX
................135
INDEX .................................................. 141

2 || 3
S
AFETY
VISUAL INDEX
Dashboard and Other Controls
1  Touchscreen*   p. 56
2  Hazard warning button 
3 Climate control system p. 44
4  USB/HDMI* port   p. 47
Auxiliary input jack*   p. 48
Accessory power socket p. 47
5 Hood release handle p. 115
6 Fuel ll door handle p. 97
7 Power window switches p. 33
  Door lock switches   p. 31
    Door mirror controls   p. 42
8  Shift lever*   p. 88
  Manual transmission* p. 90
*if equipped Your safety—and the safety of others—is very important, and operating this vehicle
safely is an important responsibility. While we strive to help you make informed 
decisions about safety, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle. Therefore, you must use your own good judgment.
Important Safety Information
This guide explains many of your vehicle’s safety features and how to use them.
Please read this information carefully. Following the instructions below will also help to keep you and your passengers safe.
Important Safety Precautions
• 
Always wear your seat belt.
•  Secure all children in the proper restraint system.
•  Be aware of airbag hazards.
•  Don’t drink and drive. •  Pay appropriate attention to the task of driving safely.
•  Control your speed.
•  Keep your vehicle in safe condition.
Engaging in cell phone conversation or other activities that keep you from paying  close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to divert some attention away from driving.
Safety Messages
When you see the following messages throughout this guide, pay close attention.
You WILL be KILLED or SERIOUSLY HURT if you don’t follow    
instructions. You CAN be KILLED or SERIOUSLY HURT if you don’t follow    
instructions. You CAN be HURT if you don’t follow instructions.
This information is intended to help you avoid damage to your
vehicle, other property, or the environment.
DANGER
WARNING
CAUTION
NOTICE
SAFETY INFORMATION
17
64
3
5
2
8

4 || 5
S
AFETY
SAFETY
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless, 
odorless, and highly toxic gas. As long as you properly maintain your vehicle and
follow the instructions set forth below, you will not accumulate dangerous levels 
of carbon monoxide gas in the vehicle interior. Have the exhaust system inspected for leaks whenever:
•  The exhaust system is making an unusual noise.
•  The exhaust system may have been damaged.
•  The vehicle is raised for an oil change.
When you operate a vehicle with the tailgate open, airow can pull exhaust gas into the interior and create a hazardous condition. If you must drive with the 
tailgate open, open all the windows and set the climate control system as shown
below.
1. Select the fresh air mode.
2. Select the
mode.
3. Set the fan speed to high. 4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked vehicle with the engine running.
Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and  even kill you.
Avoid any enclosed areas or activities that expose you to carbon monoxide.
WARNING
An enclosed area such as a garage can quickly ill up with carbon monoxide gas.  Do not run the engine with the garage door closed. Even when the garage door is open, drive out of the garage immediately after starting the engine.
Seat Belts
A seat belt is your best protection in all types of collisions. Airbags are designed to  supplement seat belts, not replace them. So even though your vehicle is equipped 
with airbags, make sure you and your passengers always wear your seat belts and 
wear them properly.
Lap/Shoulder Seat Belts
All ive seating positions are equipped with lap/shoulder seat belts with 
emergency locking retractors. In normal driving, the retractor lets you move 
freely while keeping some tension on the belt. During a collision or sudden stop, 
the retractor locks to restrain your body. The rear seat belts also have a lockable retractor for use with child seats. The front seats are equipped with automatic seat belt tensioners to enhance 
safety. The tensioners automatically tighten the front seat belts during a moderate 
to severe frontal collision, sometimes even if the collision is not severe enough to inlate the front airbags.
Proper Use of Seat Belts
Follow these guidelines for proper use:
•  All occupants should sit upright, well back in the seat, and remain in that 
position for the duration of the trip. Slouching and leaning reduces the effectiveness of the belt and can increase the chance of serious injury in a crash.
•  Never place the shoulder part of a lap/shoulder seat belt under your arm or 
behind your back. This could cause very serious injuries in a crash.
•  Two people should never use the same seat belt. If they do, they could be very  seriously injured in a crash.
•  Do not put any accessories on the seat belts. Devices intended to improve 
comfort or reposition the shoulder part of a seat belt can reduce the protective capability and increase the chance of serious injury in a crash.
•  No one should sit in a seat with an inoperative seat belt or one that does not  appear to be working correctly. Using a seat belt that is not working properly may not protect the occupant in a crash. Have a dealer check the belt as soon as possible.
Not wearing a seat belt properly increases the chance of a serious injury or  death in a crash, even though your vehicle has airbags. Be sure you and your passengers always wear seat belts and wear them 
properly.
WARNING

6 || 7
S
AFETY
SAFETY
Seat Belt Inspection
Regularly check the condition of your seat belts as follows: 
•  Pull each belt out fully, and look for frays, cuts, burns, and wear.
•  Check that the latches work smoothly and the belts retract easily. If a belt does  not retract easily, cleaning the belt may correct the problem. Use only mild soap 
and warm water. Do not use bleach or cleaning solvents. Make sure the belt is completely dry before allowing it to retract.
Any belt that is not in good condition or working properly will not provide proper protection and should be replaced as soon as possible. A belt that has been worn during a crash may not provide the same level of  protection in a subsequent crash. Have your seat belts inspected by a dealer after any collision.
Not checking or maintaining seat belts can result in serious injury or death if  the seat belts do not work properly when needed. Check your seat belts regularly and have any problem corrected as soon as  possible.
WARNING
Fastening a Seat Belt
Adjust your seat to the proper position (see page 38), and then follow the below  steps.
1. Pull the seat belt out slowly.
2. Insert the latch plate into the buckle, then tug on the belt to make sure the buckle is secure. Make sure that the belt is not twisted or caught on anything.
3. Position the lap part of the belt as low as possible across your hips, then pull up on the shoulder
part of the belt so the lap part its snugly. This lets 
your strong pelvic bones take the force of a crash and reduces the chance of internal injuries.
4. If necessary, pull up on the belt again to remove any slack, then make sure that the belt rests across the center of your chest and over your
shoulder. This spreads the forces of a crash over
the strongest bones in your upper body.
  To release the belt, push the red PRESS button  then guide the belt by hand until it has retracted 
completely.
Adjusting the Shoulder Anchor
The front seats have adjustable shoulder anchors to accommodate taller and  shorter occupants.
1. Move the anchor up and down while pulling the release outward.
2. Position the anchor so that the belt rests across 
the center of your chest and over your shoulder.
Improperly positioning the seat belts can cause serious injury or death in a  crash. Make sure all seat belts are properly positioned before driving.
WARNING
Pull out
slowly.
Lap belt  as low as possible.
Latch plate
Buckle

8 || 9
S
AFETY
SAFETY
Seat Belt with Detachable Anchor
The seat belt for the rear center seat is located in the ceiling.
1. Pull out the seat belt’s small latch plate and  the latch plate from each holding slot in the ceiling.
2. Line up the triangle marks on the small latch plate and anchor buckle. Make sure  the seat belt is not twisted. Attach the belt to the anchor buckle.
3. Insert the latch plate into the buckle. Properly fasten the seat belt the same way 
you fasten the lap/shoulder seat belt.
  To unlatch the detachable anchor, insert  the latch plate into the slot on the side of the anchor buckle.
Using the seat belt with the detachable anchor unlatched increases the  chance of serious injury or death in a crash. Before using the seat belt, make sure the detachable anchor is correctly  latched.
WARNING
Airbags
Your vehicle is equipped with three types of airbags: front airbags, side airbags, and  side curtain airbags.
Front Airbags (SRS)
The front SRS airbags inlate in a moderate-to-severe frontal collision to help 
protect the head and chest of the driver and/or front passenger. They are housed 
in the center of the steering wheel for the driver, and in the dashboard for the front 
passenger. Both airbags are marked  SRS AIRBAG.
SRS (Supplemental Restraint System) indicates that the airbags are designed to 
supplement seat belts, not replace them. Seat belts are the occupant’s primary restraint system.
Advanced Airbags
Your front airbags have advanced features to help reduce the likelihood of airbag- related injuries to smaller occupants.
The driver’s advanced front airbag system includes 
a seat position sensor. If the seat is too far forward, the airbag inlates with less force, regardless of the severity of the impact.
If there is a problem with the driver’s seat position 
sensor, the SRS indicator will come on and the airbag will inlate with full (normal) force, regardless 
of the driver’s seating position.
The passenger’s advanced front airbag system  has weight sensors. Although Honda recommends against carrying an infant or small child in front, if the sensors detect the weight of a child (up to 65 lbs  or 29 kg), the system will automatically turn off the
passenger’s front airbag. For both advanced front airbags to work properly: 
•  Do not spill any liquid on or under the seats.
•  Do not put any object under the passenger’s seat.
•  Make sure any objects are positioned properly on the loor. Improperly  positioned objects can interfere with the advanced airbag sensors.
•  All occupants should sit upright and wear their seat belts properly.
•  Do not place any cover over any part of the passenger side dashboard.
Driver’s seat positionsensor
Passenger’s seatweightsensors
Latch plate
Anchor buckle
Latch plate
Buckle
Latch plate
Small latch plate
Anchor buckle

10 || 11
S
AFETY
SAFETY
Side Airbags
The side airbags help protect the upper torso and pelvis of the driver or a front  passenger during a moderate-to-severe side impact. They are housed in the
outside edge of the driver’s and front passenger’s seat-backs. Both are marked SIDE AIRBAG .
Side Curtain Airbags
Side curtain airbags help protect the heads of the driver and passengers in outer  seating positions during a moderate-to-severe side impact. The side curtain airbags equipped in this vehicle are also designed to help reduce the likelihood of partial and complete ejection of vehicle occupants through side windows in crashes, particularly rollover crashes. The side curtain airbags are located in the ceiling  above the side windows on both sides of the vehicle. The side curtain airbags are designed to deploy  in a rollover or moderate-to-severe side impact. If the SRS control unit senses that your vehicle is 
about to roll over, it immediately deploys both side curtain airbags and activates both front seat belt 
tensioners. If the impact is on the passenger’s side, 
the passenger’s side curtain airbag will inlate even if there are no occupants on that side of the vehicle.
To get the best protection from the side curtain airbags, occupants should wear  their seat belts properly and sit upright and well back in their seats.
Do not attach any objects to the side windows or roof pillars, as they can interfere  with the proper operation of the side curtain airbags.
When side curtain airbags deploy in a frontal collision
One or both side curtain airbags may inlate in a moderate-to-severe angled 
frontal collision. In this case, the side curtain airbags will deploy slightly after the front airbags.
Side curtain airbag storage
Deployed side curtain airbag
Important Facts About Your Airbags
Always wear your seat belt properly, and sit upright and as far back from the 
steering wheel as possible while allowing full control of the vehicle. A front passenger should move their seat as far back from the dashboard as possible.  Do not place hard or sharp objects between yourself and a front airbag. Carrying
hard or sharp objects on your lap, or driving with a pipe or other sharp object in  your mouth, can result in injuries if your front airbag inlates. Do not attach or place objects on the front airbag covers.  Objects on the covers 
marked SRS AIRBAG  could interfere with the proper operation of the airbags or be 
propelled inside the vehicle and hurt someone if the airbags inlate.Do not attach accessories on or near the side airbags. They can interfere with the
proper operation of the airbags, or hurt someone if an airbag inlates.Do not attach any objects to the side windows or roof pillars. They can interfere
with the proper operation of the side curtain airbags.Do not cover or replace the front seat-back covers. This can prevent your side
airbags from properly deploying during a side impact. 
An open glove box can cause serious injury to your passenger in a crash, 
even if the passenger is wearing the seat belt. Always keep the glove box closed while driving.
WARNING
Airbag System Indicators
If a problem occurs in the airbag system, the SRS indicator comes on.
SRS (Supplemental Restraint System) indicator
If the indicator comes on at any other time besides  vehicle start-up, or does not come on at all, have the system checked by a dealer as soon as possible. If 
you don’t, your airbags and seat belt tensioners may not work properly when they are needed.
Ignoring the SRS indicator can result in serious injury or death if the airbag 
systems or tensioners do not work properly. Have your vehicle checked by a dealer as soon as possible if the SRS  indicator alerts you to a possible problem.
WARNING

12 || 13
S
AFETY
SAFETY
Passenger Airbag Off indicator
The indicator comes on to alert you that the front
passenger’s front airbag has been turned off. This 
occurs when the front passenger’s weight sensors detect 65 lbs (29 kg) or less, the weight of an infant or small child, on the seat.
Infants and small children should always ride properly restrained in a back seat. Objects placed on the seat can also cause the indicator to come on.
If the front passenger‘s seat is empty, the passenger’s front airbag will not deploy  and the indicator will not come on.
If the indicator comes on with no occupant or objects in the front passenger’s  seat, something may be interfering with the weight sensors, such as: 
•  An object hanging on the seat or in the seat-back pocket.
•  A child seat or other object pressing against the rear of the seat-back.
•  A rear passenger pushing or pulling on the back of the front passenger’s seat.
•  The front seat or seat-back is forced against an object on the seat or loor  behind it.
•  An object placed under the front passenger’s seat.
If none of these conditions exist, have your vehicle checked by a dealer as soon  as possible. The passenger airbag off indicator may go on and off repeatedly if the total weight  on the seat is near the airbag cutoff threshold.
1 Two SRS (Supplemental Restraint System) front airbags. The driver’s  airbag is stored in the center of the steering wheel; the front
passenger’s airbag is stored in the dashboard. Both are marked  SRS
AIRBAG .
2  Two side airbags, one for the driver 
and one for the front passenger. The airbags are stored in the outer edges of the seat-backs. Both are marked SIDE AIRBAG .
3  Two side curtain airbags, one 
for each side of the vehicle. The airbags are stored in the ceiling, above the side windows. The front and rear pillars are marked SIDE
CURTAIN AIRBAG .
4 An electronic control unit that
continually monitors and can record information about the  sensors, the airbag activators, the seat belt tensioners, and driver and front passenger seat belt use when the vehicle is on.
5  Automatic front seat belt tensioners. The driver’s and front passenger’s seat belts incorporate sensors that detect whether or not they are fastened.
6  A driver’s seat position sensor. If the seat is too far forward, the airbag  will inate with less force.
7 Weight sensors in the front
passenger’s seat. The front
passenger’s airbag will be turned off  if the weight on the seat is 65 lbs (29 kg) or less (the weight of an infant or small child).
8  Impact sensors that can detect a moderate-to-severe front or side impact.
9  An indicator on the dashboard that alerts you that the front passenger’s front airbag has been turned off.
10 An indicator on the instrument panel that alerts you to a possible problem  with the airbag system or seat belt tensioners.
11 A rollover sensor that detects whether the vehicle is about to roll 
over.
Airbag System Components
6
789
11
810
8
8
8
8
U.S. model shown
