mirror controls HONDA FIT 2017 3.G Owners Manual

Contents
Child Safety P. 54Exhaust Gas Hazard P. 66Safety Labels P. 67
Opening and Closing the Tailgate P. 109 Security System P. 112
Opening and Closing the Moonroof* P. 117
Adjusting the Mirrors P. 133 Adjusting the Seats P. 135
Heating and Cooling System
* P. 157 Climate Control System* P. 160
Audio Error Messages P. 222General Information on the Audio System P. 226
When Driving P. 315 Braking P. 351Parking Your Vehicle P. 355
Refueling P. 358 Fuel Economy and CO
2 Emissions P. 361 Accessories and Modifications P. 362
Maintenance Under the Hood P. 371 Replacing Light Bulbs P. 383
Checking and Maintaining Tires P. 394 Battery P. 403 Remote Transmitter Care P. 405
Cleaning P. 408
Engine Does Not Start P. 421Jump Starting P. 424 Shift Lever Does Not Move P. 426
Emergency Towing P. 438 When You Cannot Open the Tailgate P. 439
Devices that Emit Radio Waves P. 445 Reporting Safety Defects P. 446
Authorized Manuals P. 451 Customer Service Information P. 452
Quick Reference GuideP. 4
Safe DrivingP. 27
Instrument PanelP. 69
ControlsP. 89
FeaturesP. 165
DrivingP. 305
MaintenanceP. 363
Handling the UnexpectedP. 413
InformationP. 441
IndexP. 455
17 FIT -31T5A6200.book 3 ページ ２０１６年５月２７日　金曜日　午後６時３３分

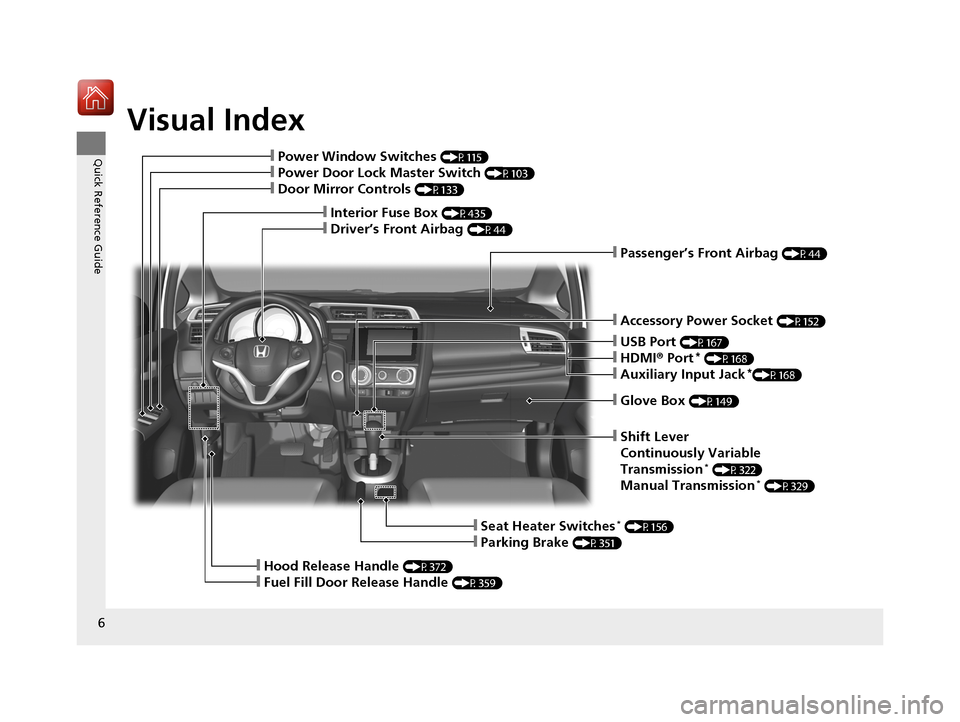

Visual Index
6
Quick Reference Guide
❙Glove Box (P149)
❙Shift Lever
Continuously Variable
Transmission
* (P322)
Manual Transmission* (P329)
❙Seat Heater Switches* (P156)
❙Parking Brake (P351)
❙Hood Release Handle (P372)
❙Fuel Fill Door Release Handle (P359)
❙Accessory Power Socket (P152)
❙Passenger’s Front Airbag (P44)
❙USB Port (P167)
❙HDMI® Port* (P168)
❙Auxiliary Input Jack*(P168)
❙Interior Fuse Box (P435)
❙Driver’s Front Airbag (P44)
❙Power Window Switches (P115)
❙Power Door Lock Master Switch (P103)
❙Door Mirror Controls (P133)
17 FIT -31T5A6200.book 6 ページ ２０１６年５月２７日　金曜日　午後６時３３分

89

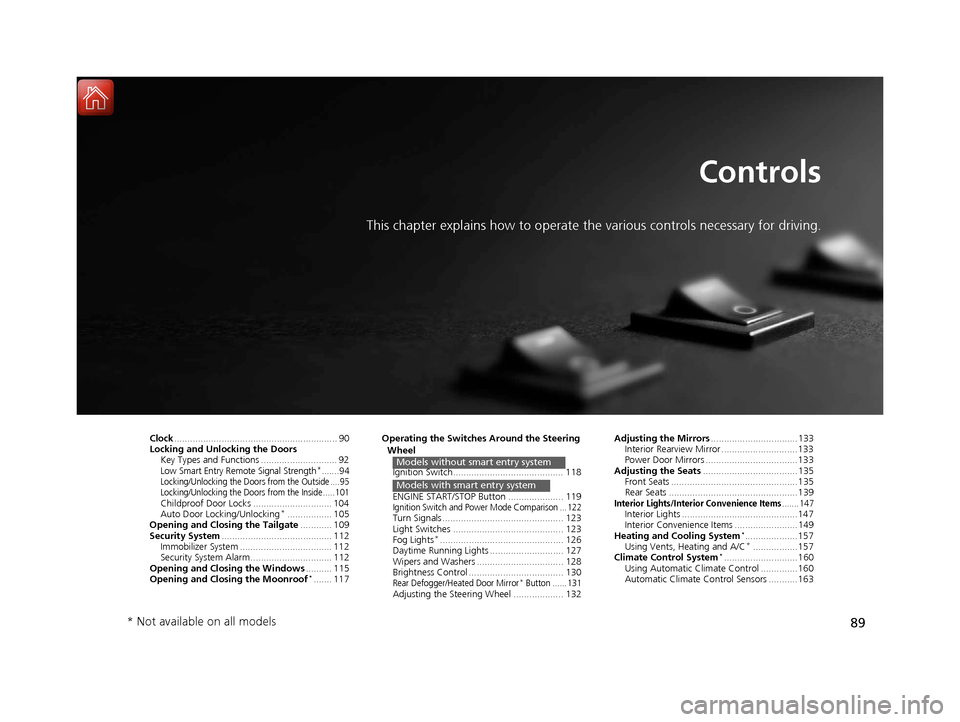

Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.............................................................. 90
Locking and Unlocking the Doors Key Types and Functions ............................. 92
Low Smart Entry Remote Signal Strength*.......94Locking/Unlocking the Doors from the Outside ....95
Locking/Unlocking the Doors from the Inside .....101
Childproof Door Locks .............................. 104
Auto Door Locking/Unlocking*................. 105
Opening and Closing the Tailgate ............ 109
Security System .......................................... 112
Immobilizer System ......... ..................... ..... 112
Security System Alarm ............................... 112
Opening and Closing the Windows .......... 115
Opening and Closing the Moonroof
*....... 117 Operating the Switches Around the Steering
Wheel
Ignition Switch.......................................... 118
ENGINE START/STOP Button ..................... 119
Ignition Switch and Power Mode Comparison ... 122Turn Signals .............................................. 123
Light Switches .......................................... 123
Fog Lights
*............................................... 126
Daytime Running Lights ............................ 127
Wipers and Washers ................................. 128
Brightness Control .................................... 130
Rear Defogger/Heated Door Mirror* Button ...... 131Adjusting the Steering Wheel ................... 132
Models without smart entry system
Models with smart entry system
Adjusting the Mirrors .................................133
Interior Rearview Mirror .............................133
Power Door Mirrors ...................................133
Adjusting the Seats .................................... 135
Front Seats ................................................135
Rear Seats .................................................139
Interior Lights/Interior Convenience Items....... 147Interior Lights ............................................147
Interior Convenience Items ........................149
Heating and Cooling System
*....................157
Using Vents, Heating and A/C*.................157
Climate Control System*............................160
Using Automatic Climate Control ..............160
Automatic Climate Control Sensors ...........163
* Not available on all models
17 FIT -31T5A6200.book 89 ページ ２０１６年５月２７日　金曜日　午後６時３３分

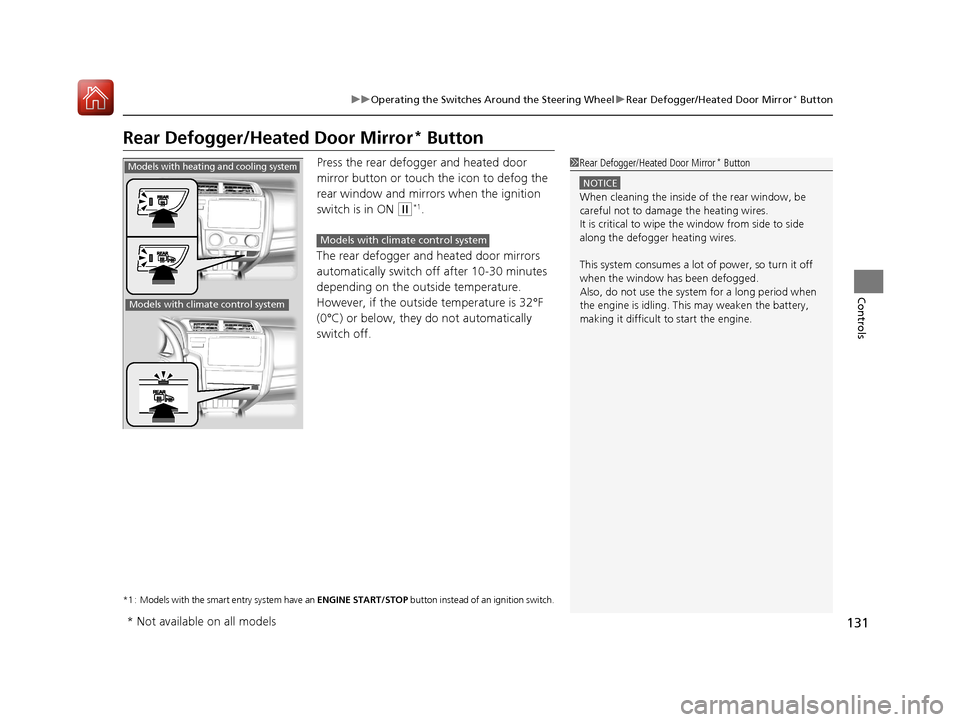

131
uuOperating the Switches Around the Steering Wheel uRear Defogger/Heated Door Mirror* Button
Controls
Rear Defogger/Heated Door Mirror* Button
Press the rear defogger and heated door
mirror button or touch the icon to defog the
rear window and mirrors when the ignition
switch is in ON
(w*1.
The rear defogger and heated door mirrors
automatically switch of f after 10-30 minutes
depending on the outside temperature.
However, if the outsid e temperature is 32°F
(0°C) or below, they do not automatically
switch off.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Rear Defogger/Heated Door Mirror* Button
NOTICE
When cleaning the inside of the rear window, be
careful not to damage the heating wires.
It is critical to wipe the window from side to side
along the defogger heating wires.
This system consumes a lot of power, so turn it off
when the window has been defogged.
Also, do not use the system for a long period when
the engine is idling. This may weaken the battery,
making it difficult to start the engine.
Models with heating and cooling system
Models with climate control system
Models with climate control system
* Not available on all models
17 FIT -31T5A6200.book 131 ページ ２０１６年５月２７日　金曜日　午後６時３３分

133Continued
Controls

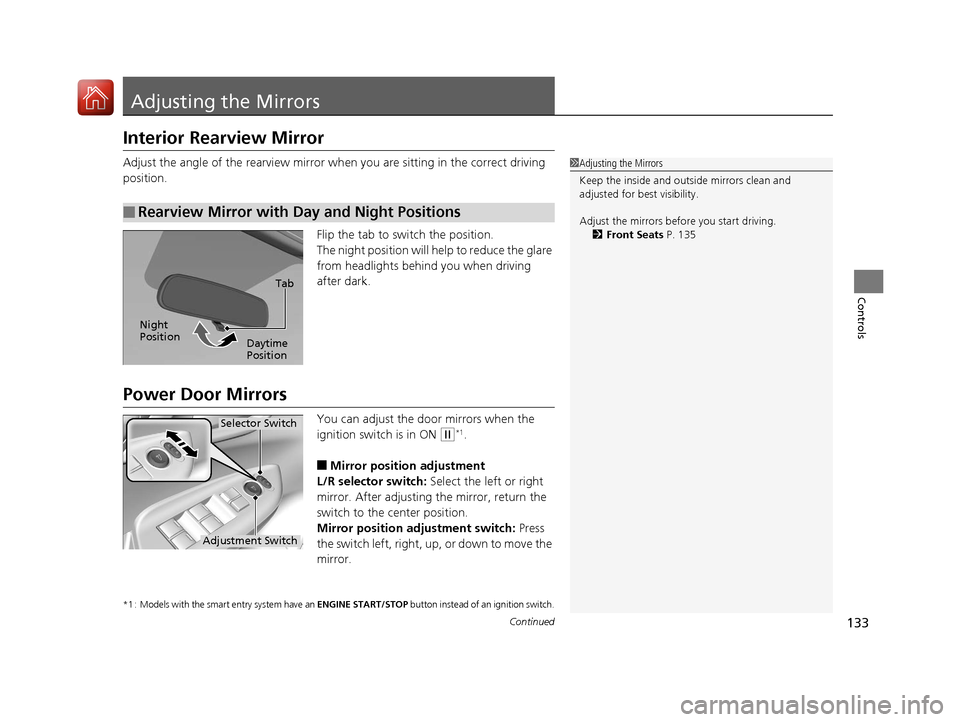

Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
Power Door Mirrors
You can adjust the door mirrors when the
ignition switch is in ON
(w*1.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror positi on adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Rearview Mirror with Day and Night Positions
1Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Front Seats P. 135
Tab
Daytime
Position
Night
Position
Selector Switch
Adjustment Switch
17 FIT -31T5A6200.book 133 ページ ２０１６年５月２７日　金曜日　午後６時３３分

uuAdjusting the Mirrors uPower Door Mirrors
134
Controls

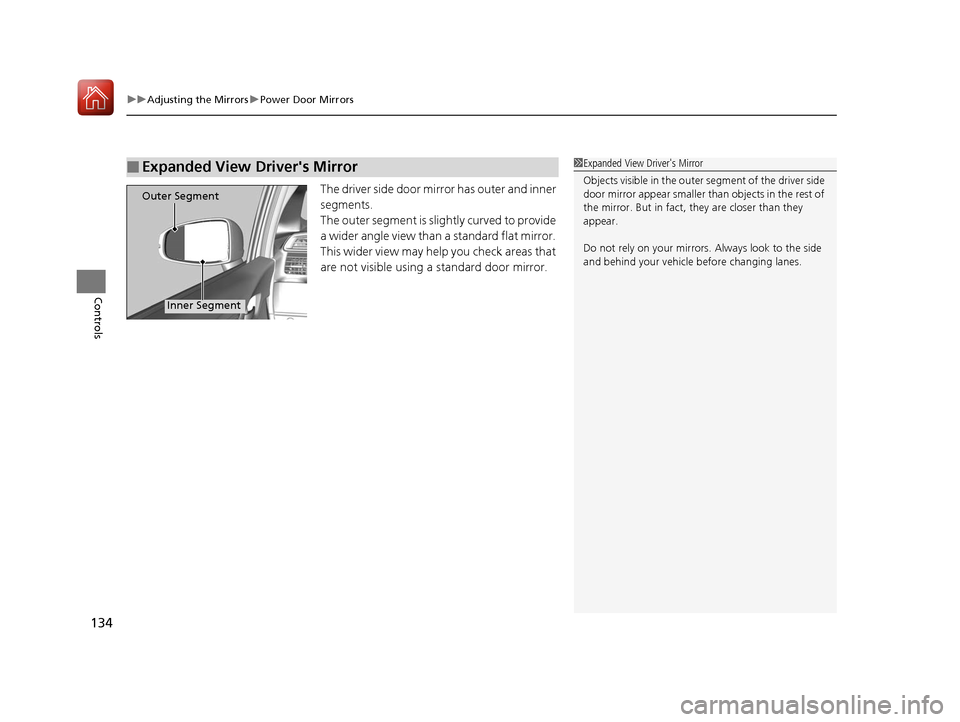

The driver side door mirror has outer and inner
segments.
The outer segment is slightly curved to provide
a wider angle view than a standard flat mirror.
This wider view may help you check areas that
are not visible using a standard door mirror.
■Expanded View Driver's Mirror1Expanded View Driver's Mirror
Objects visible in the outer segment of the driver side
door mirror appear smaller than objects in the rest of
the mirror. But in fact, they are closer than they
appear.
Do not rely on your mirrors. Always look to the side
and behind your vehicle before changing lanes.
Outer Segment
Inner Segment
17 FIT -31T5A6200.book 134 ページ ２０１６年５月２７日　金曜日　午後６時３３分

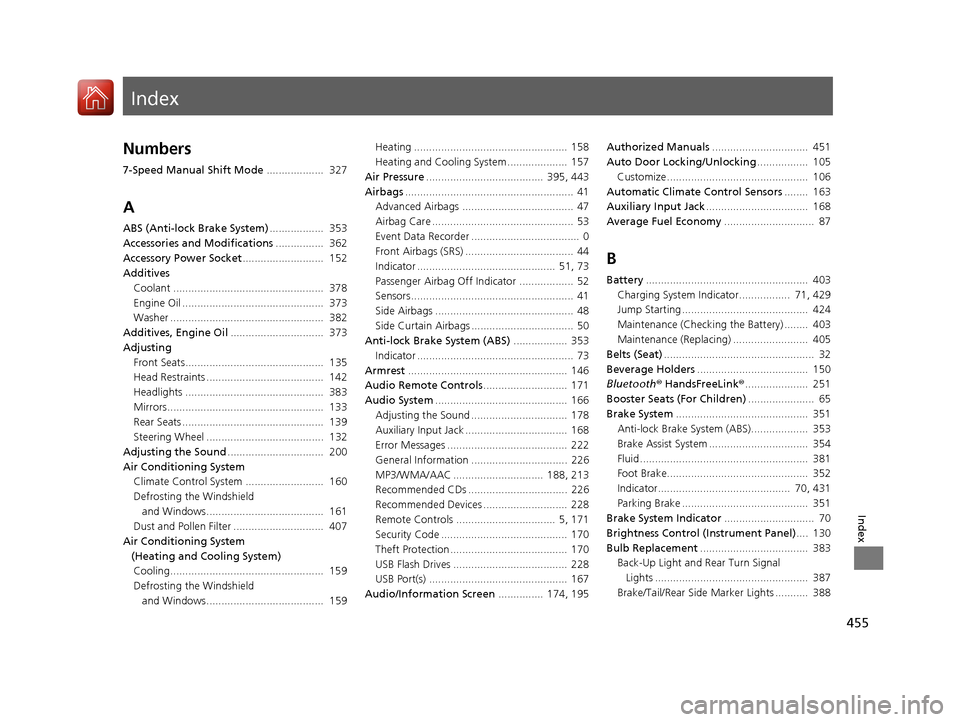

Index
455
Index
Index
Numbers
7-Speed Manual Shift Mode................... 327
A
ABS (Anti-lock Brake System) .................. 353
Accessories and Modifications ................ 362
Accessory Power Socket ........................... 152
Additives Coolant .................................................. 378
Engine Oil ............................................... 373
Washer ................................................... 382
Additives, Engine Oil ............................... 373
Adjusting Front Seats.............................................. 135
Head Restraints ....................................... 142
Headlights .............................................. 383
Mirrors.................................................... 133
Rear Seats ............................................... 139
Steering Wheel ....................................... 132
Adjusting the Sound ................................ 200
Air Conditioning System Climate Control System .......................... 160
Defrosting the Windshield
and Windows....................................... 161
Dust and Pollen Filter .............................. 407
Air Conditioning System
(Heating and Cooling System) Cooling................................................... 159
Defrosting the Windshield
and Windows....................................... 159 Heating ................................................... 158
Heating and Cooling System .................... 157
Air Pressure ....................................... 395, 443
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
Airbag Care ............................................... 53
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator .............................................. 51, 73
Passenger Airbag Off Indicator .................. 52
Sensors ...................................................... 41
Side Airbags .............................................. 48
Side Curtain Airbags .................................. 50
Anti-lock Brake System (ABS) .................. 353
Indicator .................................................... 73
Armrest ..................................................... 146
Audio Remote Controls ............................ 171
Audio System ............................................ 166
Adjusting the Sound ................................ 178
Auxiliary Input Jack .................................. 168
Error Messages ........................................ 222
General Information ................................ 226
MP3/WMA/AAC .............................. 188, 213
Recommended CDs ................................. 226
Recommended Devices ............................ 228
Remote Controls ................................. 5, 171
Security Code .......................................... 170
Theft Protection ....................................... 170
USB Flash Drives ...................................... 228
USB Port(s) .............................................. 167
Audio/Information Screen ............... 174, 195Authorized Manuals
................................ 451
Auto Door Locking/Unlocking ................. 105
Customize ............................................... 106
Automatic Climate Control Sensors ........ 163
Auxiliary Input Jack .................................. 168
Average Fuel Economy .............................. 87
B
Battery...................................................... 403
Charging System Indicator................. 71, 429
Jump Starting .......................................... 424
Maintenance (Checki ng the Battery) ........ 403
Maintenance (Replacing) ......................... 405
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 150
Bluetooth ® HandsFreeLink ®..................... 251
Booster Seats (For Children) ...................... 65
Brake System ............................................ 351
Anti-lock Brake System (ABS)................... 353
Brake Assist System ................................. 354
Fluid ........................................................ 381
Foot Brake............................................... 352
Indicator............................................ 70, 431
Parking Brake .......................................... 351
Brake System Indicator .............................. 70
Brightness Control (Instrument Panel) .... 130
Bulb Replacement .................................... 383
Back-Up Light and Rear Turn Signal Lights ................................................... 387
Brake/Tail/Rear Side Marker Lights ........... 388
17 FIT -31T5A6200.book 455 ページ ２０１６年５月２７日　金曜日　午後６時３３分

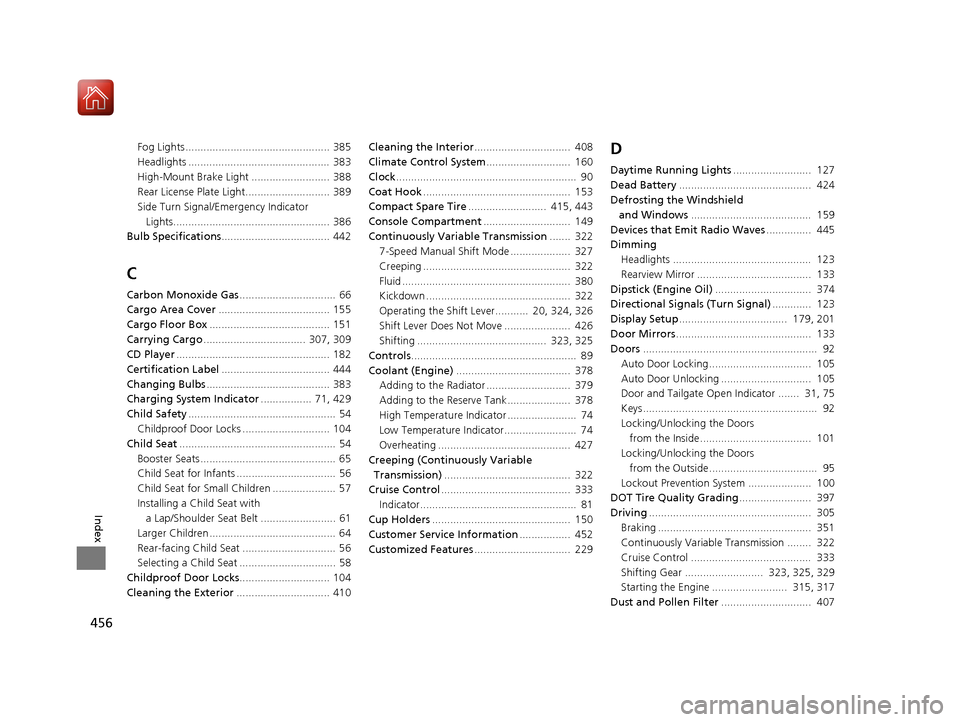

456
Index
Fog Lights ................................................ 385
Headlights ............................................... 383
High-Mount Brake Light .......................... 388
Rear License Plate Light............................ 389
Side Turn Signal/Emergency Indicator Lights.................................................... 386
Bulb Specifications .................................... 442
C
Carbon Monoxide Gas ................................ 66
Cargo Area Cover ..................................... 155
Cargo Floor Box ........................................ 151
Carrying Cargo .................................. 307, 309
CD Player ................................................... 182
Certification Label .................................... 444
Changing Bulbs ......................................... 383
Charging System Indicator ................. 71, 429
Child Safety ................................................. 54
Childproof Door Locks ............................. 104
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt ......................... 61
Larger Children .......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Childproof Door Locks .............................. 104
Cleaning the Exterior ............................... 410 Cleaning the Interior
................................ 408
Climate Control System ............................ 160
Clock ............................................................ 90
Coat Hook ................................................. 153
Compact Spare Tire .......................... 415, 443
Console Compartment ............................. 149
Continuously Variable Transmission ....... 322
7-Speed Manual Shift Mode .................... 327
Creeping ................................................. 322
Fluid ........................................................ 380
Kickdown ................................................ 322
Operating the Shift Lever........... 20, 324, 326
Shift Lever Does Not Move ...................... 426
Shifting ........................................... 323, 325
Controls ....................................................... 89
Coolant (Engine) ...................................... 378
Adding to the Radiator ............................ 379
Adding to the Reserve Tank..................... 378
High Temperature Indicator ....................... 74
Low Temperature Indicator........................ 74
Overheating ............................................ 427
Creeping (Continuously Variable
Transmission) .......................................... 322
Cruise Control ........................................... 333
Indicator.................................................... 81
Cup Holders .............................................. 150
Customer Service Information ................. 452
Customized Features ................................ 229
D
Daytime Running Lights .......................... 127
Dead Battery ............................................ 424
Defrosting the Windshield and Windows ........................................ 159
Devices that Emit Radio Waves ............... 445
Dimming Headlights .............................................. 123
Rearview Mirror ...................................... 133
Dipstick (Engine Oil) ................................ 374
Directional Signals (Turn Signal) ............. 123
Display Setup .................................... 179, 201
Door Mirrors ............................................. 133
Doors .......................................................... 92
Auto Door Locking.................................. 105
Auto Door Unlocking .............................. 105
Door and Tailgate Open Indicator ....... 31, 75
Keys.......................................................... 92
Locking/Unlocking the Doors from the Inside..................................... 101
Locking/Unlocking the Doors from the Outside.................................... 95
Lockout Prevention System ..................... 100
DOT Tire Quality Grading ........................ 397
Driving ...................................................... 305
Braking ................................................... 351
Continuously Variable Transmission ........ 322
Cruise Control ........................................ 333
Shifting Gear .......................... 323, 325, 329
Starting the Engine ......................... 315, 317
Dust and Pollen Filter .............................. 407
17 FIT -31T5A6200.book 456 ページ ２０１６年５月２７日　金曜日　午後６時３３分
