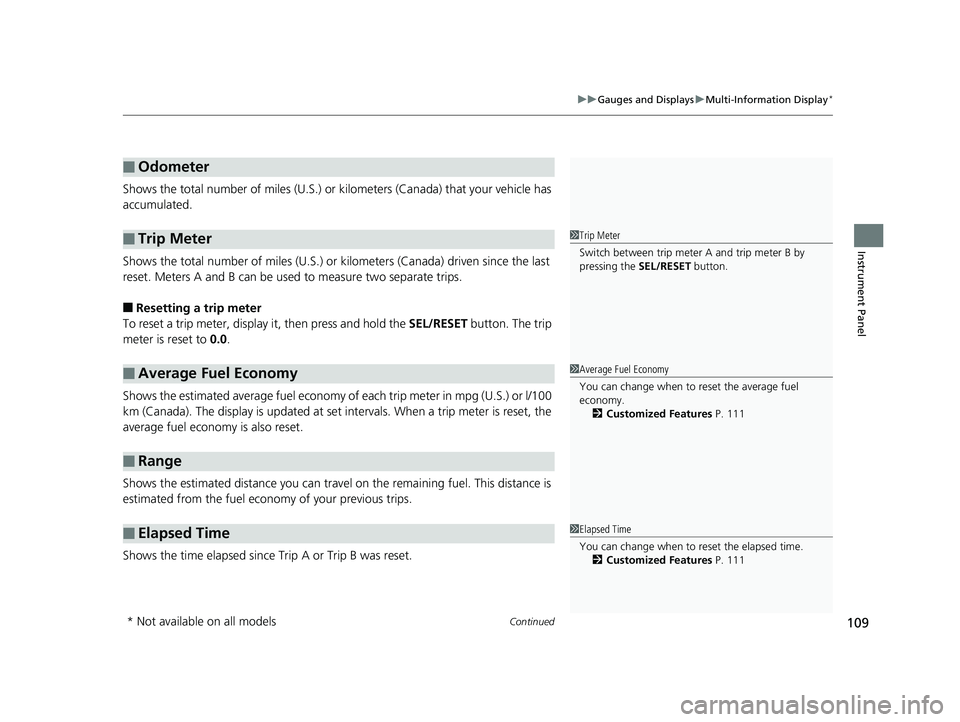

Continued109
uuGauges and Displays uMulti-Information Display*
Instrument Panel
Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or k ilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
■Odometer
■Trip Meter
■Average Fuel Economy
■Range
■Elapsed Time
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 111
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 111
* Not available on all models
19 FIT JAZZ-31T5A6400.book 109 ページ ２０１８年２月２６日　月曜日　午後４時３０分

uuGauges and Displays uMulti-Information Display*

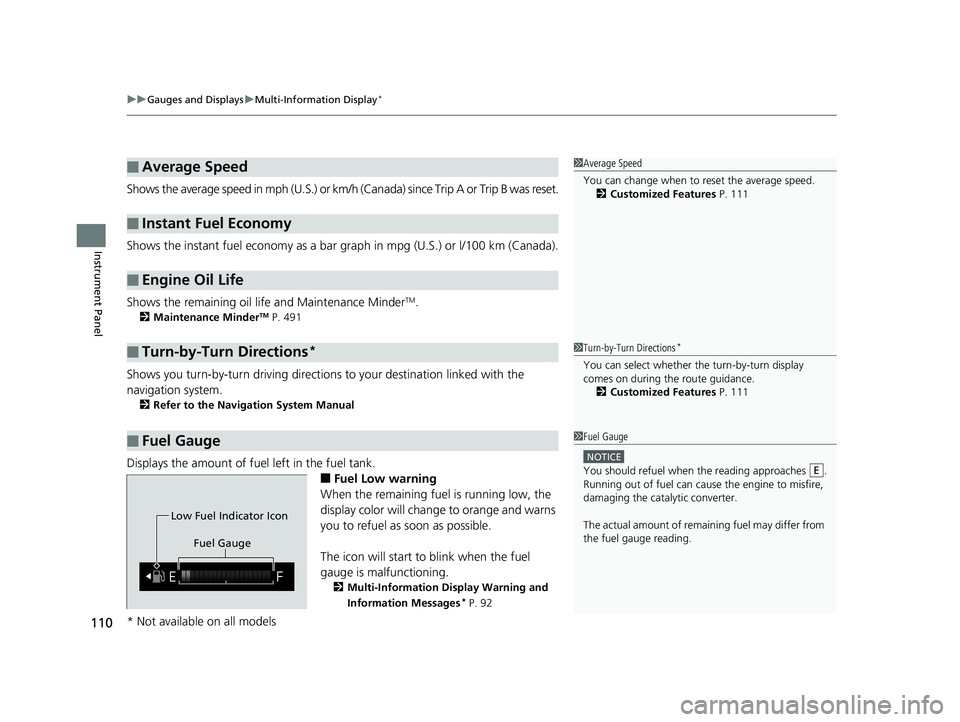

110
Instrument Panel
Shows the average speed in mph (U.S.) or km/h (Canada) since Trip A or Trip B was reset.
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 491
Shows you turn-by-turn driving directions to your destination linked with the
navigation system.
2Refer to the Navigation System Manual
Displays the amount of fuel left in the fuel tank.
■Fuel Low warning
When the remaining fuel is running low, the
display color will change to orange and warns
you to refuel as soon as possible.
The icon will start to blink when the fuel
gauge is malfunctioning.
2 Multi-Information Display Warning and
Information Messages
* P. 92
■Average Speed
■Instant Fuel Economy
■Engine Oil Life
■Turn-by-Turn Directions*
■Fuel Gauge
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 111
1Turn-by-Turn Directions*
You can select whether th e turn-by-turn display
comes on during the route guidance. 2 Customized Features P. 111
1Fuel Gauge
NOTICE
You should refuel when th e reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
Fuel Gauge
Low Fuel Indicator Icon
* Not available on all models
19 FIT JAZZ-31T5A6400.book 110 ページ ２０１８年２月２６日　月曜日　午後４時３０分

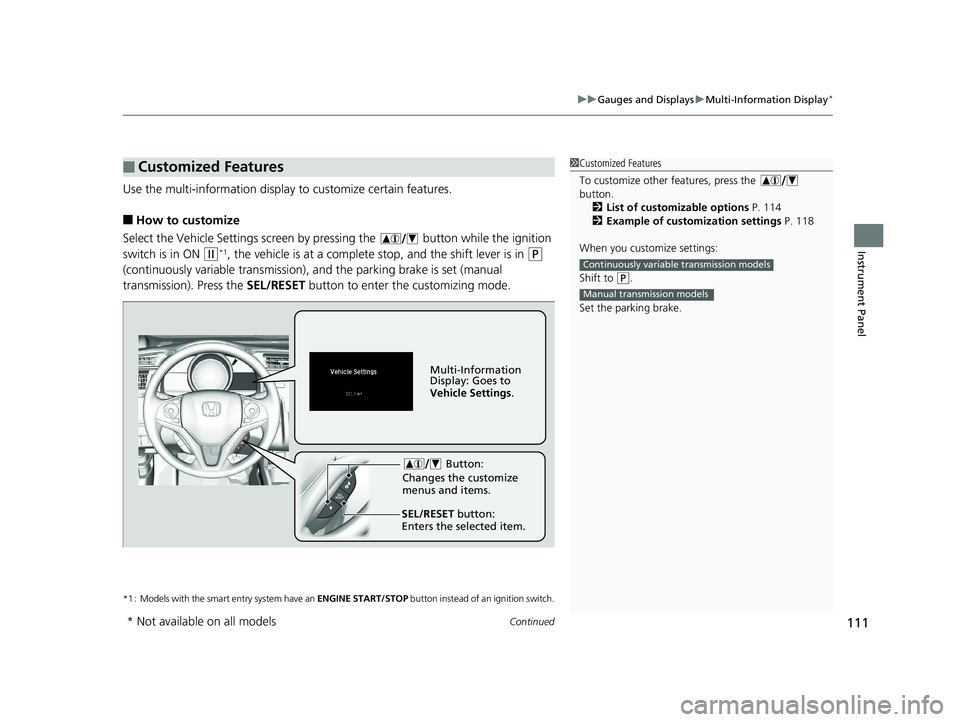

Continued111
uuGauges and Displays uMulti-Information Display*
Instrument Panel
Use the multi-information display to customize certain features.
■How to customize
Select the Vehicle Settings screen by pressing the button while the ignition
switch is in ON
(w*1, the vehicle is at a complete stop, and the shift lever is in (P
(continuously variable transmission), and the parking brake is set (manual
transmission). Press the SEL/RESET button to enter the customizing mode.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Customized Features1Customized Features
To customize other features, press the
button.
2 List of customizable options P. 114
2 Example of customization settings P. 118
When you customize settings:
Shift to
( P.
Set the parking brake.
Continuously variable transmission models
Manual transmission models
Button:
Changes the customize
menus and items.
Multi-Information
Display: Goes to
Vehicle Settings .
SEL/RESET button:
Enters the selected item.
* Not available on all models
19 FIT JAZZ-31T5A6400.book 111 ページ ２０１８年２月２６日　月曜日　午後４時３０分

112
uuGauges and Displays uMulti-Information Display*
Instrument Panel

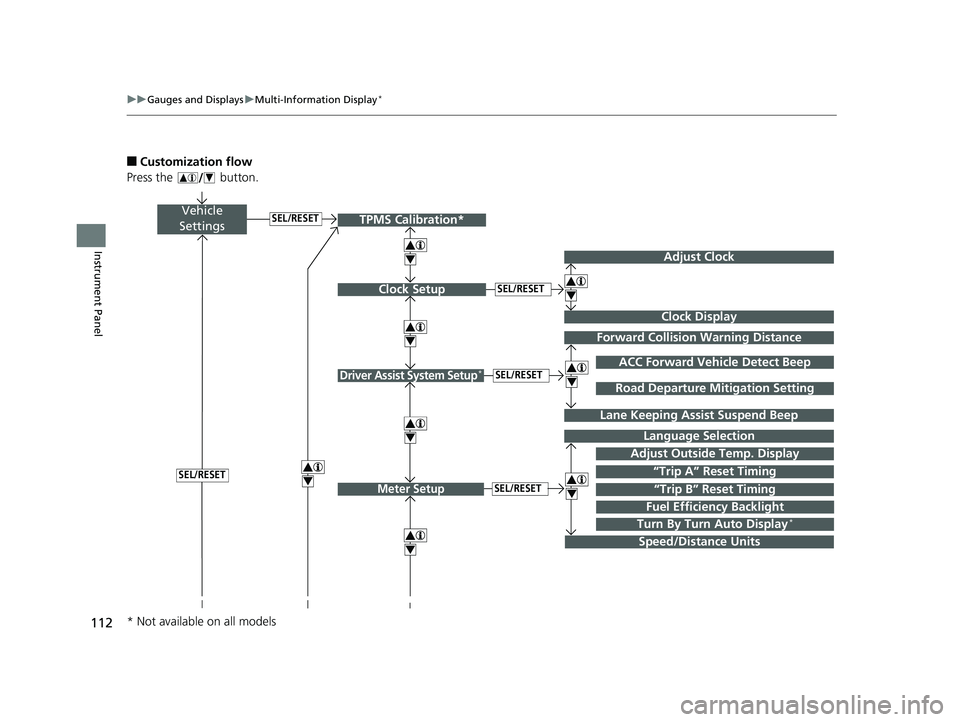

■Customization flow
Press the button.
Vehicle
Settings
Adjust Outside Temp. Display
Language Selection
Adjust Clock
4
4
Driver Assist System Setup*
Meter Setup“Trip B” Reset TimingSEL/RESET
SEL/RESET
SEL/RESET
“Trip A” Reset Timing4
ACC Forward Vehicle Detect Beep
Lane Keeping Assi st Suspend Beep
4
SEL/RESET
Forward Collision Warning Distance
4
4
SEL/RESET
Speed/Distance Units
Road Departure Mitigation Setting
Clock Display
Clock Setup
4
Fuel Efficiency Backlight
Turn By Turn Auto Display*
TPMS Calibration*
4
* Not available on all models
19 FIT JAZZ-31T5A6400.book 112 ページ ２０１８年２月２６日　月曜日　午後４時３０分

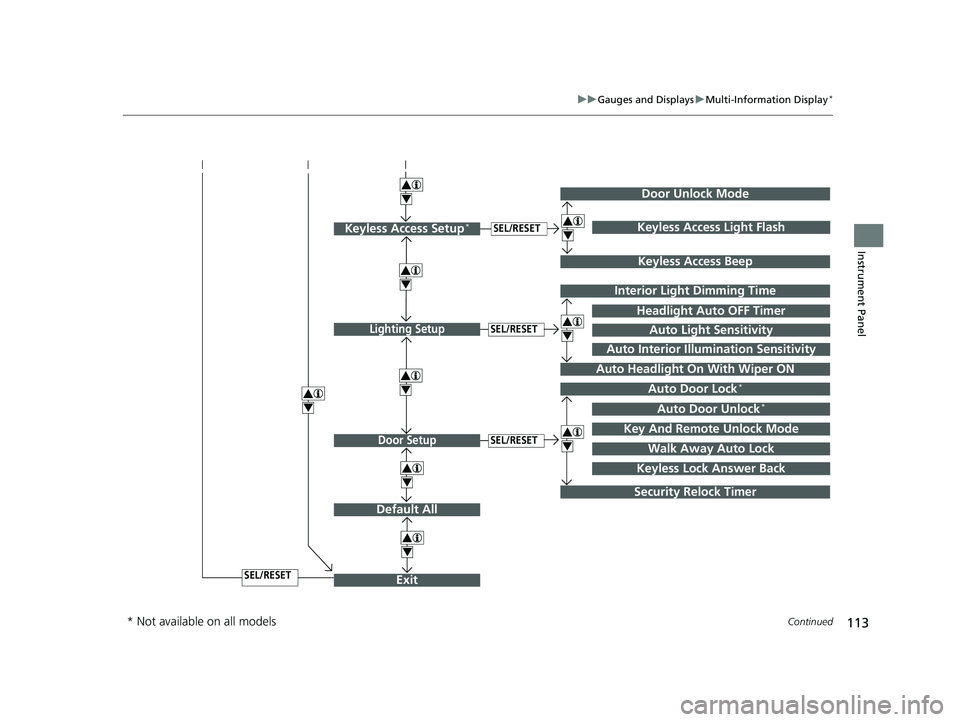

113
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
Exit
4
4
Door Setup
Default All
SEL/RESET
4
SEL/RESET
Lighting SetupSEL/RESET
4Auto Door Lock*
Auto Door Unlock*
Key And Remote Unlock Mode
Walk Away Auto Lock
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Headlight On With Wiper ON
4
4
Security Relock Timer
Auto Light Sensitivity
Auto Interior Illumination Sensitivity
Keyless Lock Answer Back
Door Unlock Mode
Keyless Access Setup*SEL/RESET
Keyless Access Beep
4Keyless Access Light Flash
4
4
* Not available on all models
19 FIT JAZZ-31T5A6400.book 113 ページ ２０１８年２月２６日　月曜日　午後４時３０分

114
uuGauges and Displays uMulti-Information Display*
Instrument Panel

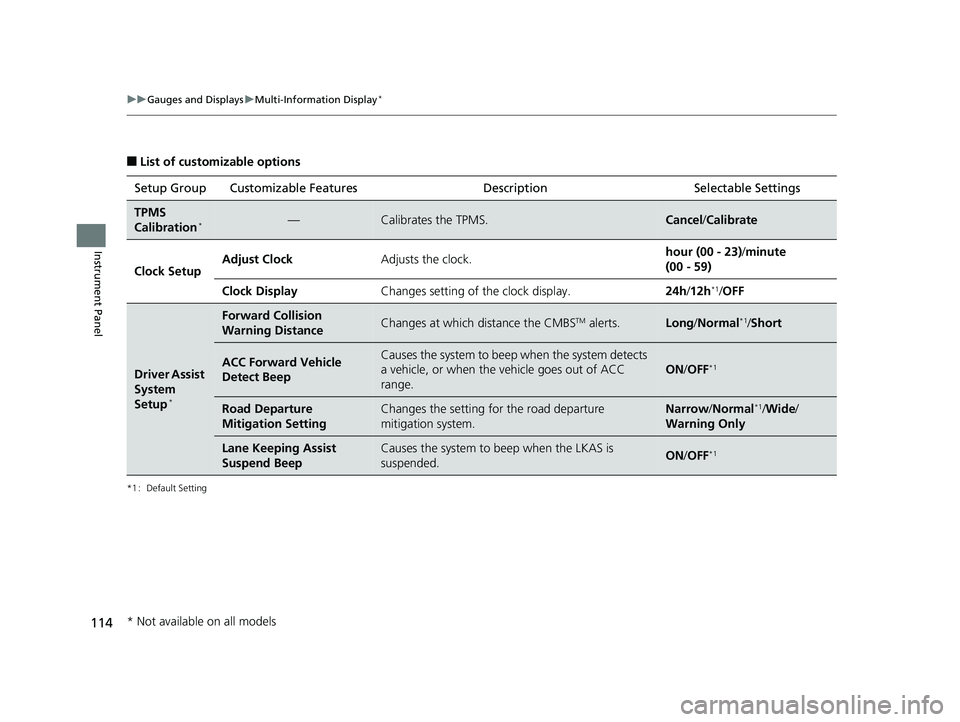

■List of customizable options
*1 : Default Setting
Setup Group Customizable Features DescriptionSelectable Settings
TPMS
Calibration*—Calibrates the TPMS.Cancel/Calibrate
Clock SetupAdjust ClockAdjusts the clock.hour (00 - 23) /minute
(00 - 59)
Clock DisplayChanges setting of the clock display.24h /12h*1/ OFF
Driver Assist
System
Setup
*
Forward Collision
Warning DistanceChanges at which distance the CMBSTM alerts.Long /Normal*1/Short
ACC Forward Vehicle
Detect BeepCauses the system to beep when the system detects
a vehicle, or when the vehicle goes out of ACC
range.
ON /OFF*1
Road Departure
Mitigation SettingChanges the setting for the road departure
mitigation system.Narrow /Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend BeepCauses the system to beep when the LKAS is
suspended.ON /OFF*1
* Not available on all models
19 FIT JAZZ-31T5A6400.book 114 ページ ２０１８年２月２６日　月曜日　午後４時３０分

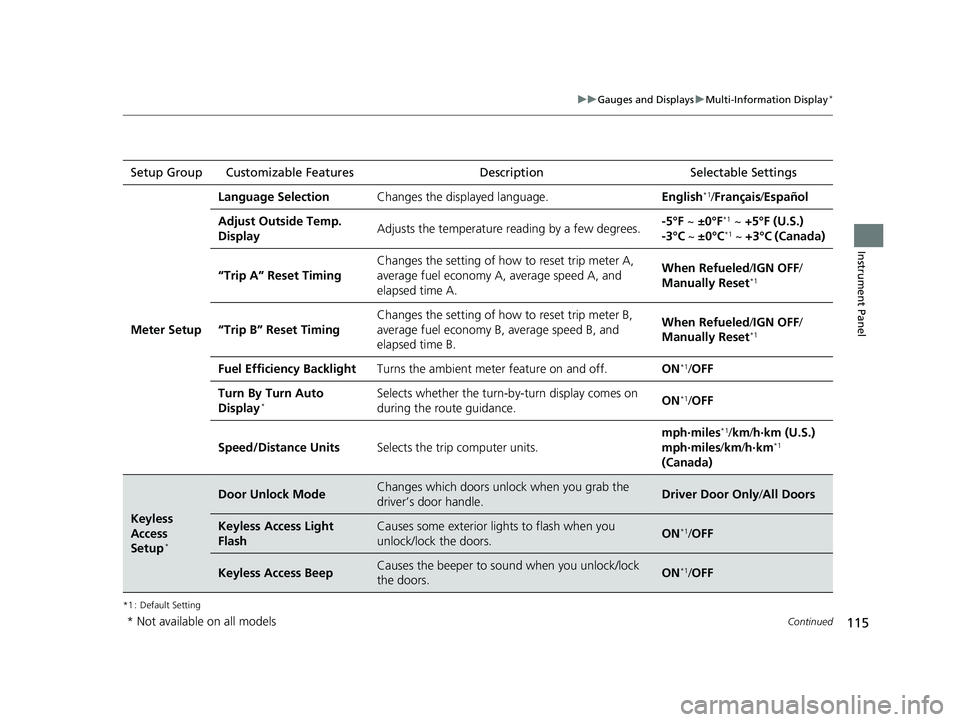

115
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1 : Default Setting
Setup Group Customizable Features Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature r eading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.When Refueled /IGN OFF /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of ho w to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.When Refueled /IGN OFF /
Manually Reset*1
Fuel Efficiency BacklightTurns the ambient meter feature on and off.ON*1/ OFF
Turn By Turn Auto
Display*Selects whether the turn-b y-turn display comes on
during the route guidance.ON*1/ OFF
Speed/Distance UnitsSelects the trip computer units.
mph∙miles*1/ km/ h∙km (U.S.)
mph∙miles /km/ h∙km*1
(Canada)
Keyless
Access
Setup
*
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only /All Doors
Keyless Access Light
FlashCauses some exterior li ghts to flash when you
unlock/lock the doors.ON*1/ OFF
Keyless Access BeepCauses the beeper to sound when you unlock/lock
the doors.ON*1/OFF
* Not available on all models
19 FIT JAZZ-31T5A6400.book 115 ページ ２０１８年２月２６日　月曜日　午後４時３０分

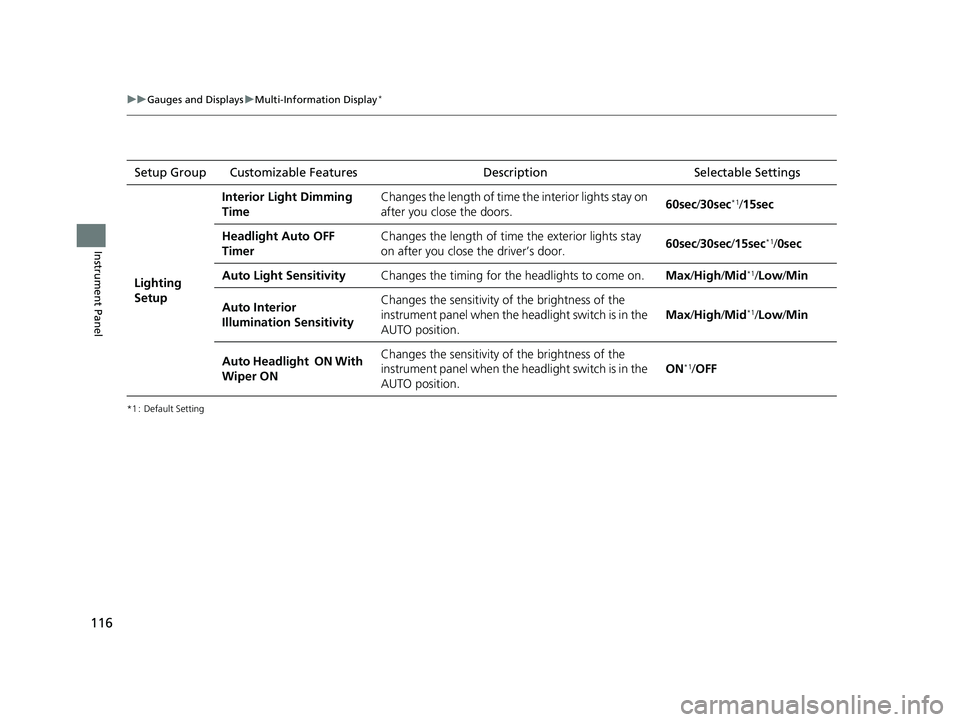

116
uuGauges and Displays uMulti-Information Display*
Instrument Panel
*1 : Default Setting
Setup Group Customizable Features DescriptionSelectable Settings
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60sec/30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light SensitivityChanges the timing for the headlights to come on.Max/High /Mid*1/Low/ Min
Auto Interior
Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
Max/High /Mid*1/Low/ Min
Auto Headlight ON With
Wiper ONChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in the
AUTO position.
ON*1/OFF
19 FIT JAZZ-31T5A6400.book 116 ページ ２０１８年２月２６日　月曜日　午後４時３０分

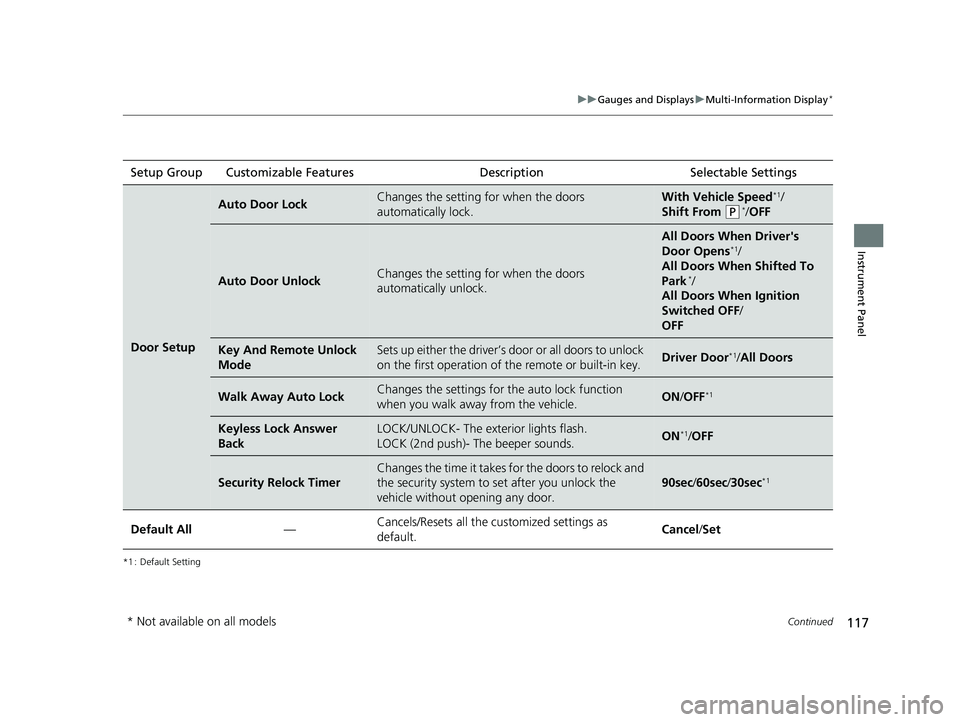

117
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1 : Default Setting
Setup Group Customizable Features Description Selectable Settings
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/
Shift From
(P*/ OFF
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
All Doors When Driver's
Door Opens*1/
All Doors When Shifted To
Park
*/
All Doors When Ignition
Switched OFF /
OFF
Key And Remote Unlock
ModeSets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.Driver Door*1/ All Doors
Walk Away Auto LockChanges the settings for the auto lock function
when you walk away from the vehicle.ON /OFF*1
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec /60sec /30sec*1
Default All—Cancels/Resets all the customized settings as
default.Cancel /Set
* Not available on all models
19 FIT JAZZ-31T5A6400.book 117 ページ ２０１８年２月２６日　月曜日　午後４時３０分

118
uuGauges and Displays uMulti-Information Display*
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Press the button until Vehicle
Settings appears on the display, then press
the SEL/RESET button.
2. Press the button until Meter
Setup appears on the display.
3. Press the SEL/RESET button.
