Page 11 of 489

HONDA HR-V 2016 2.G User Guide 10
Quick Reference Guide

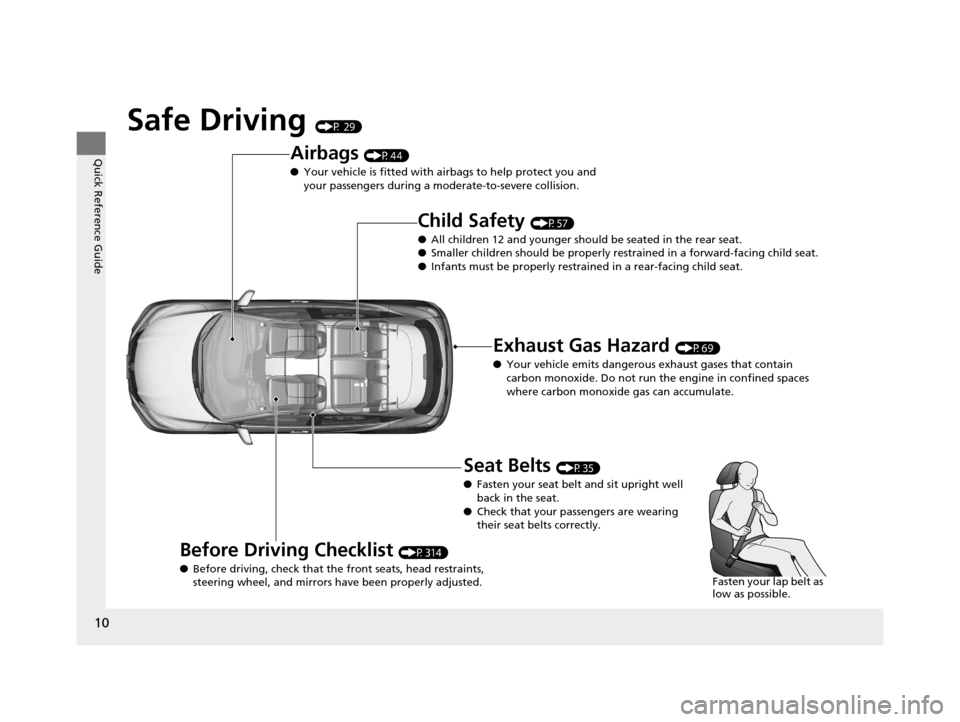

Safe Driving (P 29)
Airbags (P44)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P57)
�

Page 12 of 489

HONDA HR-V 2016 2.G User Guide 11
Quick Reference Guide
Instrument Panel (P71)
Lights Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Anti-lock Brake System
(ABS) IndicatorVehicle Stability Assist
(VSA®) Syste

Page 13 of 489

HONDA HR-V 2016 2.G User Guide 12
Quick Reference Guide
Controls (P93)
Clock (P94)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
The clock in the information display is
automatical

Page 14 of 489

HONDA HR-V 2016 2.G User Guide 13
Quick Reference Guide
ENGINE START/STOP
Button
* (P123)
Press the button to change the vehicle’s
power mode.
Turn Signals (P127)
Lights (P127)
Turn Signal Control Lever
Right
Left
Light Control

Page 15 of 489

HONDA HR-V 2016 2.G User Guide 14
Quick Reference Guide

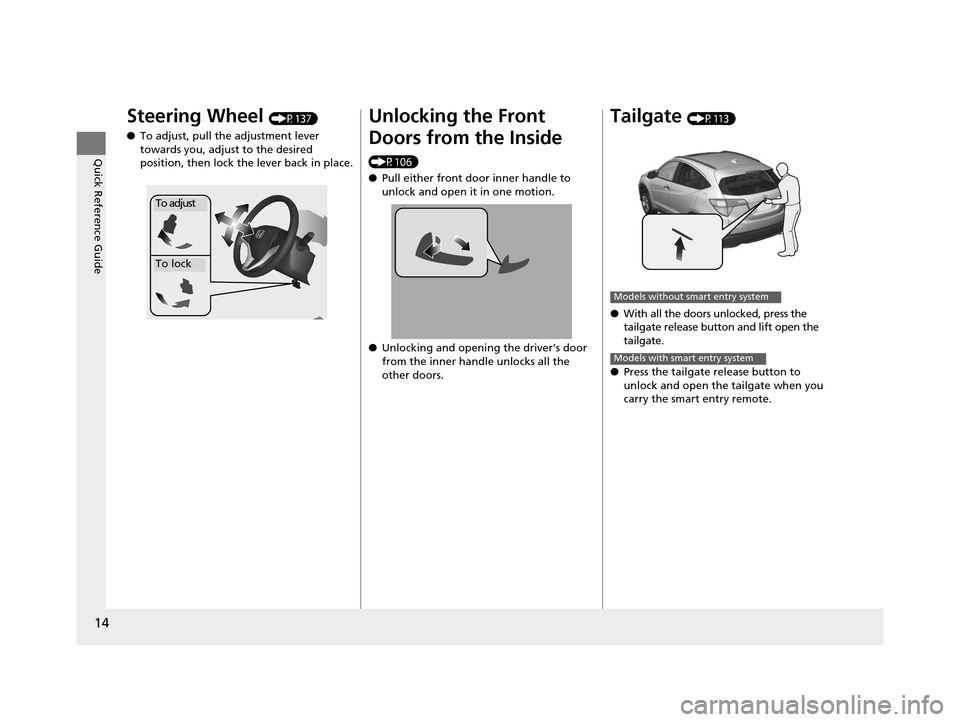

Steering Wheel (P137)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
To adjust
To lock
Unlocking th

Page 16 of 489

HONDA HR-V 2016 2.G User Guide 15
Quick Reference Guide

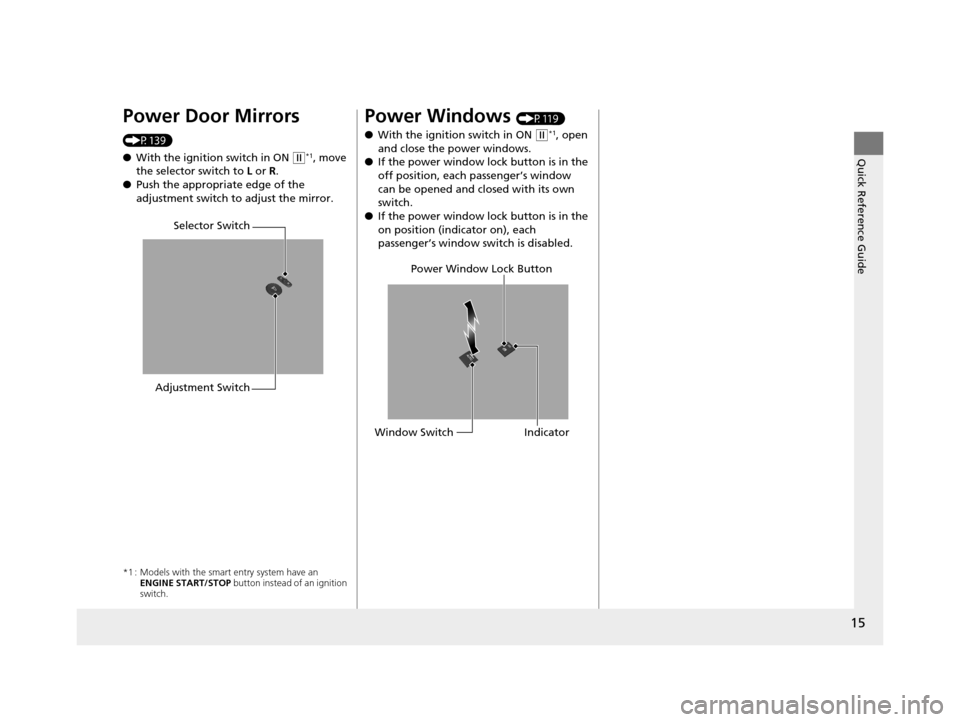

Power Door Mirrors
(P139)
●With the ignition switch in ON
(w*1, move
the selector switch to  L or  R.
● Push the appropriate edge of the
adjustment switch to adjust th

Page 17 of 489

HONDA HR-V 2016 2.G User Guide 16
Quick Reference Guide

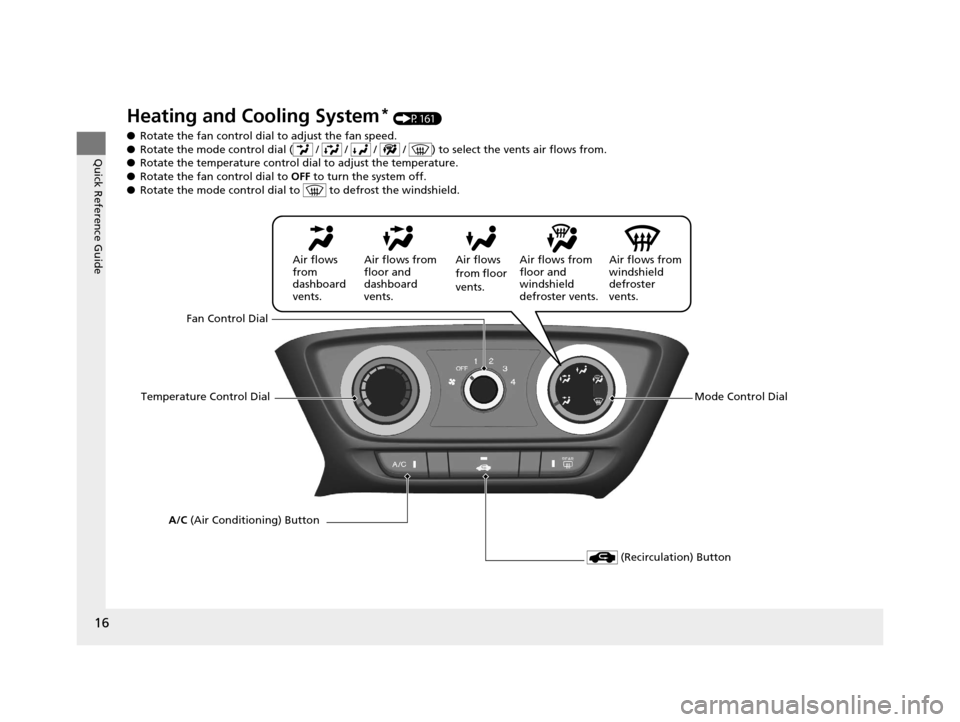

Heating and Cooling System* (P161)
● Rotate the fan control dial  to adjust the fan speed.
● Rotate the mode control dial (  /   /   /   /  ) to select the vents air flows

Page 18 of 489

HONDA HR-V 2016 2.G User Guide 17
Quick Reference Guide

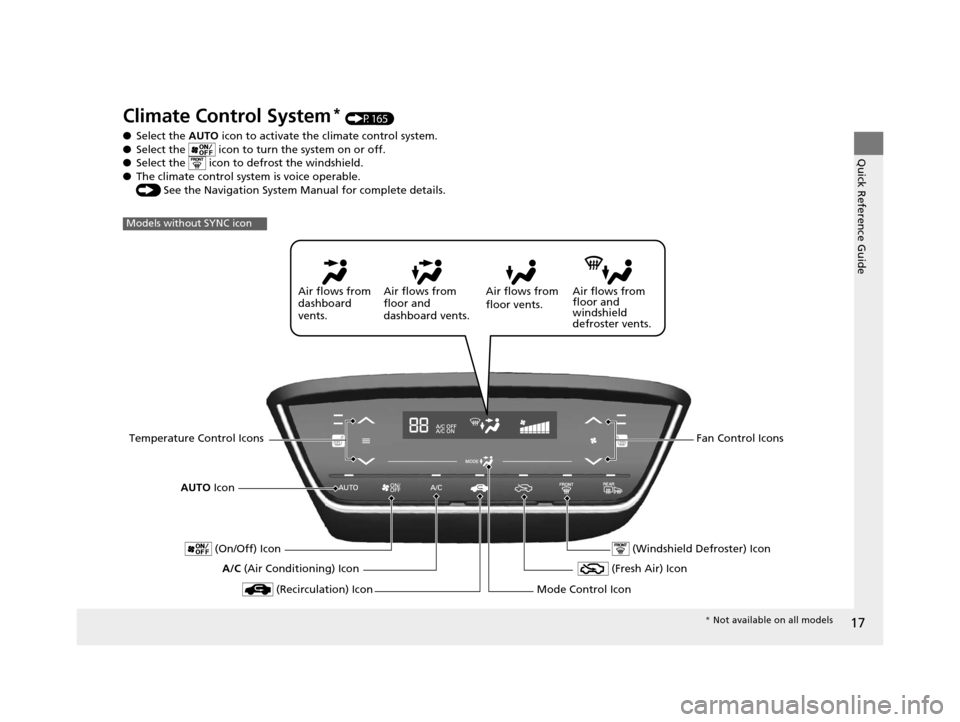

Climate Control System* (P165)
● Select the AUTO  icon to activate the climate control system.
● Select the   icon to tu rn the system on or off.
● Select the   icon to

Page 19 of 489

HONDA HR-V 2016 2.G User Guide 18
Quick Reference Guide

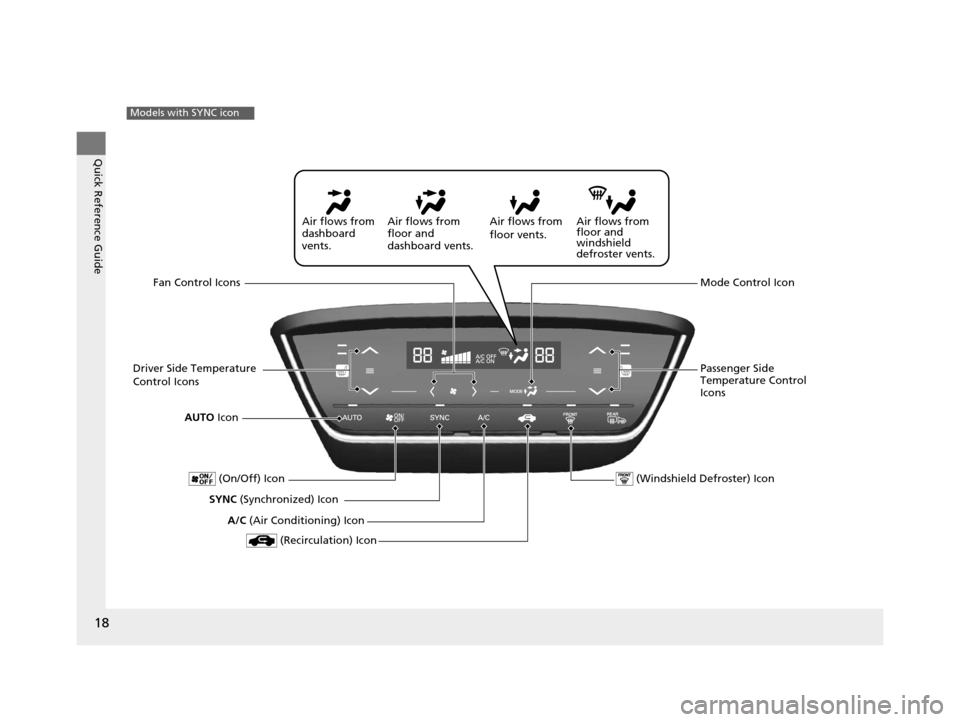

Models with SYNC icon
AUTO Icon
SYNC  (Synchronized) Icon Air flows from
floor and
windshield
defroster vents.
Air flows from
floor vents.
Air flows from
floor and
dashb

Page 20 of 489

HONDA HR-V 2016 2.G User Guide 19
Quick Reference Guide

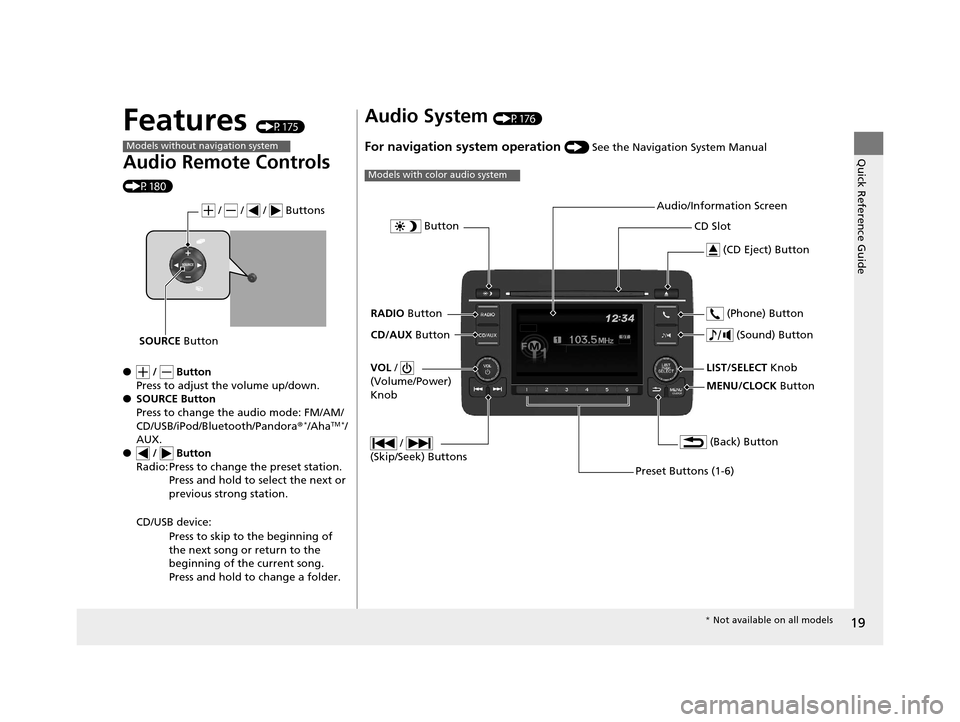

Features (P175)
Audio Remote Controls
(P180)
● /   Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM/AM/
CD/USB/iPod/Bluetooth
